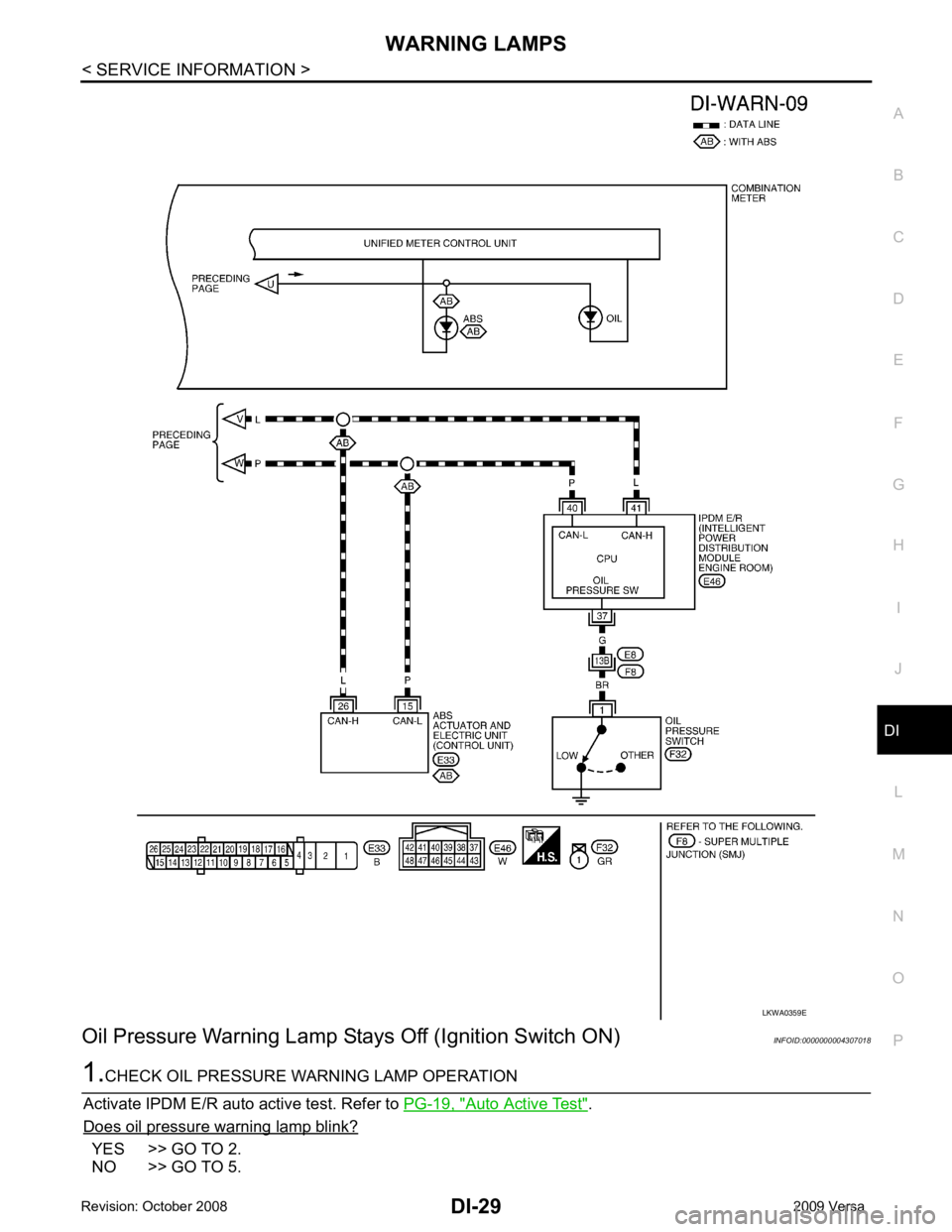

Oil Pressure Warning Lamp Stay
s Off (Ignition Switch ON) INFOID:0000000004307018 Auto Active Test " .
Does oil pressure warning lamp blink? YES >> GO TO 2.
NO >> GO TO 5.

OK >> Replace IPDM E/R. Refer to
PG-27, " Removal and
Installation of IPDM E/R " .
NG >> GO TO 3. Component Inspection " .
OK or NG OK >> GO TO 4.
NG >> Replace oil pressure switch. OK >> Replace IPDM E/R. Refer to
PG-27, " Removal and
Installation of IPDM E/R " .
NG >> Repair harness or connector. - diagnostic results content
No malfunction detected>>GO TO 6.
Malfunction detected>> Check applicable parts, and repair or replace as necessary. OK >> Replace combination meter. Refer to
IP-12, " Removal and Installation " .
NG >> Replace IPDM E/R. Refer to PG-27, " Removal and Installation of IPDM E/R " .
Terminals
ConditionVoltage (Ap-
prox.)
(+)
(–)
IPDM E/R
connector Terminal
E46 37 Ground Engine stopped 0 V

DI
N
O P

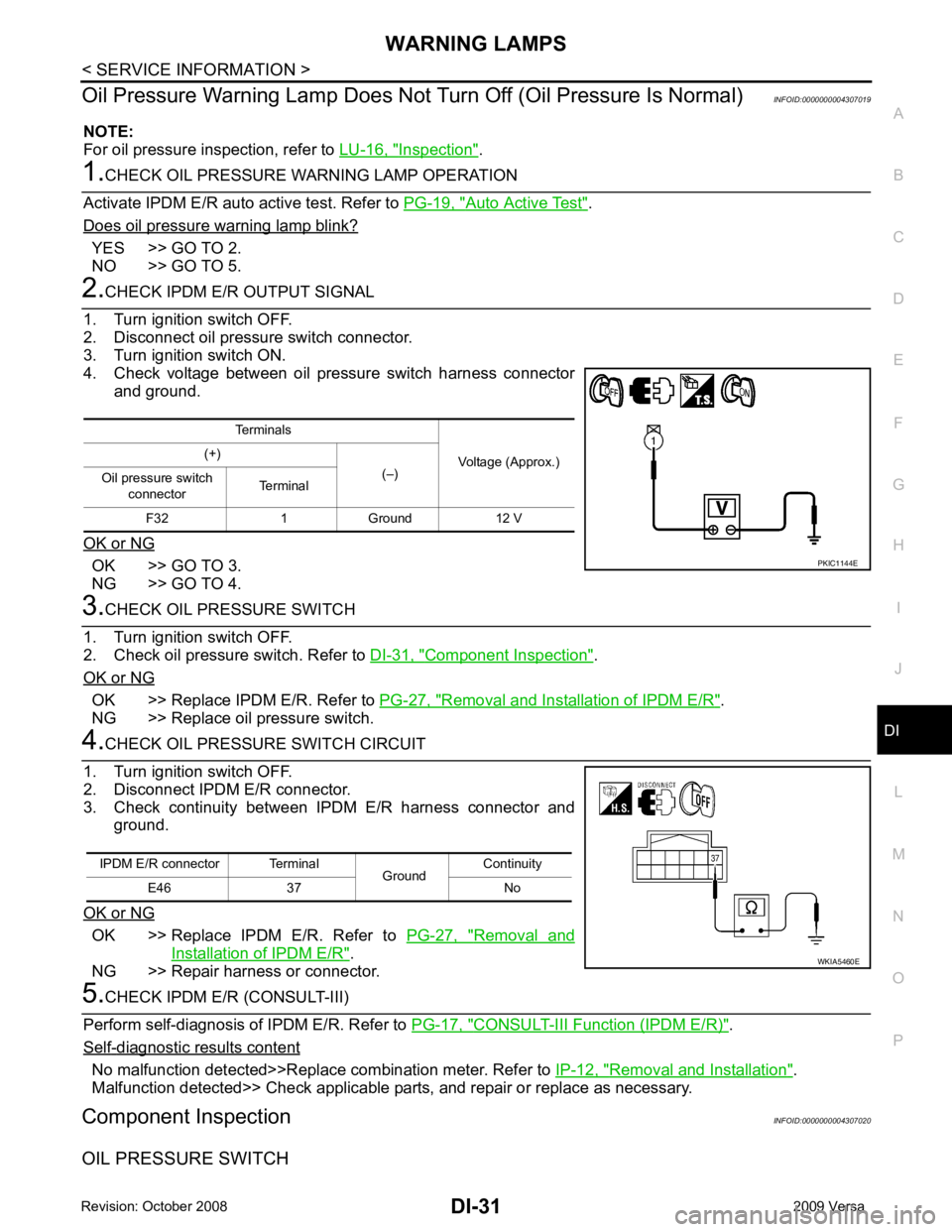

Oil Pressure Warning Lamp Does Not
Turn Off (Oil Pressure Is Normal)INFOID:0000000004307019
NOTE:
For oil pressure inspection, refer to LU-16, " Inspection " .
Auto Active Test " .
Does oil pressure warning lamp blink? YES >> GO TO 2.
NO >> GO TO 5. OK >> GO TO 3.
NG >> GO TO 4. Component Inspection " .
OK or NG OK >> Replace IPDM E/R. Refer to
PG-27, " Removal and Installation of IPDM E/R " .
NG >> Replace oil pressure switch. OK >> Replace IPDM E/R. Refer to
PG-27, " Removal and
Installation of IPDM E/R " .
NG >> Repair harness or connector. CONSULT-III Function (IPDM E/R) " .
Self - diagnostic results content
No malfunction detected>>Replace combination meter. Refer to
IP-12, " Removal and Installation " .
Malfunction detected>> Check applicable parts, and repair or replace as necessary.
Component Inspection INFOID:0000000004307020
OIL PRESSURE SWITCH Terminals
Voltage (Approx.)
(+)
(–)
Oil pressure switch
connector Terminal
F32 1 Ground 12 V

DI
N
O P
A/T INDICATOR

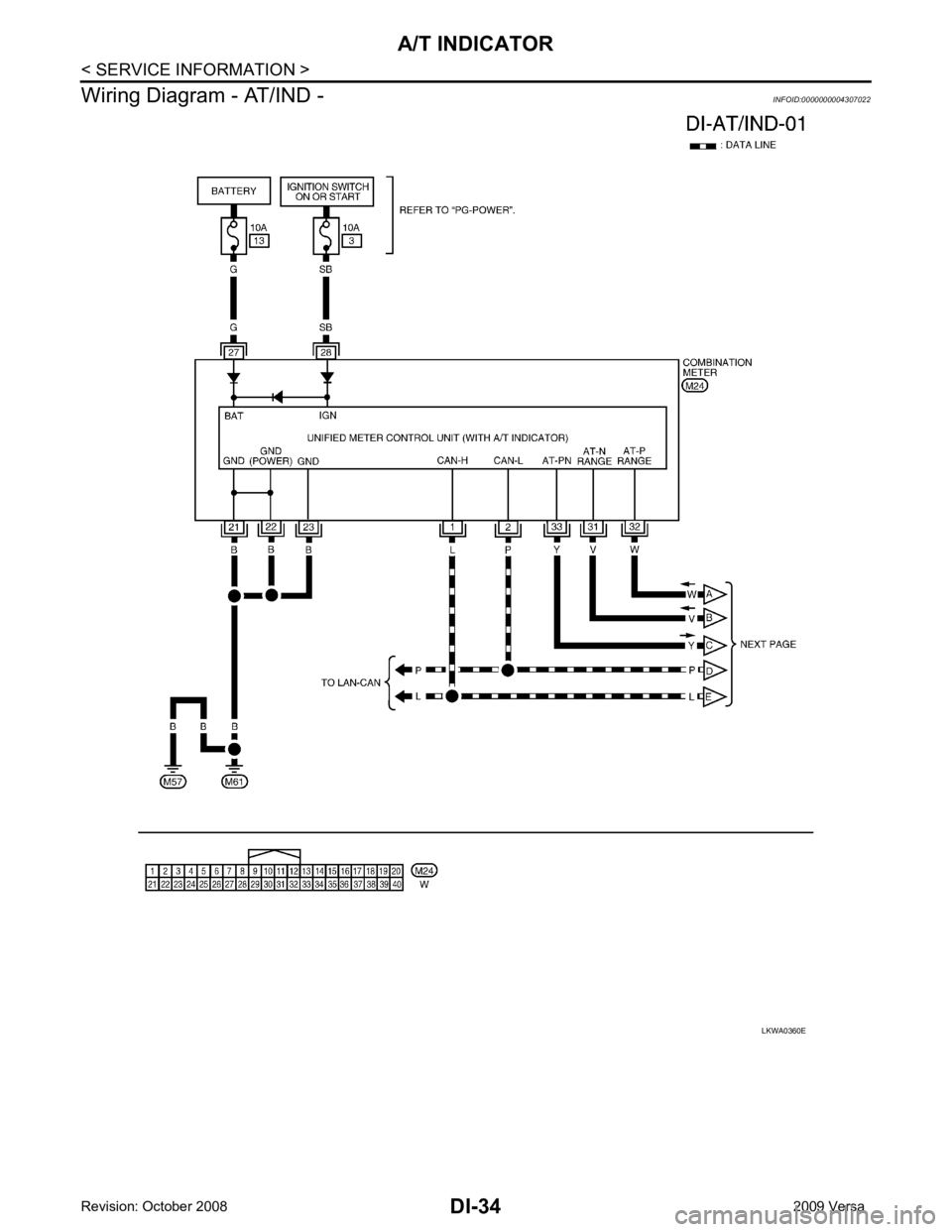

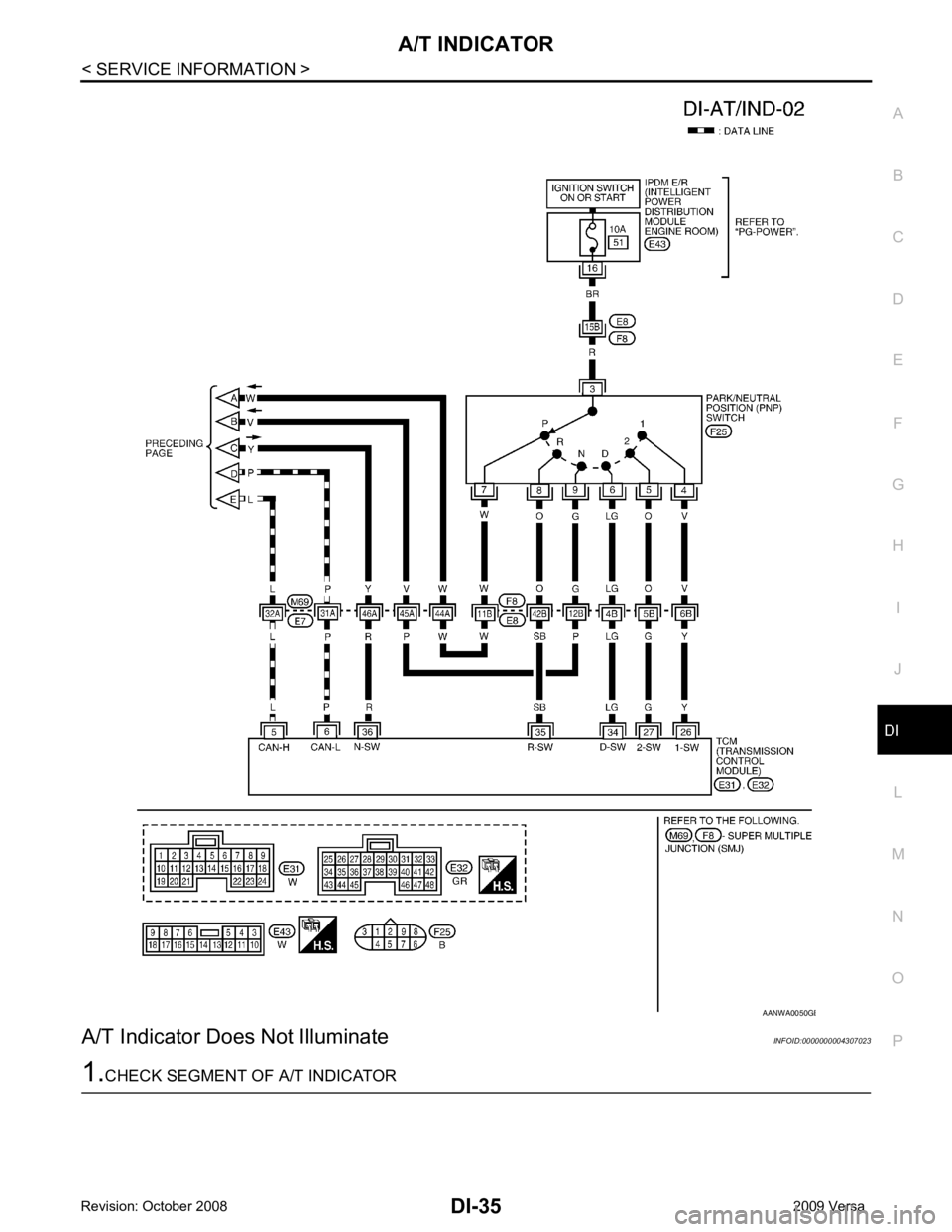

System Description INFOID:0000000004307021

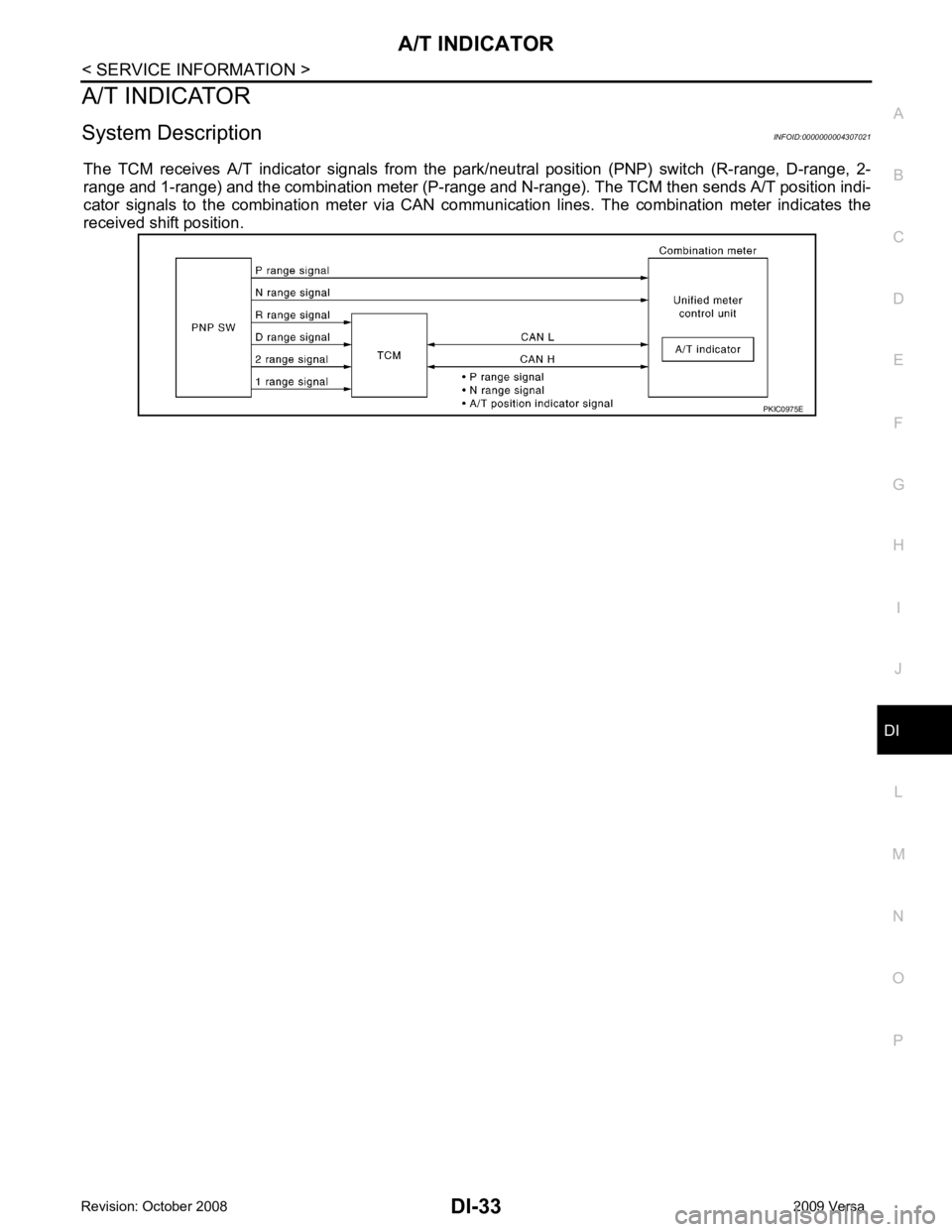

The TCM receives A/T indicator signals from the pa rk/neutral position (PNP) switch (R-range, D-range, 2-
range and 1-range) and the combination meter (P-range and N-range). The TCM then sends A/T position indi-
cator signals to the combination meter via CAN communication lines. The combination meter indicates the
received shift position.

DI
N
O P

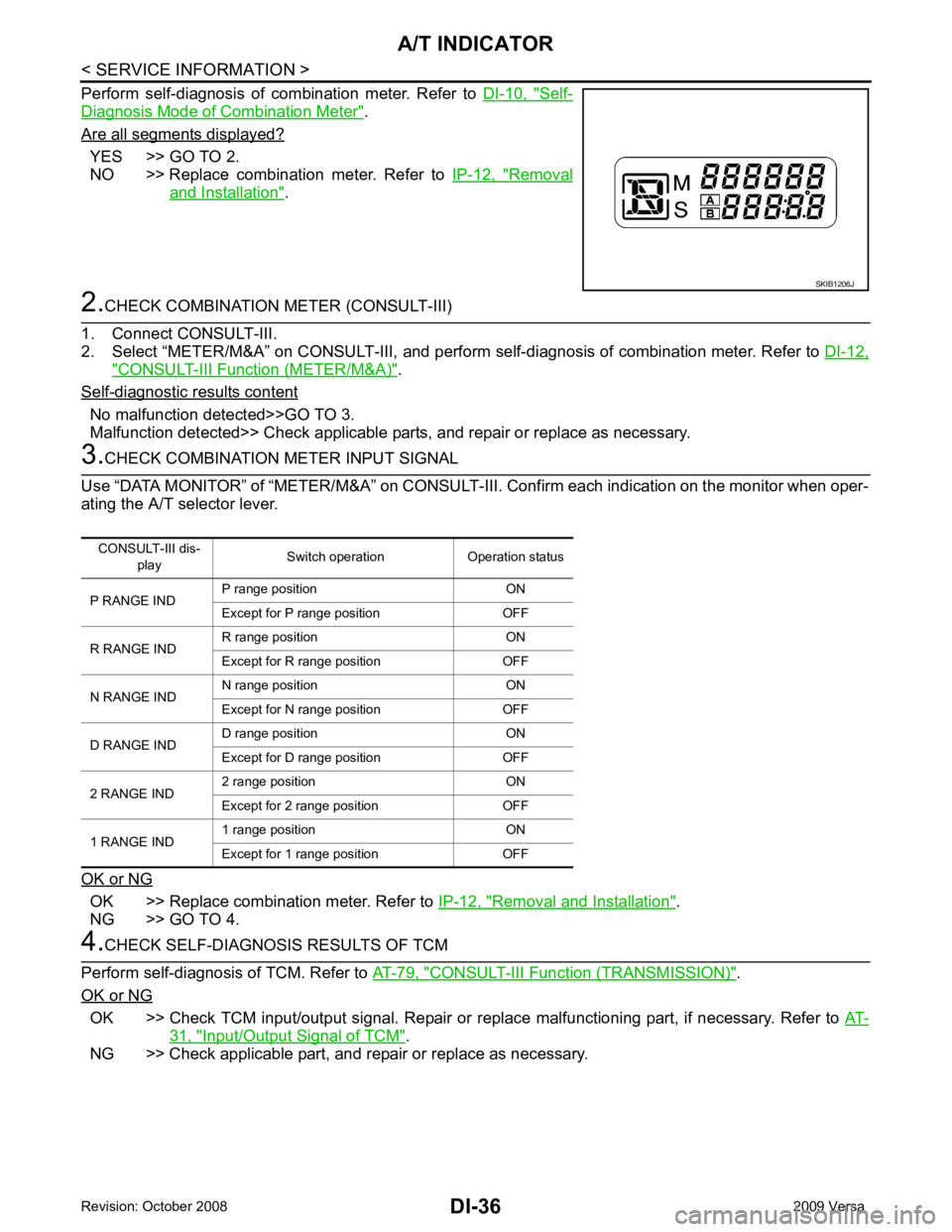

A/T Indicator Does
Not Illuminate INFOID:0000000004307023 B

Self-
Diagnosis Mode of Combination Meter " .
Are all segments displayed? YES >> GO TO 2.
NO >> Replace combination meter. Refer to IP-12, " Removal
and Installation " .
" CONSULT-III Function (METER/M&A) " .
Self - diagnostic results content
No malfunction detected>>GO TO 3.
Malfunction detected>> Check applicable parts, and repair or replace as necessary. OK >> Replace combination meter. Refer to
IP-12, " Removal and Installation " .
NG >> GO TO 4. CONSULT-III Functi
on (TRANSMISSION) " .
OK or NG OK >> Check TCM input/output signal. Repair or repl
ace malfunctioning part, if necessary. Refer to AT-31, " Input/Output Signal of TCM " .
NG >> Check applicable part, and repair or replace as necessary.

DI
N
O P
CVT INDICATOR
System Description INFOID:0000000004307024
The TCM receives CVT indicator signals from the CVT unit (early production) or the park/neutral position
(PNP) switch (late production). The TCM then sends CVT position indicator signals to the combination meter
via CAN communication lines. The combination meter indicates the received shift position.

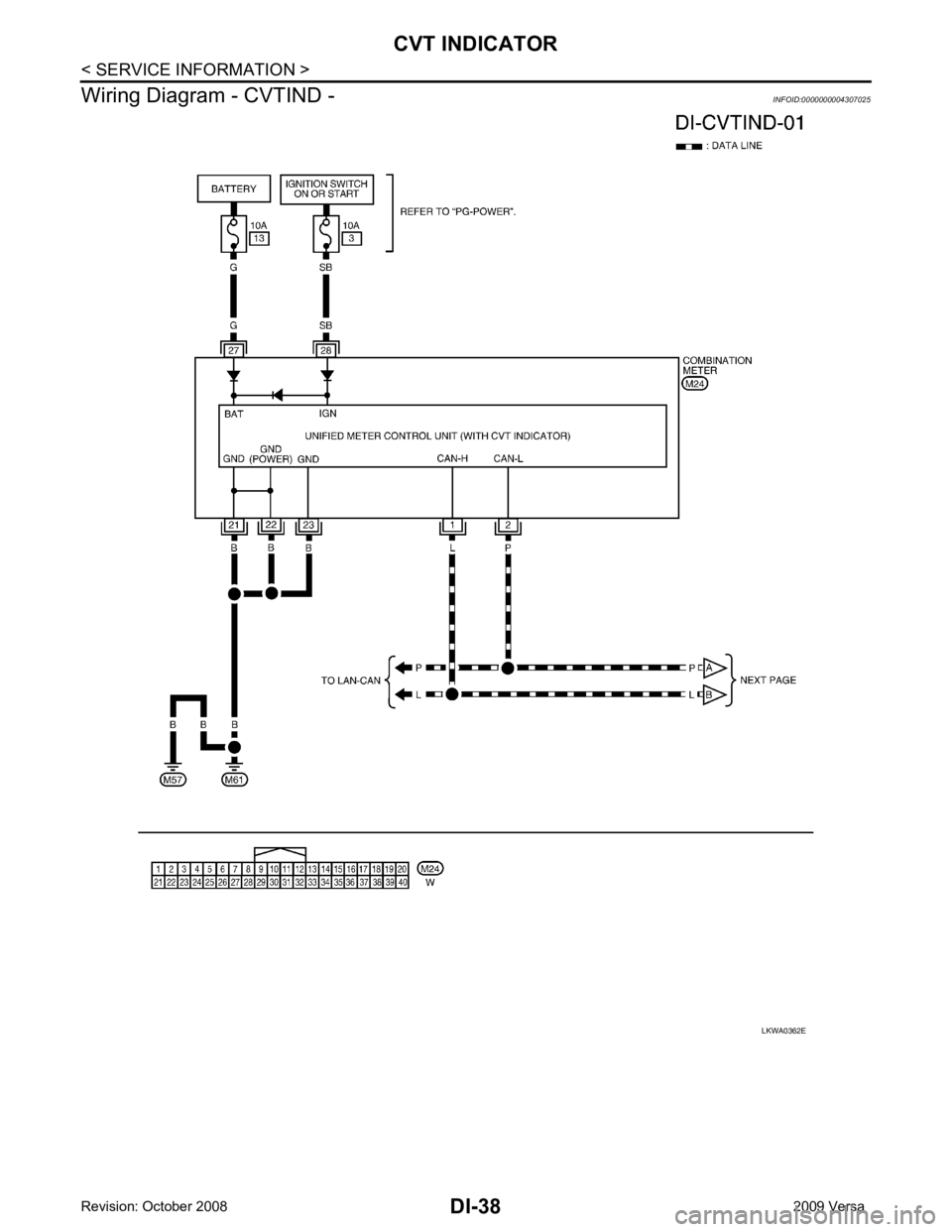

Schematic INFOID:0000000004673020 B
