WARNING LAMPS

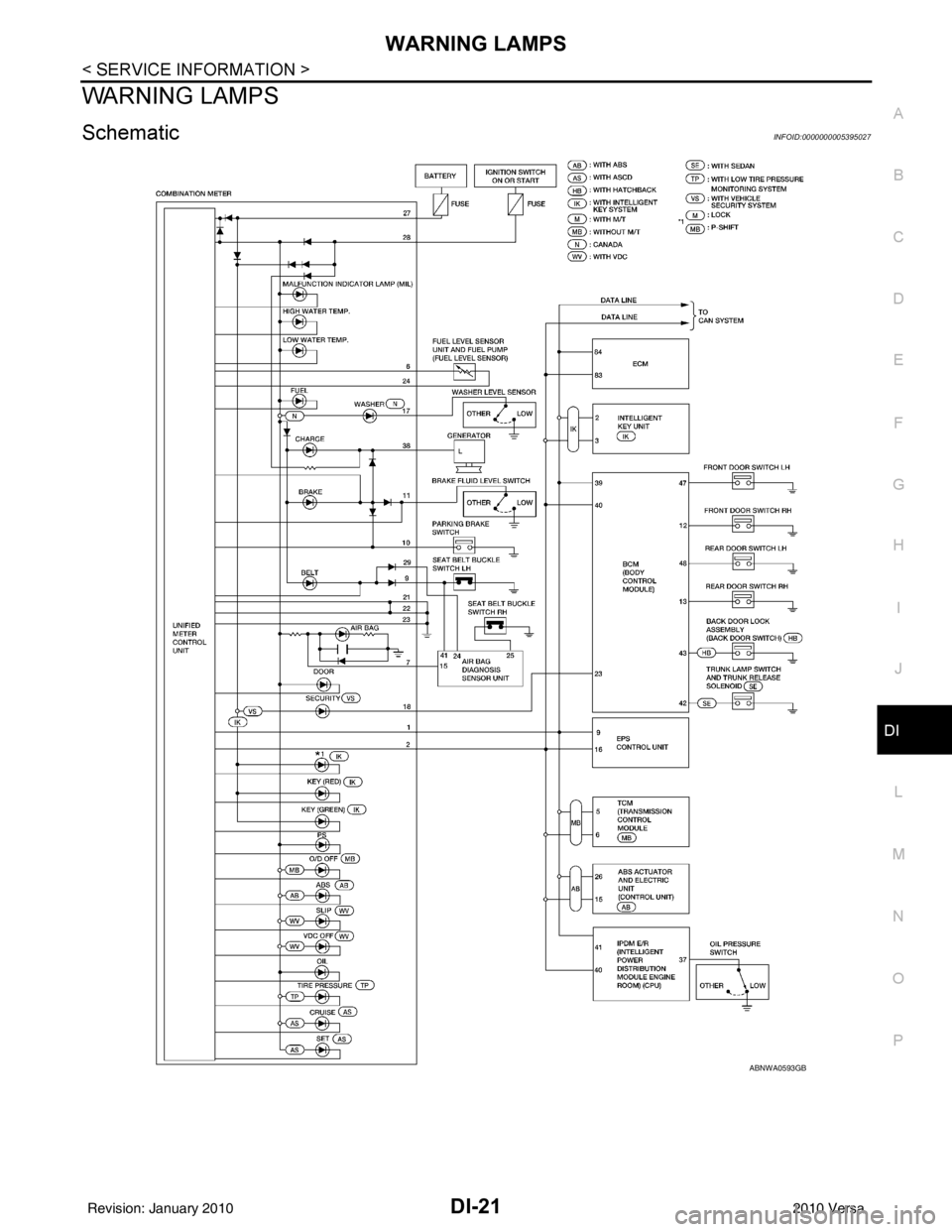

SchematicINFOID:0000000005395027
ABNWA0593GB
Revision: January 20102010 Versa

DI-22
< SERVICE INFORMATION >
WARNING LAMPS

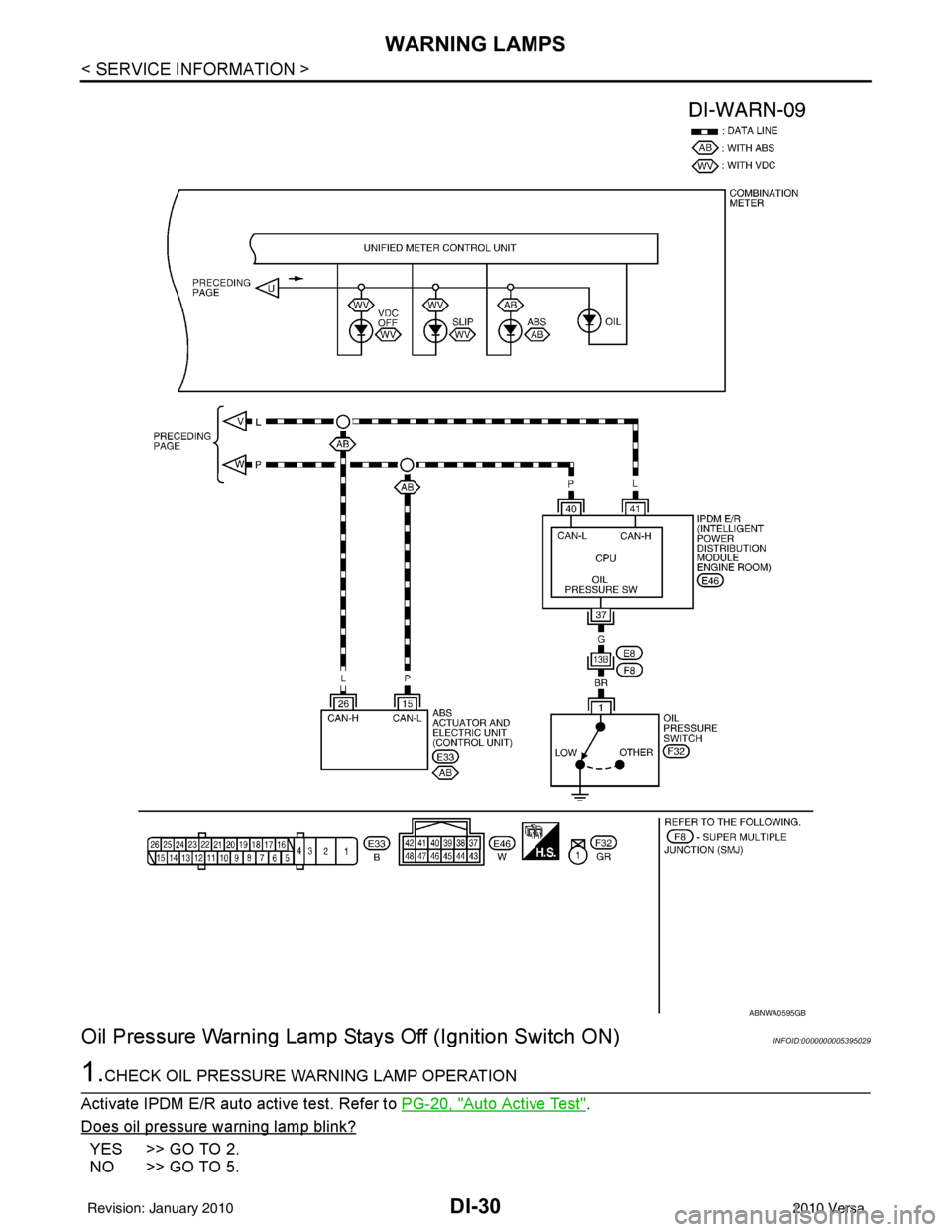

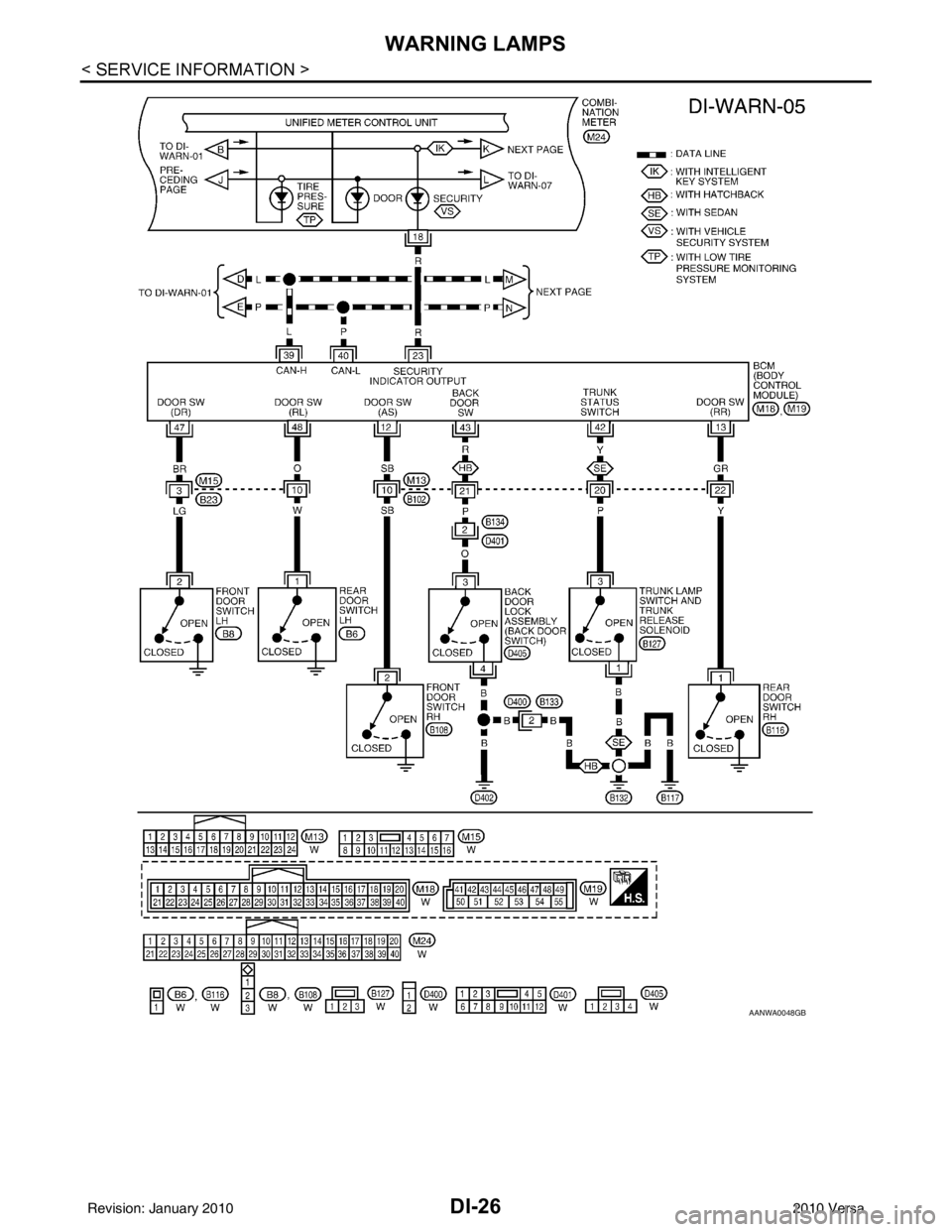

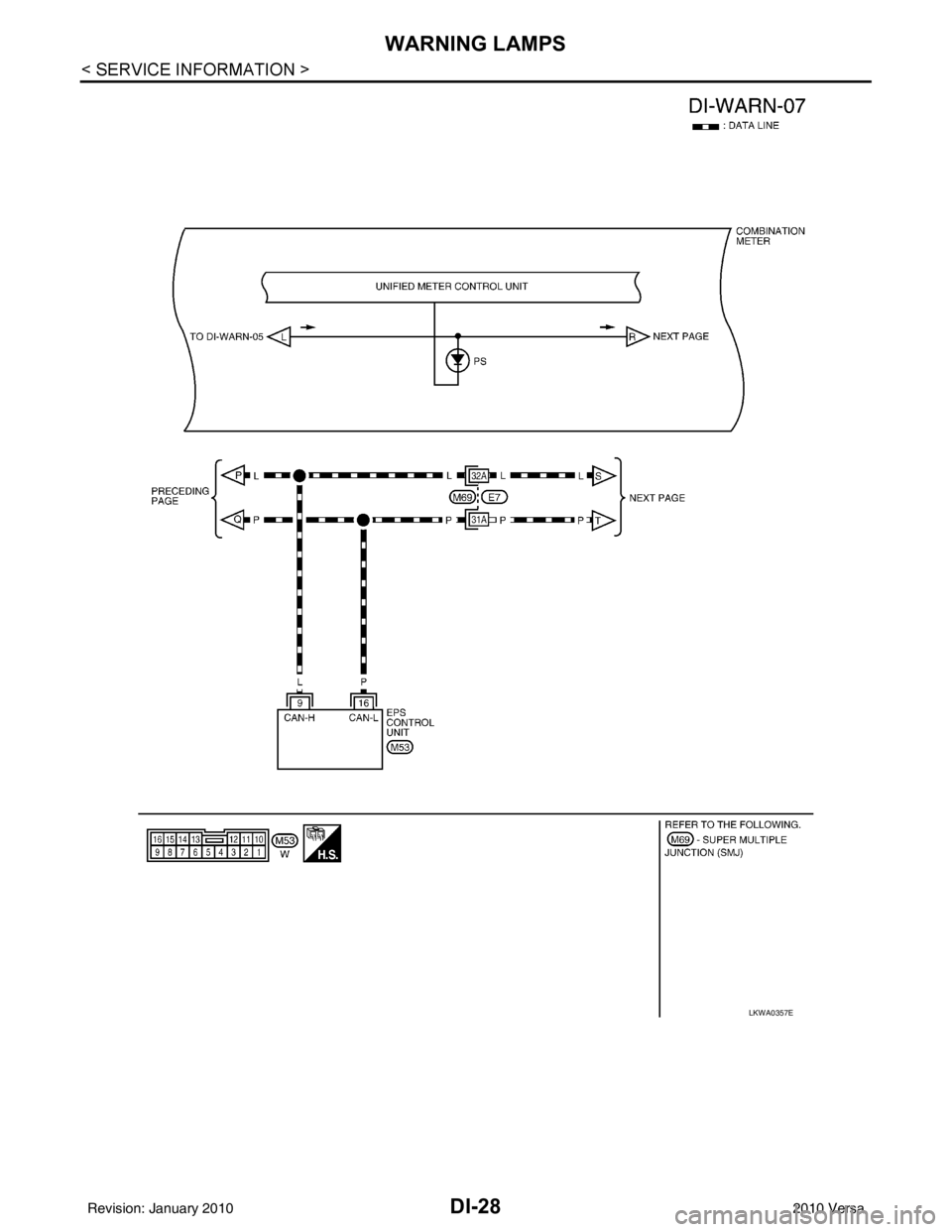

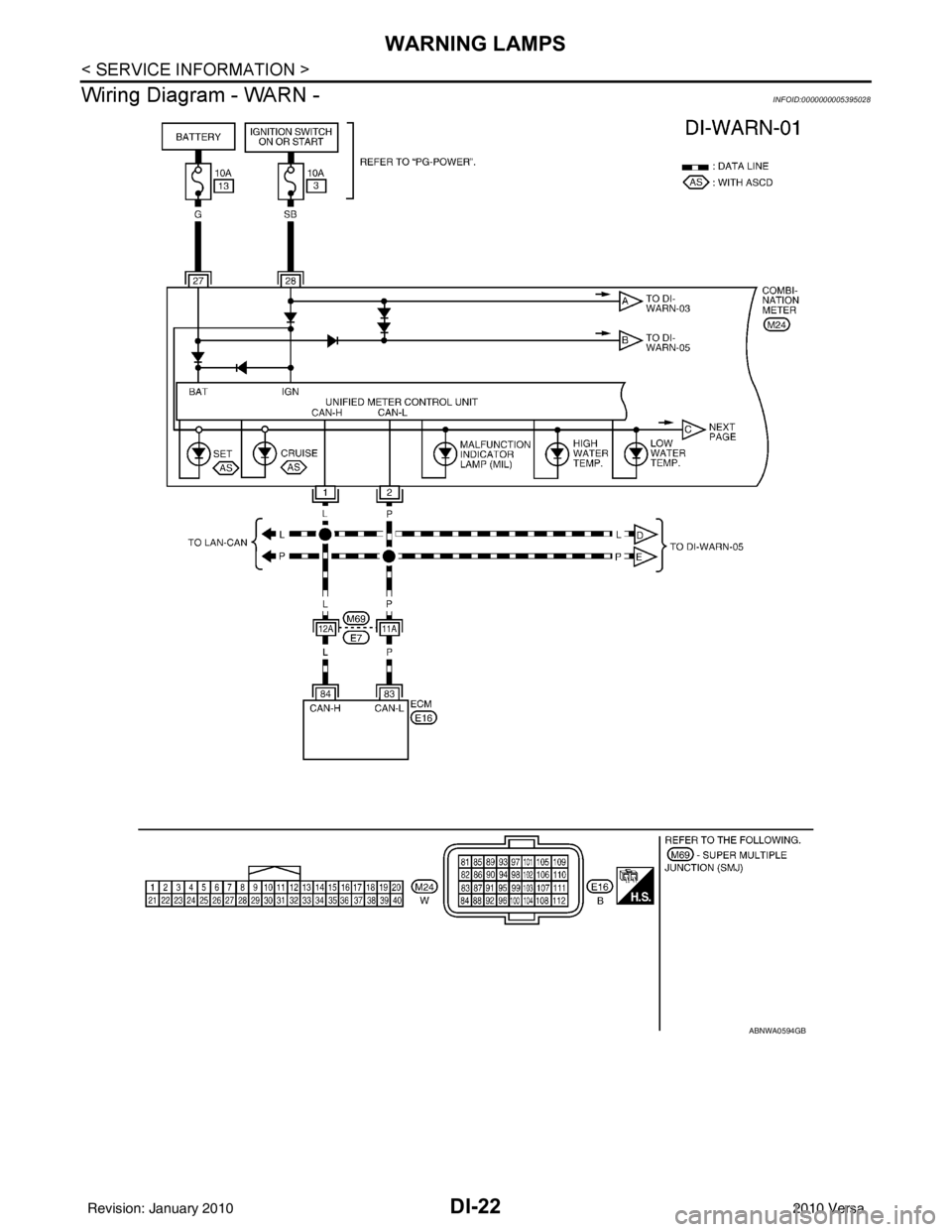

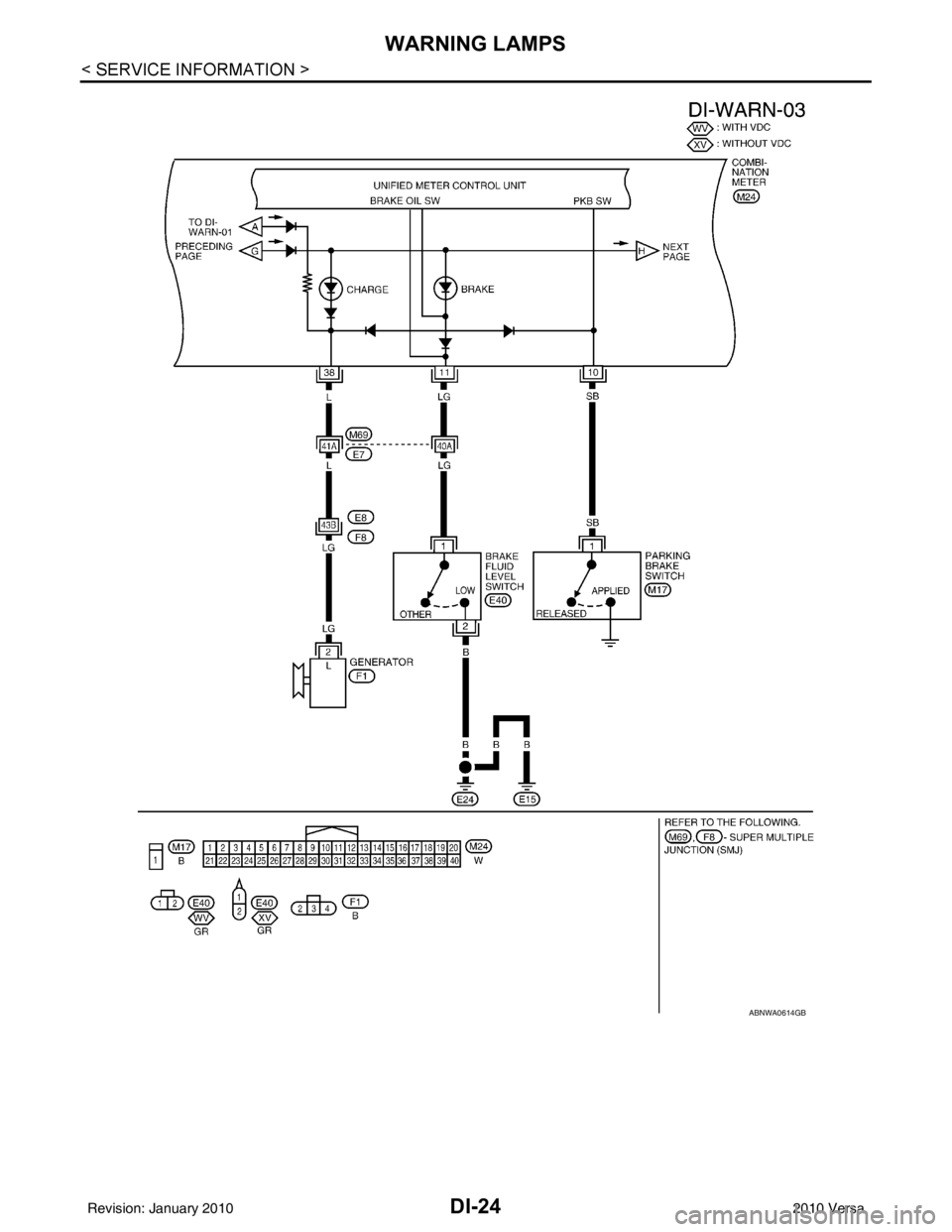

Wiring Diagram - WARN -
INFOID:0000000005395028
ABNWA0594GB
Revision: January 20102010 Versa

WARNING LAMPSDI-23
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
DI
N
O P
AANWA0047GB
Revision: January 20102010 Versa

DI-24
< SERVICE INFORMATION >
WARNING LAMPS
ABNWA0614GB
Revision: January 20102010 Versa

WARNING LAMPSDI-25
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
DI
N
O P

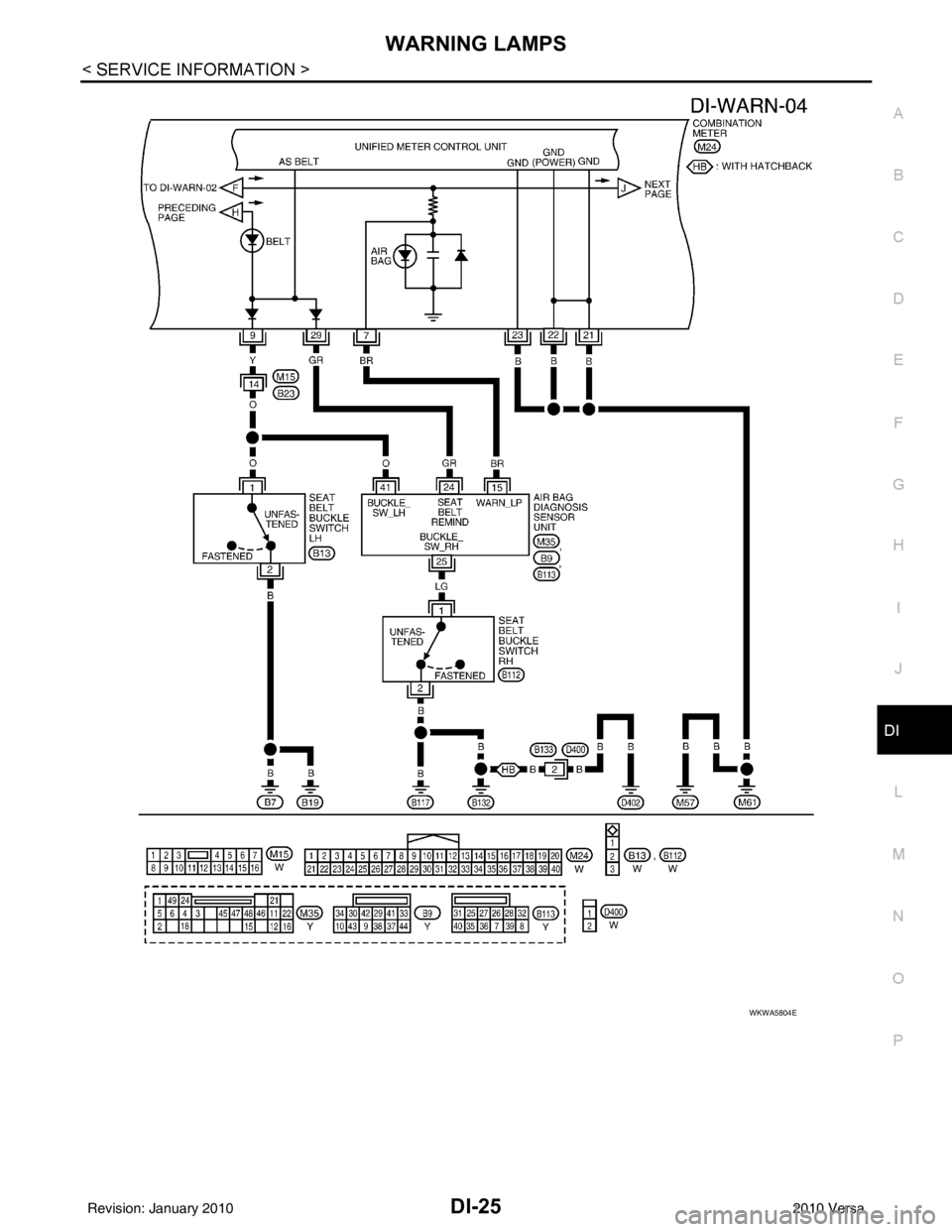

WKWA5804E
Revision: January 20102010 Versa

DI-26
< SERVICE INFORMATION >
WARNING LAMPS
AANWA0048GB
Revision: January 20102010 Versa

WARNING LAMPSDI-27
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
DI
N
O P
AANWA0049GB
Revision: January 20102010 Versa

DI-28
< SERVICE INFORMATION >
WARNING LAMPS

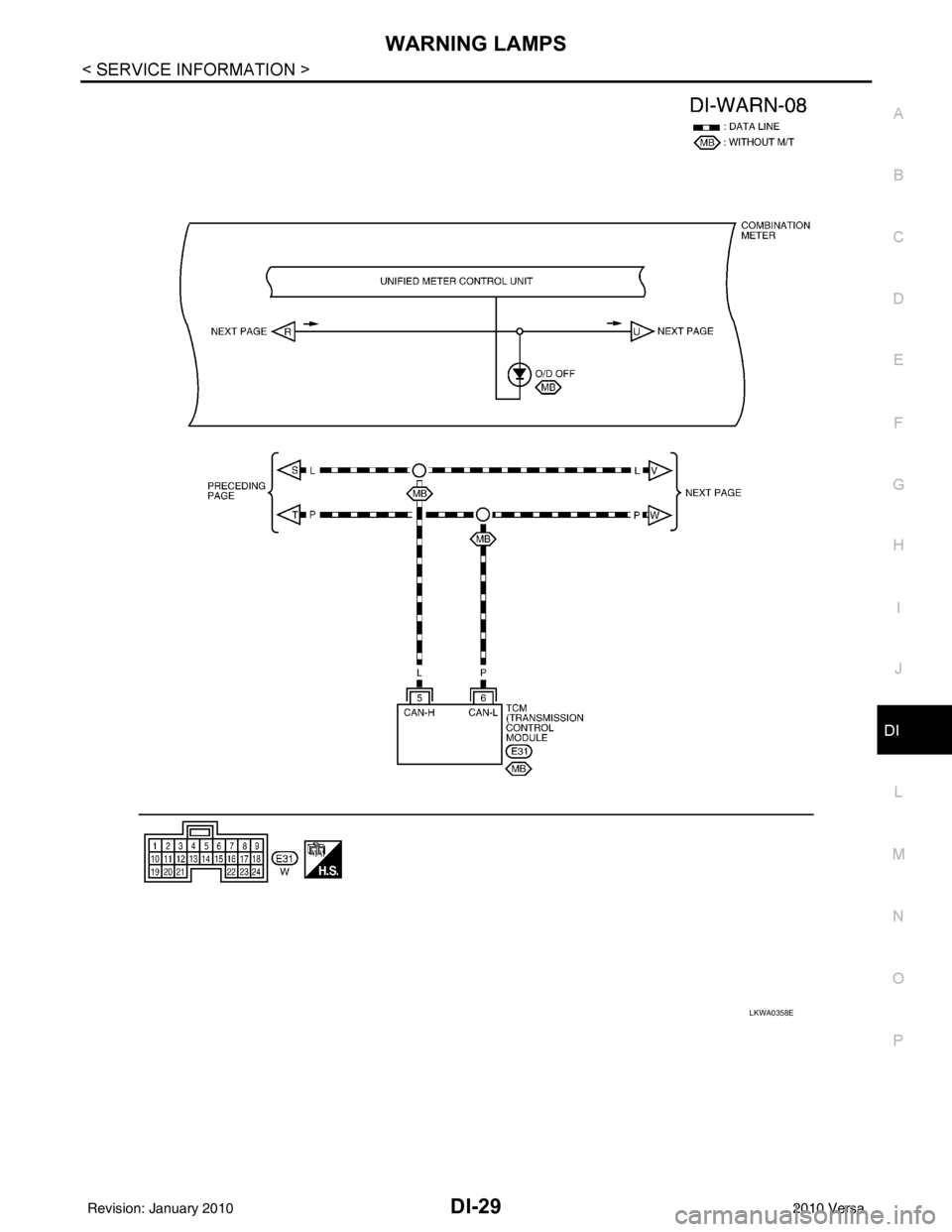

LKWA0357E
Revision: January 20102010 Versa

WARNING LAMPSDI-29
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
DI
N
O P
LKWA0358E
Revision: January 20102010 Versa

DI-30
< SERVICE INFORMATION >
WARNING LAMPS
Oil Pressure Warning Lamp Stays Off (Ignition Switch ON)
INFOID:0000000005395029
1.CHECK OIL PRESSURE WARNING LAMP OPERATION
Activate IPDM E/R auto active test. Refer to PG-20, "
Auto Active Test".
Does oil pressure warning lamp blink?
YES >> GO TO 2.
NO >> GO TO 5.
ABNWA0595GB
