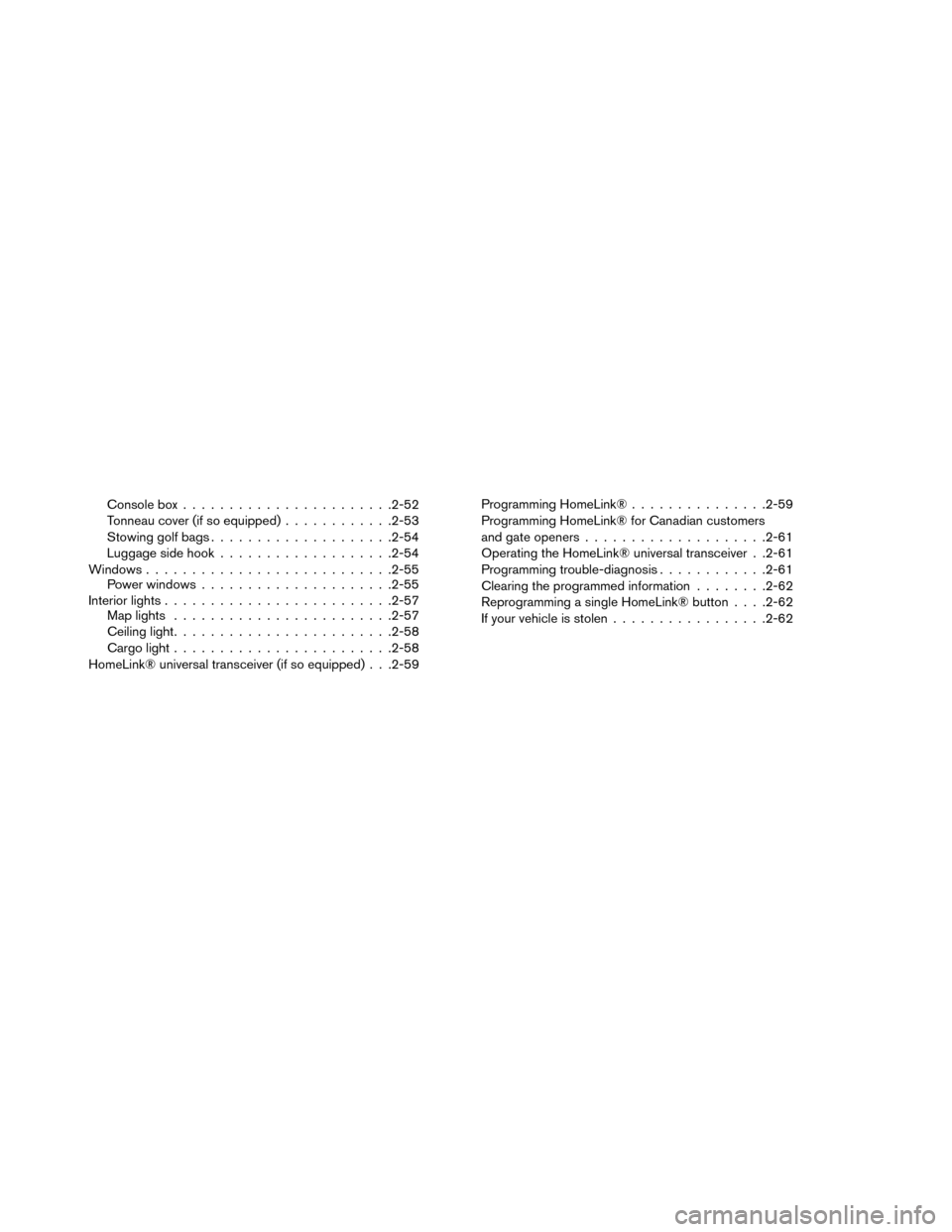

Page 141 of 412

NISSAN LEAF 2015 1.G Owners Manual Console box...................... .2-52
Tonneau cover (if so equipped) ............2-53
Stowing golf bags ................... .2-54
Luggage side hook .................. .2-54
Windows .................

Page 142 of 412

NISSAN LEAF 2015 1.G Owners Manual 1. TRIP switch for twin trip odometer
2. Trip computer switch
3. Instrument brightness control switch
4. Headlight, fog light (if so equipped) and turnsignal switch
— Headlight
— Turn signal light

Page 143 of 412

NISSAN LEAF 2015 1.G Owners Manual 1. Side ventilator
2. Meters and gauges
3. Center multi-function control panel (SeeLEAF Navigation System Owner’s Manual.)
— Navigation system
— Vehicle information and setting buttons
— Bluet

Page 144 of 412

NISSAN LEAF 2015 1.G Owners Manual 1. Master warning lights
2. ECO indicator
3. Speedometer
4. Clock
5. Outside air temperature
6. Turn signal/Hazard indicator light
7. Li-ion battery temperature gauge8. Warning/Indicator lights
9. Pow

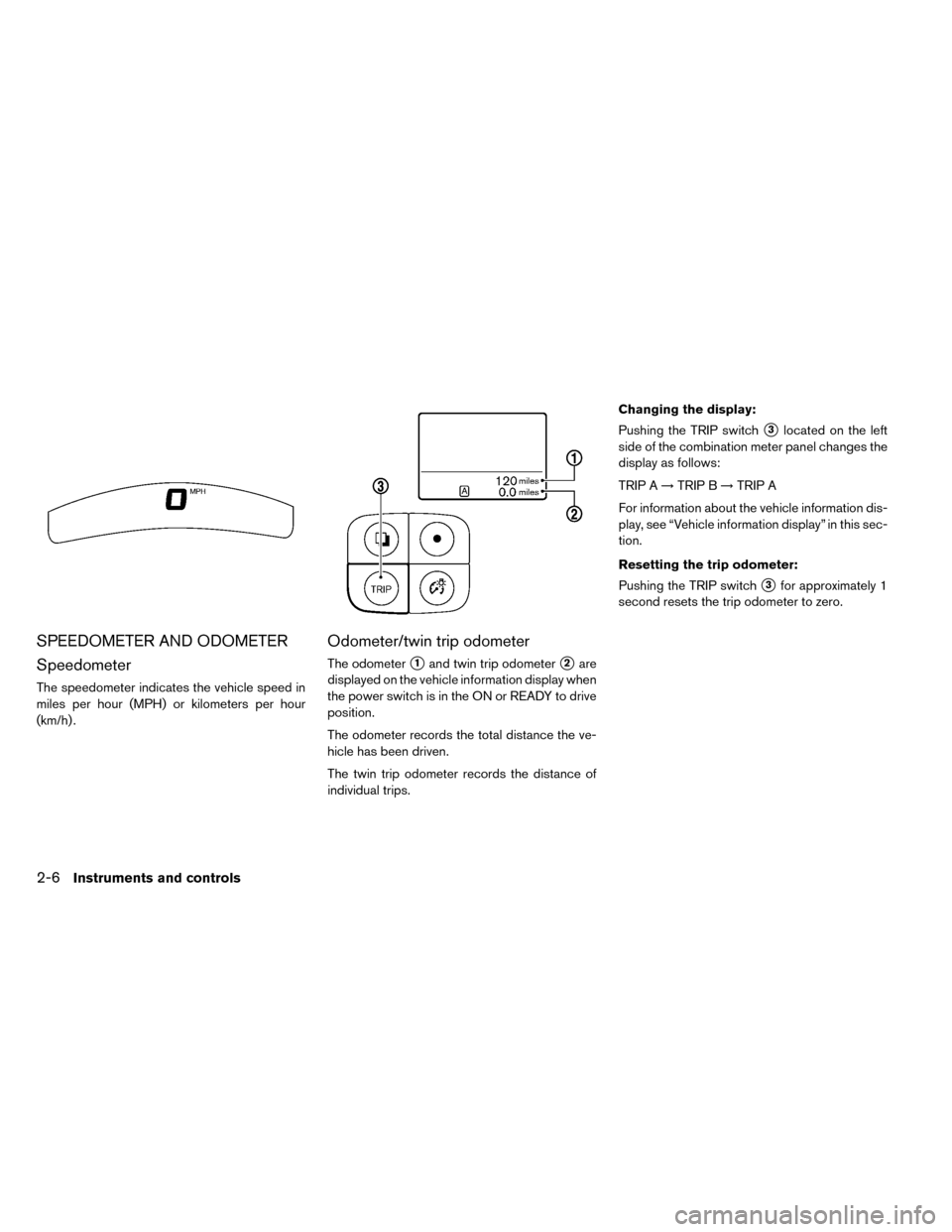

Page 145 of 412

NISSAN LEAF 2015 1.G Owners Manual SPEEDOMETER AND ODOMETER
Speedometer
The speedometer indicates the vehicle speed in
miles per hour (MPH) or kilometers per hour
(km/h) .
Odometer/twin trip odometer
The odometer1and twin trip odomete

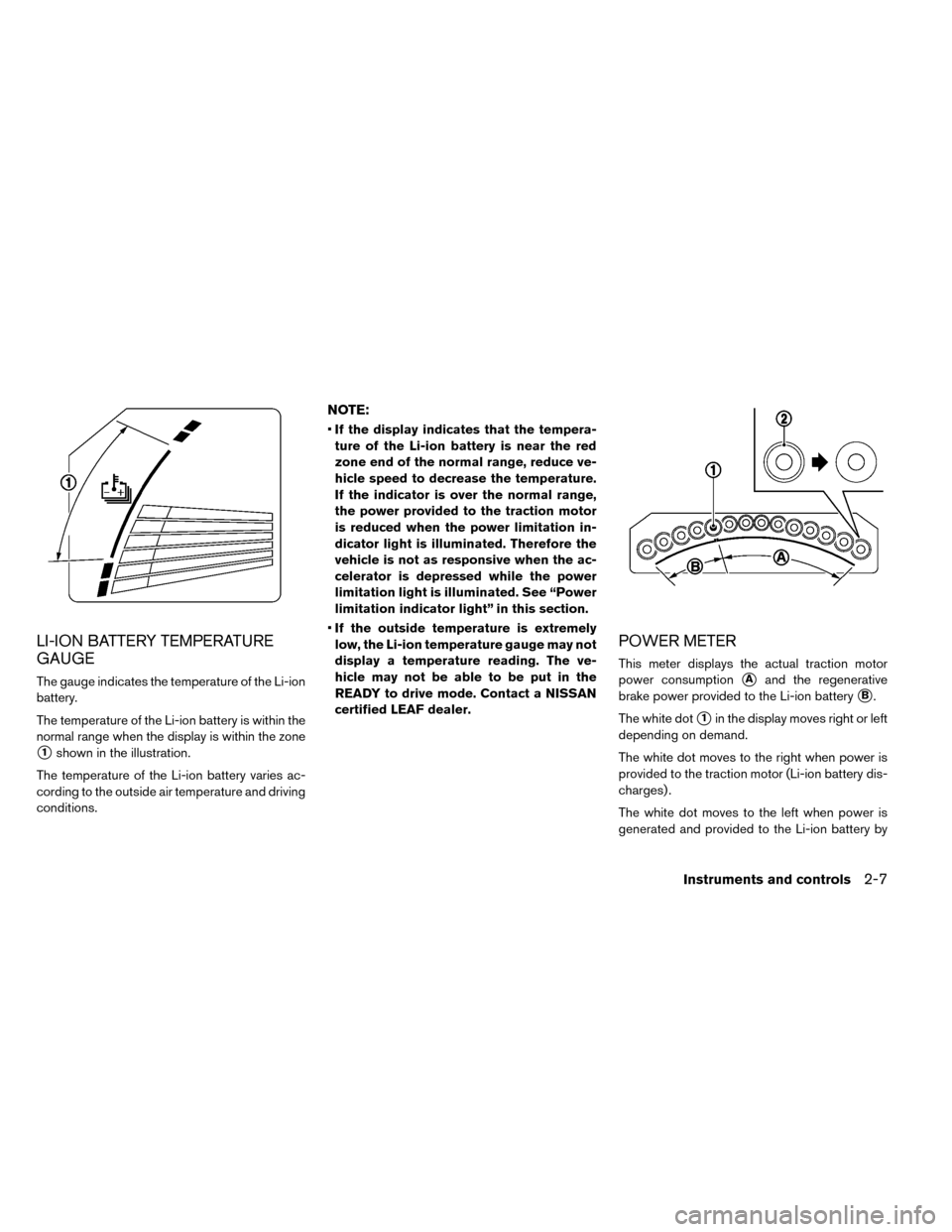

Page 146 of 412

NISSAN LEAF 2015 1.G Owners Manual LI-ION BATTERY TEMPERATURE
GAUGE
The gauge indicates the temperature of the Li-ion
battery.
The temperature of the Li-ion battery is within the
normal range when the display is within the zone
1shown

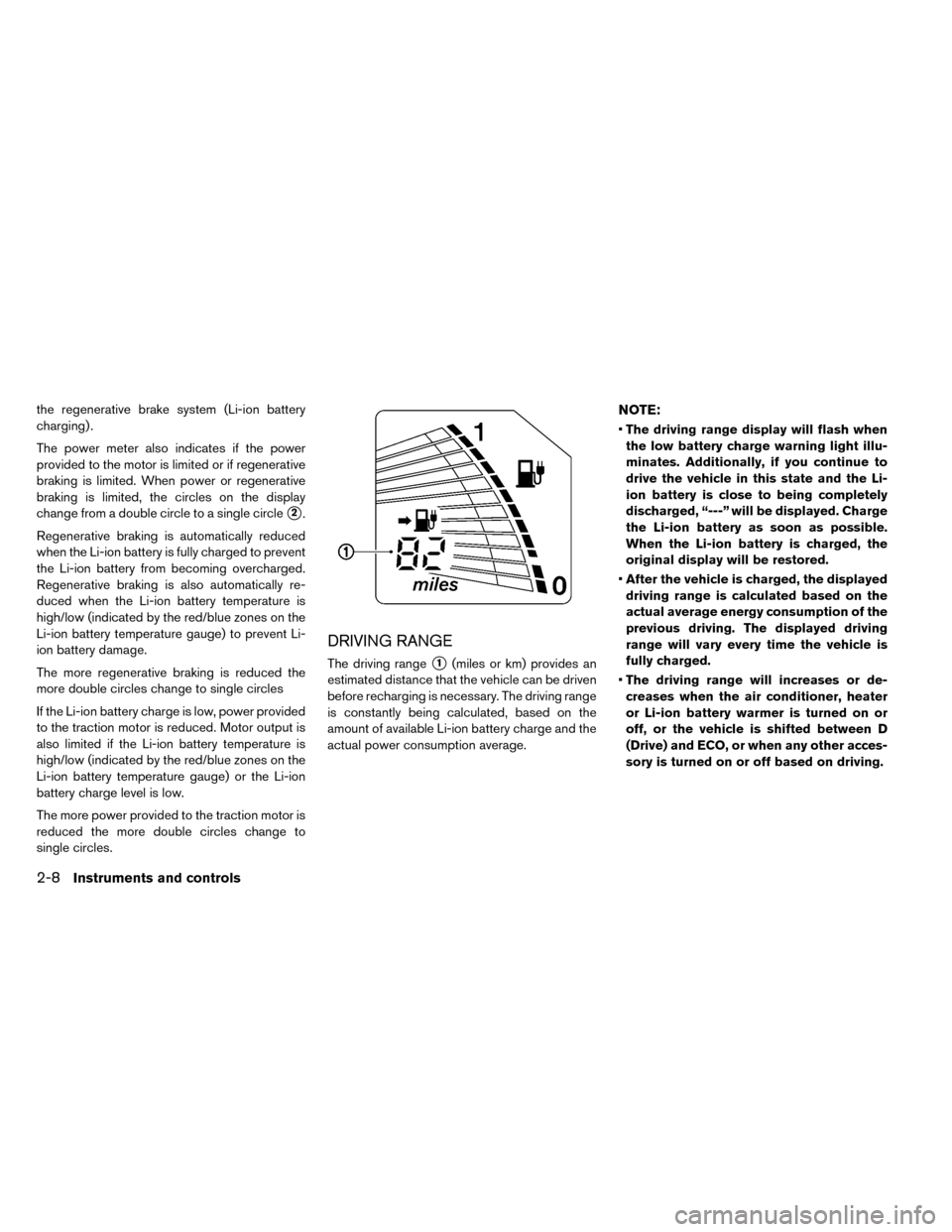

Page 147 of 412

NISSAN LEAF 2015 1.G Owners Manual the regenerative brake system (Li-ion battery
charging) .
The power meter also indicates if the power
provided to the motor is limited or if regenerative
braking is limited. When power or regenerative

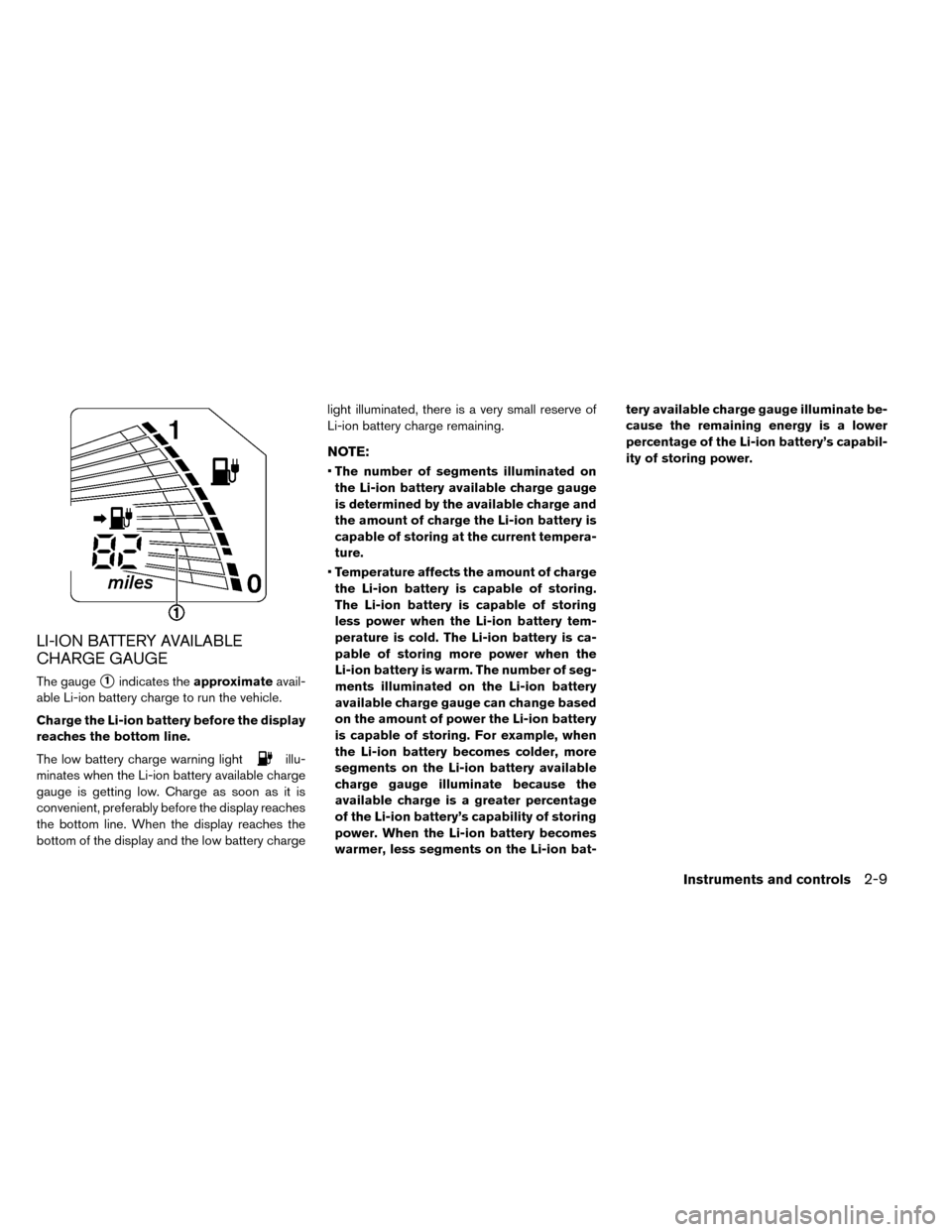

Page 148 of 412

NISSAN LEAF 2015 1.G Owners Manual LI-ION BATTERY AVAILABLE
CHARGE GAUGE
The gauge1indicates theapproximate avail-
able Li-ion battery charge to run the vehicle.
Charge the Li-ion battery before the display
reaches the bottom line.
Th

Page 149 of 412

NISSAN LEAF 2015 1.G Owners Manual LI-ION BATTERY CAPACITY LEVEL
GAUGE
This gauge indicates the amount of charge the
Li-ion battery is capable of storing.
When the capacity of the Li-ion battery de-
creases with age and usage, the leve

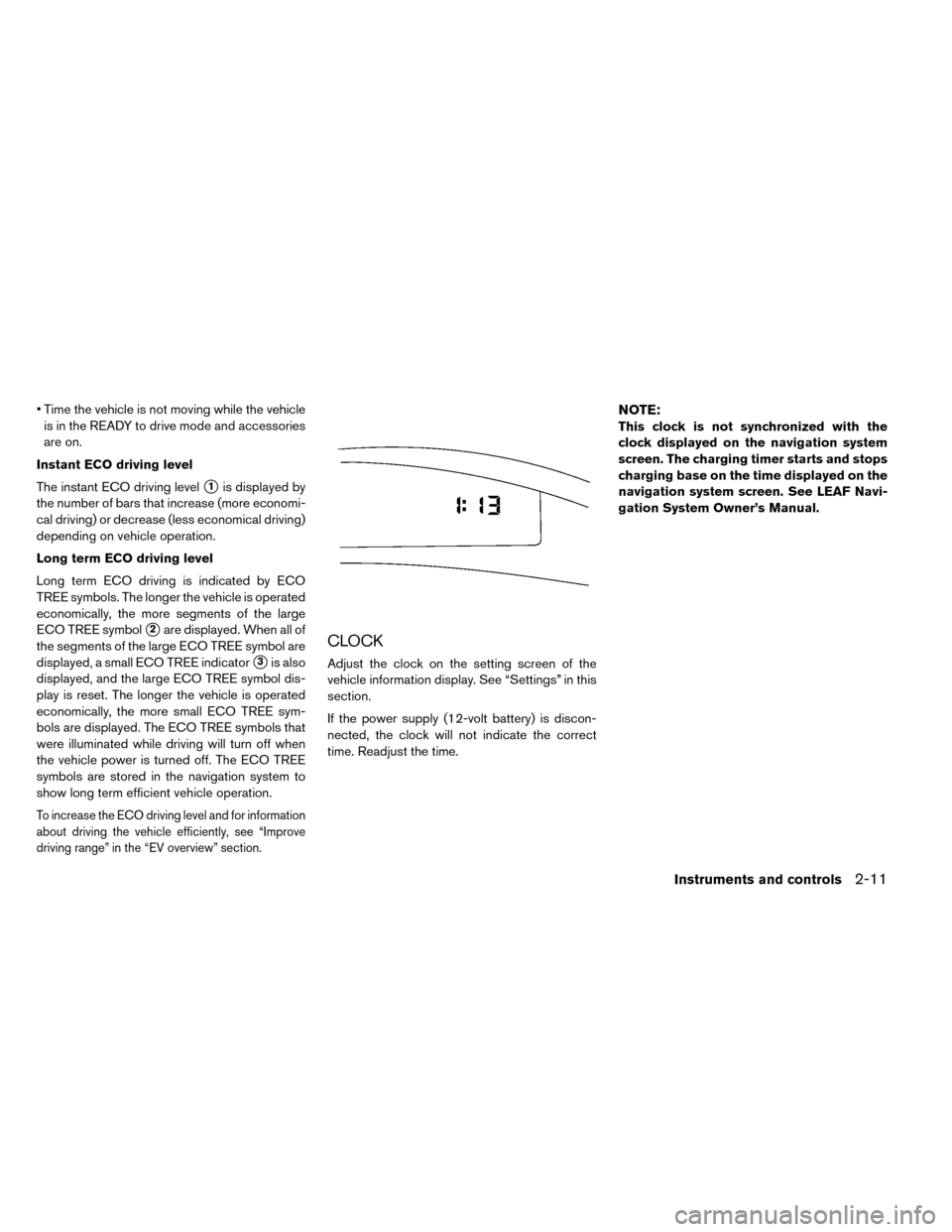

Page 150 of 412

NISSAN LEAF 2015 1.G Owners Manual • Time the vehicle is not moving while the vehicleis in the READY to drive mode and accessories
are on.
Instant ECO driving level
The instant ECO driving level
1is displayed by
the number of bars t
