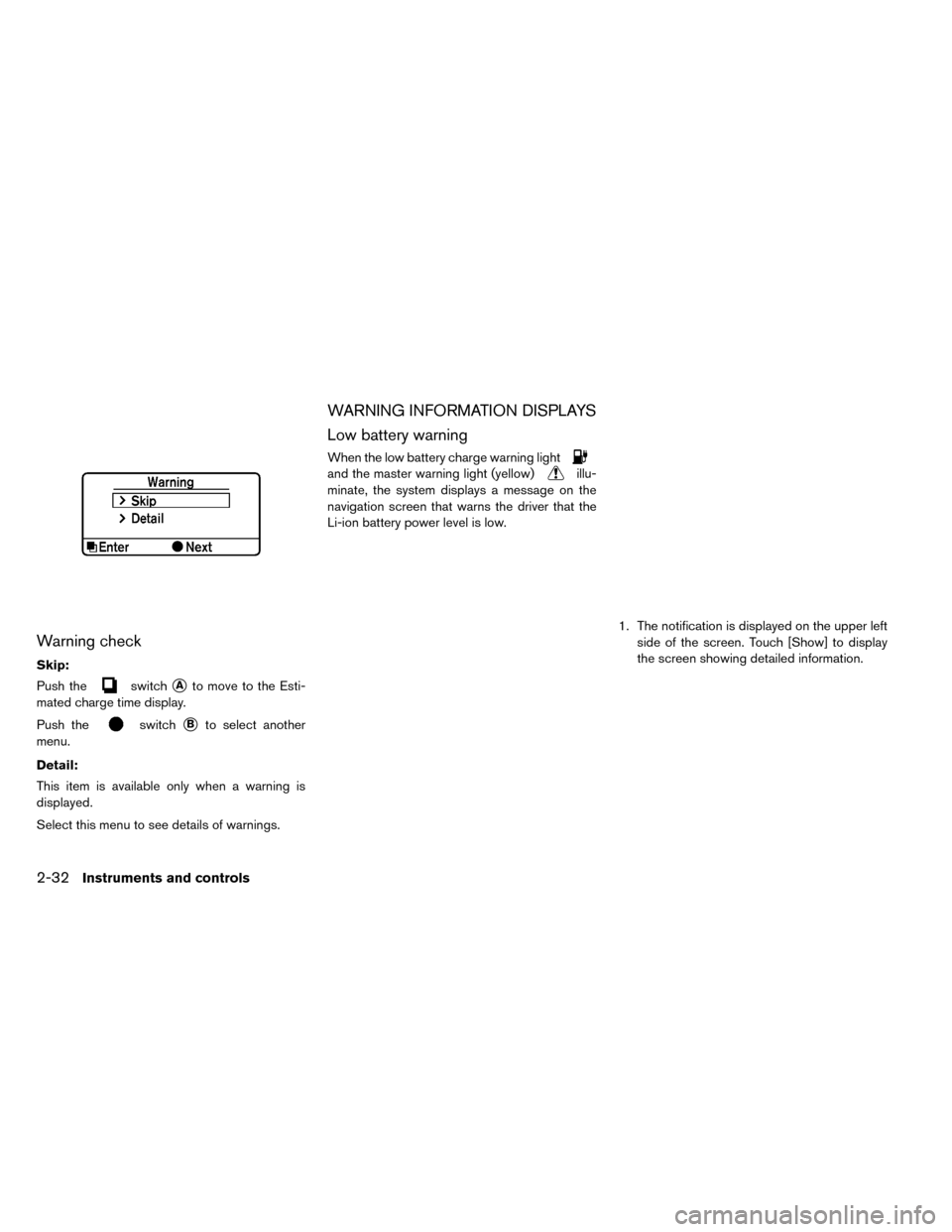

Warning check
Skip:
Push the
switchAto move to the Esti-
mated charge time display.
Push the
switchBto select another
menu.
Detail:
This item is available only when a warning is
displayed.
Select this menu to see details of warnings.
WARNING INFORMATION DISPLAYS
Low battery warning
When the low battery charge warning light
and the master warning light (yellow)illu-
minate, the system displays a message on the
navigation screen that warns the driver that the
Li-ion battery power level is low.
1. The notification is displayed on the upper leftside of the screen. Touch [Show] to display
the screen showing detailed information.
2-32Instruments and controls
Page 172 of 412

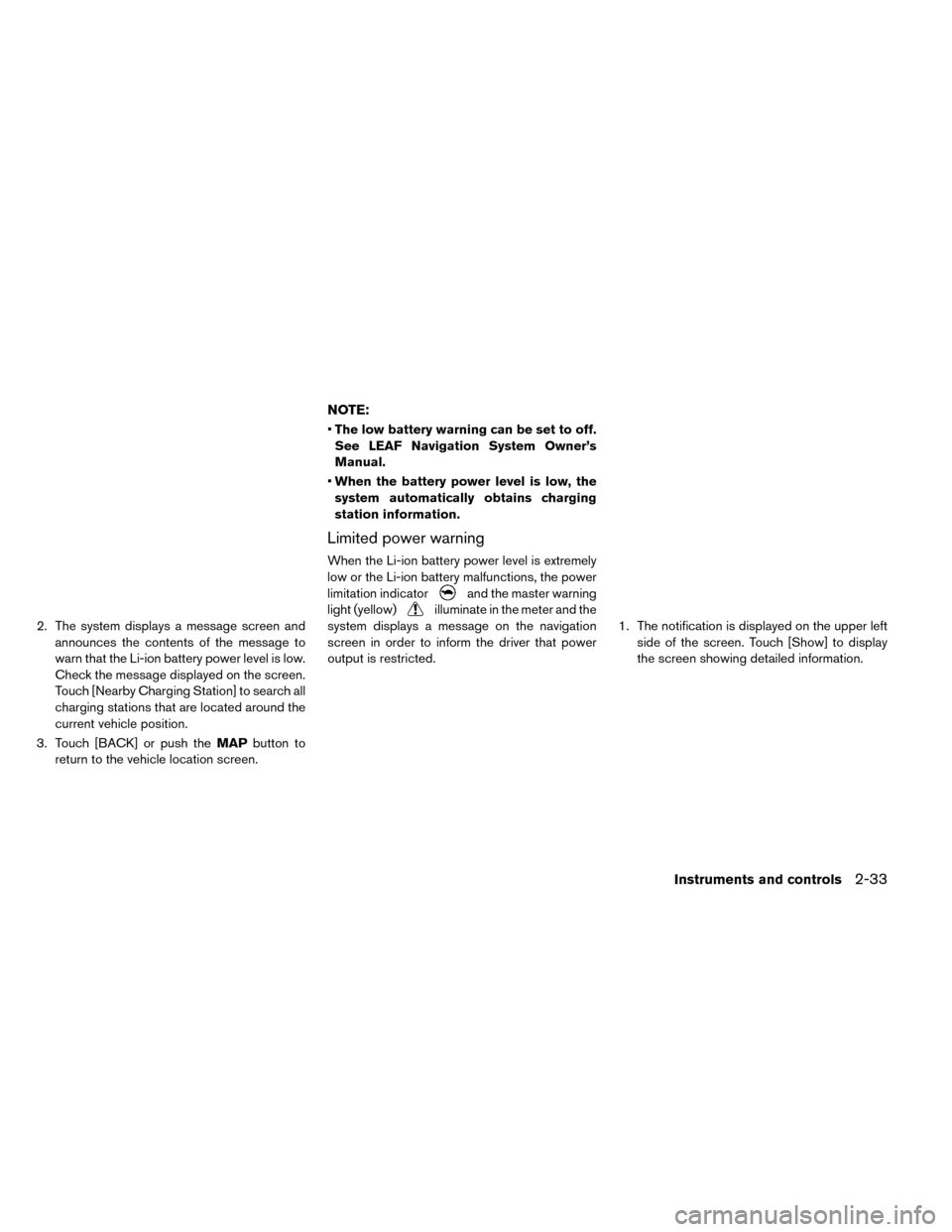

2. The system displays a message screen andannounces the contents of the message to
warn that the Li-ion battery power level is low.
Check the message displayed on the screen.
Touch [Nearby Charging Station] to search all
charging stations that are located around the
current vehicle position.
3. Touch [BACK] or push the MAPbutton to
return to the vehicle location screen.
NOTE:
• The low battery warning can be set to off.
See LEAF Navigation System Owner’s
Manual.
• When the battery power level is low, the
system automatically obtains charging
station information.
Limited power warning
When the Li-ion battery power level is extremely
low or the Li-ion battery malfunctions, the power
limitation indicator
and the master warning
light (yellow)
illuminate in the meter and the
system displays a message on the navigation
screen in order to inform the driver that power
output is restricted. 1. The notification is displayed on the upper left
side of the screen. Touch [Show] to display
the screen showing detailed information.
Instruments and controls2-33
Page 173 of 412
2. The system displays a message screen andannounces the contents of the message to
warn that power output is restricted and in-
form the driver of the reason for this occur-
rence and what action is to be taken.
INDICATORS FOR MAINTENANCE
1. Tire replacement indicator
This indicator appears when the customer set
distance comes for replacing tires. You can set or
reset the distance for replacing tires. (See “Trip
computer” in this section.)WARNING
The tire replacement indicator is not a
substitute for regular tire checks, includ-
ing tire pressure checks. See “Changing wheels and tires” in the “Maintenance
and do-it-yourself” section. Many factors
including tire inflation, alignment, driving
habits and road conditions affect tire
wear and when tires should be replaced.
Setting the tire replacement indicator for
a certain driving distance does not mean
your tires will last that long. Use the tire
replacement indicator as a guide only
and always perform regular tire checks.
Failure to perform regular tire checks,
including tire pressure checks could re-
sult in tire failure. Serious vehicle dam-
age could occur and may lead to a colli-
sion, which could result in serious
personal injury or death.
2. 3. 4. “Other” indicator
These indicators appears when the customer set
distance comes for checking or replacing main-
tenance items other than the tires. Other mainte-
nance items can include such things as the tire
rotation. You can set or reset the distance for
checking or replacing the items. (See “Trip com-
puter” in this section.) For scheduled mainte-
nance items and intervals, see your NISSAN Ser-
vice and Maintenance Guide.
2-34Instruments and controls
Page 174 of 412
INDICATOR FOR TIMER
When the power switch is turned off, this display
appears for 10 seconds. If the
switchAis
pushed within 10 seconds, the display can be selected and each setting information display
can be confirmed.
1. Timer setting status (charging and
Climate Ctrl.)
The timer setting status (ON or OFF) of the
charge and the climate control can be checked.
2. Charging timer setting confirmation
The charging timer starting hours, minutes and
days for the next charge time that has been set
can be checked.
3. Charging time
Displays the estimated time to charge the Li-ion
battery to a full charge. When fully charged, the
remaining charging time is displayed as “--:--”.
4. Climate Ctrl. Timer setting
confirmation
The set time for ending hours and days of the
Climate Ctrl. Timer is displayed.
Your vehicle has two types of security systems,
as follows:
• Vehicle security system
• NISSAN Vehicle Immobilizer System
The security status is shown by the security indi-
cator light.
VEHICLE SECURITY SYSTEM
The vehicle security system provides visual and
audio alarm signals if someone opens the doors,
or rear hatch when the system is armed. It is not,
however, a motion detection type system that
SECURITY SYSTEMS
Instruments and controls2-35
Page 175 of 412

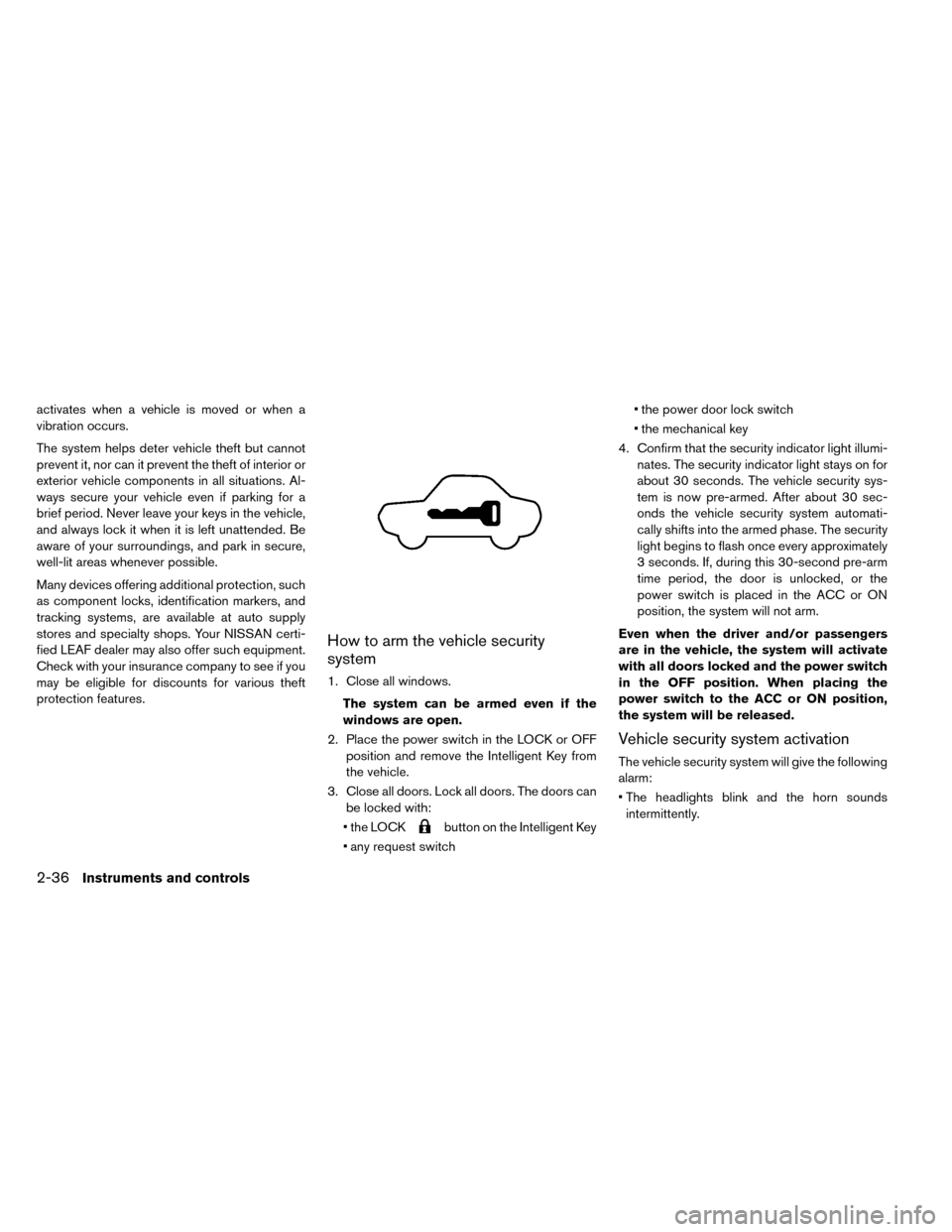

activates when a vehicle is moved or when a
vibration occurs.
The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior or
exterior vehicle components in all situations. Al-
ways secure your vehicle even if parking for a
brief period. Never leave your keys in the vehicle,
and always lock it when it is left unattended. Be
aware of your surroundings, and park in secure,
well-lit areas whenever possible.
Many devices offering additional protection, such
as component locks, identification markers, and
tracking systems, are available at auto supply
stores and specialty shops. Your NISSAN certi-
fied LEAF dealer may also offer such equipment.
Check with your insurance company to see if you
may be eligible for discounts for various theft
protection features.
How to arm the vehicle security
system
1. Close all windows.The system can be armed even if the
windows are open.
2. Place the power switch in the LOCK or OFF position and remove the Intelligent Key from
the vehicle.
3. Close all doors. Lock all doors. The doors can be locked with:
• the LOCK
button on the Intelligent Key
• any request switch • the power door lock switch
• the mechanical key
4. Confirm that the security indicator light illumi- nates. The security indicator light stays on for
about 30 seconds. The vehicle security sys-
tem is now pre-armed. After about 30 sec-
onds the vehicle security system automati-
cally shifts into the armed phase. The security
light begins to flash once every approximately
3 seconds. If, during this 30-second pre-arm
time period, the door is unlocked, or the
power switch is placed in the ACC or ON
position, the system will not arm.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors locked and the power switch
in the OFF position. When placing the
power switch to the ACC or ON position,
the system will be released.
Vehicle security system activation
The vehicle security system will give the following
alarm:
• The headlights blink and the horn sounds intermittently.
2-36Instruments and controls
Page 176 of 412

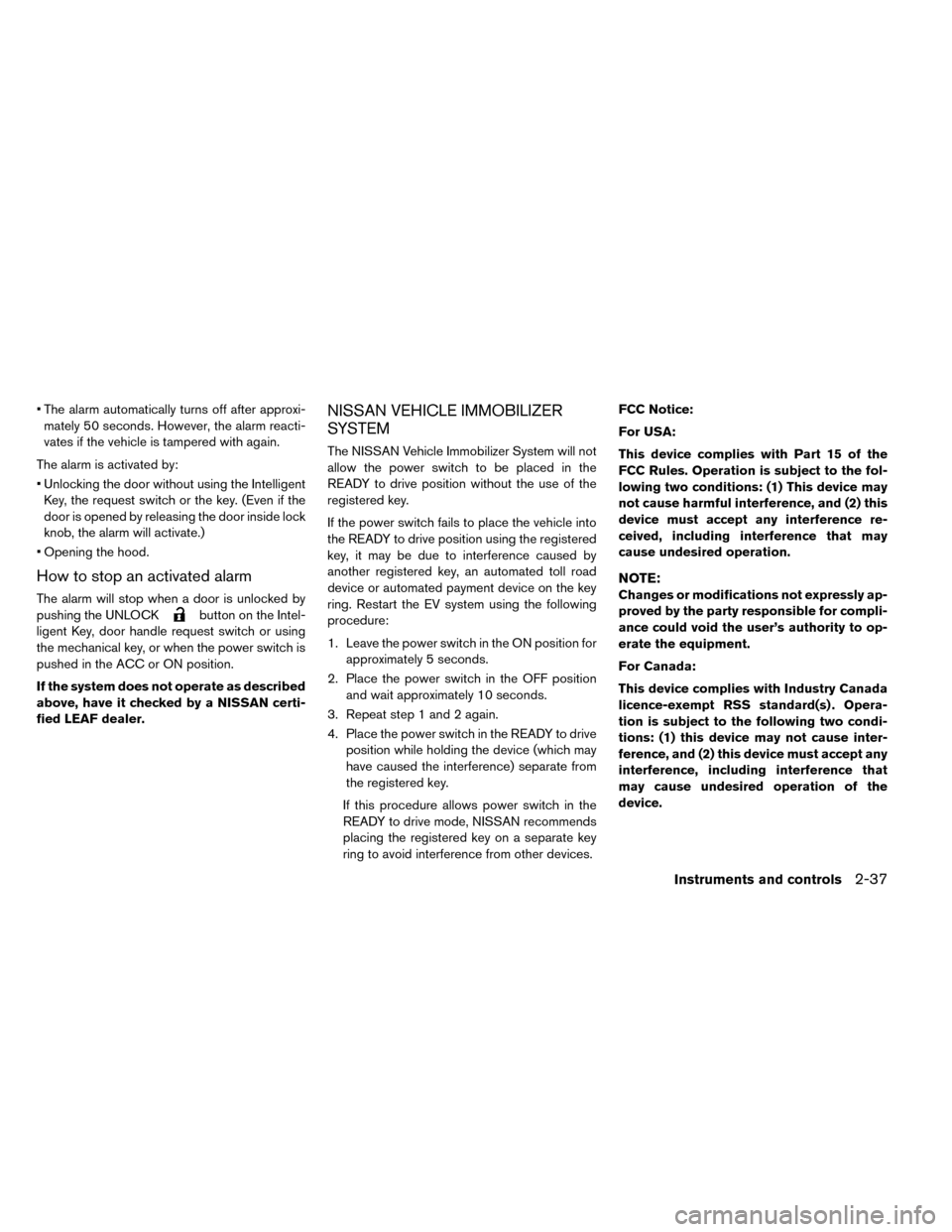

• The alarm automatically turns off after approxi-mately 50 seconds. However, the alarm reacti-
vates if the vehicle is tampered with again.
The alarm is activated by:
• Unlocking the door without using the Intelligent Key, the request switch or the key. (Even if the
door is opened by releasing the door inside lock
knob, the alarm will activate.)
• Opening the hood.
How to stop an activated alarm
The alarm will stop when a door is unlocked by
pushing the UNLOCK
button on the Intel-
ligent Key, door handle request switch or using
the mechanical key, or when the power switch is
pushed in the ACC or ON position.
If the system does not operate as described
above, have it checked by a NISSAN certi-
fied LEAF dealer.
NISSAN VEHICLE IMMOBILIZER
SYSTEM
The NISSAN Vehicle Immobilizer System will not
allow the power switch to be placed in the
READY to drive position without the use of the
registered key.
If the power switch fails to place the vehicle into
the READY to drive position using the registered
key, it may be due to interference caused by
another registered key, an automated toll road
device or automated payment device on the key
ring. Restart the EV system using the following
procedure:
1. Leave the power switch in the ON position for approximately 5 seconds.
2. Place the power switch in the OFF position and wait approximately 10 seconds.
3. Repeat step 1 and 2 again.
4. Place the power switch in the READY to drive position while holding the device (which may
have caused the interference) separate from
the registered key.
If this procedure allows power switch in the
READY to drive mode, NISSAN recommends
placing the registered key on a separate key
ring to avoid interference from other devices. FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation.
NOTE:
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause inter-
ference, and (2) this device must accept any
interference, including interference that
may cause undesired operation of the
device.
Instruments and controls2-37
Page 177 of 412

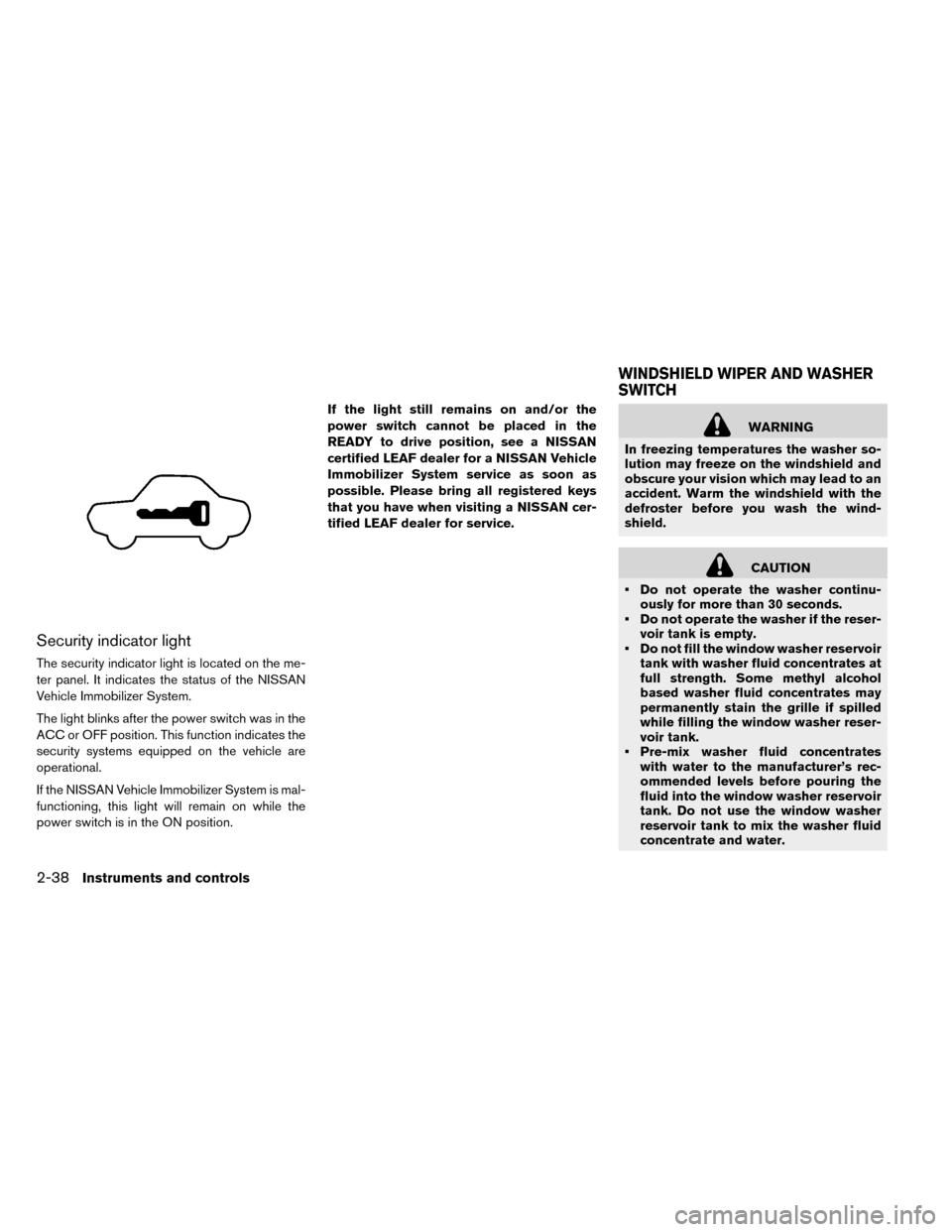

Security indicator light
The security indicator light is located on the me-
ter panel. It indicates the status of the NISSAN
Vehicle Immobilizer System.
The light blinks after the power switch was in the
ACC or OFF position. This function indicates the
security systems equipped on the vehicle are
operational.
If the NISSAN Vehicle Immobilizer System is mal-
functioning, this light will remain on while the
power switch is in the ON position.If the light still remains on and/or the
power switch cannot be placed in the
READY to drive position, see a NISSAN
certified LEAF dealer for a NISSAN Vehicle
Immobilizer System service as soon as
possible. Please bring all registered keys
that you have when visiting a NISSAN cer-
tified LEAF dealer for service.

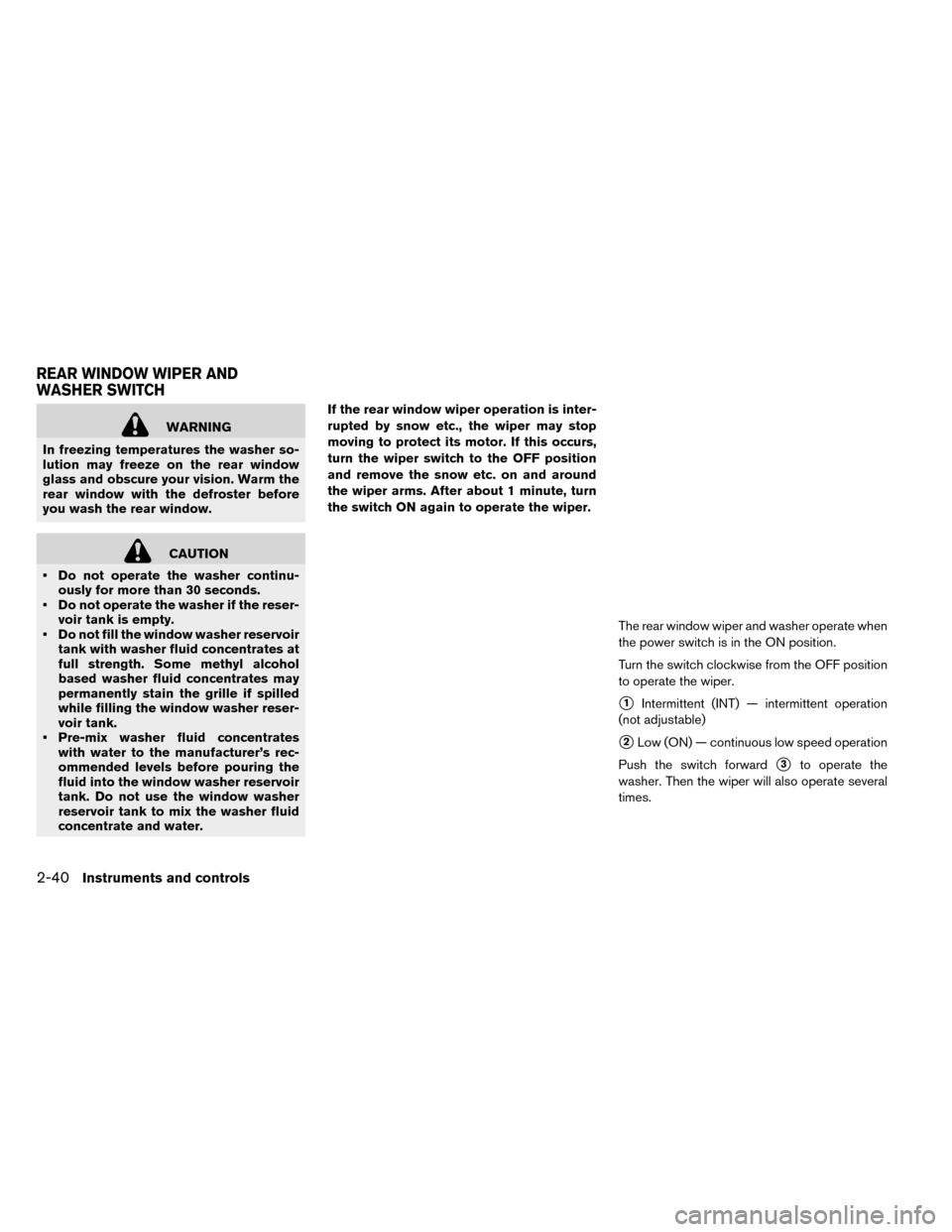

WARNING
In freezing temperatures the washer so-
lution may freeze on the windshield and
obscure your vision which may lead to an
accident. Warm the windshield with the
defroster before you wash the wind-
shield.
CAUTION
• Do not operate the washer continu- ously for more than 30 seconds.
• Do not operate the washer if the reser- voir tank is empty.
• Do not fill the window washer reservoir tank with washer fluid concentrates at
full strength. Some methyl alcohol
based washer fluid concentrates may
permanently stain the grille if spilled
while filling the window washer reser-
voir tank.
• Pre-mix washer fluid concentrates with water to the manufacturer’s rec-
ommended levels before pouring the
fluid into the window washer reservoir
tank. Do not use the window washer
reservoir tank to mix the washer fluid
concentrate and water.
WINDSHIELD WIPER AND WASHER
SWITCH
2-38Instruments and controls
Page 178 of 412

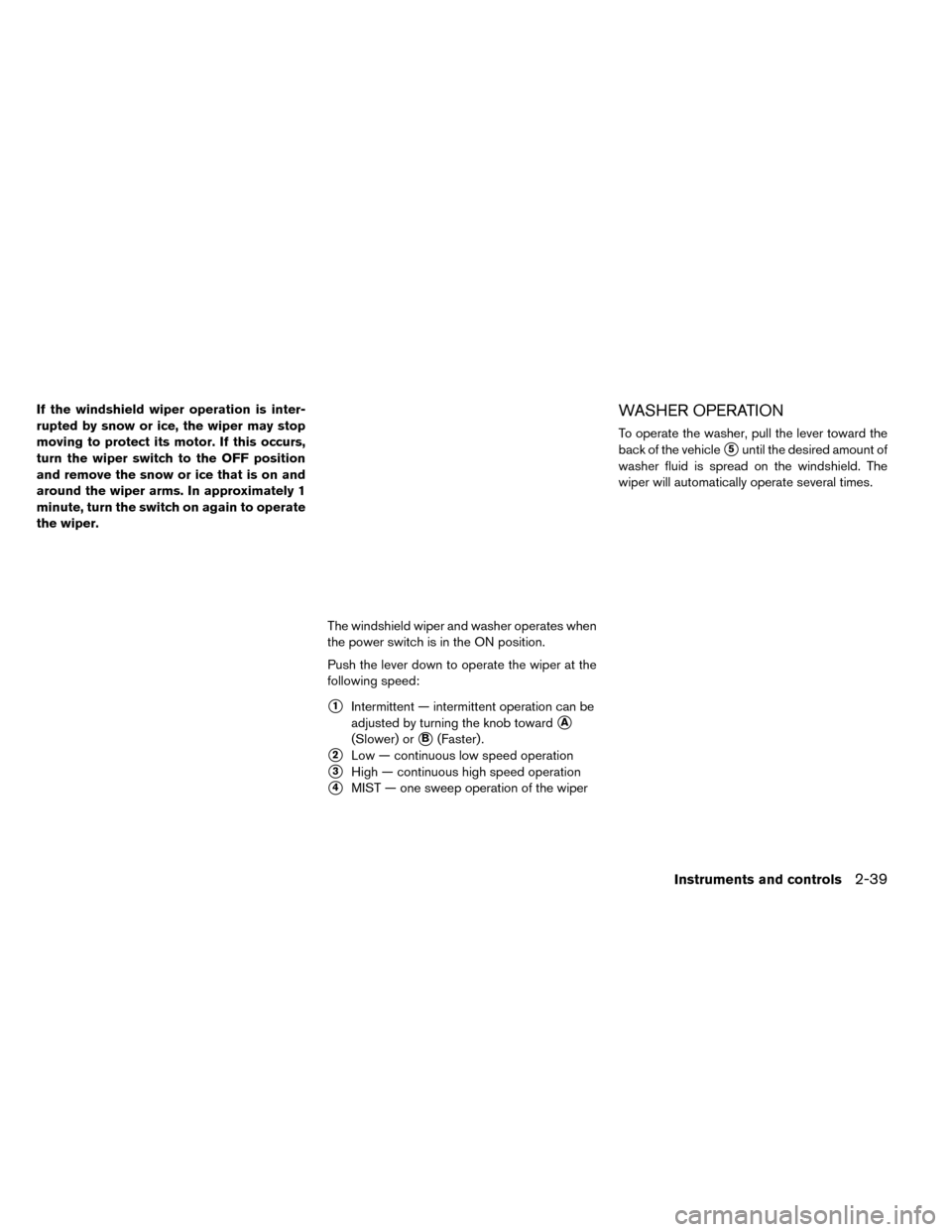

If the windshield wiper operation is inter-
rupted by snow or ice, the wiper may stop
moving to protect its motor. If this occurs,
turn the wiper switch to the OFF position
and remove the snow or ice that is on and
around the wiper arms. In approximately 1
minute, turn the switch on again to operate
the wiper.The windshield wiper and washer operates when
the power switch is in the ON position.
Push the lever down to operate the wiper at the
following speed:
1Intermittent — intermittent operation can be
adjusted by turning the knob toward
A
(Slower) orB(Faster) .
2Low — continuous low speed operation
3High — continuous high speed operation
4MIST — one sweep operation of the wiper
WASHER OPERATION
To operate the washer, pull the lever toward the
back of the vehicle
5until the desired amount of
washer fluid is spread on the windshield. The
wiper will automatically operate several times.
Instruments and controls2-39
Page 179 of 412
WARNING
In freezing temperatures the washer so-
lution may freeze on the rear window
glass and obscure your vision. Warm the
rear window with the defroster before
you wash the rear window.
CAUTION
• Do not operate the washer continu- ously for more than 30 seconds.
• Do not operate the washer if the reser- voir tank is empty.
• Do not fill the window washer reservoir tank with washer fluid concentrates at
full strength. Some methyl alcohol
based washer fluid concentrates may
permanently stain the grille if spilled
while filling the window washer reser-
voir tank.
• Pre-mix washer fluid concentrates with water to the manufacturer’s rec-
ommended levels before pouring the
fluid into the window washer reservoir
tank. Do not use the window washer
reservoir tank to mix the washer fluid
concentrate and water. If the rear window wiper operation is inter-
rupted by snow etc., the wiper may stop
moving to protect its motor. If this occurs,
turn the wiper switch to the OFF position
and remove the snow etc. on and around
the wiper arms. After about 1 minute, turn
the switch ON again to operate the wiper.
The rear window wiper and washer operate when
the power switch is in the ON position.
Turn the switch clockwise from the OFF position
to operate the wiper.
1Intermittent (INT) — intermittent operation
(not adjustable)
2Low (ON) — continuous low speed operation
Push the switch forward
3to operate the
washer. Then the wiper will also operate several
times.
REAR WINDOW WIPER AND
WASHER SWITCH
2-40Instruments and controls
Page 180 of 412

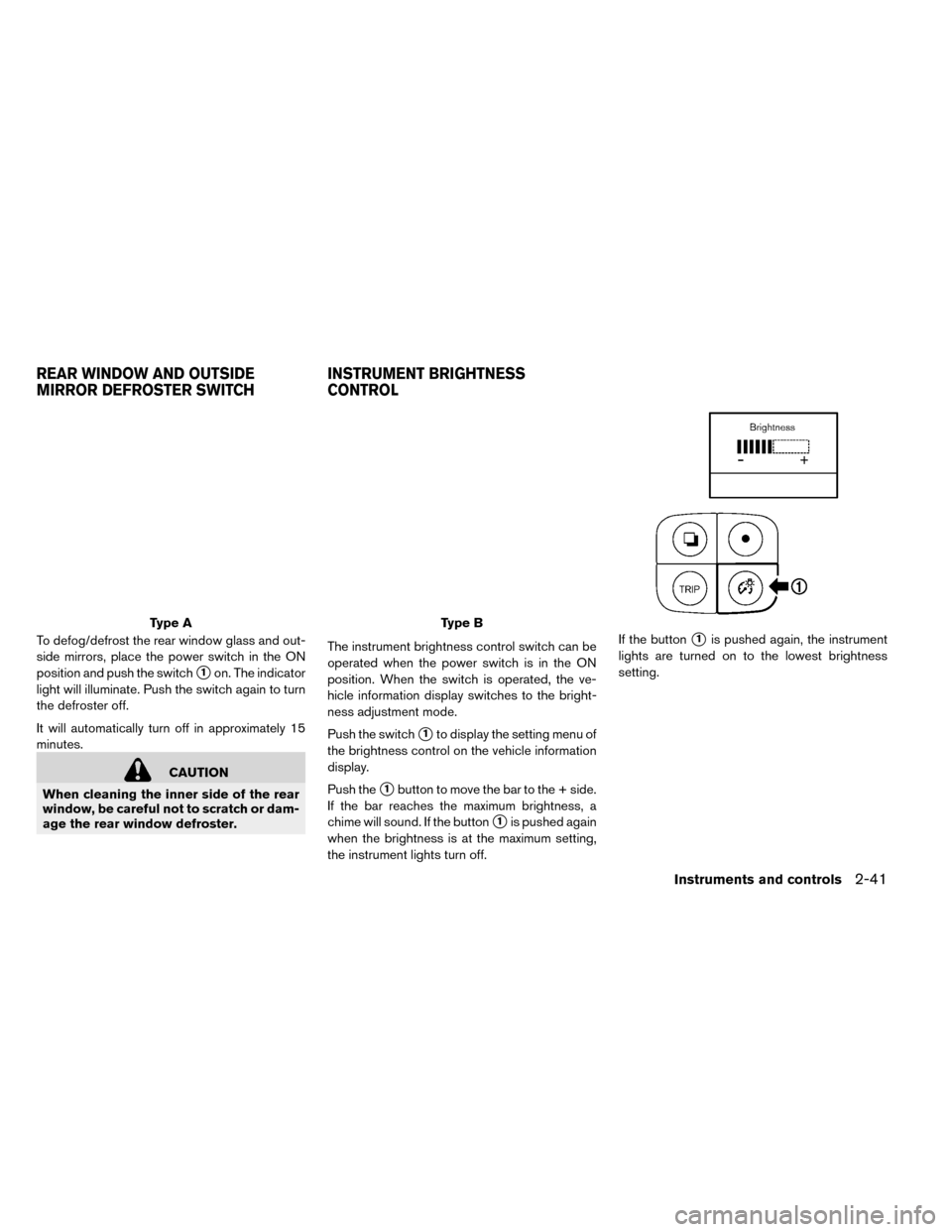

To defog/defrost the rear window glass and out-
side mirrors, place the power switch in the ON
position and push the switch
1on. The indicator
light will illuminate. Push the switch again to turn
the defroster off.
It will automatically turn off in approximately 15
minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or dam-
age the rear window defroster. The instrument brightness control switch can be
operated when the power switch is in the ON
position. When the switch is operated, the ve-
hicle information display switches to the bright-
ness adjustment mode.
Push the switch
1to display the setting menu of
the brightness control on the vehicle information
display.
Push the
1button to move the bar to the + side.
If the bar reaches the maximum brightness, a
chime will sound. If the button
1is pushed again
when the brightness is at the maximum setting,
the instrument lights turn off. If the button
1is pushed again, the instrument
lights are turned on to the lowest brightness
setting.
Type AType B
REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCH INSTRUMENT BRIGHTNESS
CONTROL
Instruments and controls2-41
