NISSAN LEAF 2015 1.G Owners Manual

NISSAN LEAF 2015 1.G Owners Manual https://www.carmanualsonline.info/img/5/431/w960_431-0.png NISSAN LEAF 2015 1.G Owners Manual

Page 381 of 412

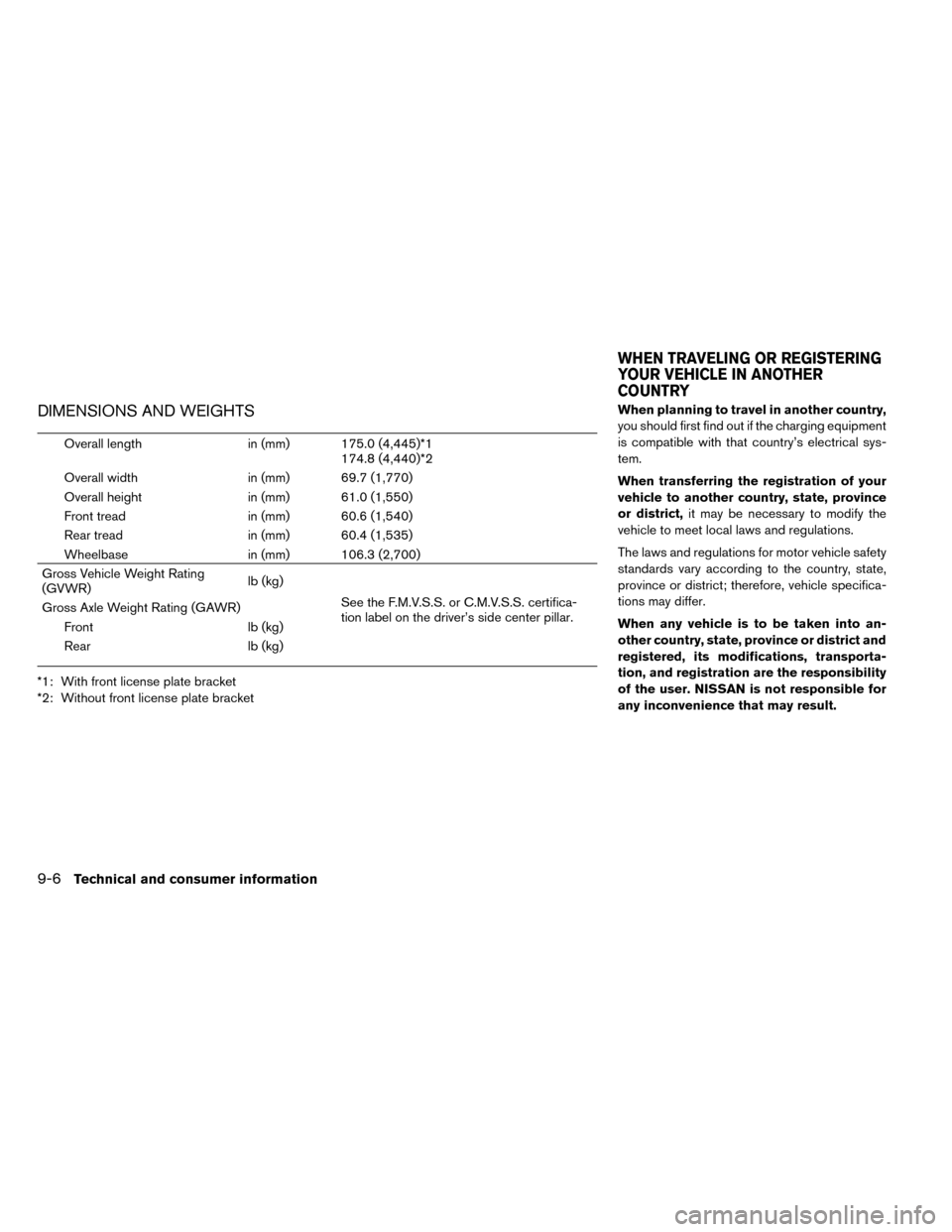

NISSAN LEAF 2015 1.G Owners Manual DIMENSIONS AND WEIGHTS
Overall lengthin (mm) 175.0 (4,445)*1
174.8 (4,440)*2
Overall width in (mm) 69.7 (1,770)
Overall height in (mm) 61.0 (1,550)
Front tread in (mm) 60.6 (1,540)
Rear tread in (mm)

Page 382 of 412

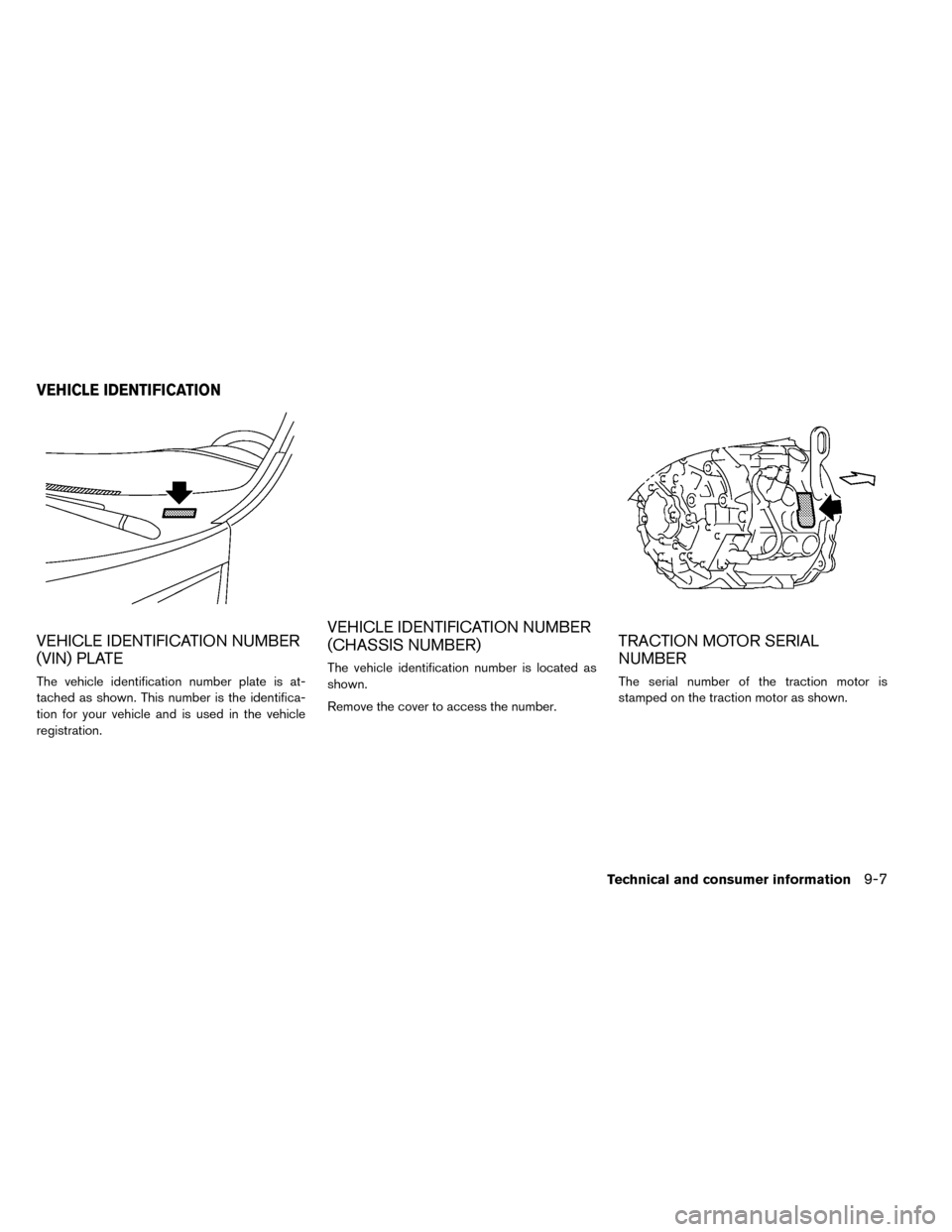

NISSAN LEAF 2015 1.G Owners Manual VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
The vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.

Page 383 of 412

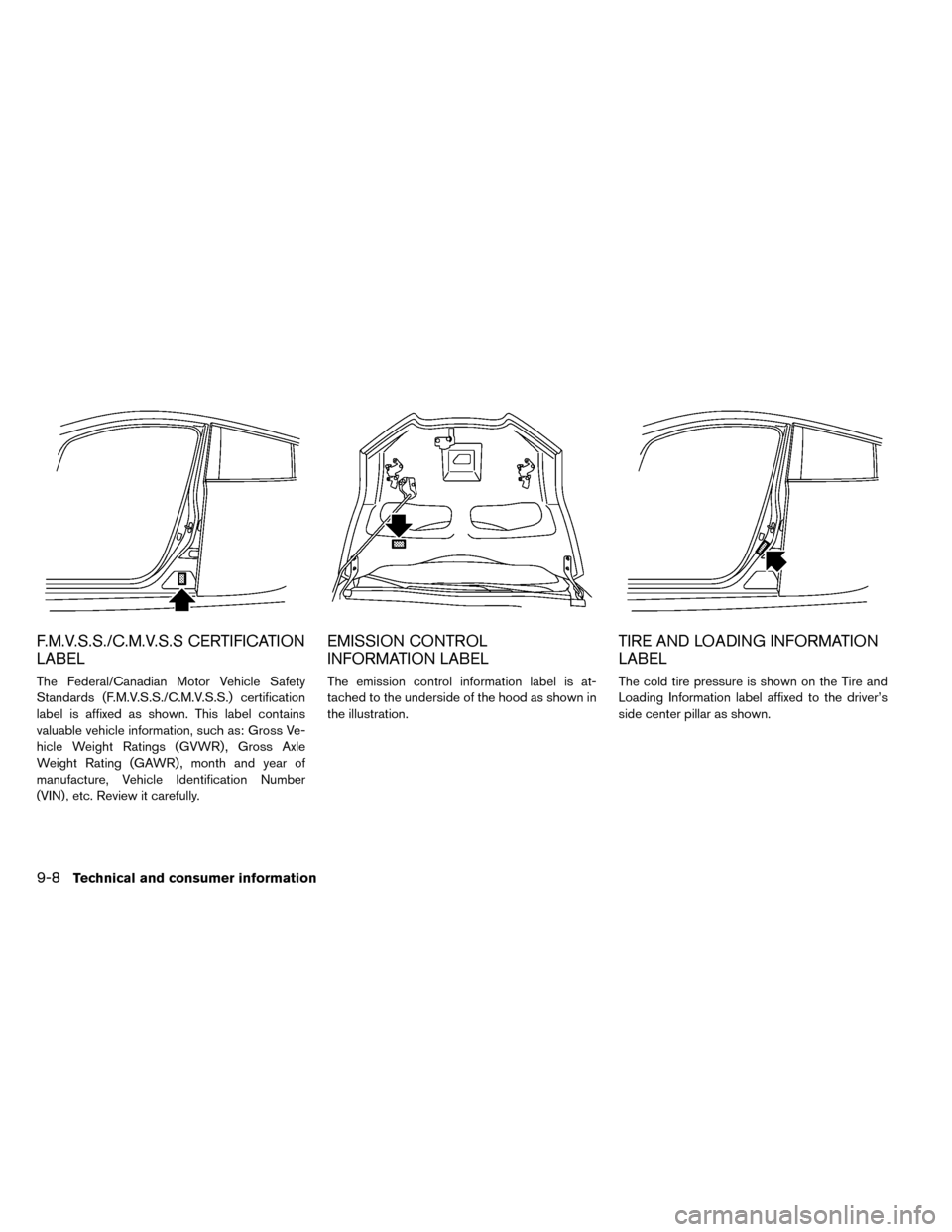

NISSAN LEAF 2015 1.G Owners Manual F.M.V.S.S./C.M.V.S.S CERTIFICATION
LABEL
The Federal/Canadian Motor Vehicle Safety
Standards (F.M.V.S.S./C.M.V.S.S.) certification
label is affixed as shown. This label contains
valuable vehicle infor

Page 384 of 412

NISSAN LEAF 2015 1.G Owners Manual AIR CONDITIONER SPECIFICATION
LABEL
The air conditioner specification label is attached
to the underside of the hood as shown in the
illustration.Perform the following procedure to mount the
license p

Page 385 of 412

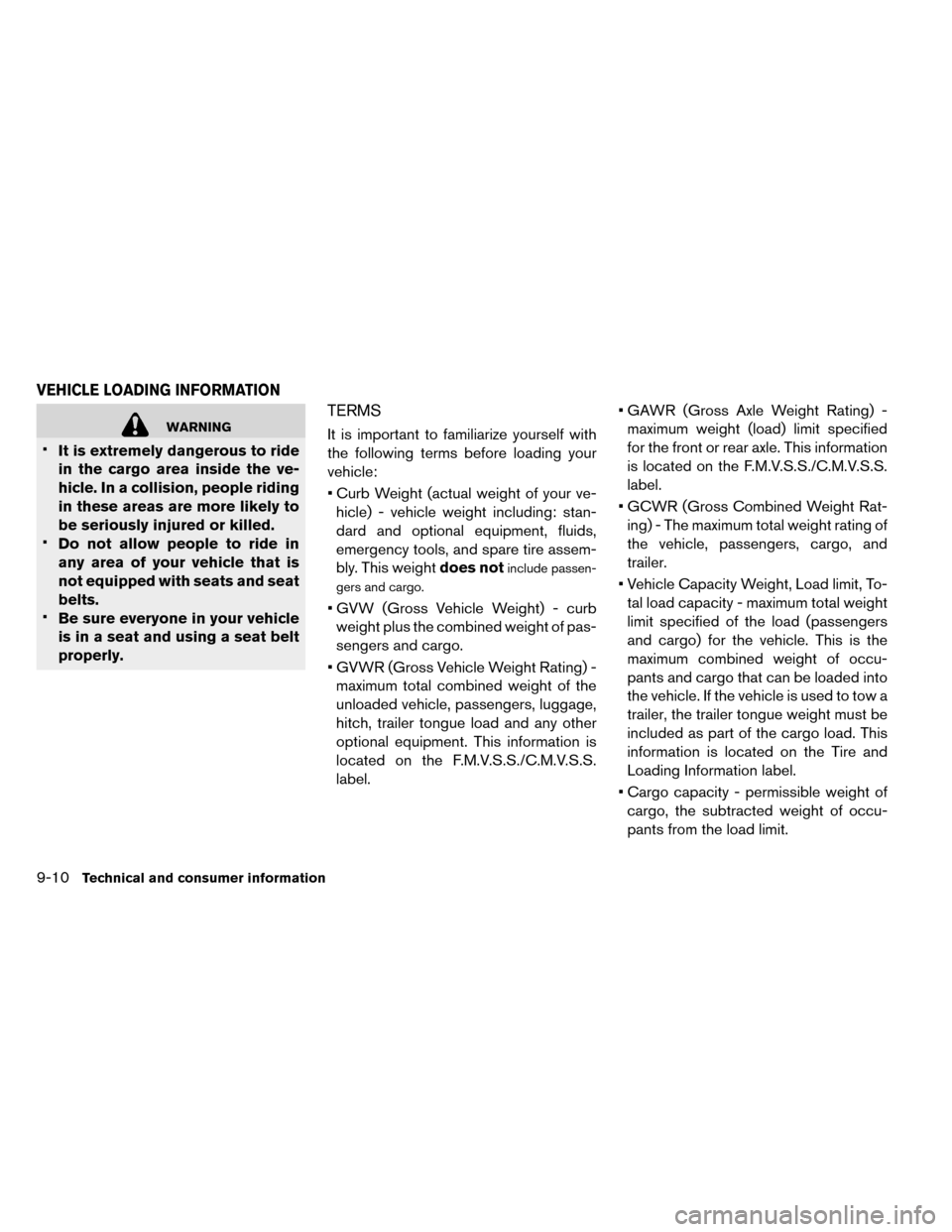

NISSAN LEAF 2015 1.G Owners Manual WARNING
•
It is extremely dangerous to ride
in the cargo area inside the ve-
hicle. In a collision, people riding
in these areas are more likely to
be seriously injured or killed.
•Do not allow pe

Page 386 of 412

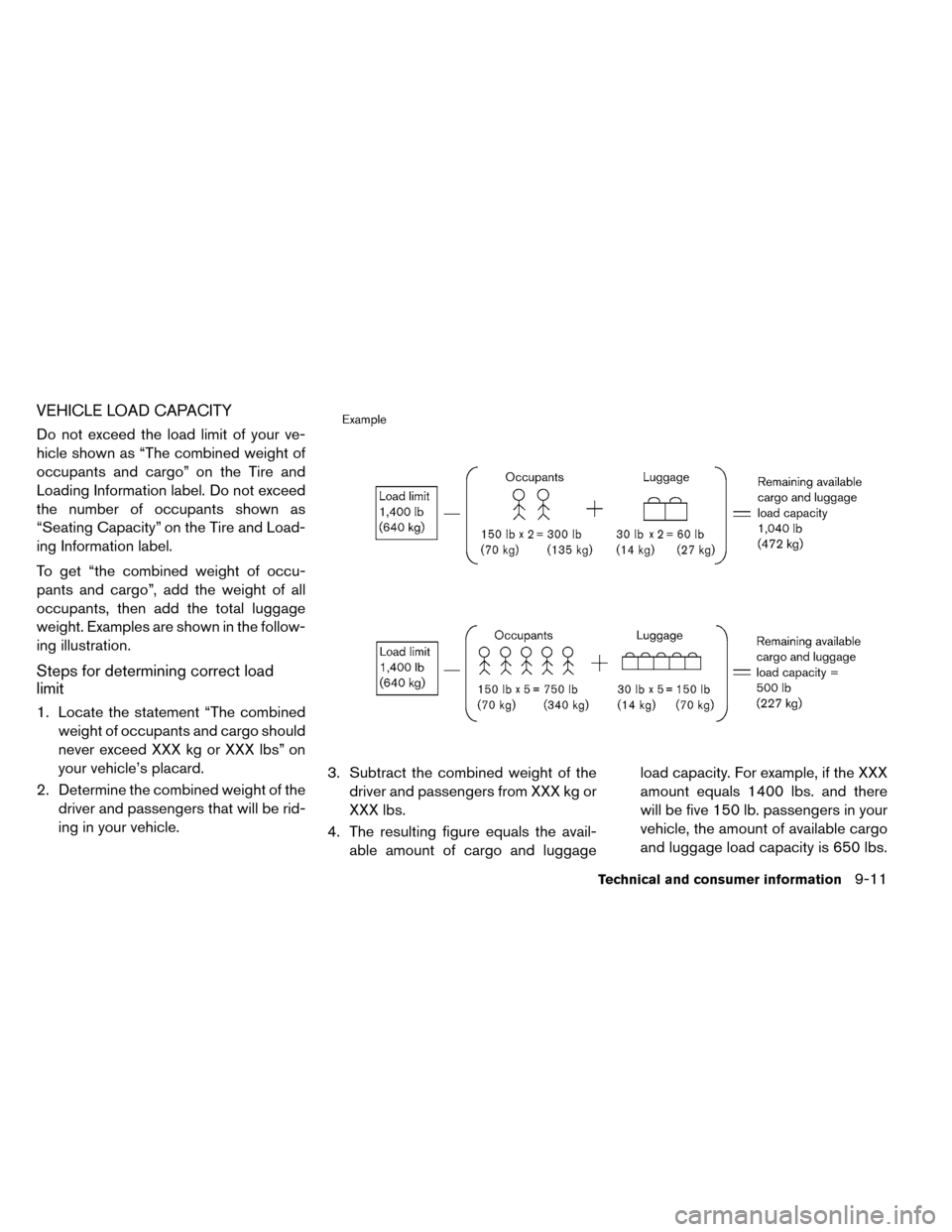

NISSAN LEAF 2015 1.G Owners Manual VEHICLE LOAD CAPACITY
Do not exceed the load limit of your ve-
hicle shown as “The combined weight of
occupants and cargo” on the Tire and
Loading Information label. Do not exceed
the number of oc

Page 387 of 412

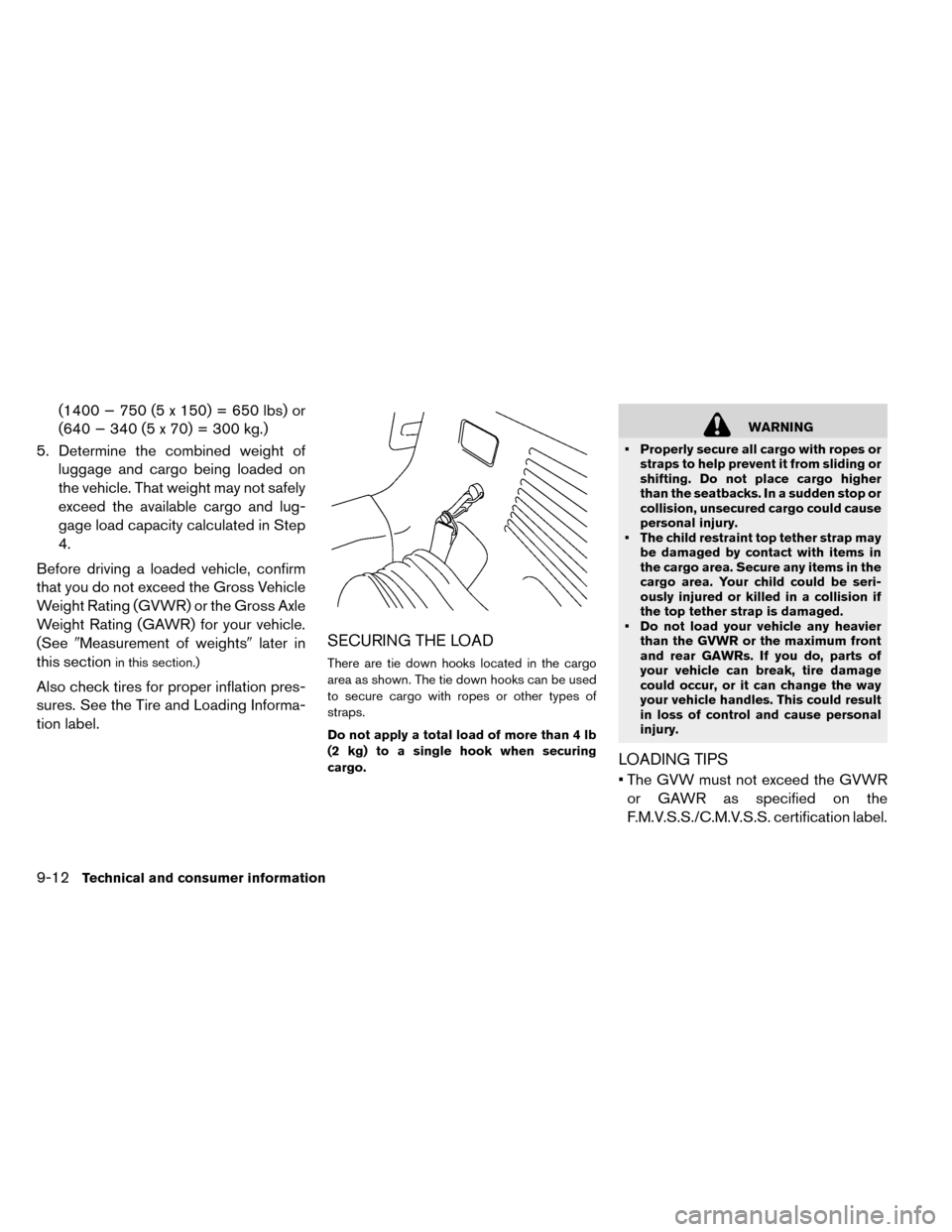

NISSAN LEAF 2015 1.G Owners Manual (1400 − 750 (5 x 150) = 650 lbs) or
(640 − 340 (5 x 70) = 300 kg.)
5. Determine the combined weight of luggage and cargo being loaded on
the vehicle. That weight may not safely
exceed the availabl

Page 388 of 412

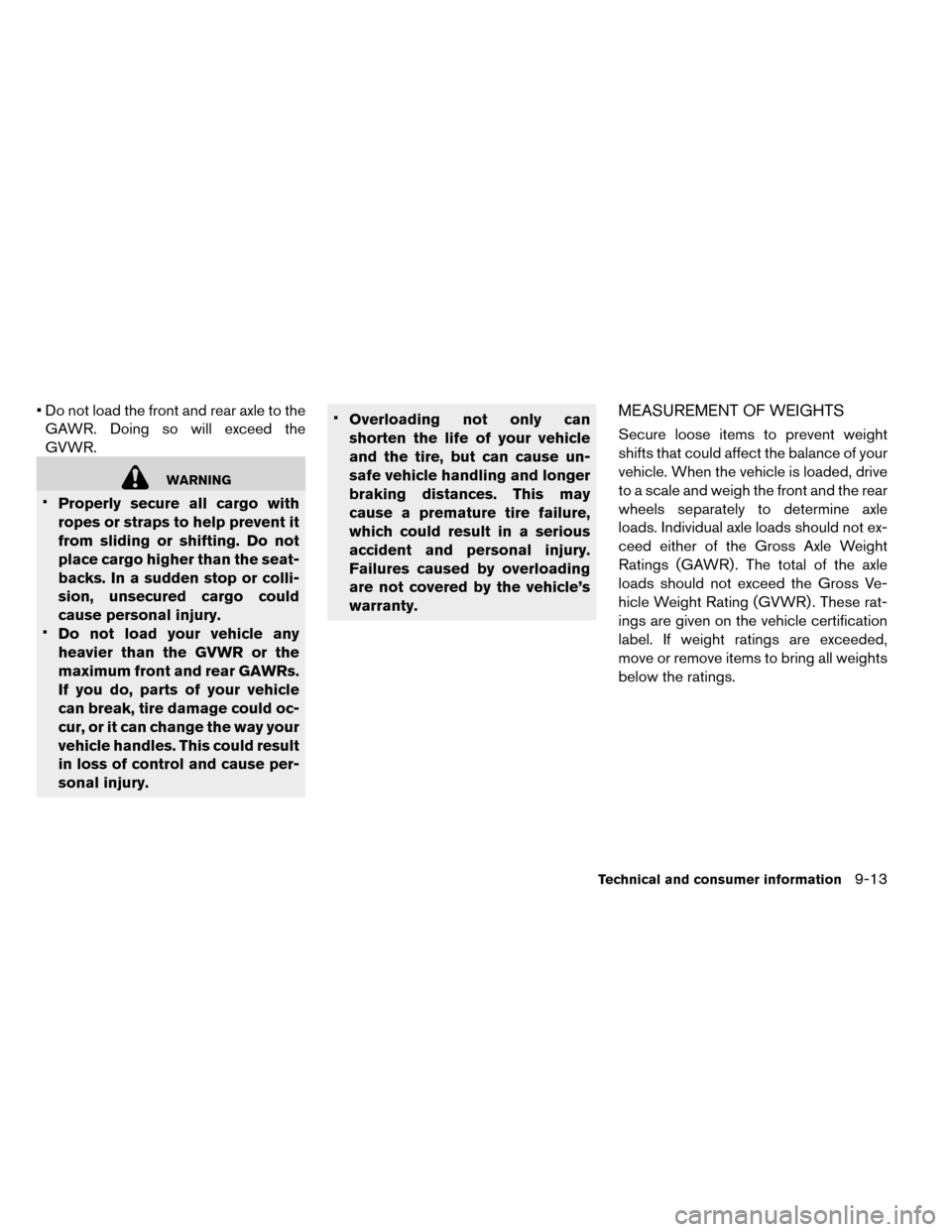

NISSAN LEAF 2015 1.G Owners Manual • Do not load the front and rear axle to theGAWR. Doing so will exceed the
GVWR.
WARNING
•
Properly secure all cargo with
ropes or straps to help prevent it
from sliding or shifting. Do not
place

Page 389 of 412

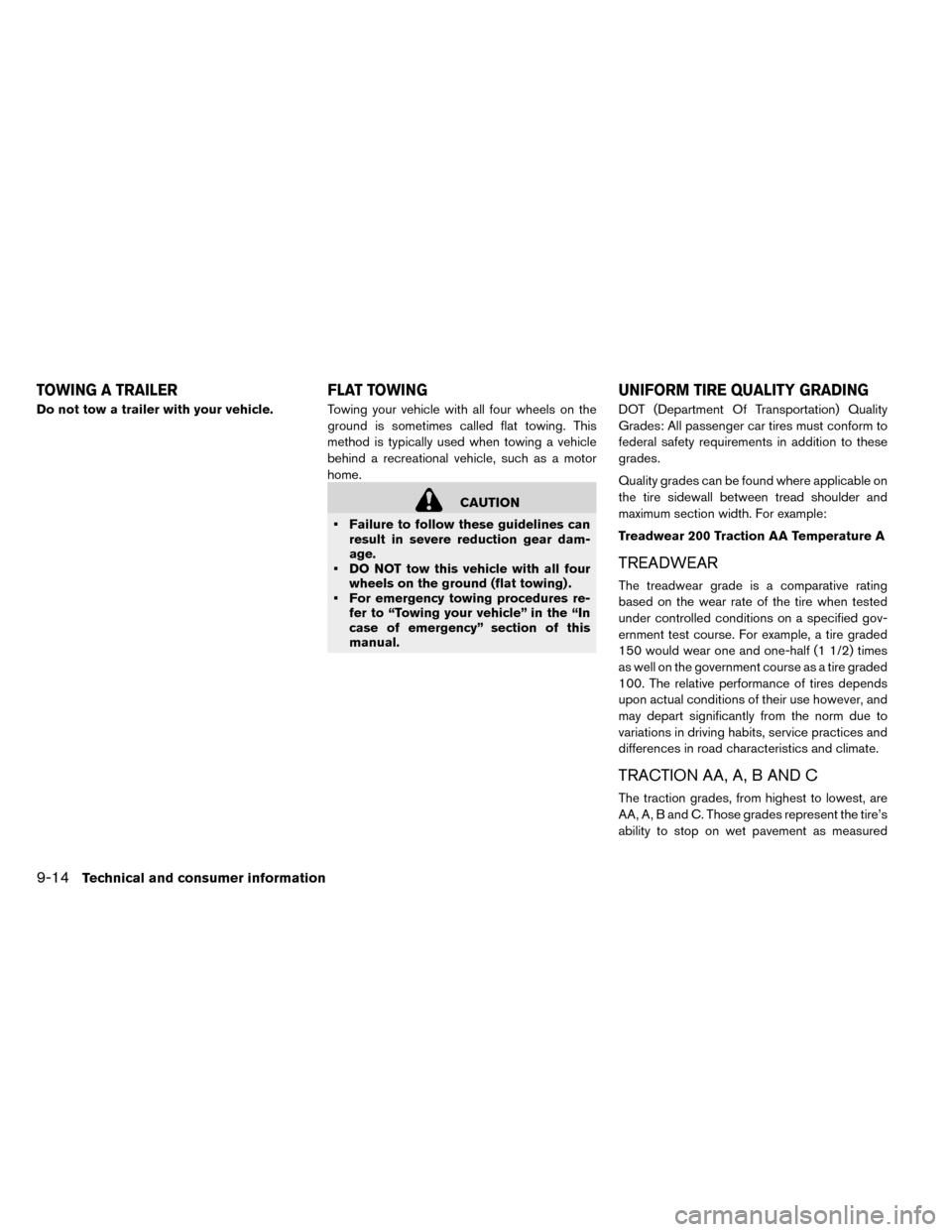

NISSAN LEAF 2015 1.G Owners Manual Do not tow a trailer with your vehicle.Towing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is typically used when towing a vehicle
behind a recreational

Page 390 of 412

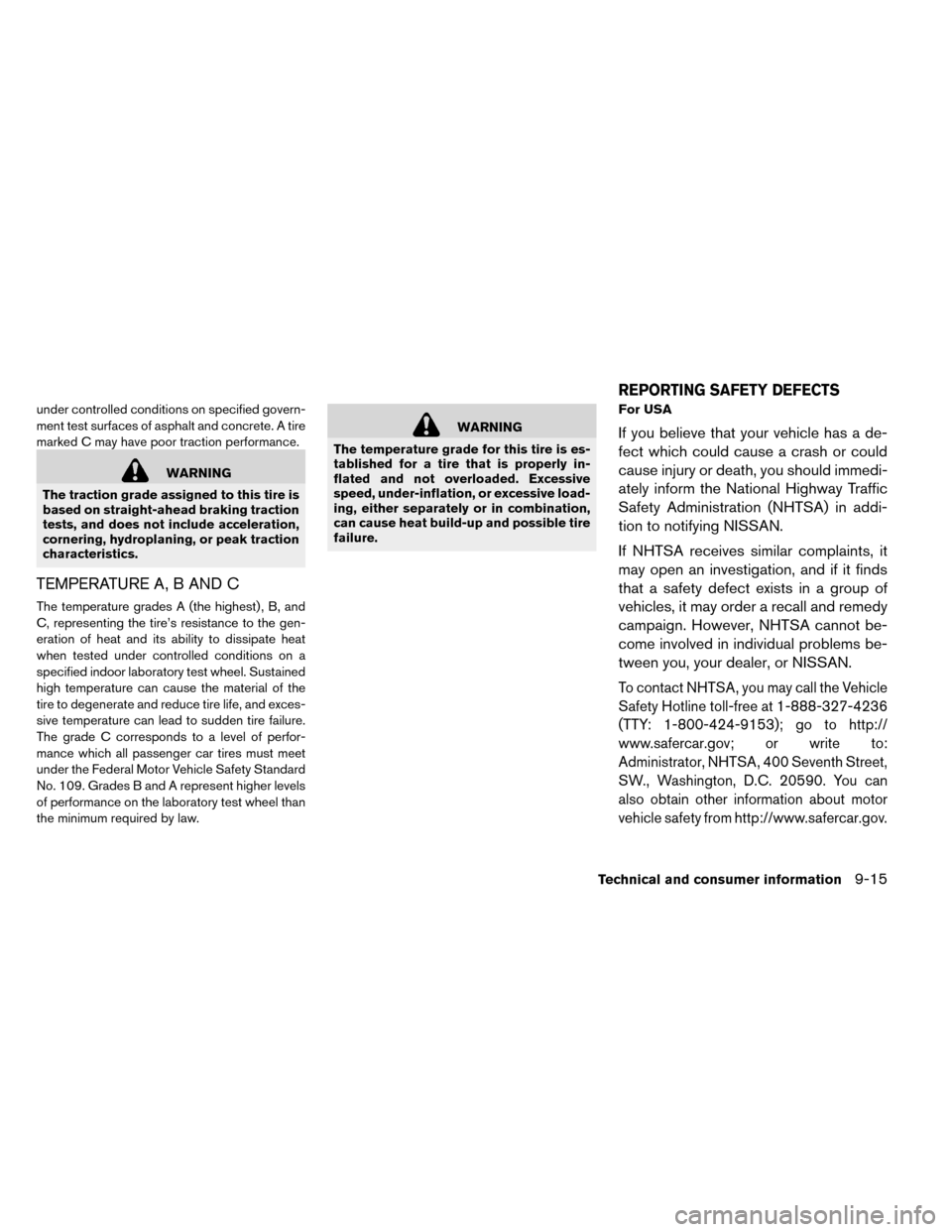

NISSAN LEAF 2015 1.G Owners Manual under controlled conditions on specified govern-
ment test surfaces of asphalt and concrete. A tire
marked C may have poor traction performance.
WARNING
The traction grade assigned to this tire is
bas
