Page 61 of 412

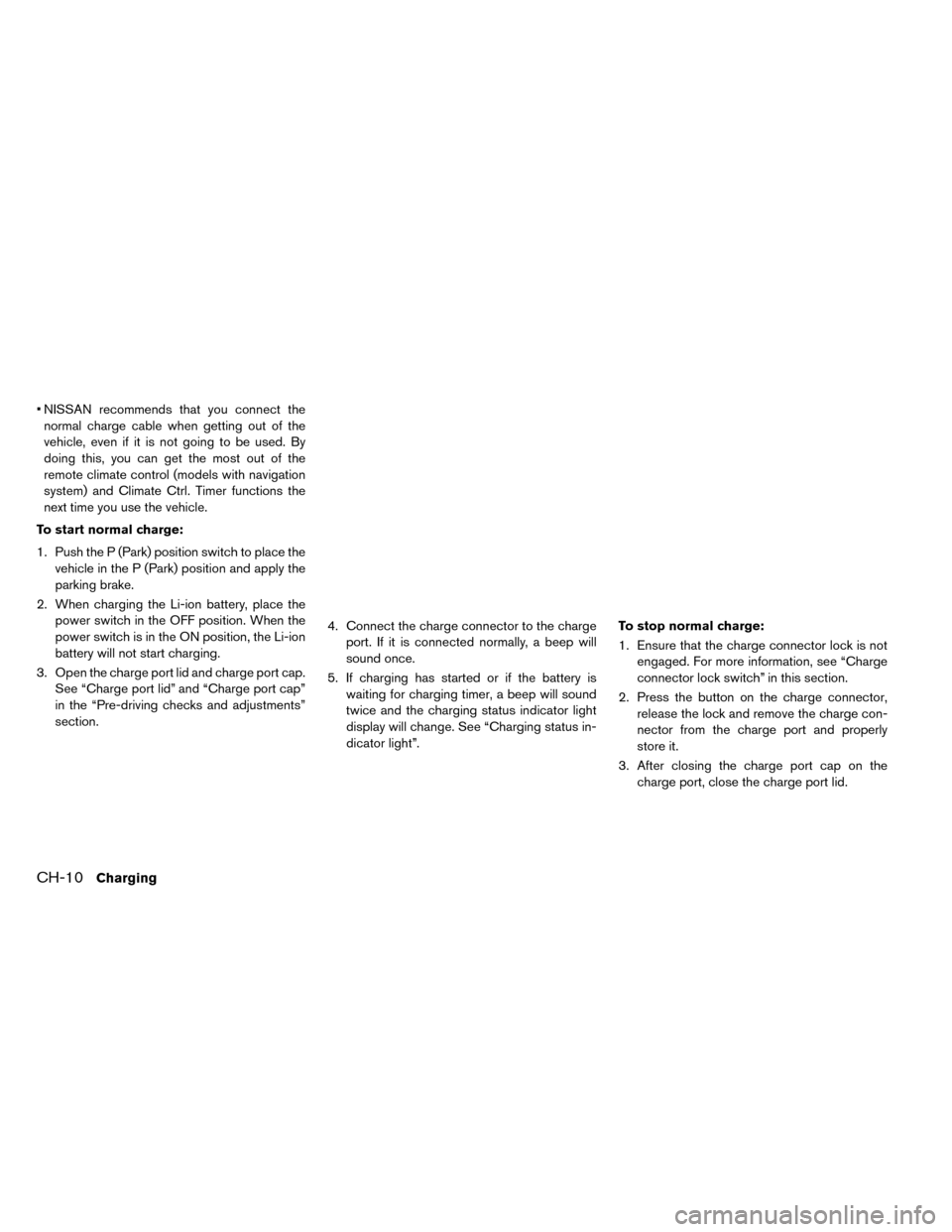

NISSAN LEAF 2015 1.G Repair Manual • NISSAN recommends that you connect thenormal charge cable when getting out of the
vehicle, even if it is not going to be used. By
doing this, you can get the most out of the
remote climate control

Page 62 of 412

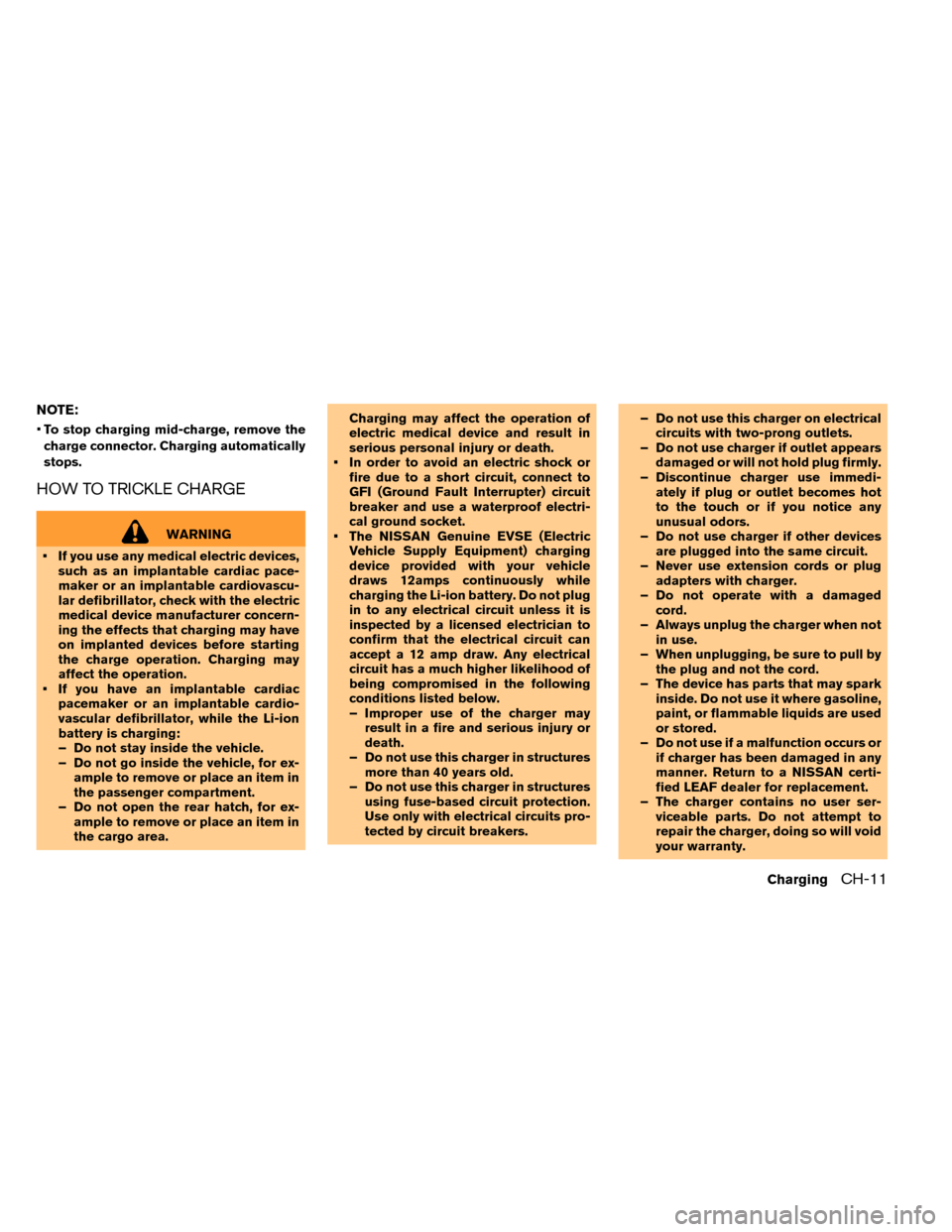

NISSAN LEAF 2015 1.G Repair Manual NOTE:
•To stop charging mid-charge, remove the
charge connector. Charging automatically
stops.
HOW TO TRICKLE CHARGE
WARNING
• If you use any medical electric devices, such as an implantable cardi

Page 63 of 412

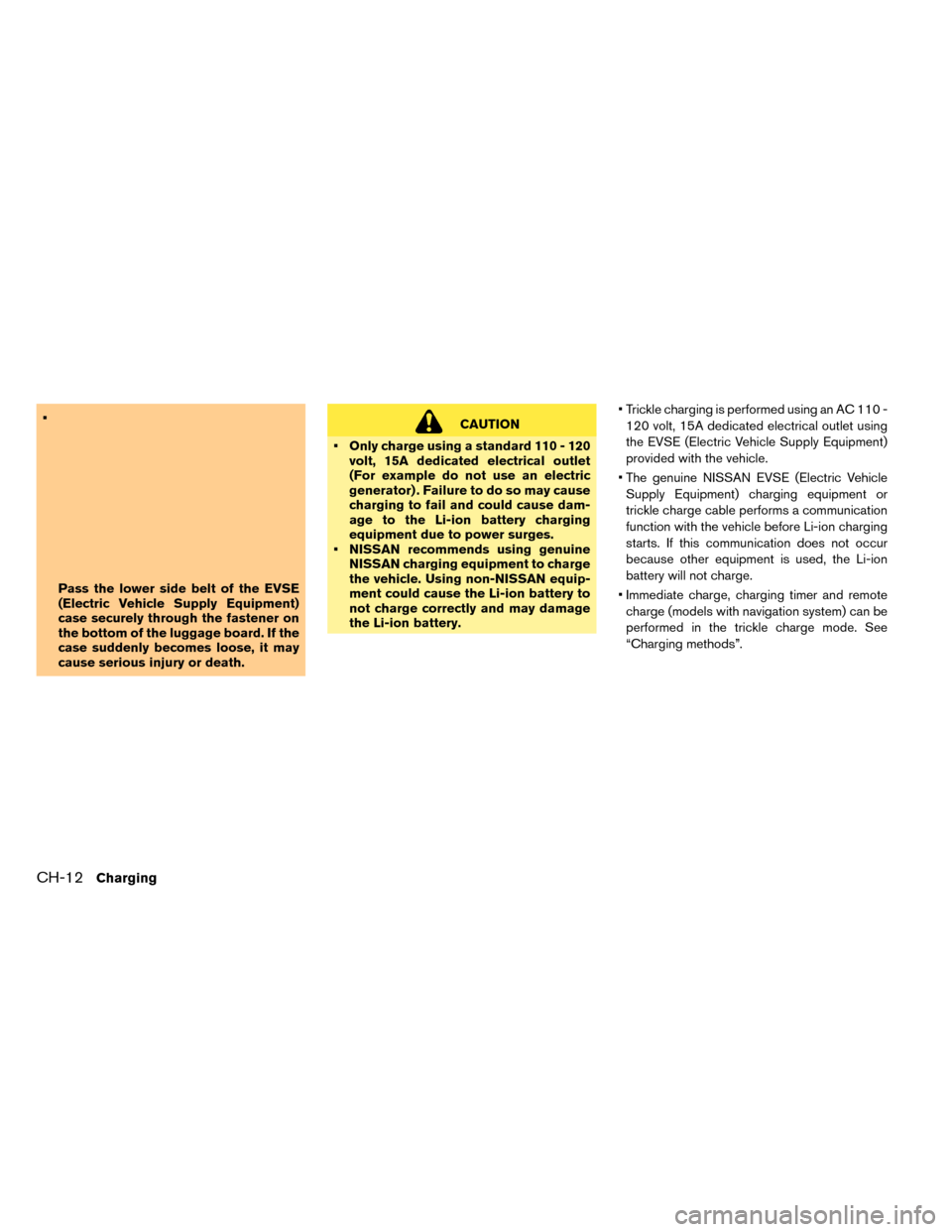

NISSAN LEAF 2015 1.G Repair Manual •
Pass the lower side belt of the EVSE
(Electric Vehicle Supply Equipment)
case securely through the fastener on
the bottom of the luggage board. If the
case suddenly becomes loose, it may
cause ser

Page 64 of 412

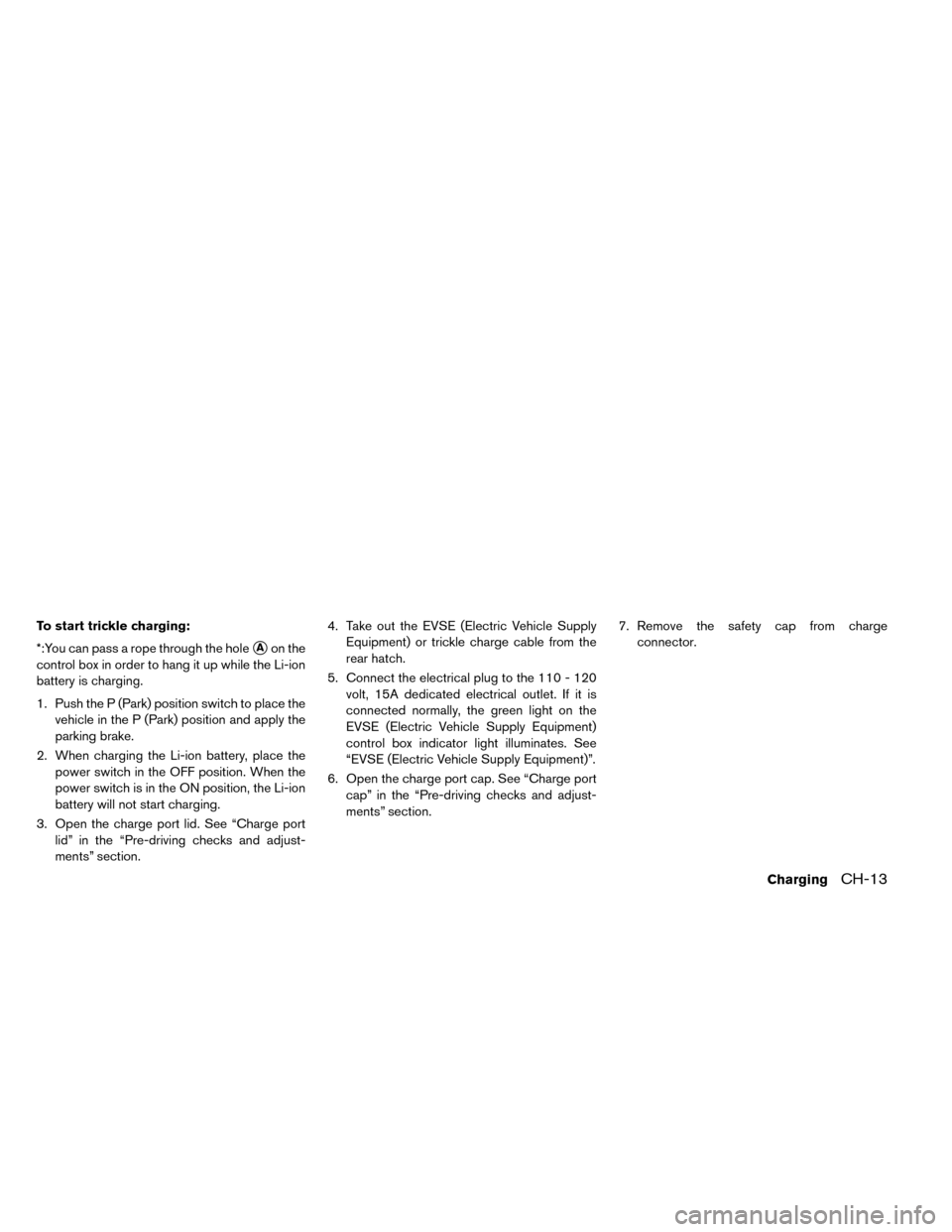

NISSAN LEAF 2015 1.G Repair Manual To start trickle charging:
*:You can pass a rope through the hole
Aon the
control box in order to hang it up while the Li-ion
battery is charging.
1. Push the P (Park) position switch to place the ve

Page 65 of 412

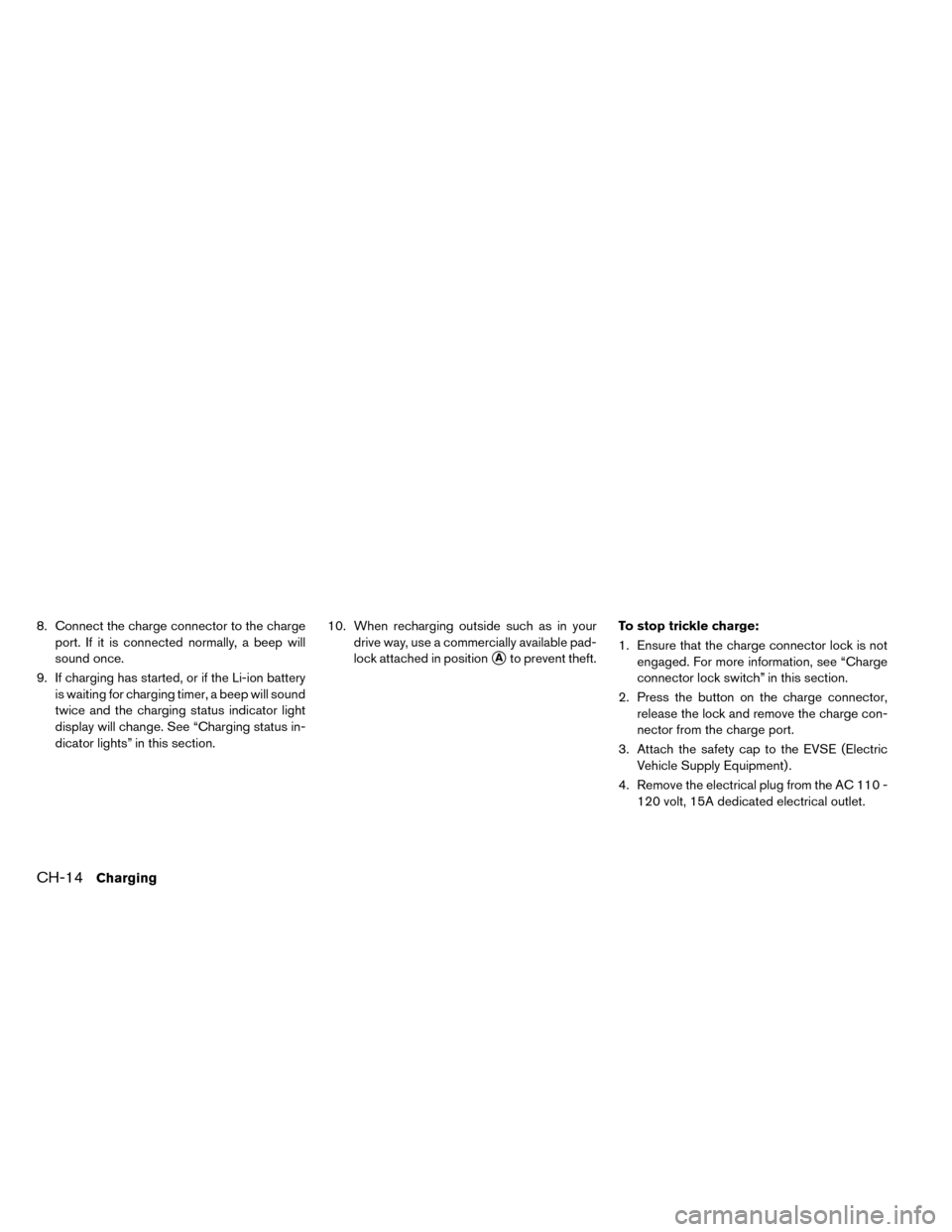

NISSAN LEAF 2015 1.G Repair Manual 8. Connect the charge connector to the chargeport. If it is connected normally, a beep will
sound once.
9. If charging has started, or if the Li-ion battery is waiting for charging timer, a beep will

Page 66 of 412

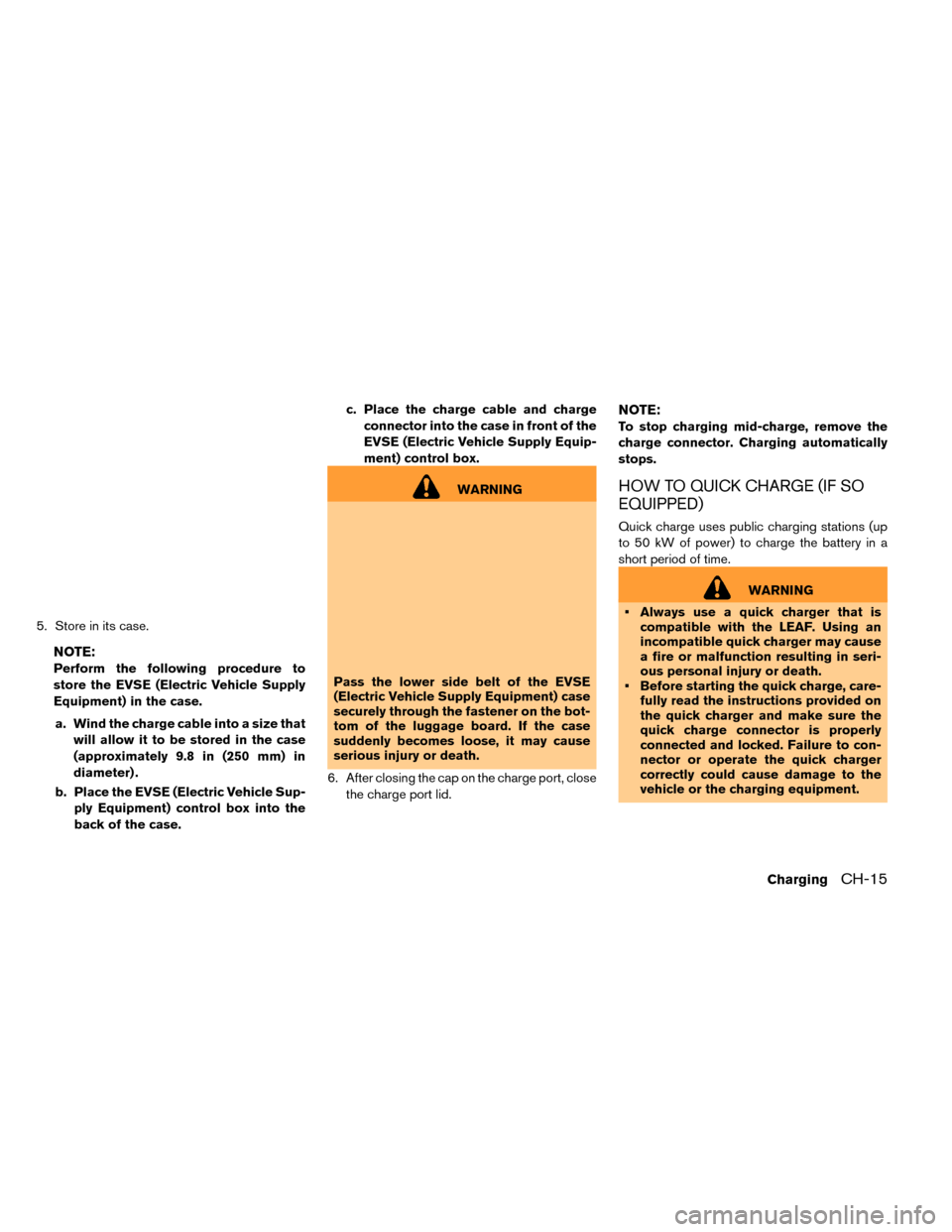

NISSAN LEAF 2015 1.G Repair Manual 5. Store in its case.
NOTE:
Perform the following procedure to
store the EVSE (Electric Vehicle Supply
Equipment) in the case.a. Wind the charge cable into a size that will allow it to be stored in th

Page 67 of 412

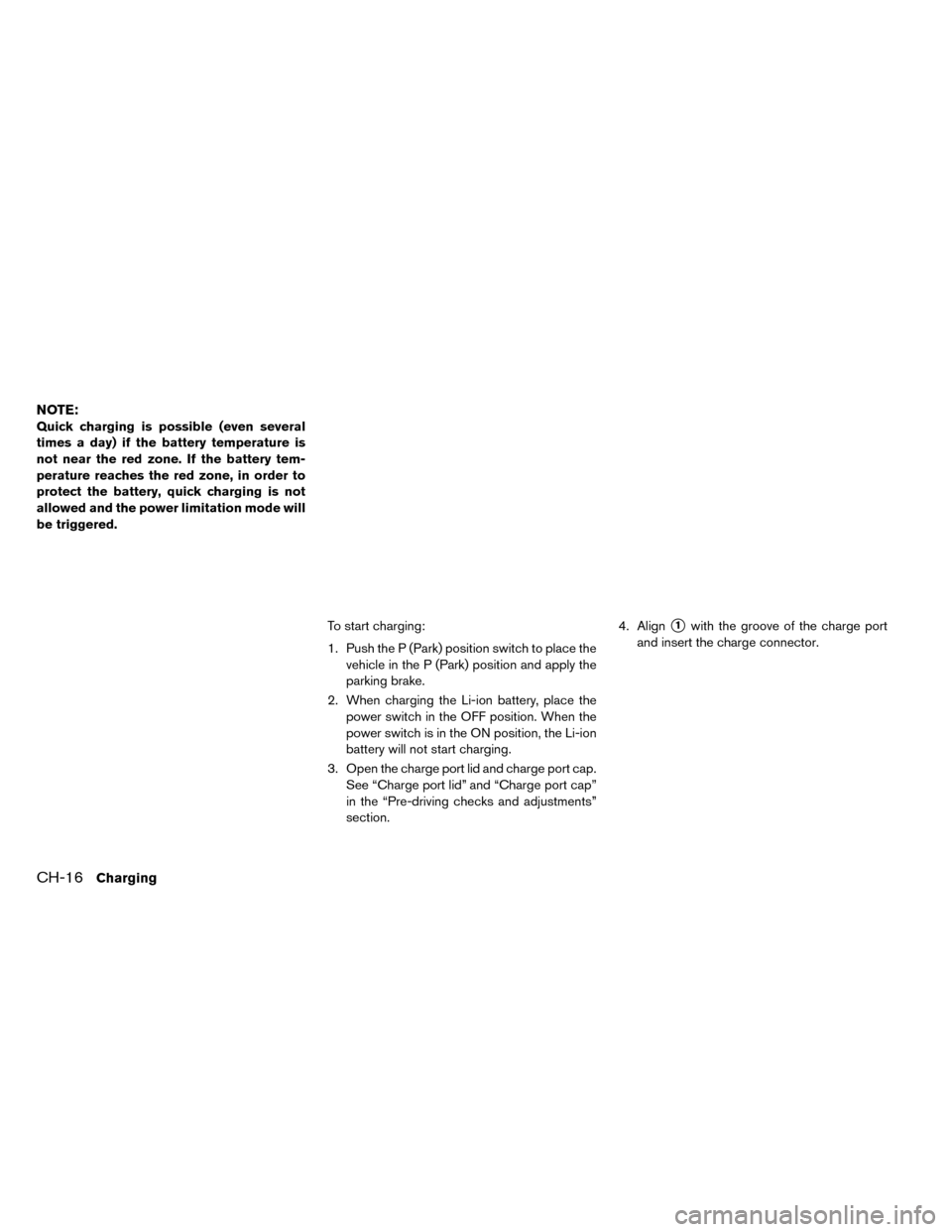

NISSAN LEAF 2015 1.G Repair Manual NOTE:
Quick charging is possible (even several
times a day) if the battery temperature is
not near the red zone. If the battery tem-
perature reaches the red zone, in order to
protect the battery, qui

Page 68 of 412

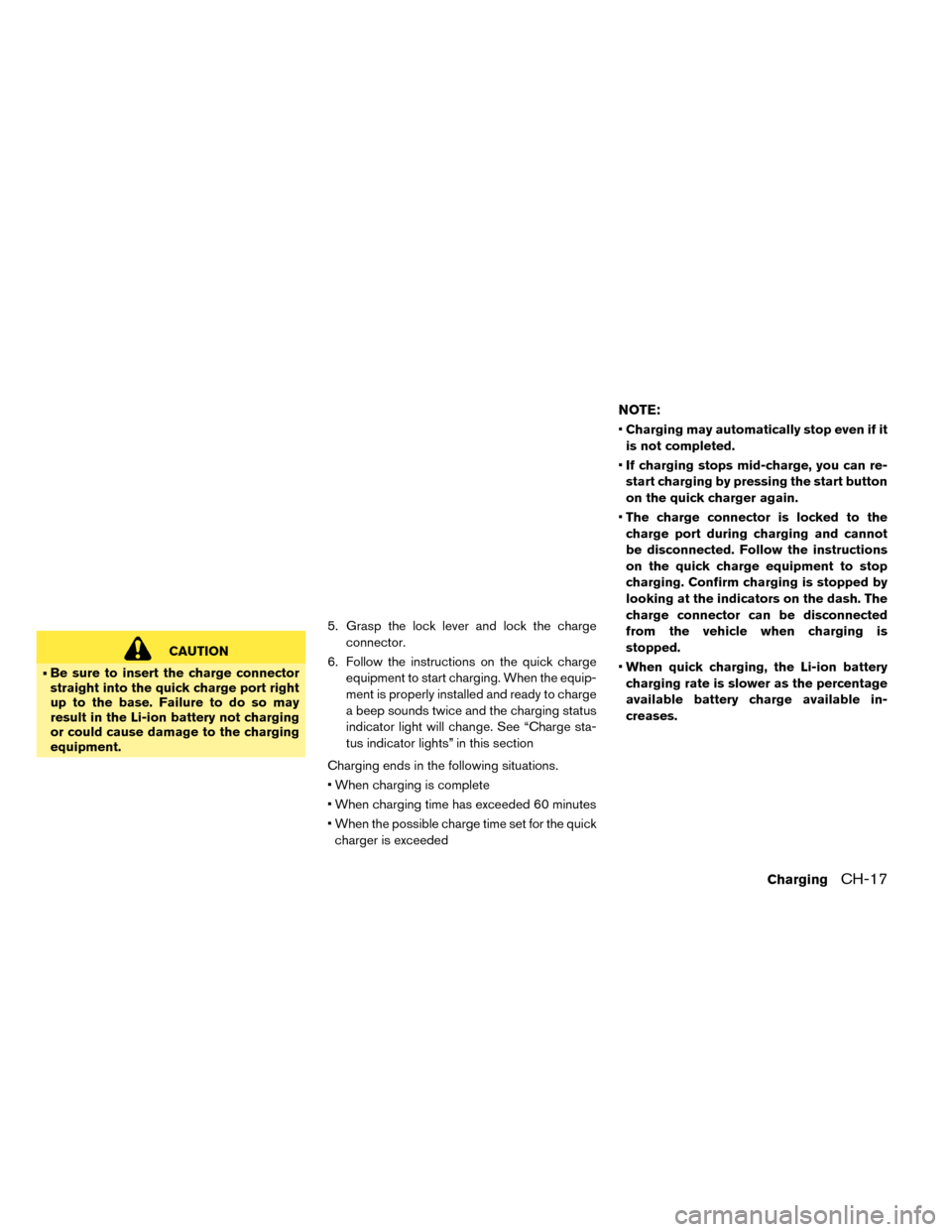

NISSAN LEAF 2015 1.G Repair Manual CAUTION
• Be sure to insert the charge connector
straight into the quick charge port right
up to the base. Failure to do so may
result in the Li-ion battery not charging
or could cause damage to the

Page 69 of 412

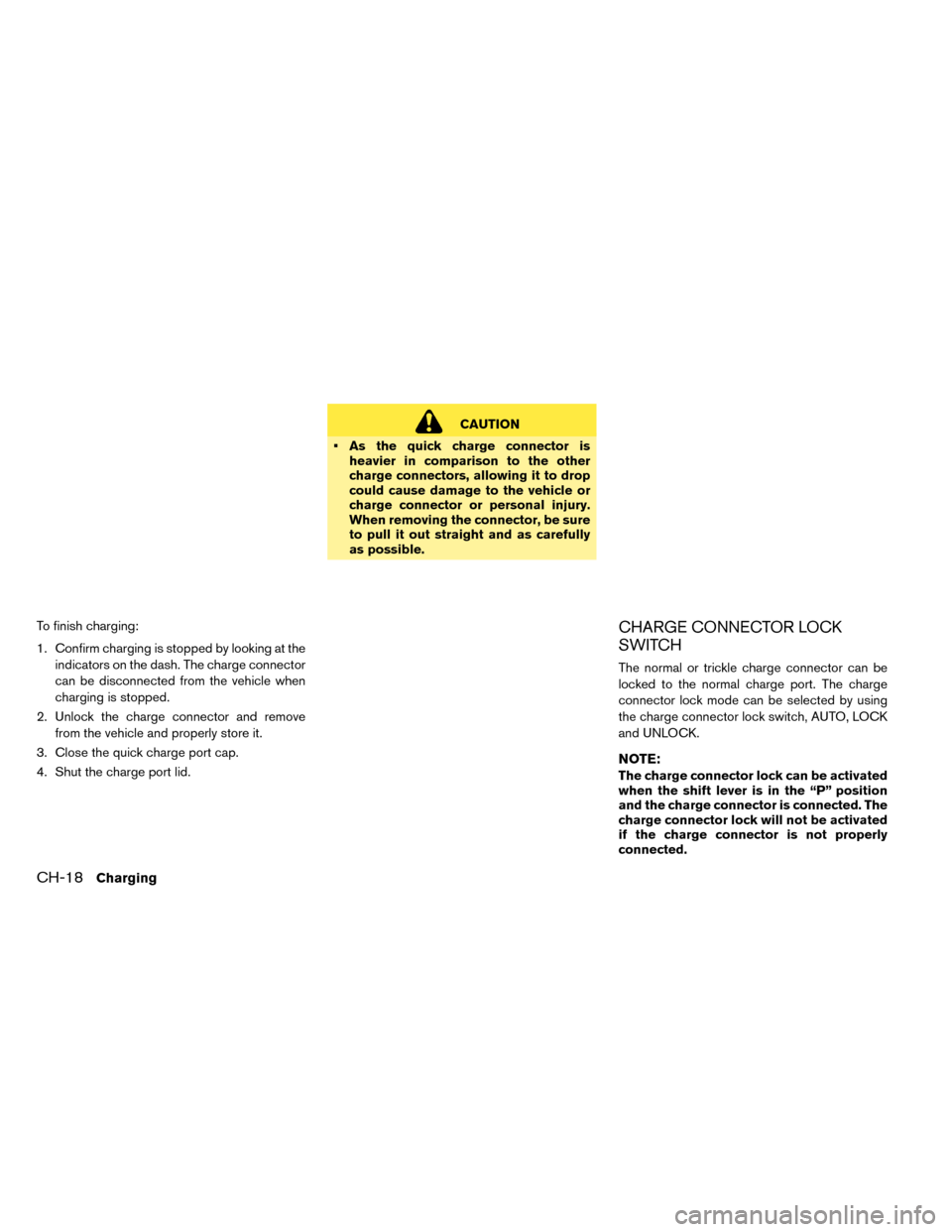

NISSAN LEAF 2015 1.G Repair Manual To finish charging:
1. Confirm charging is stopped by looking at theindicators on the dash. The charge connector
can be disconnected from the vehicle when
charging is stopped.
2. Unlock the charge con

Page 70 of 412

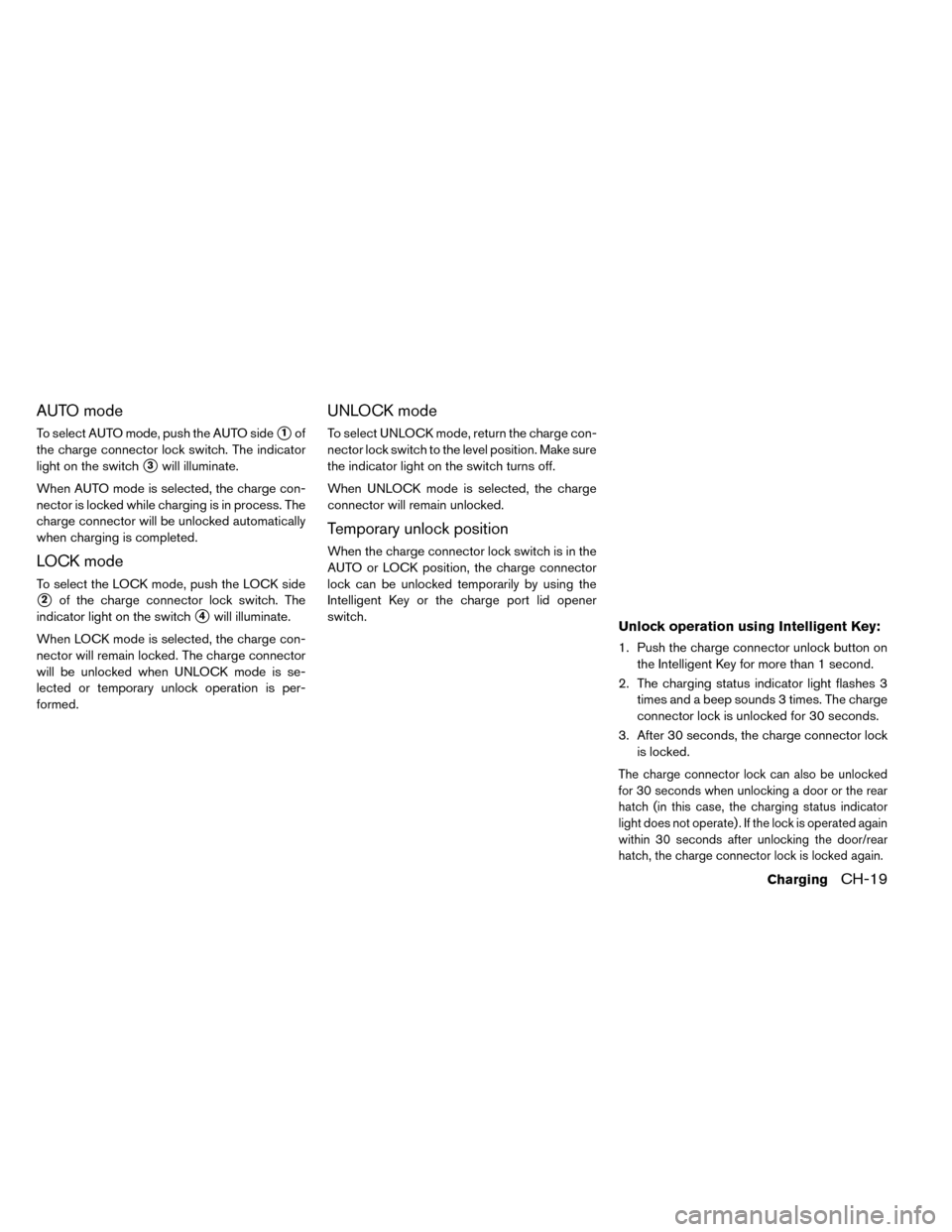

NISSAN LEAF 2015 1.G Repair Manual AUTO mode
To select AUTO mode, push the AUTO side1of
the charge connector lock switch. The indicator
light on the switch
3will illuminate.
When AUTO mode is selected, the charge con-
nector is locke
