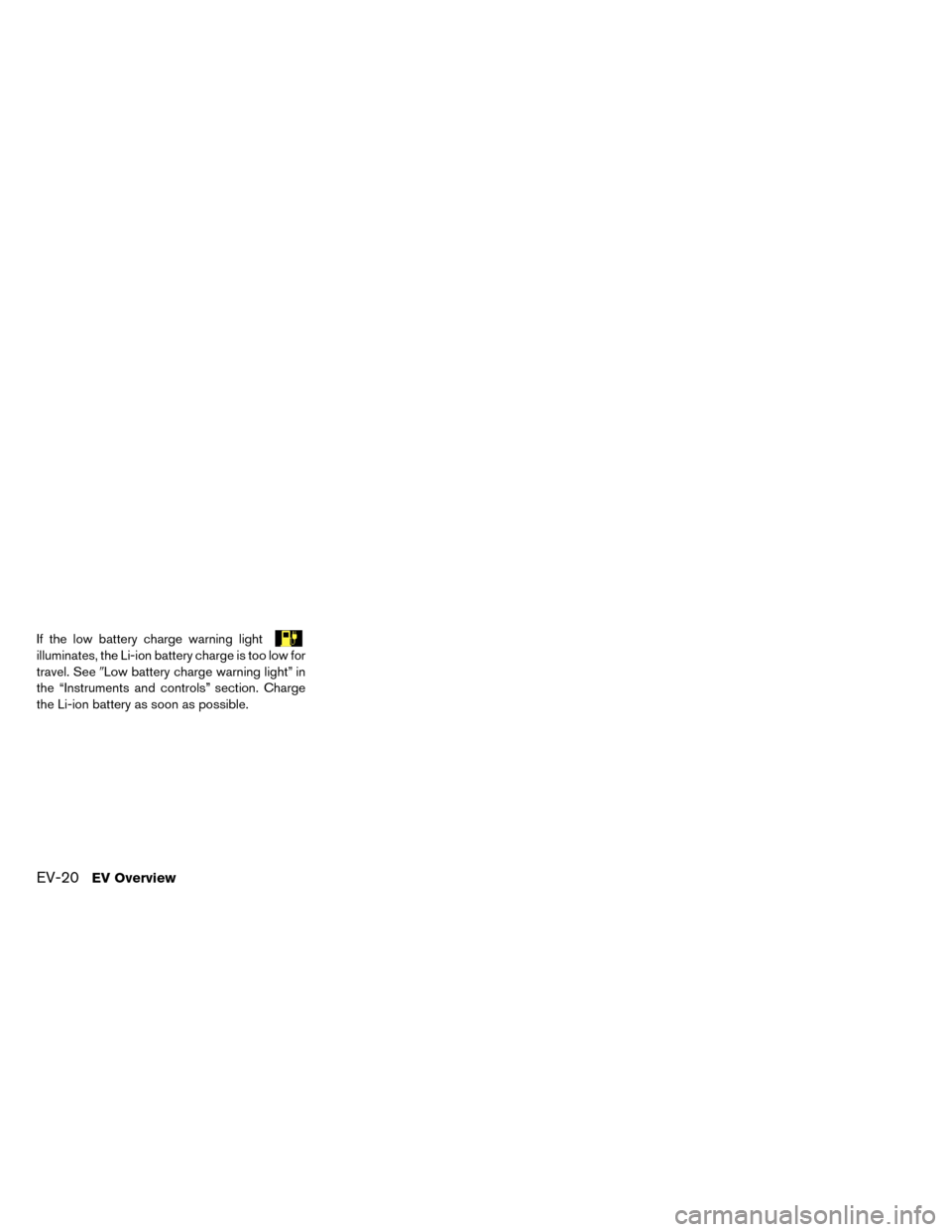

If the low battery charge warning light
illuminates, the Li-ion battery charge is too low for
travel. SeeLow battery charge warning light” in
the “Instruments and controls” section. Charge
the Li-ion battery as soon as possible.
EV-20EV Overview

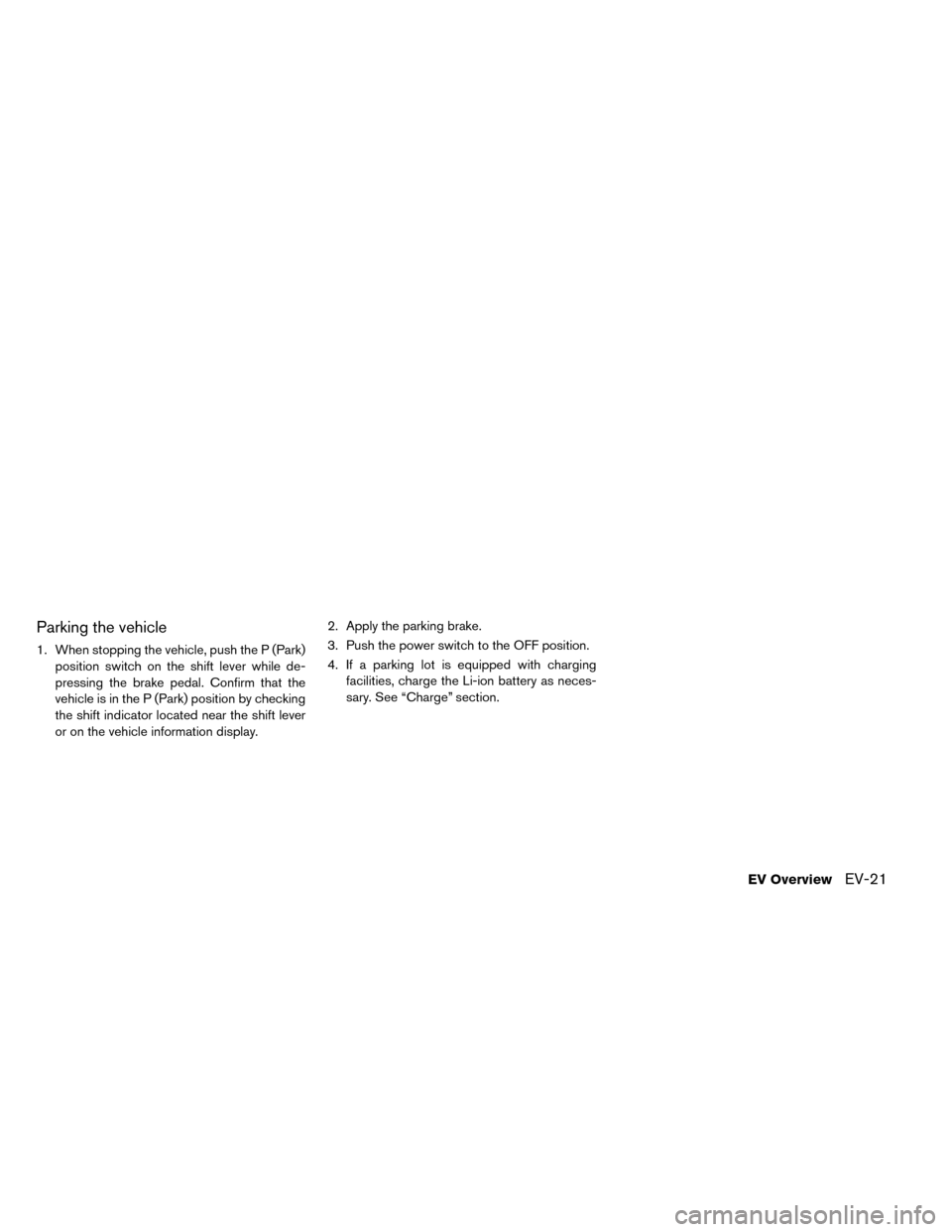

Parking the vehicle
1. When stopping the vehicle, push the P (Park)position switch on the shift lever while de-
pressing the brake pedal. Confirm that the
vehicle is in the P (Park) position by checking
the shift indicator located near the shift lever
or on the vehicle information display. 2. Apply the parking brake.
3. Push the power switch to the OFF position.
4. If a parking lot is equipped with charging
facilities, charge the Li-ion battery as neces-
sary. See “Charge” section.
EV OverviewEV-21

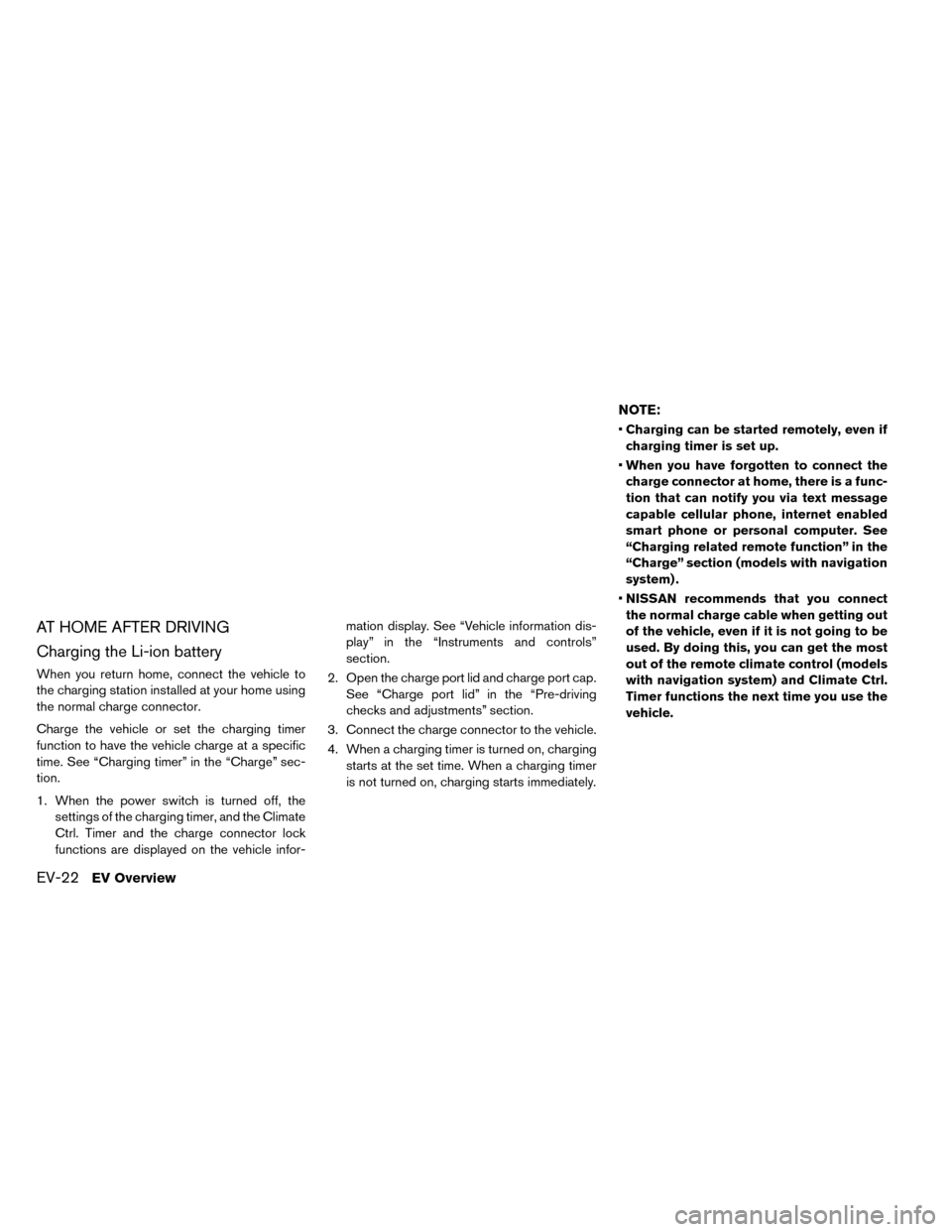

AT HOME AFTER DRIVING
Charging the Li-ion battery
When you return home, connect the vehicle to
the charging station installed at your home using
the normal charge connector.
Charge the vehicle or set the charging timer
function to have the vehicle charge at a specific
time. See “Charging timer” in the “Charge” sec-
tion.
1. When the power switch is turned off, thesettings of the charging timer, and the Climate
Ctrl. Timer and the charge connector lock
functions are displayed on the vehicle infor- mation display. See “Vehicle information dis-
play” in the “Instruments and controls”
section.
2. Open the charge port lid and charge port cap. See “Charge port lid” in the “Pre-driving
checks and adjustments” section.
3. Connect the charge connector to the vehicle.
4. When a charging timer is turned on, charging starts at the set time. When a charging timer
is not turned on, charging starts immediately.
NOTE:
•Charging can be started remotely, even if
charging timer is set up.
• When you have forgotten to connect the
charge connector at home, there is a func-
tion that can notify you via text message
capable cellular phone, internet enabled
smart phone or personal computer. See
“Charging related remote function” in the
“Charge” section (models with navigation
system) .
• NISSAN recommends that you connect
the normal charge cable when getting out
of the vehicle, even if it is not going to be
used. By doing this, you can get the most
out of the remote climate control (models
with navigation system) and Climate Ctrl.
Timer functions the next time you use the
vehicle.
EV-22EV Overview

RANGE
The distance you can drive the vehicle (range)
varies considerably depending upon available
charge, weather, temperature, usage, battery
age, topography, and driving style.
Vehicle range depends on a number of factors.
When the Li-ion battery is new, the estimated ve-
hicle range with a fully charged Li-ion battery is
estimated to be 84 miles (134 km) based on EPA
laboratory tests. These tests represent a combina-
tion of city and highway driving conditions. Your
actual range can vary, either initially or as the bat-
tery ages and with use over time. The majority of
drivers will experience vehicle ranges between 62
to 138 miles (99 to 222 km) based on the many
factors that affect vehicle range. See “Improve
driving range” in this section for information of the
factors that affect vehicle range and how to use the
vehicle to maximize vehicle range. Please refer to
the Monroney label for ‘official’ EPA range values.
IMPROVE DRIVING RANGE
Vehicle range depends on a number of factors.
Actual vehicle range will vary depending upon:
• speed,
• vehicle load,• electrical load from vehicle accessories,
• traffic and road conditions.
NISSAN recommends the following driving
habits to help maximize vehicle range:
Before driving:
• Follow recommended periodic maintenance.
• Keep tires inflated to correct pressure.
• Keep wheels in correct alignment.
• Pre-heat or pre-cool the interior cabin while the
vehicle is charging.
• Remove unnecessary cargo from the vehicle.
While driving:
• Drive in ECO mode – In the ECO position more regenerativebrake is applied when the accelerator pedal
is released in comparison to the D (Drive)
position and more power is provided to the
Li-ion battery (models with navigation sys-
tem) .
• Drive at a constant speed. Maintain cruising speeds with a constant accelerator positions or
by using cruise control when appropriate.
• Accelerate slowly and smoothly. Gently press and release the accelerator pedal for accelera-
tion and deceleration. • Drive at moderate speeds on the highway.
• Avoid frequent stopping and braking. Maintain a
safe distance behind other vehicles.
• Turn off the air conditioner/heater when it is not necessary.
• Select a moderate temperature setting for heat- ing or cooling to help reduce power consump-
tion.
• Use the air conditioner/heater and close win- dows to reduce drag when cruising at highway
speed.
• Vehicle range may be substantially reduced in extremely cold conditions (for example -4°F
(-20°C) .
• Using the climate control system to heat the cabin when outside temperature is below 32°F
(0°C) uses more electricity and affects vehicle
range more than when using the heater when
the temperature is above 32°F (0°C) .
EFFICIENT USE OF YOUR VEHICLE
EV OverviewEV-23

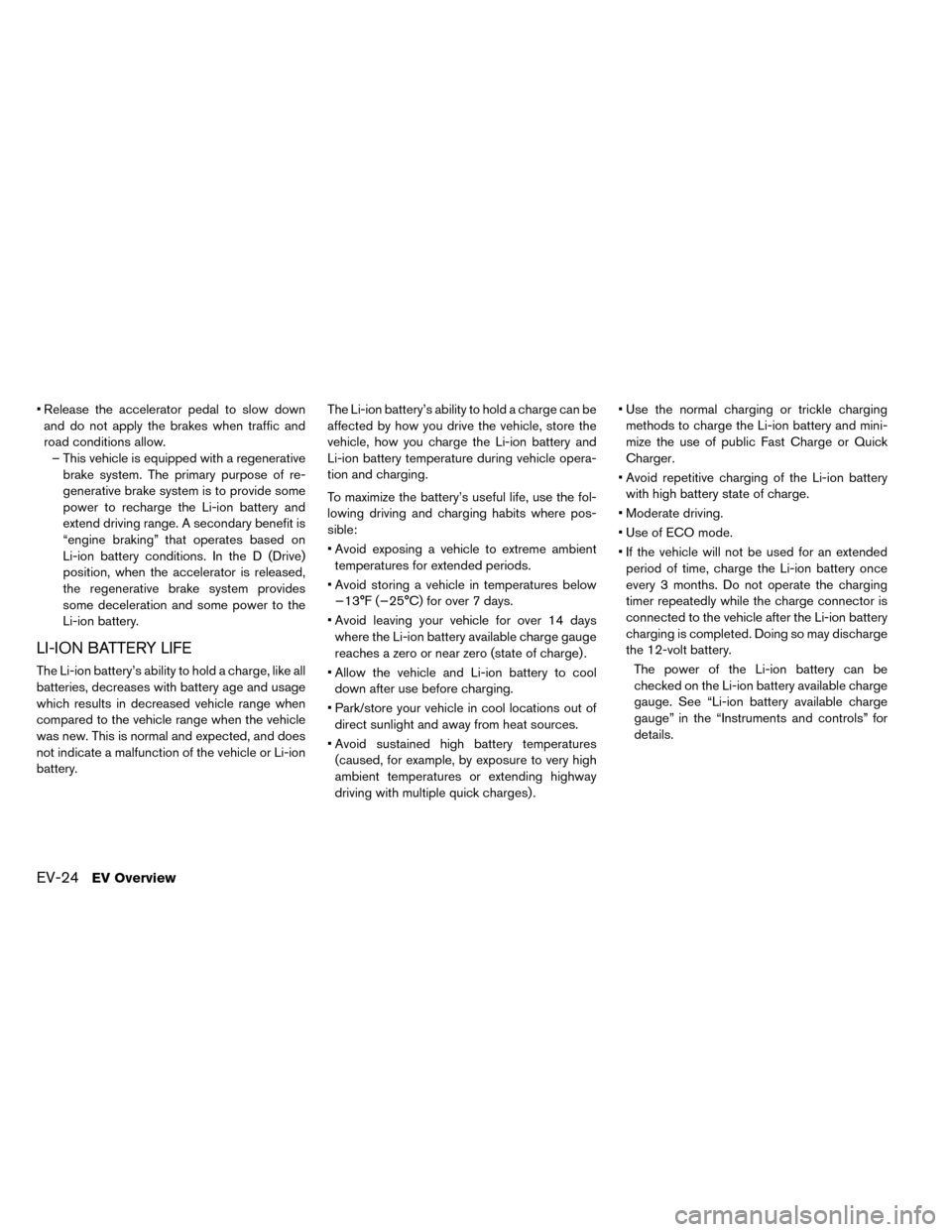

• Release the accelerator pedal to slow downand do not apply the brakes when traffic and
road conditions allow. – This vehicle is equipped with a regenerative brake system. The primary purpose of re-
generative brake system is to provide some
power to recharge the Li-ion battery and
extend driving range. A secondary benefit is
“engine braking” that operates based on
Li-ion battery conditions. In the D (Drive)
position, when the accelerator is released,
the regenerative brake system provides
some deceleration and some power to the
Li-ion battery.
LI-ION BATTERY LIFE
The Li-ion battery’s ability to hold a charge, like all
batteries, decreases with battery age and usage
which results in decreased vehicle range when
compared to the vehicle range when the vehicle
was new. This is normal and expected, and does
not indicate a malfunction of the vehicle or Li-ion
battery. The Li-ion battery’s ability to hold a charge can be
affected by how you drive the vehicle, store the
vehicle, how you charge the Li-ion battery and
Li-ion battery temperature during vehicle opera-
tion and charging.
To maximize the battery’s useful life, use the fol-
lowing driving and charging habits where pos-
sible:
• Avoid exposing a vehicle to extreme ambient
temperatures for extended periods.
• Avoid storing a vehicle in temperatures below −13°F (−25°C) for over 7 days.
• Avoid leaving your vehicle for over 14 days where the Li-ion battery available charge gauge
reaches a zero or near zero (state of charge) .
• Allow the vehicle and Li-ion battery to cool down after use before charging.
• Park/store your vehicle in cool locations out of direct sunlight and away from heat sources.
• Avoid sustained high battery temperatures (caused, for example, by exposure to very high
ambient temperatures or extending highway
driving with multiple quick charges) . • Use the normal charging or trickle charging
methods to charge the Li-ion battery and mini-
mize the use of public Fast Charge or Quick
Charger.
• Avoid repetitive charging of the Li-ion battery with high battery state of charge.
• Moderate driving.
• Use of ECO mode.
• If the vehicle will not be used for an extended period of time, charge the Li-ion battery once
every 3 months. Do not operate the charging
timer repeatedly while the charge connector is
connected to the vehicle after the Li-ion battery
charging is completed. Doing so may discharge
the 12-volt battery.
The power of the Li-ion battery can be
checked on the Li-ion battery available charge
gauge. See “Li-ion battery available charge
gauge” in the “Instruments and controls” for
details.
EV-24EV Overview

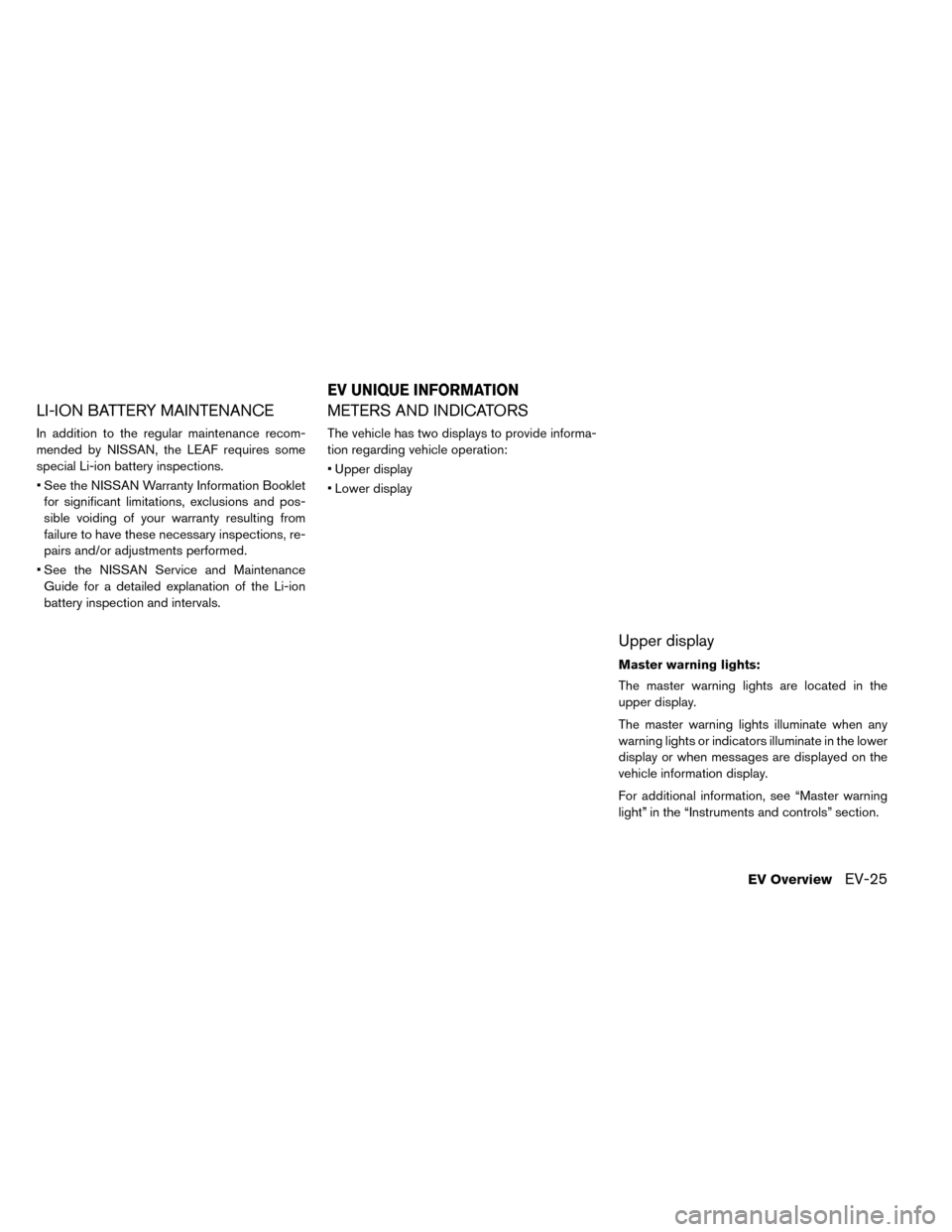

LI-ION BATTERY MAINTENANCE
In addition to the regular maintenance recom-
mended by NISSAN, the LEAF requires some
special Li-ion battery inspections.
• See the NISSAN Warranty Information Bookletfor significant limitations, exclusions and pos-
sible voiding of your warranty resulting from
failure to have these necessary inspections, re-
pairs and/or adjustments performed.
• See the NISSAN Service and Maintenance Guide for a detailed explanation of the Li-ion
battery inspection and intervals.
METERS AND INDICATORS
The vehicle has two displays to provide informa-
tion regarding vehicle operation:
• Upper display
• Lower display
Upper display
Master warning lights:
The master warning lights are located in the
upper display.
The master warning lights illuminate when any
warning lights or indicators illuminate in the lower
display or when messages are displayed on the
vehicle information display.
For additional information, see “Master warning
light” in the “Instruments and controls” section.
EV UNIQUE INFORMATION
EV OverviewEV-25

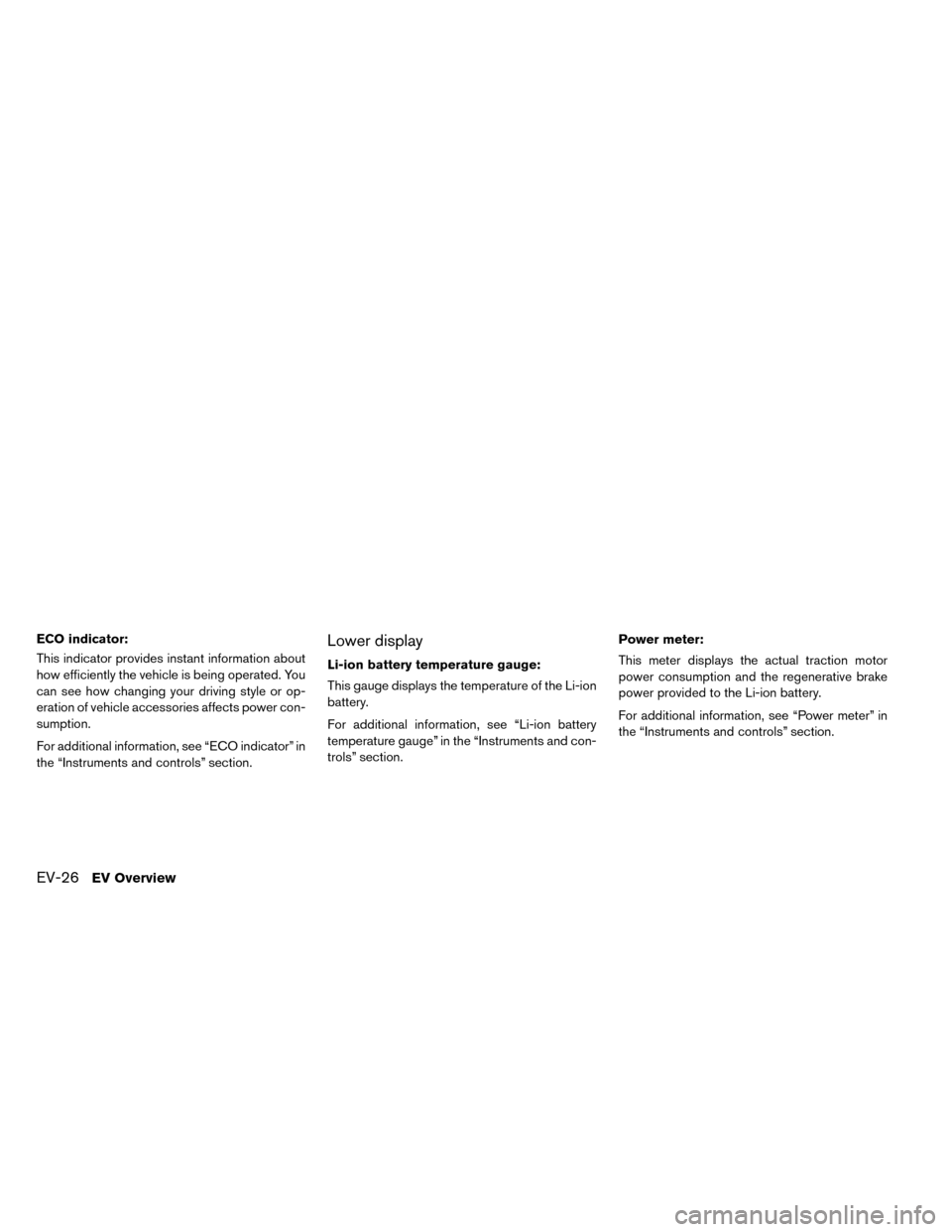

ECO indicator:
This indicator provides instant information about
how efficiently the vehicle is being operated. You
can see how changing your driving style or op-
eration of vehicle accessories affects power con-
sumption.
For additional information, see “ECO indicator” in
the “Instruments and controls” section.Lower display
Li-ion battery temperature gauge:
This gauge displays the temperature of the Li-ion
battery.
For additional information, see “Li-ion battery
temperature gauge” in the “Instruments and con-
trols” section.Power meter:
This meter displays the actual traction motor
power consumption and the regenerative brake
power provided to the Li-ion battery.
For additional information, see “Power meter” in
the “Instruments and controls” section.
EV-26EV Overview

Driving range:
This indicator displays the estimated driving
range (calculated based on a program that ac-
counts for current driving style and operational
conditions) that can be driven before recharging
is necessary.
For additional information, see “Driving range” in
the “Instruments and controls” section.Li-ion battery available charge gauge:
This gauge displays the available Li-ion battery
power remaining to drive the vehicle.
For additional information, see “Li-ion battery
available charge gauge” in the “Instruments and
controls” section.
Li-ion battery capacity level gauge:
This gauge displays the available capacity of the
Li-ion battery remaining to store power.
For additional information, see “Li-ion battery ca-
pacity level gauge” in the “Instruments and con-
trols” section.
EV OverviewEV-27

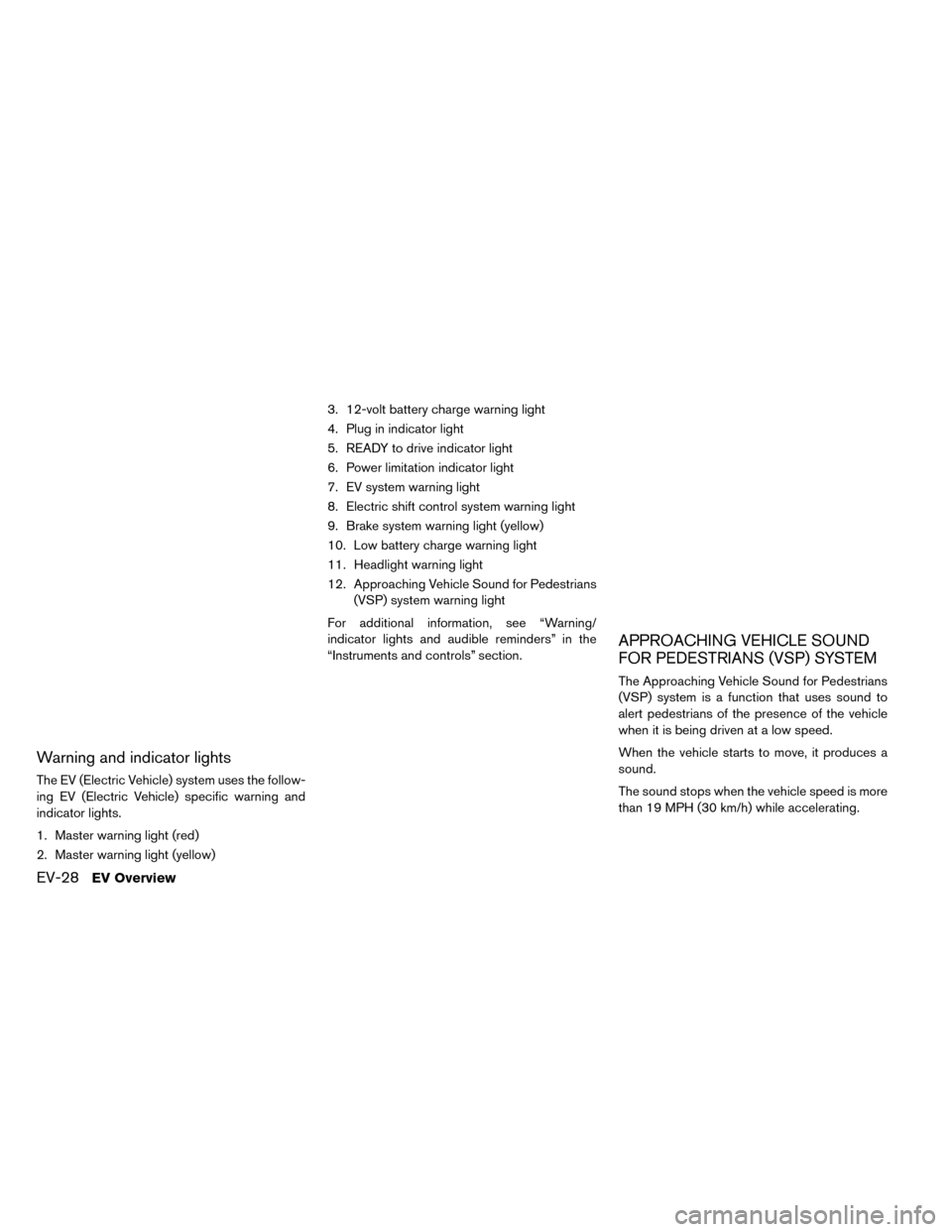

Warning and indicator lights
The EV (Electric Vehicle) system uses the follow-
ing EV (Electric Vehicle) specific warning and
indicator lights.
1. Master warning light (red)
2. Master warning light (yellow)3. 12-volt battery charge warning light
4. Plug in indicator light
5. READY to drive indicator light
6. Power limitation indicator light
7. EV system warning light
8. Electric shift control system warning light
9. Brake system warning light (yellow)
10. Low battery charge warning light
11. Headlight warning light
12. Approaching Vehicle Sound for Pedestrians
(VSP) system warning light
For additional information, see “Warning/
indicator lights and audible reminders” in the
“Instruments and controls” section.
APPROACHING VEHICLE SOUND
FOR PEDESTRIANS (VSP) SYSTEM
The Approaching Vehicle Sound for Pedestrians
(VSP) system is a function that uses sound to
alert pedestrians of the presence of the vehicle
when it is being driven at a low speed.
When the vehicle starts to move, it produces a
sound.
The sound stops when the vehicle speed is more
than 19 MPH (30 km/h) while accelerating.
EV-28EV Overview

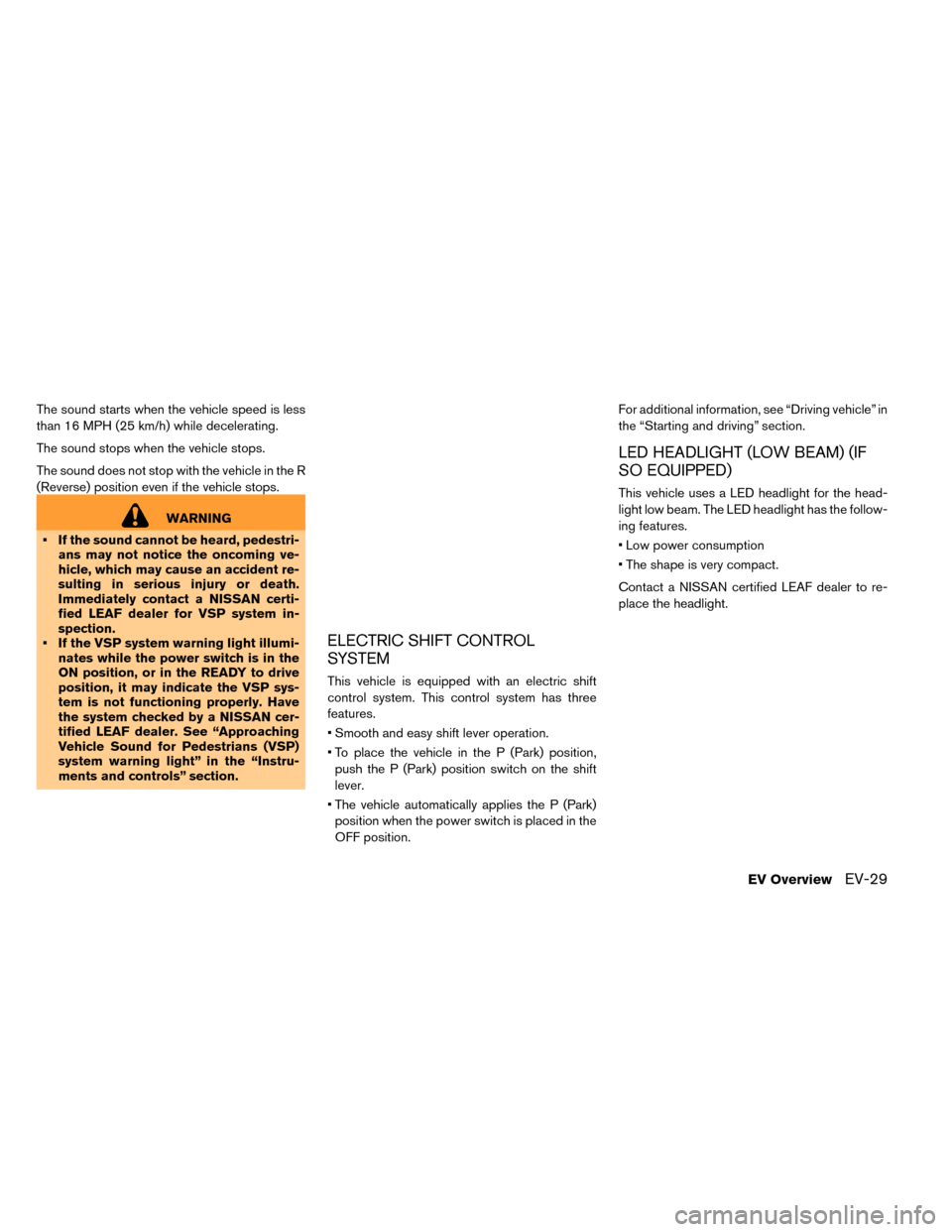

The sound starts when the vehicle speed is less
than 16 MPH (25 km/h) while decelerating.
The sound stops when the vehicle stops.
The sound does not stop with the vehicle in the R
(Reverse) position even if the vehicle stops.
WARNING
• If the sound cannot be heard, pedestri- ans may not notice the oncoming ve-
hicle, which may cause an accident re-
sulting in serious injury or death.
Immediately contact a NISSAN certi-
fied LEAF dealer for VSP system in-
spection.
• If the VSP system warning light illumi- nates while the power switch is in the
ON position, or in the READY to drive
position, it may indicate the VSP sys-
tem is not functioning properly. Have
the system checked by a NISSAN cer-
tified LEAF dealer. See “Approaching
Vehicle Sound for Pedestrians (VSP)
system warning light” in the “Instru-
ments and controls” section.
ELECTRIC SHIFT CONTROL
SYSTEM
This vehicle is equipped with an electric shift
control system. This control system has three
features.
• Smooth and easy shift lever operation.
• To place the vehicle in the P (Park) position,
push the P (Park) position switch on the shift
lever.
• The vehicle automatically applies the P (Park) position when the power switch is placed in the
OFF position. For additional information, see “Driving vehicle” in
the “Starting and driving” section.
LED HEADLIGHT (LOW BEAM) (IF
SO EQUIPPED)
This vehicle uses a LED headlight for the head-
light low beam. The LED headlight has the follow-
ing features.
• Low power consumption
• The shape is very compact.
Contact a NISSAN certified LEAF dealer to re-
place the headlight.
EV OverviewEV-29
