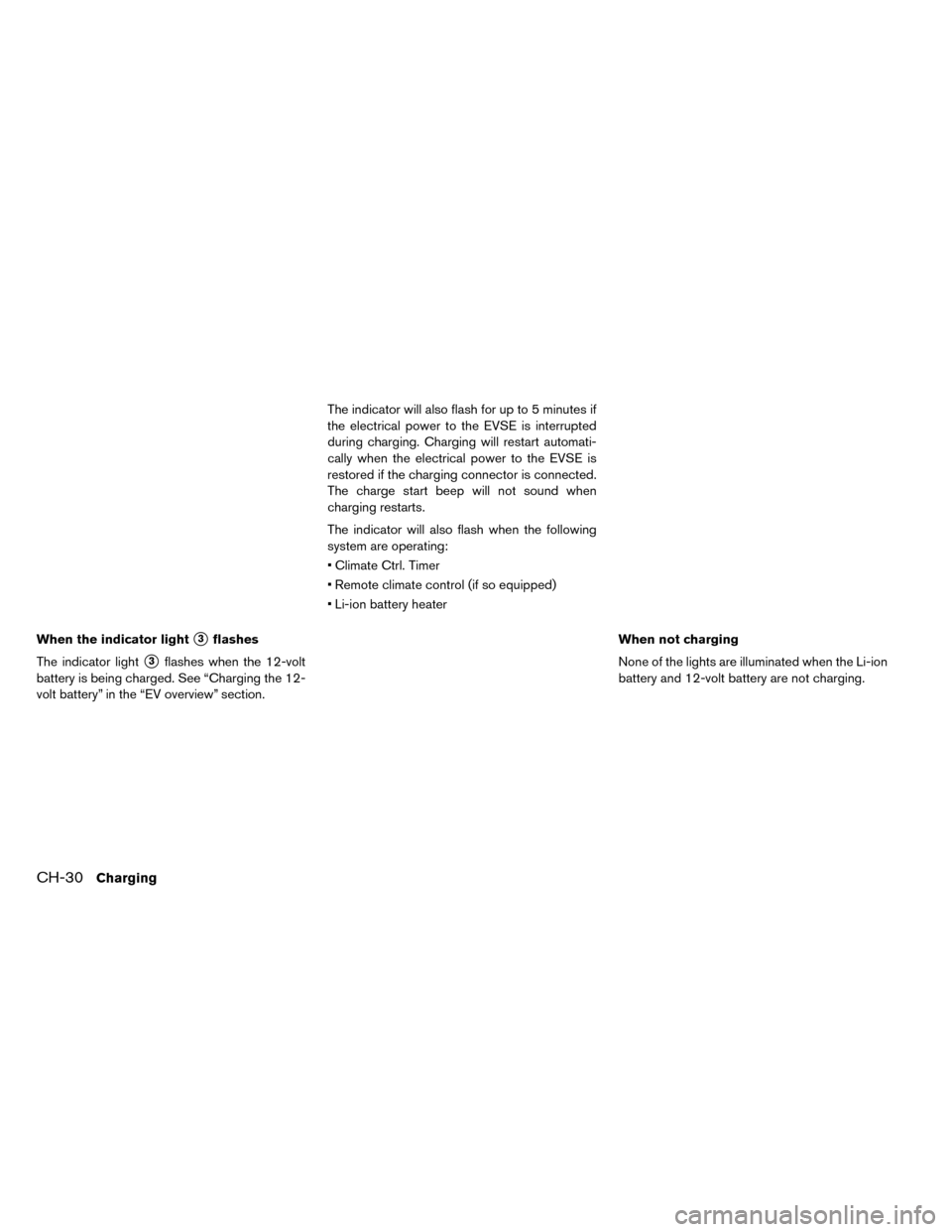

When the indicator light3flashes
The indicator light
3flashes when the 12-volt
battery is being charged. See “Charging the 12-
volt battery” in the “EV overview” section. The indicator will also flash for up to 5 minutes if
the electrical power to the EVSE is interrupted
during charging. Charging will restart automati-
cally when the electrical power to the EVSE is
restored if the charging connector is connected.
The charge start beep will not sound when
charging restarts.
The indicator will also flash when the following
system are operating:
• Climate Ctrl. Timer
• Remote climate control (if so equipped)
• Li-ion battery heater
When not charging
None of the lights are illuminated when the Li-ion
battery and 12-volt battery are not charging.
CH-30Charging

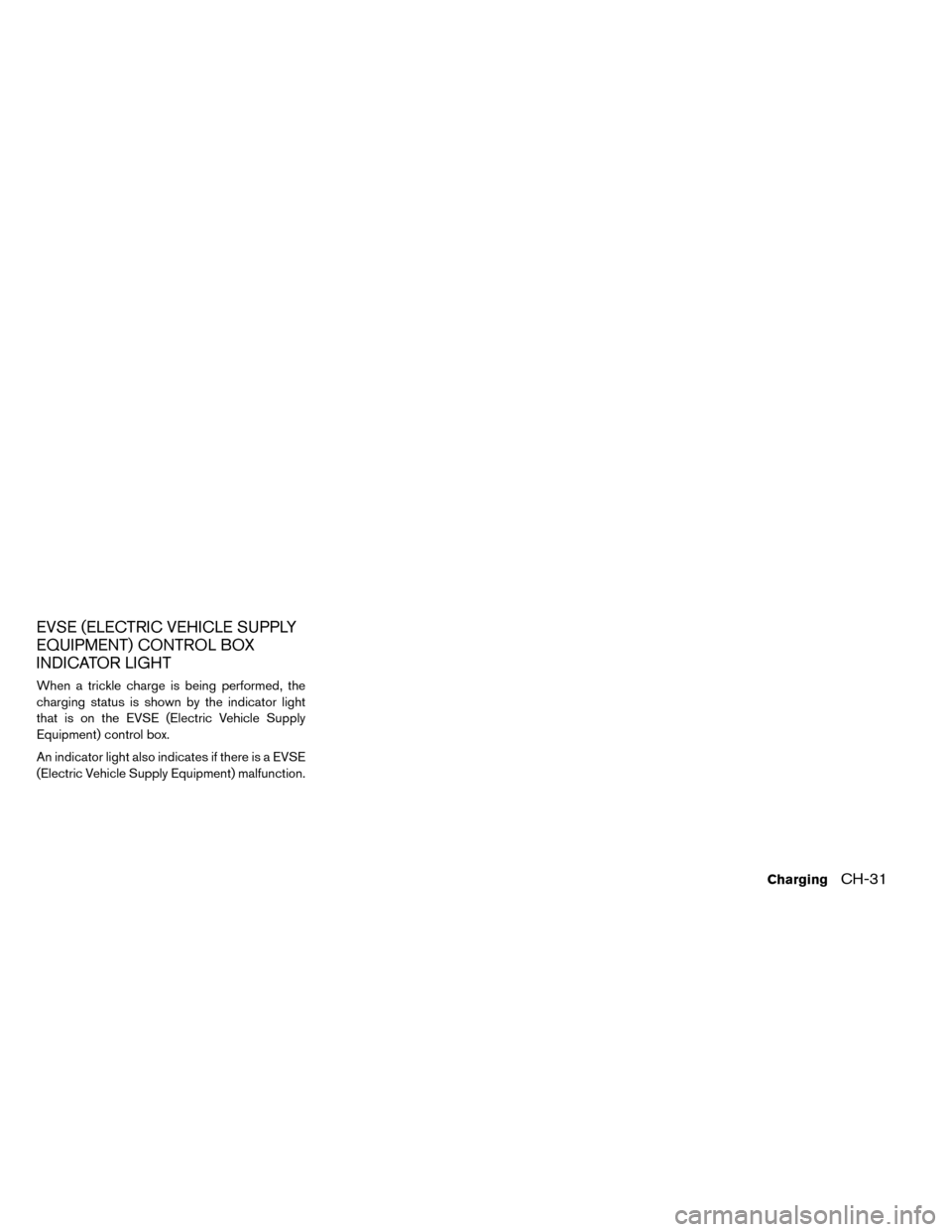

EVSE (ELECTRIC VEHICLE SUPPLY
EQUIPMENT) CONTROL BOX
INDICATOR LIGHT
When a trickle charge is being performed, the
charging status is shown by the indicator light
that is on the EVSE (Electric Vehicle Supply
Equipment) control box.
An indicator light also indicates if there is a EVSE
(Electric Vehicle Supply Equipment) malfunction.
ChargingCH-31

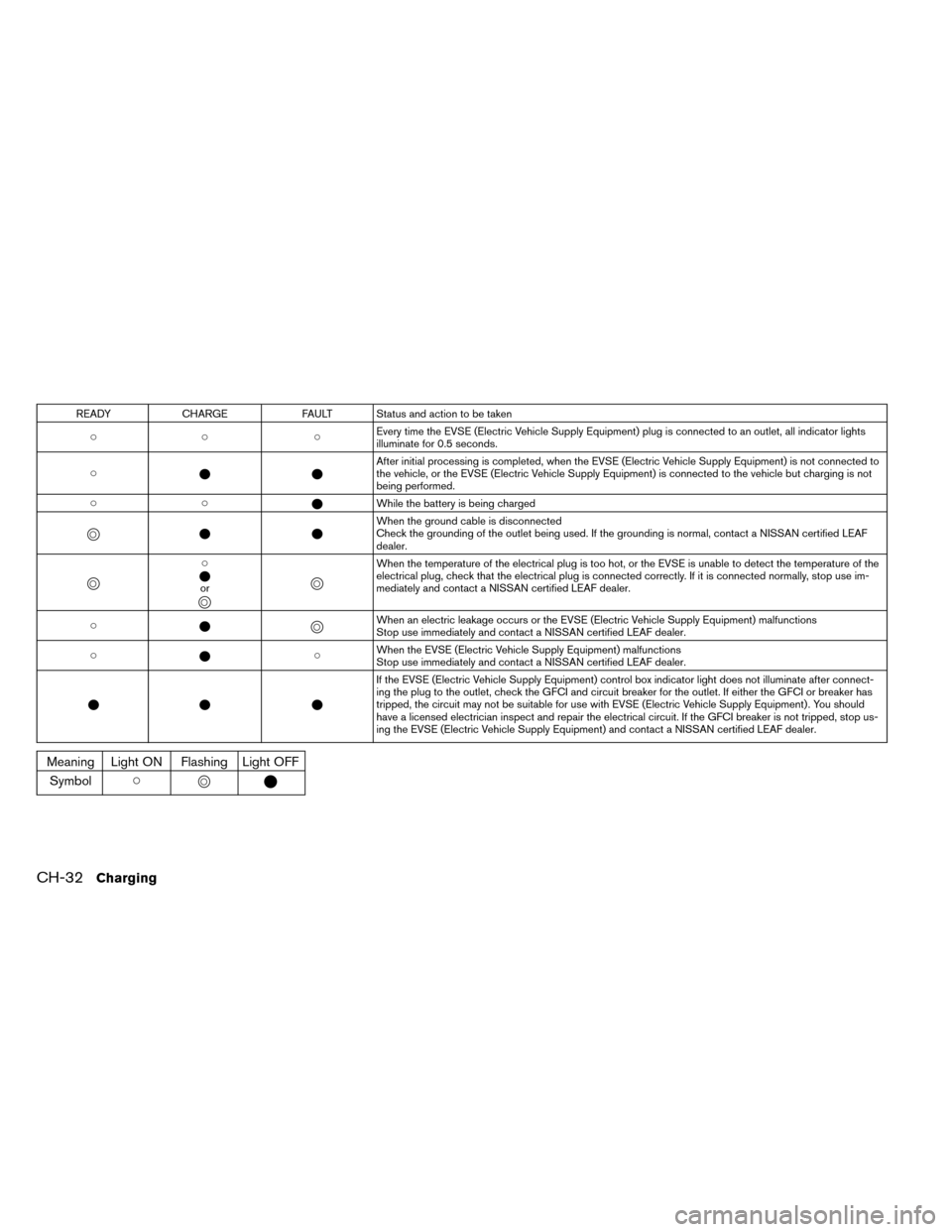

READYCHARGE FAULT Status and action to be taken
  Every time the EVSE (Electric Vehicle Supply Equipment) plug is connected to an outlet, all indicator lights
illuminate for 0.5 seconds.
  After initial processing is completed, when the EVSE (Electric Vehicle Supply Equipment) is not connected to
the vehicle, or the EVSE (Electric Vehicle Supply Equipment) is connected to the vehicle but charging is not
being performed.
 While the battery is being charged

 When the ground cable is disconnected
Check the grounding of the outlet being used. If the grounding is normal, contact a NISSAN certified LEAF
dealer.



 or


When the temperature of the electrical plug is too hot, or the EVSE is unable to detect the temperature of the
electrical plug, check that the electrical plug is connected correctly. If it is connected normally, stop use im-
mediately and contact a NISSAN certified LEAF dealer.


When an electric leakage occurs or the EVSE (Electric Vehicle Supply Equipment) malfunctions
Stop use immediately and contact a NISSAN certified LEAF dealer.
  When the EVSE (Electric Vehicle Supply Equipment) malfunctions
Stop use immediately and contact a NISSAN certified LEAF dealer.
  If the EVSE (Electric Vehicle Supply Equipment) control box indicator light does not illuminate after connect-
ing the plug to the outlet, check the GFCI and circuit breaker for the outlet. If either the GFCI or breaker has
tripped, the circuit may not be suitable for use with EVSE (Electric Vehicle Supply Equipment) . You should
have a licensed electrician inspect and repair the electrical circuit. If the GFCI breaker is not tripped, stop us-
ing the EVSE (Electric Vehicle Supply Equipment) and contact a NISSAN certified LEAF dealer.
Meaning Light ON Flashing Light OFF
Symbol

CH-32Charging

SymptomPossible cause Possible solution
Charging cannot be per-
formed. The vehicle power switch is in the ON position. Before charging, place the vehicle power switch in the OFF position.
Both the normal charge connector and the quick
charge connector are connected at the same time.
The normal charge connector and the quick charge connector cannot be connected at the same time.
The Li-ion battery is already fully charged. Charging can not be performed if the Li-ion battery is already fully charged. Charging automatically
turns off if the Li-ion battery is fully charged.
The temperature of the Li-ion battery is too hot or
cold to charge. Confirm the Li-ion battery temperature by checking the Li-ion battery temperature gauge. If the gauge
indicates the Li-ion battery is too hot (red zone) or too cold (blue zone) , charging is not possible. Allow
the Li-ion battery to cool or warm up before charging. See “Li-ion battery temperature gauge” in the
“Instruments and controls” section.
The 12-volt battery is discharged. The Li-ion battery can be charged if the vehicle electrical systems can not be turned on. If the 12-volt
battery is discharged, charge or jump start the 12-volt battery. See “Jump starting” in the “In case of
emergency” section.
The vehicle has a malfunction. The vehicle or charger may have a malfunction. Confirm if the warning light on the meter is illumi-
nated. Confirm if the indicator on the charger is indicating a malfunction . If a warning is displayed,
stop charging and contact a NISSAN certified LEAF dealer.
Normal charge or trickle
charge cannot be performed. There is no electrical power coming from the
outlet.
Confirm that there has not been a power failure. Make sure the breaker is on. If an outlet with a timer
device installed is used, power will only be available at the time set by the timer.
The electrical plug is not connected correctly. Confirm the electrical plug is connected correctly (trickle charge only) .
The charge connector is not connected cor-
rectly. Confirm the charge connector is connected correctly.
Immediate charge cannot be performed. Charging timer has been set.
Turn off the charging timer. See “Charging timer” in this section.

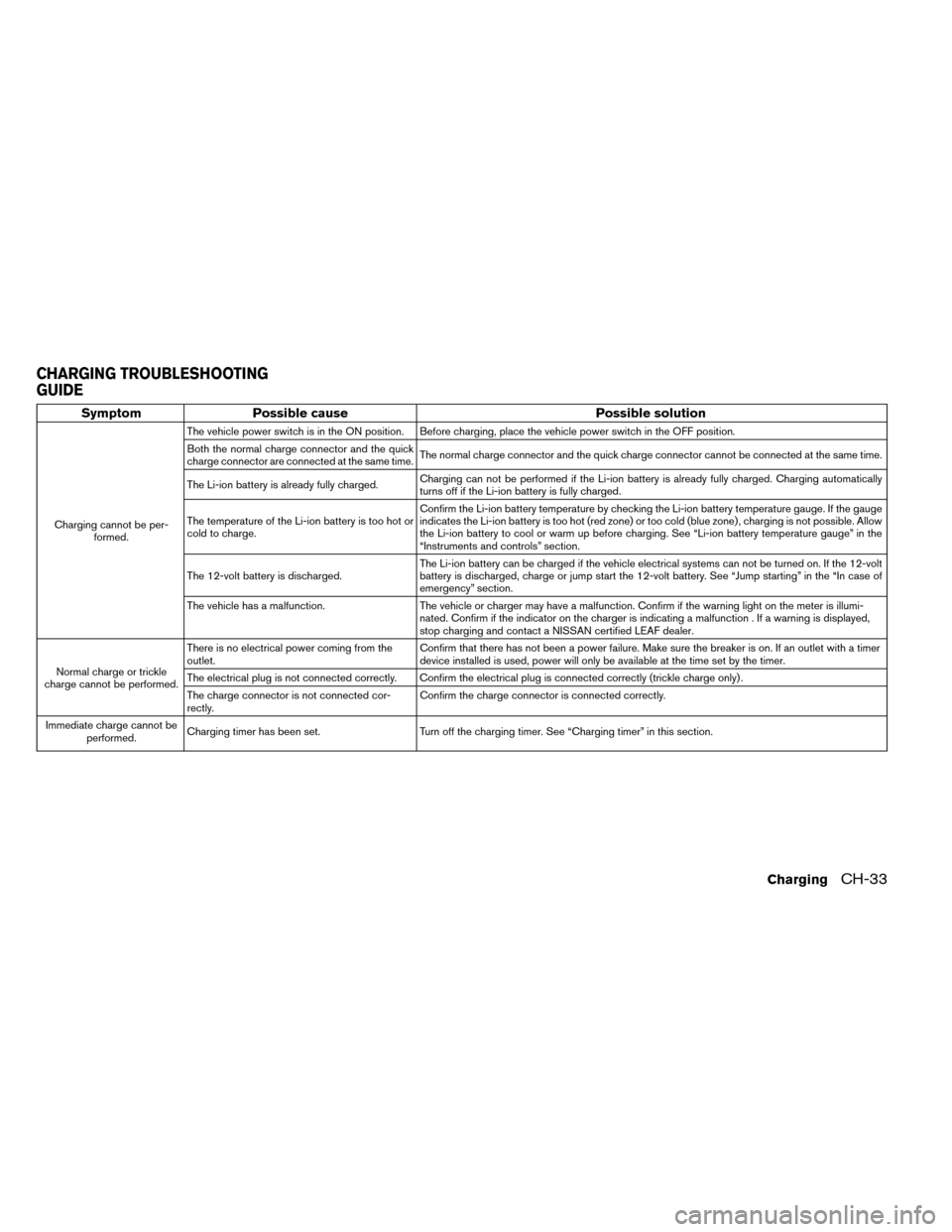

CHARGING TROUBLESHOOTING
GUIDE
ChargingCH-33

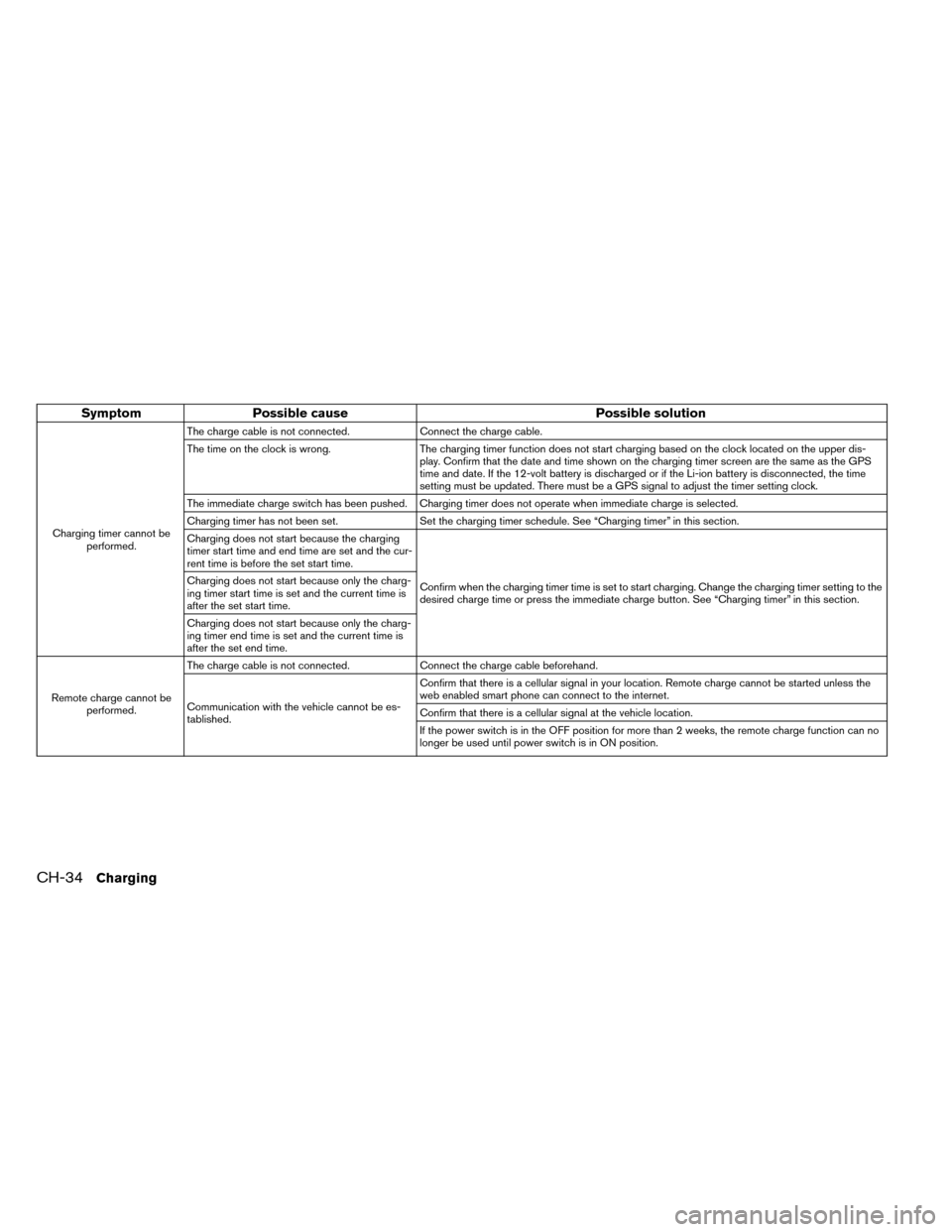

SymptomPossible cause Possible solution
Charging timer cannot be
performed. The charge cable is not connected.
Connect the charge cable.
The time on the clock is wrong. The charging timer function does not start charging based on the clock located on the upper dis-
play. Confirm that the date and time shown on the charging timer screen are the same as the GPS
time and date. If the 12-volt battery is discharged or if the Li-ion battery is disconnected, the time
setting must be updated. There must be a GPS signal to adjust the timer setting clock.
The immediate charge switch has been pushed. Charging timer does not operate when immediate charge is selected.
Charging timer has not been set. Set the charging timer schedule. See “Charging timer” in this section.
Charging does not start because the charging
timer start time and end time are set and the cur-
rent time is before the set start time.
Confirm when the charging timer time is set to start charging. Change the charging timer setting to the
desired charge time or press the immediate charge button. See “Charging timer” in this section.
Charging does not start because only the charg-
ing timer start time is set and the current time is
after the set start time.
Charging does not start because only the charg-
ing timer end time is set and the current time is
after the set end time.
Remote charge cannot be performed. The charge cable is not connected.
Connect the charge cable beforehand.
Communication with the vehicle cannot be es-
tablished. Confirm that there is a cellular signal in your location. Remote charge cannot be started unless the
web enabled smart phone can connect to the internet.
Confirm that there is a cellular signal at the vehicle location.
If the power switch is in the OFF position for more than 2 weeks, the remote charge function can no
longer be used until power switch is in ON position.
CH-34Charging

SymptomPossible cause Possible solution

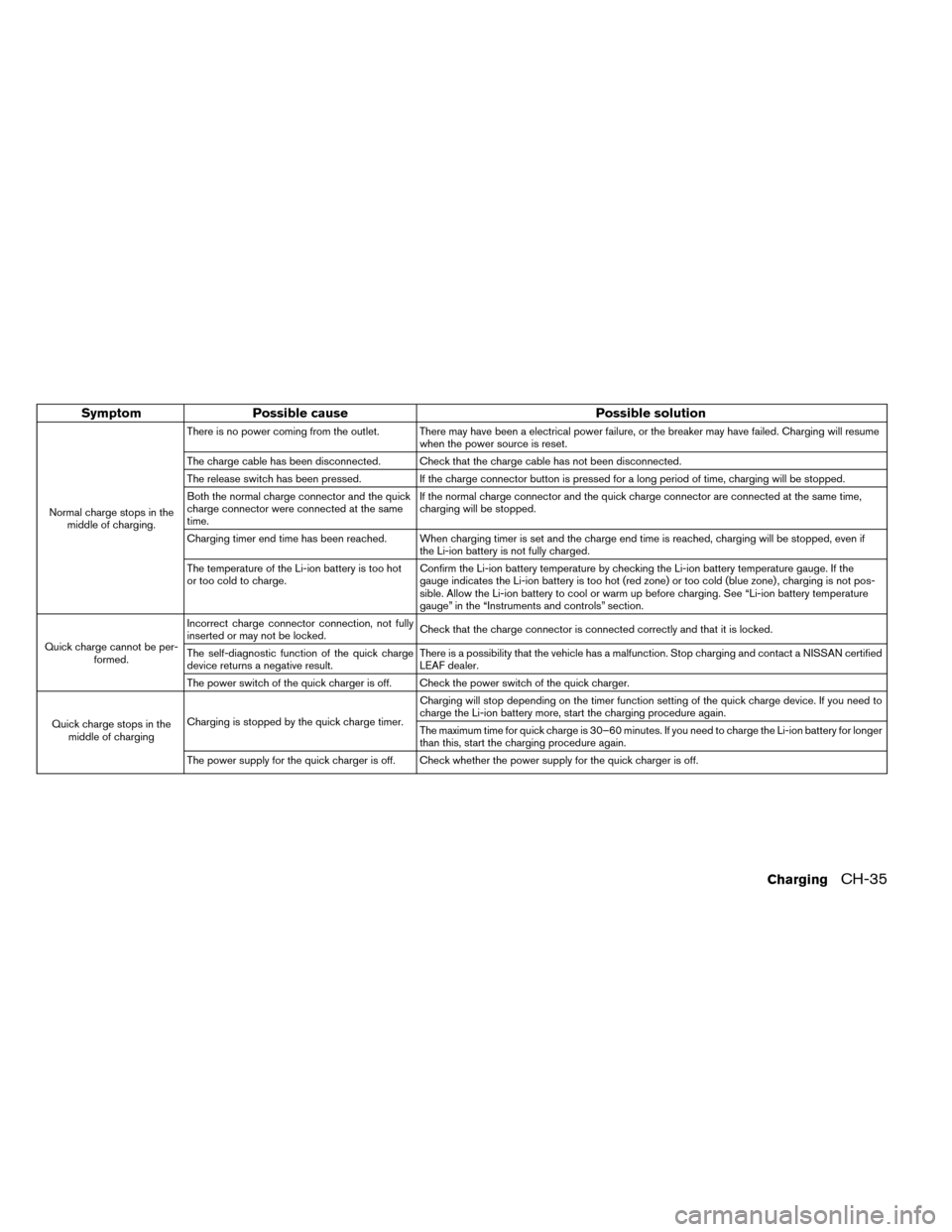

Normal charge stops in the
middle of charging. There is no power coming from the outlet. There may have been a electrical power failure, or the breaker may have failed. Charging will resume
when the power source is reset.
The charge cable has been disconnected. Check that the charge cable has not been disconnected.
The release switch has been pressed. If the charge connector button is pressed for a long period of time, charging will be stopped.
Both the normal charge connector and the quick
charge connector were connected at the same
time. If the normal charge connector and the quick charge connector are connected at the same time,
charging will be stopped.
Charging timer end time has been reached. When charging timer is set and the charge end time is reached, charging will be stopped, even if the Li-ion battery is not fully charged.
The temperature of the Li-ion battery is too hot
or too cold to charge. Confirm the Li-ion battery temperature by checking the Li-ion battery temperature gauge. If the
gauge indicates the Li-ion battery is too hot (red zone) or too cold (blue zone) , charging is not pos-
sible. Allow the Li-ion battery to cool or warm up before charging. See “Li-ion battery temperature
gauge” in the “Instruments and controls” section.
Quick charge cannot be per- formed. Incorrect charge connector connection, not fully
inserted or may not be locked.
Check that the charge connector is connected correctly and that it is locked.
The self-diagnostic function of the quick charge
device returns a negative result. There is a possibility that the vehicle has a malfunction. Stop charging and contact a NISSAN certified
LEAF dealer.
The power switch of the quick charger is off. Check the power switch of the quick charger.
Quick charge stops in the middle of charging Charging is stopped by the quick charge timer. Charging will stop depending on the timer function setting of the quick charge device. If you need to
charge the Li-ion battery more, start the charging procedure again.
The maximum time for quick charge is 30–60 minutes. If you need to charge the Li-ion battery for longer
than this, start the charging procedure again.
The power supply for the quick charger is off. Check whether the power supply for the quick charger is off.
ChargingCH-35

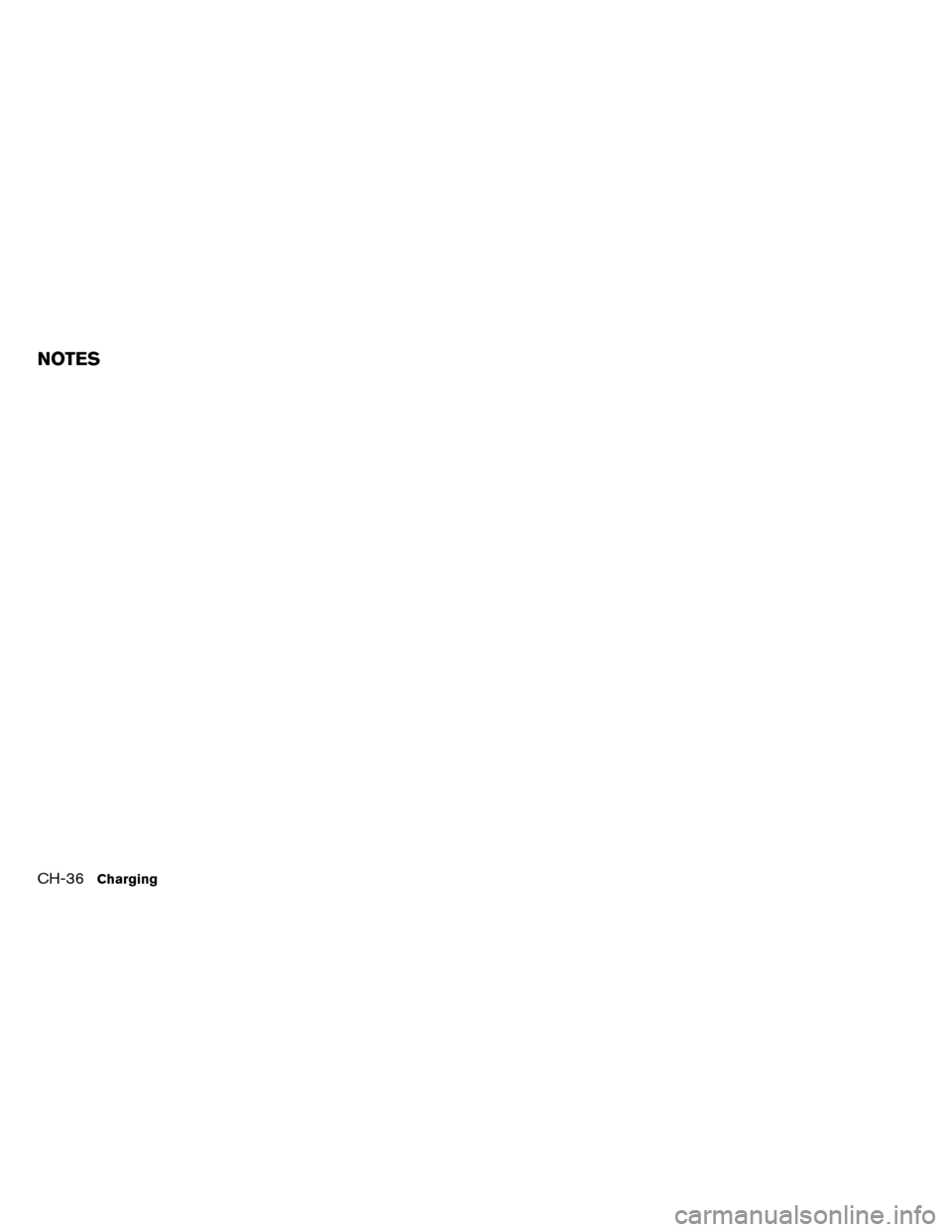

NOTES
CH-36Charging

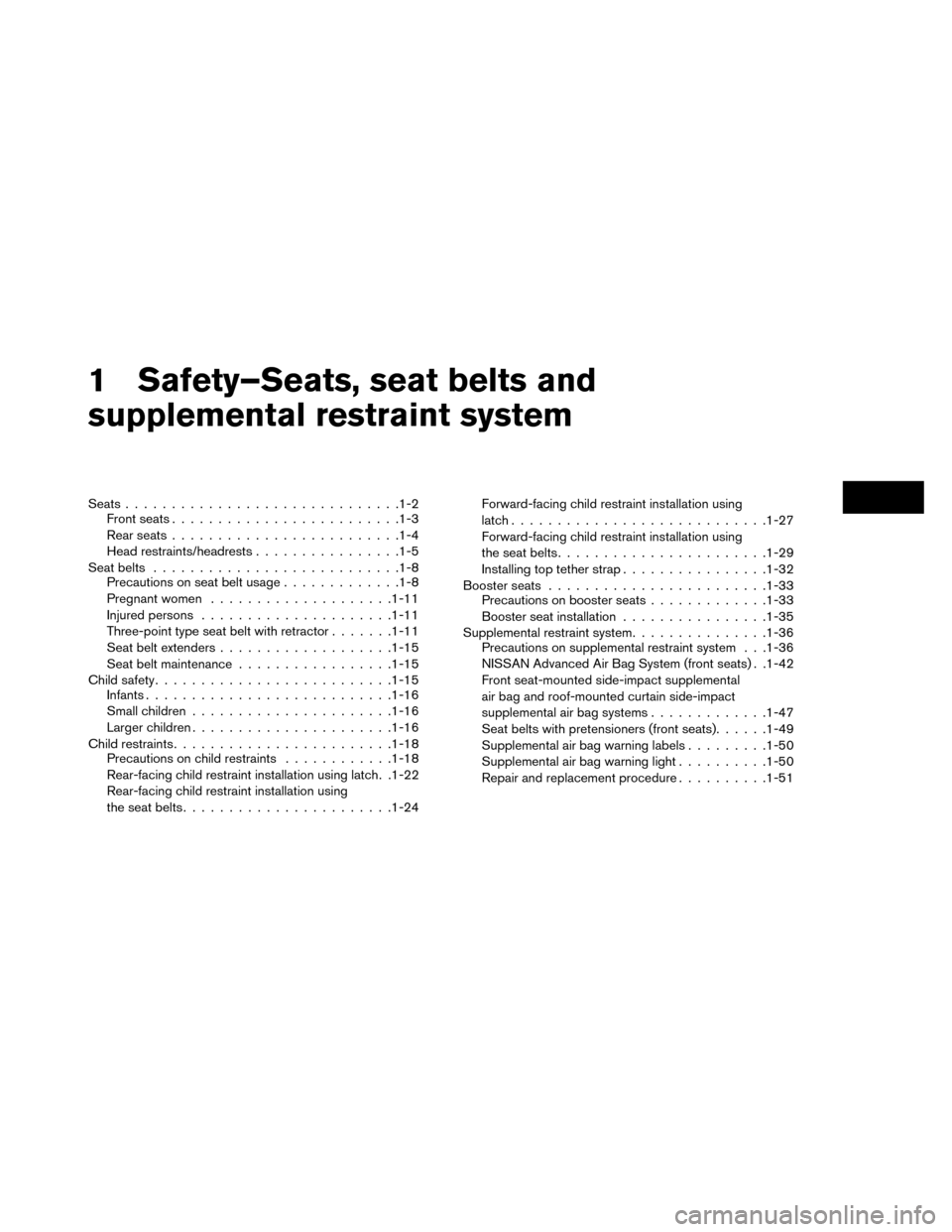

1 Safety–Seats, seat belts and
supplemental restraint system
Seats............................. .1-2
Front seats ........................ .1-3
Rear seats ........................ .1-4
Head restraints/headrests ................1-5
Seat belts .......................... .1-8
Precautions on seat belt usage .............1-8
Pregnant women ................... .1-11
Injured persons .................... .1-11
Three-point type seat belt with retractor .......1-11
Seat belt extenders .................. .1-15
Seat belt maintenance ................ .1-15
Child safety ......................... .1-15
Infants .......................... .1-16
Small children ..................... .1-16
Larger children ..................... .1-16
Child restraints ....................... .1-18
Precautions on child restraints ............1-18
Rear-facing child restraint installation using latch. .1-22
Rear-facing child restraint installation using
the seat belts ...................... .1-24Forward-facing child restraint installation using
latch
........................... .1-27
Forward-facing child restraint installation using
the seat belts ...................... .1-29
Installing top tether strap ................1-32
Booster seats ....................... .1-33
Precautions on booster seats .............1-33
Booster seat installation ................1-35
Supplemental restraint system ...............1-36
Precautions on supplemental restraint system . . .1-36
NISSAN Advanced Air Bag System (front seats) . .1-42
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
supplemental air bag systems .............1-47
Seat belts with pretensioners (front seats) ......1-49
Supplemental air bag warning labels .........1-50
Supplemental air bag warning light ..........1-50
Repair and replacement procedure ..........1-51

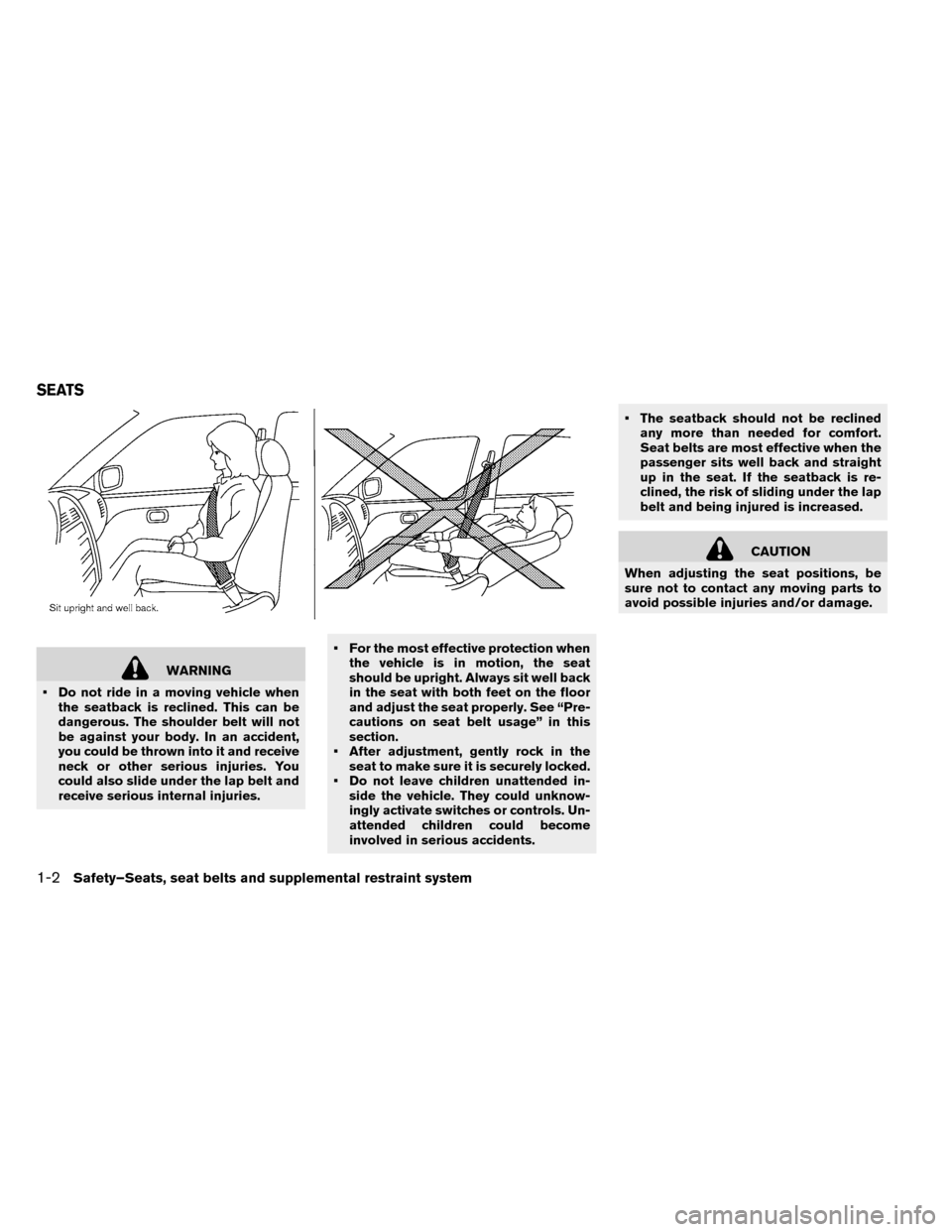

WARNING
• Do not ride in a moving vehicle when the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries. • For the most effective protection when
the vehicle is in motion, the seat
should be upright. Always sit well back
in the seat with both feet on the floor
and adjust the seat properly. See “Pre-
cautions on seat belt usage” in this
section.
• After adjustment, gently rock in the seat to make sure it is securely locked.
• Do not leave children unattended in- side the vehicle. They could unknow-
ingly activate switches or controls. Un-
attended children could become
involved in serious accidents. • The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when the
passenger sits well back and straight
up in the seat. If the seatback is re-
clined, the risk of sliding under the lap
belt and being injured is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
SEATS
1-2Safety–Seats, seat belts and supplemental restraint system

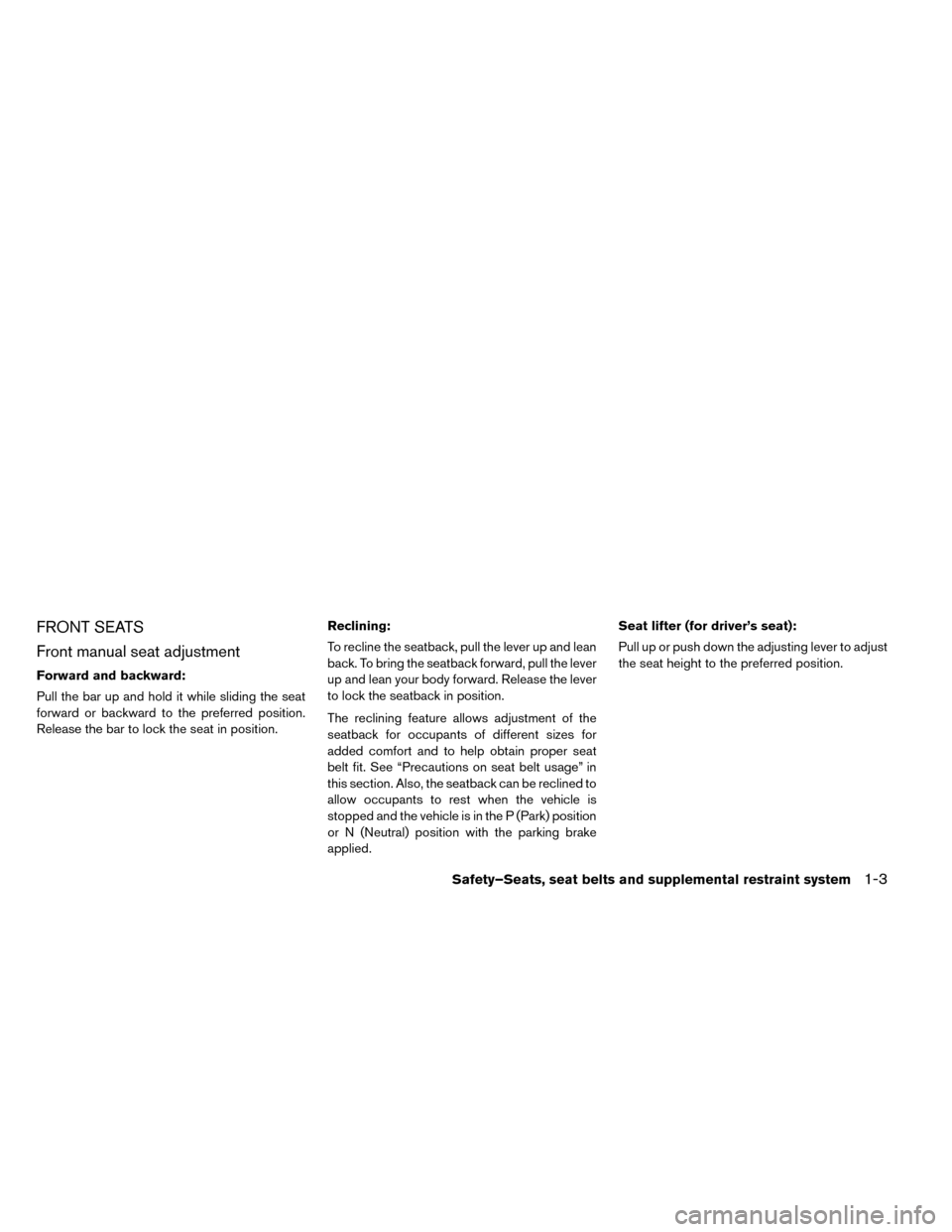

FRONT SEATS
Front manual seat adjustment
Forward and backward:
Pull the bar up and hold it while sliding the seat
forward or backward to the preferred position.
Release the bar to lock the seat in position.Reclining:
To recline the seatback, pull the lever up and lean
back. To bring the seatback forward, pull the lever
up and lean your body forward. Release the lever
to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage” in
this section. Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the vehicle is in the P (Park) position
or N (Neutral) position with the parking brake
applied.Seat lifter (for driver’s seat):
Pull up or push down the adjusting lever to adjust
the seat height to the preferred position.
Safety–Seats, seat belts and supplemental restraint system1-3
