WARNING
If the supplemental air bag warning
light is on, it could mean that the
supplemental front air bag, supplemen-
tal side air bag, curtain air bag systems
and/or pre-tensioner seat belt system
will not operate in an accident. To help
avoid injury to yourself or others, have
your vehicle checked by a NISSAN
dealer as soon as possible.INDICATOR LIGHTS
All wheel drive (AWD) LOCK
indicator light (AWD models)
This light comes on when the ignition switch is
turned to ON, and turns off within 1 second.
When selecting LOCK mode while the engine is
running, this light will illuminate. See “Using all
wheel drive (AWD)” in the “5. Starting and
driving” section.
Continuously variable
transmission (CVT) indicator
light
When the ignition switch is turned ON, the light
comes on for 2 seconds.
Cruise main switch indicator
light
The light comes on when the cruise control main
switch is pushed. The light goes out when the
main switch is pushed again. When the cruise
main switch indicator light comes on, the cruise
control system is operational.
Cruise set indicator light
The light comes on while the vehicle speed is
controlled by the cruise control system. If the
light blinks while the engine is running, it may
indicate the cruise control system is not func-
tioning properly. Have the system checked by a
NISSAN dealer.
High beam indicator light
(Blue)
This light comes on when the headlight high
beam is on and goes out when the low beam is
selected.
Malfunction indicator lamp
(MIL)
If the malfunction indicator lamp comes on
steady or blinks while the engine is running, it
may indicate a potential emission control and/or
CVT malfunction.
The malfunction indicator lamp may also come
on steady if the fuel filler cap is loose or missing,
or if the vehicle runs out of fuel. Check to make
sure the fuel filler cap is installed and closed
tightly, and that the vehicle has at least three
gallons of fuel in the fuel tank.
After a few driving trips, the
lamp should
turn off if no other potential emission control
system malfunction exists.
If this indicator lamp comes on continuously for
20 seconds and then blinks for 10 seconds
when the engine is not running, it indicates that
the vehicle is not ready for an emission control
system inspection/maintenance test. See
“Readiness for inspection/maintenance (I/M)
test” in the “9. Technical and consumer informa-
tion” section of this manual.
Operation:
The malfunction indicator lamp will come on in
one of two ways:
Malfunction indicator lamp on steady — An
2-14
Instruments and controls
04.8.3/Z50-D/V5.0
Page 82 of 321
emission control system and/or CVT mal-
function has been detected. Turn the ignition
switch to OFF and check the fuel filler cap. If
the fuel filler cap is loose or missing, tighten
or install the cap and continue to drive the
vehicle. The
lamp should turn off after a
few driving trips. If the
lamp does not
turn off after a few driving trips, have the
vehicle inspected by a NISSAN dealer. You
do not need to have your vehicle towed to the
dealer.
Malfunction indicator lamp blinking — An
engine misfire has been detected which may
damage the emission control system. To re-
duce or avoid emission control system dam-
age:
a) Do not drive at speeds above 45 MPH
(72 km/h).
b) Avoid hard acceleration or deceleration.
c) Avoid steep uphill grades.
d) If possible, reduce the amount of cargo
being hauled or towed.
The malfunction indicator lamp may stop
blinking and come on steady.
Have the vehicle inspected by a NISSAN
dealer. You do not need to have your vehicle
towed to the dealer.
CAUTION
Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reduced
fuel economy, and possible damage to
the emission control system.
Security indicator light
Model without Intelligent Key system:
This light blinks whenever the ignition switch is in
the LOCK, OFF or ACC position.
Model with Intelligent Key system:
This light blinks whenever the ignition switch is
not pushed in or the mechanical key is removed
from the ignition switch.
This function indicates the security systems
equipped on the vehicle are operational.
For additional information, see “Security sys-
tems” later in this section.
Slip indicator light (if so
equipped)
This indicator will blink when the VDC system or
the traction control system is operating, thus
alerting the driver to the fact that the road
surface is slippery and the vehicle is nearing its
traction limits.
You may feel or hear the system working, but this
is normal.
The light will blink on for a few seconds after the
VDC system stops limiting wheel spin.
The slip indicator light also comes on when you
turn the ignition switch to ON. The light will turn
off after about 2 seconds if the system is
operational. If the light does not come on or go
off, have the traction control system checked by
a NISSAN dealer.
Turn signal/hazard indicator
lights
The light flashes when the turn signal switch
lever or hazard switch is turned on.
Instruments and controls
2-15
04.8.3/Z50-D/V5.0
Page 83 of 321
Vehicle Dynamic Control
(VDC) off indicator light (if so
equipped)
After turning the ignition switch to the ON
position, the light will illuminate. The light will turn
off in about 2 seconds if the vehicle dynamic
control (VDC) system is operational.
The light comes on when the vehicle dynamic
control (VDC) off switch is pushed to OFF. This
indicates the vehicle dynamic control system
and traction control system are not operating.
When the vehicle dynamic control off indicator
light and slip indicator light come on with the
vehicle dynamic control system turned on, this
light alerts the driver to the fact that the vehicle
dynamic control system’s fail-safe mode is op-
erating, that is the system may not be functioning
properly. Have the system checked by a
NISSAN dealer. If a malfunction occurs in the
system, the vehicle dynamic control system
function will be canceled but the vehicle is still
driveable. For additional information, see “Ve-
hicle dynamic control (VDC) system” in the “5.
Starting and driving” section of this manual.AUDIBLE REMINDERS
Key reminder chimeThe key reminder chime sounds if the driver’sside door is opened while the key is left in the
ignition switch and the ignition switch is in the
“ACC”, “OFF” or “LOCK” position. Remove the
key and take it with you when leaving the vehicle.
Light reminder chimeThe light reminder chime sounds if the driver’s
side door is opened while the headlight switch is
at either the
or
position and the
ignition switch is in the ACC, OFF or LOCK
position.
Make sure to turn the light switch to the “OFF” or
“AUTO” position when you leave the vehicle.
Seat belt warning chimeThe chime will sound for about 6 seconds unless
the drivers seat belt is securely fastened.Brake pad wear warningThe disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. Have the brakes
checked as soon as possible if the warning
sound is heard.Intelligent Key door buzzerWhen the chime or buzzer sounds from inside
and outside the vehicle, check for the following:The ignition switch is turned to the LOCK
position.
The Intelligent Key is not left inside the
vehicle.
Doors are closed securely.
The selector lever is in the P position.
When the buzzer sounds, be sure to check both
the vehicle and the Intelligent Key.
See “INTELLIGENT KEY SYSTEM” in the “3.
Pre-driving checks and adjustments” section.
2-16
Instruments and controls
04.8.3/Z50-D/V5.0
Page 84 of 321
Your vehicle has one or both types of security
systems, as follows:
Vehicle Security System (if so equipped)
NISSAN Vehicle Immobilizer System
The security condition will be shown by the
security indicator light in the meter panel.VEHICLE SECURITY SYSTEM (if so
equipped)The vehicle security system provides visual and
audible alarm signals if someone opens the
doors when the system is armed. It is not,
however, a motion detection type system thatactivates when a vehicle is moved or when a
vibration occurs.
The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior
or exterior vehicle components in all situations.
Always secure your vehicle even if parking for a
brief period. Never leave your keys in the vehicle,
and always lock the vehicle when unattended.
Be aware of your surroundings, and park in
secure, well-lit areas whenever possible.
Many devices offering additional protection,
such as component locks, identification markers,
and tracking systems, are available at auto sup-
ply stores and specialty shops. A NISSAN dealer
may also offer such equipment. Check with your
insurance company to see if you may be eligible
for discounts for various theft protection fea-
tures.
The vehicle security system provides visual and
audio alarm signals if parts of the vehicle are
disturbed.
How to activate the vehicle security
system1. Close all windows.
The system can be activated even if the
windows are open.
2.•Remove the key from the ignition switch.
•Turn the ignition switch to the LOCK
position or remove the mechanical key
from the ignition switch (Intelligent Key
equipped model)
3. Close and lock all doors.
Lock all doors by pushing the LOCK button
SIC2133
SIC2045
SECURITY SYSTEMS
Instruments and controls
2-17
04.8.3/Z50-D/V5.0
Page 85 of 321
on the remote keyless entry, pushing the
request switch (Intelligent Key equipped
model) or using the key.
When using the remote keyless entry system
or the request switch, the hazard indicators
will operate as shown in “Remote keyless
entry system” or “Intelligent Key system” in
the “3. Pre-driving checks and adjustments”
section.
4. Confirm that the SECURITY indicator light in
the meter comes on. The SECURITY indica-
tor light glows for about 30 seconds and then
blinks. The system is now activated. If, during
this 30 second time period, the door is
unlocked by the key, the remote keyless
entry, request switch or the ignition switch is
turned to ACC or ON, the system will not
activate.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors locked and ignition switch
off. Turn the ignition switch to ACC to turn
the system off.
Vehicle security system operationThe security system will give the following alarm:
The headlights blink and the horn sounds
intermittently.The alarm automatically turns off after ap-
proximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again. The alarm can be stopped by unlock-
ing a door with the key, by pushing the
UNLOCK button on the remote keyless entry
or pushing the request switch.
The alarm is activated by:
Opening the door (including the back door)
without using the key, remote keyless entry or
pushing the request switch.
How to stop alarmThe alarm will stop only by unlocking a door with
the key, by pushing the UNLOCK button on
remote keyless entry, or pushing the request
switch (when carrying the Intelligent Key with
you). The alarm will not stop if the ignition switch
is turned to ACC or ON.
If the system does not operate as de-
scribed above, have it checked by a
NISSAN dealer.NISSAN VEHICLE IMMOBILIZER
SYSTEMThe NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered NISSAN Vehicle Immobilizer System
key.If the engine fails to start using the registered
NISSAN Vehicle Immobilizer System key, it may
be due to interference caused by another
NISSAN Vehicle Immobilizer System key, an
automated toll road device or automated pay-
ment device on the key ring. Restart the engine
using the following procedures:
1. Leave the ignition switch in the ON position
for approximately 5 seconds.
2. Turn the ignition switch to the OFF or LOCK
position and wait approximately 10 seconds.
3. Repeat step 1 and 2 again.
4. Restart the engine while holding the device
(which may have caused the interference)
separate from the registered NISSAN Vehicle
Immobilizer System key.
If this procedure allows the engine to start,
NISSAN recommends placing the registered
NISSAN Vehicle Immobilizer System key on a
separate key ring to avoid interference from
other devices.
Statement related to section 15 of FCC
rules for NISSAN Vehicle Immobilizer Sys-
tem (CONT ASSY-BCM, ANT ASSY-
IMMOBILIZER)
This device complies with part 15 of the
FCC Rules and RSS-210 of Industry
2-18
Instruments and controls
04.8.3/Z50-D/V5.0
Page 86 of 321
Canada. Operation is subject to the follow-
ing two conditions;
(1) This device may not cause harmful in-
terference, and (2) this device must accept
any interference received, including inter-
ference that may cause undesired opera-
tion of the device.
CHANGES OR MODIFICATIONS NOT EX-
PRESSLY APPROVED BY THE MANUFAC-
TURE FOR COMPLIANCE COULD VOID
THE USER’S AUTHORITY TO OPERATE
THE EQUIPMENT.
Security indicator lightThis light blinks whenever the registered
NISSAN Vehicle Immobilizer System key or me-
chanical key (Intelligent Key) is removed or
turned to the OFF, ACC or LOCK position, or
the ignition switch is turned to the LOCK posi-
tion (Intelligent Key). This function indicates the
security systems equipped on the vehicle are
operational.
If NISSAN Vehicle Immobilizer System is mal-
functioning, this light will remain on while the
registered NISSAN Vehicle Immobilizer System
Key is in the ON position.If the light still remains on and/or the
engine will not start, see a NISSAN dealer
for NISSAN Vehicle Immobilizer System or
Intelligent Key system service as soon as
possible. Bring all NISSAN Vehicle Immo-
bilizer System keys or Intelligent Key that
you have when visiting a NISSAN dealer for
service.
SIC2045
Instruments and controls
2-19
04.8.3/Z50-D/V5.0
Page 87 of 321
The windshield wiper and washer operates
when the ignition switch is in the ON position.
Push the lever down to operate the wiper at the
following speed:1Intermittent — intermittent operation can be
adjusted by turning the knob toward
A
(Slower) or
B
(Faster).
The intermittent operation speed varies in accor-
dance with the vehicle speed. (For example,
when the vehicle speed is high, the intermittent
operation speed will be faster.) This system can
be turned off on the system setting display. See
“How to use SETTING button” in the “4. Displayscreen, heater, air conditioner and audio system”
section.
2Low — continuous low speed operation
3High — continuous high speed operation
Push the lever up
4
to have one sweep
operation of the wiper.
Pull the lever toward you5
to operate the
washer. Then the wiper will also operate several
times.
WARNING
In freezing temperatures the washer so-
lution may freeze on the windshield and
obscure your vision which may lead to
an accident. Warm the windshield with
the defroster before you wash the wind-
shield.
CAUTION
The following could damage the washer
system:
Do not operate the washer continu-ously for more than 30 seconds.
Do not operate the washer if the
reservoir tank is empty.
SIC2665
WINDSHIELD WIPER AND
WASHER SWITCH2-20
Instruments and controls
04.8.3/Z50-D/V5.0
Page 88 of 321
The rear window wiper and washer operate
when the ignition switch is in the ON position.
Turn the switch clockwise from the OFF position
to operate the wiper.1Intermittent — intermittent operation (not ad-
justable)
2Low — continuous low speed operation
Push the switch forward
3
to operate the
washer. Then the wiper will also operate several
times.
CAUTION
If the rear window wiper operation is
interrupted by snow etc., the wiper
may stop moving to protect its motor.
If this occurs, turn the wiper switch to
OFF and remove the snow etc. on
and around the wiper arms. After
about 1 minute, turn the switch ON
again to operate the wiper.
Do not operate the washer continu-
ously for more than 30 seconds.
Do not operate the washer if the
reservoir tank is empty.
WARNING
In freezing temperatures the washer so-
lution may freeze on the rear window
glass and obscure your vision. Warm the
rear window with the defroster before
you wash the rear window.To defog/defrost the rear window glass and
outside mirrors (if so equipped), start the engine
and push the switch on
1. The indicator light
A
will come on. Push the switch again to turn
the defroster off.
It will automatically turn off in approximately 15
minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.
SIC2666
SIC2046
REAR WINDOW WIPER AND
WASHER SWITCHREAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCH
Instruments and controls
2-21
04.8.3/Z50-D/V5.0
Page 89 of 321
XENON HEADLIGHTS (if so
equipped)

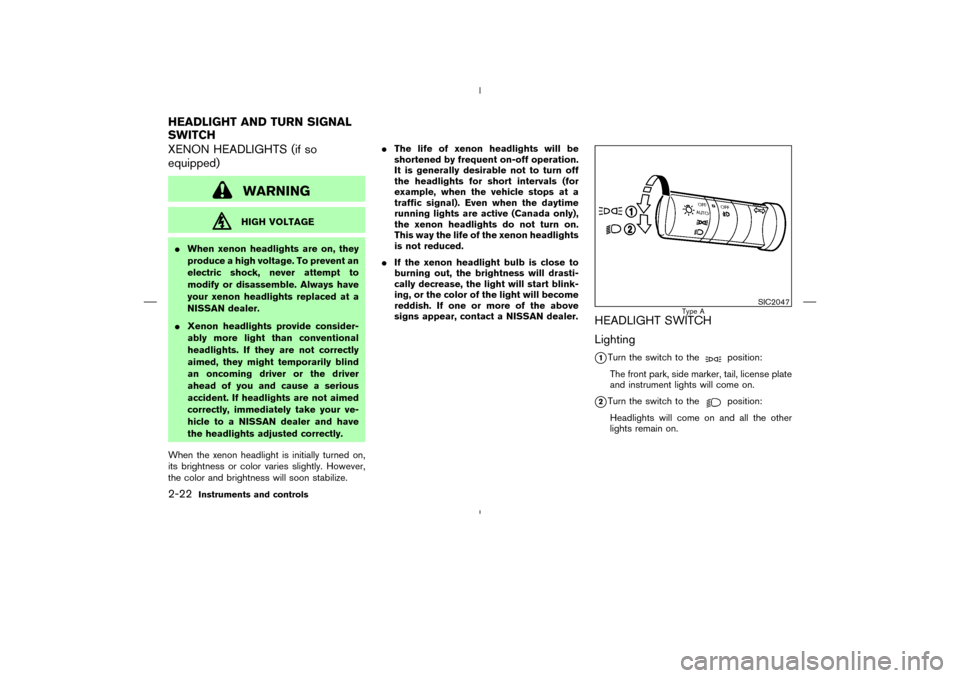

WARNINGHIGH VOLTAGE
When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to
modify or disassemble. Always have
your xenon headlights replaced at a
NISSAN dealer.
Xenon headlights provide consider-
ably more light than conventional
headlights. If they are not correctly
aimed, they might temporarily blind
an oncoming driver or the driver
ahead of you and cause a serious
accident. If headlights are not aimed
correctly, immediately take your ve-
hicle to a NISSAN dealer and have
the headlights adjusted correctly.
When the xenon headlight is initially turned on,
its brightness or color varies slightly. However,
the color and brightness will soon stabilize.The life of xenon headlights will be
shortened by frequent on-off operation.
It is generally desirable not to turn off
the headlights for short intervals (for
example, when the vehicle stops at a
traffic signal). Even when the daytime
running lights are active (Canada only),
the xenon headlights do not turn on.
This way the life of the xenon headlights
is not reduced.
If the xenon headlight bulb is close to
burning out, the brightness will drasti-
cally decrease, the light will start blink-
ing, or the color of the light will become
reddish. If one or more of the above
signs appear, contact a NISSAN dealer.
HEADLIGHT SWITCH
Lighting
1Turn the switch to the
position:
The front park, side marker, tail, license plate
and instrument lights will come on.
2Turn the switch to the
position:
Headlights will come on and all the other
lights remain on.
SIC2047
Type A
HEADLIGHT AND TURN SIGNAL
SWITCH2-22
Instruments and controls
04.8.3/Z50-D/V5.0
Page 90 of 321

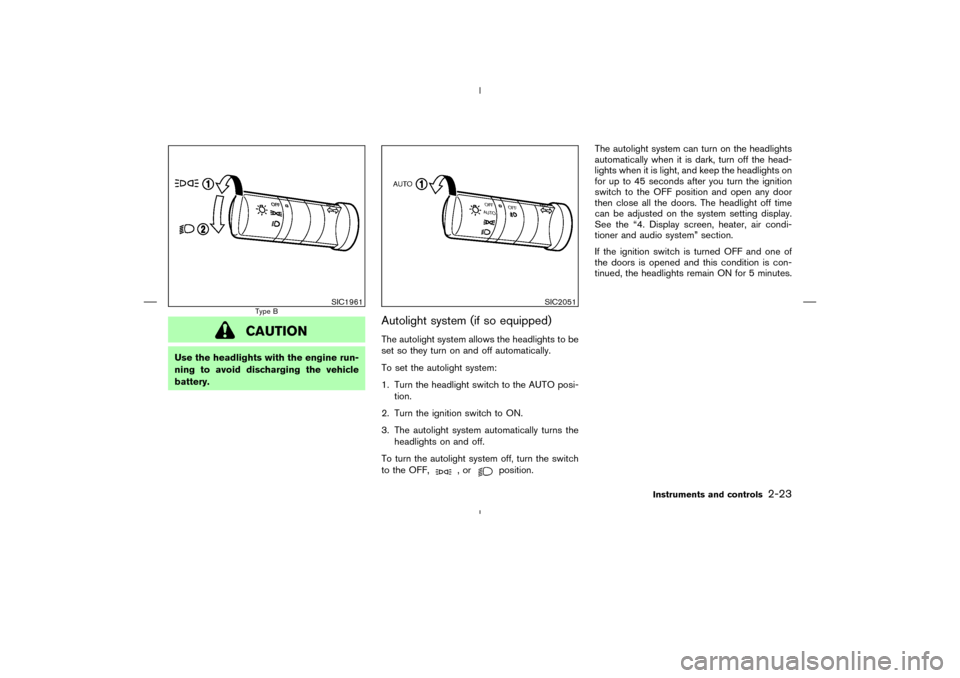

CAUTION
Use the headlights with the engine run-
ning to avoid discharging the vehicle
battery.
Autolight system (if so equipped)The autolight system allows the headlights to be
set so they turn on and off automatically.
To set the autolight system:
1. Turn the headlight switch to the AUTO posi-
tion.
2. Turn the ignition switch to ON.
3. The autolight system automatically turns the
headlights on and off.
To turn the autolight system off, turn the switch
to the OFF,
,or
position.The autolight system can turn on the headlights
automatically when it is dark, turn off the head-
lights when it is light, and keep the headlights on
for up to 45 seconds after you turn the ignition
switch to the OFF position and open any door
then close all the doors. The headlight off time
can be adjusted on the system setting display.
See the “4. Display screen, heater, air condi-
tioner and audio system” section.
If the ignition switch is turned OFF and one of
the doors is opened and this condition is con-
tinued, the headlights remain ON for 5 minutes.
SIC1961
Type B
SIC2051
Instruments and controls
2-23
04.8.3/Z50-D/V5.0
