Page 171 of 507
Black plate (169,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

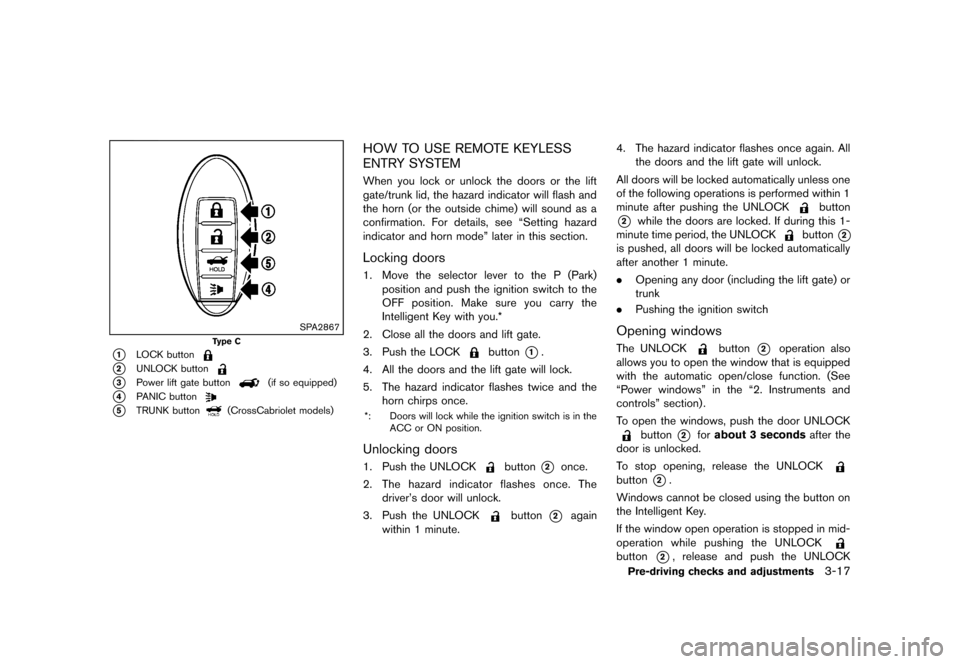

SPA2867
Type C
*1LOCK button
*2UNLOCK button
*3Power lift gate button(if so equipped)
*4PANIC button
*5TRUNK button(CrossCabriolet models)
HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM
GUID-C6C8F65F-3152-4763-BF0F-A4447FDA547FWhen you lock or unlock the doors or the lift
gate/trunk lid, the hazard indicator will flash and
the horn (or the outside chime) will sound as a
confirmation. For details, see “Setting hazard
indicator and horn mode” later in this section.
Locking doorsGUID-8CBF74EB-4EC8-465A-B09B-2CA410A11EC01. Move the selector lever to the P (Park)position and push the ignition switch to the
OFF position. Make sure you carry the
Intelligent Key with you.*
2. Close all the doors and lift gate.
3. Push the LOCK
button*1.
4. All the doors and the lift gate will lock.
5. The hazard indicator flashes twice and the horn chirps once.
*: Doors will lock while the ignition switch is in the ACC or ON position.
Unlocking doorsGUID-07D2F8A3-E183-47DE-B2BB-5F0B2765BABE1. Push the UNLOCKbutton*2once.
2. The hazard indicator flashes once. The
driver’s door will unlock.
3. Push the UNLOCK
button*2again
within 1 minute. 4. The hazard indicator flashes once again. All
the doors and the lift gate will unlock.
All doors will be locked automatically unless one
of the following operations is performed within 1
minute after pushing the UNLOCK
button
*2while the doors are locked. If during this 1-
minute time period, the UNLOCK
button*2
is pushed, all doors will be locked automatically
after another 1 minute.
. Opening any door (including the lift gate) or
trunk
. Pushing the ignition switch
Opening windowsGUID-A6DE3912-EF46-4CEA-887C-286260C70F8FThe UNLOCKbutton*2operation also
allows you to open the window that is equipped
with the automatic open/close function. (See
“Power windows” in the “2. Instruments and
controls” section) .
To open the windows, push the door UNLOCK
button*2for about 3 seconds after the
door is unlocked.
To stop opening, release the UNLOCK
button*2.
Windows cannot be closed using the button on
the Intelligent Key.
If the window open operation is stopped in mid-
operation while pushing the UNLOCK
button*2, release and push the UNLOCK
Pre-driving checks and adjustments3-17
Condition:
Page 172 of 507
Black plate (170,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

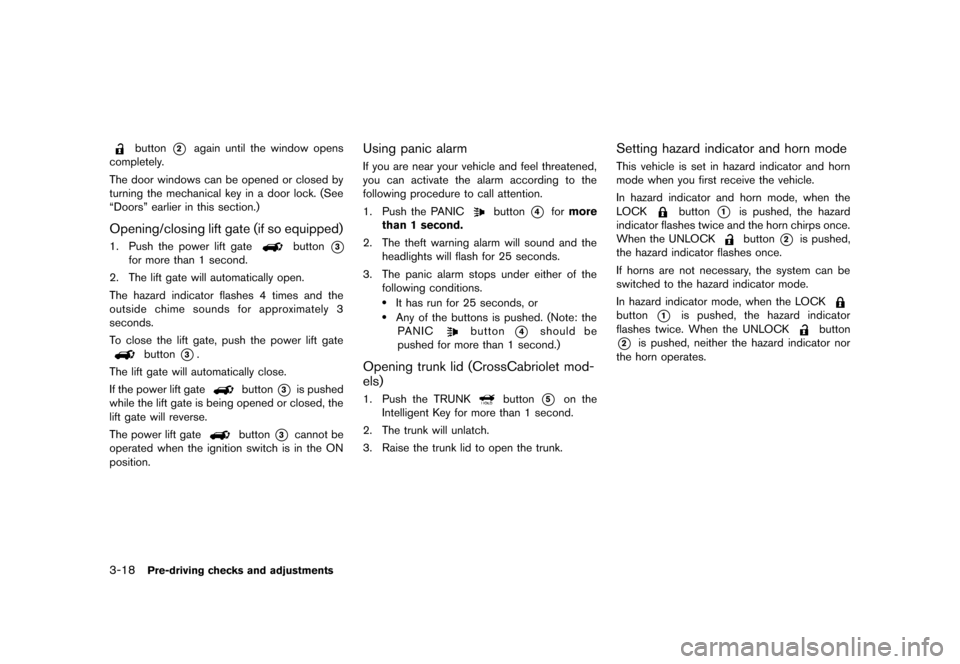

3-18Pre-driving checks and adjustments
button*2again until the window opens
completely.
The door windows can be opened or closed by
turning the mechanical key in a door lock. (See
“Doors” earlier in this section.)
Opening/closing lift gate (if so equipped)GUID-7A0EC3F3-A0FF-43A5-983C-6F30EE025AB41. Push the power lift gatebutton*3
for more than 1 second.
2. The lift gate will automatically open.
The hazard indicator flashes 4 times and the
outside chime sounds for approximately 3
seconds.
To close the lift gate, push the power lift gate
button*3.
The lift gate will automatically close.
If the power lift gate
button*3is pushed
while the lift gate is being opened or closed, the
lift gate will reverse.
The power lift gate
button*3cannot be
operated when the ignition switch is in the ON
position.
Using panic alarmGUID-0EEA2C46-8F73-4264-8914-B8CE095E8B5CIf you are near your vehicle and feel threatened,
you can activate the alarm according to the
following procedure to call attention.
1. Push the PANIC
button*4for more
than 1 second.
2. The theft warning alarm will sound and the headlights will flash for 25 seconds.
3. The panic alarm stops under either of the following conditions.
.It has run for 25 seconds, or.Any of the buttons is pushed. (Note: thePANIC
button*4should be
pushed for more than 1 second.)
Opening trunk lid (CrossCabriolet mod-
els)
GUID-87B7F82C-E682-4BF3-BE6B-52CC949856EB1. Push the TRUNKbutton*5on the
Intelligent Key for more than 1 second.
2. The trunk will unlatch.
3. Raise the trunk lid to open the trunk.
Setting hazard indicator and horn modeGUID-0B7C4602-8422-4E4E-A11F-E789553B0A3DThis vehicle is set in hazard indicator and horn
mode when you first receive the vehicle.
In hazard indicator and horn mode, when the
LOCK
button*1is pushed, the hazard
indicator flashes twice and the horn chirps once.
When the UNLOCK
button*2is pushed,
the hazard indicator flashes once.
If horns are not necessary, the system can be
switched to the hazard indicator mode.
In hazard indicator mode, when the LOCK
button*1is pushed, the hazard indicator
flashes twice. When the UNLOCK
button
*2is pushed, neither the hazard indicator nor
the horn operates.
Condition:
Page 173 of 507
Black plate (171,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

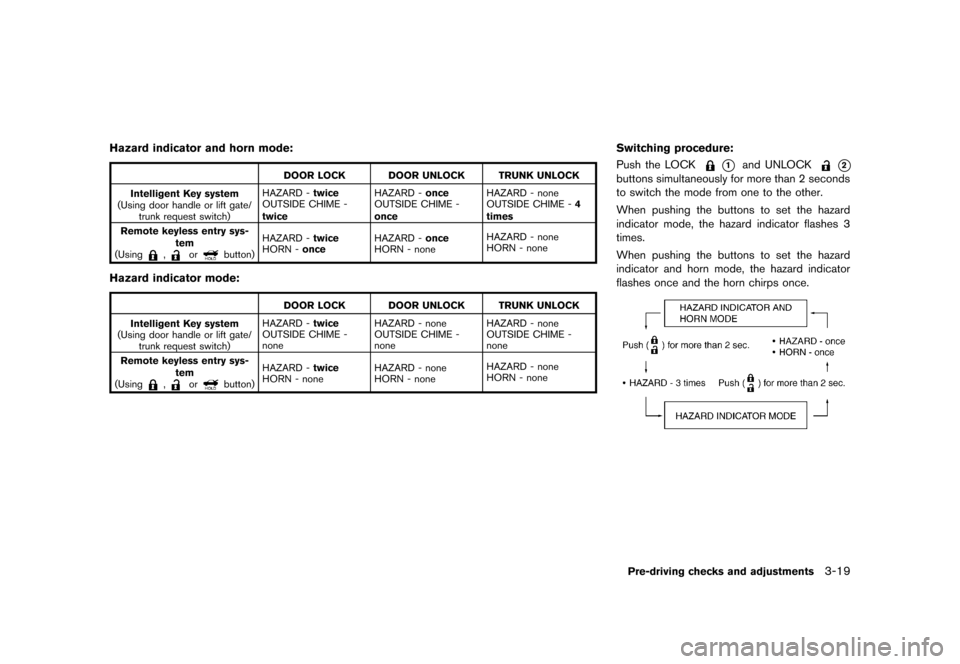

Hazard indicator and horn mode:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
DOOR LOCK DOOR UNLOCK TRUNK UNLOCK
Intelligent Key system
(Using door handle or lift gate/ trunk request switch) HAZARD -
twice
OUTSIDE CHIME -
twice HAZARD -
once
OUTSIDE CHIME -
once HAZARD - none
OUTSIDE CHIME -
4
times
Remote keyless entry sys- tem
(Using
,orbutton) HAZARD -
twice
HORN - once HAZARD -
once
HORN - none HAZARD - none
HORN - none
Hazard indicator mode:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
DOOR LOCK DOOR UNLOCK TRUNK UNLOCK
Intelligent Key system
(Using door handle or lift gate/ trunk request switch) HAZARD -
twice
OUTSIDE CHIME -
none HAZARD - none
OUTSIDE CHIME -
noneHAZARD - none
OUTSIDE CHIME -
none
Remote keyless entry sys- tem
(Using
,orbutton) HAZARD -
twice
HORN - none HAZARD - none
HORN - noneHAZARD - none
HORN - none
Switching procedure:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the LOCK*1and UNLOCK*2
buttons simultaneously for more than 2 seconds
to switch the mode from one to the other.
When pushing the buttons to set the hazard
indicator mode, the hazard indicator flashes 3
times.
When pushing the buttons to set the hazard
indicator and horn mode, the hazard indicator
flashes once and the horn chirps once.
NOS1695
Pre-driving checks and adjustments3-19
Condition:
Page 174 of 507
Black plate (172,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
3-20Pre-driving checks and adjustments
GUID-EFCA6993-4C66-4840-8CB7-A8AB3D34E97F

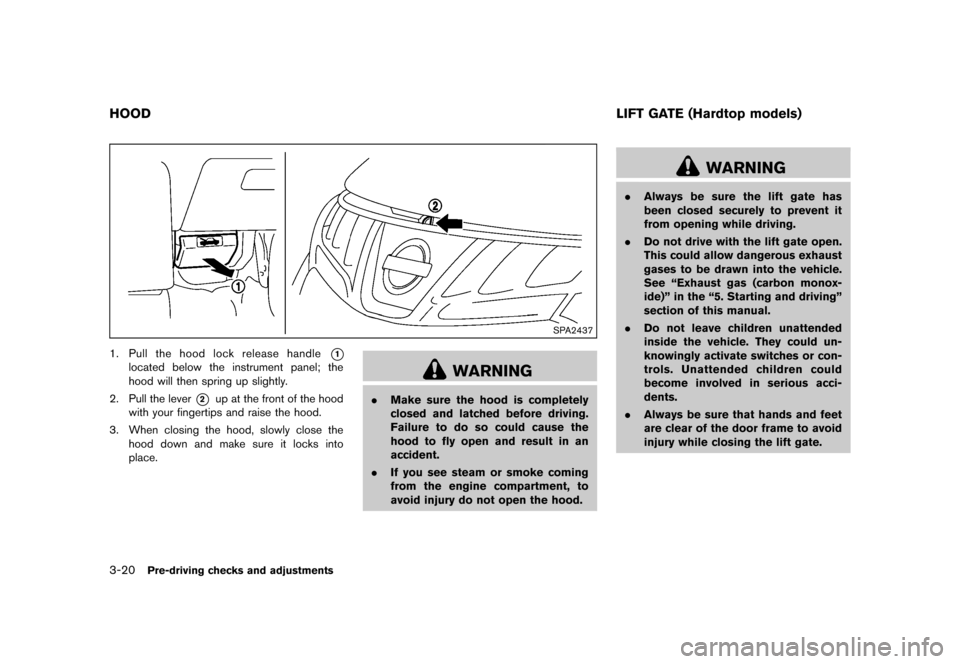

SPA2437
1.Pull the hood lock release handle*1
located below the instrument panel; the
hood will then spring up slightly.
2. Pull the lever
*2up at the front of the hood
with your fingertips and raise the hood.
3. When closing the hood, slowly close the hood down and make sure it locks into
place.
WARNING
.Make sure the hood is completely
closed and latched before driving.
Failure to do so could cause the
hood to fly open and result in an
accident.
. If you see steam or smoke coming
from the engine compartment, to
avoid injury do not open the hood.
GUID-4BA01BDD-7B7E-4674-BC74-CD9F5511DABB
WARNING
.Always be sure the lift gate has
been closed securely to prevent it
from opening while driving.
. Do not drive with the lift gate open.
This could allow dangerous exhaust
gases to be drawn into the vehicle.
See “Exhaust gas (carbon monox-
ide)” in the “5. Starting and driving”
section of this manual.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents.
. Always be sure that hands and feet
are clear of the door frame to avoid
injury while closing the lift gate.
HOOD LIFT GATE (Hardtop models)
Condition:
Page 175 of 507
Black plate (173,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

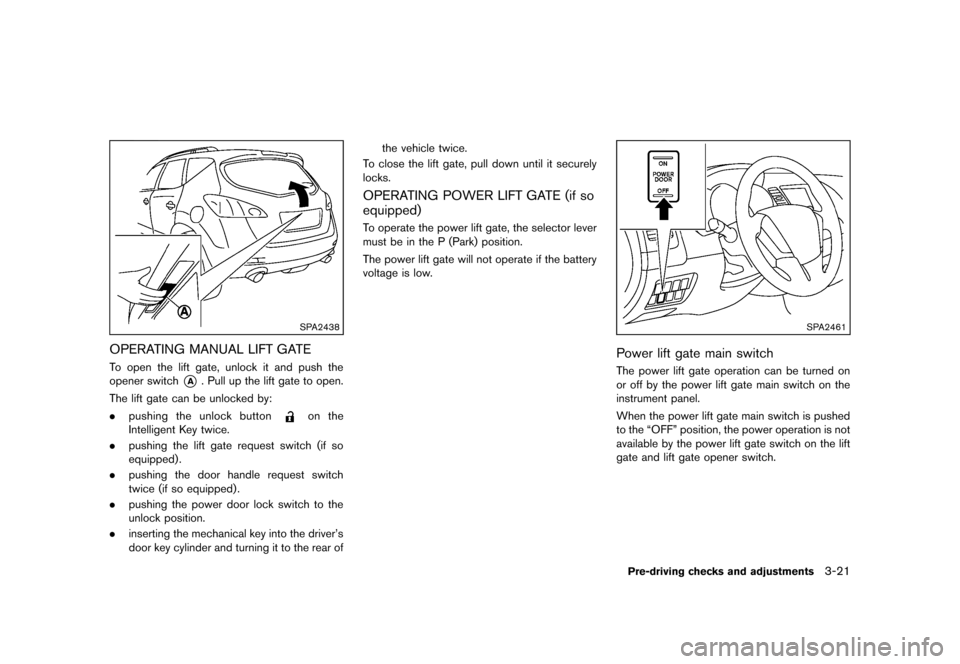

SPA2438
OPERATING MANUAL LIFT GATEGUID-61A6DC11-5EF1-41BC-B25F-AD72BB5A5897To open the lift gate, unlock it and push the
opener switch
*A. Pull up the lift gate to open.
The lift gate can be unlocked by:
. pushing the unlock button
on the
Intelligent Key twice.
. pushing the lift gate request switch (if so
equipped) .
. pushing the door handle request switch
twice (if so equipped) .
. pushing the power door lock switch to the
unlock position.
. inserting the mechanical key into the driver’s
door key cylinder and turning it to the rear of the vehicle twice.
To close the lift gate, pull down until it securely
locks.
OPERATING POWER LIFT GATE (if so
equipped)
GUID-8341353C-675A-42F8-BB11-F9F93D73F7A6To operate the power lift gate, the selector lever
must be in the P (Park) position.
The power lift gate will not operate if the battery
voltage is low.
SPA2461
Power lift gate main switchGUID-F5D61AAE-138A-4E73-8934-59B0837383B1The power lift gate operation can be turned on
or off by the power lift gate main switch on the
instrument panel.
When the power lift gate main switch is pushed
to the “OFF” position, the power operation is not
available by the power lift gate switch on the lift
gate and lift gate opener switch.
Pre-driving checks and adjustments3-21
Condition:
Page 176 of 507
Black plate (174,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
3-22Pre-driving checks and adjustments

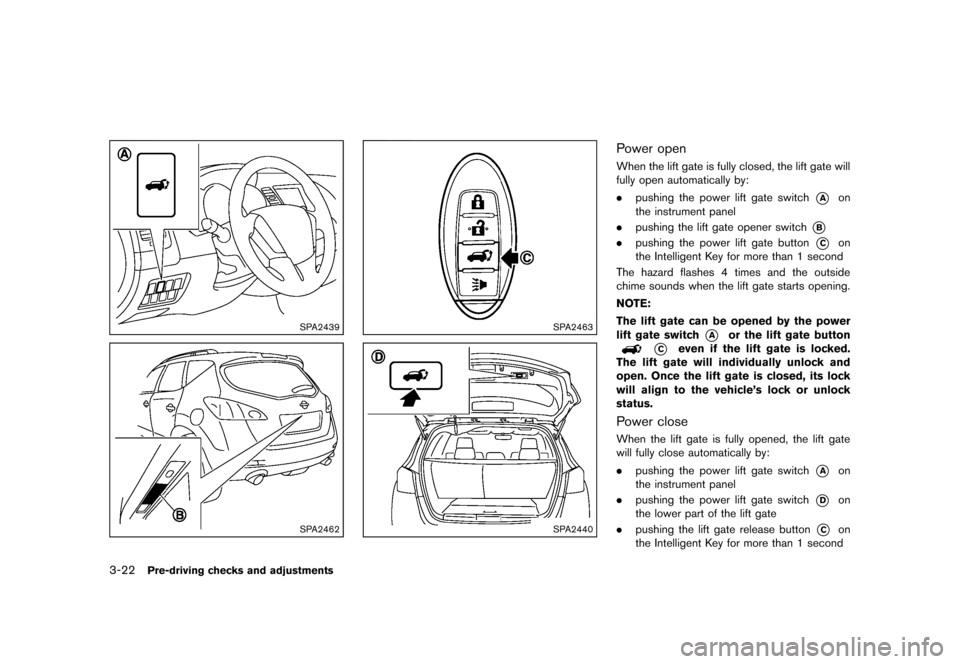

SPA2439
SPA2462
SPA2463
SPA2440
Power openGUID-4B6F9483-D240-461C-8F75-22A08D5716EEWhen the lift gate is fully closed, the lift gate will
fully open automatically by:
.pushing the power lift gate switch
*Aon
the instrument panel
. pushing the lift gate opener switch
*B
.pushing the power lift gate button*Con
the Intelligent Key for more than 1 second
The hazard flashes 4 times and the outside
chime sounds when the lift gate starts opening.
NOTE:
The lift gate can be opened by the power
lift gate switch
*Aor the lift gate button
*Ceven if the lift gate is locked.
The lift gate will individually unlock and
open. Once the lift gate is closed, its lock
will align to the vehicle’s lock or unlock
status.
Power closeGUID-E888CA90-E984-4CE2-975D-16E18CC2BCC1When the lift gate is fully opened, the lift gate
will fully close automatically by:
. pushing the power lift gate switch
*Aon
the instrument panel
. pushing the power lift gate switch
*Don
the lower part of the lift gate
. pushing the lift gate release button
*Con
the Intelligent Key for more than 1 second
Condition:
Page 177 of 507
Black plate (175,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
The hazard flashes 4 times and the outside
chime sounds when the lift gate starts closing.

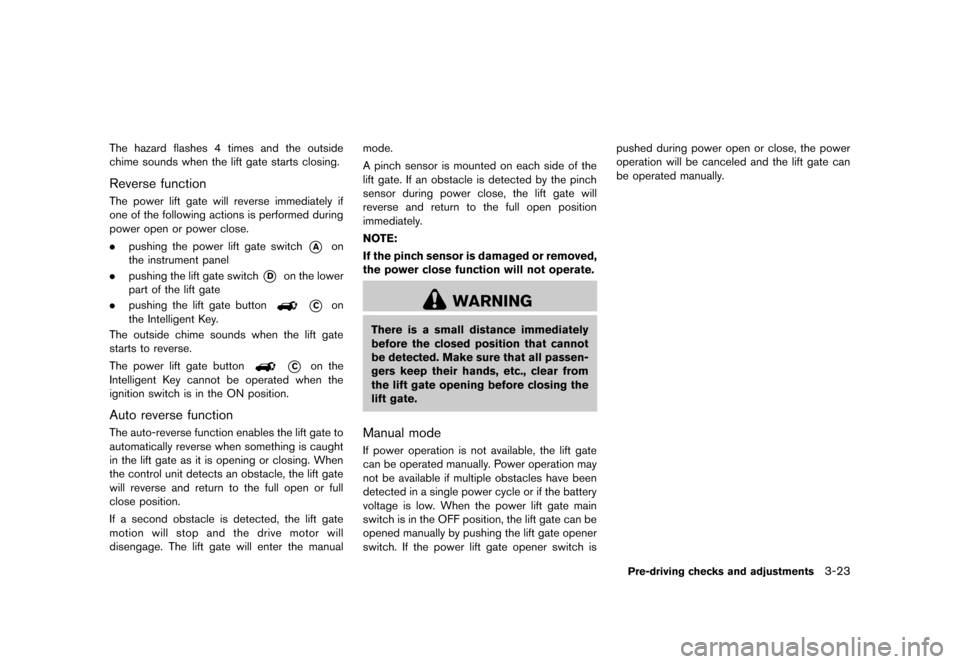

Reverse functionGUID-28EE2E95-2E6D-4231-A853-225C012F131BThe power lift gate will reverse immediately if
one of the following actions is performed during
power open or power close.
.pushing the power lift gate switch
*Aon
the instrument panel
. pushing the lift gate switch
*Don the lower
part of the lift gate
. pushing the lift gate button
*Con
the Intelligent Key.
The outside chime sounds when the lift gate
starts to reverse.
The power lift gate button
*Con the
Intelligent Key cannot be operated when the
ignition switch is in the ON position.
Auto reverse functionGUID-588A601D-27B2-48E9-8FDE-883DF425CE62The auto-reverse function enables the lift gate to
automatically reverse when something is caught
in the lift gate as it is opening or closing. When
the control unit detects an obstacle, the lift gate
will reverse and return to the full open or full
close position.
If a second obstacle is detected, the lift gate
motion will stop and the drive motor will
disengage. The lift gate will enter the manual mode.
A pinch sensor is mounted on each side of the
lift gate. If an obstacle is detected by the pinch
sensor during power close, the lift gate will
reverse and return to the full open position
immediately.
NOTE:
If the pinch sensor is damaged or removed,
the power close function will not operate.
WARNING
There is a small distance immediately
before the closed position that cannot
be detected. Make sure that all passen-
gers keep their hands, etc., clear from
the lift gate opening before closing the
lift gate.
Manual modeGUID-2D066900-C91C-4239-8B7E-587EF875F5E6If power operation is not available, the lift gate
can be operated manually. Power operation may
not be available if multiple obstacles have been
detected in a single power cycle or if the battery
voltage is low. When the power lift gate main
switch is in the OFF position, the lift gate can be
opened manually by pushing the lift gate opener
switch. If the power lift gate opener switch ispushed during power open or close, the power
operation will be canceled and the lift gate can
be operated manually.
Pre-driving checks and adjustments3-23
Condition:
Page 178 of 507
Black plate (176,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
3-24Pre-driving checks and adjustments
SPA2464
Safe ModeGUID-9161D00E-0361-4406-9899-CE4F57ECAF0BIf the gas stays of the lift gate*1lose pressure,
the power lift gate safe mode is activated. When
the safe mode is activated, the lift gate
intermittently closes. Then the lift gate will be
pulled to the closed and latched position by a
motor.
The power lift gate cannot be opened using the
switches at any time in the safe mode.
Do not operate the lift gate again until it is
checked by a NISSAN dealer.
CAUTION
. If the power lift gate does not stay
open or if the lift gate unexpectedly
closes at any time, do not operate
the lift gate. There may be a pres-
sure loss in one or both of the lift
gate gas stays. Have the lift gate
inspected by a NISSAN dealer.
. Do not activate the power lift gate if
one or both of the lift gate gas stays
are removed. Damage to the lift
gate or power lift gate mechanisms
may occur.
AUTO CLOSUREGUID-7AD58A51-23F5-4099-B091-E857EB67A8A8If the lift gate is pulled down to a partly open
position, the lift gate will pull itself to the closed
position.
Do not apply excessive force when the
auto closure is operating. Excessive force
applied may cause the mechanism to
malfunction.
CAUTION
.The lift gate will automatically close
from a partly open position. To avoid
pinching, keep hands and fingers
away from lift gate opening.
. Do not let children operate the lift
gate.
Condition:
Page 179 of 507
Black plate (177,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SPA1915
LIFT GATE RELEASEGUID-1D614743-17EC-4673-B778-F929F5E10CB9If the lift gate cannot be opened due to a
discharged battery, follow these steps.
1. Remove the cover inside of the lift gate witha suitable tool.
2. Move the lever toward the direction
*Aas
illustrated to open the lift gate.
Have the vehicle checked by a NISSAN dealer.
GUID-2C264EE5-CF00-4D99-8287-BE0FA9532E1E
WARNING
. Do not drive with the trunk lid open.
This could allow dangerous exhaust
gases to be drawn into the vehicle.
See “Exhaust gas (carbon monox-
ide)” in the “5. Starting and driving”
section of this manual.
. Closely supervise children when
they are around cars to prevent
them from playing and becoming
locked in the trunk where they could
be seriously injured. Keep the car
locked, with the trunk closed, when
not in use, and prevent children’s
access to Intelligent Keys.
SPA2868
TRUNK LID RELEASE SWITCHGUID-3E3F75C6-3DEC-4CB3-AB7F-5D7232A3354CThe trunk lid release switch*Ais located on
the instrument panel.
To open the trunk lid, push the release switch
down as illustrated. To close, push the trunk lid
down.
Pre-driving checks and adjustments3-25
TRUNK LID (CrossCabriolet models)
Condition:
Page 180 of 507
Black plate (178,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

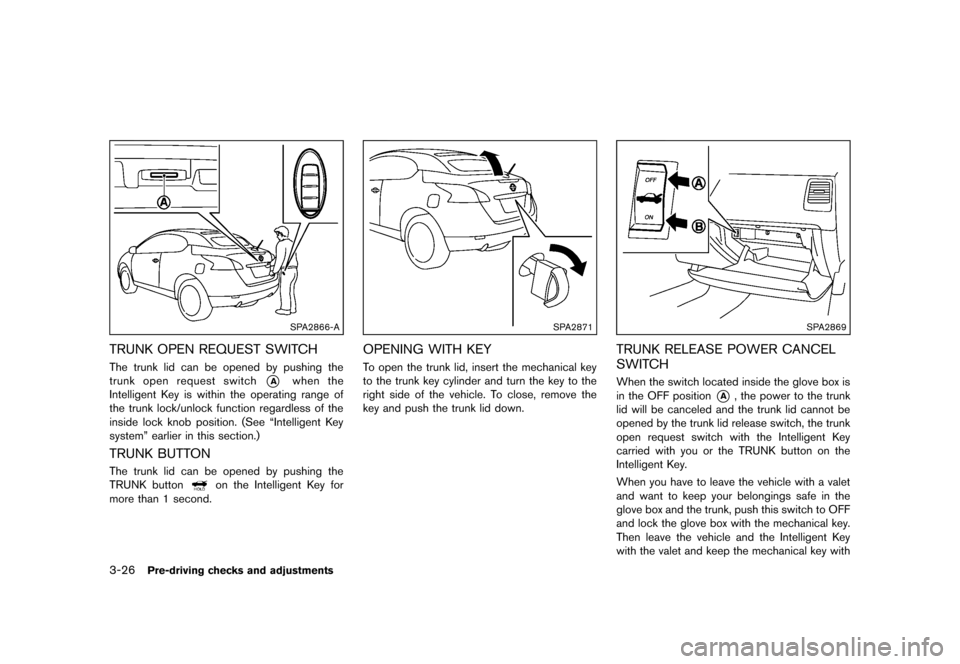

3-26Pre-driving checks and adjustments
SPA2866-A
TRUNK OPEN REQUEST SWITCHGUID-B01B03F7-E6F4-4880-AF56-804BF02D2CC4The trunk lid can be opened by pushing the
trunk open request switch
*Awhen the
Intelligent Key is within the operating range of
the trunk lock/unlock function regardless of the
inside lock knob position. (See “Intelligent Key
system” earlier in this section.)
TRUNK BUTTONGUID-BBA61B35-8253-481A-BABD-2C8031AD5525The trunk lid can be opened by pushing the
TRUNK button
on the Intelligent Key for
more than 1 second.
SPA2871
OPENING WITH KEYGUID-A6A5B4FC-5FBC-4C5F-8A27-A149CEEDAF32To open the trunk lid, insert the mechanical key
to the trunk key cylinder and turn the key to the
right side of the vehicle. To close, remove the
key and push the trunk lid down.
SPA2869
TRUNK RELEASE POWER CANCEL
SWITCH
GUID-4D40CB74-0EE0-44CF-9D72-61FB52259054When the switch located inside the glove box is
in the OFF position
*A, the power to the trunk
lid will be canceled and the trunk lid cannot be
opened by the trunk lid release switch, the trunk
open request switch with the Intelligent Key
carried with you or the TRUNK button on the
Intelligent Key.
When you have to leave the vehicle with a valet
and want to keep your belongings safe in the
glove box and the trunk, push this switch to OFF
and lock the glove box with the mechanical key.
Then leave the vehicle and the Intelligent Key
with the valet and keep the mechanical key with
Condition:
