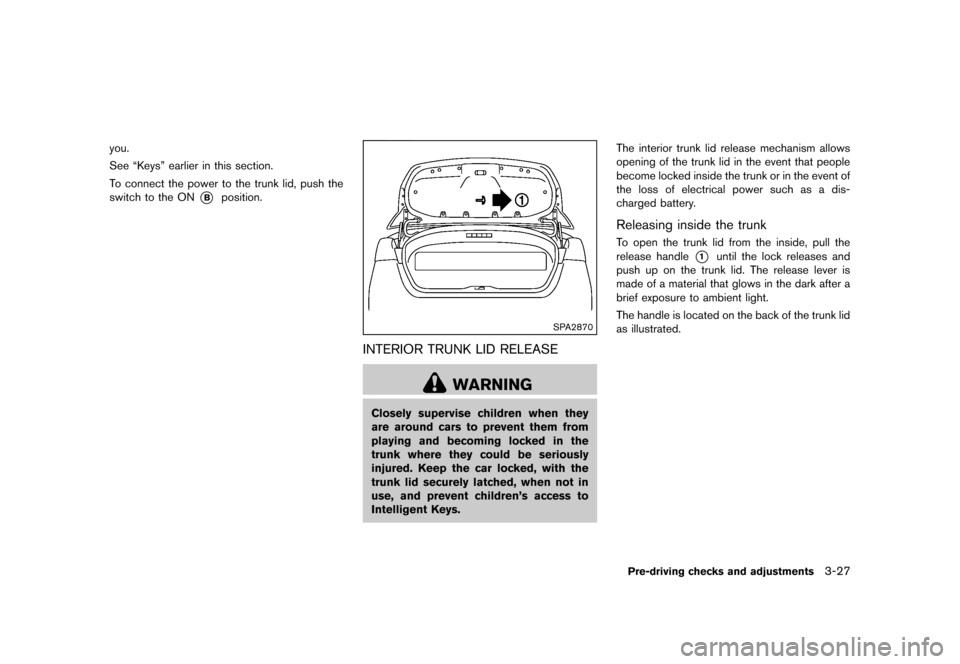

Black plate (179,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
you.
See “Keys” earlier in this section.
To connect the power to the trunk lid, push the
switch to the ON
*Bposition.
SPA2870
INTERIOR TRUNK LID RELEASEGUID-76617E49-69A3-42A3-B4CE-6BA318A11DE5
WARNING
Closely supervise children when they
are around cars to prevent them from
playing and becoming locked in the
trunk where they could be seriously
injured. Keep the car locked, with the
trunk lid securely latched, when not in
use, and prevent children’s access to
Intelligent Keys.The interior trunk lid release mechanism allows
opening of the trunk lid in the event that people
become locked inside the trunk or in the event of
the loss of electrical power such as a dis-
charged battery.
Releasing inside the trunkGUID-AF4D5EDF-174E-4F6F-B198-B456683E28BDTo open the trunk lid from the inside, pull the
release handle
*1until the lock releases and
push up on the trunk lid. The release lever is
made of a material that glows in the dark after a
brief exposure to ambient light.
The handle is located on the back of the trunk lid
as illustrated.
Pre-driving checks and adjustments3-27
Condition:
Page 182 of 507

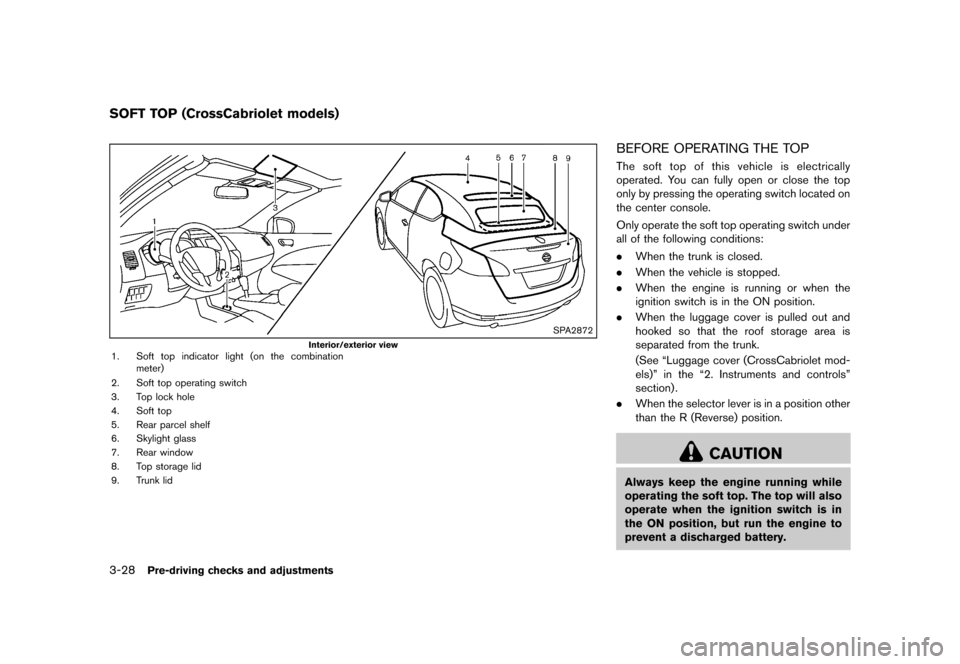

Black plate (180,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
3-28Pre-driving checks and adjustments
GUID-4E386DA4-547C-4A5A-BC6A-9C85B5A124D5
SPA2872
Interior/exterior view1. Soft top indicator light (on the combinationmeter)
2. Soft top operating switch
3. Top lock hole
4. Soft top
5. Rear parcel shelf
6. Skylight glass
7. Rear window
8. Top storage lid
9. Trunk lid
BEFORE OPERATING THE TOPGUID-B5A72515-20E3-4BF7-986E-50FBF5D603CEThe soft top of this vehicle is electrically
operated. You can fully open or close the top
only by pressing the operating switch located on
the center console.
Only operate the soft top operating switch under
all of the following conditions:
. When the trunk is closed.
. When the vehicle is stopped.
. When the engine is running or when the
ignition switch is in the ON position.
. When the luggage cover is pulled out and
hooked so that the roof storage area is
separated from the trunk.
(See “Luggage cover (CrossCabriolet mod-
els)” in the “2. Instruments and controls”
section) .
. When the selector lever is in a position other
than the R (Reverse) position.
CAUTION
Always keep the engine running while
operating the soft top. The top will also
operate when the ignition switch is in
the ON position, but run the engine to
prevent a discharged battery.
SOFT TOP (CrossCabriolet models)
Condition:
Page 183 of 507

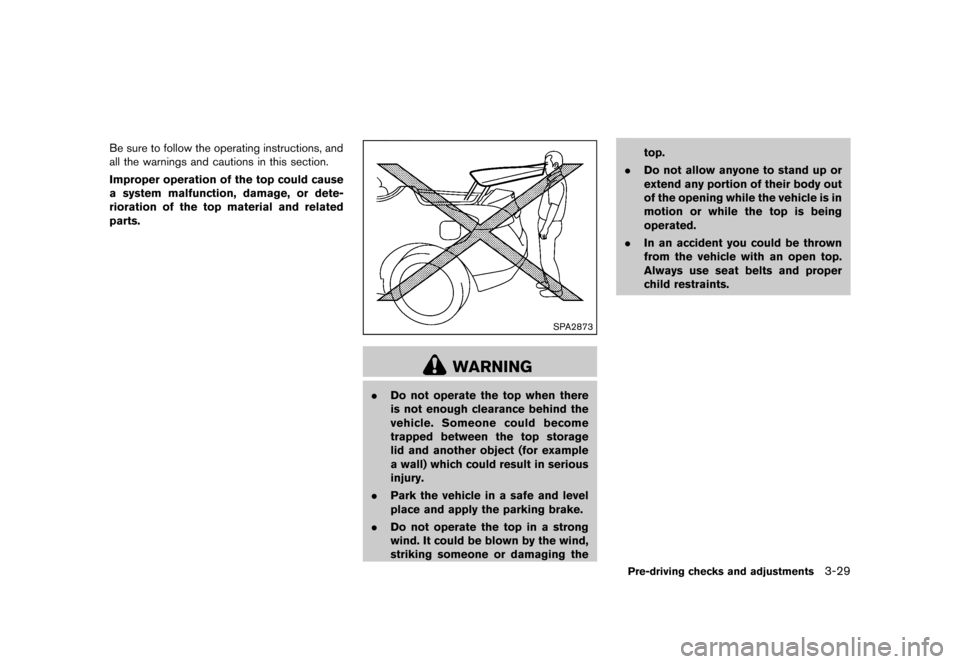

Black plate (181,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
Be sure to follow the operating instructions, and
all the warnings and cautions in this section.
Improper operation of the top could cause
a system malfunction, damage, or dete-
rioration of the top material and related
parts.
SPA2873
WARNING
.Do not operate the top when there
is not enough clearance behind the
vehicle. Someone could become
trapped between the top storage
lid and another object (for example
a wall) which could result in serious
injury.
. Park the vehicle in a safe and level
place and apply the parking brake.
. Do not operate the top in a strong
wind. It could be blown by the wind,
striking someone or damaging the top.
. Do not allow anyone to stand up or
extend any portion of their body out
of the opening while the vehicle is in
motion or while the top is being
operated.
. In an accident you could be thrown
from the vehicle with an open top.
Always use seat belts and proper
child restraints.
Pre-driving checks and adjustments3-29
Condition:
Page 184 of 507

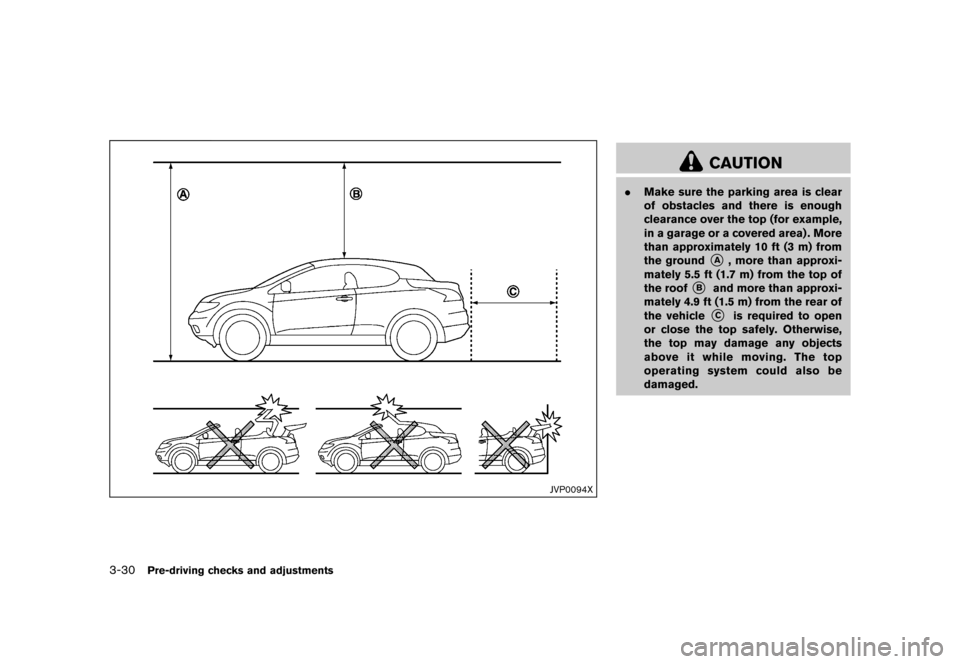

Black plate (182,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
3-30Pre-driving checks and adjustments
JVP0094X
CAUTION
.Make sure the parking area is clear
of obstacles and there is enough
clearance over the top (for example,
in a garage or a covered area) . More
than approximately 10 ft (3 m) from
the ground
*A, more than approxi-
mately 5.5 ft (1.7 m) from the top of
the roof
*Band more than approxi-
mately 4.9 ft (1.5 m) from the rear of
the vehicle
*Cis required to open
or close the top safely. Otherwise,
the top may damage any objects
above it while moving. The top
operating system could also be
damaged.
Condition:
Page 185 of 507

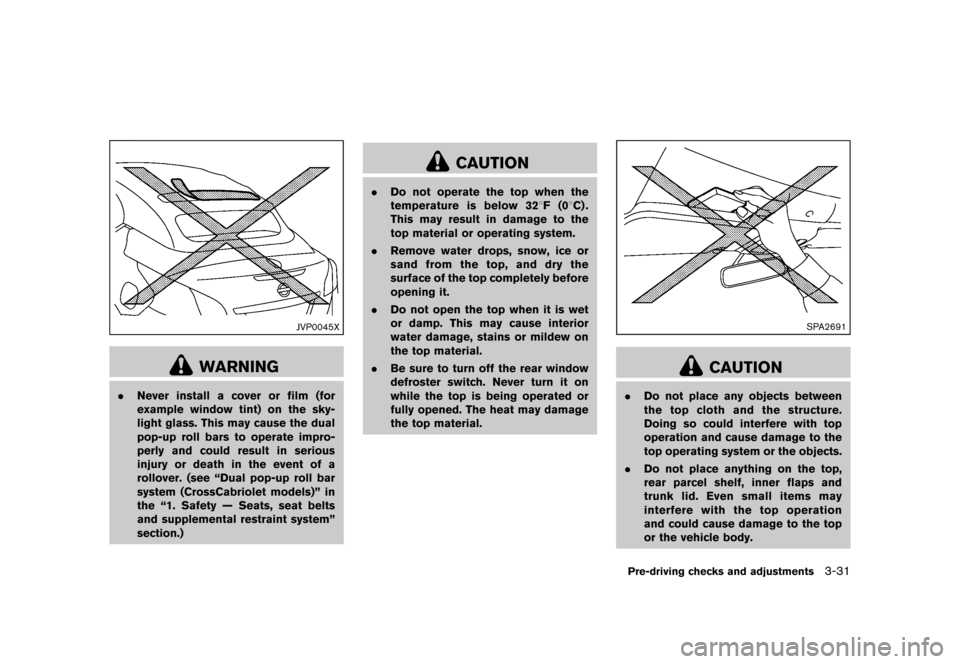

Black plate (183,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
JVP0045X
WARNING
.Never install a cover or film (for
example window tint) on the sky-
light glass. This may cause the dual
pop-up roll bars to operate impro-
perly and could result in serious
injury or death in the event of a
rollover. (see “Dual pop-up roll bar
system (CrossCabriolet models)” in
the “1. Safety — Seats, seat belts
and supplemental restraint system”
section.)
CAUTION
.Do not operate the top when the
temperature is below 328F (08C) .
This may result in damage to the
top material or operating system.
. Remove water drops, snow, ice or
sand from the top, and dry the
surface of the top completely before
opening it.
. Do not open the top when it is wet
or damp. This may cause interior
water damage, stains or mildew on
the top material.
. Be sure to turn off the rear window
defroster switch. Never turn it on
while the top is being operated or
fully opened. The heat may damage
the top material.
SPA2691
CAUTION
.Do not place any objects between
the top cloth and the structure.
Doing so could interfere with top
operation and cause damage to the
top operating system or the objects.
. Do not place anything on the top,
rear parcel shelf, inner flaps and
trunk lid. Even small items may
interfere with the top operation
and could cause damage to the top
or the vehicle body.
Pre-driving checks and adjustments3-31
Condition:
Page 186 of 507

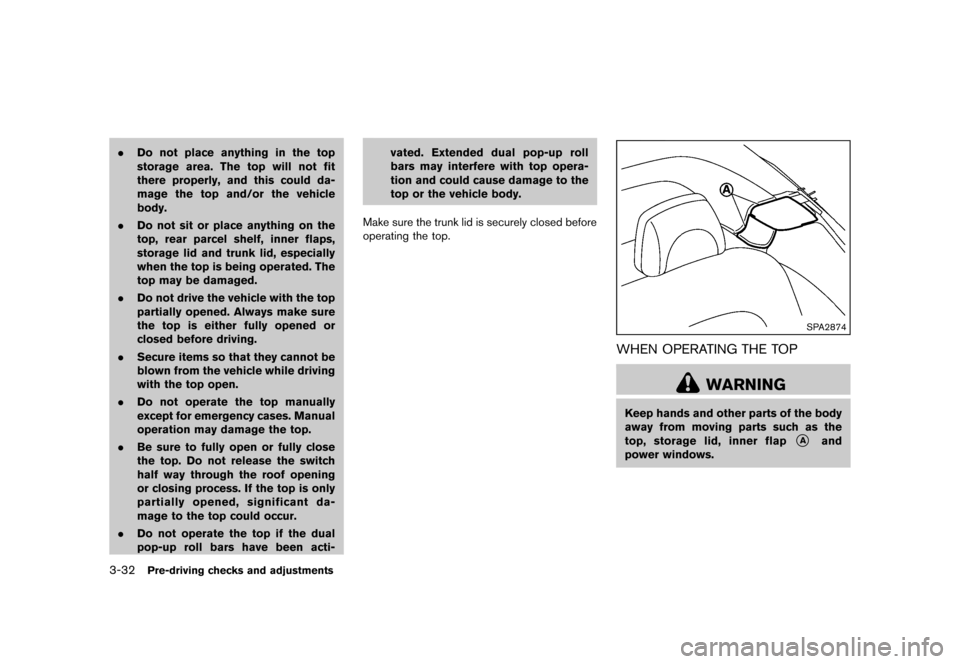

Black plate (184,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
3-32Pre-driving checks and adjustments
.Do not place anything in the top
storage area. The top will not fit
there properly, and this could da-
mage the top and/or the vehicle
body.
. Do not sit or place anything on the
top, rear parcel shelf, inner flaps,
storage lid and trunk lid, especially
when the top is being operated. The
top may be damaged.
. Do not drive the vehicle with the top
partially opened. Always make sure
the top is either fully opened or
closed before driving.
. Secure items so that they cannot be
blown from the vehicle while driving
with the top open.
. Do not operate the top manually
except for emergency cases. Manual
operation may damage the top.
. Be sure to fully open or fully close
the top. Do not release the switch
half way through the roof opening
or closing process. If the top is only
partially opened, significant da-
mage to the top could occur.
. Do not operate the top if the dual
pop-up roll bars have been acti- vated. Extended dual pop-up roll
bars may interfere with top opera-
tion and could cause damage to the
top or the vehicle body.
Make sure the trunk lid is securely closed before
operating the top.
SPA2874
WHEN OPERATING THE TOPGUID-9783AAEB-D9EE-4150-9CAA-F03901BE51C6
WARNING
Keep hands and other parts of the body
away from moving parts such as the
top, storage lid, inner flap
*Aand
power windows.
Condition:
Page 187 of 507
Black plate (185,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

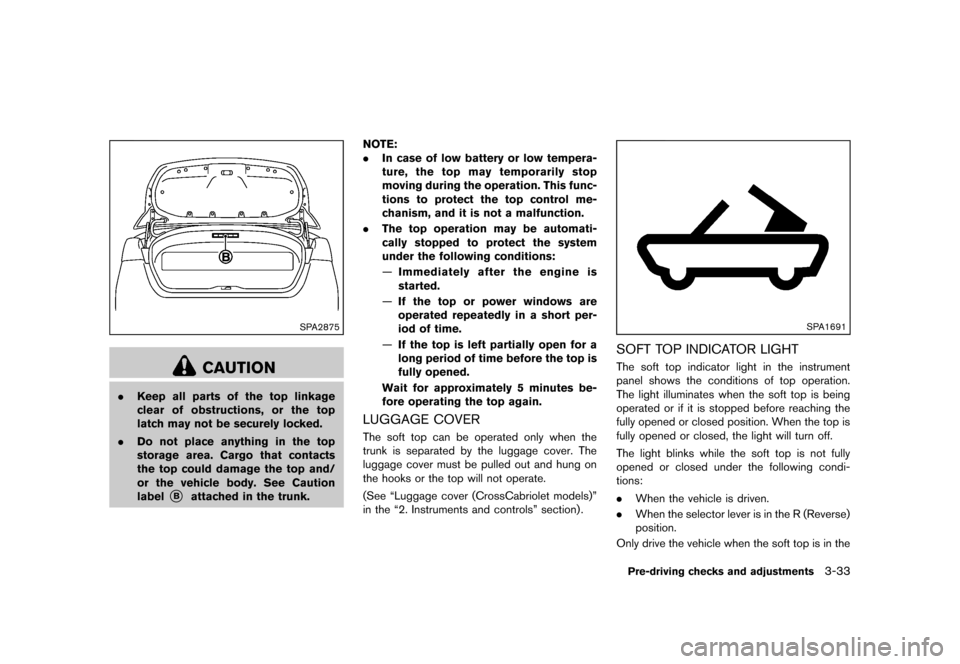

SPA2875
CAUTION
.Keep all parts of the top linkage
clear of obstructions, or the top
latch may not be securely locked.
. Do not place anything in the top
storage area. Cargo that contacts
the top could damage the top and/
or the vehicle body. See Caution
label
*Battached in the trunk. NOTE:
.
In case of low battery or low tempera-
ture, the top may temporarily stop
moving during the operation. This func-
tions to protect the top control me-
chanism, and it is not a malfunction.
. The top operation may be automati-
cally stopped to protect the system
under the following conditions:
—Immediately after the engine is
started.
— If the top or power windows are
operated repeatedly in a short per-
iod of time.
— If the top is left partially open for a
long period of time before the top is
fully opened.
Wait for approximately 5 minutes be-
fore operating the top again.
LUGGAGE COVERGUID-B26A5118-9345-47A5-9852-69A71FF769ABThe soft top can be operated only when the
trunk is separated by the luggage cover. The
luggage cover must be pulled out and hung on
the hooks or the top will not operate.
(See “Luggage cover (CrossCabriolet models)”
in the “2. Instruments and controls” section) .
SPA1691
SOFT TOP INDICATOR LIGHTGUID-AC0A62DC-CB4D-48FD-9A3A-3C2535153F4EThe soft top indicator light in the instrument
panel shows the conditions of top operation.
The light illuminates when the soft top is being
operated or if it is stopped before reaching the
fully opened or closed position. When the top is
fully opened or closed, the light will turn off.
The light blinks while the soft top is not fully
opened or closed under the following condi-
tions:
. When the vehicle is driven.
. When the selector lever is in the R (Reverse)
position.
Only drive the vehicle when the soft top is in the
Pre-driving checks and adjustments3-33
Condition:
Page 188 of 507

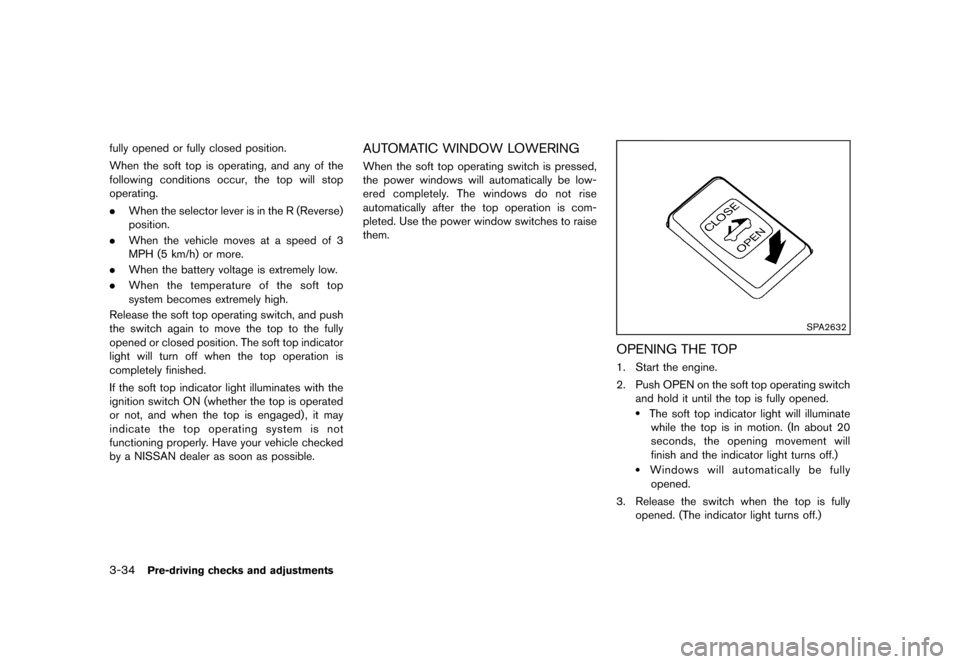

Black plate (186,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
3-34Pre-driving checks and adjustments
fully opened or fully closed position.
When the soft top is operating, and any of the
following conditions occur, the top will stop
operating.
.When the selector lever is in the R (Reverse)
position.
. When the vehicle moves at a speed of 3
MPH (5 km/h) or more.
. When the battery voltage is extremely low.
. When the temperature of the soft top
system becomes extremely high.
Release the soft top operating switch, and push
the switch again to move the top to the fully
opened or closed position. The soft top indicator
light will turn off when the top operation is
completely finished.
If the soft top indicator light illuminates with the
ignition switch ON (whether the top is operated
or not, and when the top is engaged) , it may
indicate the top operating system is not
functioning properly. Have your vehicle checked
by a NISSAN dealer as soon as possible.AUTOMATIC WINDOW LOWERINGGUID-53158076-5049-419E-B46E-60FF9661FC5CWhen the soft top operating switch is pressed,
the power windows will automatically be low-
ered completely. The windows do not rise
automatically after the top operation is com-
pleted. Use the power window switches to raise
them.
SPA2632
OPENING THE TOPGUID-A212C8E0-E684-4914-9C6A-29123B5D454E1. Start the engine.
2. Push OPEN on the soft top operating switch and hold it until the top is fully opened.
.The soft top indicator light will illuminatewhile the top is in motion. (In about 20
seconds, the opening movement will
finish and the indicator light turns off.)
.Windows will automatically be fullyopened.
3. Release the switch when the top is fully opened. (The indicator light turns off.)
Condition:
Page 189 of 507

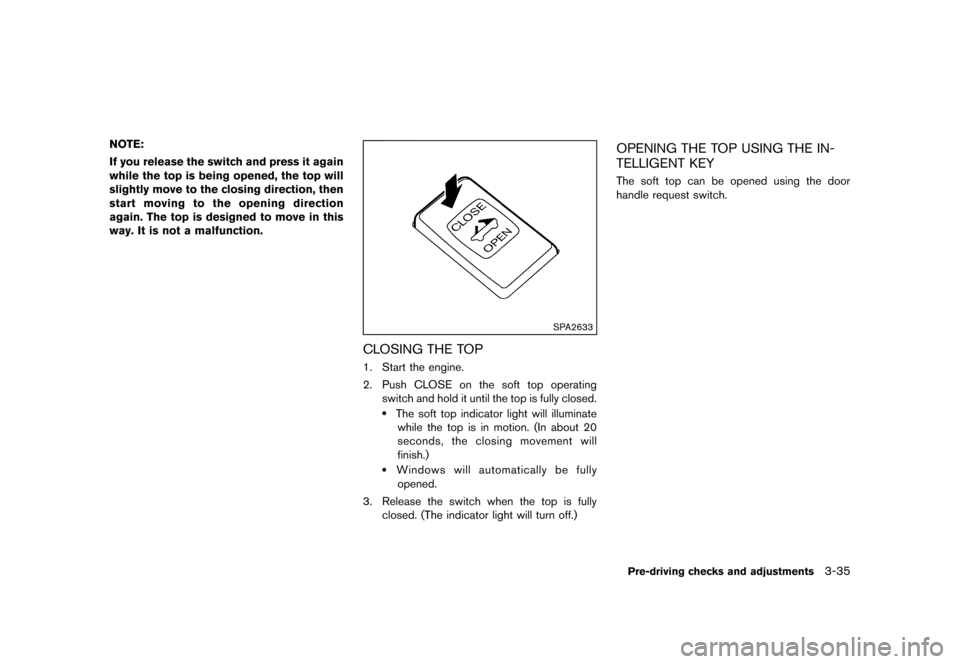

Black plate (187,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
NOTE:
If you release the switch and press it again
while the top is being opened, the top will
slightly move to the closing direction, then
start moving to the opening direction
again. The top is designed to move in this
way. It is not a malfunction.
SPA2633
CLOSING THE TOPGUID-DAD80567-3F61-4CBF-86B1-D92B657E227A1. Start the engine.
2. Push CLOSE on the soft top operatingswitch and hold it until the top is fully closed.
.The soft top indicator light will illuminatewhile the top is in motion. (In about 20
seconds, the closing movement will
finish.)
.Windows will automatically be fullyopened.
3. Release the switch when the top is fully closed. (The indicator light will turn off.)
OPENING THE TOP USING THE IN-
TELLIGENT KEY
GUID-49044D36-3539-45EB-A570-6E07681CB5C9The soft top can be opened using the door
handle request switch.
Pre-driving checks and adjustments3-35
Condition:
Page 190 of 507
Black plate (188,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
3-36Pre-driving checks and adjustments
JVP0049X
Opening the soft topGUID-4C7A2A7D-B19A-4092-923C-63EC90103CB4Push the ignition switch to the OFF position and
make sure to carry the Intelligent Key with you.
Make sure that the trunk luggage cover is pulled
out and hung on the hooks. Push the door
handle request switch (driver’s or passenger’s)
*Aand hold it until the soft top is fully open.
Condition:
