Page 221 of 507
Black plate (219,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

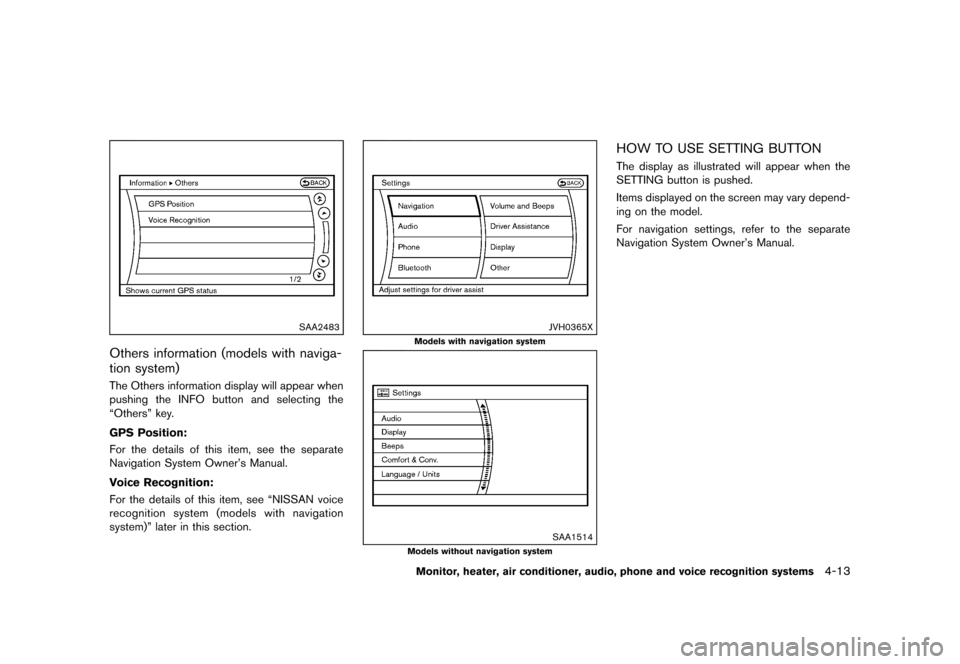

SAA2483
Others information (models with naviga-
tion system)
GUID-19CFE7FD-4EB2-4F83-99BE-96E545E703BFThe Others information display will appear when
pushing the INFO button and selecting the
“Others” key.
GPS Position:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For the details of this item, see the separate
Navigation System Owner’s Manual.
Voice Recognition:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For the details of this item, see “NISSAN voice
recognition system (models with navigation
system)” later in this section.
JVH0365X
Models with navigation system
SAA1514
Models without navigation system
HOW TO USE SETTING BUTTONGUID-C60F65D8-DC71-49BA-A445-C03B312665B8The display as illustrated will appear when the
SETTING button is pushed.
Items displayed on the screen may vary depend-
ing on the model.
For navigation settings, refer to the separate
Navigation System Owner’s Manual.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-13
Condition:
Page 222 of 507
Black plate (220,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

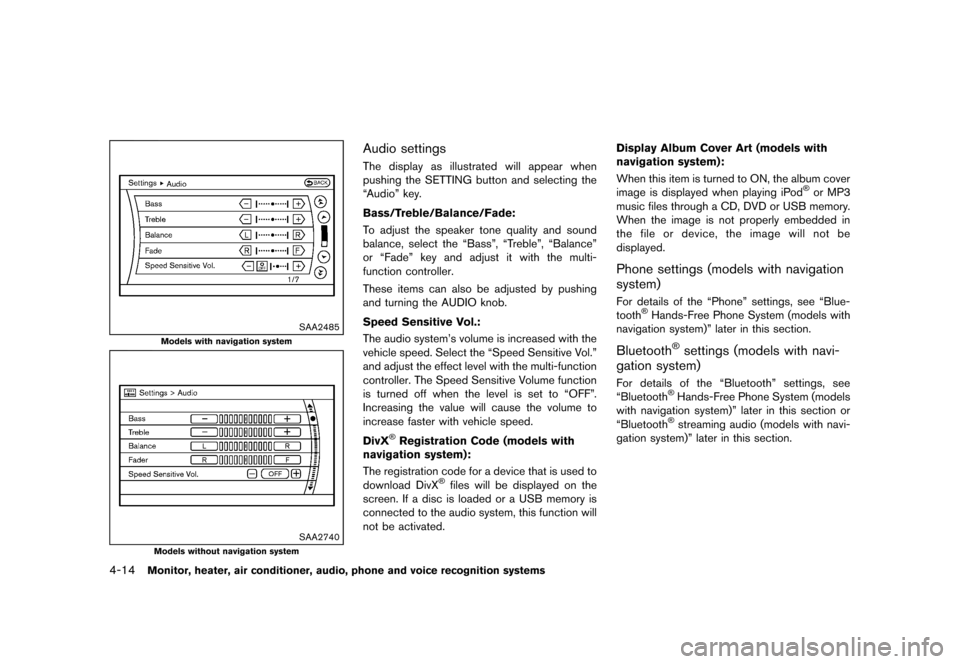

4-14Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA2485
Models with navigation system
SAA2740
Models without navigation system
Audio settingsGUID-67095D9E-D601-4AF8-AB86-556CAD5A6C31The display as illustrated will appear when
pushing the SETTING button and selecting the
“Audio” key.
Bass/Treble/Balance/Fade:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the speaker tone quality and sound
balance, select the “Bass”, “Treble”, “Balance”
or “Fade” key and adjust it with the multi-
function controller.
These items can also be adjusted by pushing
and turning the AUDIO knob.
Speed Sensitive Vol.:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The audio system’s volume is increased with the
vehicle speed. Select the “Speed Sensitive Vol.”
and adjust the effect level with the multi-function
controller. The Speed Sensitive Volume function
is turned off when the level is set to “OFF”.
Increasing the value will cause the volume to
increase faster with vehicle speed.
DivX
®Registration Code (models with
navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The registration code for a device that is used to
download DivX®files will be displayed on the
screen. If a disc is loaded or a USB memory is
connected to the audio system, this function will
not be activated. Display Album Cover Art (models with
navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the album cover
image is displayed when playing iPod®or MP3
music files through a CD, DVD or USB memory.
When the image is not properly embedded in
the file or device, the image will not be
displayed.
Phone settings (models with navigation
system)
GUID-B41718AF-2D4C-42E3-B4B5-02E747E29603For details of the “Phone” settings, see “Blue-
tooth®Hands-Free Phone System (models with
navigation system)” later in this section.
Bluetooth®settings (models with navi-
gation system)
GUID-6622418E-D21C-439C-A2D1-B530D582A150For details of the “Bluetooth” settings, see
“Bluetooth®Hands-Free Phone System (models
with navigation system)” later in this section or
“Bluetooth
®streaming audio (models with navi-
gation system)” later in this section.
Condition:
Page 223 of 507
Black plate (221,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

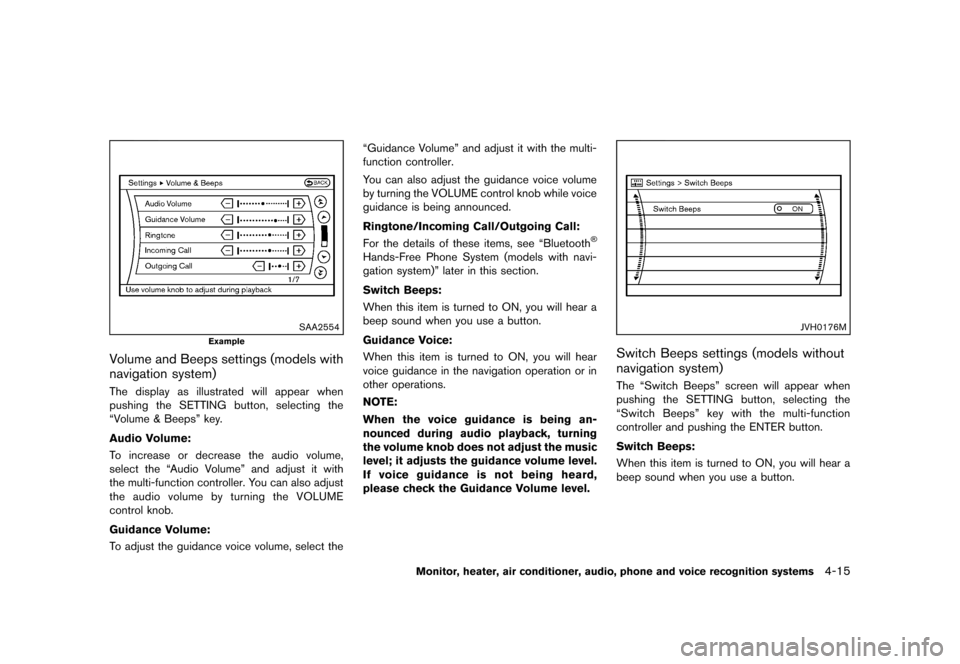

SAA2554
Example
Volume and Beeps settings (models with
navigation system)
GUID-DE566CBB-6649-444D-AEE4-25644D29C89AThe display as illustrated will appear when
pushing the SETTING button, selecting the
“Volume & Beeps” key.
Audio Volume:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To increase or decrease the audio volume,
select the “Audio Volume” and adjust it with
the multi-function controller. You can also adjust
the audio volume by turning the VOLUME
control knob.
Guidance Volume:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the guidance voice volume, select the“Guidance Volume” and adjust it with the multi-
function controller.
You can also adjust the guidance voice volume
by turning the VOLUME control knob while voice
guidance is being announced.
Ringtone/Incoming Call/Outgoing Call:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For the details of these items, see “Bluetooth®
Hands-Free Phone System (models with navi-
gation system)” later in this section.
Switch Beeps:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, you will hear a
beep sound when you use a button.
Guidance Voice:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, you will hear
voice guidance in the navigation operation or in
other operations.
NOTE:
When the voice guidance is being an-
nounced during audio playback, turning
the volume knob does not adjust the music
level; it adjusts the guidance volume level.
If voice guidance is not being heard,
please check the Guidance Volume level.
JVH0176M
Switch Beeps settings (models without
navigation system)
GUID-F5E6FA6C-24DE-4338-88B7-518E84B2FB30The “Switch Beeps” screen will appear when
pushing the SETTING button, selecting the
“Switch Beeps” key with the multi-function
controller and pushing the ENTER button.
Switch Beeps:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, you will hear a
beep sound when you use a button.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-15
Condition:
Page 224 of 507
Black plate (222,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

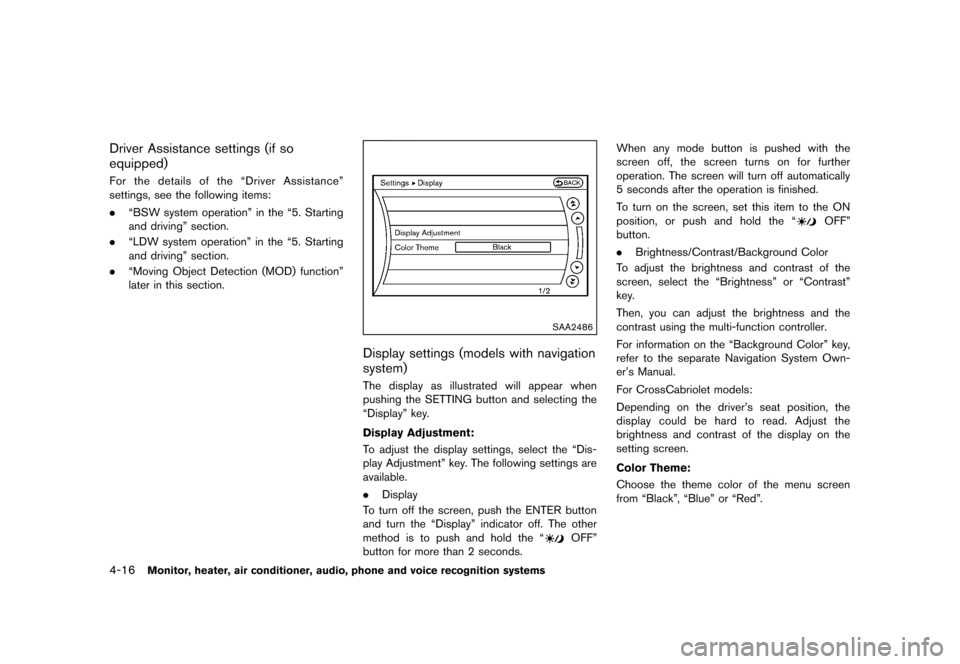

4-16Monitor, heater, air conditioner, audio, phone and voice recognition systems
Driver Assistance settings (if so
equipped)
GUID-66CC477D-BCCA-49A1-91E3-D0DC449350BAFor the details of the “Driver Assistance”
settings, see the following items:
.“BSW system operation” in the “5. Starting
and driving” section.
. “LDW system operation” in the “5. Starting
and driving” section.
. “Moving Object Detection (MOD) function”
later in this section.
SAA2486
Display settings (models with navigation
system)
GUID-6B97F069-D0A2-4D56-88B1-70E630F6D857The display as illustrated will appear when
pushing the SETTING button and selecting the
“Display” key.
Display Adjustment:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the display settings, select the “Dis-
play Adjustment” key. The following settings are
available.
.Display
To turn off the screen, push the ENTER button
and turn the “Display” indicator off. The other
method is to push and hold the “
OFF”
button for more than 2 seconds. When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off automatically
5 seconds after the operation is finished.
To turn on the screen, set this item to the ON
position, or push and hold the “
OFF”
button.
. Brightness/Contrast/Background Color
To adjust the brightness and contrast of the
screen, select the “Brightness” or “Contrast”
key.
Then, you can adjust the brightness and the
contrast using the multi-function controller.
For information on the “Background Color” key,
refer to the separate Navigation System Own-
er’s Manual.
For CrossCabriolet models:
Depending on the driver’s seat position, the
display could be hard to read. Adjust the
brightness and contrast of the display on the
setting screen.
Color Theme:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the theme color of the menu screen
from “Black”, “Blue” or “Red”.
Condition:
Page 225 of 507
Black plate (223,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

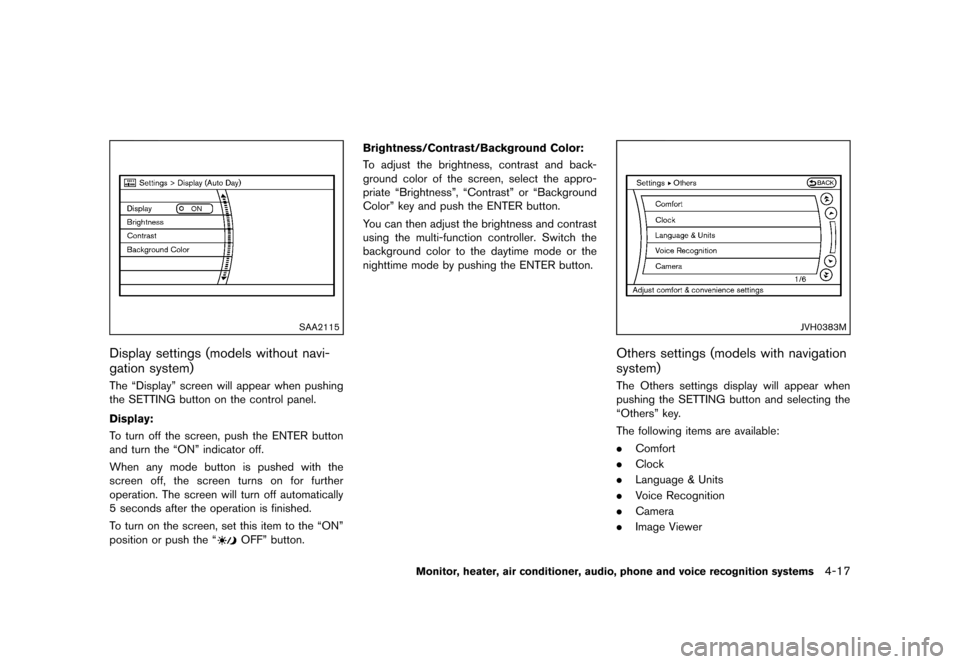

SAA2115
Display settings (models without navi-
gation system)
GUID-681B4660-8EE5-421B-8DE5-F74AD37100DFThe “Display” screen will appear when pushing
the SETTING button on the control panel.
Display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To turn off the screen, push the ENTER button
and turn the “ON” indicator off.
When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off automatically
5 seconds after the operation is finished.
To turn on the screen, set this item to the “ON”
position or push the “
OFF” button.Brightness/Contrast/Background Color:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the brightness, contrast and back-
ground color of the screen, select the appro-
priate “Brightness”, “Contrast” or “Background
Color” key and push the ENTER button.
You can then adjust the brightness and contrast
using the multi-function controller. Switch the
background color to the daytime mode or the
nighttime mode by pushing the ENTER button.
JVH0383M
Others settings (models with navigation
system)
GUID-AA194879-4CE8-4800-B439-5CDB3557F9CBThe Others settings display will appear when
pushing the SETTING button and selecting the
“Others” key.
The following items are available:
.
Comfort
. Clock
. Language & Units
. Voice Recognition
. Camera
. Image Viewer
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-17
Condition:
Page 226 of 507
Black plate (224,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

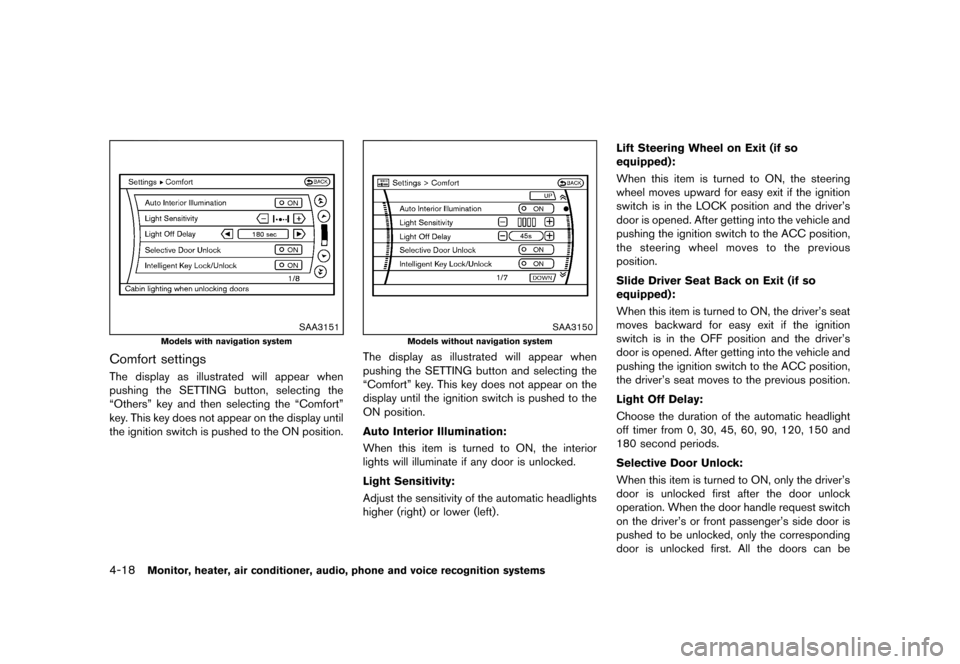

4-18Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA3151
Models with navigation system
Comfort settingsGUID-3DDC93FC-D89B-4259-BE03-63BADC7525ECThe display as illustrated will appear when
pushing the SETTING button, selecting the
“Others” key and then selecting the “Comfort”
key. This key does not appear on the display until
the ignition switch is pushed to the ON position.
SAA3150
Models without navigation system
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Comfort” key. This key does not appear on the
display until the ignition switch is pushed to the
ON position.
Auto Interior Illumination:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the interior
lights will illuminate if any door is unlocked.
Light Sensitivity:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the sensitivity of the automatic headlights
higher (right) or lower (left).Lift Steering Wheel on Exit (if so
equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the steering
wheel moves upward for easy exit if the ignition
switch is in the LOCK position and the driver’s
door is opened. After getting into the vehicle and
pushing the ignition switch to the ACC position,
the steering wheel moves to the previous
position.
Slide Driver Seat Back on Exit (if so
equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the driver’s seat
moves backward for easy exit if the ignition
switch is in the OFF position and the driver’s
door is opened. After getting into the vehicle and
pushing the ignition switch to the ACC position,
the driver’s seat moves to the previous position.
Light Off Delay:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the duration of the automatic headlight
off timer from 0, 30, 45, 60, 90, 120, 150 and
180 second periods.
Selective Door Unlock:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, only the driver’s
door is unlocked first after the door unlock
operation. When the door handle request switch
on the driver’s or front passenger’s side door is
pushed to be unlocked, only the corresponding
door is unlocked first. All the doors can be
Condition:
Page 227 of 507
Black plate (225,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

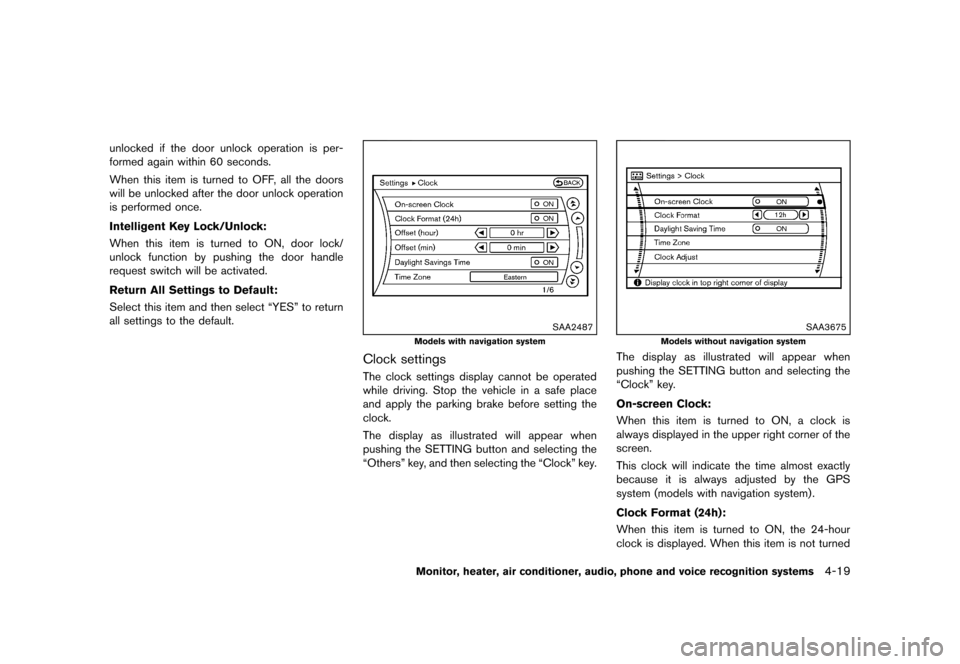

unlocked if the door unlock operation is per-
formed again within 60 seconds.
When this item is turned to OFF, all the doors
will be unlocked after the door unlock operation
is performed once.
Intelligent Key Lock/Unlock:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, door lock/
unlock function by pushing the door handle
request switch will be activated.
Return All Settings to Default:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select this item and then select “YES” to return
all settings to the default.
SAA2487
Models with navigation system
Clock settingsGUID-0F9705E3-F855-40A9-BBEF-68E09DD66282The clock settings display cannot be operated
while driving. Stop the vehicle in a safe place
and apply the parking brake before setting the
clock.
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Others” key, and then selecting the “Clock” key.
SAA3675
Models without navigation system
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Clock” key.
On-screen Clock:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, a clock is
always displayed in the upper right corner of the
screen.
This clock will indicate the time almost exactly
because it is always adjusted by the GPS
system (models with navigation system) .
Clock Format (24h):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the 24-hour
clock is displayed. When this item is not turned
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-19
Condition:
Page 228 of 507
Black plate (226,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-20Monitor, heater, air conditioner, audio, phone and voice recognition systems

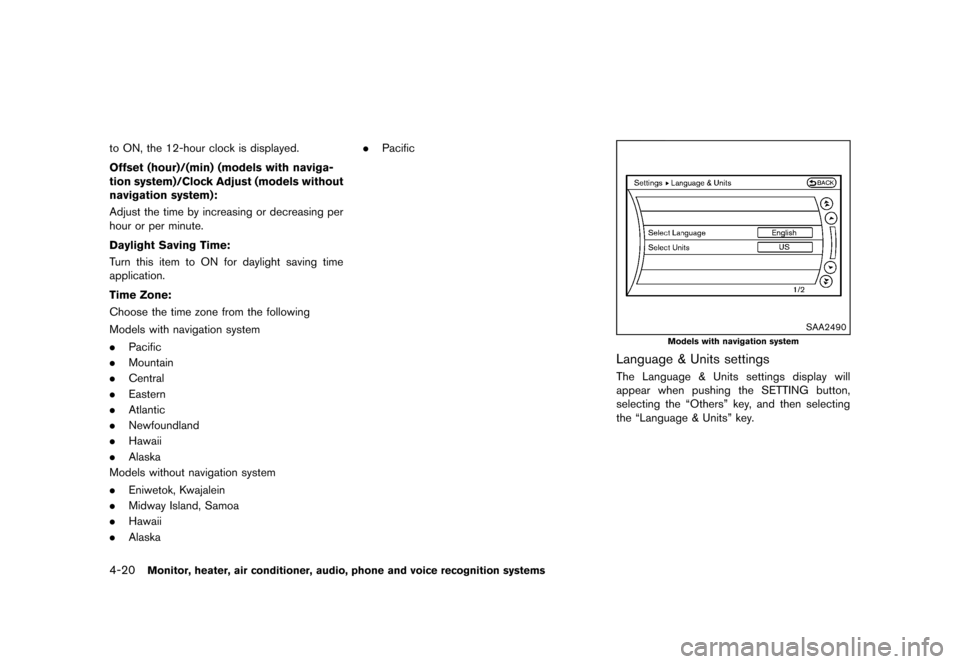

to ON, the 12-hour clock is displayed.
Offset (hour)/(min) (models with naviga-
tion system)/Clock Adjust (models without
navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the time by increasing or decreasing per
hour or per minute.
Daylight Saving Time:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turn this item to ON for daylight saving time
application.
Time Zone:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the time zone from the following
Models with navigation system
.Pacific
. Mountain
. Central
. Eastern
. Atlantic
. Newfoundland
. Hawaii
. Alaska
Models without navigation system
. Eniwetok, Kwajalein
. Midway Island, Samoa
. Hawaii
. Alaska .
Pacific
SAA2490
Models with navigation system
Language & Units settingsGUID-EF26B33E-A713-4102-B9CC-DF01C1C05358The Language & Units settings display will
appear when pushing the SETTING button,
selecting the “Others” key, and then selecting
the “Language & Units” key.
Condition:
Page 229 of 507
Black plate (227,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

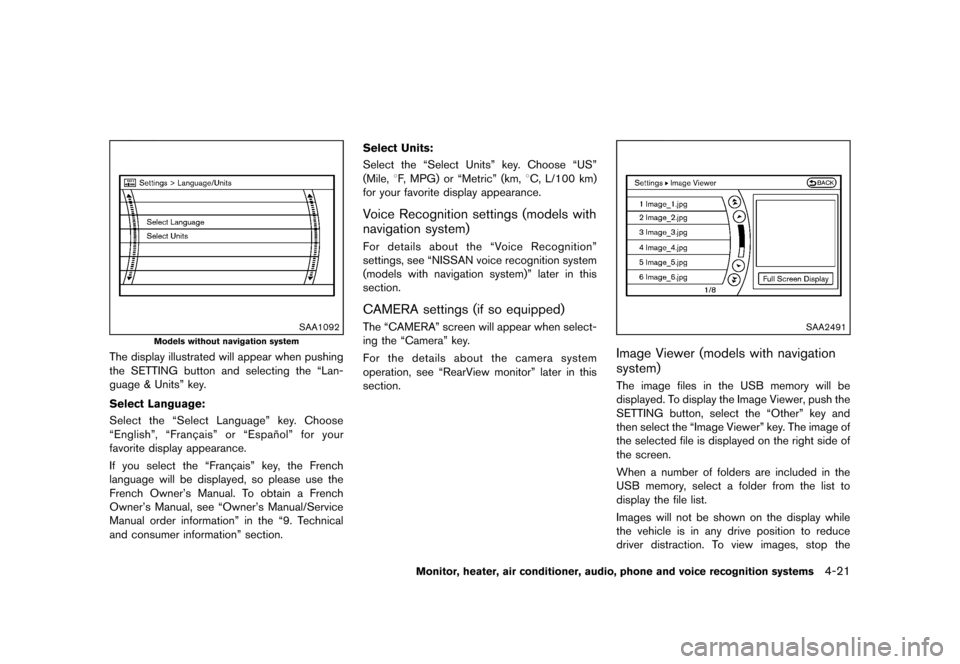

SAA1092
Models without navigation system
The display illustrated will appear when pushing
the SETTING button and selecting the “Lan-
guage & Units” key.
Select Language:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “Select Language” key. Choose
“English”, “Franc¸ais” or “Espan ˜
ol” for your
favorite display appearance.
If you select the “Franc¸ ais” key, the French
language will be displayed, so please use the
French Owner’s Manual. To obtain a French
Owner’s Manual, see “Owner’s Manual/Service
Manual order information” in the “9. Technical
and consumer information” section. Select Units:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “Select Units” key. Choose “US”
(Mile,
8F, MPG) or “Metric” (km, 8C, L/100 km)
for your favorite display appearance.
Voice Recognition settings (models with
navigation system)
GUID-BB674004-CBDC-4642-8A46-25DB1E9D9CB9For details about the “Voice Recognition”
settings, see “NISSAN voice recognition system
(models with navigation system)” later in this
section.
CAMERA settings (if so equipped)GUID-15D319A3-6638-481A-9569-E90D877250BBThe “CAMERA” screen will appear when select-
ing the “Camera” key.
For the details about the camera system
operation, see “RearView monitor” later in this
section.SAA2491
Image Viewer (models with navigation
system)
GUID-349708DE-A253-43D9-BE87-82FEAD504FB9The image files in the USB memory will be
displayed. To display the Image Viewer, push the
SETTING button, select the “Other” key and
then select the “Image Viewer” key. The image of
the selected file is displayed on the right side of
the screen.
When a number of folders are included in the
USB memory, select a folder from the list to
display the file list.
Images will not be shown on the display while
the vehicle is in any drive position to reduce
driver distraction. To view images, stop the
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-21
Condition:
Page 230 of 507
Black plate (228,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-22Monitor, heater, air conditioner, audio, phone and voice recognition systems
vehicle in a safe location and apply the parking
brake.

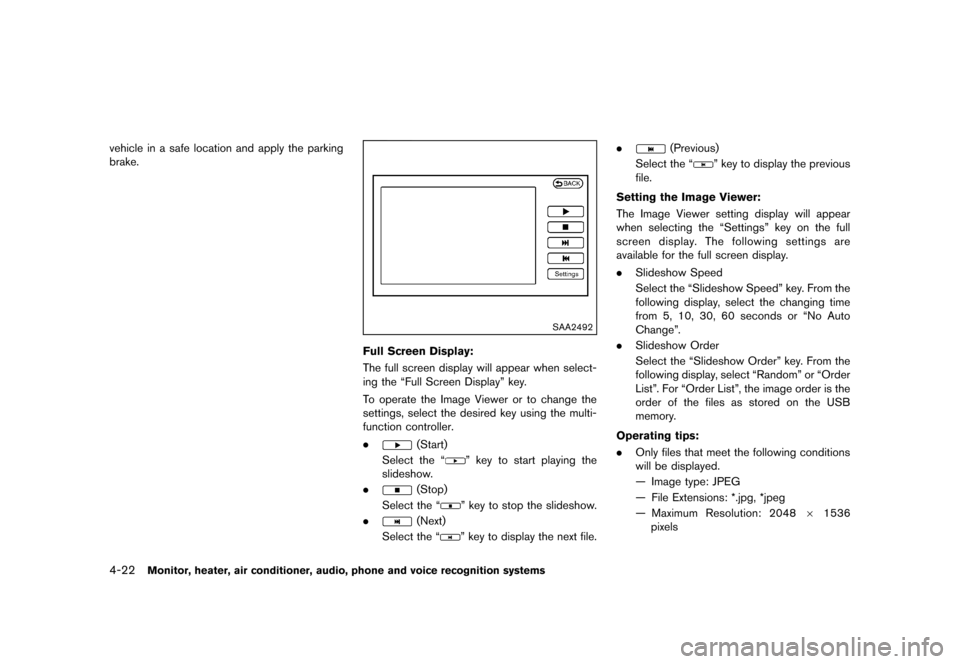

SAA2492
Full Screen Display:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The full screen display will appear when select-
ing the “Full Screen Display” key.
To operate the Image Viewer or to change the
settings, select the desired key using the multi-
function controller.
.
(Start)
Select the “
” key to start playing the
slideshow.
.
(Stop)
Select the “
” key to stop the slideshow.
.
(Next)
Select the “
” key to display the next file. .
(Previous)
Select the “
” key to display the previous
file.
Setting the Image Viewer:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The Image Viewer setting display will appear
when selecting the “Settings” key on the full
screen display. The following settings are
available for the full screen display.
. Slideshow Speed
Select the “Slideshow Speed” key. From the
following display, select the changing time
from 5, 10, 30, 60 seconds or “No Auto
Change”.
. Slideshow Order
Select the “Slideshow Order” key. From the
following display, select “Random” or “Order
List”. For “Order List”, the image order is the
order of the files as stored on the USB
memory.
Operating tips:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Only files that meet the following conditions
will be displayed.
— Image type: JPEG
— File Extensions: *.jpg, *jpeg
— Maximum Resolution: 2048 61536
pixels
Condition:
