NISSAN MURANO 2013 2.G Owners Manual
Manufacturer: NISSAN, Model Year: 2013, Model line: MURANO, Model: NISSAN MURANO 2013 2.GPages: 507, PDF Size: 4.61 MB
Page 201 of 507
Black plate (199,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

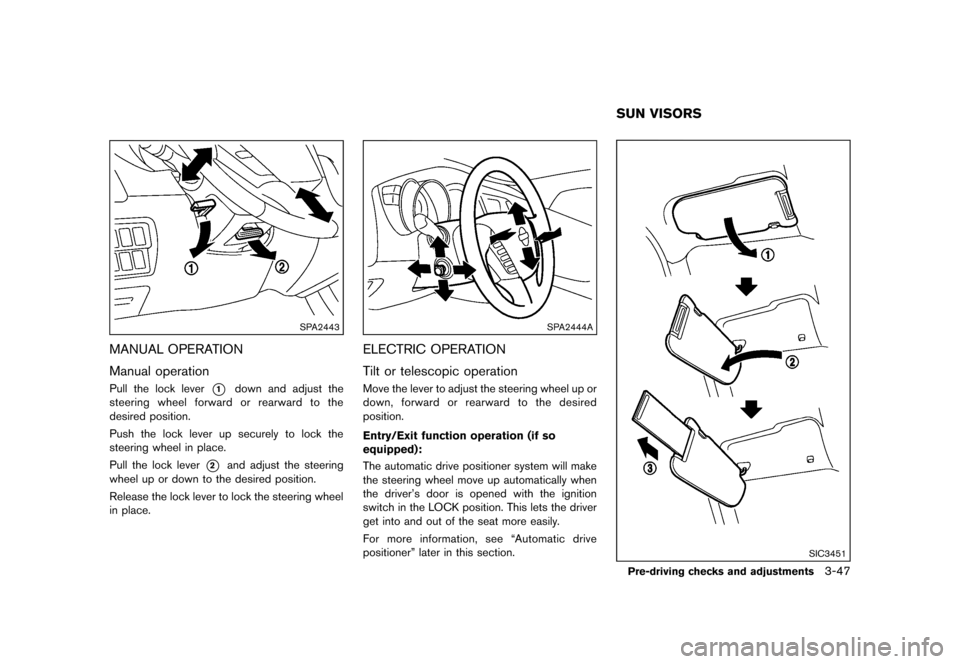

SPA2443
MANUAL OPERATIONGUID-20C3E099-AD1B-4DFF-97DD-6AF9D7373A42
Manual operationGUID-69ADA9CB-3148-41B8-8BFC-2FD888E82F39Pull the lock lever*1down and adjust the
steering wheel forward or rearward to the
desired position.
Push the lock lever up securely to lock the
steering wheel in place.
Pull the lock lever
*2and adjust the steering
wheel up or down to the desired position.
Release the lock lever to lock the steering wheel
in place.
SPA2444A
ELECTRIC OPERATIONGUID-27257F1D-DB84-47F2-83F2-B6F7CC1D700D
Tilt or telescopic operationGUID-0F8A0E36-72D5-4F58-A543-110128462B2DMove the lever to adjust the steering wheel up or
down, forward or rearward to the desired
position.
Entry/Exit function operation (if so
equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The automatic drive positioner system will make
the steering wheel move up automatically when
the driver’s door is opened with the ignition
switch in the LOCK position. This lets the driver
get into and out of the seat more easily.
For more information, see “Automatic drive
positioner” later in this section.
GUID-E95255EA-C17D-4F05-8E11-DD566D7FB686
SIC3451
Pre-driving checks and adjustments3-47
SUN VISORS
Condition:
Page 202 of 507
Black plate (200,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
3-48Pre-driving checks and adjustments

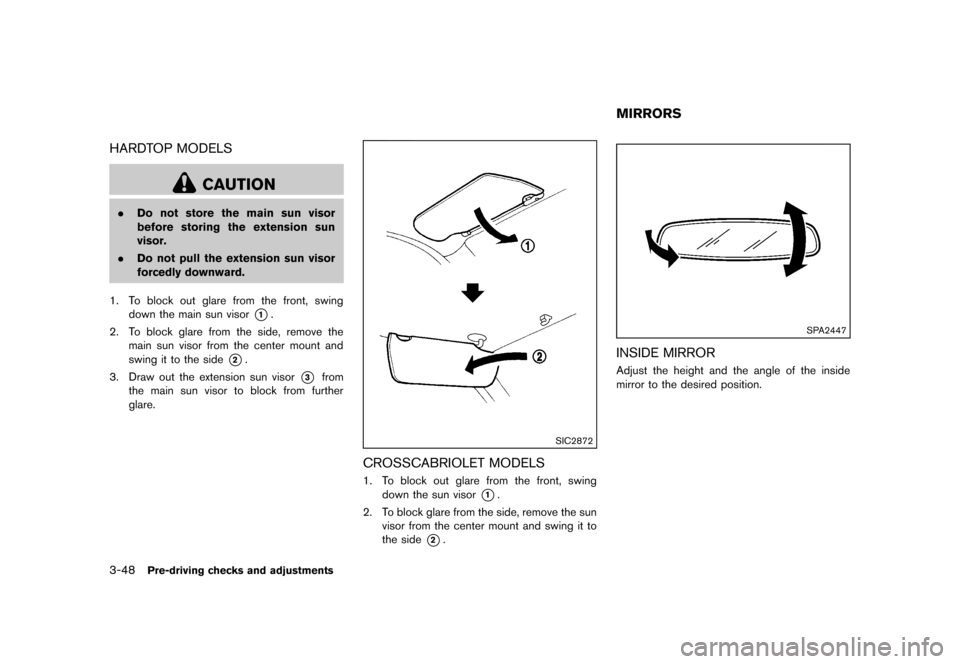

HARDTOP MODELSGUID-ACCBC1FC-4BB4-4873-BB24-EFB9F2B19183
CAUTION
.Do not store the main sun visor
before storing the extension sun
visor.
. Do not pull the extension sun visor
forcedly downward.
1. To block out glare from the front, swing down the main sun visor
*1.
2. To block glare from the side, remove the main sun visor from the center mount and
swing it to the side
*2.
3. Draw out the extension sun visor
*3from
the main sun visor to block from further
glare.
SIC2872
CROSSCABRIOLET MODELSGUID-638F4A62-05CB-4943-BF6B-4E76A2BF9AB21. To block out glare from the front, swing down the sun visor
*1.
2. To block glare from the side, remove the sun visor from the center mount and swing it to
the side
*2.
GUID-18188D7A-64F7-4D74-BFF2-8A606EDED136
SPA2447
INSIDE MIRRORGUID-333780B7-50C0-4562-BBC4-FEC53134867AAdjust the height and the angle of the inside
mirror to the desired position.
MIRRORS
Condition:
Page 203 of 507
Black plate (201,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

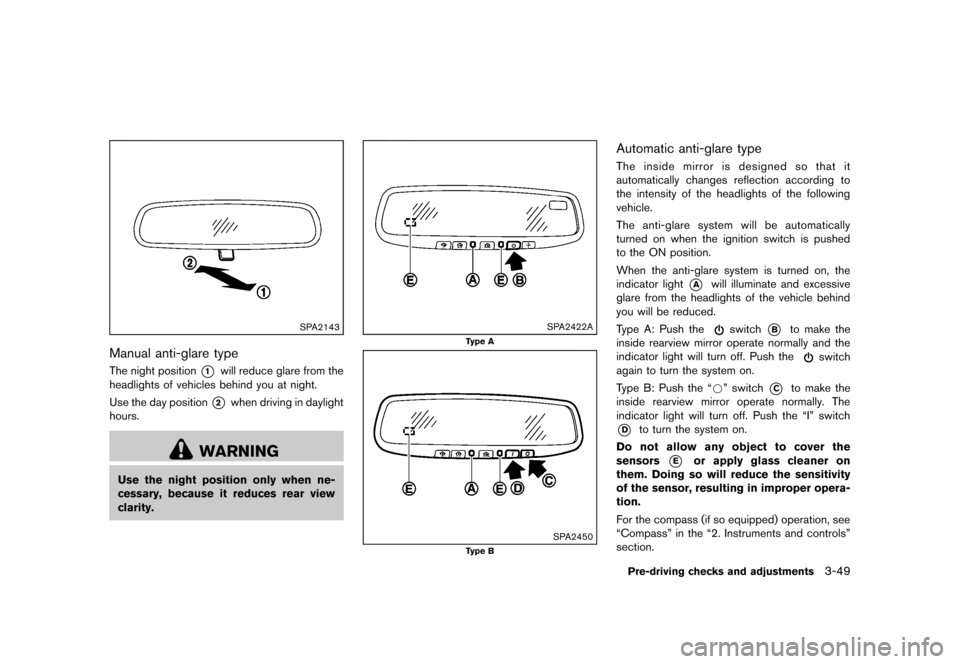

SPA2143
Manual anti-glare typeGUID-F100EFA2-76F3-450F-8CD1-FA039540B2A2The night position*1will reduce glare from the
headlights of vehicles behind you at night.
Use the day position
*2when driving in daylight
hours.
WARNING
Use the night position only when ne-
cessary, because it reduces rear view
clarity.
SPA2422A
Type A
SPA2450
Type B
Automatic anti-glare typeGUID-75561106-D8BE-4E21-A23B-64B84E0A7AC5The inside mirror is designed so that it
automatically changes reflection according to
the intensity of the headlights of the following
vehicle.
The anti-glare system will be automatically
turned on when the ignition switch is pushed
to the ON position.
When the anti-glare system is turned on, the
indicator light
*Awill illuminate and excessive
glare from the headlights of the vehicle behind
you will be reduced.
Type A: Push the
switch*Bto make the
inside rearview mirror operate normally and the
indicator light will turn off. Push the
switch
again to turn the system on.
Type B: Push the “*” switch
*Cto make the
inside rearview mirror operate normally. The
indicator light will turn off. Push the “I” switch
*Dto turn the system on.
Do not allow any object to cover the
sensors
*Eor apply glass cleaner on
them. Doing so will reduce the sensitivity
of the sensor, resulting in improper opera-
tion.
For the compass (if so equipped) operation, see
“Compass” in the “2. Instruments and controls”
section.
Pre-driving checks and adjustments3-49
Condition:
Page 204 of 507
Black plate (202,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
3-50Pre-driving checks and adjustments

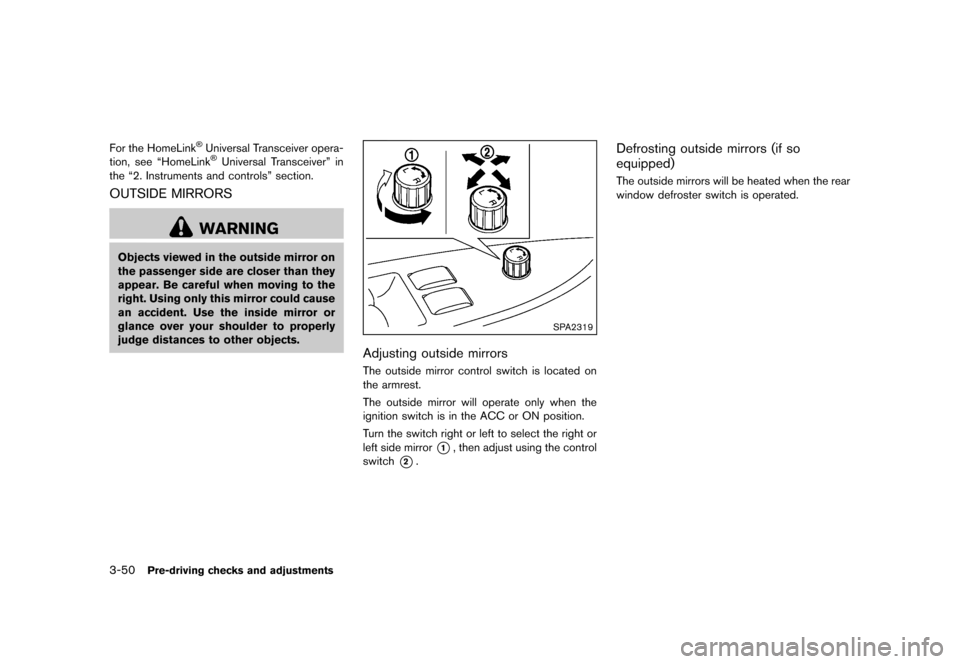

For the HomeLink®Universal Transceiver opera-
tion, see “HomeLink®Universal Transceiver” in
the “2. Instruments and controls” section.
OUTSIDE MIRRORSGUID-EA0119F9-F39F-4DB3-A112-568766B0ECF6
WARNING
Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
SPA2319
Adjusting outside mirrorsGUID-BDFF896E-E842-4BF3-8D64-FADE035BD4D5The outside mirror control switch is located on
the armrest.
The outside mirror will operate only when the
ignition switch is in the ACC or ON position.
Turn the switch right or left to select the right or
left side mirror
*1, then adjust using the control
switch
*2.
Defrosting outside mirrors (if so
equipped)
GUID-68C28473-B796-47E1-911F-00D0EEF293DBThe outside mirrors will be heated when the rear
window defroster switch is operated.
Condition:
Page 205 of 507
Black plate (203,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

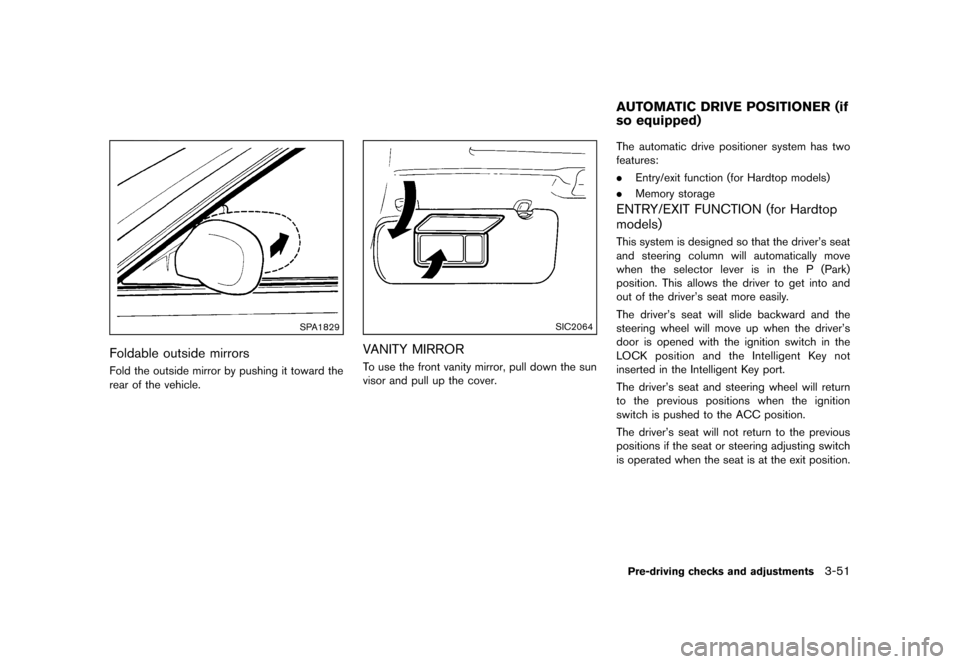

SPA1829
Foldable outside mirrorsGUID-820E720A-12E0-455E-87A1-9AB90C7B54F2Fold the outside mirror by pushing it toward the
rear of the vehicle.
SIC2064
VANITY MIRRORGUID-67A0AA3C-5897-4AD3-A960-33D20860995ETo use the front vanity mirror, pull down the sun
visor and pull up the cover.
GUID-851FDA9C-62A3-4F94-9BB3-456D0780664EThe automatic drive positioner system has two
features:
.Entry/exit function (for Hardtop models)
. Memory storage
ENTRY/EXIT FUNCTION (for Hardtop
models)
GUID-B20D2394-0488-4194-B222-ACBB971CCC5CThis system is designed so that the driver’s seat
and steering column will automatically move
when the selector lever is in the P (Park)
position. This allows the driver to get into and
out of the driver’s seat more easily.
The driver’s seat will slide backward and the
steering wheel will move up when the driver’s
door is opened with the ignition switch in the
LOCK position and the Intelligent Key not
inserted in the Intelligent Key port.
The driver’s seat and steering wheel will return
to the previous positions when the ignition
switch is pushed to the ACC position.
The driver’s seat will not return to the previous
positions if the seat or steering adjusting switch
is operated when the seat is at the exit position.
Pre-driving checks and adjustments3-51
AUTOMATIC DRIVE POSITIONER (if
so equipped)
Condition:
Page 206 of 507
Black plate (204,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
3-52Pre-driving checks and adjustments

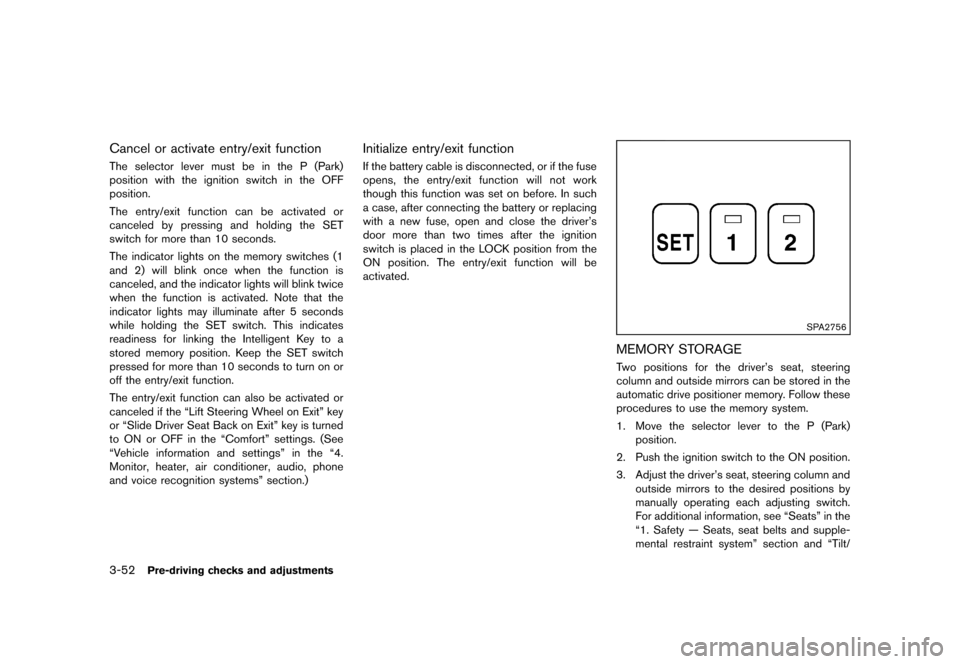

Cancel or activate entry/exit functionGUID-58D4463D-3833-4D6F-AB39-9C380DA99AC9The selector lever must be in the P (Park)
position with the ignition switch in the OFF
position.
The entry/exit function can be activated or
canceled by pressing and holding the SET
switch for more than 10 seconds.
The indicator lights on the memory switches (1
and 2) will blink once when the function is
canceled, and the indicator lights will blink twice
when the function is activated. Note that the
indicator lights may illuminate after 5 seconds
while holding the SET switch. This indicates
readiness for linking the Intelligent Key to a
stored memory position. Keep the SET switch
pressed for more than 10 seconds to turn on or
off the entry/exit function.
The entry/exit function can also be activated or
canceled if the “Lift Steering Wheel on Exit” key
or “Slide Driver Seat Back on Exit” key is turned
to ON or OFF in the “Comfort” settings. (See
“Vehicle information and settings” in the “4.
Monitor, heater, air conditioner, audio, phone
and voice recognition systems” section.)
Initialize entry/exit functionGUID-3B7D11F0-51D7-4A5F-B078-9C3A3C24A746If the battery cable is disconnected, or if the fuse
opens, the entry/exit function will not work
though this function was set on before. In such
a case, after connecting the battery or replacing
with a new fuse, open and close the driver’s
door more than two times after the ignition
switch is placed in the LOCK position from the
ON position. The entry/exit function will be
activated.
SPA2756
MEMORY STORAGEGUID-1645D943-6DDE-4A8E-B347-C359AF16FEDFTwo positions for the driver’s seat, steering
column and outside mirrors can be stored in the
automatic drive positioner memory. Follow these
procedures to use the memory system.
1. Move the selector lever to the P (Park)position.
2. Push the ignition switch to the ON position.
3. Adjust the driver’s seat, steering column and outside mirrors to the desired positions by
manually operating each adjusting switch.
For additional information, see “Seats” in the
“1. Safety — Seats, seat belts and supple-
mental restraint system” section and “Tilt/
Condition:
Page 207 of 507
Black plate (205,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

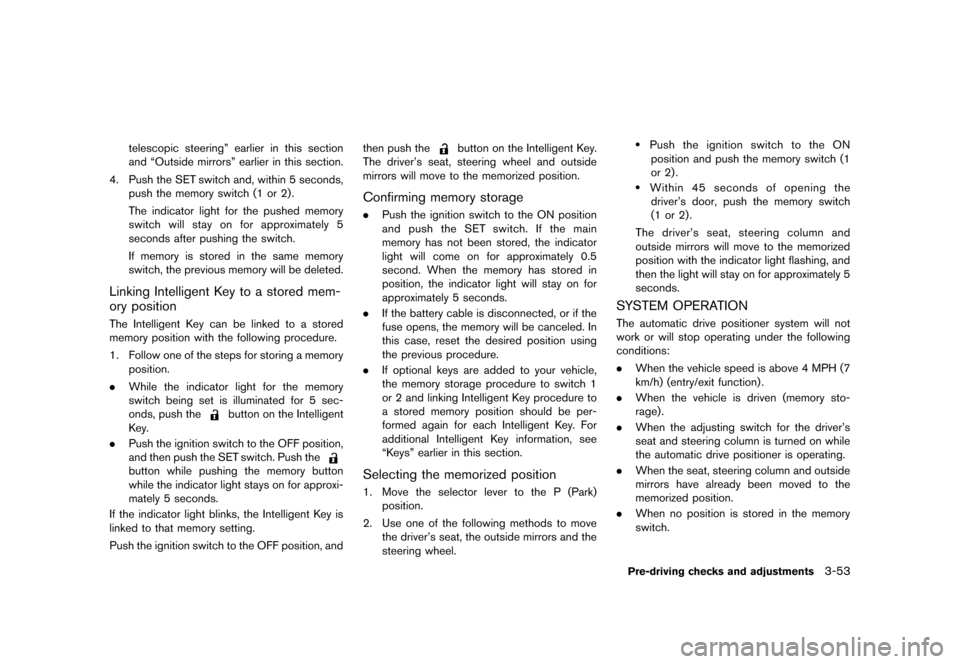

telescopic steering” earlier in this section
and “Outside mirrors” earlier in this section.
4. Push the SET switch and, within 5 seconds, push the memory switch (1 or 2) .
The indicator light for the pushed memory
switch will stay on for approximately 5
seconds after pushing the switch.
If memory is stored in the same memory
switch, the previous memory will be deleted.
Linking Intelligent Key to a stored mem-
ory position
GUID-83DABFB4-1BAC-4D52-AAD9-89B23BBFA840The Intelligent Key can be linked to a stored
memory position with the following procedure.
1. Follow one of the steps for storing a memory
position.
. While the indicator light for the memory
switch being set is illuminated for 5 sec-
onds, push the
button on the Intelligent
Key.
. Push the ignition switch to the OFF position,
and then push the SET switch. Push the
button while pushing the memory button
while the indicator light stays on for approxi-
mately 5 seconds.
If the indicator light blinks, the Intelligent Key is
linked to that memory setting.
Push the ignition switch to the OFF position, and then push the
button on the Intelligent Key.
The driver’s seat, steering wheel and outside
mirrors will move to the memorized position.
Confirming memory storageGUID-C42E9A63-7C42-464C-ABAE-3B9C731E9AA0. Push the ignition switch to the ON position
and push the SET switch. If the main
memory has not been stored, the indicator
light will come on for approximately 0.5
second. When the memory has stored in
position, the indicator light will stay on for
approximately 5 seconds.
. If the battery cable is disconnected, or if the
fuse opens, the memory will be canceled. In
this case, reset the desired position using
the previous procedure.
. If optional keys are added to your vehicle,
the memory storage procedure to switch 1
or 2 and linking Intelligent Key procedure to
a stored memory position should be per-
formed again for each Intelligent Key. For
additional Intelligent Key information, see
“Keys” earlier in this section.
Selecting the memorized positionGUID-1B13DD82-31E7-4920-83B1-6D7C94FBAB3E1. Move the selector lever to the P (Park)
position.
2. Use one of the following methods to move the driver’s seat, the outside mirrors and the
steering wheel.
.Push the ignition switch to the ONposition and push the memory switch (1
or 2) .
.Within 45 seconds of opening thedriver’s door, push the memory switch
(1 or 2) .
The driver’s seat, steering column and
outside mirrors will move to the memorized
position with the indicator light flashing, and
then the light will stay on for approximately 5
seconds.
SYSTEM OPERATIONGUID-6E092FC2-4164-461D-8930-0184862E613AThe automatic drive positioner system will not
work or will stop operating under the following
conditions:
. When the vehicle speed is above 4 MPH (7
km/h) (entry/exit function) .
. When the vehicle is driven (memory sto-
rage).
. When the adjusting switch for the driver’s
seat and steering column is turned on while
the automatic drive positioner is operating.
. When the seat, steering column and outside
mirrors have already been moved to the
memorized position.
. When no position is stored in the memory
switch.
Pre-driving checks and adjustments3-53
Condition:
Page 208 of 507
Black plate (206,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
3-54Pre-driving checks and adjustments
.When the engine is started while moving the
automatic drive positioner.
. When the selector lever is moved from the P
(Park) position to any other position. (How-
ever, it will not be canceled while the seat
and steering column are returning to the
previous positions (entry/exit function).)
. When the driver’s door remains open for
more than 45 seconds and the ignition
switch is not in the ON position.
Condition:
Page 209 of 507
Black plate (207,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

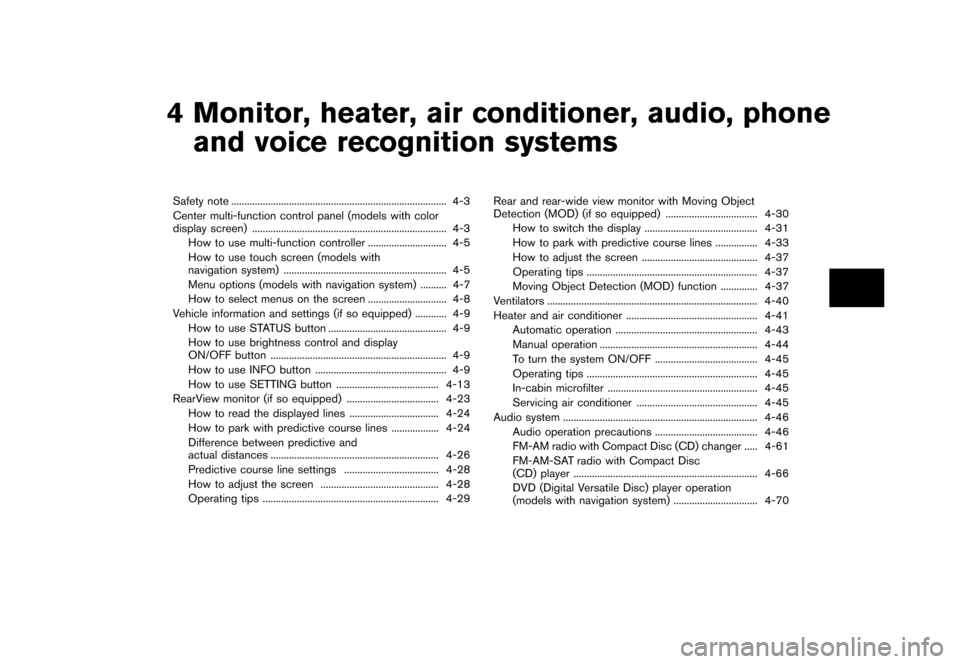

4 Monitor, heater, air conditioner, audio, phoneand voice recognition systems
Safety note ...
........................................................................\
.......... 4-3
Center multi-function control panel (models with color
display screen) ...
........................................................................\
.. 4-3
How to use multi-function controller ...
.............................. 4-5
How to use touch screen (models with
navigation system) ...
.............................................................. 4-5
Menu options (models with navigation system) ...
.......... 4-7
How to select menus on the screen ...
.............................. 4-8
Vehicle information and settings (if so equipped) ...
............ 4-9
How to use STATUS button ...
............................................. 4-9
How to use brightness control and display
ON/OFF button ...
................................................................... 4-9
How to use INFO button ...
.................................................. 4-9
How to use SETTING button ...
....................................... 4-13
RearView monitor (if so equipped) ...
................................... 4-23
How to read the displayed lines ...
.................................. 4-24
How to park with predictive course lines ...
.................. 4-24
Difference between predictive and
actual distances ...
................................................................ 4-26
Predictive course line settings ...
.................................... 4-28
How to adjust the screen ...
............................................. 4-28
Operating tips ...
................................................................... 4-29 Rear and rear-wide view monitor with Moving Object
Detection (MOD) (if so equipped)
...
................................... 4-30
How to switch the display ...
........................................... 4-31
How to park with predictive course lines ...
................ 4-33
How to adjust the screen ...
............................................ 4-37
Operating tips ...
................................................................. 4-37
Moving Object Detection (MOD) function ...
.............. 4-37
Ventilators ...
........................................................................\
........ 4-40
Heater and air conditioner ...
.................................................. 4-41
Automatic operation ...
...................................................... 4-43
Manual operation ...
............................................................ 4-44
To turn the system ON/OFF ...
....................................... 4-45
Operating tips ...
................................................................. 4-45
In-cabin microfilter ...
......................................................... 4-45
Servicing air conditioner ...
.............................................. 4-45
Audio system ...
........................................................................\
.. 4-46
Audio operation precautions ...
....................................... 4-46
FM-AM radio with Compact Disc (CD) changer ...
..... 4-61
FM-AM-SAT radio with Compact Disc
(CD) player ...
...................................................................... 4-66
DVD (Digital Versatile Disc) player operation
(models with navigation system) ...
................................ 4-70
Condition:
Page 210 of 507
Black plate (208,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

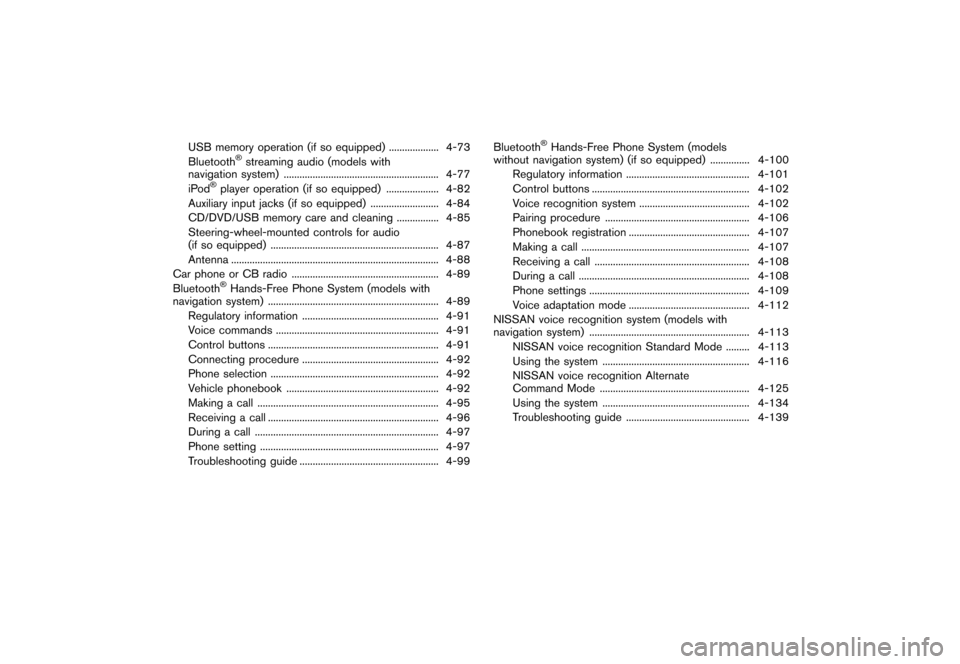

USB memory operation (if so equipped)...
................... 4-73
Bluetooth®streaming audio (models with
navigation system) ...
........................................................... 4-77
iPod
®player operation (if so equipped) ...
.................... 4-82
Auxiliary input jacks (if so equipped) ...
.......................... 4-84
CD/DVD/USB memory care and cleaning ...
................ 4-85
Steering-wheel-mounted controls for audio
(if so equipped) ...
................................................................ 4-87
Antenna ...
........................................................................\
....... 4-88
Car phone or CB radio ...
........................................................ 4-89
Bluetooth
®Hands-Free Phone System (models with
navigation system) ...
................................................................. 4-89
Regulatory information ...
.................................................... 4-91
Voice commands ...
.............................................................. 4-91
Control buttons ...
................................................................. 4-91
Connecting procedure ...
.................................................... 4-92
Phone selection ...
................................................................ 4-92
Vehicle phonebook ...
.......................................................... 4-92
Making a call ...
..................................................................... 4-95
Receiving a call ...
................................................................. 4-96
During a call ...
...................................................................... 4-97
Phone setting ...
.................................................................... 4-97
Troubleshooting guide ...
..................................................... 4-99 Bluetooth
®Hands-Free Phone System (models
without navigation system) (if so equipped) ...
............... 4-100
Regulatory information ...
............................................... 4-101
Control buttons ...
............................................................ 4-102
Voice recognition system ...
.......................................... 4-102
Pairing procedure ...
....................................................... 4-106
Phonebook registration ...
.............................................. 4-107
Making a call ...
................................................................ 4-107
Receiving a call ...
........................................................... 4-108
During a call ...
................................................................. 4-108
Phone settings ...
............................................................. 4-109
Voice adaptation mode ...
.............................................. 4-112
NISSAN voice recognition system (models with
navigation system) ...
............................................................. 4-113
NISSAN voice recognition Standard Mode ...
......... 4-113
Using the system ...
........................................................ 4-116
NISSAN voice recognition Alternate
Command Mode ...
......................................................... 4-125
Using the system ...
........................................................ 4-134
Troubleshooting guide ...
............................................... 4-139
Condition:
