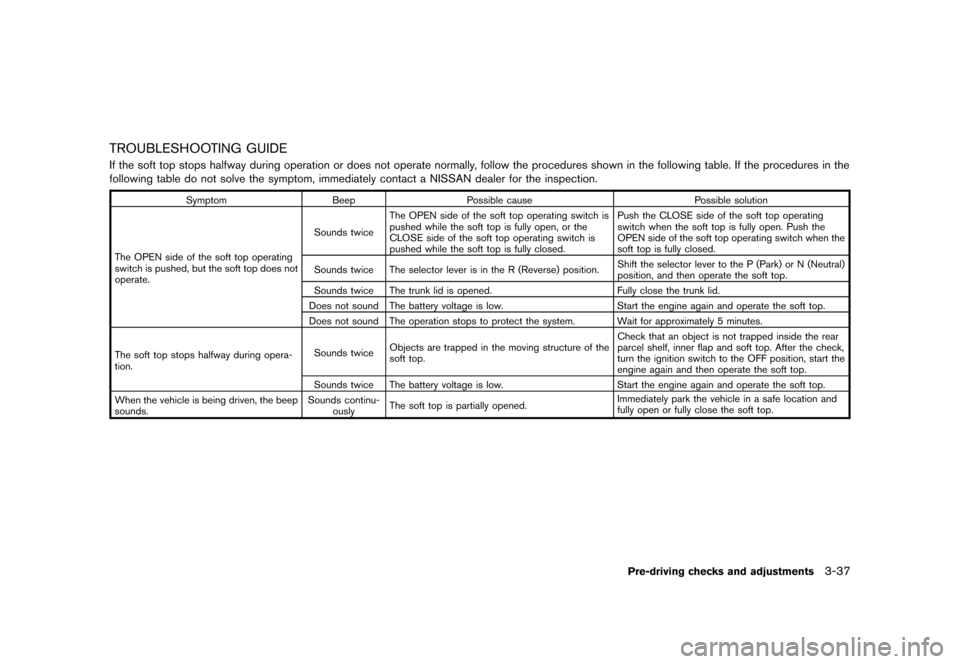

TROUBLESHOOTING GUIDEGUID-2D51144E-87AE-4042-BCCA-A9F63DED76EDIf the soft top stops halfway during operation or does not operate normally, follow the procedures shown in the following table. If the procedures in the
following table do not solve the symptom, immediately contact a NISSAN dealer for the inspection.
SymptomBeepPossible cause Possible solution
The OPEN side of the soft top operating
switch is pushed, but the soft top does not
operate. Sounds twice
The OPEN side of the soft top operating switch is
pushed while the soft top is fully open, or the
CLOSE side of the soft top operating switch is
pushed while the soft top is fully closed. Push the CLOSE side of the soft top operating
switch when the soft top is fully open. Push the
OPEN side of the soft top operating switch when the
soft top is fully closed.
Sounds twice The selector lever is in the R (Reverse) position. Shift the selector lever to the P (Park) or N (Neutral)
position, and then operate the soft top.
Sounds twice The trunk lid is opened. Fully close the trunk lid.
Does not sound The battery voltage is low. Start the engine again and operate the soft top.
Does not sound The operation stops to protect the system. Wait for approximately 5 minutes.
The soft top stops halfway during opera-
tion. Sounds twice
Objects are trapped in the moving structure of the
soft top. Check that an object is not trapped inside the rear
parcel shelf, inner flap and soft top. After the check,
turn the ignition switch to the OFF position, start the
engine again and then operate the soft top.
Sounds twice The battery voltage is low. Start the engine again and operate the soft top.
When the vehicle is being driven, the beep
sounds. Sounds continu-
ously The soft top is partially opened. Immediately park the vehicle in a safe location and
fully open or fully close the soft top.
Pre-driving checks and adjustments3-37
Condition:
Page 192 of 507
Black plate (190,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
3-38Pre-driving checks and adjustments
IF THE TOP DOES NOT OPEN OR
CLOSE ELECTRICALLY
GUID-17B75AAD-7BCD-4553-9A36-FB3FA5E49CAFIf you cannot operate the soft top with the
operating switch, first check whether all the
following operating conditions are met.
.Vehicle is stopped
. Ignition switch is ON (Run the engine when
operating the top.)
. The trunk is closed
. The selector lever is in a position other than
the R (Reverse) position
. The luggage cover is pulled out and hooked
so that the roof storage area is separated
from the trunk.
If the top still does not move under the above
conditions or has any system malfunction, see a
NISSAN dealer as soon as possible. When you
must close the top by yourself, in the event of
emergency or when an immediate dealer service
is not available, close the top manually accord-
ing to the procedures shown in this section.
When closing the soft top manually:
. Move the vehicle to a safe place, away from
traffic.
. Two people should perform this procedure,
as some of the top parts are extremely
heavy.
The top cannot be opened manually.
WARNING
. Do not drive with the top partially
opened.
. If the top cannot be operated prop-
erly, see a NISSAN dealer as soon
as possible to have your vehicle
checked.
CAUTION
The storage lid is extremely heavy. The
storage lid should be manually opened
or closed by two people.
1. Open the trunk lid. In the event of a
discharged battery, the secondary trunk
release mechanism should be operated.
(See “Trunk lid (CrossCabriolet models)”
earlier in this section.)

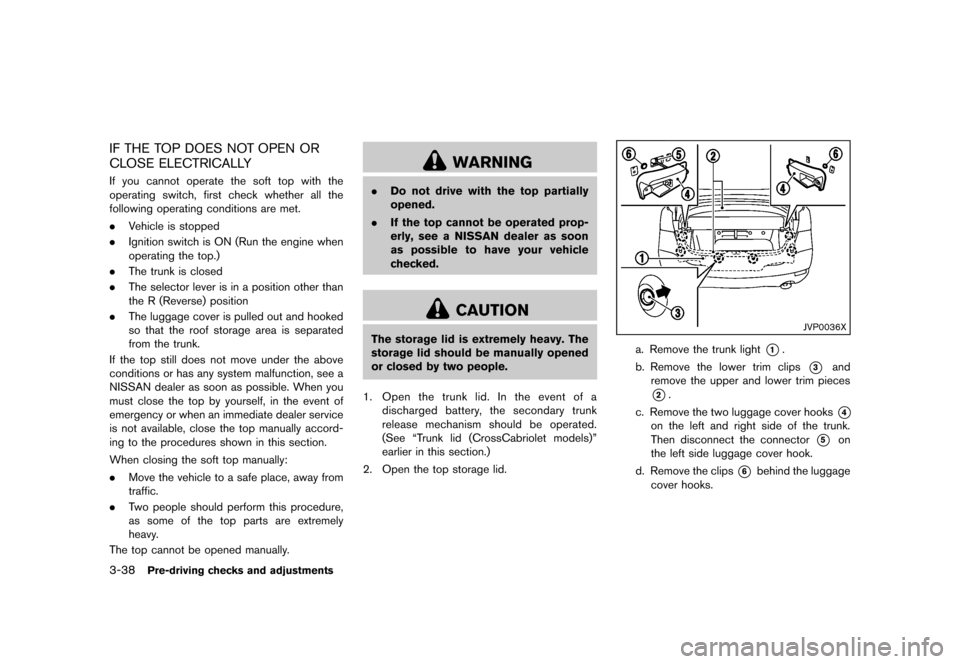

2. Open the top storage lid.JVP0036X
a. Remove the trunk light*1.
b. Remove the lower trim clips
*3and
remove the upper and lower trim pieces
*2.
c. Remove the two luggage cover hooks
*4
on the left and right side of the trunk.
Then disconnect the connector
*5on
the left side luggage cover hook.
d. Remove the clips
*6behind the luggage
cover hooks.
Condition:
Page 193 of 507
Black plate (191,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
JVP0037X
Type A
JVP0097X
Type B

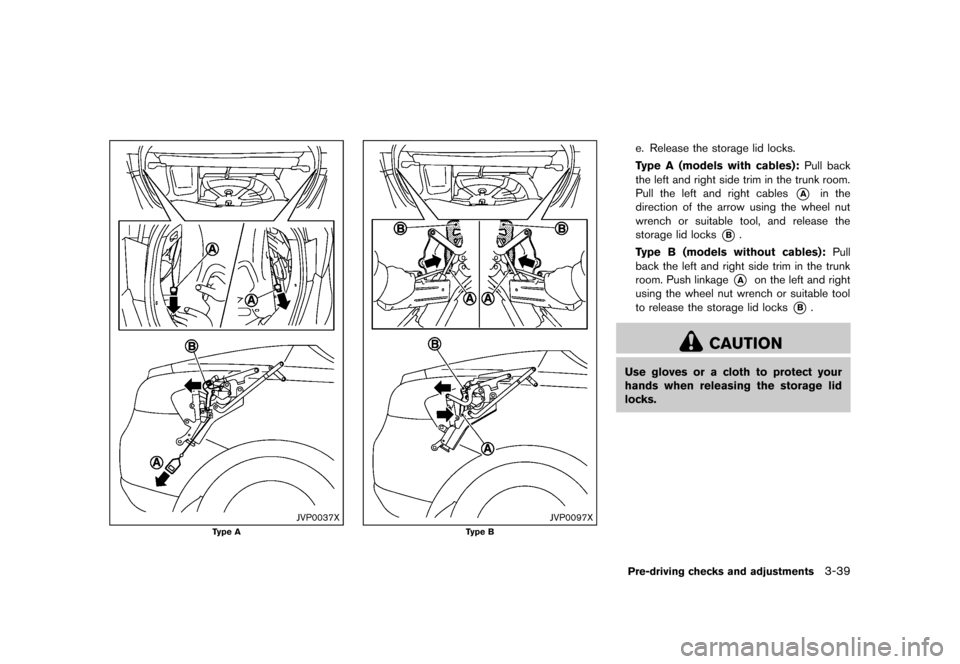

e. Release the storage lid locks.
Type A (models with cables):Pull back
the left and right side trim in the trunk room.
Pull the left and right cables
*Ain the
direction of the arrow using the wheel nut
wrench or suitable tool, and release the
storage lid locks
*B.
Type B (models without cables): Pull
back the left and right side trim in the trunk
room. Push linkage
*Aon the left and right
using the wheel nut wrench or suitable tool
to release the storage lid locks
*B.
CAUTION
Use gloves or a cloth to protect your
hands when releasing the storage lid
locks.
Pre-driving checks and adjustments3-39
Condition:
Page 194 of 507
Black plate (192,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
3-40Pre-driving checks and adjustments

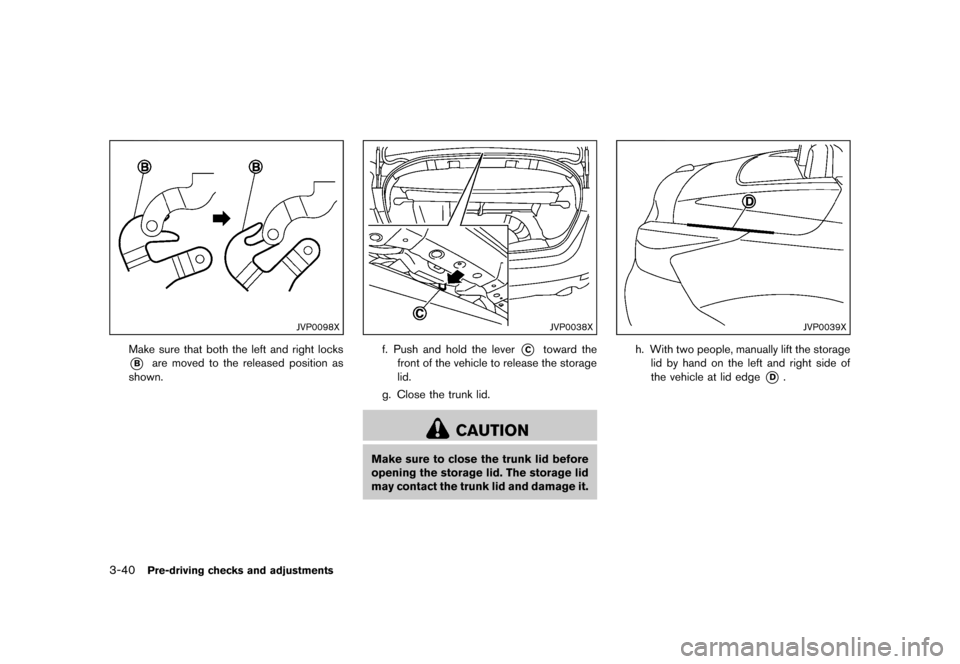

JVP0098X
Make sure that both the left and right locks
*Bare moved to the released position as
shown.
JVP0038X
f. Push and hold the lever*Ctoward the
front of the vehicle to release the storage
lid.
g. Close the trunk lid.
CAUTION
Make sure to close the trunk lid before
opening the storage lid. The storage lid
may contact the trunk lid and damage it.
JVP0039X
h. With two people, manually lift the storage lid by hand on the left and right side of
the vehicle at lid edge
*D.
Condition:
Page 195 of 507
Black plate (193,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
JVP0040X

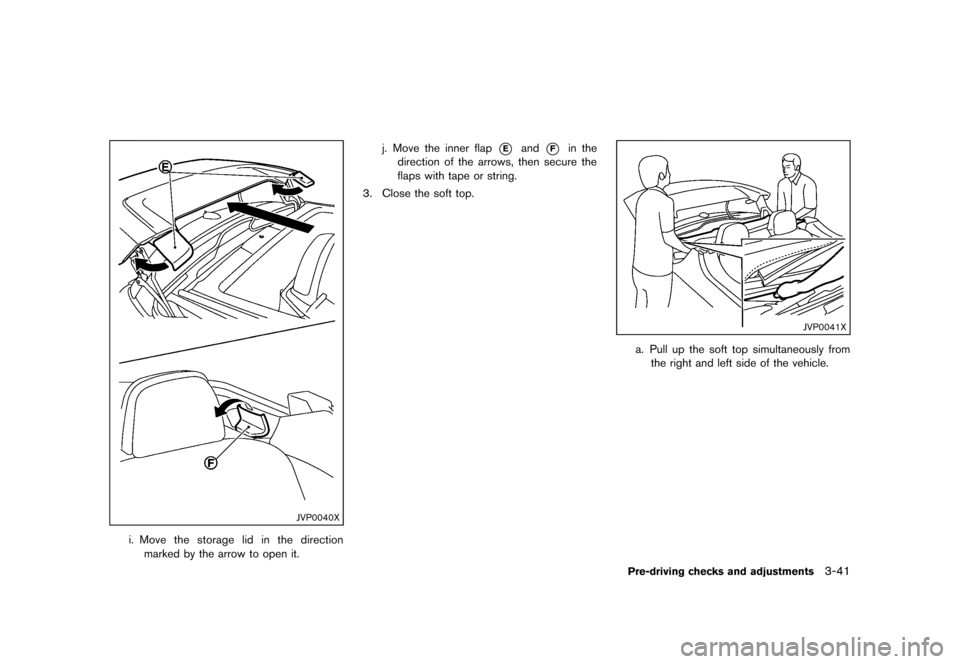

i. Move the storage lid in the directionmarked by the arrow to open it. j. Move the inner flap
*Eand*Fin the
direction of the arrows, then secure the
flaps with tape or string.
3. Close the soft top.
JVP0041X
a. Pull up the soft top simultaneously from the right and left side of the vehicle.
Pre-driving checks and adjustments3-41
Condition:
Page 196 of 507
Black plate (194,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
3-42Pre-driving checks and adjustments
JVP0042X

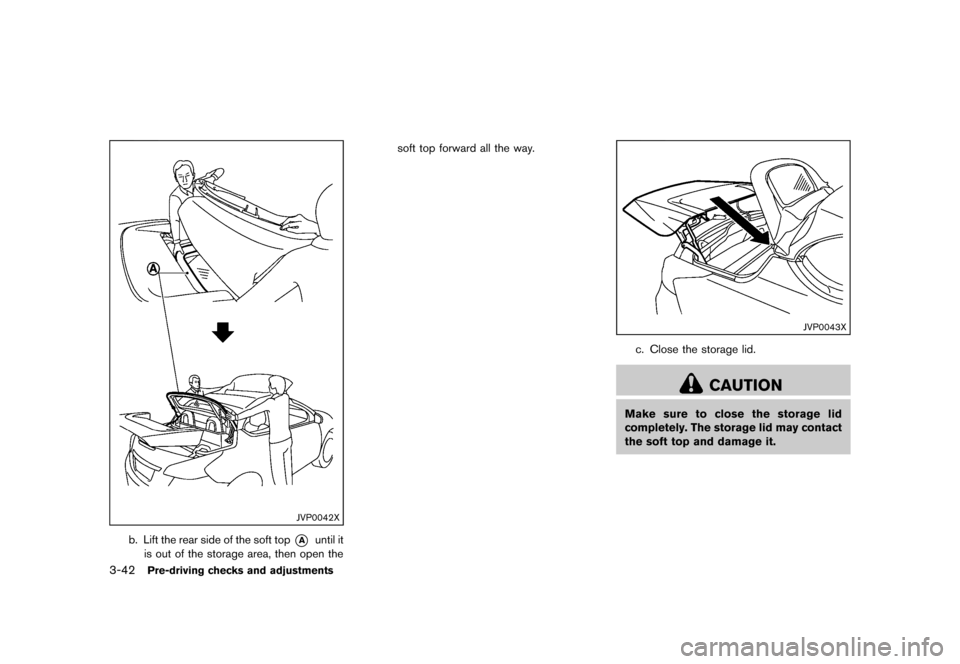

b. Lift the rear side of the soft top*Auntil it
is out of the storage area, then open the soft top forward all the way.
JVP0043X
c. Close the storage lid.
CAUTION
Make sure to close the storage lid
completely. The storage lid may contact
the soft top and damage it.
Condition:
Page 197 of 507
Black plate (195,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
JVP0044X

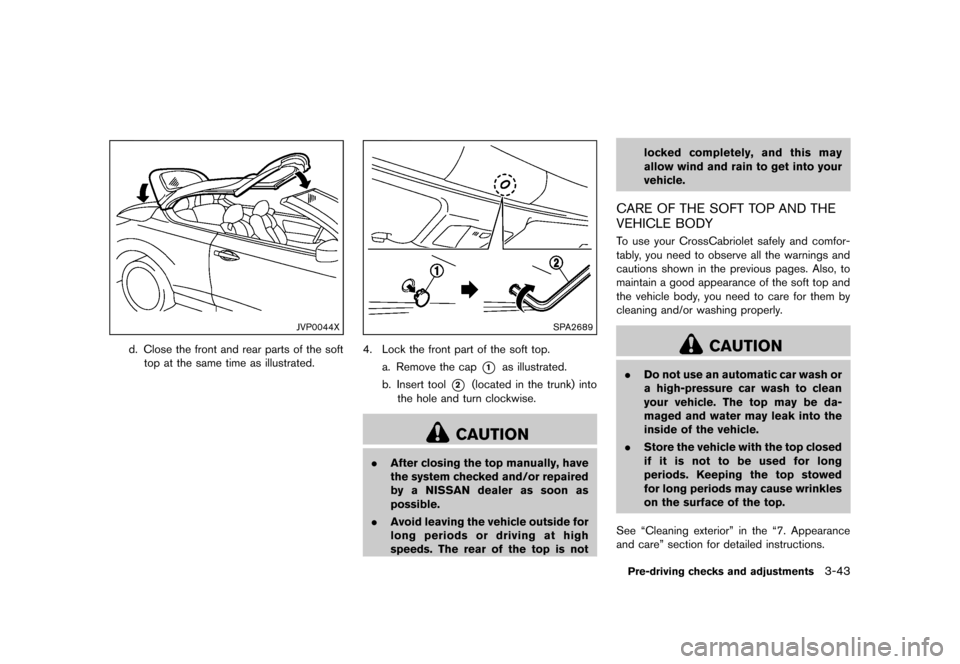

d. Close the front and rear parts of the softtop at the same time as illustrated.
SPA2689
4. Lock the front part of the soft top.
a. Remove the cap
*1as illustrated.
b. Insert tool
*2(located in the trunk) into
the hole and turn clockwise.
CAUTION
. After closing the top manually, have
the system checked and/or repaired
by a NISSAN dealer as soon as
possible.
. Avoid leaving the vehicle outside for
long periods or driving at high
speeds. The rear of the top is not locked completely, and this may
allow wind and rain to get into your
vehicle.
CARE OF THE SOFT TOP AND THE
VEHICLE BODY
GUID-85248970-F9FC-4037-98ED-B29AF18639F5To use your CrossCabriolet safely and comfor-
tably, you need to observe all the warnings and
cautions shown in the previous pages. Also, to
maintain a good appearance of the soft top and
the vehicle body, you need to care for them by
cleaning and/or washing properly.
CAUTION
.
Do not use an automatic car wash or
a high-pressure car wash to clean
your vehicle. The top may be da-
maged and water may leak into the
inside of the vehicle.
. Store the vehicle with the top closed
if it is not to be used for long
periods. Keeping the top stowed
for long periods may cause wrinkles
on the surface of the top.
See “Cleaning exterior” in the “7. Appearance
and care” section for detailed instructions.
Pre-driving checks and adjustments3-43
Condition:
Page 198 of 507
Black plate (196,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
3-44Pre-driving checks and adjustments
.A protective clear tape is applied to the top
storage lid painted surface where the soft
top contacts the surface. When the top is
fully closed, the tape may transmit some
light, visible from the inside of the vehicle.
This does not affect the water and air
tightness of the seal.
. The inner surface of the trunk and top
storage lids may show a fibrous, or marbled
pattern. This is the normal appearance of the
material used in these parts.
GUID-58F03607-9C0E-45A3-A739-6F6533CBE06D
SPA2441

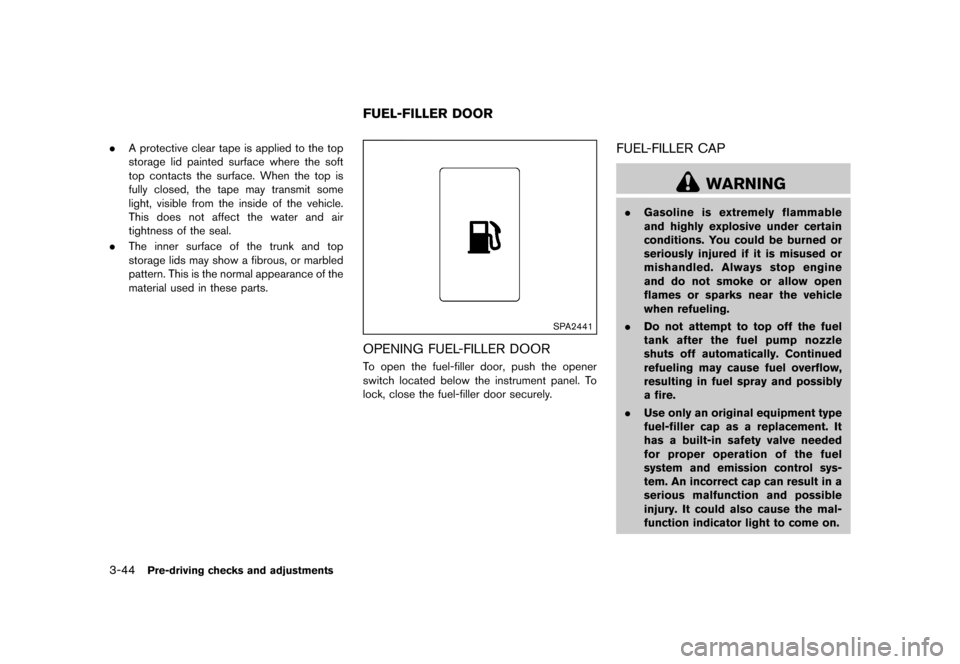

OPENING FUEL-FILLER DOORGUID-C2164B1B-2157-4717-902B-A3E94EF3F4D7To open the fuel-filler door, push the opener
switch located below the instrument panel. To
lock, close the fuel-filler door securely.
FUEL-FILLER CAPGUID-45E9B200-5266-43FB-B114-5A04EF6FA26A
WARNING
.Gasoline is extremely flammable
and highly explosive under certain
conditions. You could be burned or
seriously injured if it is misused or
mishandled. Always stop engine
and do not smoke or allow open
flames or sparks near the vehicle
when refueling.
. Do not attempt to top off the fuel
tank after the fuel pump nozzle
shuts off automatically. Continued
refueling may cause fuel overflow,
resulting in fuel spray and possibly
a fire.
. Use only an original equipment type
fuel-filler cap as a replacement. It
has a built-in safety valve needed
for proper operation of the fuel
system and emission control sys-
tem. An incorrect cap can result in a
serious malfunction and possible
injury. It could also cause the mal-
function indicator light to come on.
FUEL-FILLER DOOR
Condition:
Page 199 of 507
Black plate (197,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
.Never pour fuel into the throttle
body to attempt to start your vehi-
cle.
. Do not fill a portable fuel container
in the vehicle or trailer. Static elec-
tricity can cause an explosion of
flammable liquid, vapor or gas in
any vehicle or trailer. To reduce the
risk of serious injury or death when
filling portable fuel containers:
— Always place the container on
the ground when filling.
— Do not use electronic devices when filling.
— Keep the pump nozzle in contact with the container while you are
filling it.
— Use only approved portable fuel containers for flammable liquid.
CAUTION
. If fuel is spilled on the vehicle body,
flush it away with water to avoid
paint damage. .
Insert the cap straight into the fuel-
filler tube, then tighten the fuel-filler
cap until a single click is heard.
Failure to tighten the fuel-filler cap
properly may cause the
mal-
function indicator light (MIL) to
illuminate. If the
light illumi-
nates because the fuel-filler cap is
loose or missing, tighten or install
the cap and continue to drive the
vehicle. The
light should turn off
after a few driving trips. If the
light does not turn off after a few
driving trips, have the vehicle in-
spected by a NISSAN dealer.
For additional information, see
“Malfunction Indicator Light (MIL)”
in the “2. Instruments and controls”
section.
. The LOOSE FUEL CAP warning will
appear if the fuel-filler cap is not
properly tightened. It may take a few
driving trips for the message to be
displayed. Failure to tighten the
fuel-filler cap properly after the
LOOSE FUEL CAP warning appears
may cause the
Malfunction
Indicator Light (MIL) to illuminate.
SPA2442

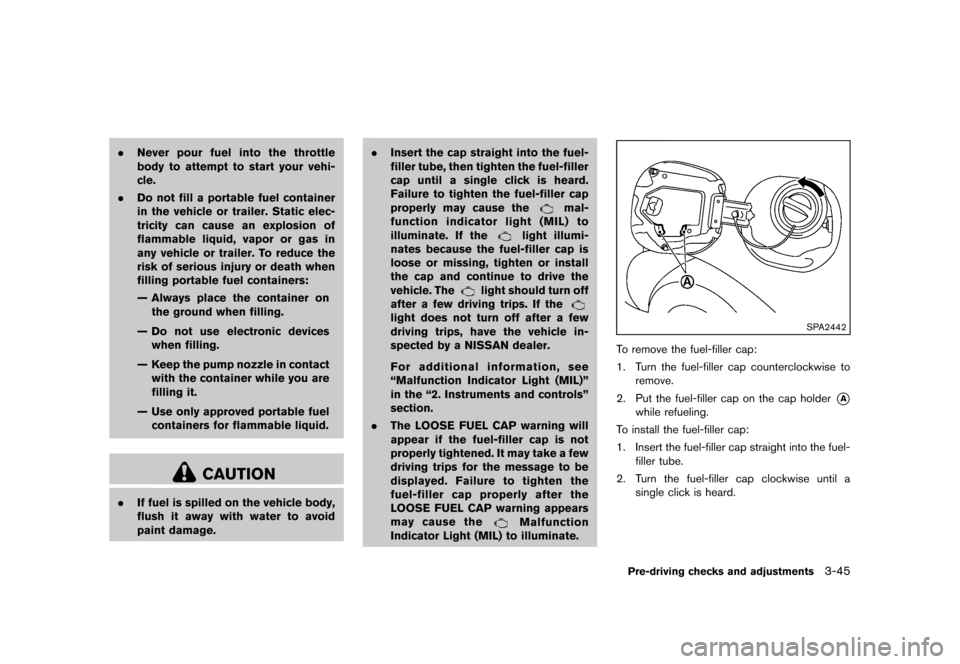

To remove the fuel-filler cap:
1. Turn the fuel-filler cap counterclockwise to remove.
2. Put the fuel-filler cap on the cap holder
*A
while refueling.
To install the fuel-filler cap:
1. Insert the fuel-filler cap straight into the fuel- filler tube.
2. Turn the fuel-filler cap clockwise until a single click is heard.
Pre-driving checks and adjustments3-45
Condition:
Page 200 of 507
Black plate (198,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
3-46Pre-driving checks and adjustments

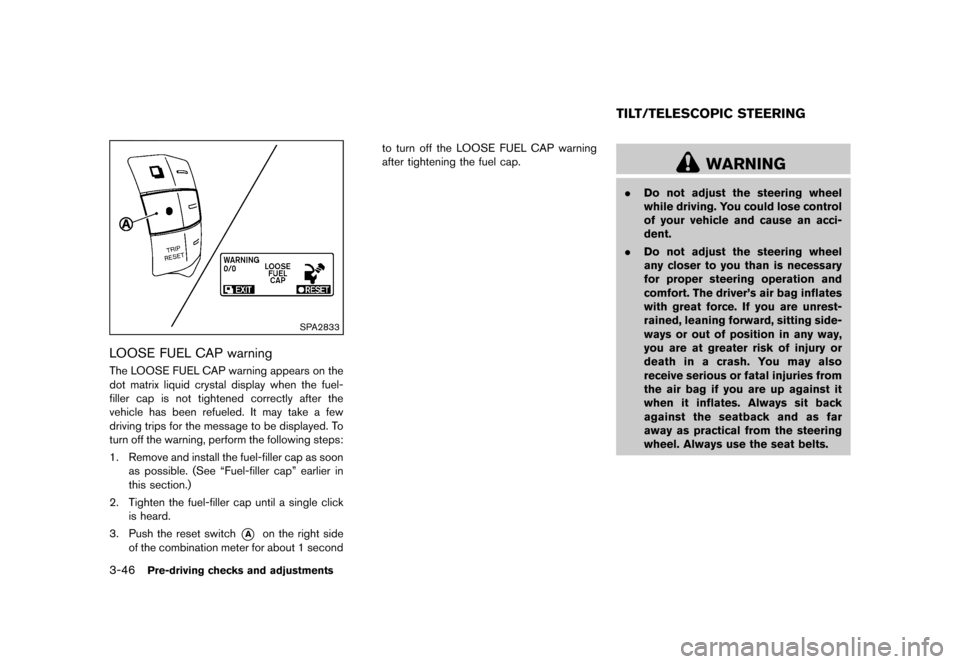

SPA2833
LOOSE FUEL CAP warningGUID-A04C09C8-3C53-423B-AC70-189E634F9E83The LOOSE FUEL CAP warning appears on the
dot matrix liquid crystal display when the fuel-
filler cap is not tightened correctly after the
vehicle has been refueled. It may take a few
driving trips for the message to be displayed. To
turn off the warning, perform the following steps:
1. Remove and install the fuel-filler cap as soonas possible. (See “Fuel-filler cap” earlier in
this section.)
2. Tighten the fuel-filler cap until a single click is heard.
3. Push the reset switch
*Aon the right side
of the combination meter for about 1 second to turn off the LOOSE FUEL CAP warning
after tightening the fuel cap.
GUID-24FBE4B2-4508-4AC7-A4F2-026DF692853E
WARNING
.
Do not adjust the steering wheel
while driving. You could lose control
of your vehicle and cause an acci-
dent.
. Do not adjust the steering wheel
any closer to you than is necessary
for proper steering operation and
comfort. The driver’s air bag inflates
with great force. If you are unrest-
rained, leaning forward, sitting side-
ways or out of position in any way,
you are at greater risk of injury or
death in a crash. You may also
receive serious or fatal injuries from
the air bag if you are up against it
when it inflates. Always sit back
against the seatback and as far
away as practical from the steering
wheel. Always use the seat belts.
TILT/TELESCOPIC STEERING
Condition:
