AUTO LIGHT SYSTEM
LT-49
C
D
E
F
G
H
I
J
L
MA
B
LT
AUTO LIGHT SYSTEMPFP:28491
Component Parts and Harness Connector LocationEKS00Q7V
*1: Without daytime light system, *2: With daytime light system, *3: Double cab, *4: King cab
System DescriptionEKS00Q7W
Automatically turns ON/OFF the parking lamps and the headlamps in accordance with ambient light.
Timing for when the lamps turn ON/OFF can be selected using four modes.
OUTLINE
The auto light system uses an light and rain sensor that detects outside brightness.
When the lighting switch is in AUTO position, it automatically turns ON/OFF the parking lamps and the
headlamps in accordance with the ambient light. Sensitivity can be adjusted in four steps. For the details of the
setting, refer toLT-60, "
WORK SUPPORT".
Light and rain sensor, power is supplied
lfrom BCM terminal 42
lto light and rain sensor terminal 1.
Light and rain sensor, ground is supplied
lto light and rain sensor terminal 3
lthrough grounds M21, M80 and M83.
SKIB6845E

LT-50
AUTO LIGHT SYSTEM
When ignition switch is turned to ON position and when outside brightness is darker than prescribed level,
input is supplied
lto BCM terminal 24
lfrom light and rain sensor terminal 2.
The headlamps will then illuminate. For a description of headlamp operation, refer toLT-49, "
System Descrip-
tion".
COMBINATION SWITCH READING FUNCTION
Refer toBCS-3, "COMBINATION SWITCH READING FUNCTION".
CAN Communication System DescriptionEKS00Q7X
Refer toLAN-23, "CAN COMMUNICATION".
Major Components and FunctionsEKS00Q7Y
Components Functions
BCM
lTurns ON/OFF circuits of tail light and headlamp according to signals from light and rain sensor, lighting switch
(AUTO), driver door switch, passenger door switch, rear door switches, back door switch, glass hatch opener
switch and ignition switch (ON, OFF).
Light and rain
sensor
lConverts outside brightness (lux) to voltage, and sends it to BCM. (Detects lightness of 50 to 1,300 lux.)

AUTO LIGHT SYSTEM
LT-51
C
D
E
F
G
H
I
J
L
MA
B
LT

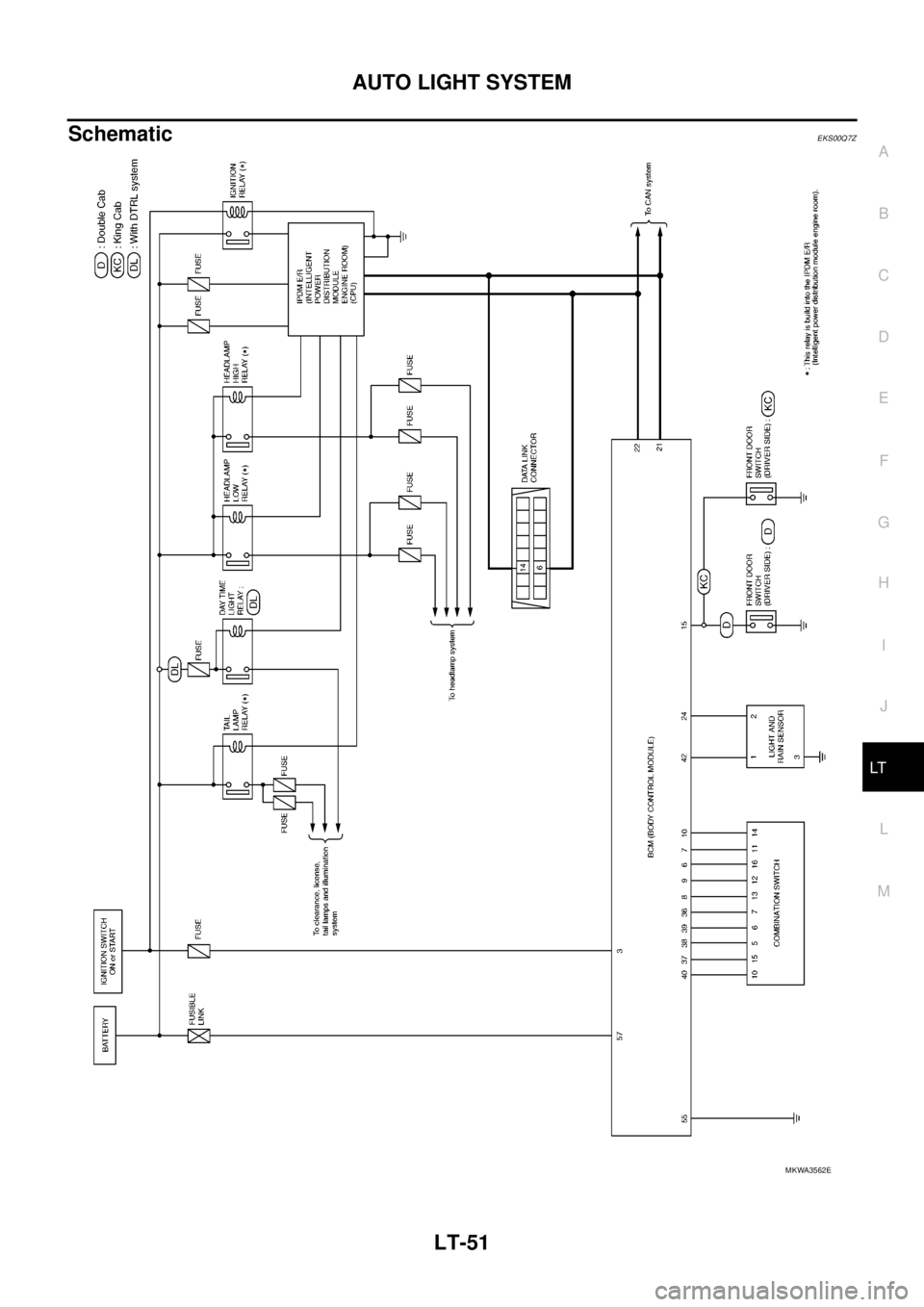

SchematicEKS00Q7Z
MKWA3562E

LT-52
AUTO LIGHT SYSTEM

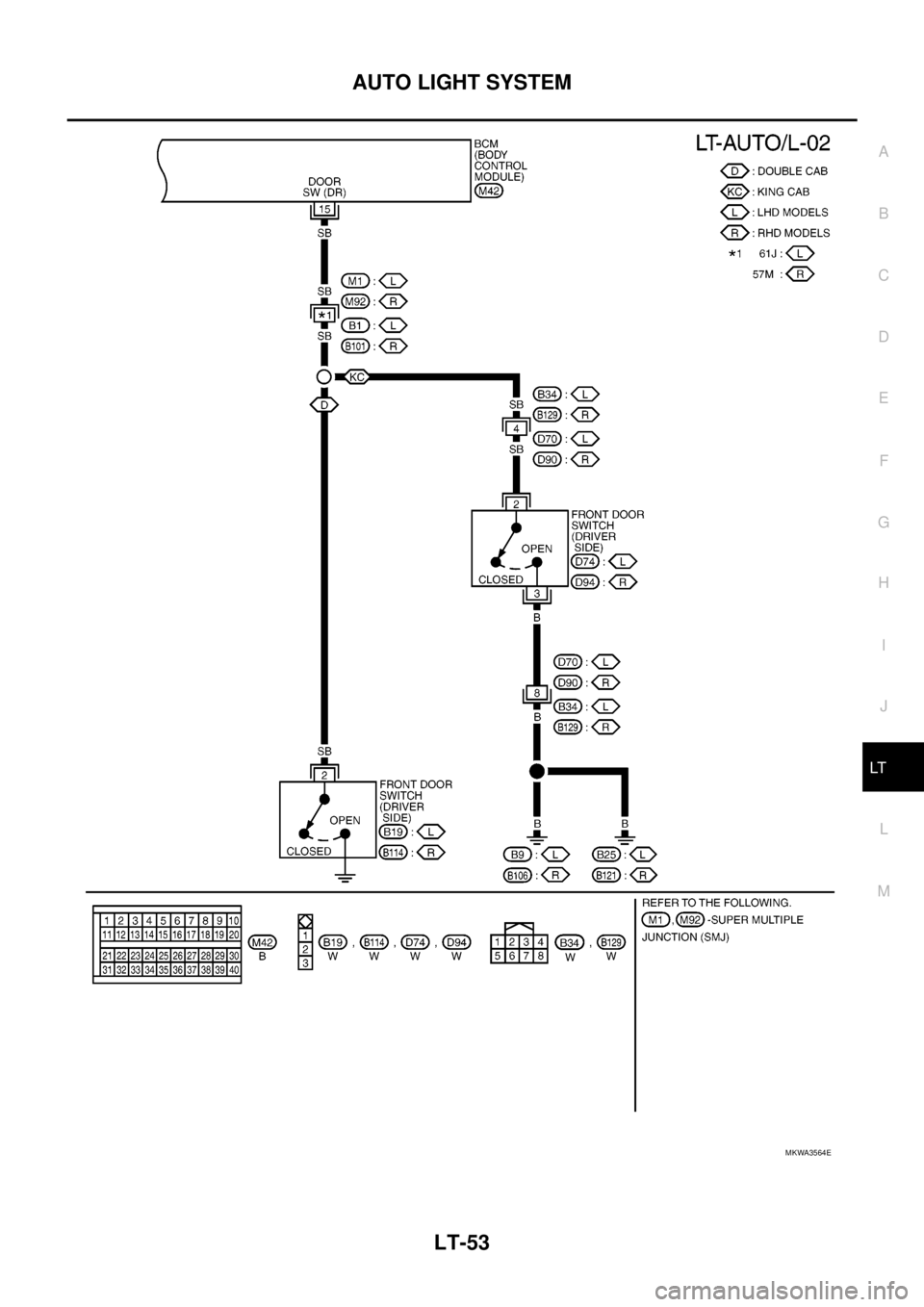

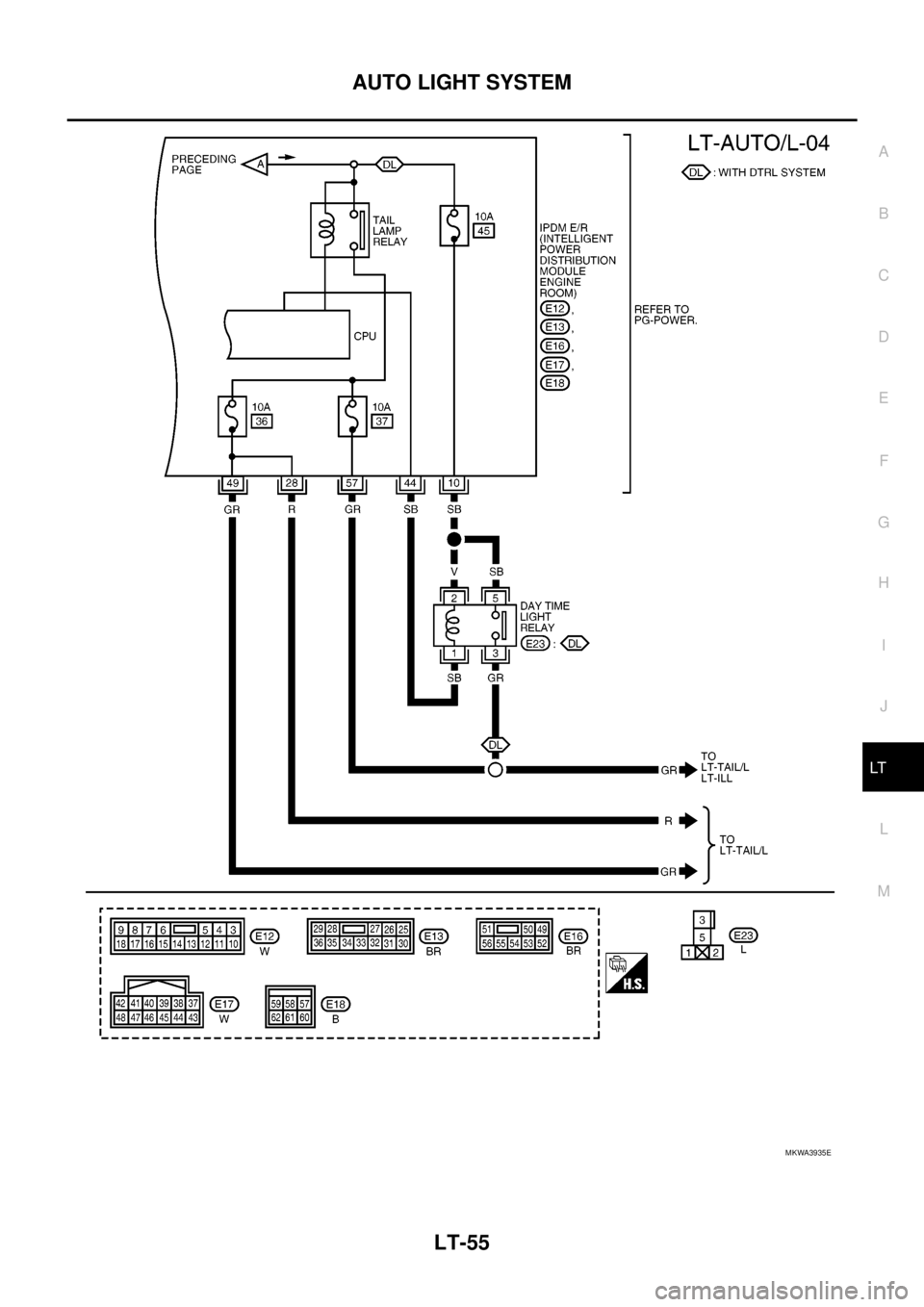

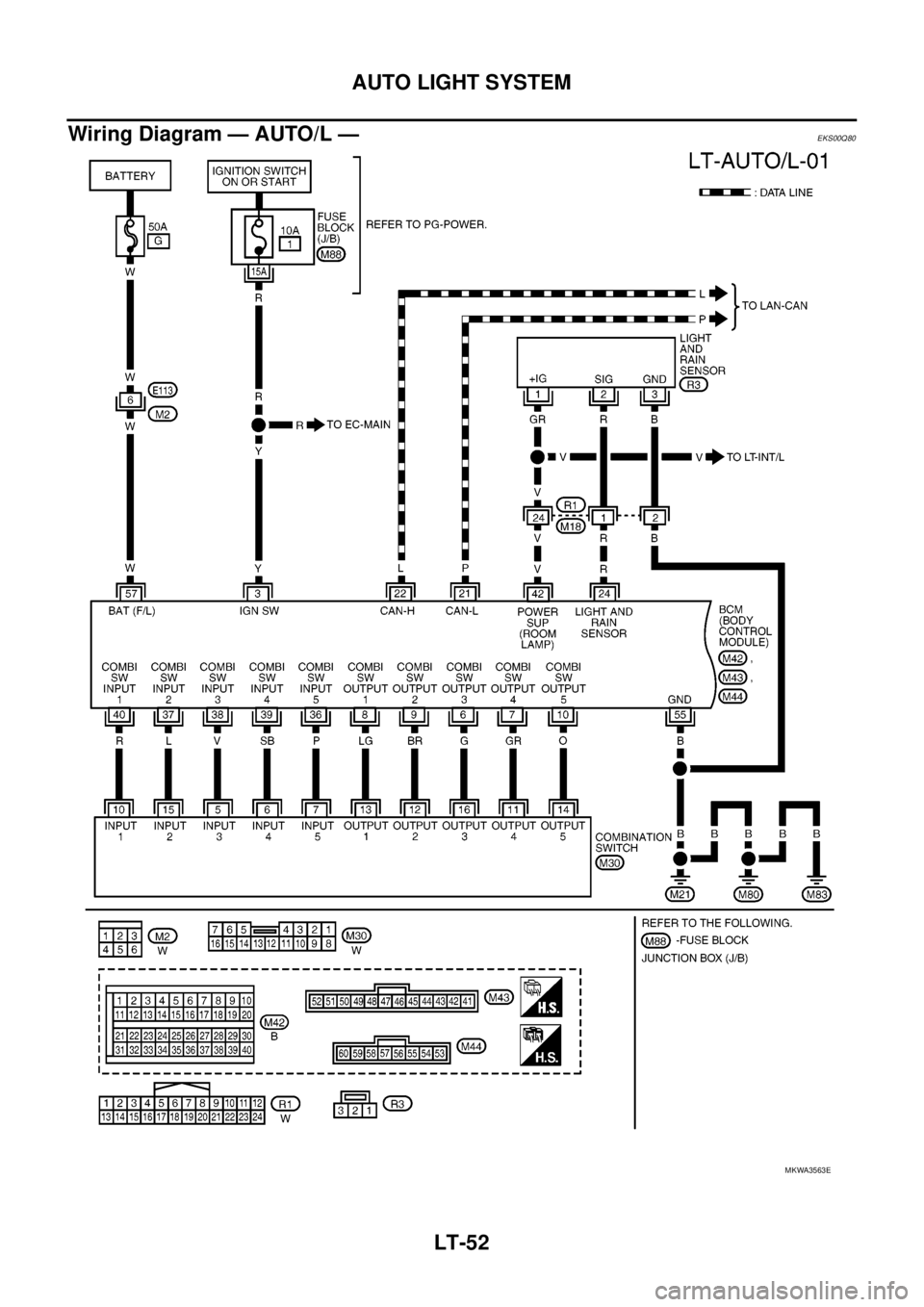

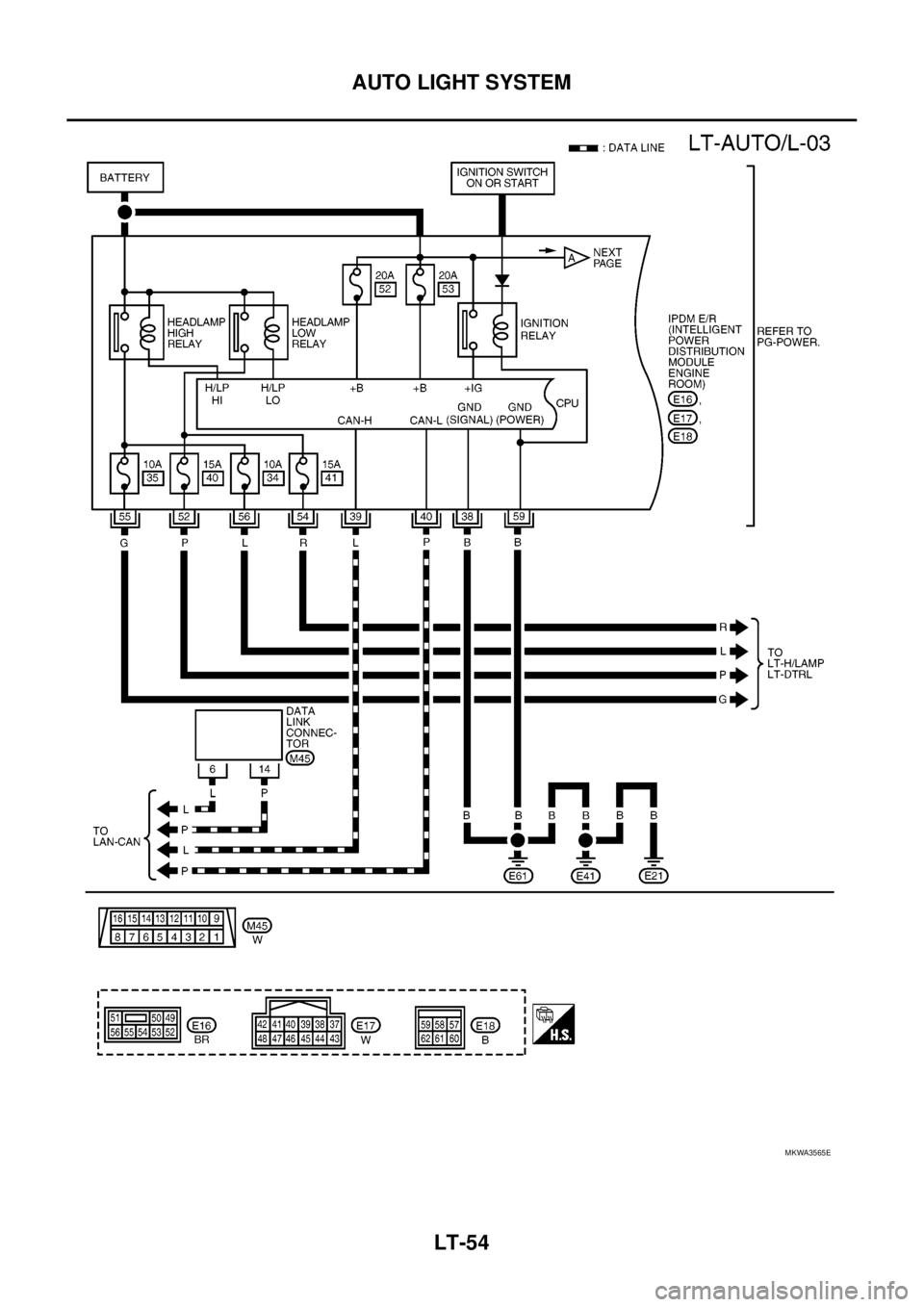

Wiring Diagram — AUTO/L —
EKS00Q80
MKWA3563E

AUTO LIGHT SYSTEM
LT-53
C
D
E
F
G
H
I
J
L
MA
B
LT
MKWA3564E

LT-54
AUTO LIGHT SYSTEM
MKWA3565E

AUTO LIGHT SYSTEM
LT-55
C
D
E
F
G
H
I
J
L
MA
B
LT
MKWA3935E

LT-56
AUTO LIGHT SYSTEM
Terminals and Reference Values for BCM
EKS00Q81
Terminal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
3 Y Ignition switch (ON) ON — Battery voltage
6 G Combination switch output 3 ONLighting, turn, wiper OFF
Wiper dial position 4
7 GR Combination switch output 4 ONLighting, turn, wiper OFF
Wiper dial position 4
8 LG Combination switch output 1 ONLighting, turn, wiper OFF
Wiper dial position 4
9 BR Combination switch output 2 ONLighting, turn, wiper OFF
Wiper dial position 4
10 O Combination switch output 5 ONLighting, turn, wiper OFF
Wiper dial position 4
15 SB Door switch (DR) signal OFFFront door
switch
(driver
side)ON (open) Approx. 0V
OFF (closed)
21 P CAN-L—— —
22 L CAN-H—— —
24 RLight and rain sensor
signal— Ignition switchON
OFF Battery voltage
36 P Combination switch input 5 ONLighting, turn, wiper OFF
Wiper dial position 4
Approx. 0V 37 L Combination switch input 2 ONLighting, turn, wiper OFF
Wiper dial position 4
38 V Combination switch input 3 ONLighting, turn, wiper OFF
Wiper dial position 4
39 SB Combination switch input 4 ONLighting, turn, wiper OFF
Wiper dial position 4
40 R Combination switch input 1 ONLighting, turn, wiper OFF
Wiper dial position 4
42 V Light and rain sensor power supply ON — Battery voltage
55 B Ground ON — Approx. 0V
57 WBattery power supply
(fusible link)OFF — Battery voltage
PKIB4958J
PKIC1217E
PKIC1618E

AUTO LIGHT SYSTEM
LT-57
C
D
E
F
G
H
I
J
L
MA
B
LT
Terminals and Reference Values for IPDM E/REKS00Q82
*1: With daytime light system, *2: Without daytime light system
How to Proceed With Trouble DiagnosisEKS00Q83
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer toLT-49, "
System Description".
3. Carry out the Preliminary Check. Refer toLT-58, "
Preliminary Check".
4. Check symptom and repair or replace the cause of malfunction. Refer toLT-62, "
Trouble Diagnosis Chart
by Symptom".
5. Does the auto light system operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
Terminal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
10 SB
Daytime light relay power supply*
1OFF — Battery voltage
28 RFront combination lamp LH*
2
(clearance lamp)ONLighting switch
1ST positionOFF Approx. 0V
ON Battery voltage
38 B Ground ON — Approx. 0V
39 L CAN-H———
40 P CAN-L———
44 SB
daytime light relay signal*
1ONEngine running Approx. 0V
Engine stopped Battery voltage
49 GRFront combination lamp RH*
2
(clearance lamp)ONLighting switch
1ST positionOFF Approx. 0V
ON Battery voltage
52 P Headlamp low (LH) ONLighting switch
2ND positionOFF Approx. 0V
ON Battery voltage
54 R Headlamp low (RH) ONLighting switch
2ND positionOFF Approx. 0V
ON Battery voltage
55 G Headlamp high (LH) ONLighting switch
HIGH or PASS
positionOFF Approx. 0V
ON Battery voltage
56 L Headlamp high (RH) ONLighting switch
HIGH or PASS
positionOFF Approx. 0V
ON Battery voltage
57 GRRear combination lamp (RH and LH) (tail)
and license plate lamp (RH and LH)*
2ONLighting switch
1ST positionOFF Approx. 0V
ON Battery voltage
59 B Ground ON — Approx. 0V
