Page 2861 of 3171

NISSAN NAVARA 2005  Repair Workshop Manual SC-28
STARTING SYSTEM

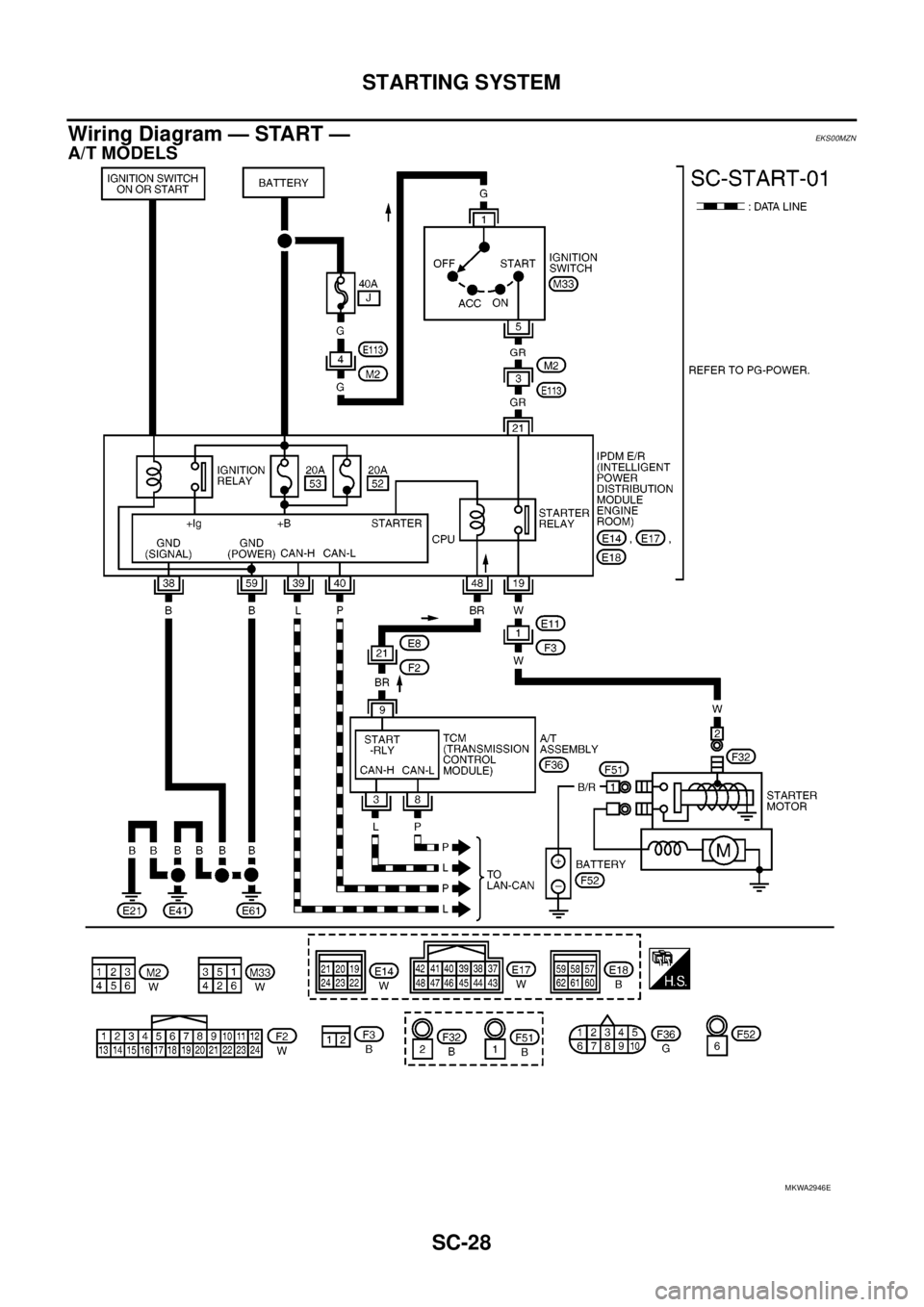

Wiring Diagram — START —
EKS00MZN
A/T MODELS
MKWA2946E

Page 2862 of 3171

NISSAN NAVARA 2005  Repair Workshop Manual STARTING SYSTEM
SC-29
C
D
E
F
G
H
I
J
L
MA
B
SC

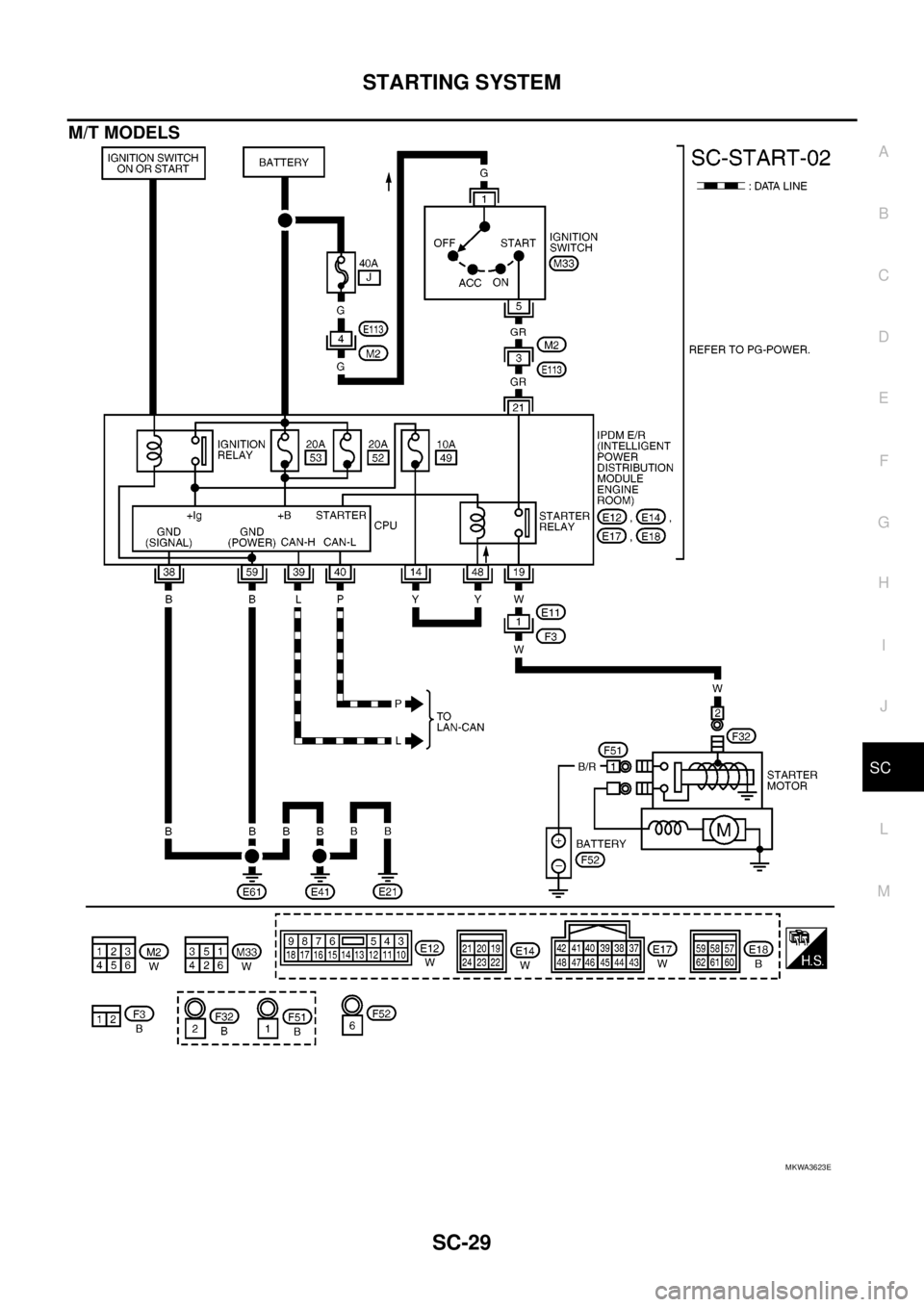

M/T MODELS
MKWA3623E

Page 2863 of 3171

NISSAN NAVARA 2005  Repair Workshop Manual SC-30
STARTING SYSTEM

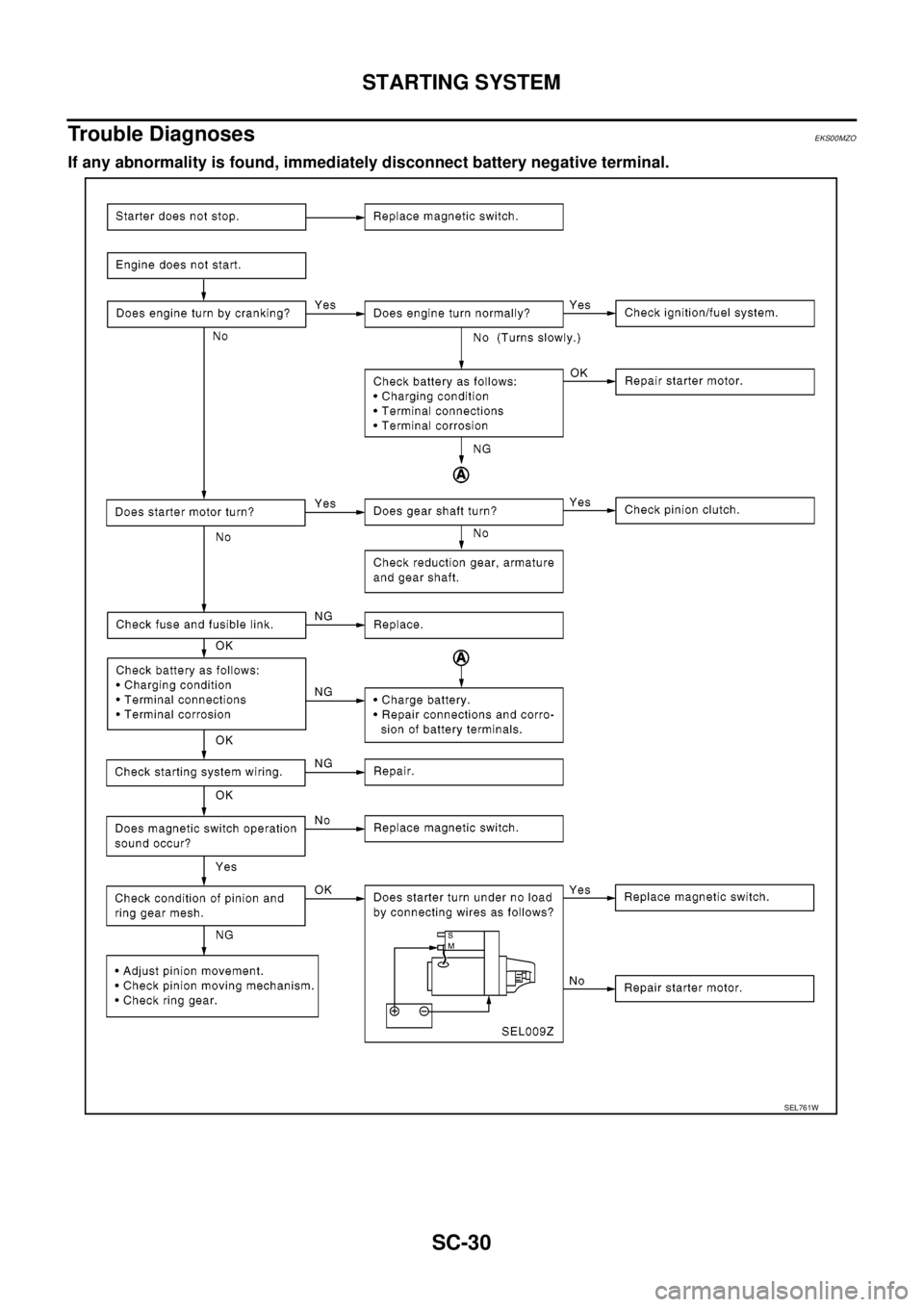

Trouble Diagnoses
EKS00MZO
If any abnormality is found, immediately disconnect battery negative terminal.
SEL761W

Page 2864 of 3171

NISSAN NAVARA 2005  Repair Workshop Manual STARTING SYSTEM
SC-31
C
D
E
F
G
H
I
J
L
MA
B
SC

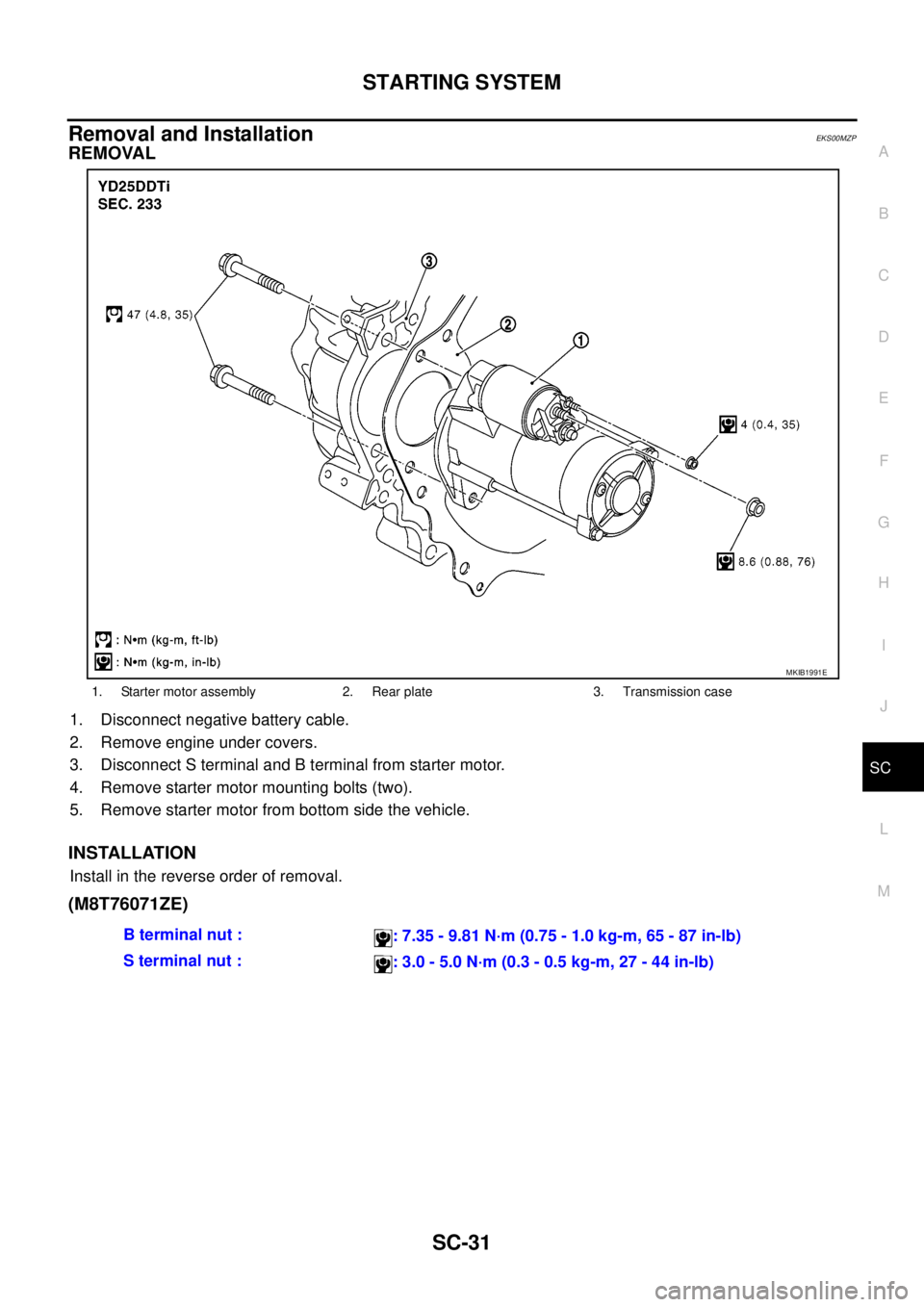

Removal and InstallationEKS00MZP
REMOVAL
1. Disconnect negative battery cable.
2. Remove engine under covers.
3. Disconnect S terminal and B terminal fr

Page 2865 of 3171

NISSAN NAVARA 2005  Repair Workshop Manual SC-32
STARTING SYSTEM

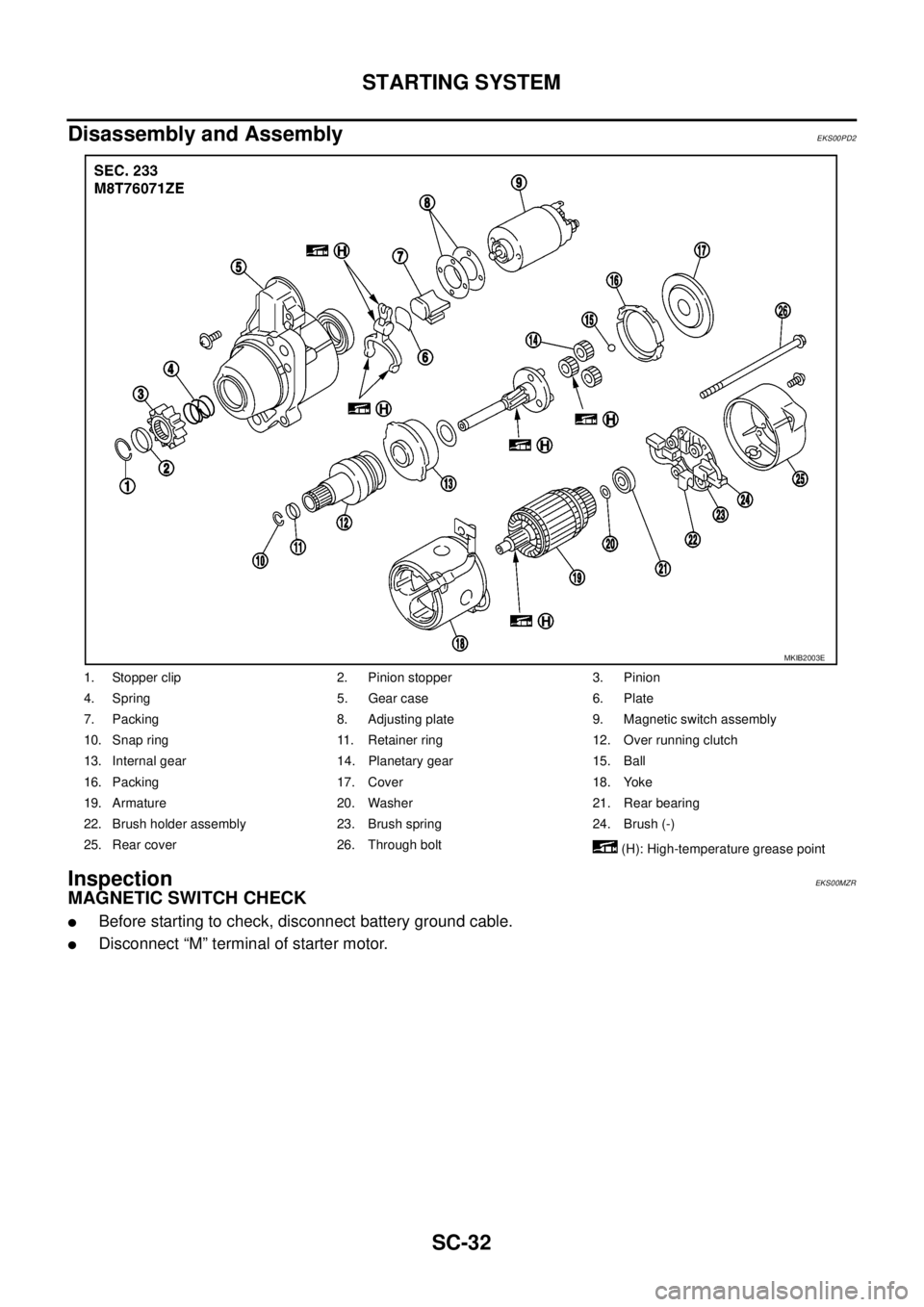

Disassembly and Assembly
EKS00PD2
InspectionEKS00MZR
MAGNETIC SWITCH CHECK
lBefore starting to check, disconnect battery ground cable.
lDisconnect “M” terminal of starter mot

Page 2866 of 3171

NISSAN NAVARA 2005  Repair Workshop Manual STARTING SYSTEM
SC-33
C
D
E
F
G
H
I
J
L
MA
B
SC

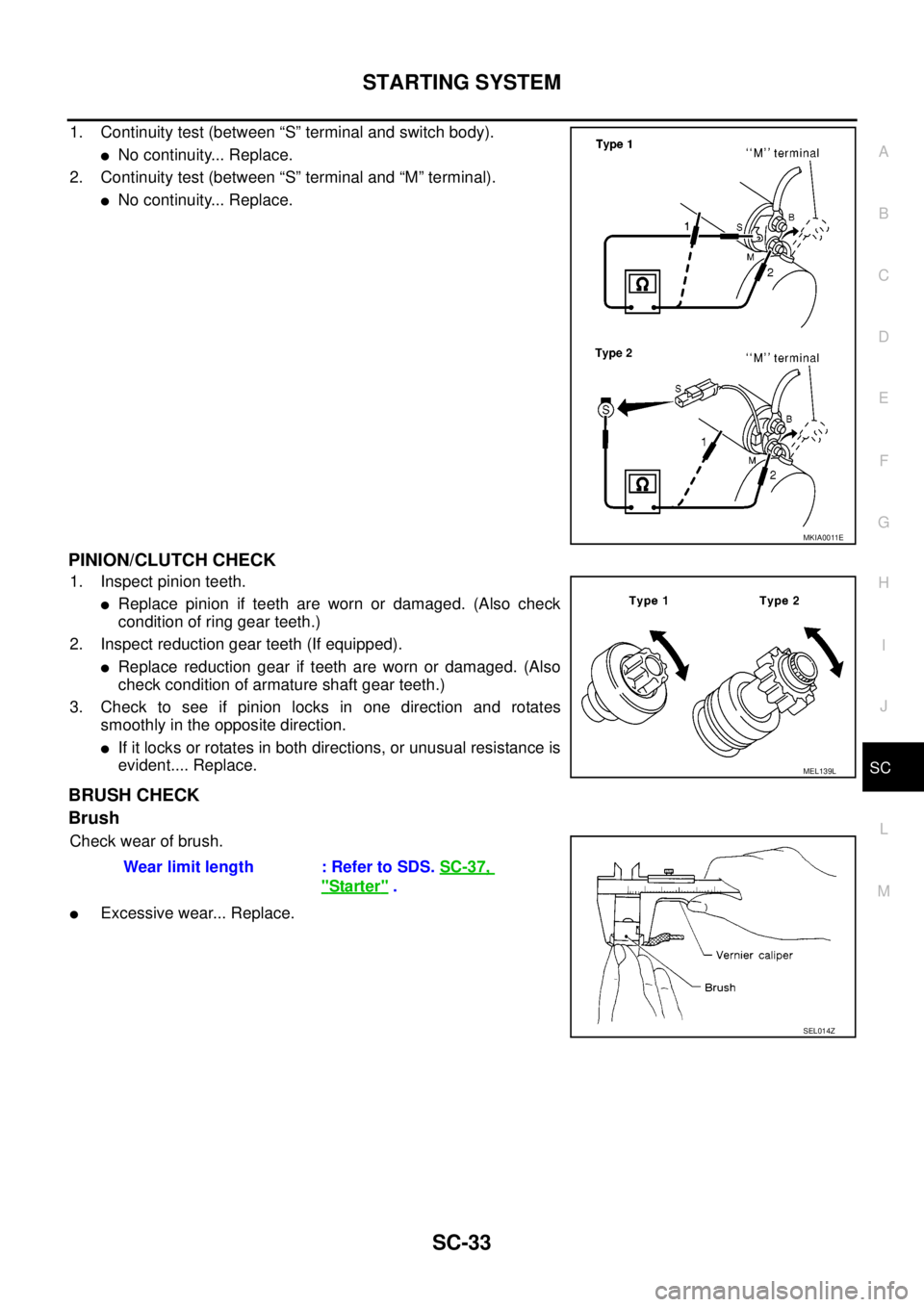

1. Continuity test (between “S” terminal and switch body).
lNo continuity... Replace.
2. Continuity test (between “S” terminal and “M” termi

Page 2867 of 3171

NISSAN NAVARA 2005  Repair Workshop Manual SC-34
STARTING SYSTEM

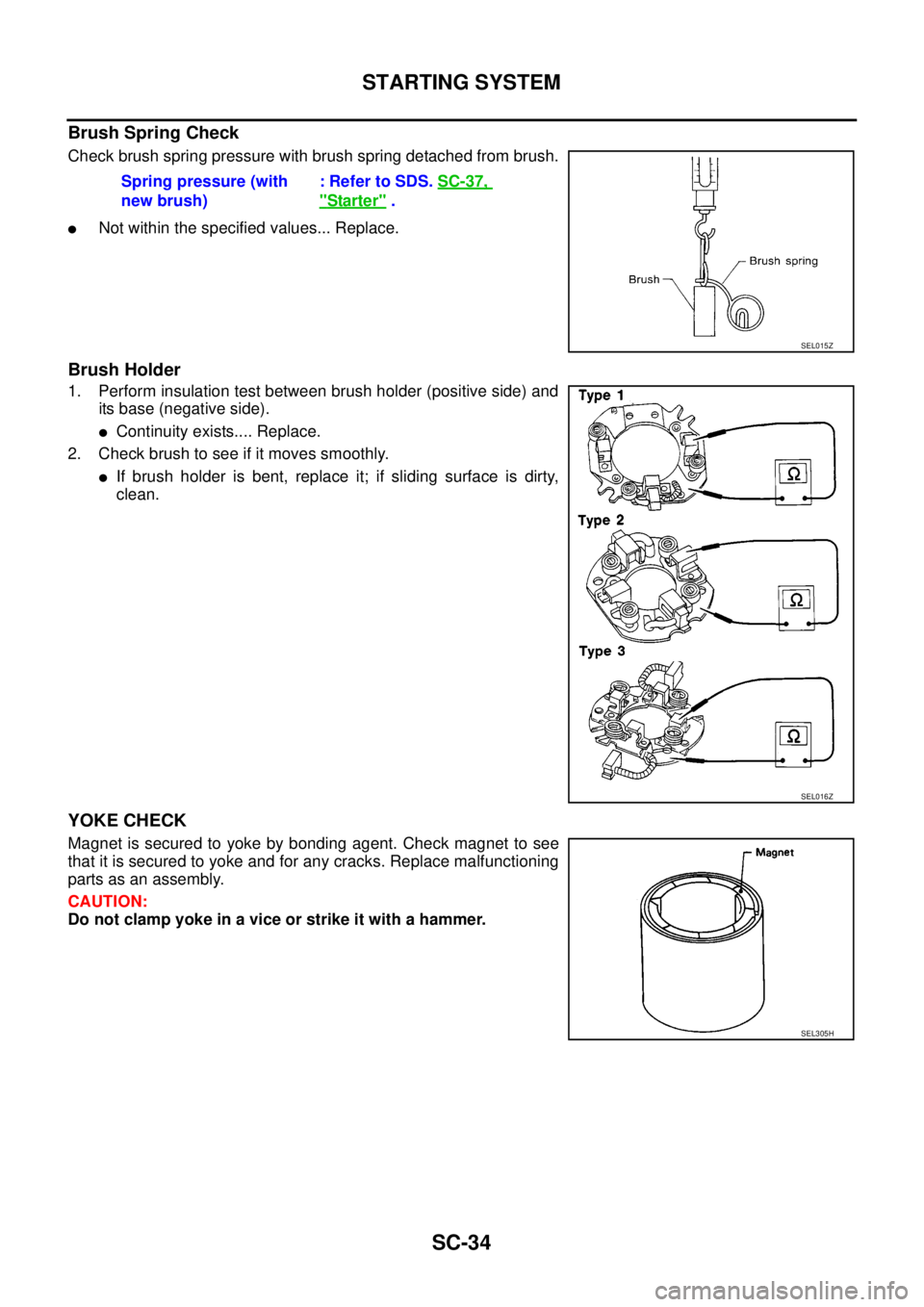

Brush Spring Check
Check brush spring pressure with brush spring detached from brush.
lNot within the specified values... Replace.
Brush Holder
1. Perform insulation test between

Page 2868 of 3171

NISSAN NAVARA 2005  Repair Workshop Manual STARTING SYSTEM
SC-35
C
D
E
F
G
H
I
J
L
MA
B
SC

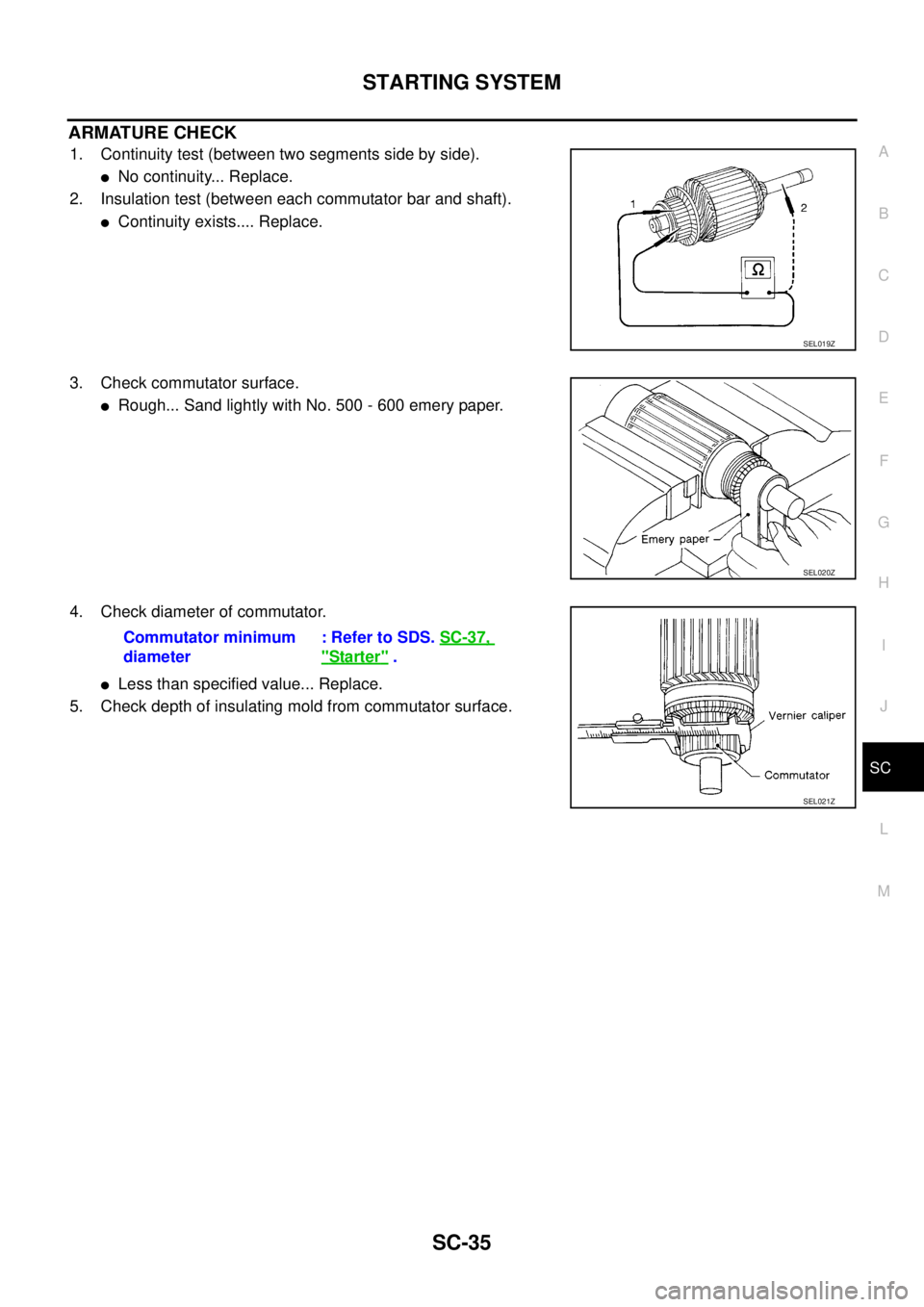

ARMATURE CHECK
1. Continuity test (between two segments side by side).
lNo continuity... Replace.
2. Insulation test (between each commutator bar and sh

Page 2869 of 3171

NISSAN NAVARA 2005  Repair Workshop Manual SC-36
STARTING SYSTEM

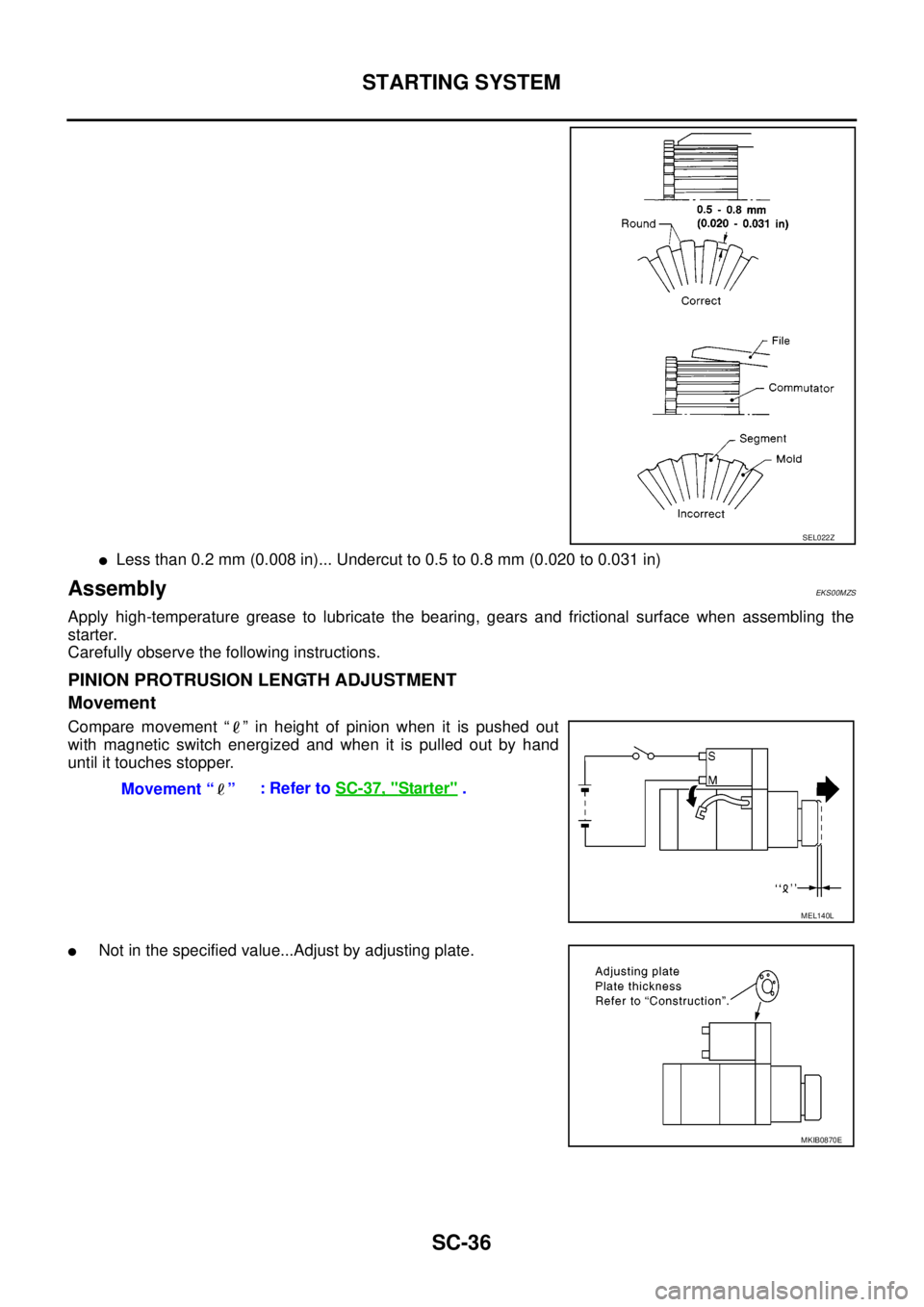

lLess than 0.2 mm (0.008 in)... Undercut to 0.5 to 0.8 mm (0.020 to 0.031 in)
AssemblyEKS00MZS
Apply high-temperature grease to lubricate the bearing, gears and frictional surfac

Page 2870 of 3171

NISSAN NAVARA 2005  Repair Workshop Manual SERVICE DATA AND SPECIFICATIONS (SDS)
SC-37
C
D
E
F
G
H
I
J
L
MA
B
SC
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
BatteryEKS00MZT
StarterEKS00MZU
AlternatorEKS00MZV
Applied modelYD25 engine
TypeL3/
