NISSAN NAVARA 2005 Repair Workshop Manual

SE-10
POWER SEAT
POWER SEAT
PFP:87016

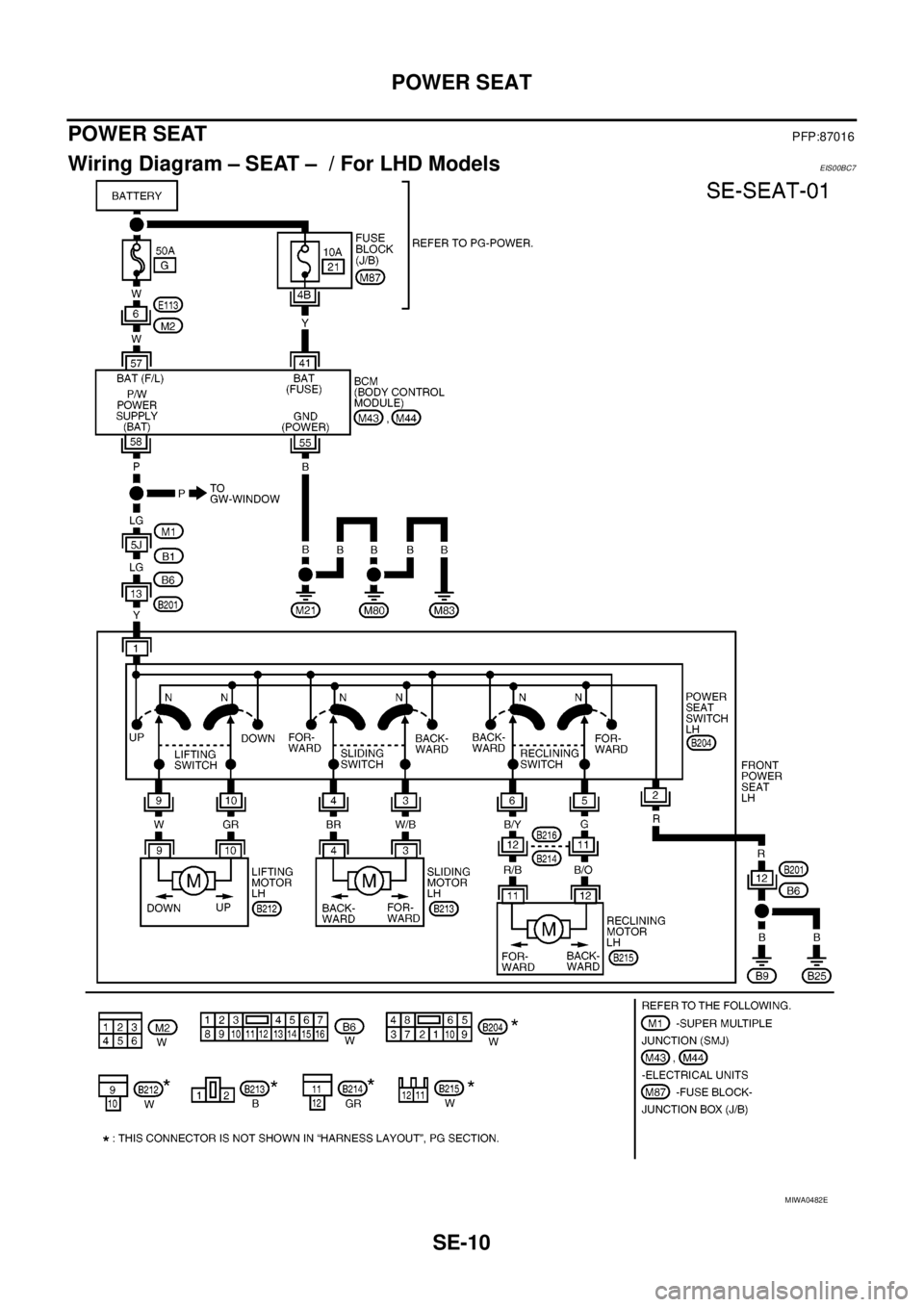

Wiring Diagram – SEAT – / For LHD ModelsEIS00BC7
MIWA0482E

POWER SEAT
SE-11
C
D
E
F
G
H
J
K
L
MA
B
SE

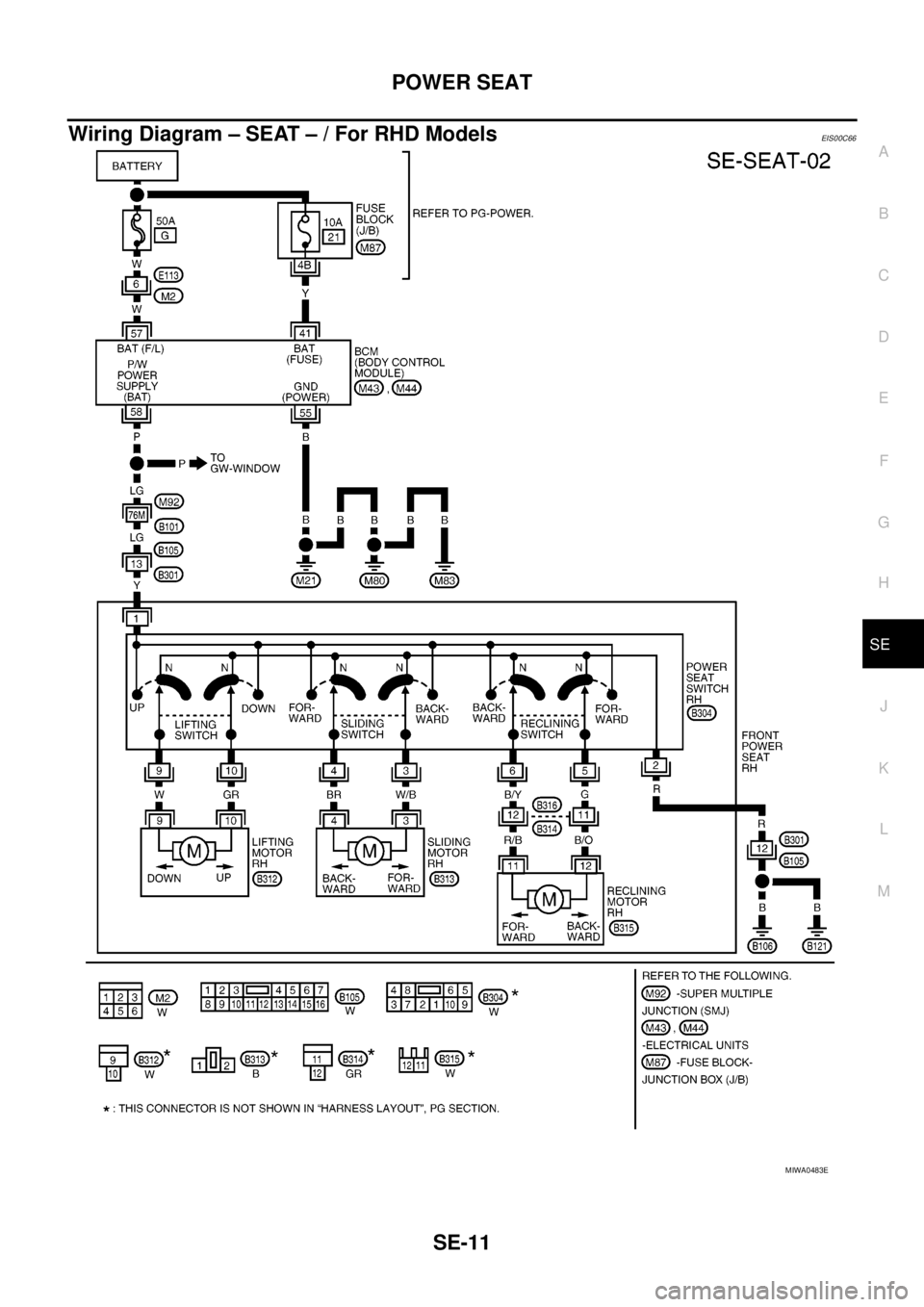

Wiring Diagram – SEAT – / For RHD ModelsEIS00C66
MIWA0483E

SE-12
HEATED SEAT
HEATED SEAT
PFP:87335

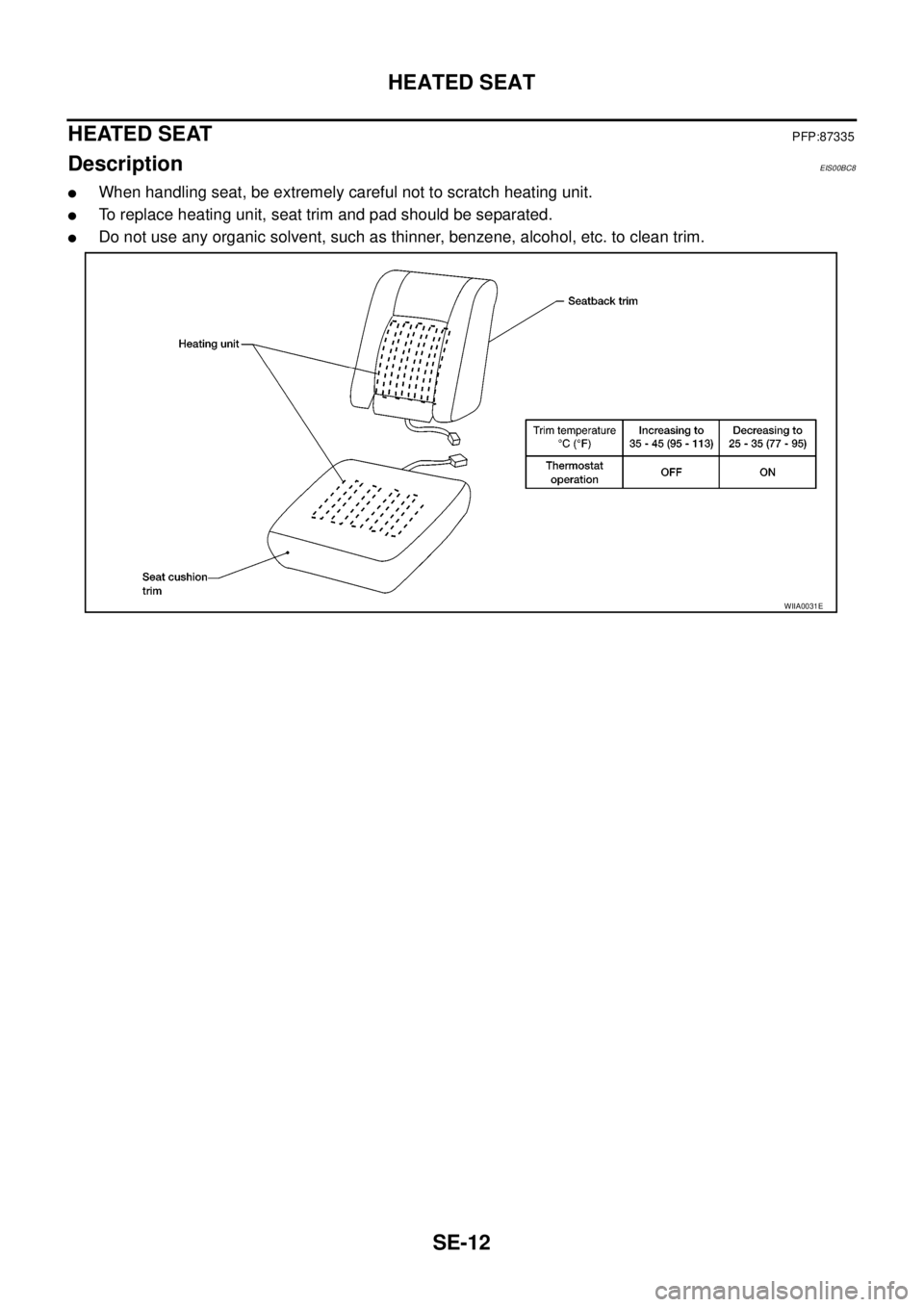

DescriptionEIS00BC8
lWhen handling seat, be extremely careful not to scratch heating unit.
lTo replace heating unit, seat trim and pad should be separated.
lDo not use any organic solvent, such as thinner, benzene, alcohol, etc. to clean trim.
WIIA0031E

HEATED SEAT
SE-13
C
D
E
F
G
H
J
K
L
MA
B
SE

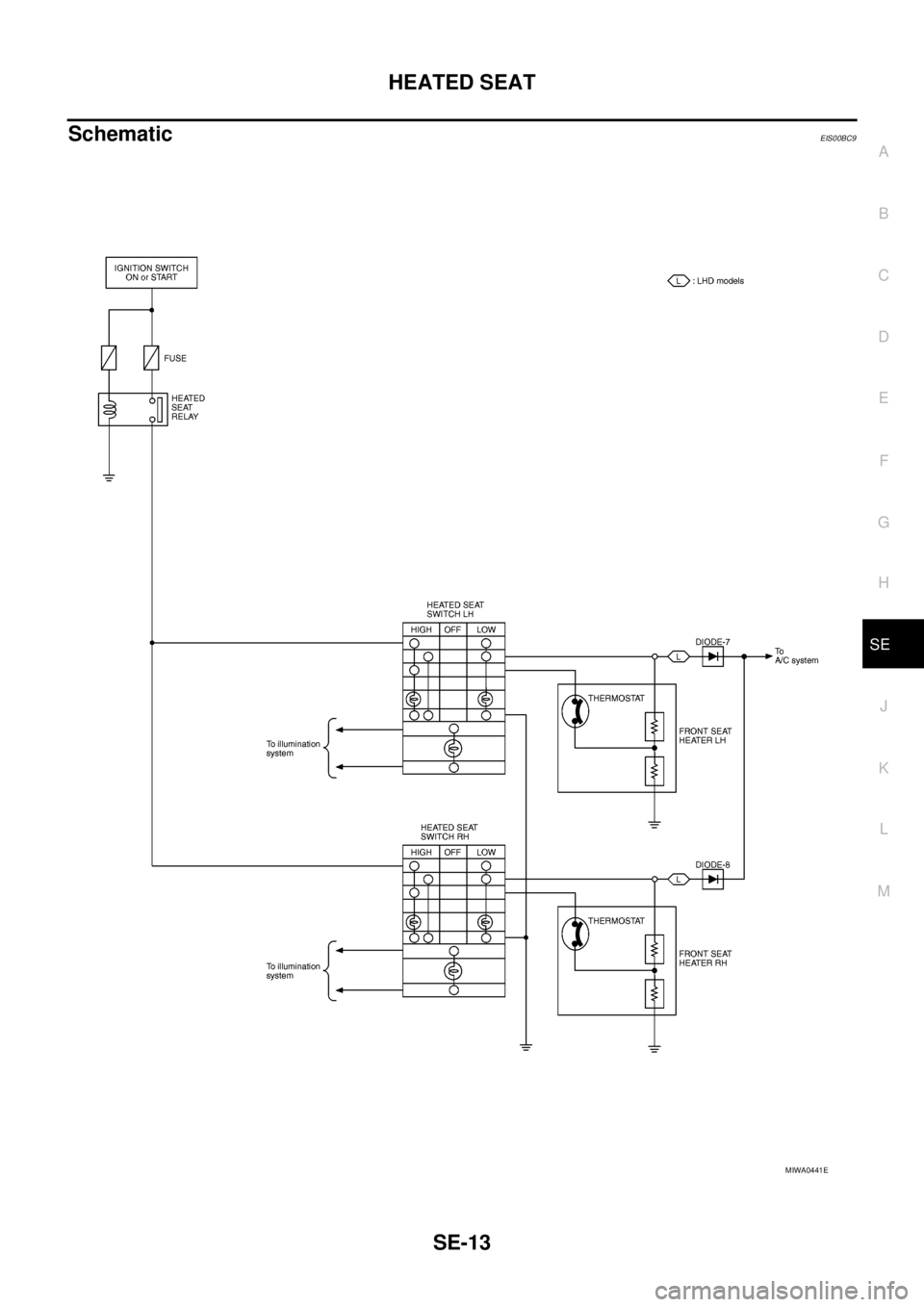

SchematicEIS00BC9
MIWA0441E

SE-14
HEATED SEAT

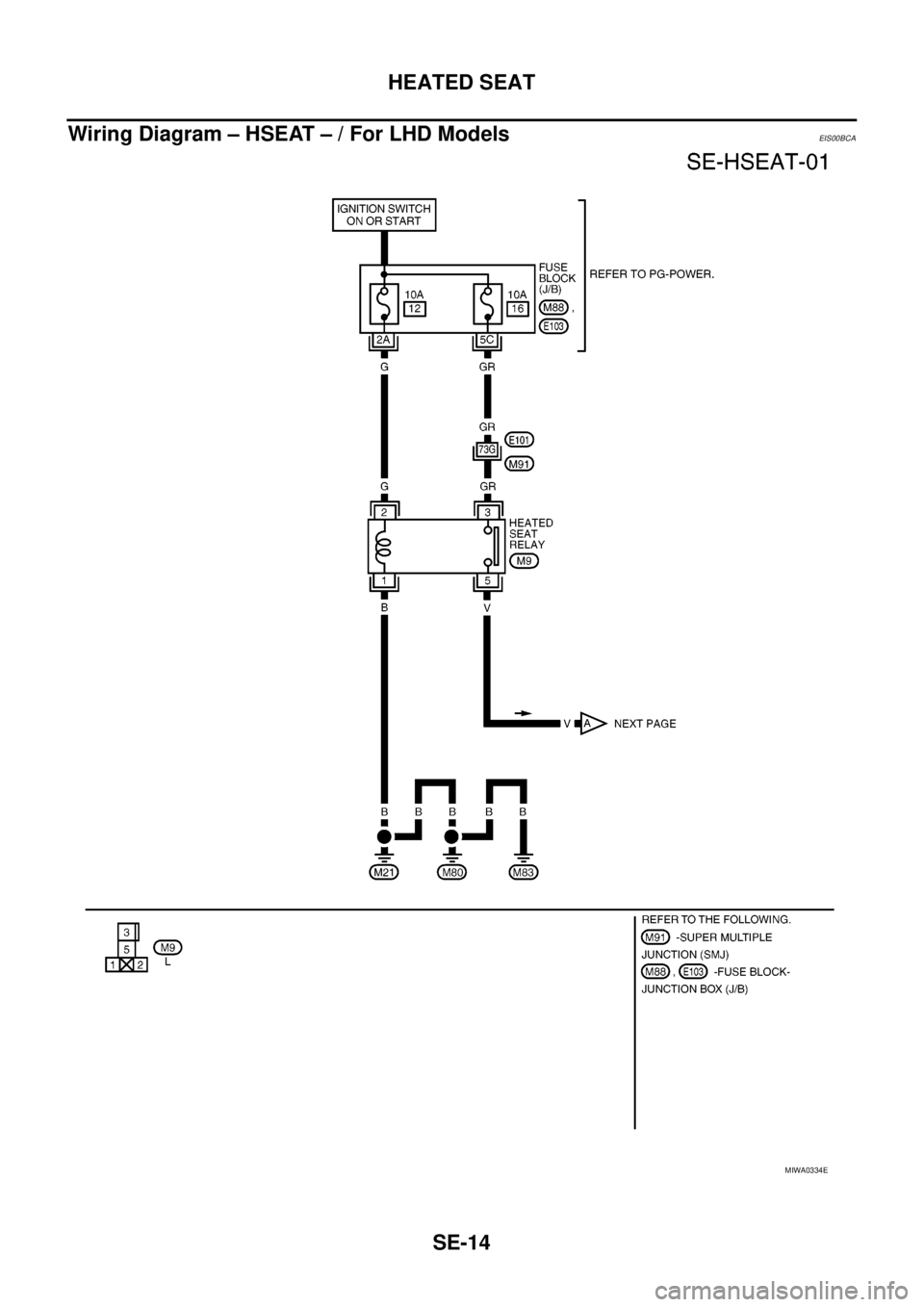

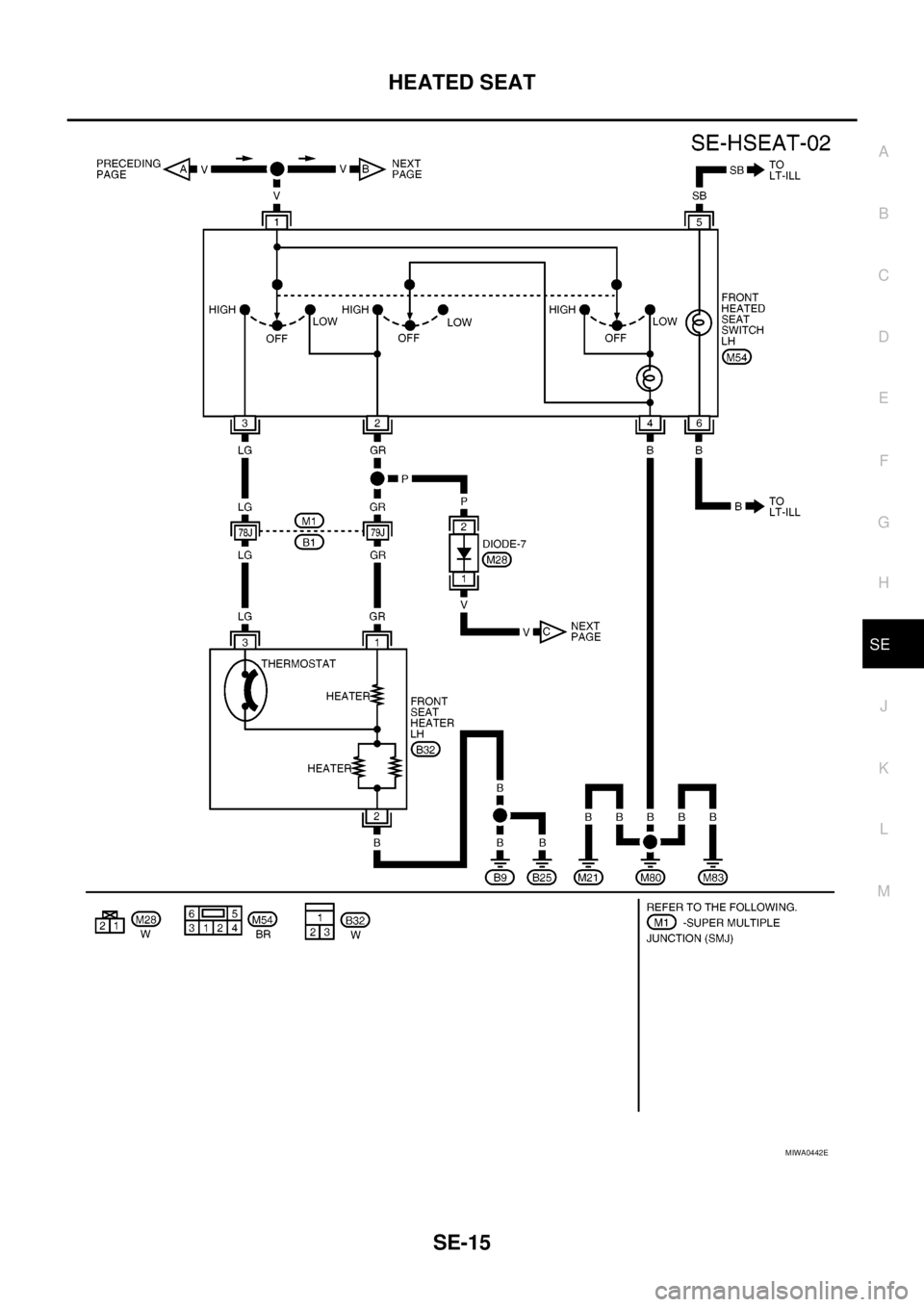

Wiring Diagram – HSEAT – / For LHD Models
EIS00BCA
MIWA0334E

HEATED SEAT
SE-15
C
D
E
F
G
H
J
K
L
MA
B
SE
MIWA0442E

SE-16
HEATED SEAT
MIWA0443E

HEATED SEAT
SE-17
C
D
E
F
G
H
J
K
L
MA
B
SE

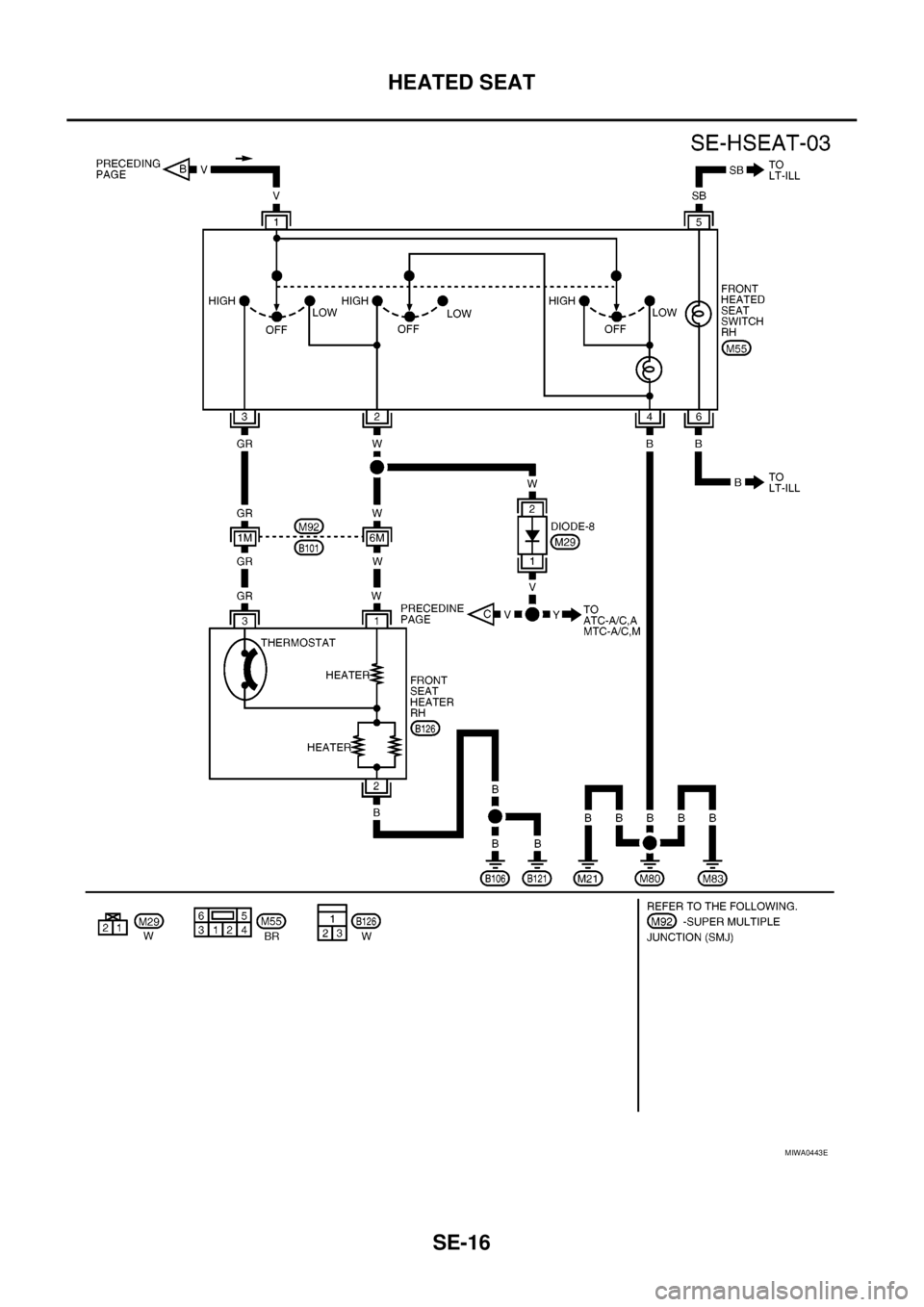

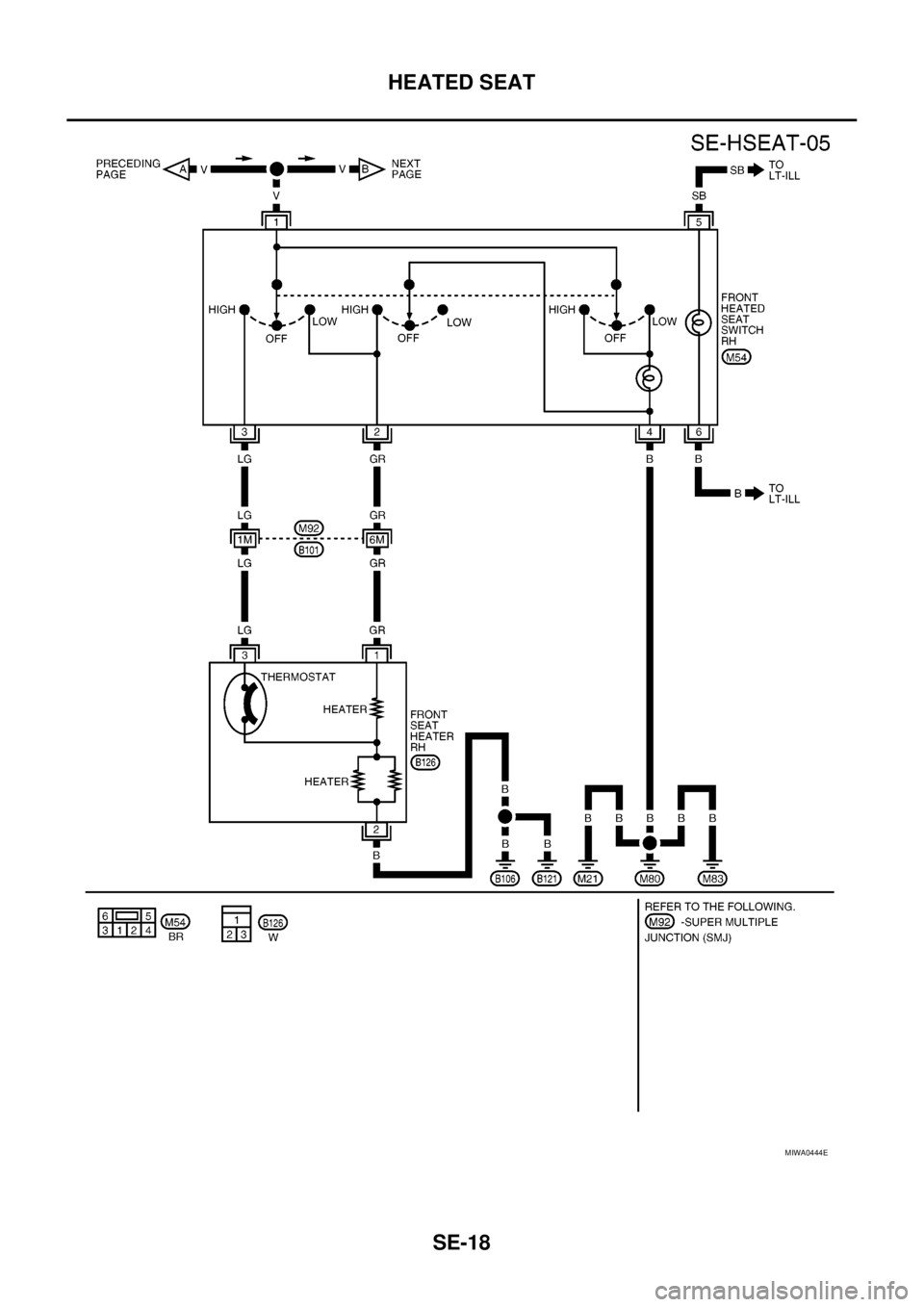

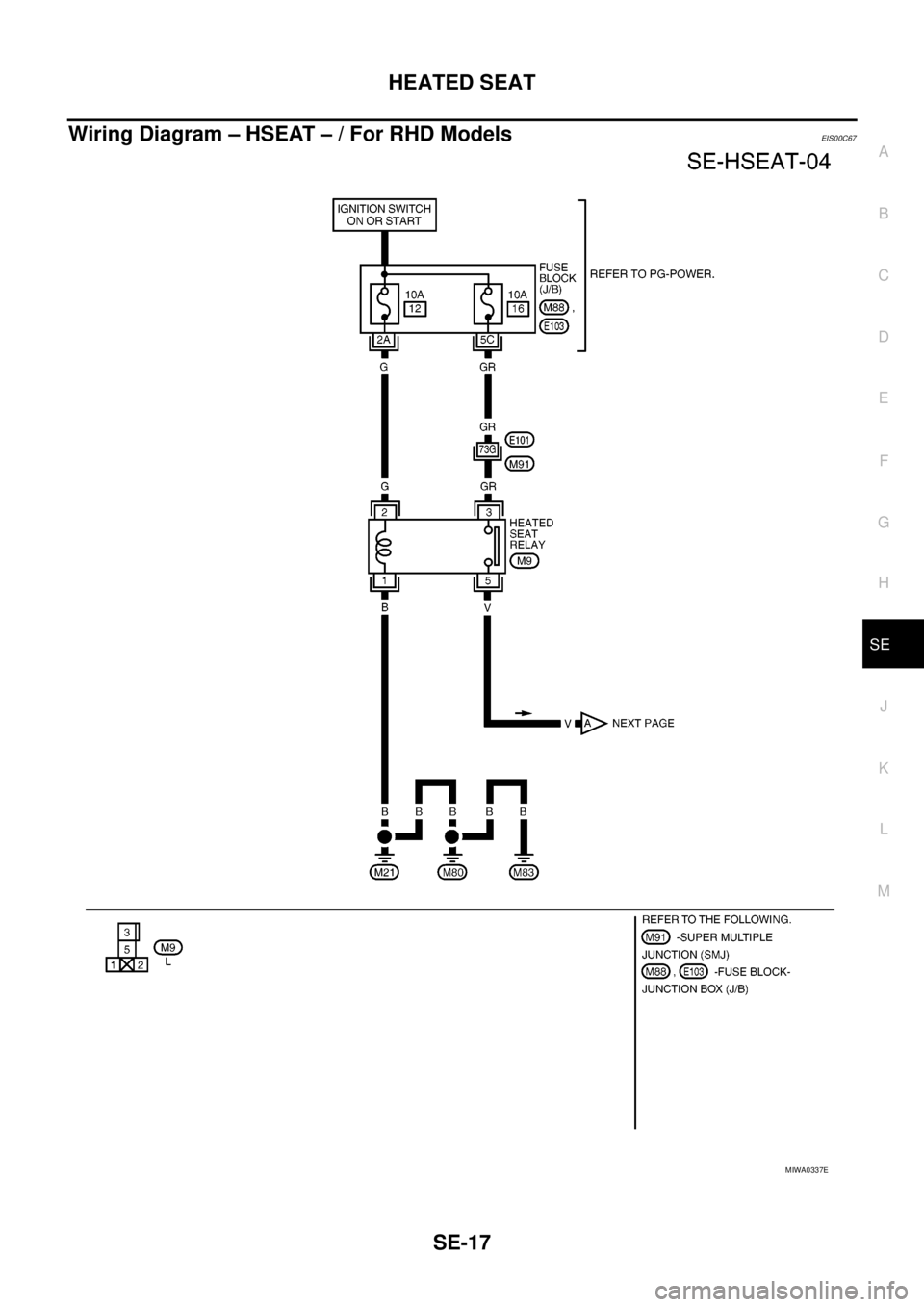

Wiring Diagram – HSEAT – / For RHD ModelsEIS00C67
MIWA0337E

SE-18
HEATED SEAT
MIWA0444E

HEATED SEAT
SE-19
C
D
E
F
G
H
J
K
L
MA
B
SE
MIWA0445E
