NISSAN NOTE 2016 Service Repair Manual
Manufacturer: NISSAN, Model Year: 2016, Model line: NOTE, Model: NISSAN NOTE 2016Pages: 3641, PDF Size: 28.72 MB
Page 1251 of 3641
![NISSAN NOTE 2016 Service Repair Manual EC-124
< BASIC INSPECTION >[HR16DE]
DIAGNOSIS AND REPAIR WORKFLOW
WORKSHEET SAMPLE
MTBL0017
Revision: August 2015
2016 Versa Note
cardiagn.com NISSAN NOTE 2016 Service Repair Manual EC-124
< BASIC INSPECTION >[HR16DE]
DIAGNOSIS AND REPAIR WORKFLOW
WORKSHEET SAMPLE
MTBL0017
Revision: August 2015
2016 Versa Note
cardiagn.com](/img/5/57363/w960_57363-1250.png)

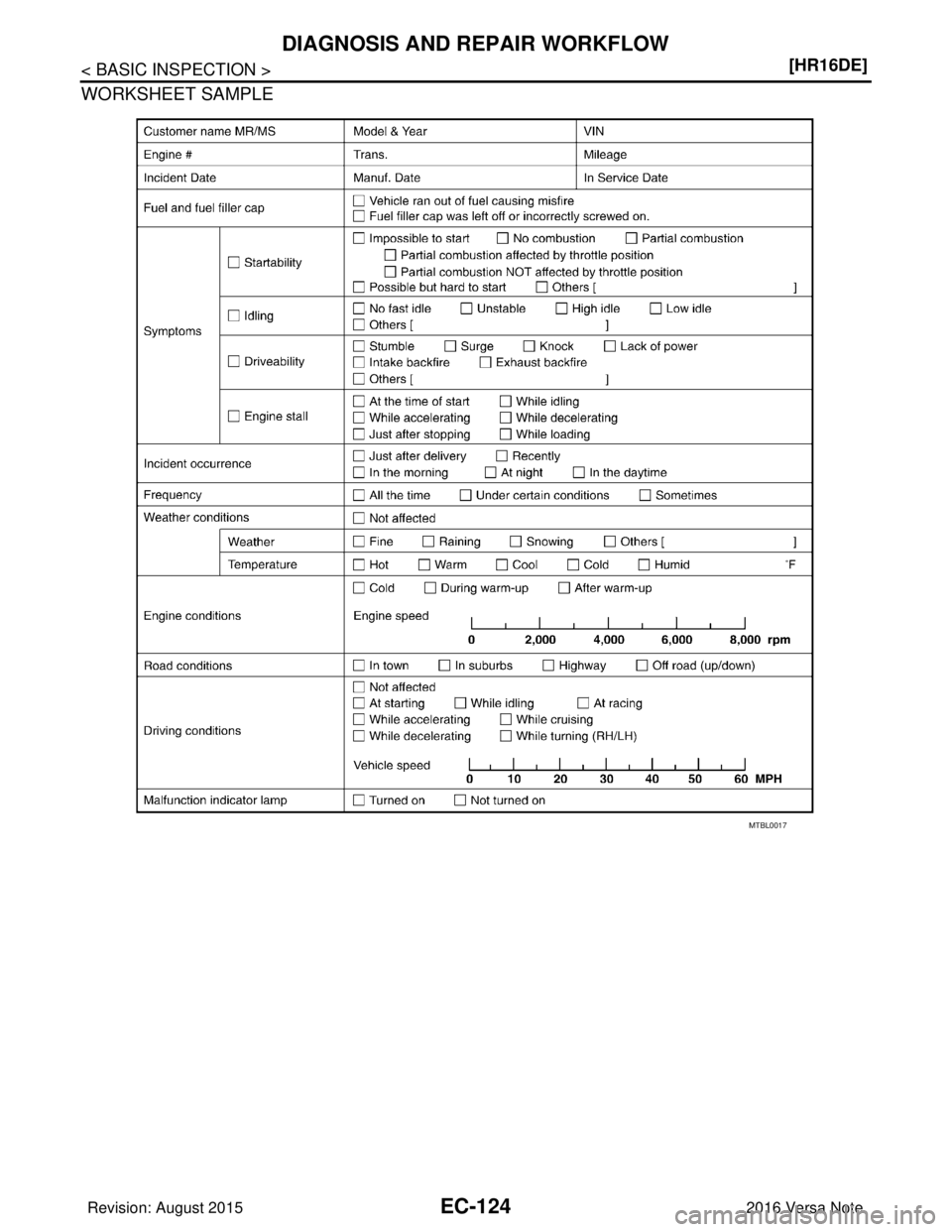

EC-124
< BASIC INSPECTION >[HR16DE]
DIAGNOSIS AND REPAIR WORKFLOW
WORKSHEET SAMPLE
MTBL0017
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 1252 of 3641
![NISSAN NOTE 2016 Service Repair Manual ADDITIONAL SERVICE WHEN REPLACING ECMEC-125
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
ADDITIONAL SERVICE WHEN REPLACING ECM
DescriptionINFOID:0000000012431350
When replacing ECM, t NISSAN NOTE 2016 Service Repair Manual ADDITIONAL SERVICE WHEN REPLACING ECMEC-125
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
ADDITIONAL SERVICE WHEN REPLACING ECM
DescriptionINFOID:0000000012431350
When replacing ECM, t](/img/5/57363/w960_57363-1251.png)
ADDITIONAL SERVICE WHEN REPLACING ECMEC-125
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
ADDITIONAL SERVICE WHEN REPLACING ECM
DescriptionINFOID:0000000012431350
When replacing ECM, the following procedure mu
st be performed. (For details, refer to EC-125, "Work Proce-
dure".)
PROGRAMMING OPERATION
NOTE:
After replacing with a blank ECM, programming is required to write ECM information. Be sure to follow the pro-
cedure to perform the programming.
Work ProcedureINFOID:0000000012431351
1.CHECK ECM PART NUMBER
Check ECM part number to see whether it is blank ECM or not.
NOTE:
• Part number of blank ECM is 23703 - ×××××.
• Check the part number when ordering ECM or with the one included in the label on the container box.
Is the ECM a blank ECM?
YES >> GO TO 2.
NO >> GO TO 4.
2.SAVE ECM PART NUMBER
Read out the part number from the old ECM and save the number, following the programming instructions.
Refer to “CONSULT Operation Manual”.
NOTE:
• The ECM part number is saved in CONSULT.
• Even when ECM part number is not saved in CONSULT, go to 3.
>> GO TO 3.
3.PERFORM ECM PROGRAMMING
After replacing ECM, perform the ECM program ming. Refer to “CONSULT Operation Manual”.
NOTE:
• Refer to EC-477, "
Removal and Installation" for replacement of ECM.
• During programming, maintain the following conditions:
- Ignition switch: ON
- Electric load: OFF
- Brake pedal: Not depressed
- Battery voltage: 12 – 13.5 V (Be sure to check the va lue of battery voltage by selecting “BATTERY VOLT” in
“Data monitor” of CONSULT.)
>> GO TO 4.
4.REPLACE ECM
Replace ECM. Refer to EC-477, "
Removal and Installation".
>> GO TO 5.
5.PERFORM VIN REGISTRATION
Refer to EC-127, "
Description".
>> GO TO 6.
6.PERFORM INITIALIZATION OF NATS SYSTEM AND REGISTRATION OF ALL NATS IGNITION KEY IDS
Refer to SEC-49, "
ECM : Description"(with I-Key), SEC-142, "ECM RE-COMMUNICATING FUNCTION :
Description"(without I-Key).
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1253 of 3641
![NISSAN NOTE 2016 Service Repair Manual EC-126
< BASIC INSPECTION >[HR16DE]
ADDITIONAL SERVICE WHEN REPLACING ECM
>> GO TO 7.
7.PERFORM ACCELERATOR PEDAL RE
LEASED POSITION LEARNING
Refer to EC-128, "
Description".
>> GO TO 8.
8.PERFORM TH NISSAN NOTE 2016 Service Repair Manual EC-126
< BASIC INSPECTION >[HR16DE]
ADDITIONAL SERVICE WHEN REPLACING ECM
>> GO TO 7.
7.PERFORM ACCELERATOR PEDAL RE
LEASED POSITION LEARNING
Refer to EC-128, "
Description".
>> GO TO 8.
8.PERFORM TH](/img/5/57363/w960_57363-1252.png)
EC-126
< BASIC INSPECTION >[HR16DE]
ADDITIONAL SERVICE WHEN REPLACING ECM
>> GO TO 7.
7.PERFORM ACCELERATOR PEDAL RE
LEASED POSITION LEARNING
Refer to EC-128, "
Description".
>> GO TO 8.
8.PERFORM THROTTLE VALVE CL OSED POSITION LEARNING
Refer to EC-129, "
Description".
>> GO TO 9.
9.PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-130, "
Description".
>> END
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1254 of 3641
![NISSAN NOTE 2016 Service Repair Manual VIN REGISTRATIONEC-127
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
VIN REGISTRATION
DescriptionINFOID:0000000012431352
VIN Registration is an operation to registering VIN in
ECM. It NISSAN NOTE 2016 Service Repair Manual VIN REGISTRATIONEC-127
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
VIN REGISTRATION
DescriptionINFOID:0000000012431352
VIN Registration is an operation to registering VIN in
ECM. It](/img/5/57363/w960_57363-1253.png)
VIN REGISTRATIONEC-127
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
VIN REGISTRATION
DescriptionINFOID:0000000012431352
VIN Registration is an operation to registering VIN in
ECM. It must be performed each time ECM is replaced.
Refer to EC-127, "
Work Procedure".
NOTE:
Accurate VIN which is registered in ECM may be required for Inspection & Maintenance (I/M).
Work ProcedureINFOID:0000000012431353
1.CHECK VIN
Check the VIN of the vehicle and note it. Refer to GI-34, "
Identification Number".
>> GO TO 2.
2.PERFORM VIN REGISTRATION
With CONSULT
1. Turn ignition switch ON and engine stopped.
2. Select “VIN REGISTRATION” in “WORK SUPPORT” mode of “ENGINE” using CONSULT.
3. Follow the instruction of CONSULT display.
>> END
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1255 of 3641
![NISSAN NOTE 2016 Service Repair Manual EC-128
< BASIC INSPECTION >[HR16DE]
ACCELERATOR PEDAL RELEASED POSITION LEARNING
ACCELERATOR PEDAL REL
EASED POSITION LEARNING
DescriptionINFOID:0000000012431354
Accelerator Pedal Released Position Le NISSAN NOTE 2016 Service Repair Manual EC-128
< BASIC INSPECTION >[HR16DE]
ACCELERATOR PEDAL RELEASED POSITION LEARNING
ACCELERATOR PEDAL REL
EASED POSITION LEARNING
DescriptionINFOID:0000000012431354
Accelerator Pedal Released Position Le](/img/5/57363/w960_57363-1254.png)
EC-128
< BASIC INSPECTION >[HR16DE]
ACCELERATOR PEDAL RELEASED POSITION LEARNING
ACCELERATOR PEDAL REL
EASED POSITION LEARNING
DescriptionINFOID:0000000012431354
Accelerator Pedal Released Position Learning is a function of ECM to learn the fully released position of the
accelerator pedal by monitoring the accelerator pedal position sensor output signal. It must be performed each
time harness connector of accelerator pedal positi on sensor or ECM is disconnected. Refer to EC-128, "
Work
Procedure".
Work ProcedureINFOID:0000000012431355
1.START
1. Make sure that accelerator pedal is fully released.
2. Turn ignition switch ON and wait at least 2 seconds.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON and wait at least 2 seconds.
5. Turn ignition switch OFF and wait at least 10 seconds.
>> END
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1256 of 3641
![NISSAN NOTE 2016 Service Repair Manual THROTTLE VALVE CLOSED POSITION LEARNINGEC-129
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
THROTTLE VALVE CLOSED
POSITION LEARNING
DescriptionINFOID:0000000012431356
Throttle Valve C NISSAN NOTE 2016 Service Repair Manual THROTTLE VALVE CLOSED POSITION LEARNINGEC-129
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
THROTTLE VALVE CLOSED
POSITION LEARNING
DescriptionINFOID:0000000012431356
Throttle Valve C](/img/5/57363/w960_57363-1255.png)
THROTTLE VALVE CLOSED POSITION LEARNINGEC-129
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
THROTTLE VALVE CLOSED
POSITION LEARNING
DescriptionINFOID:0000000012431356
Throttle Valve Closed Position Learning is a function of ECM to learn the fully closed position of the throttle
valve by monitoring the throttle position sensor out put signal. It must be performed each time harness connec-
tor of electric throttle control actuator or ECM is di sconnected or electric throttle control actuator inside is
cleaned. Refer to EC-129, "
Work Procedure".
Work ProcedureINFOID:0000000012431357
1.START
WITH CONSULT
1. Turn ignition switch ON.
2. Select “CLSD THL POS LEARN” in “WORK SUPPORT” mode.
3. Follow the instructions on the CONSULT display.
4. Turn ignition switch OFF and wait at least 10 seconds. Check that throttle valve moves during the above 10 seconds by confirming the operating sound.
WITHOUT CONSULT
1. Start the engine.
NOTE:
Engine coolant temperature is 25 °C (77° F) or less before engine starts.
2. Warm up the engine. NOTE:
Raise engine coolant temperature until it reaches 65 °C (149 °F) or more.
3. Turn ignition switch OFF and wait at least 10 seconds. Check that throttle valve moves during the above 10 seconds by confirming the operating sound.
>> END
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1257 of 3641
![NISSAN NOTE 2016 Service Repair Manual EC-130
< BASIC INSPECTION >[HR16DE]
IDLE AIR VOLUME LEARNING
IDLE AIR VOLUME LEARNING
DescriptionINFOID:0000000012431358
Idle Air Volume Learning is a function of ECM to learn the idle air volume that NISSAN NOTE 2016 Service Repair Manual EC-130
< BASIC INSPECTION >[HR16DE]
IDLE AIR VOLUME LEARNING
IDLE AIR VOLUME LEARNING
DescriptionINFOID:0000000012431358
Idle Air Volume Learning is a function of ECM to learn the idle air volume that](/img/5/57363/w960_57363-1256.png)
EC-130
< BASIC INSPECTION >[HR16DE]
IDLE AIR VOLUME LEARNING
IDLE AIR VOLUME LEARNING
DescriptionINFOID:0000000012431358
Idle Air Volume Learning is a function of ECM to learn the idle air volume that keeps each engine idle speed
within the specific range. It must be performed under any of the following conditions:
• Each time electric throttle control actuator or ECM is replaced.
• Idle speed or ignition timing is out of specification.
Refer to
EC-130, "
Work Procedure".
Work ProcedureINFOID:0000000012431359
1.PRECONDITIONING
Make sure that all of the following conditions are satisfied.
Learning will be cancelled if any of the follo wing conditions are missed for even a moment.
• Battery voltage: More than 12.9 V (At idle)
• Engine coolant temperature: 70 - 100 °C (158 - 212° F)
• Selector lever: P or N (CVT), Neutral (M/T)
• Electric load switch: OFF
(Air conditioner, headlamp, rear window defogger)
- For vehicles equipped with dayt ime light systems, perform one of the following procedures before
starting engine not to illuminate headlamps.
• Apply parking brake
• Set lighting switch to the 1st position
• Steering wheel: Neutral (Straight-ahead position) position
• Vehicle speed: Stopped
• Transmission: Warmed-up
- CVT models
• With CONSULT: Drive vehicle until “FLUID TEMP SE ” in “DATA MONITOR” mode of “TRANSMISSION” sys-
tem indicates less than 0.9 V.
• Without CONSULT: Drive vehicle for 10 minutes.
- M/T models
• Drive vehicle for 10 minutes.
Do you have CONSULT?
YES >> GO TO 2.
NO >> GO TO 3.
2.IDLE AIR VOLUME LEARNING
With CONSULT
1. Perform ACCELERATOR PEDAL RELEAS ED POSITION LEARNING. Refer to EC-128, "
Description".
2. Perform THROTTLE VALVE CLOSED POSITION LEARNING. Refer to EC-129, "
Description".
3. Start engine and warm it up to normal operating temperature.
4. Select “IDLE AIR VOL LEARN” in “WORK SUPPORT” mode with CONSULT.
5. Touch “START” and wait 20 seconds.
Is
“CMPLT” displayed on CONSULT screen?
YES >> GO TO 4.
NO >> GO TO 5.
3.IDLE AIR VOLUME LEARNING
Without CONSULT
NOTE:
• It is better to count the ti me accurately with a clock.
• It is impossible to switch the di agnostic mode when an accelerator pedal position sensor circuit has
a malfunction.
1. Perform ACCELERATOR PEDAL RELEAS ED POSITION LEARNING. Refer to EC-128, "
Description".
2. Perform THROTTLE VALVE CLOSED POSITION LEARNING. Refer to EC-129, "
Description".
3. Start engine and warm it up to normal operating temperature.
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Confirm that accelerator pedal is fully releas ed, turn ignition switch ON and wait 3 seconds.
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1258 of 3641
![NISSAN NOTE 2016 Service Repair Manual IDLE AIR VOLUME LEARNINGEC-131
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
6. Repeat the following procedure quick
ly five times within 5 seconds.
- Fully depress the accelerator ped NISSAN NOTE 2016 Service Repair Manual IDLE AIR VOLUME LEARNINGEC-131
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
6. Repeat the following procedure quick
ly five times within 5 seconds.
- Fully depress the accelerator ped](/img/5/57363/w960_57363-1257.png)
IDLE AIR VOLUME LEARNINGEC-131
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
6. Repeat the following procedure quick
ly five times within 5 seconds.
- Fully depress the accelerator pedal.
- Fully release the accelerator pedal.
7. Wait 7 seconds, fully depress the accelerator pedal and keep it for approx. 20 seconds until the MIL stops blinking and turned ON.
8. Fully release the accelerator pedal within 3 seconds after the MIL turned ON.
9. Start engine and let it idle.
10. Wait 20 seconds.
>> GO TO 4.
4.CHECK IDLE SPEED AND IGNITION TIMING
Rev up the engine two or three times and make sure that idle speed and ignition timing are within the specifi-
cations.
For specification, refer to EC-478, "
Idle Speed" and EC-478, "Ignition Timing".
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following
• Check that throttle valve is fully closed.
• Check PCV valve operation.
• Check that downstream of throttle valve is free from air leakage.
Is the inspection result normal?
YES >> GO TO 6.
NO >> Repair or replace malfunctioning part.
6.DETECT MALFUNCTIONING PART
Engine component parts and their installation conditi on are questionable. Check and eliminate the cause of
the incident.
It is useful to perform “TROUBLE DIAG NOSIS - SPECIFICATION VALUE”. Refer to EC-151, "
Description".
If any of the following conditions occur after the engi ne has started, eliminate the cause of the incident and
perform Idle Air Volume Learning all over again:
• Engine stalls.
• Erroneous idle.
>> INSPECTION END
PBIB0665E
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1259 of 3641
![NISSAN NOTE 2016 Service Repair Manual EC-132
< BASIC INSPECTION >[HR16DE]
MIXTURE RATIO SELF-LEARNING VALUE CLEAR
MIXTURE RATIO SELF-LEARNING VALUE CLEAR
DescriptionINFOID:0000000012431360
This describes how to erase the mixture ratio sel NISSAN NOTE 2016 Service Repair Manual EC-132
< BASIC INSPECTION >[HR16DE]
MIXTURE RATIO SELF-LEARNING VALUE CLEAR
MIXTURE RATIO SELF-LEARNING VALUE CLEAR
DescriptionINFOID:0000000012431360
This describes how to erase the mixture ratio sel](/img/5/57363/w960_57363-1258.png)
EC-132
< BASIC INSPECTION >[HR16DE]
MIXTURE RATIO SELF-LEARNING VALUE CLEAR
MIXTURE RATIO SELF-LEARNING VALUE CLEAR
DescriptionINFOID:0000000012431360
This describes how to erase the mixture ratio self-learni
ng value. For the actual procedure, follow the instruc-
tions in “Diagnosis Procedure”. Refer to EC-132, "
Work Procedure".
Work ProcedureINFOID:0000000012431361
1.START
With CONSULT
1. Start engine and warm it up to normal operating temperature.
2. Select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CONSULT.
3. Clear mixture ratio self-lear ning value by touching “CLEAR”.
With GST
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF.
3. Disconnect mass air flow sensor harness connector.
4. Restart engine and let it idle for at least 5 seconds.
5. Stop engine and reconnect mass air flow sensor harness connector.
6. Select Service $03 with GST. Make sure DTC P0102 is detected.
7. Select Service $04 with GST to erase the DTC P0102.
>> END
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1260 of 3641
![NISSAN NOTE 2016 Service Repair Manual BASIC INSPECTIONEC-133
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
BASIC INSPECTION
Work ProcedureINFOID:0000000012431362
1.INSPECTION START
1. Check service records for any recent r NISSAN NOTE 2016 Service Repair Manual BASIC INSPECTIONEC-133
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
BASIC INSPECTION
Work ProcedureINFOID:0000000012431362
1.INSPECTION START
1. Check service records for any recent r](/img/5/57363/w960_57363-1259.png)
BASIC INSPECTIONEC-133
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
BASIC INSPECTION
Work ProcedureINFOID:0000000012431362
1.INSPECTION START
1. Check service records for any recent repairs that may indicate a related malfunction, or a current need for scheduled maintenance.
2. Open engine hood and check the following:
- Harness connectors for improper connections
- Wiring harness for improper connections, pinches and cut
- Vacuum hoses for splits, kinks and improper connections
- Hoses and ducts for leaks
- Air cleaner clogging
- Gasket
3. Confirm that electrical or mechanical loads are not applied.
- Headlamp switch is OFF.
- Air conditioner switch is OFF.
- Rear window defogger switch is OFF.
- Steering wheel is in the straight-ahead position, etc.
4. Start engine and warm it up until engine coolant temperature indicator points to the middle of gauge.
Ensure engine stays below 1,000 rpm.
5. Run engine at about 2,000 rpm for about 2 minutes under no load.
6. Make sure that no DTC is displayed with CONSULT or GST.
Is any DTC detected?
YES >> GO TO 2.
NO >> GO TO 3.
2.REPAIR OR REPLACE
Repair or replace components as necessary according to corresponding Diagnostic Procedure.
>> GO TO 3
3.CHECK TARGET IDLE SPEED
1. Run engine at about 2,000 rpm for about 2 minutes under no load.
SEF983U
SEF976U
SEF977U
Revision: August 2015 2016 Versa Note
cardiagn.com
