NISSAN NOTE 2016 Service Repair Manual

EC-144
< BASIC INSPECTION >[HR16DE]
HOW TO SET SRT CODE
WITH CONSULT
Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode of “ENGINE” using CONSULT.
WITHOUT CONSULT
Perform “SRT status” mode with EC-57, "
On Board Diagnosis Function".
WITH GST
Select Service $01 with GST.
Is SRT(s) set?
YES >> GO TO 12.
NO >> Call TECH LINE or take appropriate action.
12.CHECK PERMANENT DTC
NOTE:
Permanent DTC cannot be checked with a tool other than CONSULT or GST.
WITH CONSULT
Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode of “ENGINE” using CONSULT.
WITH GST
Select Service $01 with GST.
Is permanent DTC(s) detected?
YES >> Proceed to EC-151, "Description".
NO >> END
Revision: August 2015 2016 Versa Note

cardiagn.com

HOW TO ERASE PERMANENT DTCEC-145
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
HOW TO ERASE PERMANENT DTC
DescriptionINFOID:0000000012431367
OUTLINE
When a DTC is stored in ECM
When a DTC is stored in ECM and MIL is ON, a permanent
DTC is erased with MIL shutoff if the same mal-
function is not detected after performing the drivi ng pattern for MIL shutoff three times in a raw.
When a DTC is not stored in ECM
The erasing method depends on a permanent DTC stor ed in ECM. Refer to the following table.
NOTE:
If the applicable permanent DTC includes multiple groups, perform the procedure of Group B first. If the per-
manent DTC is not erased, perform the procedure of Group A.
× : Applicable —: Not applicable
*: For group, refer to EC-87, "DTCIndex".
PERMANENT DTC ITEM
For permanent DTC items, MIL turns ON. Refer to EC-87, "DTCIndex".

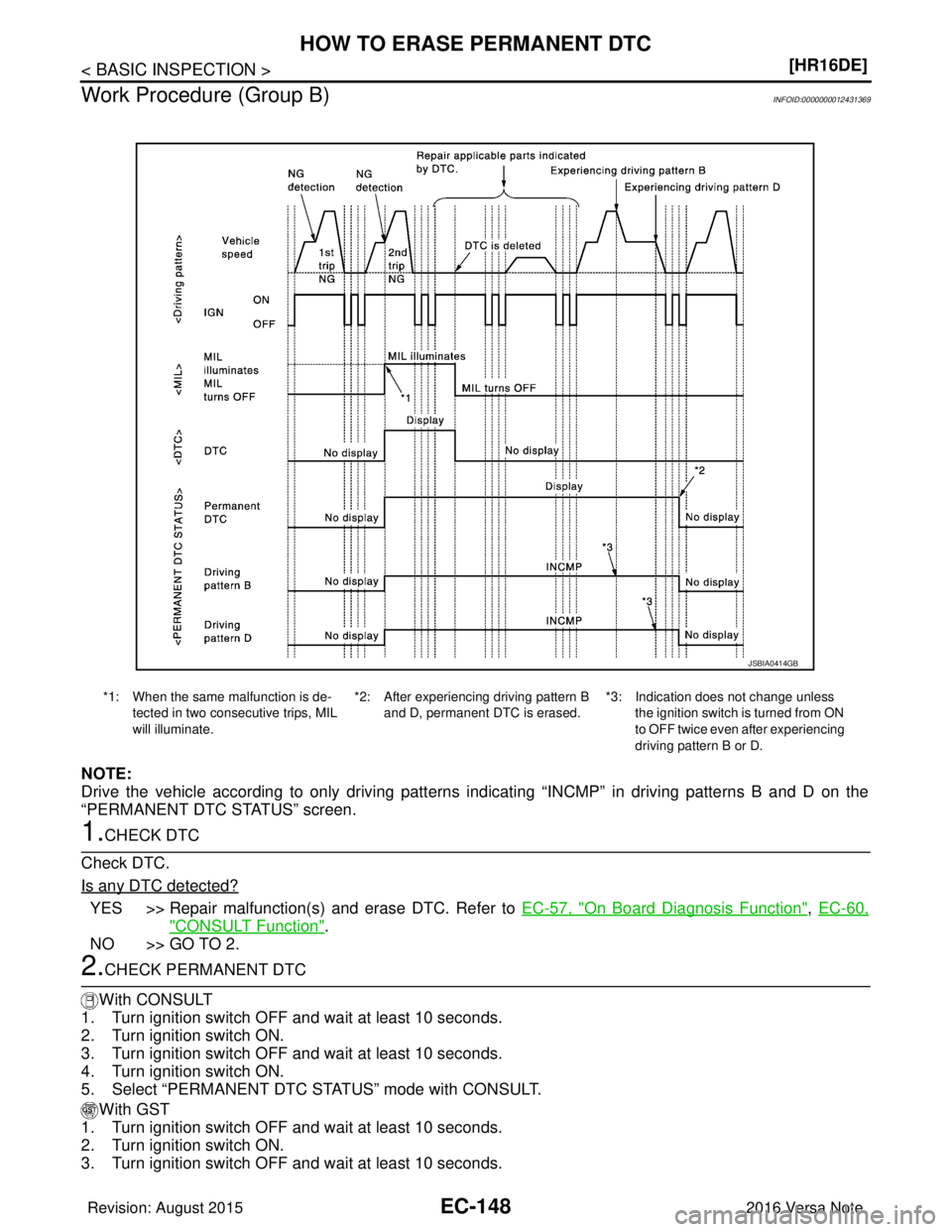

*1: When the same malfunction is de-
tected in two consecutive trips, MIL
will illuminate. *2: MIL will turn off after vehicle is driven
3 times (driving pattern B) without
any malfunctions.

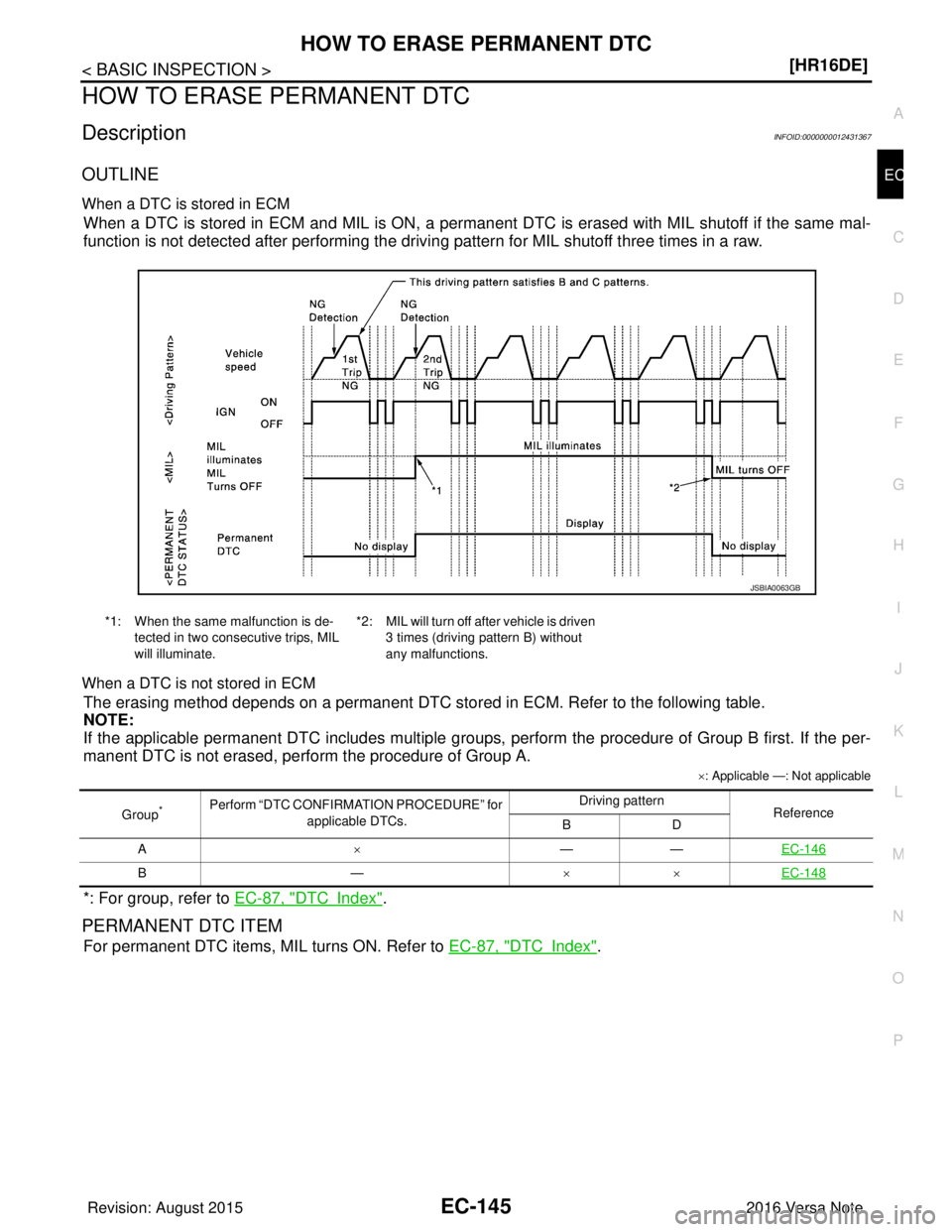

JSBIA0063GB
Group*Perform “DTC CONFIRMATION PROCEDURE” for applicable DTCs. Driving pattern
Reference
BD
A ×—— EC-146
B— ××EC-148
Revision: August 2015 2016 Versa Note

cardiagn.com

EC-146
< BASIC INSPECTION >[HR16DE]
HOW TO ERASE PERMANENT DTC

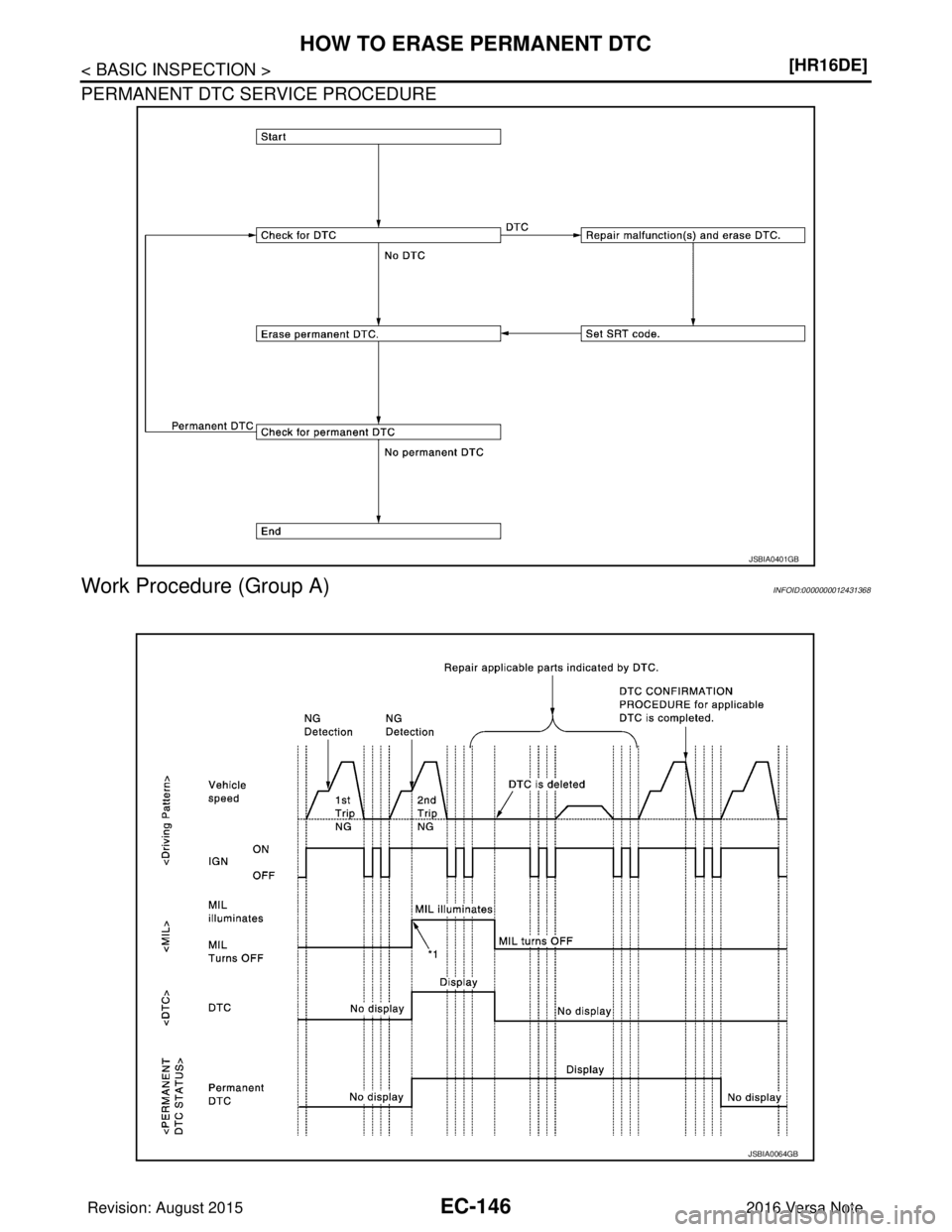

PERMANENT DTC SERVICE PROCEDURE
Work Procedure (Group A)INFOID:0000000012431368
JSBIA0401GB
JSBIA0064GB
Revision: August 2015
2016 Versa Note

cardiagn.com

HOW TO ERASE PERMANENT DTCEC-147
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O1.CHECK DTC
Check DTC.
Is any DTC detected?
YES >> Repair malfunction(s) and erase DTC. Refer to EC-57, "On Board Diagnosis Function", EC-60,
"CONSULT Function".
NO >> GO TO 2.
2.CHECK PERMANENT DTC
With CONSULT
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select “PERMANENT DTC STATUS” mode with CONSULT.
With GST
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select Service $0A with GST.
Is any permanent DTC detected?
YES >> GO TO 3.
NO >> END
3.PERFORM DTC CONFIRMATION PROCEDURE
Perform “DTC CONFIRMATION PROC EDURE” for DTCs which are the same as permanent DTCs stored in
ECM. Refer to EC-87, "
DTCIndex".
>> GO TO 4.
4.CHECK PERMANENT DTC
With CONSULT
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select “PERMANENT DTC STATUS” mode with CONSULT.
With GST
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select Service $0A with GST.
Is any permanent DTC detected?
YES >> GO TO 1.
NO >> END
*1: When the same malfunction is de-
tected in two consecutive trips, MIL
will illuminate.
Revision: August 2015 2016 Versa Note

cardiagn.com

EC-148
< BASIC INSPECTION >[HR16DE]
HOW TO ERASE PERMANENT DTC
Work Procedure (Group B)
INFOID:0000000012431369
NOTE:
Drive the vehicle according to only driving patterns indicating “INCMP” in driving patterns B and D on the
“PERMANENT DTC STATUS” screen.
1.CHECK DTC
Check DTC.
Is any DTC detected?
YES >> Repair malfunction(s) and erase DTC. Refer to EC-57, "On Board Diagnosis Function", EC-60,
"CONSULT Function".
NO >> GO TO 2.
2.CHECK PERMANENT DTC
With CONSULT
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select “PERMANENT DTC STATUS” mode with CONSULT.
With GST
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
*1: When the same malfunction is de-
tected in two consecutive trips, MIL
will illuminate. *2: After experiencing driving pattern B
and D, permanent DTC is erased. *3: Indication does not change unless
the ignition switch is turned from ON
to OFF twice even after experiencing
driving pattern B or D.
JSBIA0414GB
Revision: August 2015 2016 Versa Note

cardiagn.com

HOW TO ERASE PERMANENT DTCEC-149
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
4. Turn ignition switch ON.
5. Select Service $0A with GST.
Is any permanent DTC detected?
YES >> GO TO 3.
NO >> END
3.DRIVE DRIVING PATTERN B
CAUTION:
• Always drive at a safe speed.
• Never erase self-diagnosis results.
• If self-diagnosis results are erased during the trip of driving pattern B or D, the counter of driving
pattern B and D is reset.
With CONSULT
1. Start engine and warm it up to normal operating temperature.
2. Use “PERMANENT DTC WORK SUPPORT” mode with CONS ULT to drive the vehicle according to driv-
ing pattern B. Refer to EC-60, "
CONSULT Function", EC-54, "DIAGNOSIS DESCRIPTION : Driving Pat-
tern".
With GST
1. Start engine and warm it up to normal operating temperature.
2. Drive the vehicle according to driving pattern B. Refer to EC-54, "
DIAGNOSIS DESCRIPTION : Driving
Pattern".
>> GO TO 4.
4.CHECK PERMANENT DTC
With CONSULT
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select “PERMANENT DTC STATUS” mode with CONSULT.
With GST
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select Service $0A with GST.
Is any permanent DTC detected?
YES >> GO TO 5.
NO >> END
5.DRIVE DRIVING PATTERN D
CAUTION:
• Always drive at a safe speed.
• Never erase self-diagnosis results.
• If self-diagnosis results are erased during the trip of driving pattern B or D, the counter of driving
pattern B and D is reset.
Drive the vehicle according to driving pattern D. Refer to EC-54, "
DIAGNOSIS DESCRIPTION : Driving Pat-
tern".
>> GO TO 6.
6.CHECK PERMANENT DTC
With CONSULT
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
Revision: August 2015 2016 Versa Note

cardiagn.com

EC-150
< BASIC INSPECTION >[HR16DE]
HOW TO ERASE PERMANENT DTC
5. Select “PERMANENT DTC
STATUS” mode with CONSULT.
With GST
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select Service $0A with GST.
Is any permanent DTC detected?
YES >> GO TO 1.
NO >> END
Revision: August 2015 2016 Versa Note

cardiagn.com

TROUBLE DIAGNOSIS - SPECIFICATION VALUEEC-151
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC/CIRCUIT DIAGNOSIS
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
DescriptionINFOID:0000000012431370
The specification (SP) value indicates the tolerance of
the value that is displayed in “SPEC” of “DATA MONI-
TOR” mode of CONSULT during normal operation of the Engine Control System. When the value in “SPEC” of
“DATA MONITOR” mode is within the SP value, the Engine Control System is confirmed OK. When the value
in “SPEC” of “DATA MONITOR” mode is NOT within the SP value, the Engine Control System may have one
or more malfunctions.
The SP value is used to detect malfunctions that may af fect the Engine Control System, but will not light the
MIL.
The SP value will be displayed for the following three items:
• B/FUEL SCHDL (The fuel injection pulse width programmed into ECM prior to any learned on board correc- tion)
• A/F ALPHA-B1 (The mean value of air-fuel ratio feedback correction factor per cycle)
• MAS A/F SE-B1 (The signal voltage of the mass air flow sensor)
Component Function CheckINFOID:0000000012431371
1.START
Make sure that all of the following conditions are satisfied.
• Vehicle driven distance: More than 5,000 km (3,107 miles)
• Barometric pressure: 98.3 - 104.3 kPa (1.003 - 1.064 kg/cm
2, 14.25 - 15.12 psi)
• Atmospheric temperature: 20 - 30 °C (68 - 86° F)
• Engine coolant temperature: 75 - 95 °C (167 - 203° F)
• Transmission: Warmed-up
- CVT models: After the engine is warmed up to normal operating temperature, drive vehicle until “FLUID TEMP SE” (CVT fluid temperature sensor signal) indicates more than 60 °C (140° F).
- M/T models: After the engine is warmed up to normal operating temperature, drive vehicle for 5 minutes.
• Electrical load: Not applied
- Rear window defogger switch, air conditioner switch, lighting switch are OFF. Steering wheel is straight
ahead.
• Engine speed: Idle
>> GO TO 2.
2.PERFORM “SPEC” OF “DATA MONITOR” MODE
With CONSULT
NOTE:
Perform “SPEC” in “DATA MONITOR” mode in maximum scale display.
1. Perform EC-133, "
Work Procedure".
2. Select “B/FUEL SCHDL”, “A/F ALPHA-B1” and “MAS A/F SE-B1” in “SPEC” of “DATA MONITOR” mode
with CONSULT.
3. Make sure that monitor items are within the SP value.
Is the inspection result normal?
YES >> END
NO >> Go to EC-152, "
Diagnosis Procedure".
Revision: August 2015 2016 Versa Note

cardiagn.com

EC-152
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
Diagnosis Procedure
INFOID:0000000012431372
OVERALL SEQUENCE
PBIB2318E
Revision: August 2015 2016 Versa Note

cardiagn.com

TROUBLE DIAGNOSIS - SPECIFICATION VALUEEC-153
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

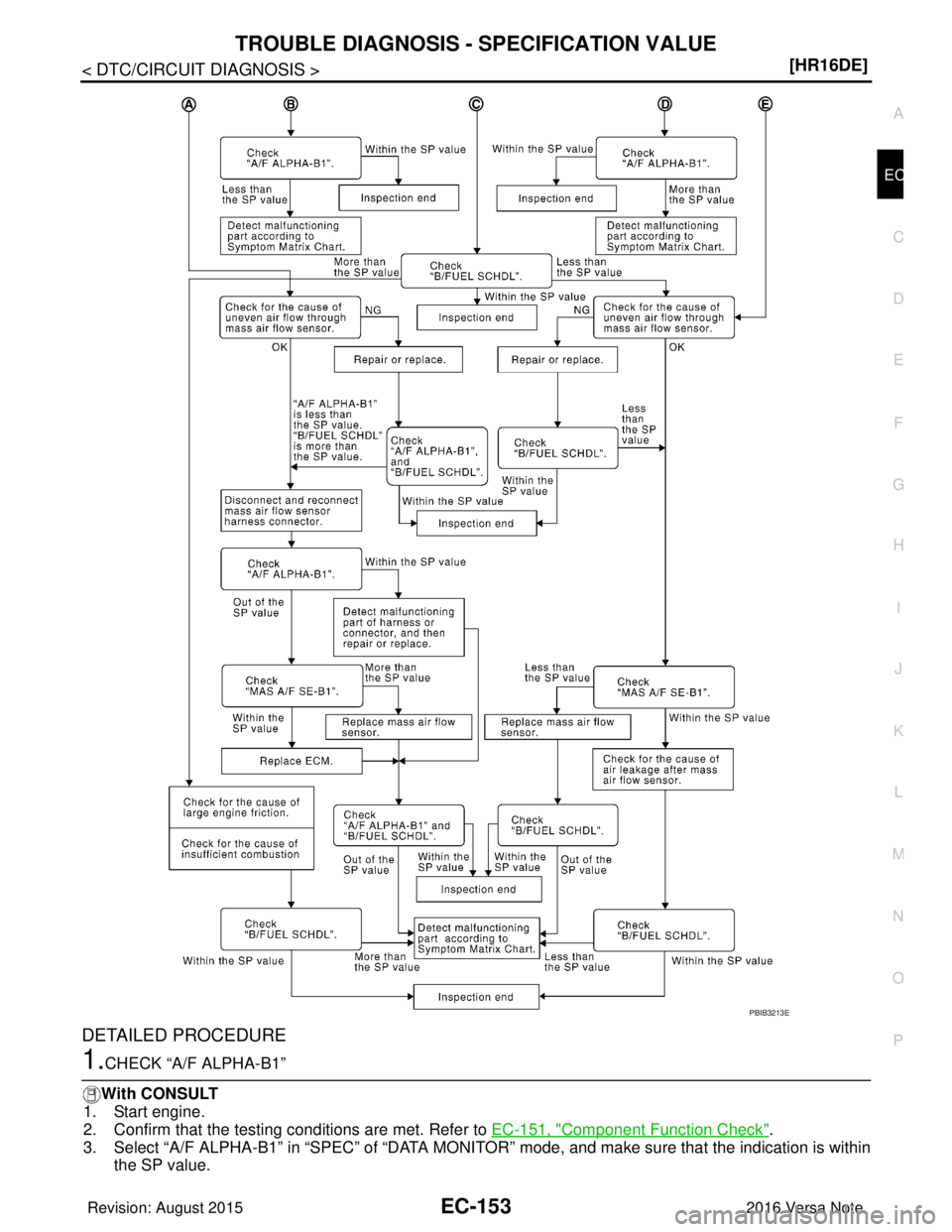

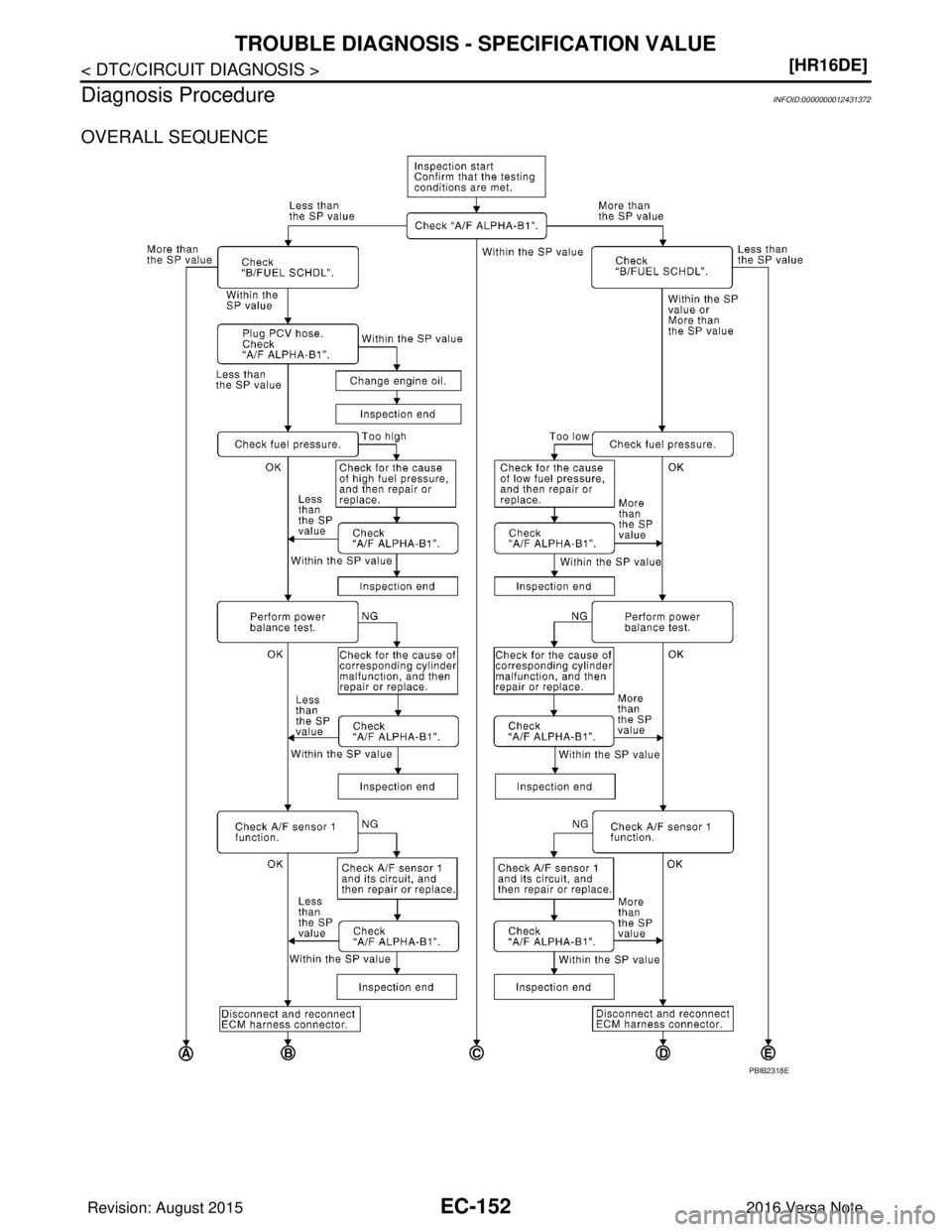

DETAILED PROCEDURE
1.CHECK “A/F ALPHA-B1”
With CONSULT
1. Start engine.
2. Confirm that the testing conditions are met. Refer to EC-151, "
Component Function Check".
3. Select “A/F ALPHA-B1” in “SPEC” of “DATA MONITOR” mode, and make sure that the indication is within
the SP value.
PBIB3213E
