EC-314
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P0451 EVAP CONTROL SYSTEM PRESSURE SENSOR
CAUTION:
• Always calibrate the vacuum pump gauge when using it.
• Do not apply below -93.3 kPa (-0.952 kg/cm
2, -13.53 psi) or pressure over 101.3 kPa (1.033 kg/
cm
2, 14.69 psi).
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace EVAP control system pressure sensor. Refer to FL-19, "
Removal and Installation".
ECM
Condition
[Applied vacuum kPa (kg/cm
2, psi)] Voltag e
Connector +
−
Te r m i n a l
F11 43 68 Not applied
0.5 - 4.6 V
-26.7 (-0.272, -3.87) 2.1 to 2.5 V lower than above value
Revision: August 2015 2016 Versa Note

cardiagn.com

P0452 EVAP CONTROL SYSTEM PRESSURE SENSOREC-315
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0452 EVAP CONTROL SYST
EM PRESSURE SENSOR
DTC LogicINFOID:0000000012431508
DTC DETECTION LOGIC
NOTE:
If DTC P0451 is displayed with DTC P0643, first pe rform the trouble diagnosis for DTC P0643. Refer to
EC-356, "
DTC Logic".
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next test.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
Always perform test at a temperature of 5 °C (41° F) or more.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Select “DATA MONITOR” mode of “ENGINE” using CONSULT.
5. Make sure that “FUEL T/TMP SE” indication is more than 0 °C (32 °F).
6. Start engine and wait at least 20 seconds.
7. Check 1st trip DTC.
With GST
1. Start engine and warm it up to normal operating temperature.
2. Set voltmeter probes to ECM harness connector terminals as per the following.
3. Make sure that the voltage is less than 4.2 V.
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Start engine and wait at least 20 seconds.
6. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-315, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000012431509
1.CHECK EVAP CONTROL SYS TEM PRESSURE SENSOR CONNECTOR FOR WATER
DTC No.CONSULT screen terms
(Trouble diagnosis content) DTC detecting condition
Possible cause
P0452 EVAP SYS PRES SEN
(EVAP control system pressure
sensor low input) An excessively low voltage from the sensor
is sent to ECM. • Harness or connectors
(EVAP control system pressure sensor
circuit is shorted.)
• EVAP control system pressure sensor
ECM
Vo l ta g e
Connector +
−
Te r m i n a l
F11 4368 Less than 4.2 V
Revision: August 2015 2016 Versa Note

cardiagn.com

EC-316
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR
1. Turn ignition switch OFF.
2. Disconnect EVAP control system pressure sensor harness connector.
3. Check sensor harness connector for water.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace harness connector.
2.CHECK EVAP CONTROL SYSTEM PR
ESSURE SENSOR POWER SUPPLY
1. Turn ignition switch ON.
2. Check the voltage between EVAP control syst em pressure sensor harness connector and ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> GO TO 3.
3.CHECK EVAP CONTROL SY STEM PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between EVAP control system pressure sensor harness connector and ECM har- ness connector.
4. Also check harness for short to ground and to power.
Is the inspection result normal?
YES >> Perform the trouble diagnosis for power supply circuit.
NO >> Repair or replace error-detected parts
4.CHECK EVAP CONTROL SYSTEM PR ESSURE SENSOR GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between EVAP control system pressure sensor harness connector and ECM har- ness connector.
4. Also check harness for short to power.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair or replace error-detected parts.
5.CHECK EVAP CONTROL SYSTEM PR ESSURE SENSOR SIGNAL CIRCUIT
1. Check the continuity between EVAP control system pressure sensor harness connector and ECM har- ness connector.Water should not exist.
EVAP control system pressure sensor
GroundVoltag e
(Approx.)
Connector Terminal
B3 3Ground 5 V
EVAP control system pressure sensor ECM
Continuity
Connector Terminal Connector Terminal
B3 3F11 71 Existed
EVAP control system pressure sensor ECM
Continuity
Connector Terminal Connector Terminal
B3 1F11 68 Existed
Revision: August 2015 2016 Versa Note

cardiagn.com

P0452 EVAP CONTROL SYSTEM PRESSURE SENSOREC-317
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
2. Also check harness for short to ground and to power.
Is the inspection result normal?
YES >> GO TO 6.
NO >> Repair or replace error-detected parts.
6.CHECK EVAP CONTROL SYS
TEM PRESSURE SENSOR
Check the EVAP control system pressure sensor. Refer to EC-313, "
Component Inspection".
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-42, "Intermittent Incident".
NO >> Replace EVAP control system pressure sensor. Refer to FL-19, "
Removal and Installation".
Component InspectionINFOID:0000000012431510
1.CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
1. Turn ignition switch OFF.
2. Remove EVAP control system pr essure sensor with its harness connector connected from EVAP canister.
Always replace O-ring with a new one.
3. Install a vacuum pump to EVAP control system pressure sensor.
4. Turn ignition switch ON and check output voltage between ECM harness connector and ground under the
following conditions.
CAUTION:
• Always calibrate the vacuum pu mp gauge when using it.
• Do not apply below -93.3 kPa (-0.952 kg/cm
2, -13.53 psi) or pressure over 101.3 kPa (1.033 kg/
cm
2, 14.69 psi).
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace EVAP control system pressure sensor. Refer to FL-19, "
Removal and Installation".
EVAP control system pressure sensor ECM
Continuity
Connector Terminal Connector Terminal
B3 2F11 43 Existed
ECM
Condition
[Applied vacuum kPa (kg/cm
2, psi)] Vo l ta g e
Connector +
−
Te r m i n a l
F11 43 68 Not applied
0.5 - 4.6 V
-26.7 (-0.272, -3.87) 2.1 to 2.5 V lower than above value
Revision: August 2015 2016 Versa Note

cardiagn.com

EC-318
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
DTC LogicINFOID:0000000012431511
DTC DETECTION LOGIC
NOTE:
If DTC P0451 is displayed with DTC P0643, first pe
rform the trouble diagnosis for DTC P0643. Refer to
EC-356, "
DTC Logic".
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next test.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
Always perform test at a temperature of 5 °C (41 °F) or more.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Select “DATA MONITOR” mode of “ENGINE” using CONSULT.
5. Make sure that “FUEL T/TMP SE” indication is more than 0 °C (32° F).
6. Start engine and wait at least 20 seconds.
7. Check 1st trip DTC.
With GST
1. Start engine and warm it up to normal operating temperature.
2. Set voltmeter probes to ECM harness connector terminals as per the following.
3. Make sure that the voltage is less than 4.2 V.
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Start engine and wait at least 20 seconds.
6. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-318, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000012431512
1.CHECK EVAP CONTROL SYSTEM PRESS URE SENSOR CONNECTOR FOR WATER
DTC No.CONSULT screen terms
(Trouble diagnosis content) DTC detecting condition
Possible cause
P0453 EVAP SYS PRES SEN
(EVAP control system pressure
sensor high input) An excessively high voltage from the sensor
is sent to ECM. • Harness or connectors
(EVAP control system pressure sensor
circuit is shorted.)
• EVAP control system pressure sensor
ECM
Vo l ta g e
Connector +
−
Terminal
F11 43 68Less than 4.2 V
Revision: August 2015 2016 Versa Note

cardiagn.com

P0453 EVAP CONTROL SYSTEM PRESSURE SENSOREC-319
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
1. Turn ignition switch OFF.
2. Disconnect EVAP control system pressure sensor harness connector.
3. Check sensor harness connector for water.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace harness connector.
2.CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR POWER SUPPLY
1. Turn ignition switch ON.
2. Check the voltage between EVAP control system pressure sensor harness connector and ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> GO TO 3.
3.CHECK EVAP CONTROL SYS TEM PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between EVAP control syst em pressure sensor harness connector and ECM har-
ness connector.
4. Also check harness for short to ground and to power.
Is the inspection result normal?
YES >> Perform the trouble diagnosis for power supply circuit.
NO >> Repair or replace error-detected parts
4.CHECK EVAP CONTROL SYSTEM PR ESSURE SENSOR GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between EVAP control syst em pressure sensor harness connector and ECM har-
ness connector.
4. Also check harness for short to power.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair or replace error-detected parts.
5.CHECK EVAP CONTROL SYSTEM PR ESSURE SENSOR SIGNAL CIRCUIT
1. Check the continuity between EVAP control syst em pressure sensor harness connector and ECM har-
ness connector. Water should not exist.
EVAP control system pressure sensor
GroundVo l ta g e
(Approx.)
Connector Terminal
B3 3Ground 5 V
EVAP control system pressure sensor ECM
Continuity
Connector Terminal Connector Terminal
B3 3F11 71 Existed
EVAP control system pressure sensor ECM
Continuity
Connector Terminal Connector Terminal
B3 1F11 68 Existed
Revision: August 2015 2016 Versa Note

cardiagn.com

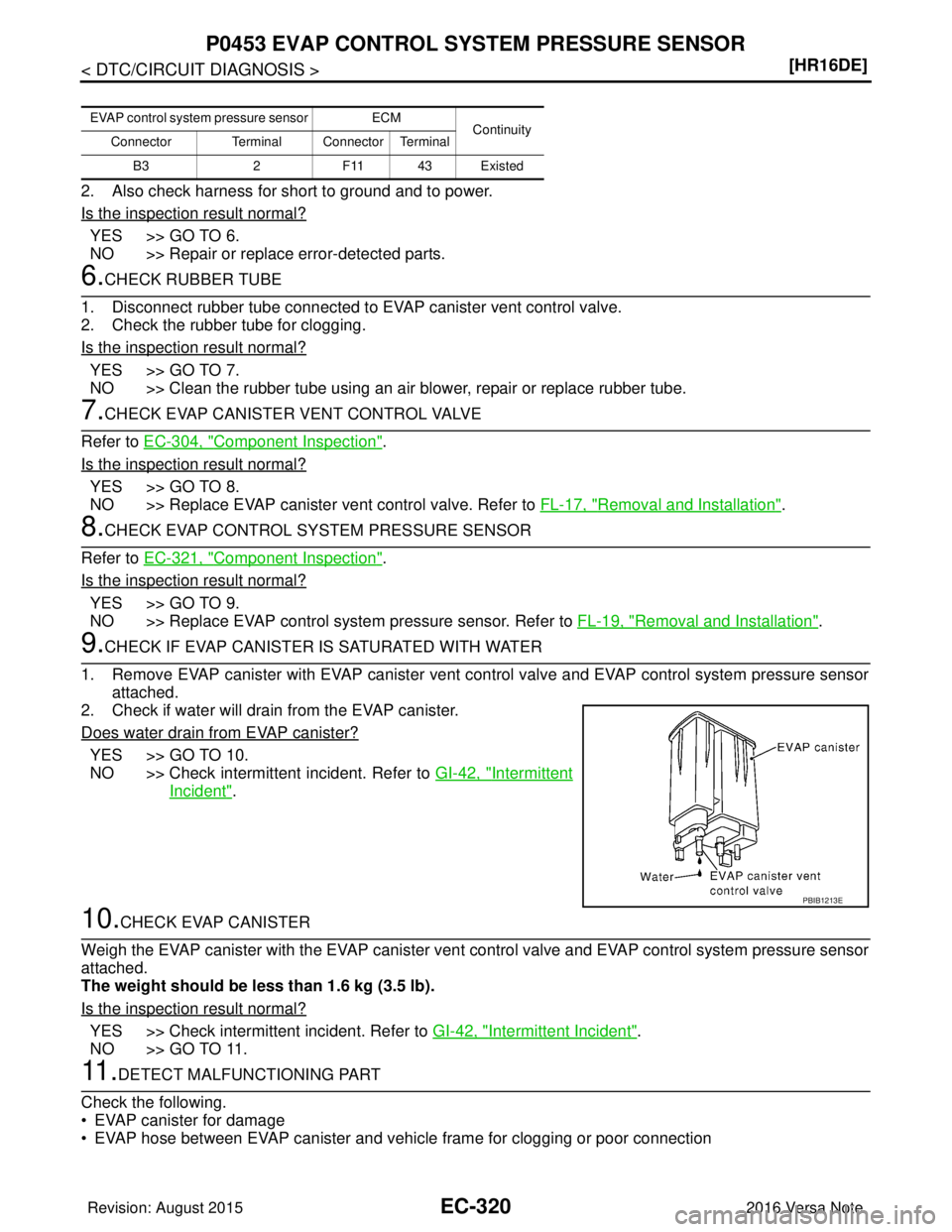

EC-320
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
2. Also check harness for short to ground and to power.
Is the inspection result normal?
YES >> GO TO 6.
NO >> Repair or replace error-detected parts.
6.CHECK RUBBER TUBE
1. Disconnect rubber tube connected to EV AP canister vent control valve.
2. Check the rubber tube for clogging.
Is the inspection result normal?
YES >> GO TO 7.
NO >> Clean the rubber tube using an air blower, repair or replace rubber tube.
7.CHECK EVAP CANISTER VENT CONTROL VALVE
Refer to EC-304, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 8.
NO >> Replace EVAP canister vent control valve. Refer to FL-17, "
Removal and Installation".
8.CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
Refer to EC-321, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 9.
NO >> Replace EVAP control system pressure sensor. Refer to FL-19, "
Removal and Installation".
9.CHECK IF EVAP CANISTER IS SATURATED WITH WATER
1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.
2. Check if water will drain from the EVAP canister.
Does water drain from EVAP canister?
YES >> GO TO 10.
NO >> Check intermittent incident. Refer to GI-42, "
Intermittent
Incident".
10.CHECK EVAP CANISTER
Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sensor
attached.
The weight should be less than 1.6 kg (3.5 lb).
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-42, "Intermittent Incident".
NO >> GO TO 11.
11 .DETECT MALFUNCTIONING PART
Check the following.
• EVAP canister for damage
• EVAP hose between EVAP canister and vehicle frame for clogging or poor connection
EVAP control system pressure sensor ECM Continuity
Connector Terminal Connector Terminal
B3 2F11 43 Existed
PBIB1213E
Revision: August 2015 2016 Versa Note

cardiagn.com

P0453 EVAP CONTROL SYSTEM PRESSURE SENSOREC-321
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
>> Repair hose or replace EVAP canister. Refer to
FL-14, "Removal and Installation".
Component InspectionINFOID:0000000012431513
1.CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
1. Turn ignition switch OFF.
2. Remove EVAP control system pr essure sensor with its harness connector connected from EVAP canister.
Always replace O-ring with a new one.
3. Install a vacuum pump to EVAP control system pressure sensor.
4. Turn ignition switch ON and check output voltage between ECM harness connector and ground under the
following conditions.
CAUTION:
• Always calibrate the vacuum pu mp gauge when using it.
• Do not apply below -93.3 kPa (-0.952 kg/cm
2, -13.53 psi) or pressure over 101.3 kPa (1.033 kg/
cm
2, 14.69 psi).
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace EVAP control system pressure sensor. Refer to FL-19, "
Removal and Installation".
ECM
Condition
[Applied vacuum kPa (kg/cm
2, psi)] Vo l ta g e
Connector +
−
Te r m i n a l
F11 43 68 Not applied
0.5 - 4.6 V
-26.7 (-0.272, -3.87) 2.1 to 2.5 V lower than above value
Revision: August 2015 2016 Versa Note

cardiagn.com

EC-322
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P0456 EVAP CONTROL SYSTEM
P0456 EVAP CONTROL SYSTEM
DTC LogicINFOID:0000000012431514

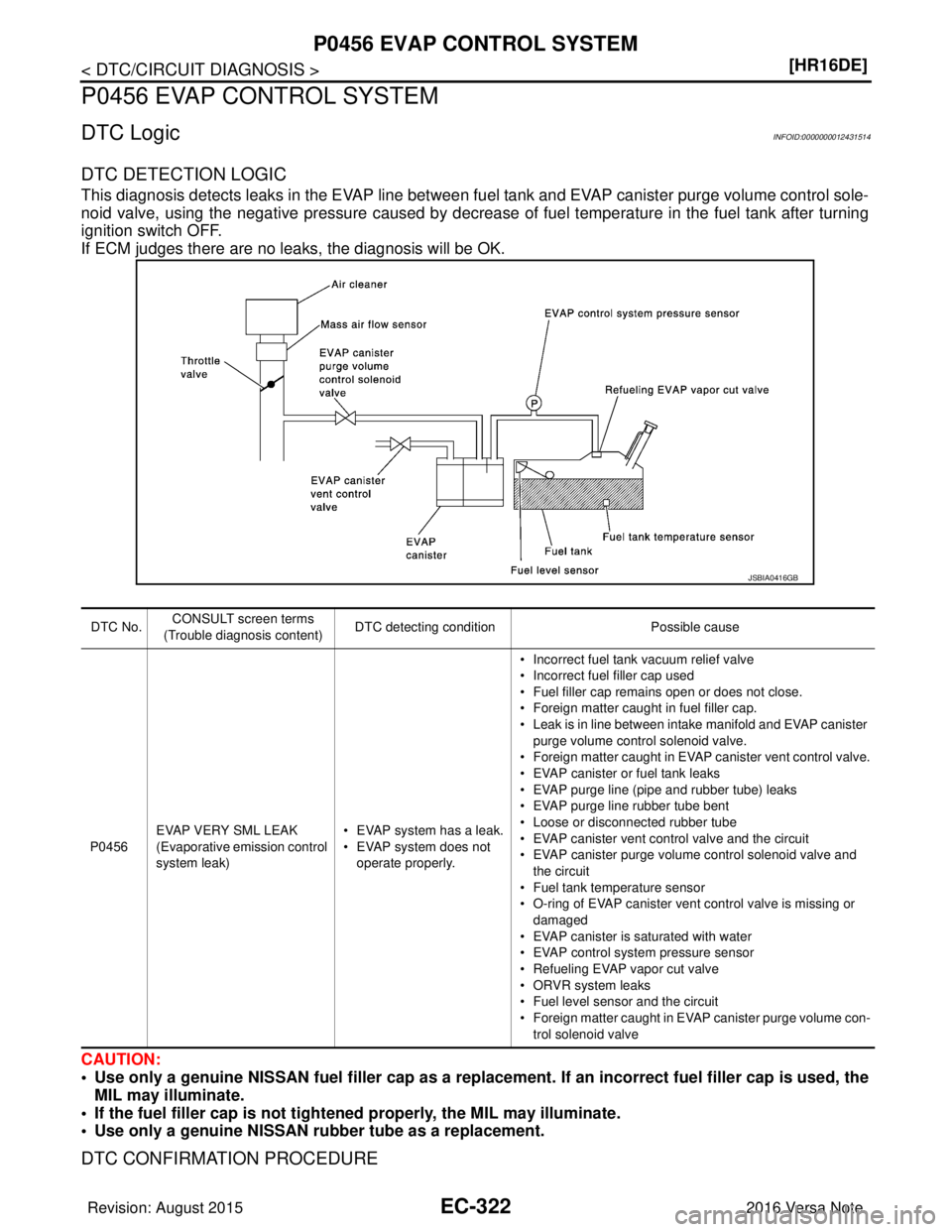

DTC DETECTION LOGIC
This diagnosis detects leaks in the EVAP line between f
uel tank and EVAP canister purge volume control sole-
noid valve, using the negative pressure caused by decrease of fuel temperature in the fuel tank after turning
ignition switch OFF.
If ECM judges there are no leaks, the diagnosis will be OK.
CAUTION:
• Use only a genuine NISSAN fuel filler cap as a replacemen t. If an incorrect fuel filler cap is used, the
MIL may illuminate.
• If the fuel filler cap is not tighte ned properly, the MIL may illuminate.
• Use only a genuine NISSAN rubber tube as a replacement.
DTC CONFIRMATION PROCEDURE
JSBIA0416GB
DTC No. CONSULT screen terms
(Trouble diagnosis content) DTC detecting condition
Possible cause
P0456 EVAP VERY SML LEAK
(Evaporative emission control
system leak) • EVAP system has a leak.
• EVAP system does not
operate properly. • Incorrect fuel tank vacuum relief valve
• Incorrect fuel filler cap used
• Fuel filler cap remains open or does not close.
• Foreign matter caught in fuel filler cap.
• Leak is in line between intake manifold and EVAP canister
purge volume control solenoid valve.
• Foreign matter caught in EVAP canister vent control valve.
• EVAP canister or fuel tank leaks
• EVAP purge line (pipe and rubber tube) leaks
• EVAP purge line rubber tube bent
• Loose or disconnected rubber tube
• EVAP canister vent control valve and the circuit
• EVAP canister purge volume control solenoid valve and the circuit
• Fuel tank temperature sensor
• O-ring of EVAP canister vent control valve is missing or
damaged
• EVAP canister is saturated with water
• EVAP control system pressure sensor
• Refueling EVAP vapor cut valve
• ORVR system leaks
• Fuel level sensor and the circuit
• Foreign matter caught in EVAP canister purge volume con- trol solenoid valve
Revision: August 2015 2016 Versa Note

cardiagn.com

P0456 EVAP CONTROL SYSTEMEC-323
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-
ing the next test.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
Do you have CONSULT?
YES >> GO TO 2.
NO >> GO TO 4.
2.PERFORM DTC CONFIRMATION PROCEDURE-I
WITH CONSULT
1. Turn ignition switch ON and select “EVAP DIAG RE ADY” in “DATA MONITOR” mode of “ENGINE” using
CONSULT.
2. Start engine and wait at idle until “OFF” of “EVAP DIAG READY” changes to “ON”. NOTE:
It will take at most 2 hours until “OFF” of “EVAP DIAG READY ” changes to “ON”.
3. Turn ignition switch OFF and wait at least 90 minutes. NOTE:
Never turn ignition swit ch ON during 90 minutes.
4. Turn ignition switch ON and select “EVAP LEAK DIAG” in “DATA MONITOR” mode of “ENGINE” using CONSULT.
5. Check that “EVAP LEAK DIAG” indication.
Which is displayed on CONSULT?
CMPLT >> GO TO 3.
YET >> Perform DTC CONFIRMATION PROCEDURE again. GO TO 1.
3.PERFORM DTC CONFIRMATION PROCEDURE-II
Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-323, "Diagnosis Procedure".
NO >> INSPECTION END.
4.PERFORM DTC CONFIRMATION PROCEDURE
WITH GST
1. Start engine and wait engine idle for at least 2 hours.
2. Turn ignition switch OFF and wait at least 90 minutes. NOTE:
Never turn ignition swit ch ON during 90 minutes.
3. Turn ignition switch ON.
4. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-323, "Diagnosis Procedure".
NO >> INSPECTION END.
Diagnosis ProcedureINFOID:0000000012431515
1.CHECK FUEL FILLER CAP DESIGN
1. Turn ignition switch OFF.
Revision: August 2015 2016 Versa Note

cardiagn.com
