NISSAN NOTE 2016 Service Repair Manual
Manufacturer: NISSAN, Model Year: 2016, Model line: NOTE, Model: NISSAN NOTE 2016Pages: 3641, PDF Size: 28.72 MB
Page 1471 of 3641
![NISSAN NOTE 2016 Service Repair Manual EC-344
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P059F ACTIVE GRILLE SHUTTER
P059F ACTIVE GRILLE SHUTTER
DTC LogicINFOID:0000000012431543
DTC DETECTION LOGIC
Active grille shutter normally stops within zone](/img/5/57363/w960_57363-1470.png "NISSAN NOTE 2016 Service Repair Manual EC-344
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P059F ACTIVE GRILLE SHUTTER
P059F ACTIVE GRILLE SHUTTER
DTC LogicINFOID:0000000012431543
DTC DETECTION LOGIC
Active grille shutter normally stops within zone")

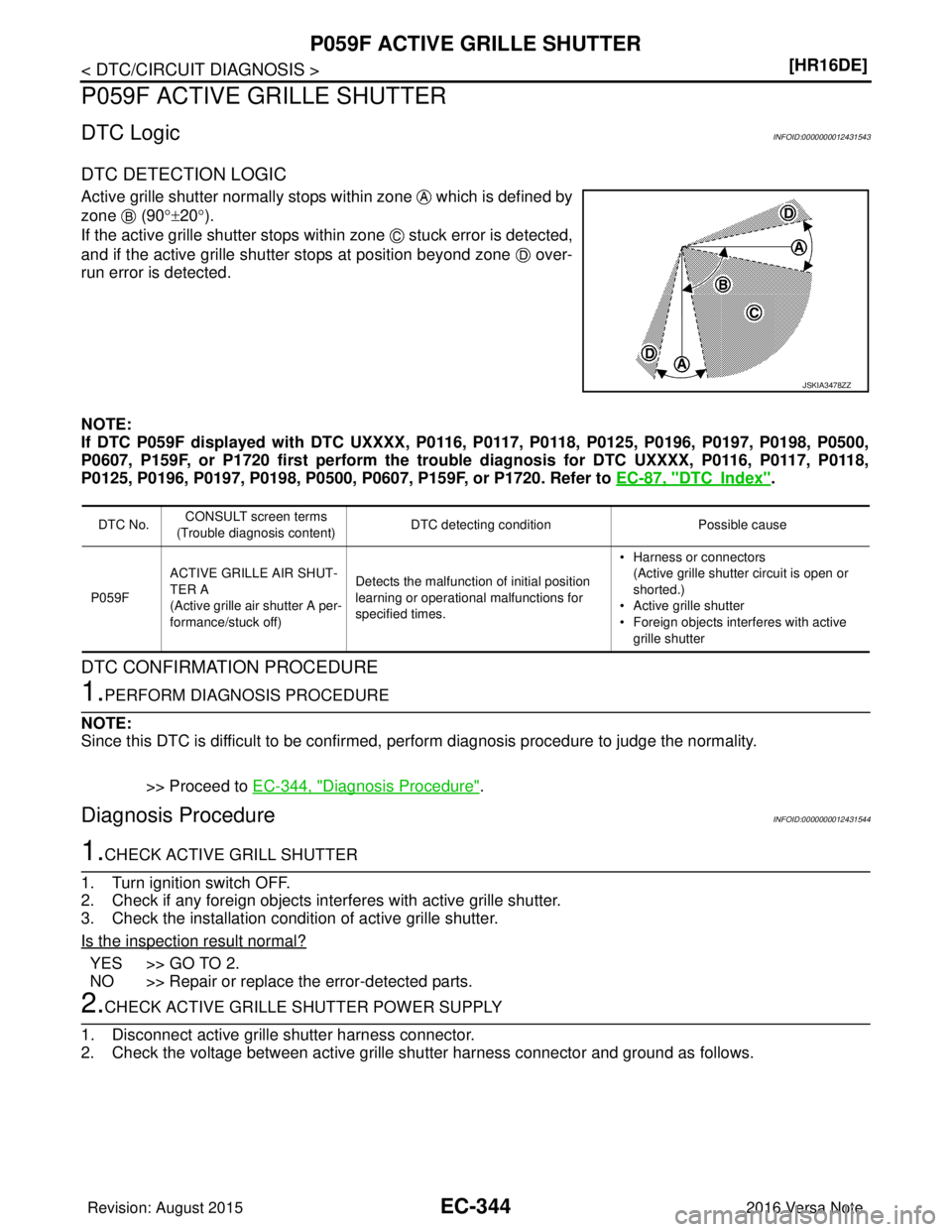

EC-344
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P059F ACTIVE GRILLE SHUTTER
P059F ACTIVE GRILLE SHUTTER
DTC LogicINFOID:0000000012431543
DTC DETECTION LOGIC
Active grille shutter normally stops within zone which is defined by
zone (90
°±20° ).
If the active grille shutter stops within zone stuck error is detected,
and if the active grille shutter stops at position beyond zone over-
run error is detected.
NOTE:
If DTC P059F displayed with DTC UXXXX, P0116, P0117, P0118, P0125, P0196, P0197, P0198, P0500,
P0607, P159F, or P1720 first perform the trouble di agnosis for DTC UXXXX, P0116, P0117, P0118,
P0125, P0196, P0197, P0198, P0500, P 0607, P159F, or P1720. Refer to EC-87, "
DTCIndex".
DTC CONFIRMATION PROCEDURE
1.PERFORM DIAGNOSIS PROCEDURE
NOTE:
Since this DTC is difficult to be confirmed, perform diagnosis procedure to judge the normality.
>> Proceed to EC-344, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000012431544
1.CHECK ACTIVE GRILL SHUTTER
1. Turn ignition switch OFF.
2. Check if any foreign objects interf eres with active grille shutter.
3. Check the installation condition of active grille shutter.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace the error-detected parts.
2.CHECK ACTIVE GRILLE SHUTTER POWER SUPPLY
1. Disconnect active grille shutter harness connector.
2. Check the voltage between active grille shutter harness connector and ground as follows.
JSKIA3478ZZ
DTC No. CONSULT screen terms
(Trouble diagnosis content) DTC detecting condition
Possible cause
P059F ACTIVE GRILLE AIR SHUT-
TER A
(Active grille air shutter A per-
formance/stuck off) Detects the malfunction of initial position
learning or operational malfunctions for
specified times. • Harness or connectors
(Active grille shutter circuit is open or
shorted.)
• Active grille shutter
• Foreign objects interferes with active grille shutter
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1472 of 3641
![NISSAN NOTE 2016 Service Repair Manual P059F ACTIVE GRILLE SHUTTEREC-345
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Is the inspection result normal?
YES >> GO TO 3.
NO >> GO TO 6.
3.CHECK ACTIVE GRILLE SHUTTER GROUN](/img/5/57363/w960_57363-1471.png "NISSAN NOTE 2016 Service Repair Manual P059F ACTIVE GRILLE SHUTTEREC-345
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Is the inspection result normal?
YES >> GO TO 3.
NO >> GO TO 6.
3.CHECK ACTIVE GRILLE SHUTTER GROUN")
P059F ACTIVE GRILLE SHUTTEREC-345
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Is the inspection result normal?
YES >> GO TO 3.
NO >> GO TO 6.
3.CHECK ACTIVE GRILLE SHUTTER GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check the continuity between active grille shutter harness connector and ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair or replace the error-detected parts.
4.CHECK ACTIVE GRILLE SHUTTER SIGNAL CIRCUIT
1. Disconnect ECM harness connector.
2. Check the continuity between ECM harness connector and active grille shutter harness connector.
3. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair or replace the error-detected parts.
5.CHECK ACTIVE GRILLE SHUTTER
Check active grille shutter. Refer to EC-347, "
Component Inspection (Active Grille Shutter)".
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-42, "Intermittent Incident".
NO >> Replace active grille shutter. Refer to EXT-33, "
Removal and Installation".
6.CHECK ACTIVE GRILLE SHUTTER POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Remove active grille shutter relay.
3. Check the continuity between active grille shutte r harness connector and active grille shutter relay har-
ness connector.
+
−Condition Voltag e
(Approx.)
Active grille shutter
Connector Terminal
E303 4 Ground Ignition switch: ON
Battery volt-
age
Ignition switch: OFF 0 V
+
−Continuity
Active grille shutter
Connector Terminal E303 1Ground Existed
+ −
Continuity
ECM Active grille shutter
Connector Terminal Connector Terminal F11 70 E303 2 Existed
+−
Continuity
Active grille shutter Active grille shutter relay
Connector Terminal Connector Terminal E303 4 E72 3 Existed
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1473 of 3641
![NISSAN NOTE 2016 Service Repair Manual EC-346
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P059F ACTIVE GRILLE SHUTTER
4. Also check harness for short to ground.
Is the inspection result normal?
YES >> GO TO 7.
NO >> Repair or replace the error-detec](/img/5/57363/w960_57363-1472.png "NISSAN NOTE 2016 Service Repair Manual EC-346
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P059F ACTIVE GRILLE SHUTTER
4. Also check harness for short to ground.
Is the inspection result normal?
YES >> GO TO 7.
NO >> Repair or replace the error-detec")
EC-346
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P059F ACTIVE GRILLE SHUTTER
4. Also check harness for short to ground.
Is the inspection result normal?
YES >> GO TO 7.
NO >> Repair or replace the error-detected parts.
7.CHECK ACTIVE GRILLE SHUTTER
RELAY POWER SUPPLY CIRCUIT - 1
Check the voltage between active grille shutter harness connector and ground.
Is the inspection result normal?
YES >> GO TO 8.
NO >> GO TO 11.
8.CHECK ACTIVE GRILLE SHUTTER RELAY SIGNAL CIRCUIT - 1
1. Check the voltage between active grille shutter harness connector and ground as follows.
2. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 9.
NO >> GO TO 12.
9.CHECK ACTIVE GRILLE SHUTTER RELAY GROUND CIRCUIT
1. Turn ignition switch OFF
2. Check the continuity between active grille shutter relay harness connector and ground.
Is the inspection result normal?
YES >> GO TO 10.
NO >> Repair or replace the error-detected parts.
10.CHECK ACTIVE GRILLE SHUTTER RELAY
Check active grille shutter relay. Refer to EC-347, "
Component Inspection (Active Grille Shutter Relay)".
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-42, "Intermittent Incident".
NO >> Replace active grille shutter relay.
11 .CHECK ACTIVE GRILLE SHUTTE R RELAY POWER SUPPLY CIRCUIT - 2
1. Check 5A fuse (No. 27).
2. Check the continuity between active grille shutter relay harness connector and fuse socket.
+
−Vo l ta g e
(Approx.)
Active grille shutter relay
Connector Terminal E72 5Ground Battery voltage
+
−Condition Vo l ta g e
(Approx.)
Active grille shutter relay
Connector Terminal
E72 2 Ground Ignition switch: ON
Battery volt-
age
Ignition switch: OFF 0 V
+
−Continuity
Active grille shutter relay
Connector Terminal E72 1 Ground Existed
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1474 of 3641
![NISSAN NOTE 2016 Service Repair Manual P059F ACTIVE GRILLE SHUTTEREC-347
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3. Also check harness for short to ground.
Is the inspection result normal?
YES >> Perform trouble](/img/5/57363/w960_57363-1473.png "NISSAN NOTE 2016 Service Repair Manual P059F ACTIVE GRILLE SHUTTEREC-347
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3. Also check harness for short to ground.
Is the inspection result normal?
YES >> Perform trouble")
P059F ACTIVE GRILLE SHUTTEREC-347
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3. Also check harness for short to ground.
Is the inspection result normal?
YES >> Perform trouble diagnosis for power supply circuit.
NO >> Repair or replace the error-detected parts.
12.CHECK ACTIVE GRILLE SHUTTER RELAY SIGNAL CIRCUIT - 2
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R harness connector.
3. Check the continuity between active grille shutter relay harness connector and IPDM E/R harness con- nector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> Perform trouble diagnosis for power supply circuit.
NO >> Repair or replace the error-detected parts.
Component Inspection (Active Grille Shutter)INFOID:0000000012431545
1.CHECK ACTIVE GRILLE SHUTTER
With CONSULT
1. Start the engine.
2. Select “ACTIVE GRILLE SHUTTER” in “ACT IVE TEST” mode of “ENGINE” using CONSULT.
3. Touch “CALIBRTN”.
4. After the calibration completes, check the operation of active grille shutter as follows.
Without CONSULT
1. Turn ignition switch OFF.
2. Operate shutter by hands to close position.
3. Check the operation of active grille shutter as follows.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace active grille shutter. Refer to EXT-33, "
Removal and Installation".
Component Inspection (Act ive Grille Shutter Relay)INFOID:0000000012431546
1.CHECK ACTIVE GRILLE SHUTTER RELAY
1. Turn ignition switch OFF.
+
Fuse No. Continuity
Active grille shutter relay
Connector Terminal E72 5 27 Existed
+ −
Continuity
Active grille shutter relay IPDM E/R
Connector Terminal Connector Terminal E72 2F42 39 Existed
Condition Active grille shutter
Select “CLOSE” Close → Open
Select “OPEN” Open → Close
Condition Active grille shutter
Ignition switch: ON Close → Open
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1475 of 3641
![NISSAN NOTE 2016 Service Repair Manual EC-348
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P059F ACTIVE GRILLE SHUTTER
2. Remove active grille shutter relay.
3. Apply battery voltage to active grille shutter re
lay terminal, and check the continuity](/img/5/57363/w960_57363-1474.png "NISSAN NOTE 2016 Service Repair Manual EC-348
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P059F ACTIVE GRILLE SHUTTER
2. Remove active grille shutter relay.
3. Apply battery voltage to active grille shutter re
lay terminal, and check the continuity")
EC-348
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P059F ACTIVE GRILLE SHUTTER
2. Remove active grille shutter relay.
3. Apply battery voltage to active grille shutter re
lay terminal, and check the continuity as follows.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace active grille shutter relay.
Active grille shutter relay ConditionContinuity
+–
Te r m i n a l
53 12 V direct current supply
between terminals 1 and 2
Existed
No current supply None
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1476 of 3641
![NISSAN NOTE 2016 Service Repair Manual P0603 ECMEC-349
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0603 ECM
DTC LogicINFOID:0000000012741284
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
TESTING C](/img/5/57363/w960_57363-1475.png "NISSAN NOTE 2016 Service Repair Manual P0603 ECMEC-349
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0603 ECM
DTC LogicINFOID:0000000012741284
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
TESTING C")
P0603 ECMEC-349
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0603 ECM
DTC LogicINFOID:0000000012741284
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltag e is 11 V or more with ignition
switch ON.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON and wait at least 1 second.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Repeat step 1 and 2 for 10 times.
4. Turn ignition switch ON.
5. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-349, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000012741285
1.CHECK ECM POWER SUPPLY AND GROUND CIRCUIT
Perform trouble diagnosis for ECM power supply and ground circuit. Refer to EC-159, "
Diagnosis Procedure".
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace error-detected parts.
2.CHECK INTERMITTENT INCIDENT
Check intermittent incident. Refer to GI-42, "
Intermittent Incident".
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair or replace error-detected parts.
3.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Erase DTC.
3. Perform DTC confirmation procedure. Refer to EC-349, "
DTC Logic".
Is the 1st trip DTC
P0603 displayed again?
YES >> Replace ECM. Refer to EC-477, "Removal and Installation".
NO >> INSPECTION END
DTC No. CONSULT screen terms
(Trouble diagnosis content) DTC detecting condition
Possible cause
P0603 ECM BACK UP CIRCUIT
[Internal control module keep
alive memory (KAM) error] • Malfunction in the internal back up RAM of ECM.
• Malfunction in the inte
rnal EEP-ROM system of
ECM. •ECM power supply
•ECM
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 1477 of 3641
![NISSAN NOTE 2016 Service Repair Manual EC-350
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P0604 ECM
P0604 ECM
DTC LogicINFOID:0000000012741286
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
1. Turn ignition switch OFF and wait at l](/img/5/57363/w960_57363-1476.png "NISSAN NOTE 2016 Service Repair Manual EC-350
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P0604 ECM
P0604 ECM
DTC LogicINFOID:0000000012741286
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
1. Turn ignition switch OFF and wait at l")
EC-350
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P0604 ECM
P0604 ECM
DTC LogicINFOID:0000000012741286
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
Before performing the following procedure, confirm th at battery voltage is 11 V or more with ignition
switch ON.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON (engine stopped) and wait least 20 minutes. CAUTION:
Never start engine during this procedure.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-350, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000012741287
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Erase DTC.
3. Perform DTC confirmation procedure. Refer to EC-350, "
DTC Logic".
Is the 1st trip DTC
P0604 displayed again?
YES >> Replace ECM. Refer to EC-477, "Removal and Installation".
NO >> INSPECTION END
DTC No. CONSULT screen terms
(Trouble diagnosis content) DTC detecting condition
Possible cause
P0604 ECM
[Internal control module
random access memory
(RAM) error] Malfunction in the internal RAM of ECM.
ECM
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1478 of 3641
![NISSAN NOTE 2016 Service Repair Manual P0605 ECMEC-351
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0605 ECM
DTC LogicINFOID:0000000012741288
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
1. Turn i](/img/5/57363/w960_57363-1477.png "NISSAN NOTE 2016 Service Repair Manual P0605 ECMEC-351
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0605 ECM
DTC LogicINFOID:0000000012741288
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
1. Turn i")
P0605 ECMEC-351
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0605 ECM
DTC LogicINFOID:0000000012741288
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltag e is 11 V or more with ignition
switch ON.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON (engine stopped) and wait least 20 minutes. CAUTION:
Never start engine during this procedure.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-351, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000012741289
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Erase DTC.
3. Perform DTC confirmation procedure. Refer to EC-351, "
DTC Logic".
Is the 1st trip DTC
P0605 displayed again?
YES >> Replace ECM. Refer to EC-477, "Removal and Installation".
NO >> INSPECTION END
DTC No. CONSULT screen terms
(Trouble diagnosis content) DTC detecting condition
Possible cause
P0605 ECM
[Internal control module
read only me
mory (ROM)
error] Malfunction in the internal ROM of ECM.
ECM
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1479 of 3641
![NISSAN NOTE 2016 Service Repair Manual EC-352
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P0606 ECM
P0606 ECM
DTC LogicINFOID:0000000012741290
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
1. Turn ignition switch OFF and wait at l](/img/5/57363/w960_57363-1478.png "NISSAN NOTE 2016 Service Repair Manual EC-352
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P0606 ECM
P0606 ECM
DTC LogicINFOID:0000000012741290
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
1. Turn ignition switch OFF and wait at l")
EC-352
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P0606 ECM
P0606 ECM
DTC LogicINFOID:0000000012741290
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
Before performing the following procedure, confirm th at battery voltage is 11 V or more with ignition
switch ON.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE-I
1. Turn ignition switch ON (engine stopped) and wait at least 10 seconds. CAUTION:
Never start engine during this procedure.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-352, "Diagnosis Procedure".
NO >> GO TO 3.
3.PERFORM DTC CONFIRMATION PROCEDURE-II
1. Start engine.
2. Rev up the engine quickly to approximately 3,000 rpm under unloaded condition and completely release the accelerator pedal.
3. Let the engine idle and wait at least 10 seconds.
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Turn ignition switch ON.
6. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-352, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000012741291
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Erase DTC.
3. Perform DTC confirmation procedure for 3 times. Refer to EC-352, "
DTC Logic".
Is the 1st trip DTC
P0606 displayed again?
YES >> Replace ECM. Refer to EC-477, "Removal and Installation".
NO >> INSPECTION END
DTC No. CONSULT screen terms
(Trouble diagnosis content) DTC detecting condition
Possible cause
P0606 CONTROL MODULE
(Control module processor) Malfunction in ECM processor.
ECM
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1480 of 3641
![NISSAN NOTE 2016 Service Repair Manual P0607 ECMEC-353
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0607 ECM
DTC LogicINFOID:0000000012741292
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
1. Turn i](/img/5/57363/w960_57363-1479.png "NISSAN NOTE 2016 Service Repair Manual P0607 ECMEC-353
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0607 ECM
DTC LogicINFOID:0000000012741292
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
1. Turn i")
P0607 ECMEC-353
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0607 ECM
DTC LogicINFOID:0000000012741292
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltag e is 11 V or more with ignition
switch ON.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON (engine stopped) and wait least 10 seconds.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-353, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000012741293
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Erase DTC.
3. Perform DTC confirmation procedure. Refer to EC-353, "
DTC Logic".
Is the 1st trip DTC
P0607 displayed again?
YES >> Replace ECM. Refer to EC-477, "Removal and Installation".
NO >> INSPECTION END
DTC No. CONSULT screen terms
(Trouble diagnosis content) DTC detecting condition
Possible cause
P0607 ECM
(Control module perfor-
mance) ECM internal communication system is malfunc-
tioning.
ECM
Revision: August 2015
2016 Versa Note
cardiagn.com
