EVAP CANISTERFL-15
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
K L
M A
FL
NP
O
InspectionINFOID:0000000012432117
Check EVAP canister as follows:
1. Block port (B).
2. Blow air into port (A) and check that it flows freely out of port (C).
3. Release blocked port (B).
4. Apply vacuum pressure to port
(B) and check that vacuum pres-
sure exists at the ports (A) and (C).
5. Block port (A) and (B).
6. Apply pressure to port (C) and check that there is no leakage.
PBIB1212E
Revision: August 2015 2016 Versa Note

cardiagn.com

FL-16
< REMOVAL AND INSTALLATION >
EVAP CANISTER FILTER
EVAP CANISTER FILTER
Exploded ViewINFOID:0000000012432118
Removal and InstallationINFOID:0000000012432119
REMOVAL
1. Disconnect EVAP vent control valve hose from EVAP canister.
2. Remove EVAP canister filter hos e from EVAP canister filter.
3. Remove EVAP canister filter.
INSTALLATION
Installation is in the reverse order of removal.
1. EVAP canister filter hose 2. Evap canister filter3. EVAP vent control valve hose
Front
ALBIA1148ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

EVAP CANISTER VENT CONTROL VALVEFL-17
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
K L
M A
FL
NP
O
EVAP CANISTER VENT CONTROL VALVE
Exploded ViewINFOID:0000000012432120
Removal and InstallationINFOID:0000000012432121
NOTE:
The EVAP canister vent control valve and EVAP cani
ster system pressure sensor can be removed without
removing the EVAP canister.
REMOVAL
1. Disconnect EVAP vent control valve hose from EVAP canister.
2. Disconnect EVAP canister vent control valve harness connector.

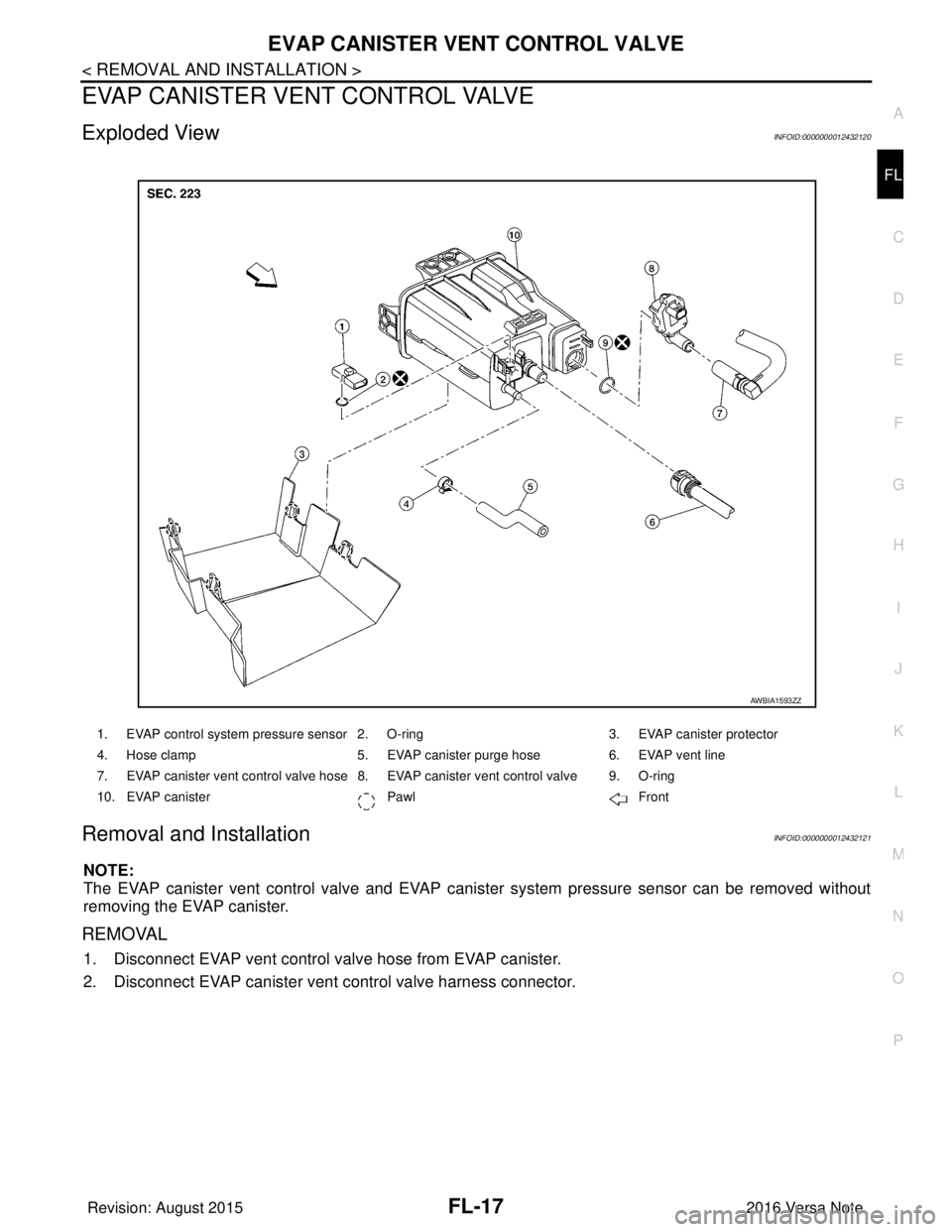

1. EVAP control system pressure sensor 2. O-ring 3. EVAP canister protector
4. Hose clamp 5. EVAP canister purge hose6. EVAP vent line
7. EVAP canister vent control valve hose 8. EVAP canister vent control valve 9. O-ring
10. EVAP canister PawlFront
AWBIA1593ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

FL-18
< REMOVAL AND INSTALLATION >
EVAP CANISTER VENT CONTROL VALVE
3. Turn EVAP canister vent control valve counterclockwise.
4. Remove the EVAP canister vent control valve and O-ring.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Do not reuse O-ring.
(A) : Lock
(B) : Unlock
PBIB3091E
Revision: August 20152016 Versa Note

cardiagn.com

EVAP CONTROL SYSTEM PRESSURE SENSORFL-19
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
K L
M A
FL
NP
O
EVAP CONTROL SYST
EM PRESSURE SENSOR
Exploded ViewINFOID:0000000012432122
Removal and InstallationINFOID:0000000012432123
NOTE:
The EVAP canister vent control valve and EVAP cani ster system pressure sensor can be removed without
removing the EVAP canister.
REMOVAL
1. Disconnect EVAP canister control syst em pressure sensor harness connector.
2. Remove EVAP canister control system pressure sensor and O-ring.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Do not reuse O-ring.
1. EVAP control system pressure sensor 2. O-ring 3. EVAP canister protector
4. Hose clamp 5. EVAP canister purge hose6. EVAP vent line
7. EVAP canister vent control valve hose 8. EVAP canister vent control valve 9. O-ring
10. EVAP canister PawlFront
AWBIA1593ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

FL-20
< DISASSEMBLY AND ASSEMBLY >
FUEL LEVEL SENSOR UNIT
DISASSEMBLY AND ASSEMBLY
FUEL LEVEL SENSOR UNIT
Exploded ViewINFOID:0000000012432124
Fuel Level Sensor Unit
Disassembly and AssemblyINFOID:0000000012432125
DISASSEMBLY
1. Disconnect fuel level sensor unit/fuel tank temperature sensorharness connectors (1).
NOTE:
Hold connector with your fingers, because there is no tab for
releasing stopper. Pull it out straight downward.
ALBIA1132ZZ

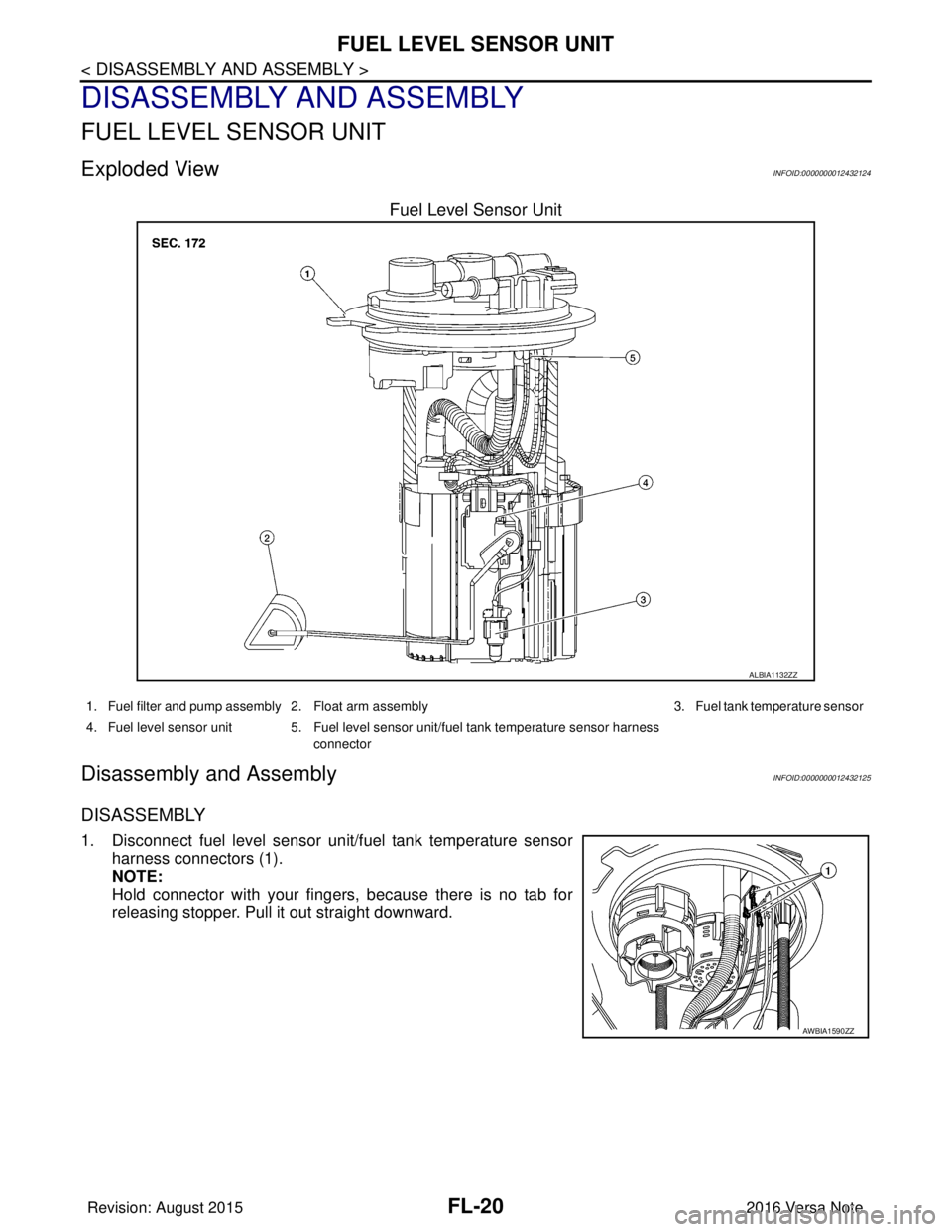

1. Fuel filter and pump assembly 2. Float arm assembly 3. Fuel tank temperature sensor
4. Fuel level sensor unit 5. Fuel level sensor unit/fuel tank temperature sensor harness connector
AWBIA1590ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

FUEL LEVEL SENSOR UNITFL-21
< DISASSEMBLY AND ASSEMBLY >
C
DE
F
G H
I
J
K L
M A
FL
NP
O
2. Remove fuel tank temperature s
ensor (2) from fuel filter and fuel
pump assembly (1).

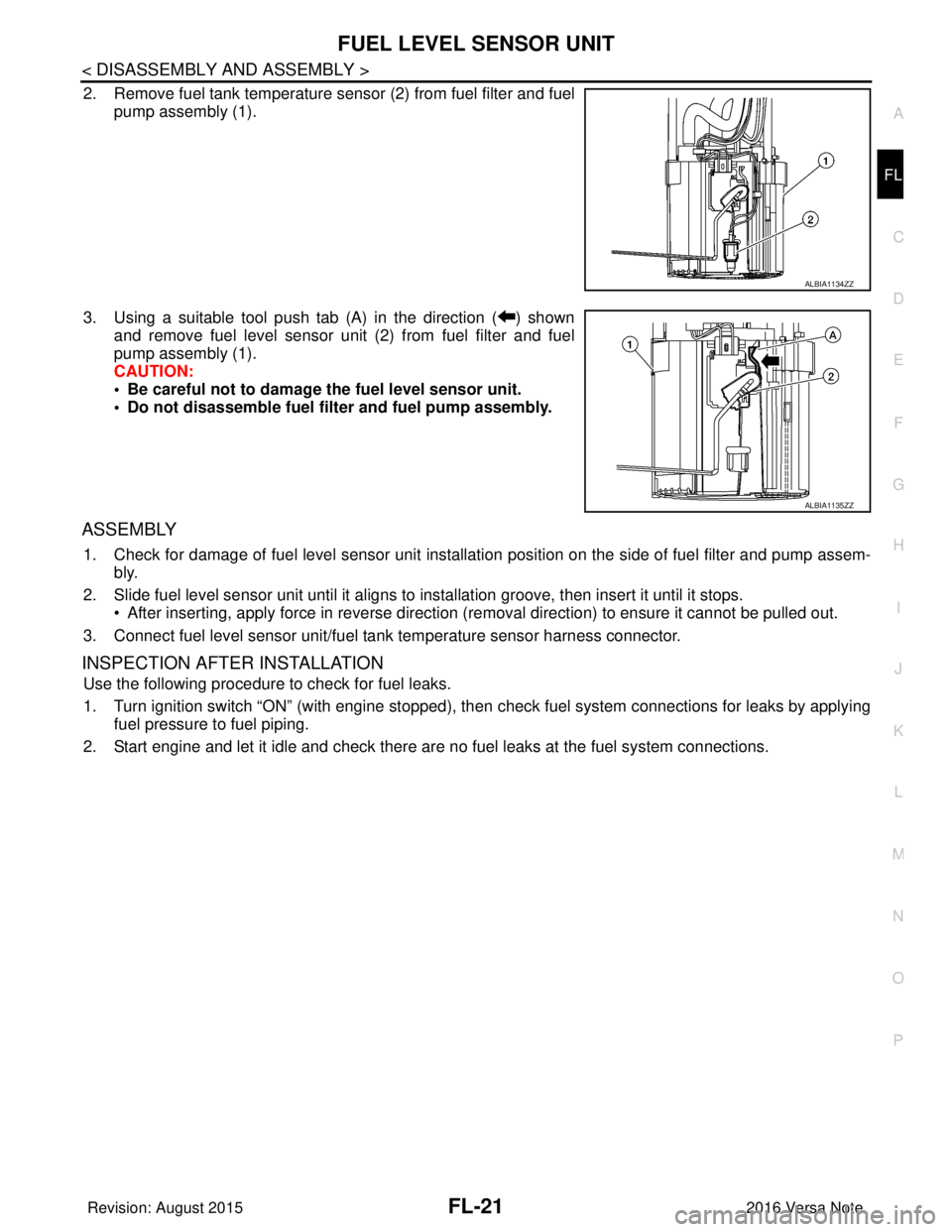

3. Using a suitable tool push tab (A) in the direction ( ) shown and remove fuel level sensor unit (2) from fuel filter and fuel
pump assembly (1).
CAUTION:
• Be careful not to damage the fuel level sensor unit.
• Do not disassemble fuel filter and fuel pump assembly.
ASSEMBLY
1. Check for damage of fuel level sensor unit installation position on the side of fuel filter and pump assem- bly.
2. Slide fuel level sensor unit until it aligns to installation groove, then insert it until it stops. • After inserting, apply force in reverse direction (removal direction) to ensure it cannot be pulled out.
3. Connect fuel level sensor unit/fuel t ank temperature sensor harness connector.
INSPECTION AFTER INSTALLATION
Use the following procedure to check for fuel leaks.
1. Turn ignition switch “ON” (with engine stopped), then check fuel system connections for leaks by applying
fuel pressure to fuel piping.
2. Start engine and let it idle and check there are no fuel leaks at the fuel system connections.
ALBIA1134ZZ
ALBIA1135ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

FL-22
< SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
Fuel TankINFOID:0000000012432126
Standard and Limit
Unit: (US gal, lmp gal)
Fuel tank capacityApprox. 41.0 (10-7/8 US gal, 9.0 Imp gal)
Fuel recommendation Refer to MA-11
Revision: August 2015 2016 Versa Note

cardiagn.com
