NISSAN NOTE 2016 Service Repair Manual

SYSTEMHAC-13
< SYSTEM DESCRIPTION > [MANUAL AIR CONDITIONING]
C
D
E
F
G H
J
K L
M A
B
HAC
N
O P
Low Temperature Protection Control
• When thermo control amp. detects
that evaporator fin temperature
is 1.5° C (35° F) or less, thermo control amp. switches A/C ON sig-
nal to OFF and stops the compressor.
When the evaporator fin temperature returns to 3 °C (37° F) or
more, the compressor is activated.
CONTROL BY ECM
Refrigerant Pressure Protection
The refrigerant system is protected against excessively high- or low-pressures by the refrigerant pressure s\
en-
sor, located on the liquid tank on the condenser. The refr igerant pressure sensor detects the pressure inside
the refrigerant line and sends a voltage signal to the ECM. If the system pressure rises above or falls below
the following values, the ECM requests the IPDM E/ R to de-energize the A/C relay and disengage the com-
pressor.
• 3.12 MPa (31.82 kg/cm
2, 452.4 psi) or more (When the engine speed is less than 1,500 rpm)
• 2.74 MPa (27.95 kg/cm
2, 397.3 psi) or more (When the engine speed is 1,500 rpm or more)
• 0.14 MPa (1.43 kg/cm
2, 20.3 psi) or less
Compressor Oil Cir culation Control
When the engine starts while the engine coolant temperature is 56 °C (133° F) or less, ECM activates the com-
pressor for approximately 6 seconds and circulates the compressor oil once.
Air Conditioning Cut Control
When the engine is under a high load condition, the ECM transmits an A/C relay OFF request to IPDM E/R,
and stops the compressor. Refer to EC-37, "
AIR CONDITIONING CUT CONTROL : System Description".
Door ControlINFOID:0000000012430719
SWITCHES AND THEIR CONTROL FUNCTIONS
JMIIA1228GB
Revision: August 2015 2016 Versa Note

cardiagn.com

HAC-14
< SYSTEM DESCRIPTION >[MANUAL AIR CONDITIONING]
SYSTEM
*: With rear foot duct
AIR DISTRIBUTION
With rear foot duct
1. Intake door
2. Blower motor 3. Evaporator
4. Air mix door 5. Heater core 6. Foot door
7. Ventilator and defroster door Fresh air intake Recirculation air Defroster
Center ventilator Side ventilator
Foot Rear foot
*
Switch/Dial
position Door position
Ventilator and
defroster door
Foot door
Intake door
Air mix door
MODE dial B
A
— —
A – B
A A – B
A – B
A
Air intake lever ——A
B
Temperature control dial Full cold
—A
Full hot B
JMIIA1751ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

SYSTEMHAC-15
< SYSTEM DESCRIPTION > [MANUAL AIR CONDITIONING]
C
D
E
F
G H
J
K L
M A
B
HAC
N
O P
Without rear foot duct
Discharge air flow
Mode position indi- cation Air outlet/distribution
Ventilator Foot
Defroster
Center SideFront Rear
50% 50% —— —
29% 25%28% 18% —
— 14% 47% 22%17%
— 14% 36% 20%30%
— 22% ——78%
Discharge air flow
Mode position indication Air outlet/distribution
Ventilator FootDefroster
Center Side
50% 50% ——
30% 30%40% —
— 14% 66%20%
— 14% 51%35%
—2 2%—7 8%
Revision: August 2015 2016 Versa Note

cardiagn.com

HAC-16
< SYSTEM DESCRIPTION >[MANUAL AIR CONDITIONING]
OPERATION
OPERATION
Switch Name and FunctionINFOID:0000000012430720
CONTROLLER
SWITCH OPERATION
1. Fan control dial (fan switch) 2. MODE dial
3. Intake lever
4. Temperature control dial 5. A/C switch
AWLIA2419ZZ
Fan control dial (fan switch) Fan speed can be adjusted within a range from 1st to 4th.
MODE dialMode position is selected to an optimal position by operating this dial.
Intake lever The air inlet changes REC ⇔ FRE each time by operation this lever.
Temperature control dial The setting temperature can be selected to an optimum temperature by operating this dial.
A/C switch The compressor control (switc
h indicator) is turned ON ⇔ OFF each time by pressing this switch while
the blower motor is activated.
Revision: August 2015 2016 Versa Note

cardiagn.com

DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)
HAC-17
< SYSTEM DESCRIPTION > [MANUAL AIR CONDITIONING]
C
D
E
F
G H
J
K L
M A
B
HAC
N
O P
DIAGNOSIS SYSTEM (BCM) (WIT H INTELLIGENT KEY SYSTEM)
COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)INFOID:0000000012542299
APPLICATION ITEM
CONSULT performs the following functions via CAN communication with BCM.
SYSTEM APPLICATION
BCM can perform the following functions.
Direct Diagnostic Mode Description
ECU Identification The BCM part number is displayed.
Self Diagnostic Result The BCM self diagnostic results are displayed.
Data Monitor The BCM input/output data is displayed in real time.
Active Test The BCM activates outputs to test components.
Work support The settings for BCM functions can be changed.
Configuration • The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication is displayed.
System Sub System Direct Diagnostic Mode
ECU Identification
Self Diagnostic Result
Data Monitor
Active Test
Work support
Configuration
CAN DIAG SUPPORT MNTR
Door lock
DOOR LOCK ×××
Rear window defogger REAR DEFOGGER ××
Warning chime BUZZER ××
Interior room lamp timer INT LAMP ×××
Exterior lamp HEAD LAMP ×××
Wiper and washer WIPER ×××
Turn signal and hazard warning lamps FLASHER ×××
Air conditioner AIR CONDITIONER ×
Intelligent Key system INTELLIGENT KEY ××××
Combination switch COMB SW ×
BCM BCM× × ×××
Immobilizer IMMU ××××
Interior room lamp battery saver BATTERY SAVER ×××
Vehicle security system THEFT ALM ××
RAP system RETAINED PWR ×
Signal buffer system SIGNAL BUFFER ×
TPMS AIR PRESSURE MONITOR ××××
Panic alarm system PANIC ALARM ×
Revision: August 2015 2016 Versa Note

cardiagn.com

HAC-18
< SYSTEM DESCRIPTION >[MANUAL AIR CONDITIONING]
DIAGNOSIS SYSTEM (BCM) (WIT
H INTELLIGENT KEY SYSTEM)
AIR CONDITIONER
AIR CONDITIONER : CONSULT Func tion (BCM - AIR CONDITIONER)INFOID:0000000012542298
DATA MONITOR
Monitor Item [Unit] Description
FAN ON SIG [On/Off] Indicates condition of fan switch.
AIR COND SW [On/Off] Indicates condition of A/C switch.
Revision: August 2015 2016 Versa Note

cardiagn.com

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)HAC-19
< SYSTEM DESCRIPTION > [MANUAL AIR CONDITIONING]
C
D
E
F
G H
J
K L
M A
B
HAC
N
O P
DIAGNOSIS SYSTEM (BCM) (WITHO UT INTELLIGENT KEY SYSTEM)
COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)INFOID:0000000012542301
APPLICATION ITEM
CONSULT performs the following functions via CAN communication with BCM.
SYSTEM APPLICATION
BCM can perform the following functions.
Direct Diagnostic Mode Description
ECU Identification The BCM part number is displayed.
Self Diagnostic Result The BCM self diagnostic results are displayed.
Data Monitor The BCM input/output data is displayed in real time.
Active Test The BCM activates outputs to test components.
Work support The settings for BCM functions can be changed.
Configuration • The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication is displayed.
System Sub System Direct Diagnostic Mode
ECU Identification
Self Diagnostic Result
Data Monitor
Active Test
Work support
Configuration
CAN DIAG SUPPORT MNTR
Door lock
DOOR LOCK ×××
Rear window defogger REAR DEFOGGER ××
Warning chime BUZZER ××
Interior room lamp timer INT LAMP ×××
Remote keyless entry system MULTI REMOTE ENT ×××
Exterior lamp HEAD LAMP ×××
Wiper and washer WIPER ×××
Turn signal and hazard warning lamps FLASHER ××
Air conditioner AIR CONDITIONER ×
Combination switch COMB SW ×
BCM BCM× × ×××
Immobilizer IMMU ×××
Interior room lamp battery saver BATTERY SAVER ×××
Vehicle security system THEFT ALM ××
RAP system RETAINED PWR ××
Signal buffer system SIGNAL BUFFER ×
TPMS AIR PRESSURE MONITOR ××××
Panic alarm system PANIC ALARM ×
Revision: August 2015 2016 Versa Note

cardiagn.com

HAC-20
< SYSTEM DESCRIPTION >[MANUAL AIR CONDITIONING]
DIAGNOSIS SYSTEM (BCM) (WITHO
UT INTELLIGENT KEY SYSTEM)
AIR CONDITIONER
AIR CONDITIONER : CONSULT Function (BCM - AIR CONDITIONER)INFOID:0000000012542300
DATA MONITOR
Monitor Item [Unit] Description
IGN ON SW [On/Off] Indicates condition of ignition switch ON position.
FAN ON SIG [On/Off] Indicates condition of fan switch.
AIR COND SW [On/Off] Indicates condition of A/C switch.
THERMO AMP [On/Off] Indicates condition of thermo amp.
FR DEF SW [On/Off] Indicates condition of front defrost switch.
Revision: August 2015 2016 Versa Note

cardiagn.com

BCM, ECM, IPDM E/RHAC-21
< ECU DIAGNOSIS INFORMATION > [MANUAL AIR CONDITIONING]
C
D
E
F
G H
J
K L
M A
B
HAC
N
O P
ECU DIAGNOSIS INFORMATION
BCM, ECM, IPDM E/R
List of ECU ReferenceINFOID:0000000012430725
ECU Reference
BCM (with Intelligent Key system) BCS-30, "
Reference Value"
BCS-48, "Fail-safe"
BCS-49, "DTCInspectionPriorityChart"
BCS-50, "DTCIndex"
BCM (without Intelligent Key system)BCS-101, "
Reference Value"
BCS-115, "Fail-safe"
BCS-115, "DTCInspectionPriorityChart"
BCS-115, "DTCIndex"
ECMEC-71, "
Reference Value"
EC-83, "FailSafe"
EC-85, "DTCInspectionPriorityChart"
EC-87, "DTCIndex"
IPDM E/R
PCS-13, "
Reference Value"
PCS-19, "Fail-safe"
PCS-20, "DTCIndex"
Revision: August 2015
2016 Versa Note

cardiagn.com

HAC-22
< WIRING DIAGRAM >[MANUAL AIR CONDITIONING]

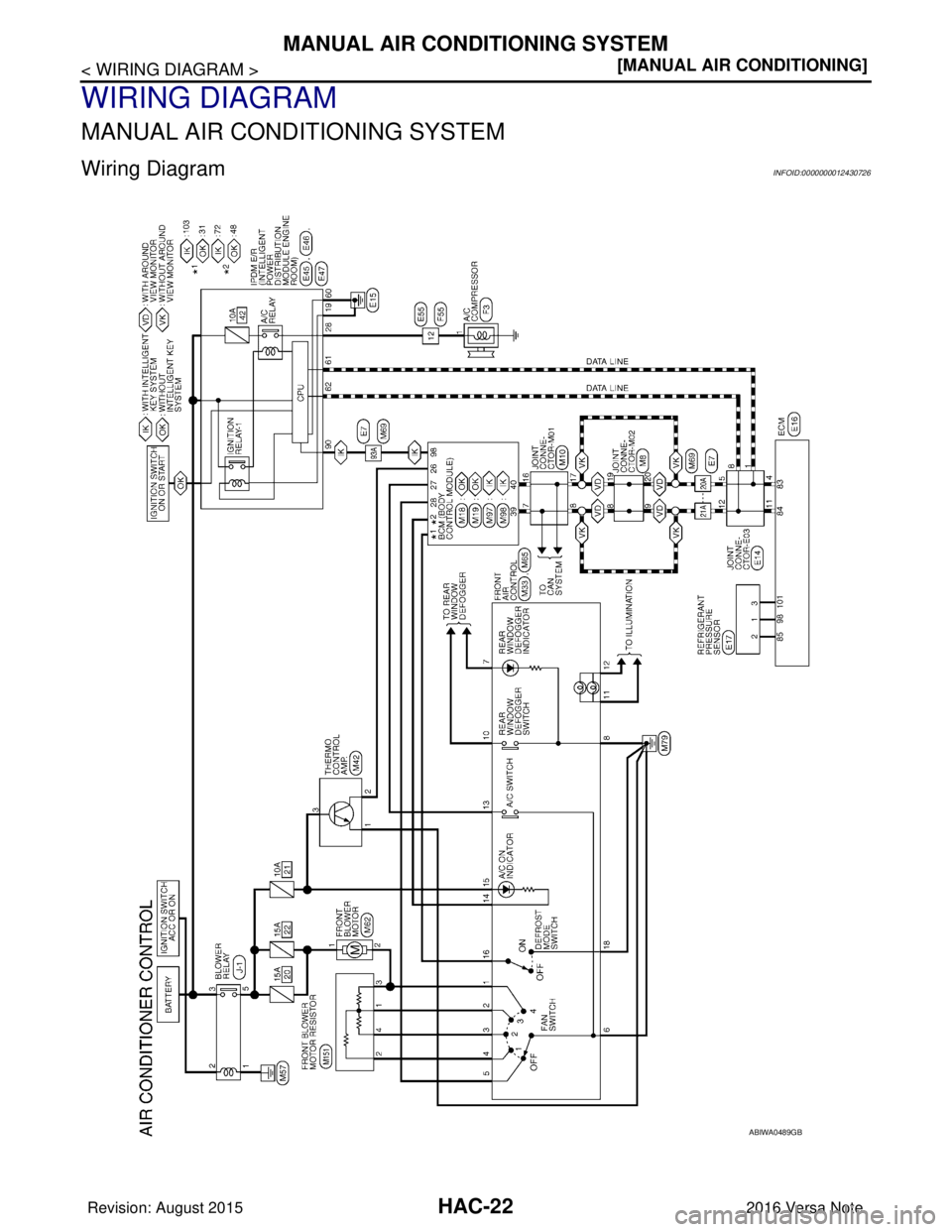

MANUAL AIR CONDITIONING SYSTEM
WIRING DIAGRAM
MANUAL AIR CONDITIONING SYSTEM
Wiring DiagramINFOID:0000000012430726
ABIWA0489GB
