NISSAN NOTE 2016 Service Repair Manual
Manufacturer: NISSAN, Model Year: 2016, Model line: NOTE, Model: NISSAN NOTE 2016Pages: 3641, PDF Size: 28.72 MB
Page 1961 of 3641
FRONT DOOR GLASS AND REGULATORGW-21
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
L
M A
B
GW
N
O P
FRONT DOOR GLASS AND REGULATOR
Exploded ViewINFOID:0000000012430538
Removal and InstallationINFOID:0000000012430539
WARNING:
• Before servicing, turn the ignition switch off, disconnect both battery terminals and wait at least
three minutes.
• Do not use air tools or electric tools for servicing.
FRONT DOOR GLASS
Removal
1. Disconnect the battery positive and negative terminals then wait at least three minutes. Refer to PG-70,
"Removal and Installation (Battery)".
2. Remove front door finisher. Refer to INT-15, "
Removal and Installation".
3. Remove the vapor barrier. Refer to GW-21, "
Exploded View".
CAUTION:
Use care not to damage or tear vapor barrier during removal.
4. Disconnect the harness connector from the door mirror.
5. Temporarily reconnect both battery terminals and the main power window and door lock/unlock switch (LH
door) or power window and door lock/unlock switch (RH door) to raise/lower the front door glass until the
bolts can be seen through the access holes (with power window).
6. Temporarily reinstall the front door glass handle and raise/lower the front door glass until the bolts can be seen through the access holes (without power window).
1. Front door panel 2. Vapor barrier3. Front door glass front run
4. Front door glass rear run 5. Front door glass6. Front door glass rubber run
7. Front door regulator 8. Front power window motor9. Front door glass handle grommet
10. Front door glass handle A. With power windowB. Without power window
AWKIA2561ZZ
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1962 of 3641
GW-22
< REMOVAL AND INSTALLATION >
FRONT DOOR GLASS AND REGULATOR
7. Remove front door glass bolts (A).
8. While holding the front door glass, raise it at the rear end andpull it out of the front door glass rear run toward the outside of
the door to remove.
9. Remove the front door glass front run bolts and remove (if necessary).
10. Remove the front door glass rear run bolts and remove (if necessary).
Installation
Installation is in the reverse order of removal.
CAUTION:
Tighten bolts to specification. Refer to GW-21, "
Exploded View".
Fitting Inspection
• Make sure that the glass fits securely into the front door glass run groove.
• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the
sash is parallel. Loosen the regulator bolts, door sash bolts and glass bolts to correct the glass position if the
clearance between the glass and sash is not parallel.
FRONT DOOR GLASS REGULATOR
Removal
1. Disconnect the battery positive and negative terminal s then wait at least three minutes. Refer to PG-70,
"Removal and Installation (Battery)".
2. Remove front door finisher. Refer to INT-15, "
Removal and Installation".
3. Remove the vapor barrier. Refer to GW-21, "
Exploded View".
CAUTION:
Use care not to damage or tear vapor barrier during removal.
4. Disconnect the harness connector from the door mirror.
5. Temporarily reconnect both battery terminals and the main power window and door lock/unlock switch (LH door) or power window and door lock/unlock switch (RH door) to raise/lower the front door glass until the
bolts can be seen through the access holes (with power window).
6. Temporarily reinstall the front door glass handle and raise/lower the front door glass until the bolts can be seen through the access holes (without power window).
ALKIA3164ZZ
JMKIA8064ZZ
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1963 of 3641
FRONT DOOR GLASS AND REGULATORGW-23
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
L
M A
B
GW
N
O P
7. Remove front door glass bolts (A).
8. Raise the front door glass and hold it in place with a suitable tool or approximately two inches of mashing
tape.
9. Remove bolts and front door glass regulator.
10. Remove front power window motor from front door glass regulator (if necessary). Refer to GW-24,
"Removal and Installation".
Inspection After Removal
Check the front door glass regulator for the following items:
• Wire wear
• Regulator deformation
• Grease condition for each sliding part
If a malfunction is detected, replace or grease it.
The arrows in the figure show the application points of a suitable
multi-purpose grease (if necessary).
Installation
Installation is in the reverse order of removal.
CAUTION:
Tighten front door regulator bol ts to specification. Refer to GW-21, "
Exploded View".
Fitting Inspection
• Make sure that the glass fits securely into the sash groove.
• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the
sash is parallel. Loosen the regulator bolts, door sash bolts and glass bolts to correct the glass position if the
clearance between the glass and sash is not parallel.
ALKIA3164ZZ
JMKIA4453ZZ
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1964 of 3641
GW-24
< REMOVAL AND INSTALLATION >
FRONT POWER WINDOW MOTOR
FRONT POWER WINDOW MOTOR
Removal and InstallationINFOID:0000000012430540
REMOVAL
1. Remove front door glass regulator. Refer to GW-21, "Removal and Installation".
2. Remove bolts and front power window motor.
INSTALLATION
Installation is in the reverse order of removal.
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1965 of 3641
REAR DOOR GLASS AND REGULATORGW-25
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
L
M A
B
GW
N
O P

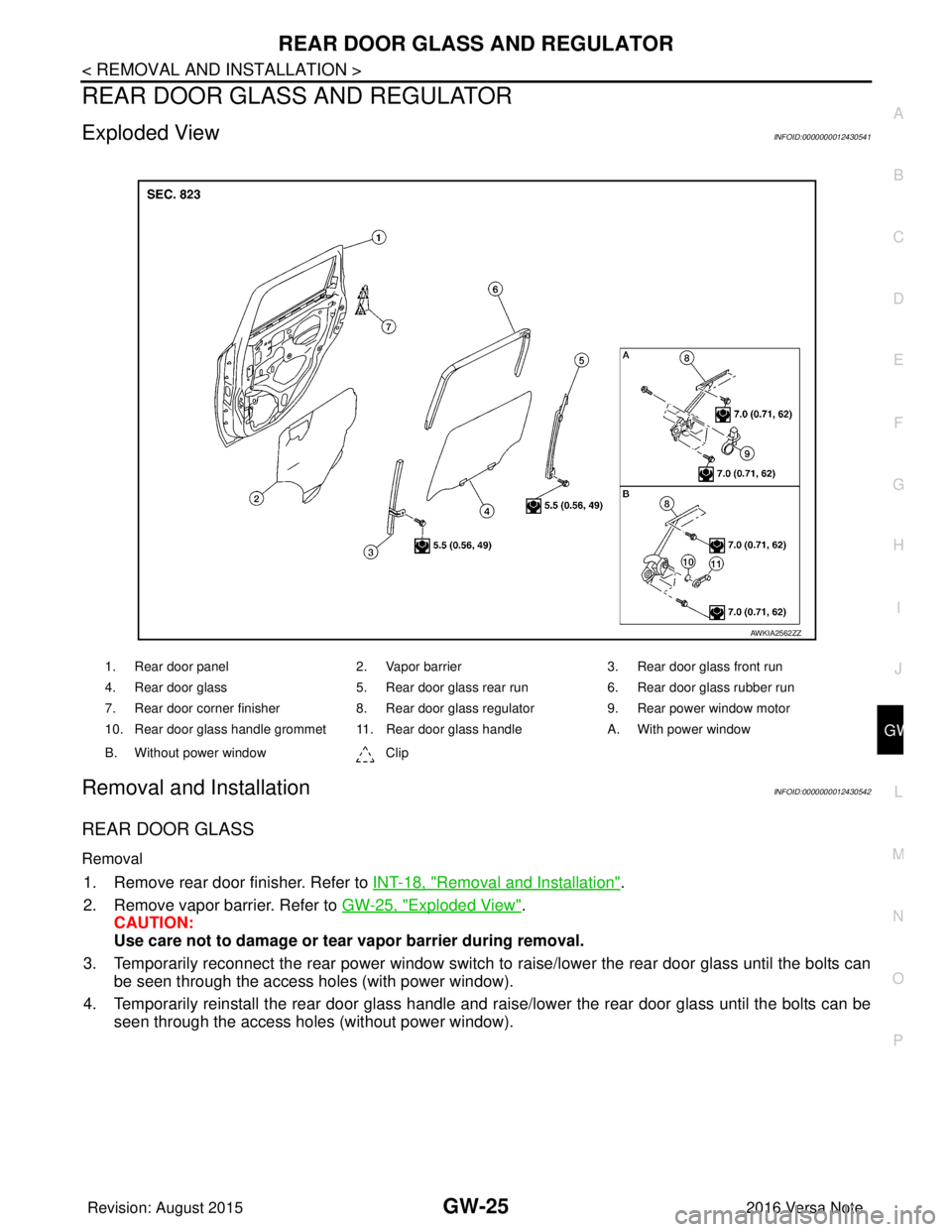

REAR DOOR GLASS AND REGULATOR
Exploded ViewINFOID:0000000012430541
Removal and InstallationINFOID:0000000012430542
REAR DOOR GLASS
Removal
1. Remove rear door finisher. Refer to INT-18, "Removal and Installation".
2. Remove vapor barrier. Refer to GW-25, "
Exploded View".
CAUTION:
Use care not to damage or tear vapor barrier during removal.
3. Temporarily reconnect the rear power window switch to raise/lower the rear door glass until the bolts can
be seen through the access holes (with power window).
4. Temporarily reinstall the rear door glass handle and raise/lower the rear door glass until the bolts can be seen through the access holes (without power window).
1. Rear door panel 2. Vapor barrier3. Rear door glass front run
4. Rear door glass 5. Rear door glass rear run6. Rear door glass rubber run
7. Rear door corner finisher 8. Rear door glass regulator9. Rear power window motor
10. Rear door glass handle grommet 11. Rear door glass handle A. With power window
B. Without power window Clip
AWKIA2562ZZ
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1966 of 3641
GW-26
< REMOVAL AND INSTALLATION >
REAR DOOR GLASS AND REGULATOR
5. Remove rear door glass bolts (A) and rear door glass (1).
6. Remove rear door glass front run bolts and remove (if necessary).
7. Remove rear door glass rear run bolts and remove (if necessary).
Installation
Installation is in the reverse order of removal.
CAUTION:
Tighten bolts to specification. Refer to GW-25, "
Exploded View".
Fitting Inspection
• Make sure that the glass fits securely into the rear door glass run groove.
• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the
sash is parallel. Loosen the regulator bolts, door sash bolts and glass bolts to correct the glass position if the
clearance between the glass and sash is not parallel.
REAR DOOR GLASS REGULATOR
Removal
1. Remove rear door finisher. Refer to INT-18, "Removal and Installation".
2. Remove vapor barrier. Refer to GW-25, "
Exploded View".
CAUTION:
Use care not to damage or tear vapor barrier during removal.
3. Temporarily reconnect the rear power window switch to raise/lower the rear door glass until the bolts can be seen through the access holes (with power window).
4. Temporarily reinstall the rear door glass handle and raise/lower the rear door glass until the bolts can be seen through the access holes (without power window).
5. Remove rear door glass bolts (A). 1: Rear door glass
6. Raise the rear door glass and hold in place with a su itable tool or approximately two inches of masking
tape.
7. Remove bolts and rear door glass regulator.
8. Remove rear power window motor from rear door glass regulator (if necessary). Refer to GW-28,
"Removal and Installation".
Inspection After Removal
Check the rear door glass regulator for the following items:
• Wire wear
• Regulator deformation
• Grease condition for each sliding part
ALKIA3166ZZ
ALKIA3166ZZ
Revision: August 20152016 Versa Note
cardiagn.com
Page 1967 of 3641
REAR DOOR GLASS AND REGULATORGW-27
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
L
M A
B
GW
N
O P
If a malfunction is detect ed, replace or grease it.
The arrows in the figure show the application points of a suitable
multi-purpose grease (if necessary).
Installation
Installation is in the reverse order of removal.
CAUTION:
Tighten rear door glass regulator bolts to specification. Refer to GW-25, "
Exploded View".
Fitting Inspection
• Make sure that the glass fits securely into the sash groove.
• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the
sash is parallel. Loosen the regulator bolts, door sash bolts and glass bolts to correct the glass position if the
clearance between the glass and sash is not parallel.
JMKIA7739ZZ
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1968 of 3641
GW-28
< REMOVAL AND INSTALLATION >
REAR POWER WINDOW MOTOR
REAR POWER WINDOW MOTOR
Removal and InstallationINFOID:0000000012430543
REMOVAL
1. Remove rear door glass regulator. Refer to GW-25, "Removal and Installation".
2. Remove bolts and rear power window motor.
INSTALLATION
Installation is in the reverse order of removal.
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1969 of 3641
HAC-1
VENTILATION, HEATER & AIR CONDITIONER
C
DE
F
G H
J
K L
M
SECTION HAC
A
B
HAC
N
O P
CONTENTS
HEATER & AIR CONDITIONING CONTROL SYSTEM
MANUAL AIR CONDITIONING
PRECAUTION ....... ........................................
3
PRECAUTIONS .............................................. .....3
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
3
Precaution for Procedure without Cowl Top Cover ......3
Precaution for Work ..................................................3
Precautions For Refrigerant System Service ............4
Service Equipment .............................................. ......6
PREPARATION ............................................8
PREPARATION .............................................. .....8
Special Service Tool ........................................... ......8
Commercial Service Tool ..........................................8
SYSTEM DESCRIPTION ..............................9
COMPONENT PARTS ................................... .....9
Component Parts Location .................................. ......9
SYSTEM .............................................................11
System Description ............................................. ....11
Compressor Control ................................................11
Door Control ............................................................13
OPERATION .......................................................16
Switch Name and Function ................................. ....16
DIAGNOSIS SYSTEM (BCM) (WITH INTELLI-
GENT KEY SYSTEM) .........................................
17
COMMON ITEM ..................................................... ....17
COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM) .....................................................
17
AIR CONDITIONER ............................................... ....18
AIR CONDITIONER : CONSULT Function (BCM -
AIR CONDITIONER) ........................................... ....
18
DIAGNOSIS SYSTEM (BCM) (WITHOUT IN-
TELLIGENT KEY SYSTEM) .............................
19
COMMON ITEM ..................................................... ....19
COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM) .....................................................
19
AIR CONDITIONER ............................................... ....20
AIR CONDITIONER : CONSULT Function (BCM -
AIR CONDITIONER) ........................................... ....
20
ECU DIAGNOSIS INFORMATION ..............21
BCM, ECM, IPDM E/R .......................................21
List of ECU Reference ......................................... ....21
WIRING DIAGRAM ......................................22
MANUAL AIR CONDITIONING SYSTEM .........22
Wiring Diagram .................................................... ....22
BASIC INSPECTION ...................................28
DIAGNOSIS AND REPAIR WORKFLOW ........28
Workflow .............................................................. ....28
OPERATION INSPECTION ..............................30
Work Procedure .......................................................30
DTC/CIRCUIT DIAGNOSIS .........................32
A/C ON SIGNAL ................................................32
Component Function Check ................................ ....32
Diagnosis Procedure ...............................................32
Component Inspection .............................................34
BLOWER FAN ON SIGNAL .............................35
Component Function Check ....................................35
Diagnosis Procedure ...............................................35
DEFROSTER POSITION SIGNAL ....................37
Description ...............................................................37
Component Function Check ....................................37
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1970 of 3641
HAC-2
Diagnosis Procedure ..............................................37
A/C INDICATOR ................................................39
Diagnosis Procedure ........................................... ...39
FRONT BLOWER MOTOR ................................41
Description ........................................................... ...41
Diagnosis Procedure ..............................................41
Component Inspection (Front Blower Motor) ..........43
Component Inspection (B lower Relay) ...................43
Component Inspection (Front Blower Motor Re-
sistor) ................................................................... ...
43
Component Inspection (Fan Switch) ......................43
MAGNET CLUTCH ............................................45
Description ........................................................... ...45
Component Function Check ...................................45
Diagnosis Procedure ..............................................45
SYMPTOM DIAGNOSIS .............................47
MANUAL AIR CONDITIONING SYSTEM ...... ...47
Symptom Table ................................................... ...47
INSUFFICIENT COOLING .................................48
Description ........................................................... ...48
Diagnosis Procedure ..............................................48
INSUFFICIENT HEATING .................................49
Description ........................................................... ...49
Diagnosis Procedure ..............................................49
COMPRESSOR DOES NOT OPERATE ...........50
Description ........................................................... ...50
Diagnosis Procedure ............................................ ...50
REMOVAL AND INSTALLATION ..............52
FRONT AIR CONTROL .................................. ...52
Exploded View ..................................................... ...52
Removal and Installation .........................................52
THERMO CONTROL AMPLIFIER ................. ...53
Removal and Installation .........................................53
REFRIGERANT PRESSURE SENSOR ......... ...54
Removal and Installation .........................................54
FRONT BLOWER MOTOR RESISTOR ......... ...55
Exploded View ..................................................... ...55
Removal and Installation .........................................55
DOOR CABLE ................................................ ...56
Exploded View ..................................................... ...56
INTAKE DOOR CABLE ......................................... ...56
INTAKE DOOR CABLE : Removal and Installation
...
56
INTAKE DOOR CABLE : Adjustment .................. ...56
MODE DOOR CABLE ............................................ ...57
MODE DOOR CABLE : Removal and Installation ...57
MODE DOOR CABLE : Adjustment ........................57
AIR MIX DOOR CABLE ......................................... ...57
AIR MIX DOOR CABLE : Removal and Installation
...
57
AIR MIX DOOR CABLE : Adjustment .................. ...57
Revision: August 2015 2016 Versa Note
cardiagn.com
