NISSAN NOTE 2016 Service Repair Manual

SB-14
< REMOVAL AND INSTALLATION >
REAR SEAT BELT
2. For seat belt retractor (LH) (1).
a. Remove D-ring anchor bolt (A).: Front
CAUTION:
Before removing the D-ring anchor bolt, note the positions
of washers and spacers fo r correct installation.
b. Remove bolts (B) and the seat belt retractor (LH) (1). (2): Seat belt retractor (center)
3. For seat belt retractor (RH) (3). : Front
a. Remove D-ring anchor bolt (C). CAUTION:
Before removing the D-ring anchor bolt, note the positions
of washers and spacers fo r correct installation.
b. Remove bolts (D) and seat belt retractor (RH) (3).
INSTALLATION
Installation is in the reverse order of removal.
• Install the seat belt retractor upper bolt first.
• Tighten the D-ring anchor bolt and the seat belt re tractor bolts to specification. Refer to SB-12, "
Exploded
View".
• Make sure the D-ring anchor operates freely.
• Always perform an inspection after repair to make sure the system is functioning within specifications. Refer to SB-5, "
Inspection".
REMOVAL - Seat Belt Retractor (center)
1. Remove luggage side upper finisher (LH). Refer to INT-35, "LUGGAGE SIDE UPPER FINISHER :
Removal and Installation".
2. Remove D-ring anchor bolt (A). : Front
CAUTION:
Before removing the D-ring anchor bolt, note the positions
of washers and spacers fo r correct installation.
3. Remove bolts (B) and seat belt retractor (center) (1). (2): Seat belt retractor (LH)
INSTALLATION
Installation is in the reverse order of removal.
• Install the center seat belt retractor upper bolt first.
• Tighten the D-ring anchor bolt and the seat belt re tractor bolts to specification. Refer to SB-12, "
Exploded
View".
• Make sure the D-ring anchor operates freely.
• Always perform an inspection after repair to make sure the system is functioning within specifications. Refer
to SB-5, "
Inspection".
ALHIA0318ZZ
ALHIA0313ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

LATCH (LOWER ANCHORS AND TETHER FOR CHILDREN) SYSTEMSB-15
< REMOVAL AND INSTALLATION >
C
DE
F
G
I
J
K L
M A
B
SB
N
O P
LATCH (LOWER ANCHORS AND TE THER FOR CHILDREN) SYSTEM
Removal and InstallationINFOID:0000000012430707
The LATCH (Lower Anchors and Tether fo r Children) system is not serviceable.
Revision: August 2015 2016 Versa Note

cardiagn.com

SB-16
< REMOVAL AND INSTALLATION >
TOP TETHER STRAP CHILD RESTRAINT
TOP TETHER STRAP CHILD RESTRAINT
Removal and InstallationINFOID:0000000012430708
The Top Tether Strap Child Restraint system is not serviceable.
Revision: August 20152016 Versa Note

cardiagn.com

SE-1
BODY INTERIOR
C
DE
F
G H
I
K L
M
SECTION SE
A
B
SE
N
O P
CONTENTS
SEAT
PRECAUTION ....... ........................................2
PRECAUTIONS .............................................. .....2
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
2
Precaution for Work ..................................................2
PREPARATION ............................................3
PREPARATION .............................................. .....3
Special Service Tools .......................................... ......3
Commercial Service Tools ........................................3
CLIP LIST ............................................................4
Descriptions for Clips ................................................4
SYMPTOM DIAGNOSIS ...............................8
SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ........................ ........................................
8
Work Flow ........................................................... ......8
Generic Squeak and Rattle Troubleshooting ............9
Diagnostic Worksheet .............................................12
WIRING DIAGRAM ......................................14
HEATED SEAT SYSTEM ...................................14
Wiring Diagram ................................................... ....14
REMOVAL AND INSTALLATION ...............18
FRONT SEAT ................................................. ....18
DRIVER SIDE ........................................................ ....18
DRIVER SIDE : Exploded View ..............................18
DRIVER SIDE : Removal and Installation ...............20
PASSENGER SIDE ...................................................20
PASSENGER SIDE : Exploded View .................. ....21
PASSENGER SIDE : Removal and Installation ......22
REAR SEAT ......................................................23
Exploded View ..................................................... ....23
SEAT CUSHION .................................................... ....26
SEAT CUSHION : Removal and Installation ...........26
SEATBACK ............................................................ ....26
SEATBACK : Removal and Installation ...................26
SEATBACK HINGE ............................................... ....27
SEATBACK HINGE : Removal and Installation .......27
SEATBACK STRIKER ........................................... ....27
SEATBACK STRIKER : Removal and Installation ....27
SEAT CUSHION HOOK ......................................... ....27
SEAT CUSHION HOOK : Removal and Installa-
tion ...........................................................................
27
FRONT HEATED SEAT SWITCH .....................29
Removal and Installation .........................................29
UNIT DISASSEMBLY AND ASSEMBLY ....30
FRONT SEAT ....................................................30
DRIVER SIDE ......................................................... ....30
DRIVER SIDE : Exploded View ...............................30
DRIVER SIDE : Seatback ........................................32
DRIVER SIDE : Seat Cushion .................................33
PASSENGER SIDE ....................................................34
PASSENGER SIDE : Explode d View ......................35
PASSENGER SIDE : Seatback ...............................36
PASSENGER SIDE : Seat Cushion ........................36
REAR SEAT ......................................................38
Exploded View ..................................................... ....38
Seat Cushion ...........................................................41
Seatback ..................................................................42
Revision: August 2015 2016 Versa Note

cardiagn.com

SE-2
< PRECAUTION >
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000012432026
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inopera tive, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintent ional activation of the system. For re moval of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipmen t on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harn esses can be identified by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or electri c power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery and wait at least three minutes before performing any service.
Precaution for WorkINFOID:0000000012432027
• When removing or disassembling each component, be careful not to damage or deform it. If a component may be subject to interference, be sure to protect it with a shop cloth.
• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component with a shop cloth or vinyl tape to protect it.
• Protect the removed parts with a shop cloth and prevent them from being dropped.
• Replace a deformed or damaged clip.
• If a part is specified as a non-reusable part, always replace it with a new one.
• Be sure to tighten bolts and nuts securely to the specified torque.
• After installation is complete, be sure to check that each part works properly.
• Follow the steps below to clean components:
- Water soluble dirt:
• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.
• Then rub with a soft, dry cloth.
- Oily dirt:
• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty area.
• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.
• Then rub with a soft, dry cloth.
- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.
- For genuine leather seats, use a genuine leather seat cleaner.
Revision: August 2015 2016 Versa Note

cardiagn.com

PREPARATIONSE-3
< PREPARATION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P

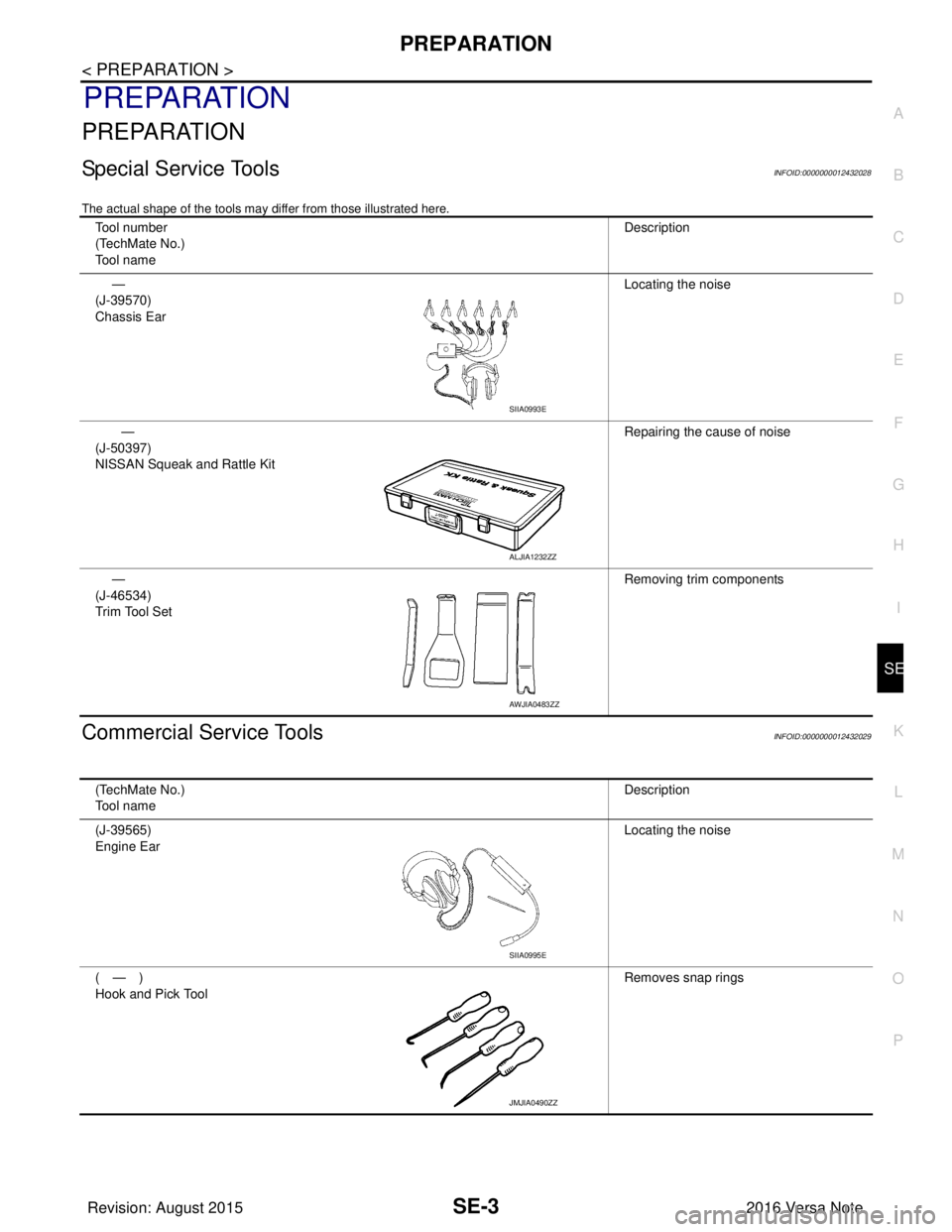

PREPARATION
PREPARATION
Special Service ToolsINFOID:0000000012432028
The actual shape of the tools may di ffer from those illustrated here.
Commercial Service ToolsINFOID:0000000012432029
Tool number
(TechMate No.)
Tool name Description
—
(J-39570)
Chassis Ear Locating the noise
—
(J-50397)
NISSAN Squeak and Rattle Kit Repairing the cause of noise
—
(J-46534)
Trim Tool Set Removing trim components
SIIA0993E
ALJIA1232ZZ
AWJIA0483ZZ
(TechMate No.)
Tool name
Description
(J-39565)
Engine Ear Locating the noise
(—)
Hook and Pick Tool Removes snap rings
SIIA0995E
JMJIA0490ZZ
Revision: August 2015
2016 Versa Note

cardiagn.com

SE-4
< PREPARATION >
CLIP LIST
CLIP LIST

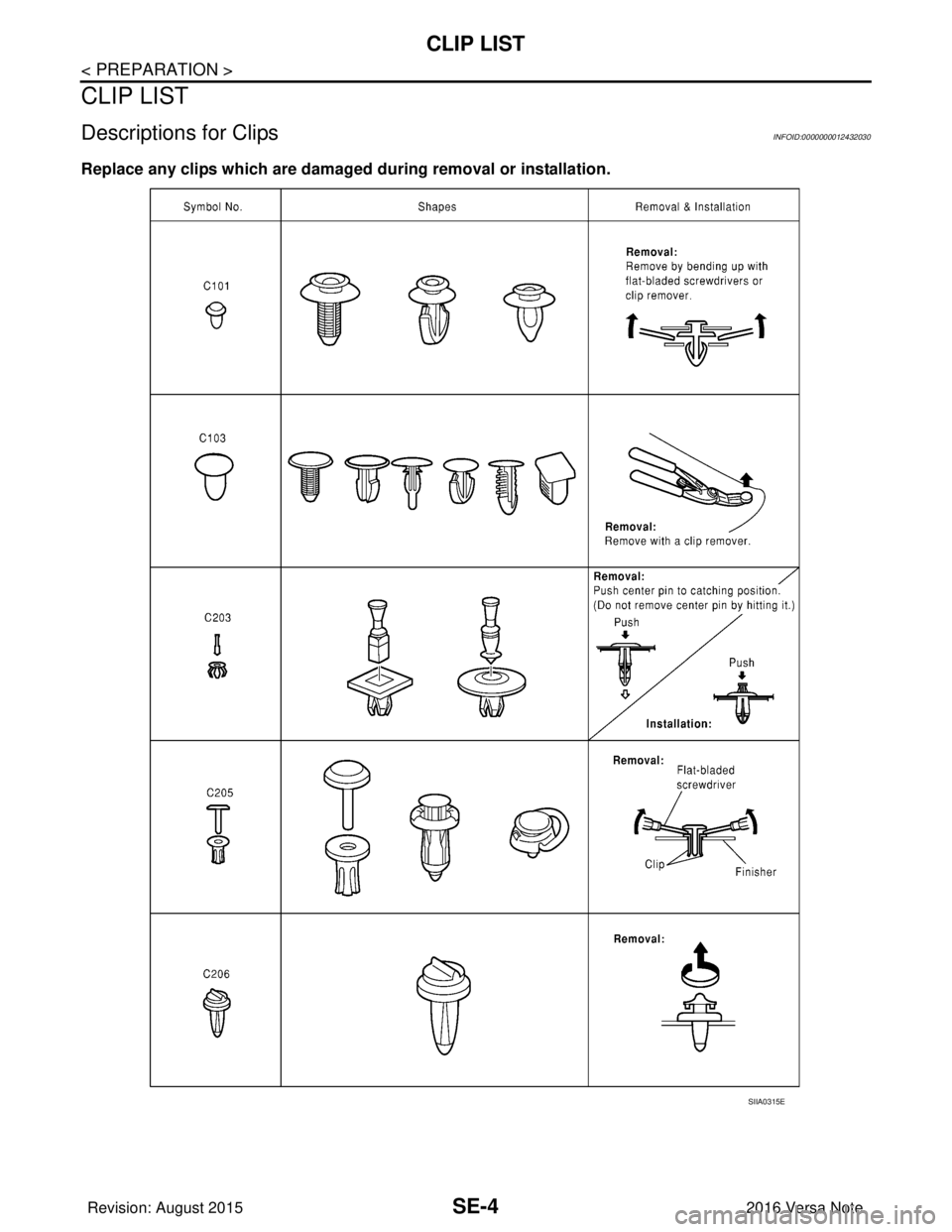

Descriptions for ClipsINFOID:0000000012432030
Replace any clips which are damaged during removal or installation.
SIIA0315E
Revision: August 2015 2016 Versa Note

cardiagn.com

CLIP LISTSE-5
< PREPARATION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P

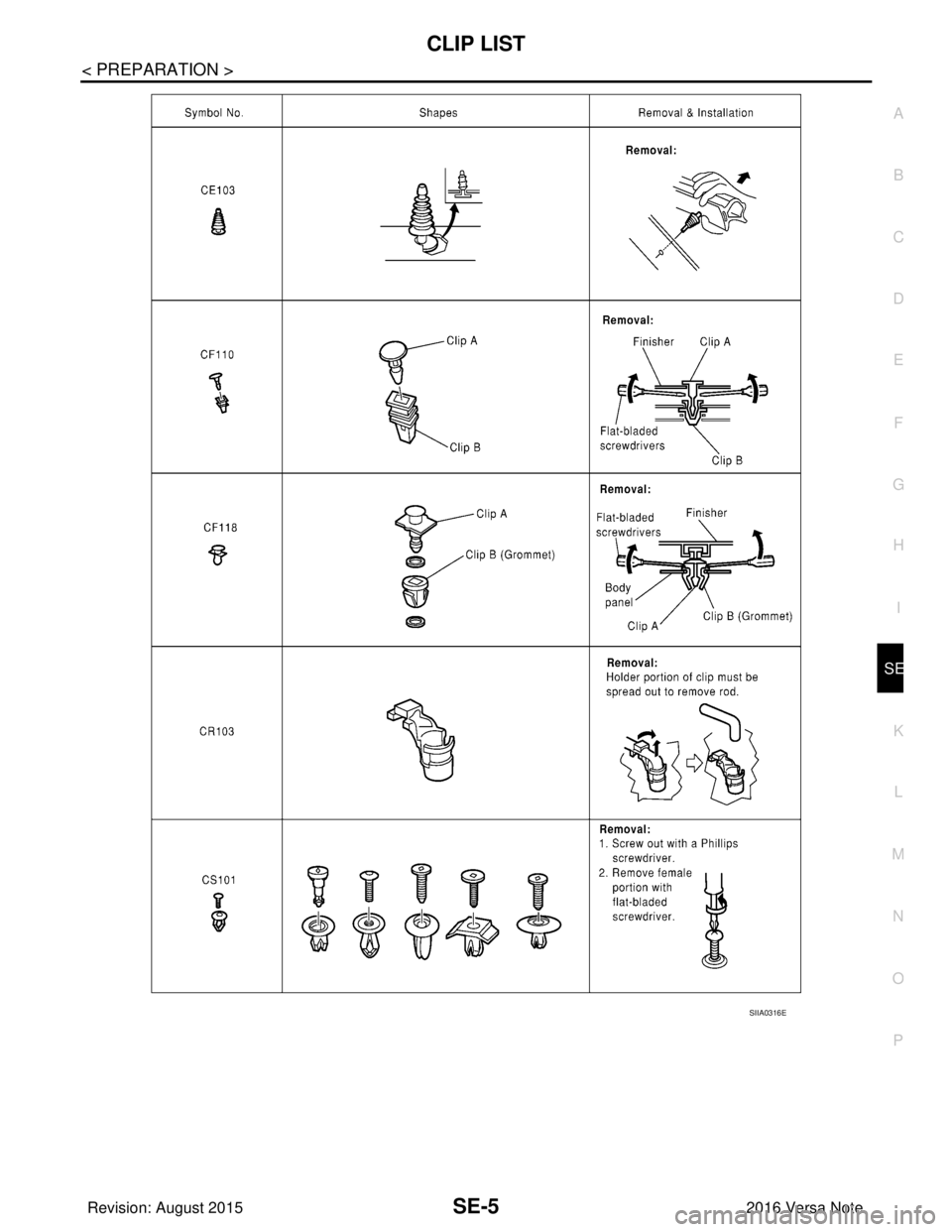

SIIA0316E
Revision: August 2015 2016 Versa Note

cardiagn.com

SE-6
< PREPARATION >
CLIP LIST

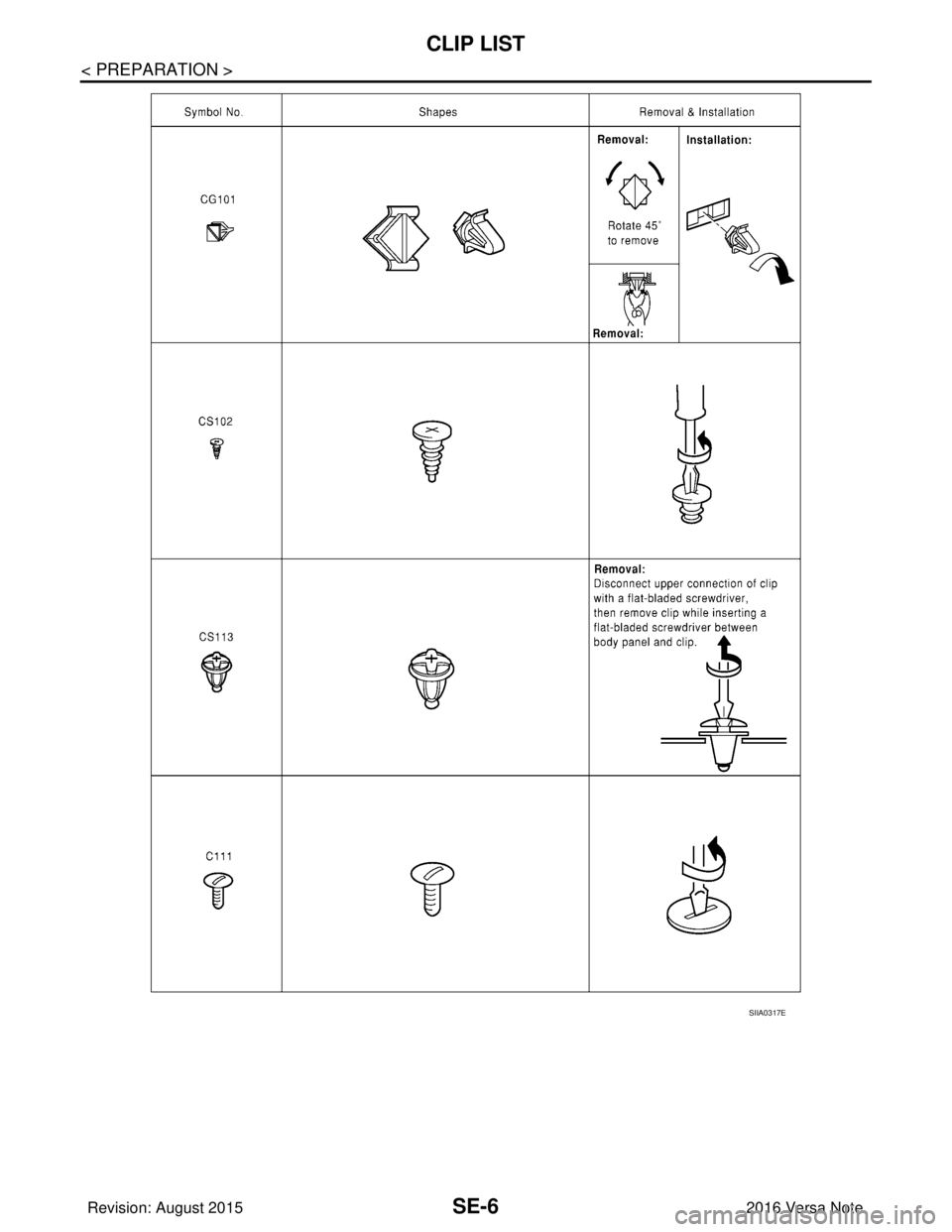

SIIA0317E
Revision: August 20152016 Versa Note

cardiagn.com

CLIP LISTSE-7
< PREPARATION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P

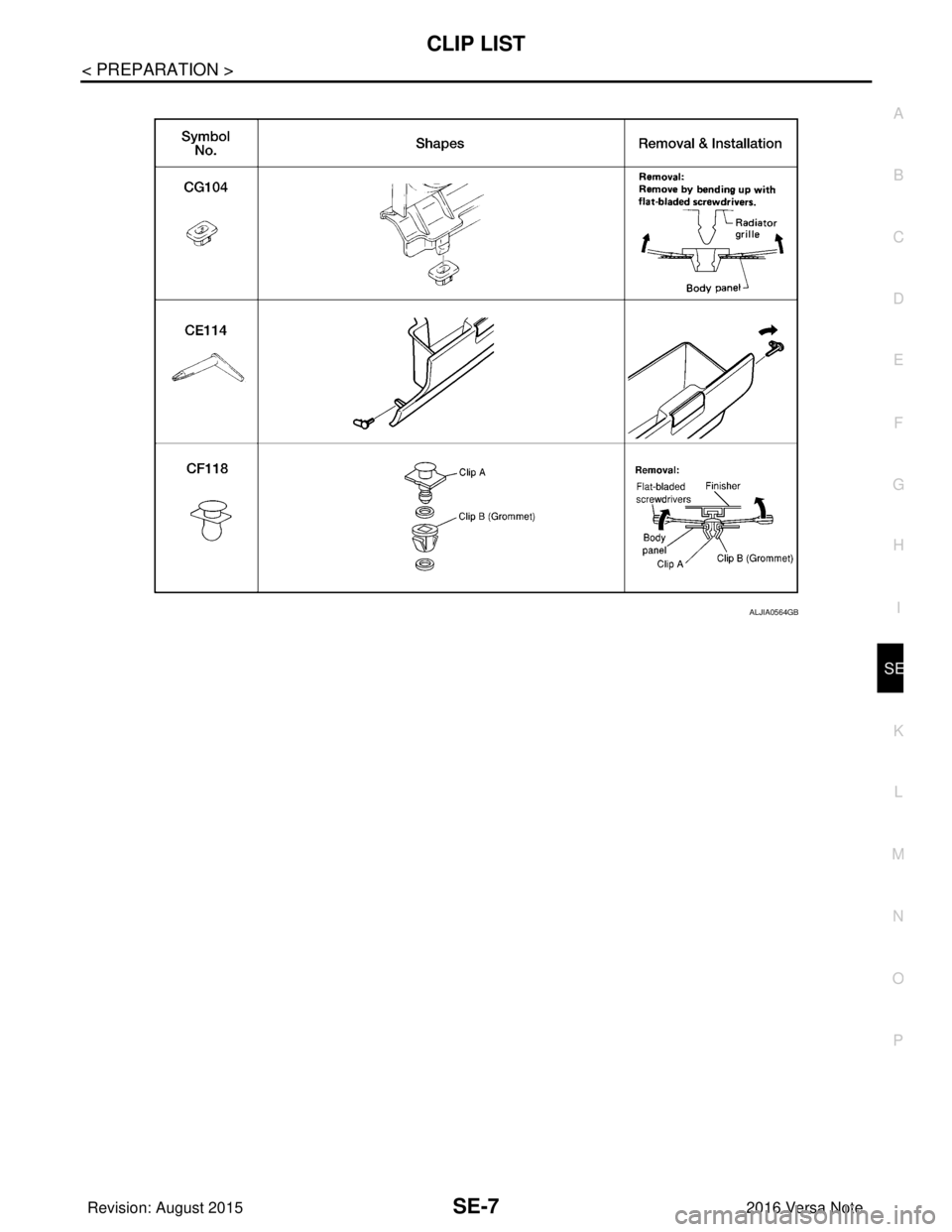

ALJIA0564GB
Revision: August 2015 2016 Versa Note
