NISSAN NOTE 2016 Service Repair Manual

SE-18
< REMOVAL AND INSTALLATION >
FRONT SEAT
REMOVAL AND INSTALLATION
FRONT SEAT
DRIVER SIDE

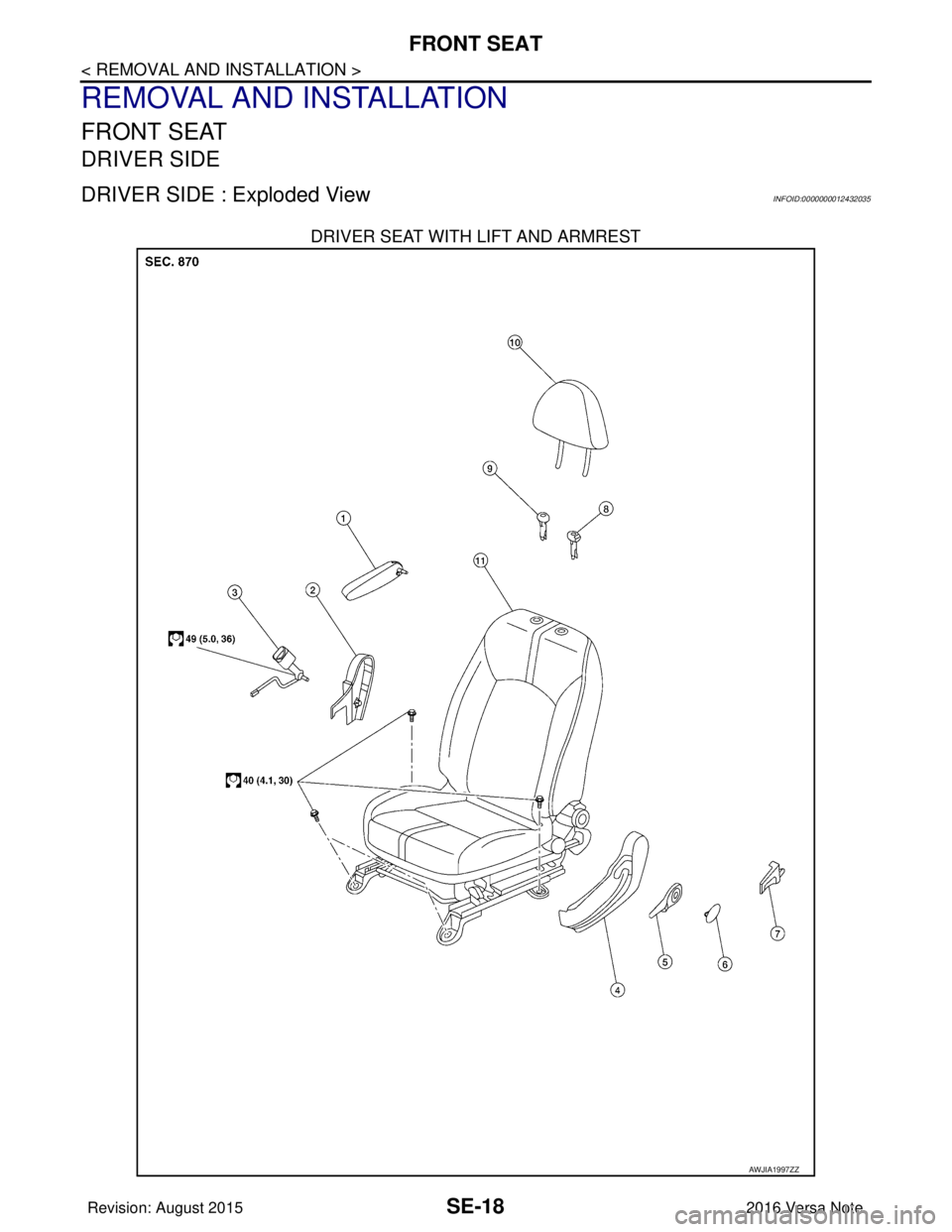

DRIVER SIDE : Exploded ViewINFOID:0000000012432035
DRIVER SEAT WITH LIFT AND ARMREST
AWJIA1997ZZ
Revision: August 20152016 Versa Note

cardiagn.com

FRONT SEATSE-19
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
DRIVER SEAT WITHOUT LIFT AND ARMREST
1. Armrest 2. Seat cushion outer finisher (RH) 3. Seat belt buckle
4. Seat cushion outer finisher (LH) 5. Lift lever 6. Lift lever cap
7. Recline lever 8. Headrest holder (locked) 9. Headrest holder (free)
10. Headrest 11. Seat assembly
AWJIA1998ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

SE-20
< REMOVAL AND INSTALLATION >
FRONT SEAT

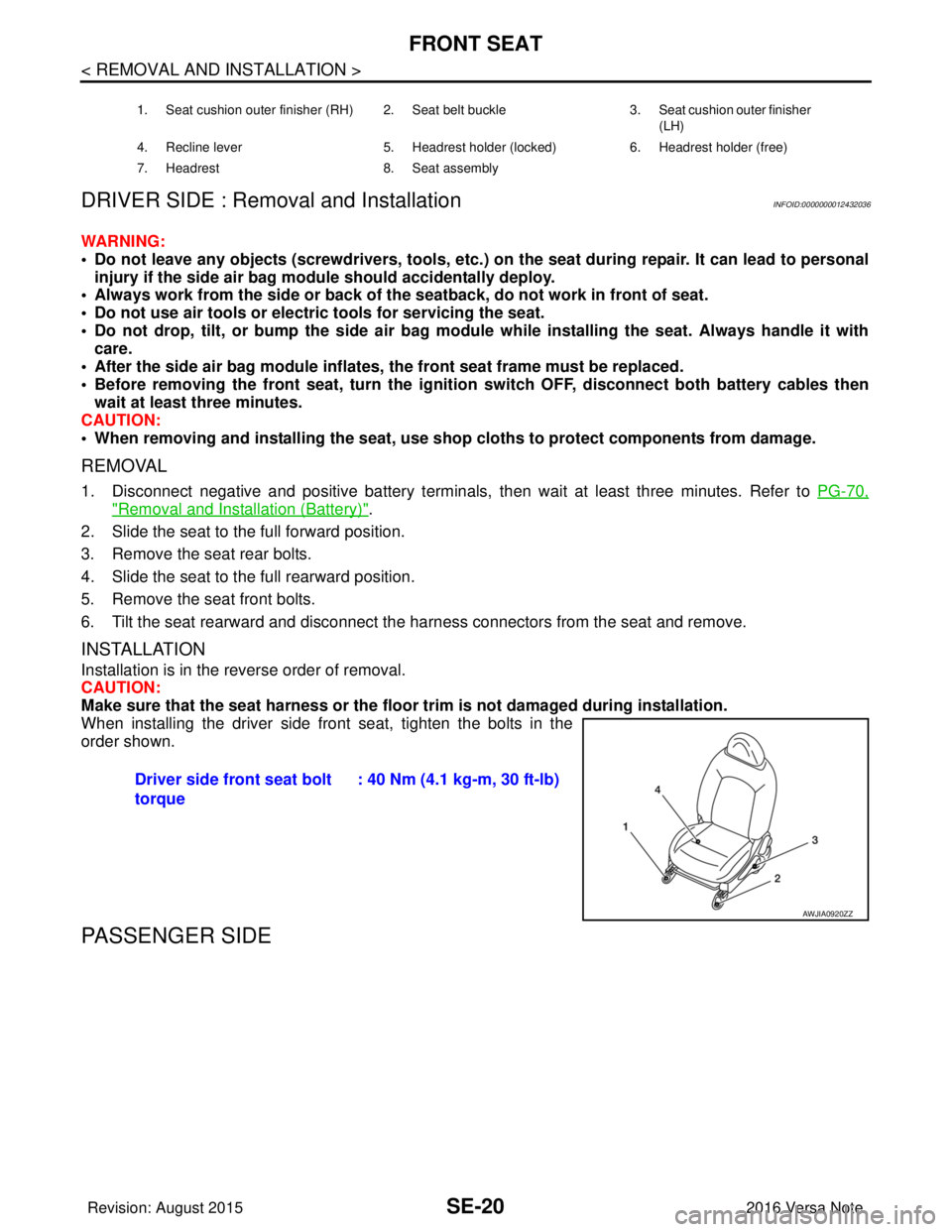

DRIVER SIDE : Remova l and Installation
INFOID:0000000012432036
WARNING:
• Do not leave any objects (screwdriver s, tools, etc.) on the seat during repair. It can lead to personal
injury if the side air bag module should accidentally deploy.
• Always work from the side or back of th e seatback, do not work in front of seat.
• Do not use air tools or electric tools for servicing the seat.
• Do not drop, tilt, or bump the si de air bag module while installing the seat. Always handle it with
care.
• After the side air bag module inflates, the front seat frame must be replaced.
• Before removing the front seat, tu rn the ignition switch OFF, disconnect both battery cables then
wait at least three minutes.
CAUTION:
• When removing and installing the seat, use shop cloths to pr otect components from damage.
REMOVAL
1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to PG-70,
"Removal and Installation (Battery)".
2. Slide the seat to the full forward position.
3. Remove the seat rear bolts.
4. Slide the seat to the full rearward position.
5. Remove the seat front bolts.
6. Tilt the seat rearward and disconnect the harness connectors from the seat and remove.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Make sure that the seat harness or the floor trim is not damaged during installation.
When installing the driver side front seat, tighten the bolts in the
order shown.
PASSENGER SIDE
1. Seat cushion outer finisher (RH) 2. Seat belt buckle 3. Seat cushion outer finisher
(LH)
4. Recline lever 5. Headrest holder (locked) 6. Headrest holder (free)
7. Headrest 8. Seat assembly
Driver side front seat bolt
torque: 40 Nm (4.1 kg-m, 30 ft-lb)
AWJIA0920ZZ
Revision: August 2015
2016 Versa Note

cardiagn.com

FRONT SEATSE-21
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P

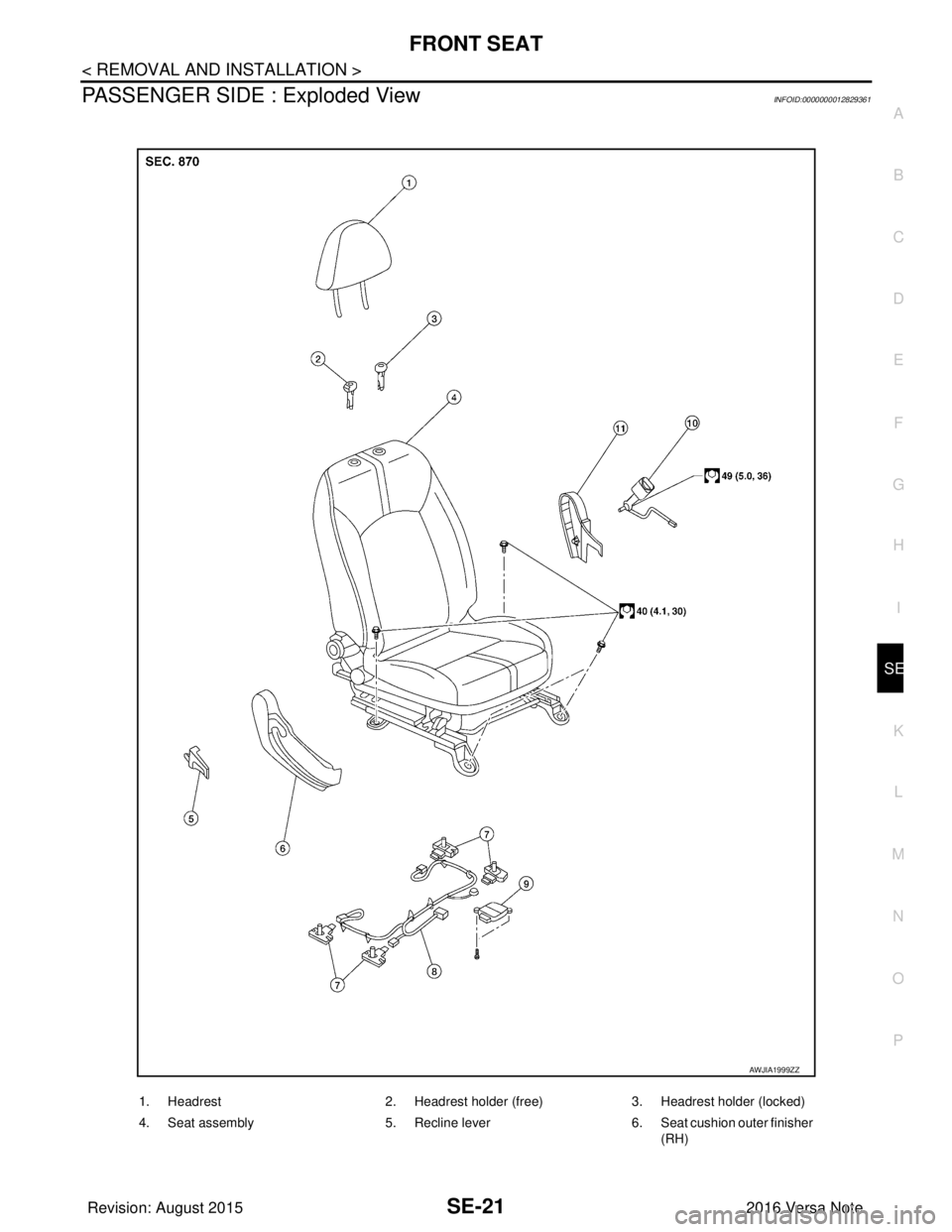

PASSENGER SIDE : Exploded ViewINFOID:0000000012829361
AWJIA1999ZZ
1. Headrest 2. Headrest holder (free) 3. Headrest holder (locked)
4. Seat assembly 5. Recline lever 6. Seat cushion outer finisher
(RH)
Revision: August 2015 2016 Versa Note

cardiagn.com

SE-22
< REMOVAL AND INSTALLATION >
FRONT SEAT

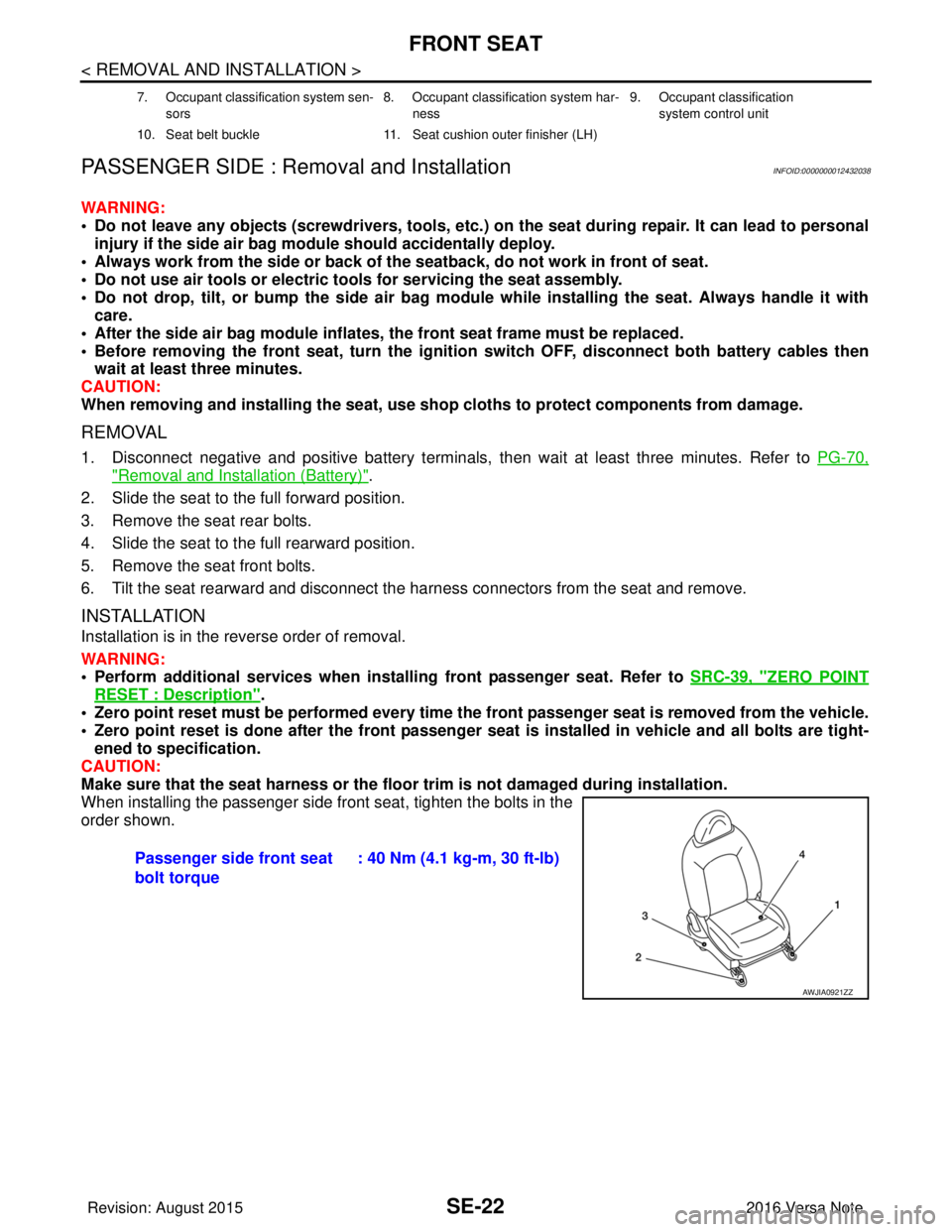

PASSENGER SIDE : Remo val and Installation
INFOID:0000000012432038
WARNING:
• Do not leave any objects (screwdriver s, tools, etc.) on the seat during repair. It can lead to personal
injury if the side air bag module should accidentally deploy.
• Always work from the side or back of th e seatback, do not work in front of seat.
• Do not use air tools or electric tools for servicing the seat assembly.
• Do not drop, tilt, or bump the si de air bag module while installing the seat. Always handle it with
care.
• After the side air bag module inflates, the front seat frame must be replaced.
• Before removing the front seat, tu rn the ignition switch OFF, disconnect both battery cables then
wait at least three minutes.
CAUTION:
When removing and inst alling the seat, use shop cloths to protect components from damage.
REMOVAL
1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to PG-70,
"Removal and Installation (Battery)".
2. Slide the seat to the full forward position.
3. Remove the seat rear bolts.
4. Slide the seat to the full rearward position.
5. Remove the seat front bolts.
6. Tilt the seat rearward and disconnect the harness connectors from the seat and remove.
INSTALLATION
Installation is in the reverse order of removal.
WARNING:
• Perform additional services when installing front passenger seat. Refer to SRC-39, "
ZERO POINT
RESET : Description".
• Zero point reset must be performed every time th e front passenger seat is removed from the vehicle.
• Zero point reset is done after the front passenger seat is installed in vehicle and all bolts are tight-
ened to specification.
CAUTION:
Make sure that the seat harness or the floor trim is not damaged during installation.
When installing the passenger side front seat, tighten the bolts in the
order shown.
7. Occupant classification system sen-
sors 8. Occupant classification system har-
ness 9. Occupant classification
system control unit
10. Seat belt buckle 11. Seat cushion outer finisher (LH)
Passenger side front seat
bolt torque: 40 Nm (4.1 kg-m, 30 ft-lb)
AWJIA0921ZZ
Revision: August 2015
2016 Versa Note

cardiagn.com

REAR SEATSE-23
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
REAR SEAT
Exploded ViewINFOID:0000000012432041

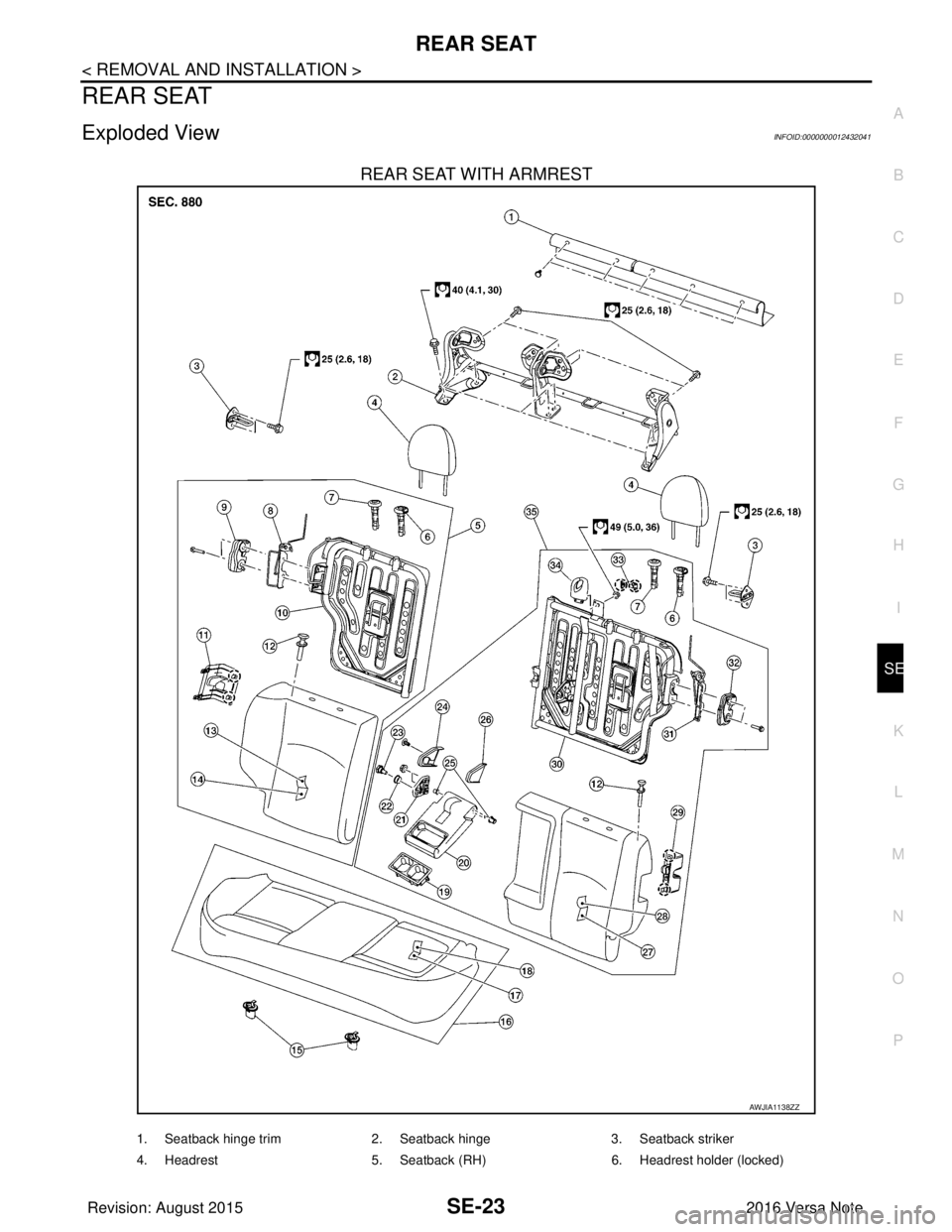

REAR SEAT WITH ARMREST
AWJIA1138ZZ
1. Seatback hinge trim 2. Seatback hinge 3. Seatback striker
4. Headrest 5. Seatback (RH) 6. Headrest holder (locked)
Revision: August 2015 2016 Versa Note

cardiagn.com

SE-24
< REMOVAL AND INSTALLATION >
REAR SEAT
7. Headrest holder (free)8. Seatback latch bracket (RH) 9. Seatback latch (RH)
10. Seatback frame (RH) 11. Seatback latch finisher (RH) 12. Seatback latch release knob
13. Seatback trim (RH) 14. Seatback pad (RH) 15. Seat cushion hook
16. Seat cushion 17. Seat cushion pad 18. Seat cushion trim
19. Cup holder 20. Armrest 21. Armrest hinge bracket
22. Armrest pivot bolt bushing 23. Armrest pivot bolt 24. Armrest hinge bracket finisher
(RH)
25. Bushing 26. Armrest hinge bracket finisher (LH) 27. Seatback pad (LH)
28. Seatback trim (LH) 29. Seatback latch finisher (LH) 30. Seatback frame (LH)
31. Seatback latch bracket (LH) 32. Seatback latch (LH) 33. Seatbelt guide finisher
34. Seat belt guide 35. Seatback (LH)
Pawl
Revision: August 2015 2016 Versa Note

cardiagn.com

REAR SEATSE-25
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P

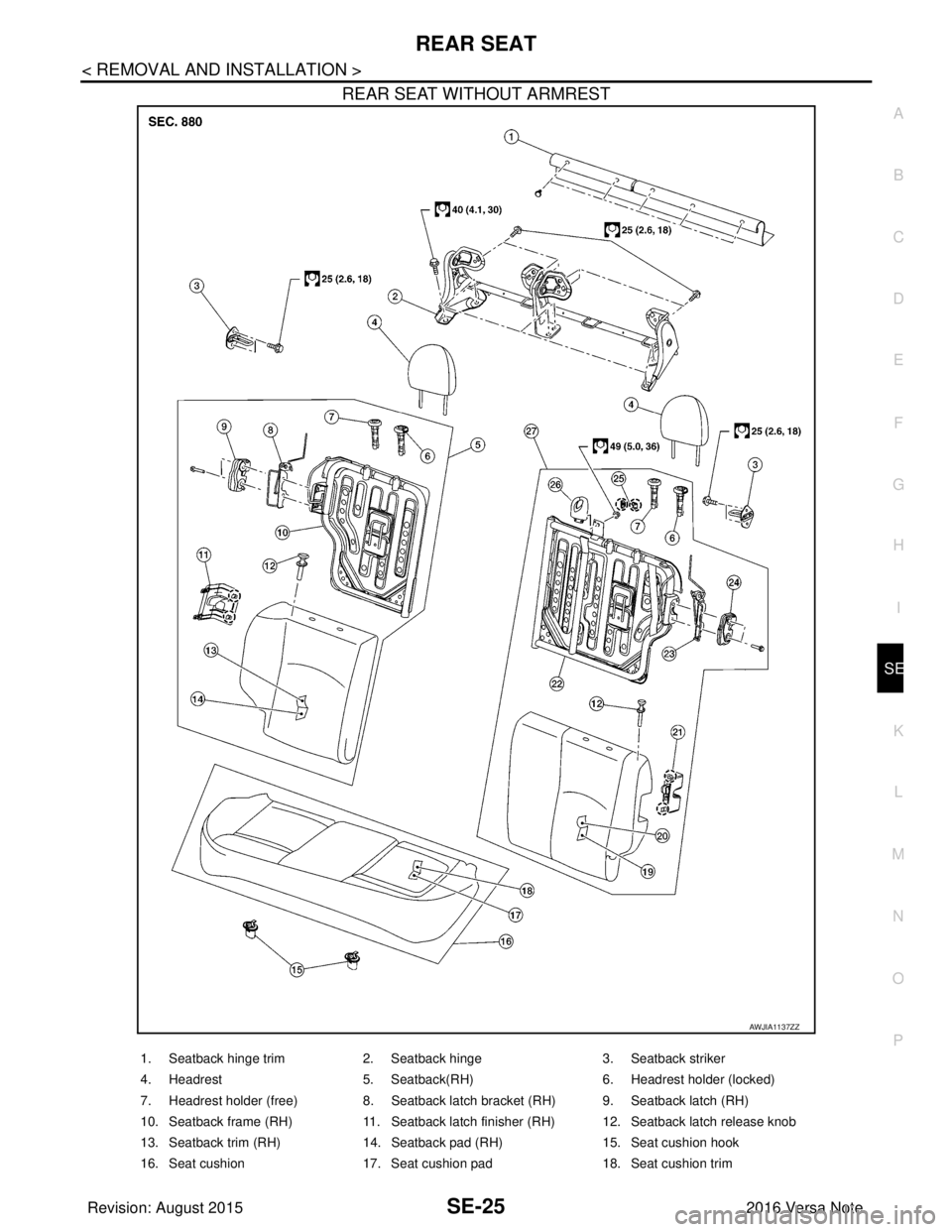

REAR SEAT WITHOUT ARMREST
AWJIA1137ZZ
1. Seatback hinge trim 2. Seatback hinge 3. Seatback striker
4. Headrest 5. Seatback(RH) 6. Headrest holder (locked)
7. Headrest holder (free) 8. Seatback latch bracket (RH) 9. Seatback latch (RH)
10. Seatback frame (RH) 11. Seatback latch finisher (RH) 12. Seatback latch release knob
13. Seatback trim (RH) 14. Seatback pad (RH) 15. Seat cushion hook
16. Seat cushion 17. Seat cushion pad 18. Seat cushion trim
Revision: August 2015 2016 Versa Note

cardiagn.com

SE-26
< REMOVAL AND INSTALLATION >
REAR SEAT

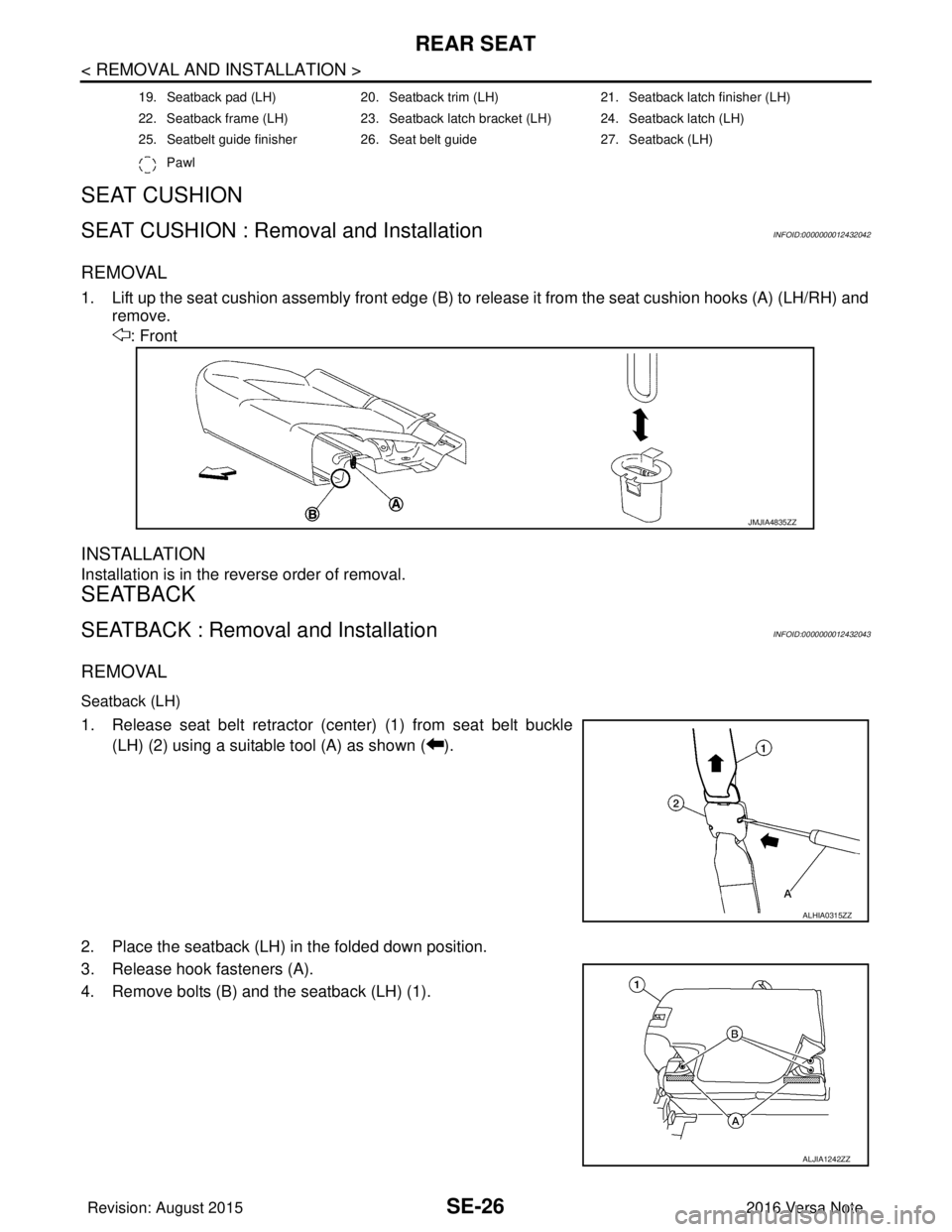

SEAT CUSHION
SEAT CUSHION : Removal and InstallationINFOID:0000000012432042
REMOVAL
1. Lift up the seat cushion assembly front edge (B) to release it from the seat cushion hooks (A) (LH/RH) andremove.
: Front
INSTALLATION
Installation is in the reverse order of removal.
SEATBACK
SEATBACK : Removal and InstallationINFOID:0000000012432043
REMOVAL
Seatback (LH)
1. Release seat belt retractor (center) (1) from seat belt buckle (LH) (2) using a suitable tool (A) as shown ( ).
2. Place the seatback (LH) in the folded down position.
3. Release hook fasteners (A).
4. Remove bolts (B) and the seatback (LH) (1).
19. Seatback pad (LH) 20. Seatback trim (LH) 21. Seatback latch finisher (LH)
22. Seatback frame (LH) 23. Seatback latch bracket (LH) 24. Seatback latch (LH)
25. Seatbelt guide finisher 26. Seat belt guide 27. Seatback (LH)
Pawl
JMJIA4835ZZ
ALHIA0315ZZ
ALJIA1242ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

REAR SEATSE-27
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P

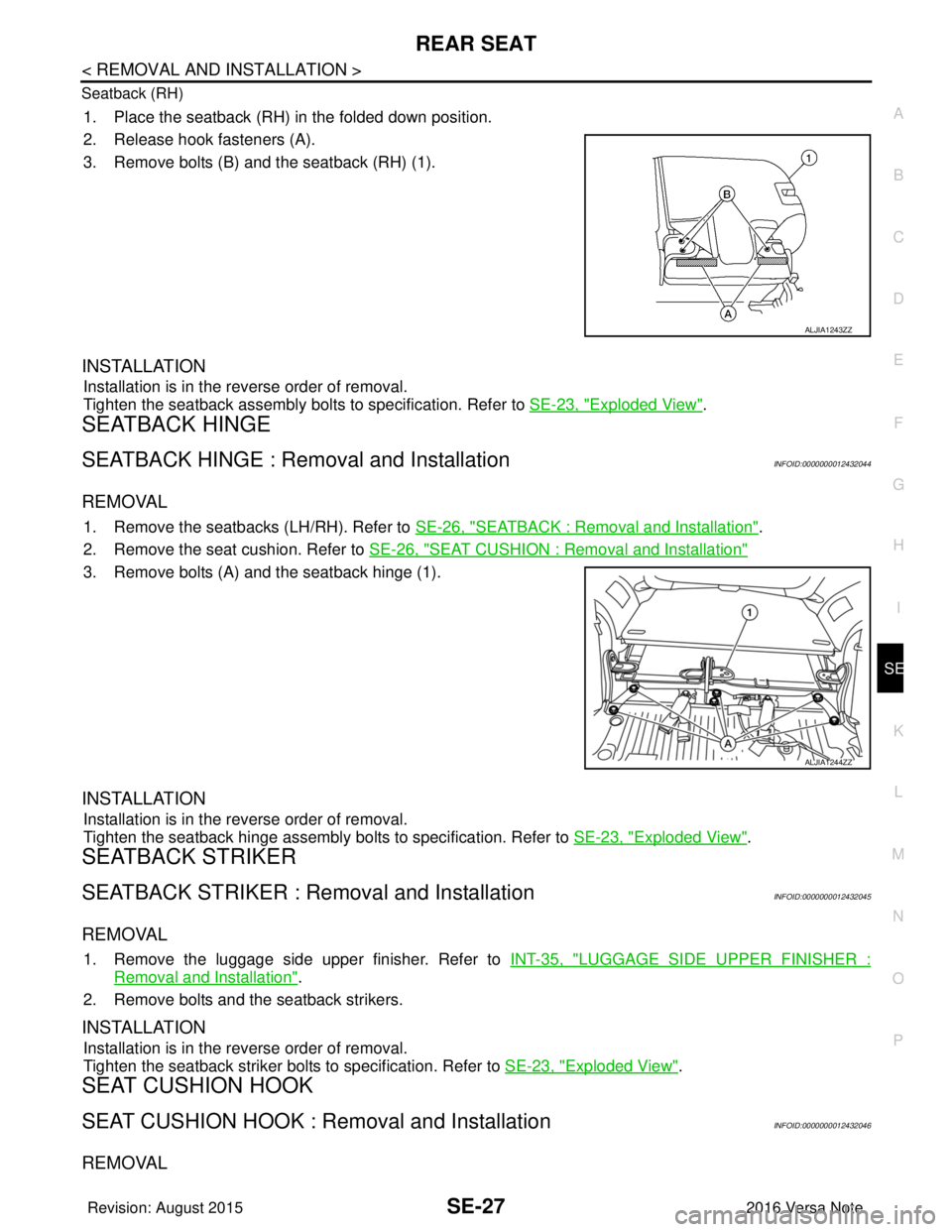

Seatback (RH)
1. Place the seatback (RH) in the folded down position.
2. Release hook fasteners (A).
3. Remove bolts (B) and the seatback (RH) (1).
INSTALLATION
Installation is in the reverse order of removal.
Tighten the seatback assembly bolts to specification. Refer to
SE-23, "
Exploded View".
SEATBACK HINGE
SEATBACK HINGE : Removal and InstallationINFOID:0000000012432044
REMOVAL
1. Remove the seatbacks (LH/RH). Refer to SE-26, "SEATBACK : Removal and Installation".
2. Remove the seat cushion. Refer to SE-26, "
SEAT CUSHION : Removal and Installation"
3. Remove bolts (A) and the seatback hinge (1).
INSTALLATION
Installation is in the reverse order of removal.
Tighten the seatback hinge assembly bolts to specification. Refer to SE-23, "
Exploded View".
SEATBACK STRIKER
SEATBACK STRIKER : Removal and InstallationINFOID:0000000012432045
REMOVAL
1. Remove the luggage side upper finisher. Refer to INT-35, "LUGGAGE SIDE UPPER FINISHER :
Removal and Installation".
2. Remove bolts and the seatback strikers.
INSTALLATION
Installation is in the reverse order of removal.
Tighten the seatback striker bolts to specification. Refer to SE-23, "
Exploded View".
SEAT CUSHION HOOK
SEAT CUSHION HOOK : Removal and InstallationINFOID:0000000012432046
REMOVAL
ALJIA1243ZZ
ALJIA1244ZZ
