CVT CONTROL SYSTEM : Protection Control
INFOID:0000000012431020
The TCM becomes the protection control status temporarily to protect the safety when the safety of TCM and
transmission is lost. It automatically returns to the normal status if the safety is secured.
The TCM has the following protection control.
CONTROL FOR WHEEL SPIN
P0999•Start is slow
• Lock-up is not performed
Wire disconnection
• Vehicle speed is not increased
• Lock-up is not performed Voltage shorting
P099B Start is slow —
P099C •Start is slow
• Lock-up is not performed
Wire disconnection
• Vehicle speed is not increased
• Lock-up is not performed Voltage shorting
P1586 Idle neutral control is not performed —
P1588 Idle neutral control is not performed —
P2765 • Selector shock is large
•Start is slow
• Acceleration is slow
• Vehicle speed is not increased
• Lock-up is not performed
—
P2857 •Start is slow
• Lock-up is not performed —
P2858 • Vehicle speed is not increased
• Lock-up is not performed —
P2859 Vehicle speed is not increased —
P285A Start is slow —
U0073 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
U0100 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
U0140 Not changed from normal driving —
U0141 Not changed from normal driving —
U0155 Not changed from normal driving —
U0300 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
U1000 Not changed from normal driving —
U1114 Not changed from normal driving —
U1117 Not changed from normal driving —
DTC
Vehicle behavior Conditions of vehicle
ControlWhen a wheel spin is detected, the engine output and gear ratio are limited and the line pressure is increased.
At the 1GR, the clutch pressure is increased.
Revision: August 2015
2016 Versa Note

cardiagn.com

SYSTEMTM-81
< SYSTEM DESCRIPTION > [CVT: RE0F11A]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
CONTROL WHEN FLUID TEMPERATURE IS HIGH
TORQUE IS REDUCED WHEN DRIVING WITH THE REVERSE GEAR
REVERSE PROHIBIT CONTROL
LINE PRESSURE CONTROL
Vehicle behavior in
control If the accelerator is kept depressing during wheel spin, the engine revolution and vehicle speed are limited to
a certain degree. From the 1GR, upshift to a certain gear ratio is only allowed.
Normal return condi-
tion Wheel spin convergence returns the control to the normal control.
ControlWhen the CVT fluid temperature is high, the gear shift permission maximum revolution and the maximum
torque are reduced than usual to prevent increase of the oil temperature.
Vehicle behavior in
control Power performance may be lowered, compared to normal control.
Normal return condi-
tion The control returns to the normal control when CVT fluid temperature is lowered.
Control
Engine output is controlled according to a vehicle speed while reversing the vehicle.
Vehicle behavior in
control Power performance may be lowered while reversing the vehicle.
Normal return condi-
tion Torque returns to normal by positioning the selector lever in a range ot
her than “R” position.
ControlThe reverse brake is controlled to avoid becoming engaged when the selector lever is set in “R” position while
driving in forward direction at more than the specified speed.
Vehicle behavior in
control If the selector lever is put at “R” position when driving with the forward gear, the gear becomes neutral, not
reverse.
Normal return condi-
tion The control returns to normal control when the vehicle is driven at low speeds. (The reverse brake becomes
engaged.)
Revision: August 2015
2016 Versa Note

cardiagn.com

TM-82
< SYSTEM DESCRIPTION >[CVT: RE0F11A]
SYSTEM
LINE PRESSURE CONTROL : System Description
INFOID:0000000012431021

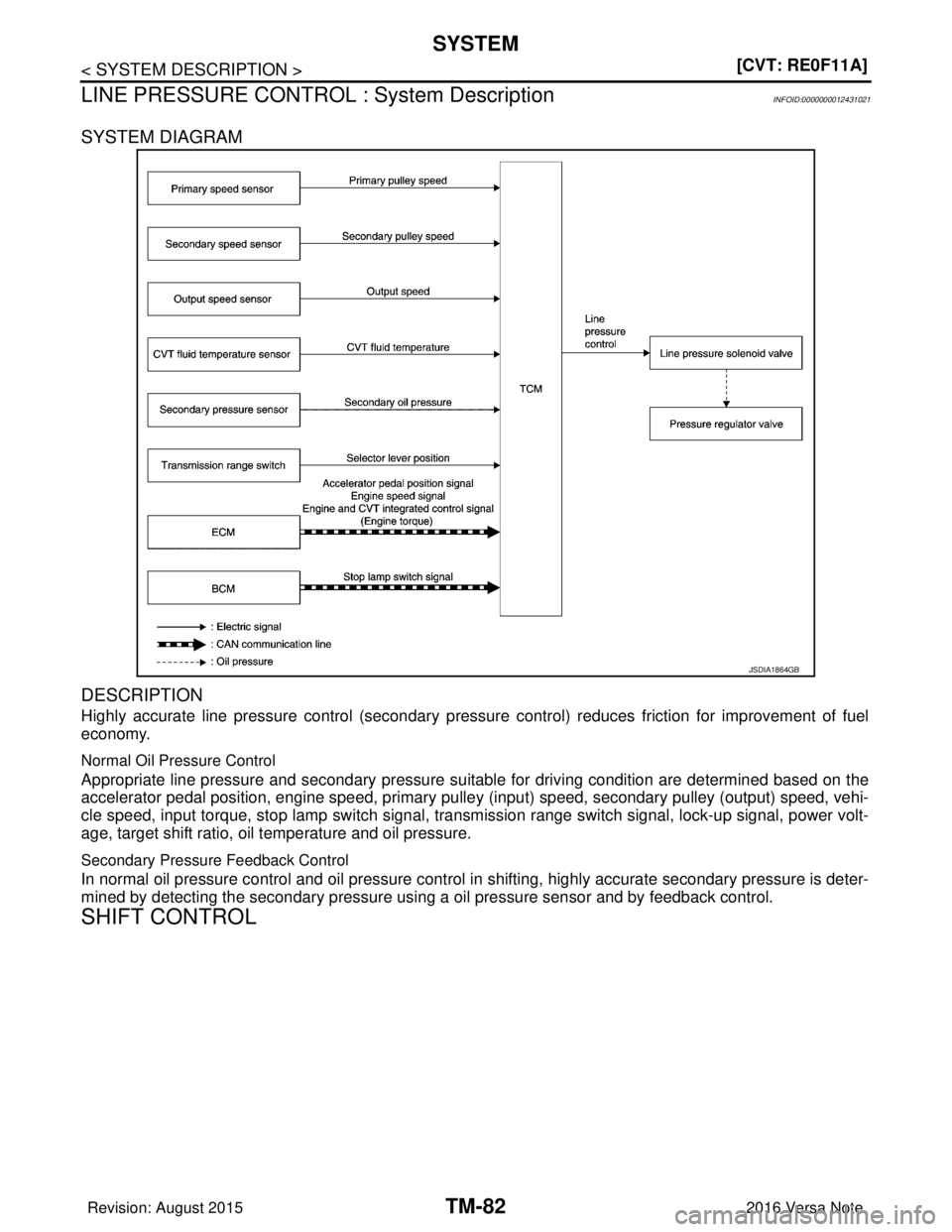

SYSTEM DIAGRAM
DESCRIPTION
Highly accurate line pressure control (secondary pressure control) reduces friction for improvement of fuel
economy.
Normal Oil Pressure Control
Appropriate line pressure and secondary pressure su itable for driving condition are determined based on the
accelerator pedal position, engine speed, primary pulle y (input) speed, secondary pulley (output) speed, vehi-
cle speed, input torque, stop lamp switch signal, transmission range switch signal, lock-up signal, power volt-
age, target shift ratio, oil temperature and oil pressure.
Secondary Pressure Feedback Control
In normal oil pressure control and oil pressure control in shifting, highly accurate secondary pressure is deter-
mined by detecting the secondary pressure using a oil pressure sensor and by feedback control.
SHIFT CONTROL
JSDIA1864GB
Revision: August 2015 2016 Versa Note

cardiagn.com

SYSTEMTM-83
< SYSTEM DESCRIPTION > [CVT: RE0F11A]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
SHIFT CONTROL : System DescriptionINFOID:0000000012431022

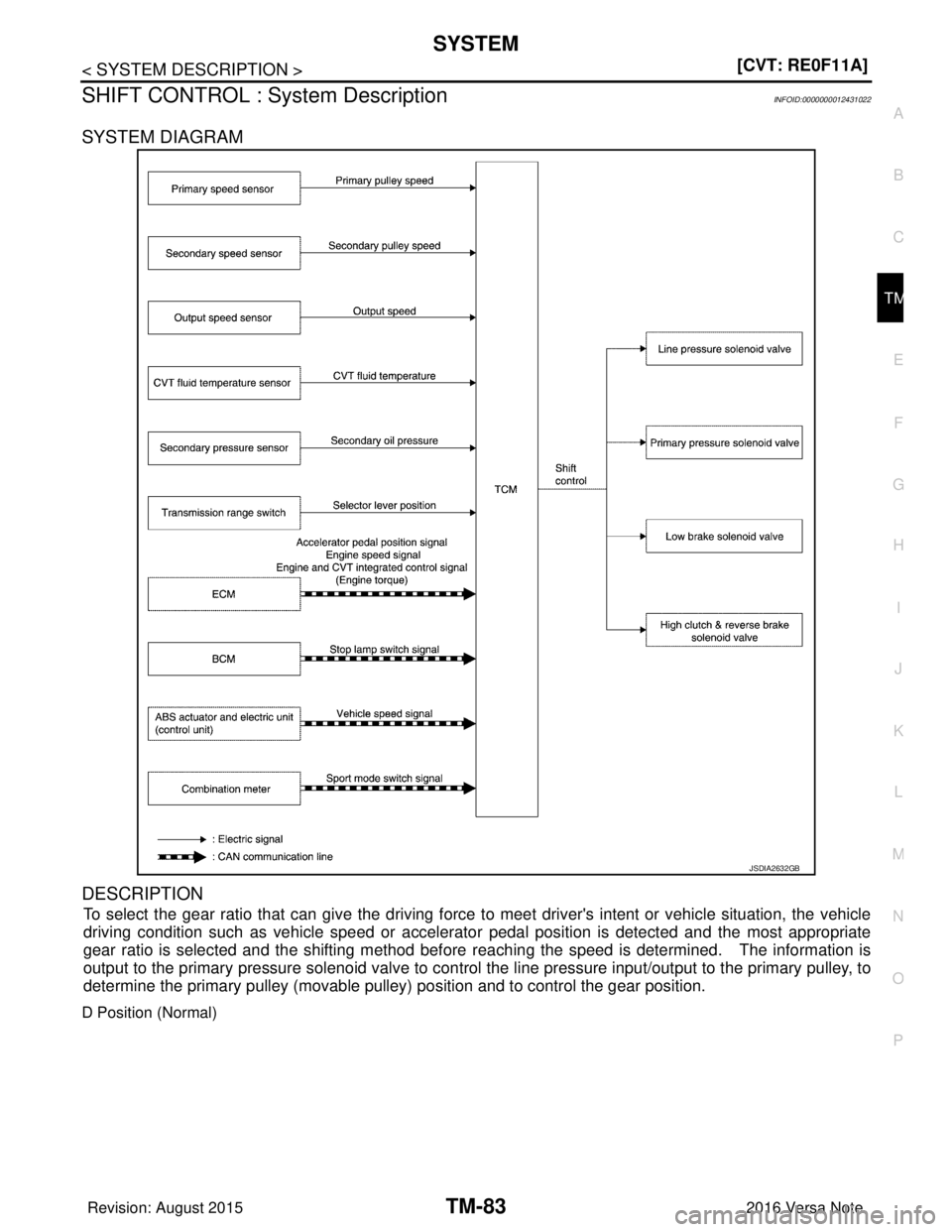

SYSTEM DIAGRAM
DESCRIPTION
To select the gear ratio that can give the driving force to meet driver's intent or vehicle situation, the vehicle
driving condition such as vehicle speed or accelerator pedal position is detected and the most appropriate
gear ratio is selected and the shifting method before r eaching the speed is determined. The information is
output to the primary pressure solenoid valve to control the line pressure input/output to the primary pulley, to
determine the primary pulley (movable pulley) position and to control the gear position.
D Position (Normal)
JSDIA2632GB
Revision: August 2015 2016 Versa Note

cardiagn.com

TM-84
< SYSTEM DESCRIPTION >[CVT: RE0F11A]
SYSTEM
Gear shifting is performed in all shifting ranges from the lowest to the
highest gear ratio.
D Position (OD OFF)
The gear ratio is generally high by limiting the shifting range on the
high side, and this always generates a large driving power.
L Position
By limiting the shifting range only to the lowest of the gear ratio, a
large driving force and engine brake are obtained.
Hill Climbing And Descending Control
If a downhill is detected with the accelerator pedal is released, the system performs dow
nshift to increase the
engine brake force so that vehicle may not be accelerated more than necessary. If a climbing hill is detected,
the system improves the acceleration performance in re-acceleration by limiting the gear shift range on the
high side.
NOTE:
For engine brake control on a downhill, the control can be stopped with CONSULT.
Control In Acceleration
From change of the vehicle speed or accelerator pedal posit ion, the acceleration request level of the driver or
driving scene is evaluated. In start or acceleration during driving, the gear shift characteristics with linearity of
revolution increase and vehicle speed increase are gained to improve the acceleration feel.
SELECT CONTROL
SCIA1953E
SCIA8229E
SCIA8240E
JSDIA2060GB
Revision: August 2015 2016 Versa Note

cardiagn.com

SYSTEMTM-85
< SYSTEM DESCRIPTION > [CVT: RE0F11A]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
SELECT CONTROL : System DescriptionINFOID:0000000012431023
SYSTEM DIAGRAM
DESCRIPTION
Based on accelerator pedal angle, engine speed, primary pulley speed, and the secondary pulley speed, the
optimum operating pressure is set to reduce impact of a selector lever operation while shifting from “N” (“P”) to
“D” (“R”) position.
LOCK-UP CONTROL
JSDIA1862GB
Revision: August 2015 2016 Versa Note

cardiagn.com

TM-86
< SYSTEM DESCRIPTION >[CVT: RE0F11A]
SYSTEM
LOCK-UP CONTROL : System Description
INFOID:0000000012431024
SYSTEM DIAGRAM
DESCRIPTION
• Controls for improvement of the transmission effi ciency by engaging the torque converter clutch in the
torque converter and eliminating slip of the converter. Achieves comfortable driving with slip control of the
torque converter clutch.
• The oil pressure feed circuit for the torque converter clutch piston chamber is connected to the torque con- verter clutch control valve. The torque converter clut ch control valve is switched by the torque converter
clutch solenoid valve with the signal from TCM. This controls the oil pressure circuit, which is supplied to the
torque converter clutch piston chamber, to the release side or engagement side.
• If the CVT fluid temperature is low or the vehicle is in fail-safe mode due to malfunction, lock-up control is
prohibited.
Lock-up engagement
In lock-up engagement, the torque converter clutch solenoi d valve makes the torque converter clutch control
valve locked up to generate the lock-up apply pressure. This pushes the torque converter clutch piston for
engagement.
Lock-up release condition
In lock-up release, the torque converter clutch solenoid valve makes the torque converter clutch control valve
non-locked up to drain the lock-up apply pressure. This does not engage the torque converter clutch piston.
IDLE NEUTRAL CONTROL
JSDIA1865GB
Revision: August 2015 2016 Versa Note

cardiagn.com

SYSTEMTM-87
< SYSTEM DESCRIPTION > [CVT: RE0F11A]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
IDLE NEUTRAL CONTROL : System DescriptionINFOID:0000000012431025
SYSTEM DIAGRAM
DESCRIPTION
If a driver has no intention of starting the vehicle in D position, TCM operates the low brake solenoid valve and
controls the oil pressure of the low brake to be low pressure. Therefore, the low brake is in the release (slip)
status and the power transmission route of transaxle is the same status as the N position. In this way, the tran-
saxle is in idling status and load to the engine can be reduced to improve fuel economy.
NOTE:
JSDIA2535GB
Revision: August 2015 2016 Versa Note

cardiagn.com

TM-88
< SYSTEM DESCRIPTION >[CVT: RE0F11A]
SYSTEM
Provides idle neutral control when st
op/start operation is not performed.
Idle Neutral Control Start Condition
Idle neutral control is started when all of the following conditions are fulfilled. However, during idle neutral con-
trol, idle neutral control is stopped when any of the following conditions is not met or idle neutral control contin-
ues 30 seconds.
NOTE:
Stops or prohibits the idle neutral control when the TC M and ECM detect that the vehicle is in one of the fol-
lowing conditions.
• Engine coolant temperature and CVT fluid temperature are the specified temperature or more, or the speci-
fied temperature or less.
• When a transaxle malfunction occurs.
• When the vehicle detects DTC and is in the fail-safe mode.
• When idle speed increases due to heavy electric load*. *: When any one of rear window defogger switch, A/C s witch, headlamp, fog lamp is turned ON. In addition,
when the steering wheel is operated.
JPDIA1215GB
Driving environment : Flat road or road with mild gradient
Selector lever position : “D” position
Vehicle speed : 0 km/h (0 MPH)
Accelerator pedal position : 0.0/8
Brake pedal : Depressed
Engine speed : Idle speed
Turn signal lamp/hazard signal lamp : Not activated
Revision: August 2015 2016 Versa Note

cardiagn.com

SYSTEMTM-89
< SYSTEM DESCRIPTION > [CVT: RE0F11A]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
Idle Neutral Contro
l Resume Condition
When the idle neutral control finishes, if the vehicle is driven at more than the specified speed and the idle
neutral control start conditions are satisfied, the idle neut ral control starts again. If the vehicle has a malfunc-
tion, the idle neutral control does not start.
