BRM-32
< REMOVAL AND INSTALLATION >
REPLACEMENT OPERATIONS

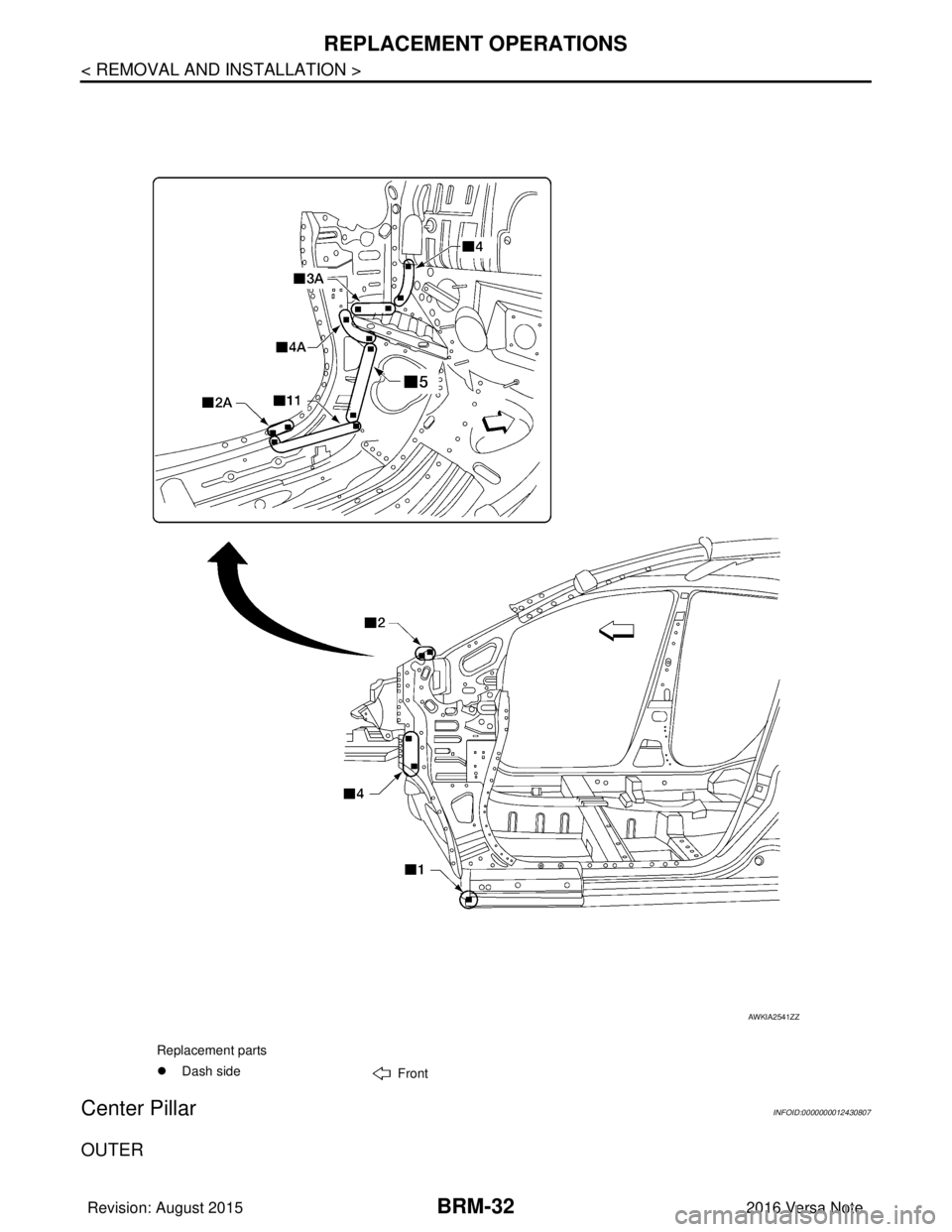

Center Pillar
INFOID:0000000012430807
OUTER
Replacement parts
z Dash side
Front
AWKIA2541ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

REPLACEMENT OPERATIONSBRM-33
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P
Unit: mm (in)

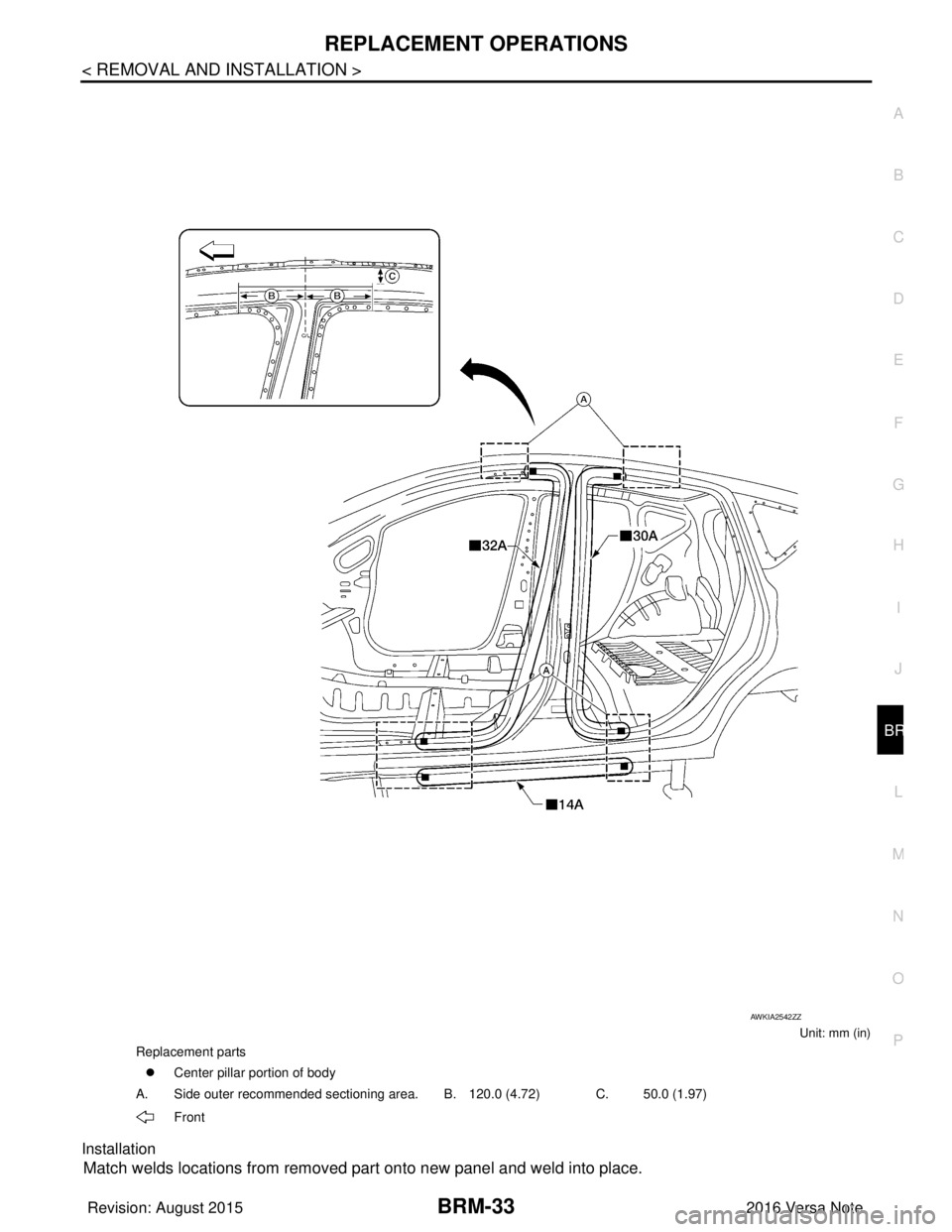

Installation
Match welds locations from removed part onto new panel and weld into place.
Replacement parts z Center pillar portion of body
A. Side outer recommended sectioning area. B. 120.0 (4.72) C. 50.0 (1.97)
Front
AWKIA2542ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

BRM-34
< REMOVAL AND INSTALLATION >
REPLACEMENT OPERATIONS

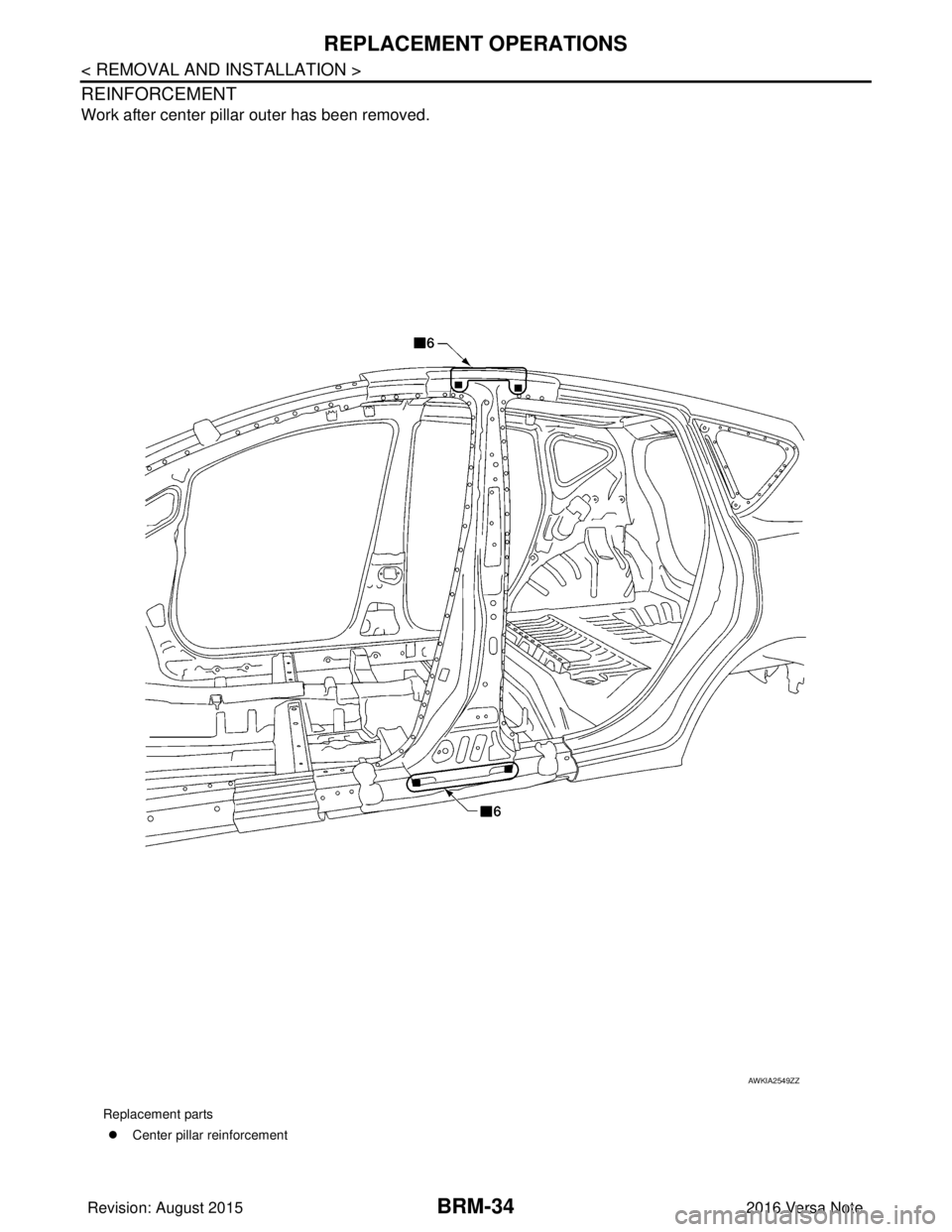

REINFORCEMENT
Work after center pillar outer has been removed.
Replacement partsz Center pillar reinforcement
AWKIA2549ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

REPLACEMENT OPERATIONSBRM-35
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P

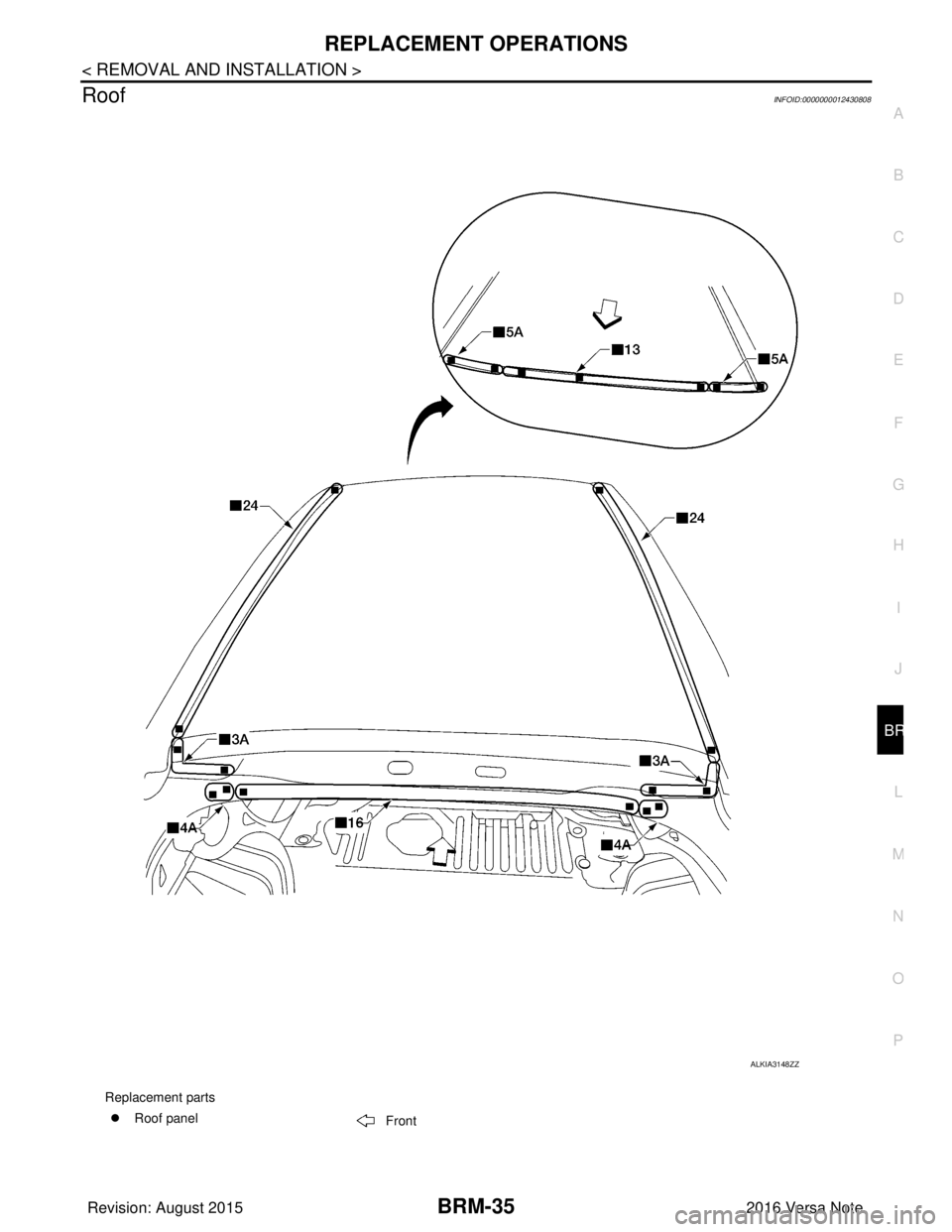

RoofINFOID:0000000012430808
Replacement parts z Roof panel
Front
ALKIA3148ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

BRM-36
< REMOVAL AND INSTALLATION >
REPLACEMENT OPERATIONS

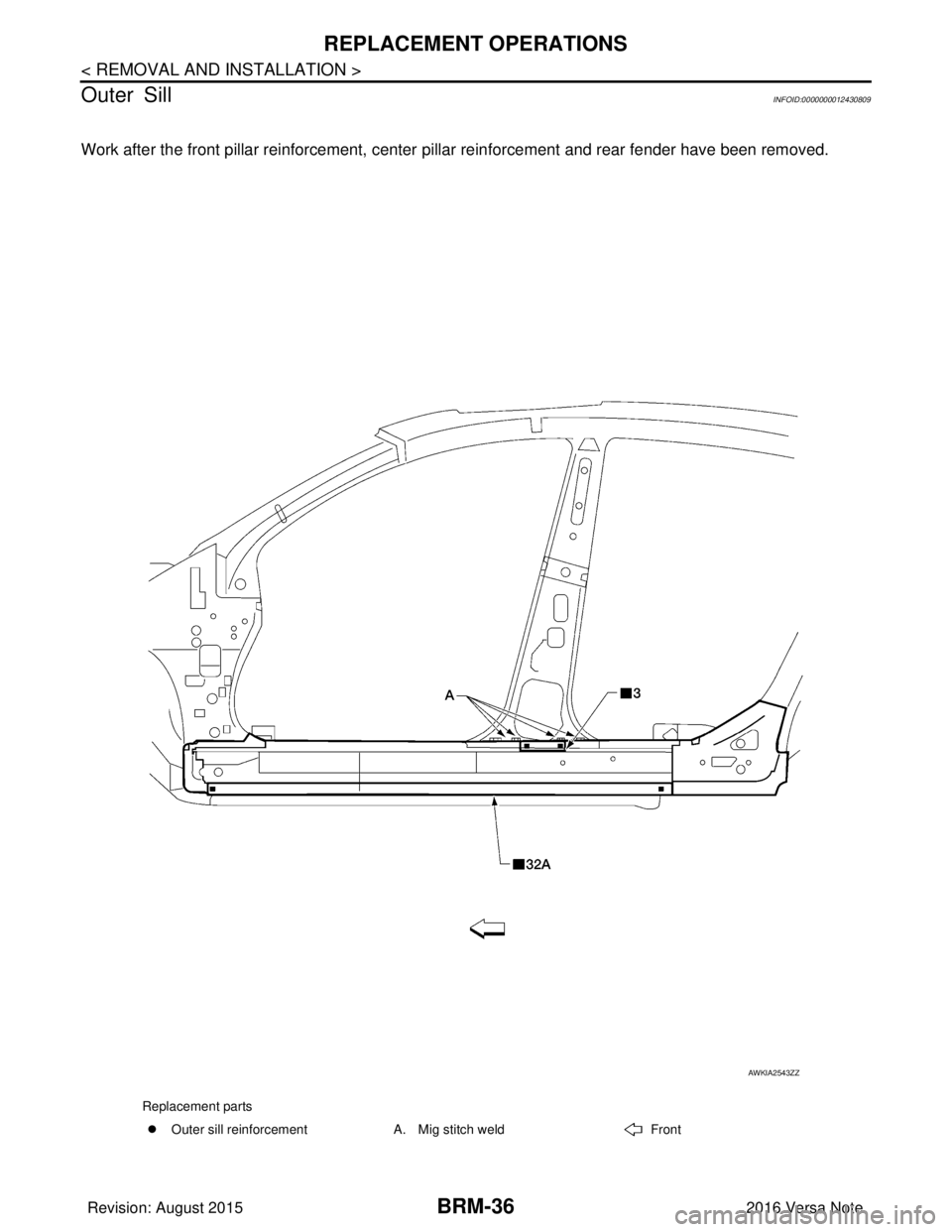

Outer Sill
INFOID:0000000012430809
Work after the front pillar reinforcement, center pillar reinforcement and rear fender have been removed.
Replacement parts
z Outer sill reinforcement A. Mig stitch weld Front
AWKIA2543ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

REPLACEMENT OPERATIONSBRM-37
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P

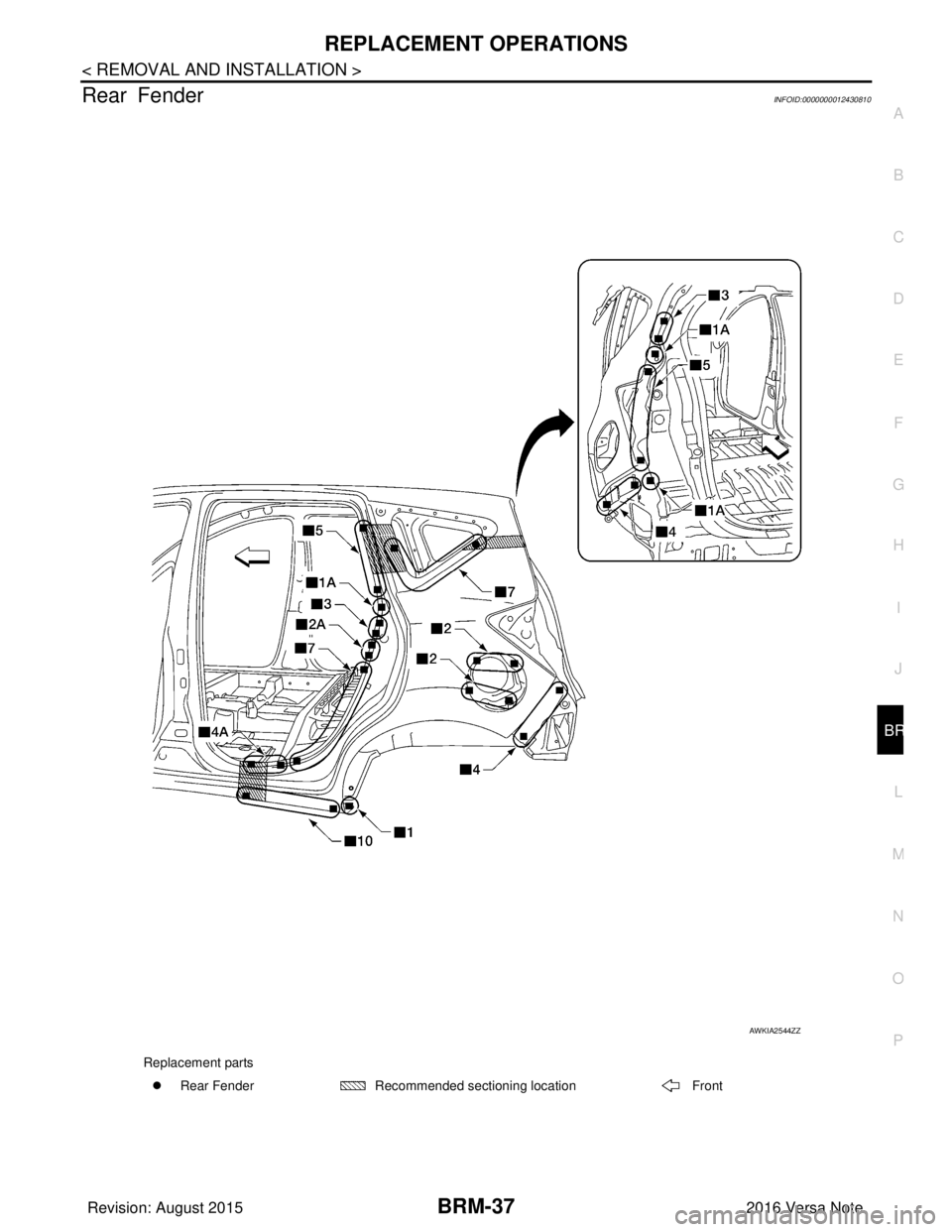

Rear FenderINFOID:0000000012430810
AWKIA2544ZZ
Replacement parts z Rear Fender Recommended sectioning location Front
Revision: August 2015 2016 Versa Note

cardiagn.com

BRM-38
< REMOVAL AND INSTALLATION >
REPLACEMENT OPERATIONS

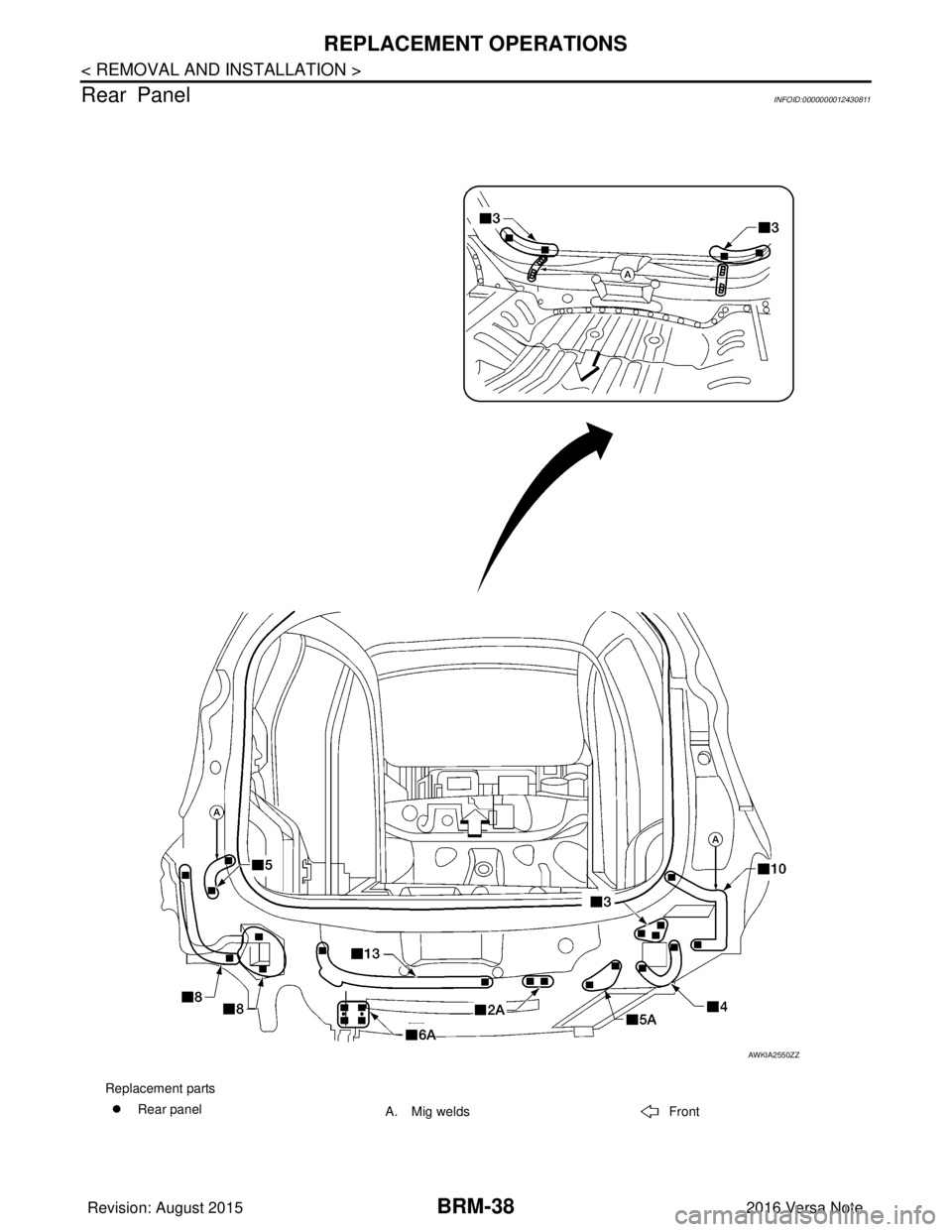

Rear Panel
INFOID:0000000012430811
Replacement parts z Rear panel
A. Mig welds Front
AWKIA2550ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

REPLACEMENT OPERATIONSBRM-39
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P

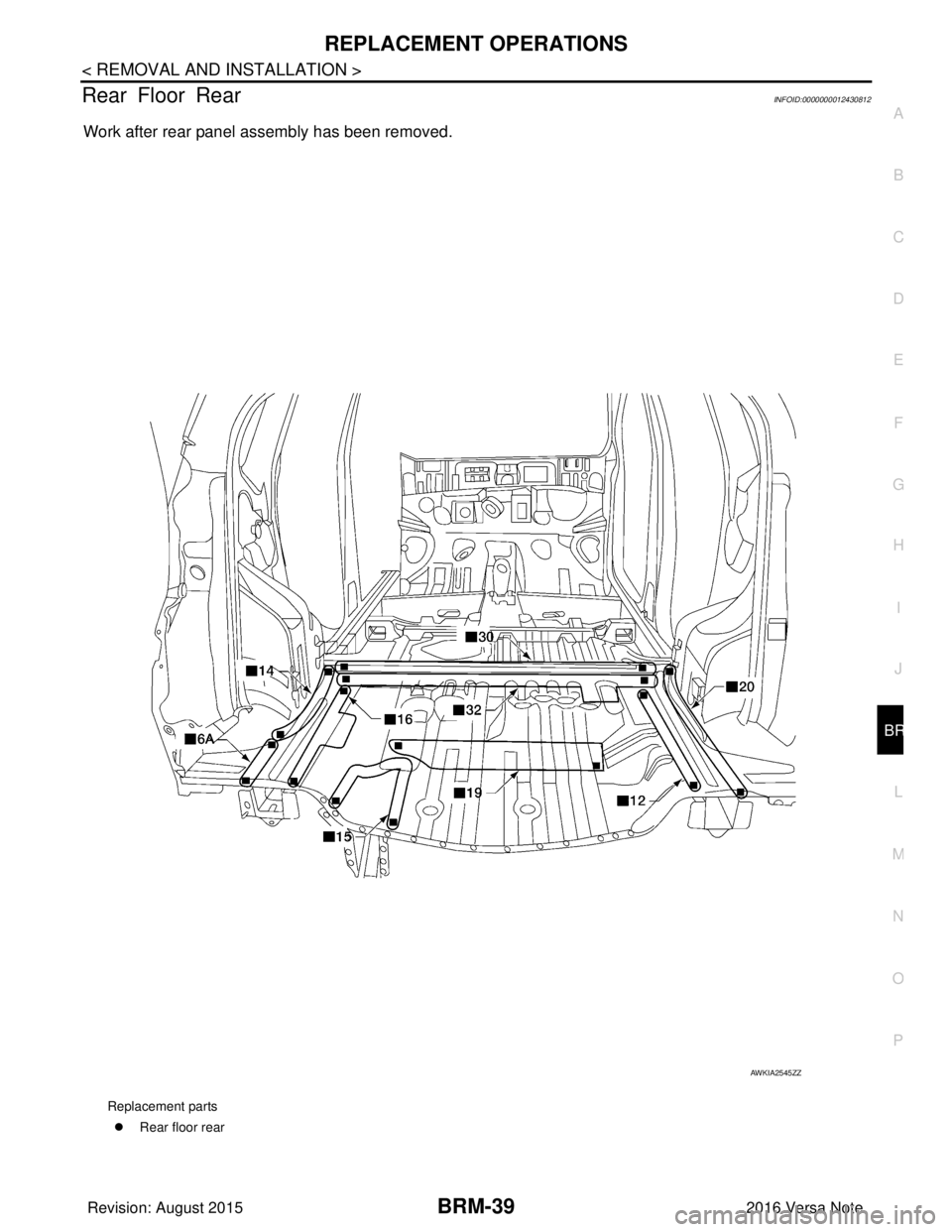

Rear Floor RearINFOID:0000000012430812
Work after rear panel assembly has been removed.
Replacement parts z Rear floor rear
AWKIA2545ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

BRM-40
< REMOVAL AND INSTALLATION >
REPLACEMENT OPERATIONS

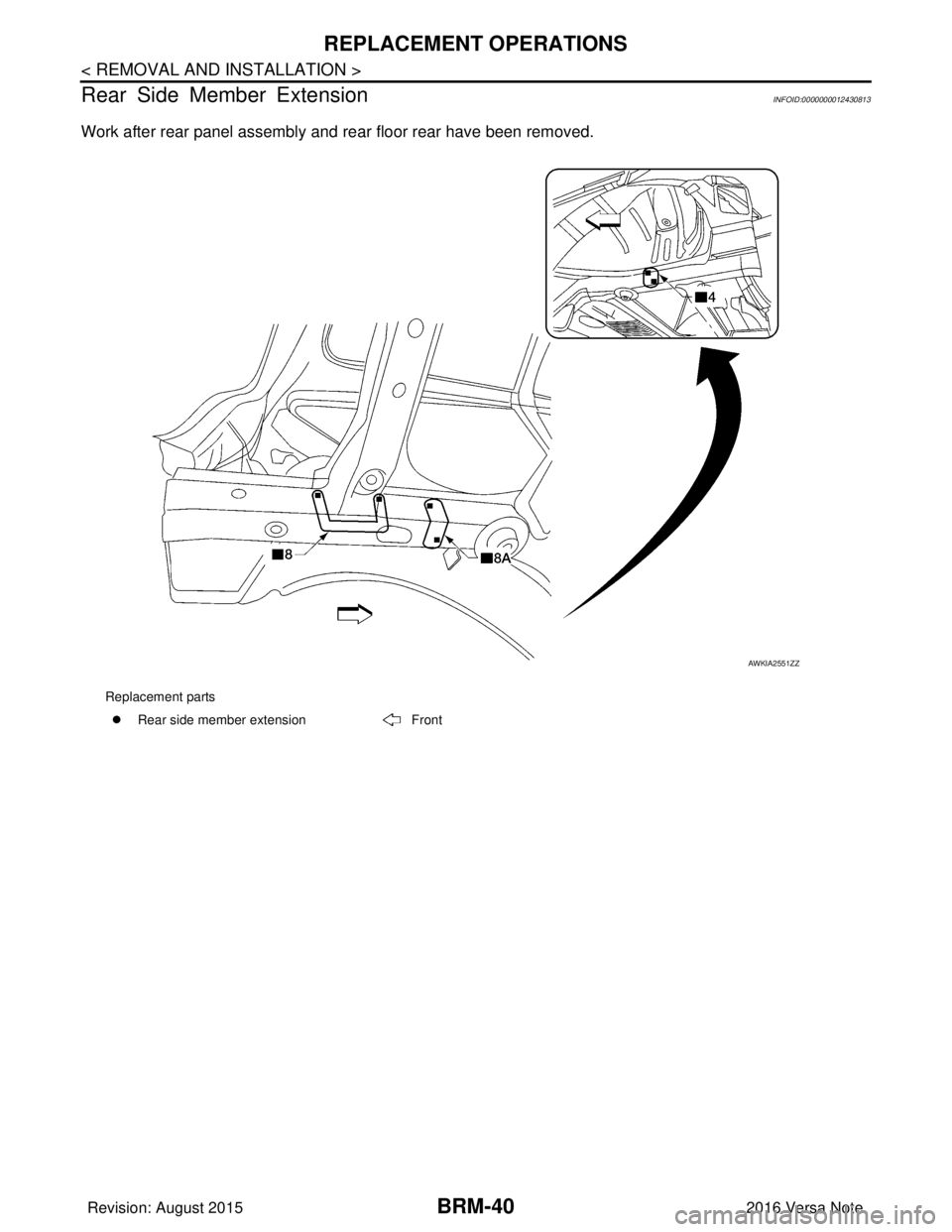

Rear Side Member Extension
INFOID:0000000012430813
Work after rear panel assembly and rear floor rear have been removed.
Replacement parts z Rear side member extension Front
AWKIA2551ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

BODY ALIGNMENTBRM-41
< SERVICE DATA AND SPECIFICATIONS (SDS)
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P
SERVICE DATA AND SPECIFICATIONS (SDS)
BODY ALIGNMENT

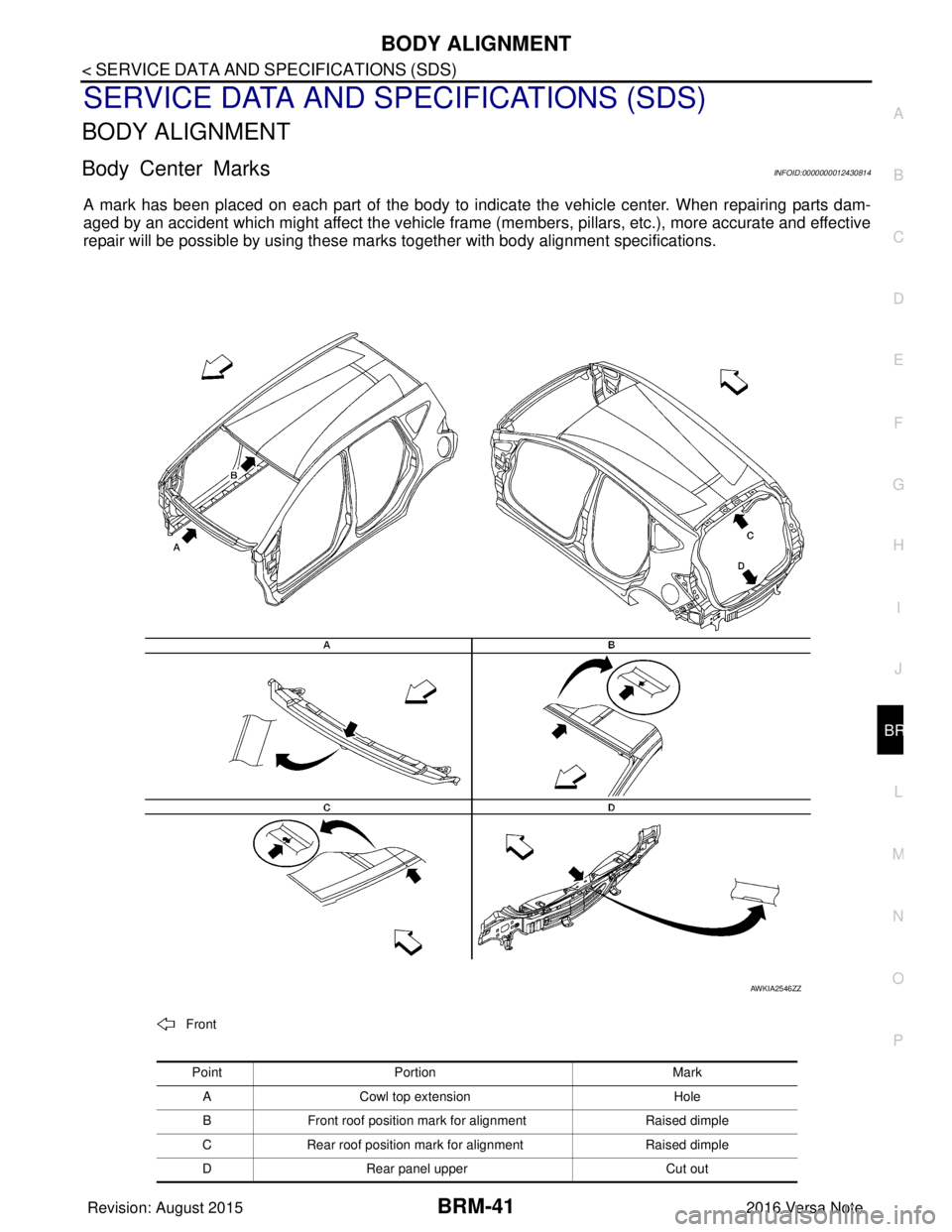

Body Center MarksINFOID:0000000012430814
A mark has been placed on each part of the body to indi cate the vehicle center. When repairing parts dam-
aged by an accident which might affect the vehicle frame (me mbers, pillars, etc.), more accurate and effective
repair will be possible by using these marks t ogether with body alignment specifications.
Front
Point Portion Mark
A Cowl top extension Hole
B Front roof position mark for alignment Raised dimple
C Rear roof position mark for alignment Raised dimple
D Rear panel upper Cut out
AWKIA2546ZZ
