BODY COMPONENT PARTS
BODY COMPONENT PARTS
Underbody Component PartsINFOID:0000000012430796
High strength steel (HSS) portions
AWKIA2649ZZ
Revision: August 20152016 Versa Note

cardiagn.com

BODY COMPONENT PARTSBRM-13
< PREPARATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P

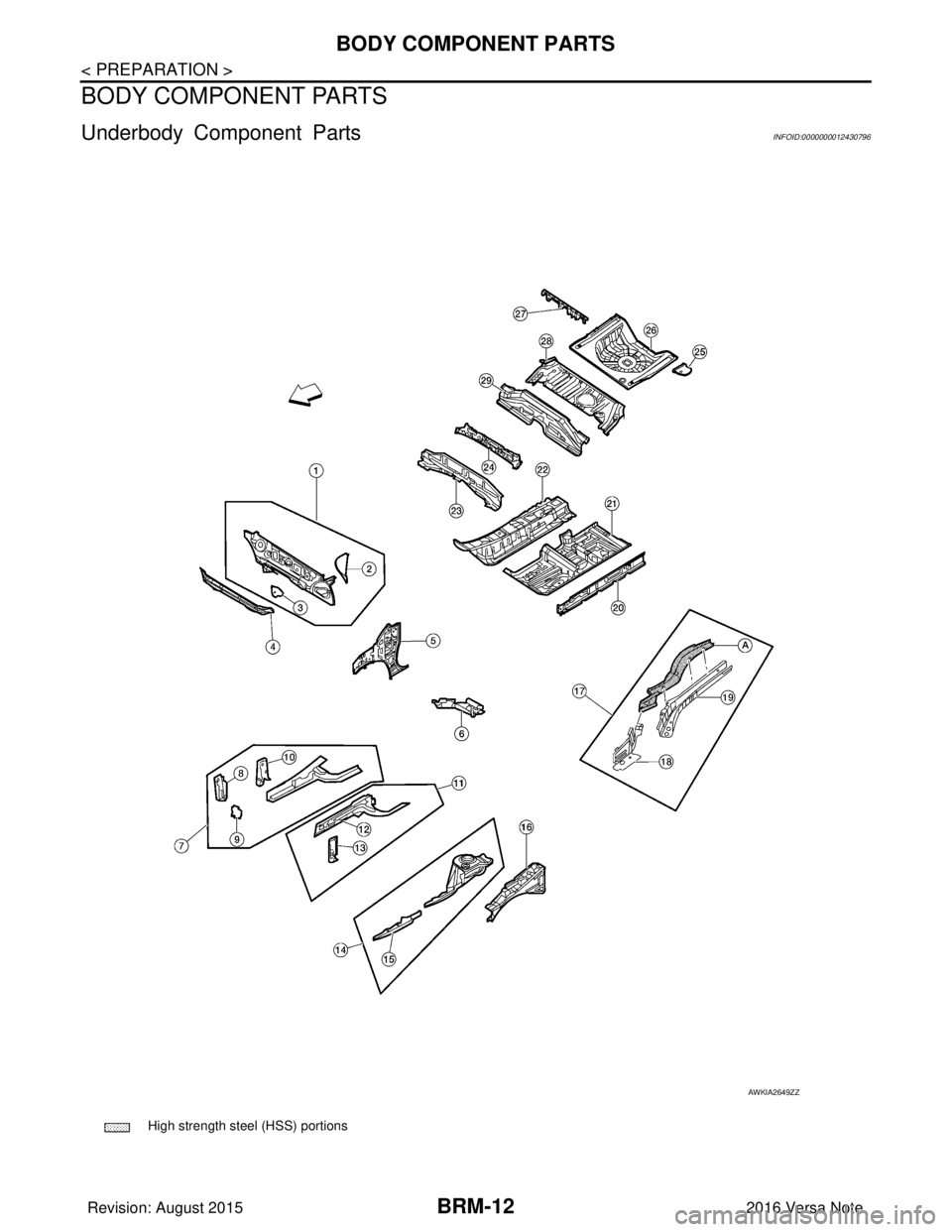

1. Lower dash 2. Lower dash reinforcement (LH/RH) 3. Lower dash close out panel
4. Member dash cross member (LH/RH) 5. Dash side (LH/RH) 6. Front suspension bracket (LH/RH)
7. Front side member assembly (LH/
RH) 8.Lower radiator core inner side support
(LH/RH) 9. Front member extension (LH/RH)
10. Upper radiator core support (LH/RH) 11. Front side member close out plate as-
sembly (LH/RH)12.
Front side member close out plate
(LH/RH)
13. Radiator core support outer (LH/RH) 14. Strut housing assembly (LH/RH) 15. Strut housing extension (LH/RH)
16. Hood ledge (LH/RH) 17. Rear side member assembly (LH/RH) 18. Rear side member front (LH/RH)
19. Rear side member extension (LH/RH) 20. Inner sill (LH/RH) 21. Front floor side (LH/RH)
22. Front floor center 23. Rear seat back lower reinforcement 24. Rear seat back upper reinforcement
25. Rear floor rear side (LH/RH) 26. Rear floor rear 27. Rear floor cross member
28. Rear floor front 29. Rear floor front extension
A. Rear side member reinforcement (LH/
RH)
Front
Revision: August 2015
2016 Versa Note

cardiagn.com

BRM-14
< PREPARATION >
BODY COMPONENT PARTS
Body Component Parts
INFOID:0000000012430797
Both sided anti-corrosive precoated steel portions
Both sided anti-corrosive steel and HSS portions
AWKIA3655ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

BODY COMPONENT PARTSBRM-15
< PREPARATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P

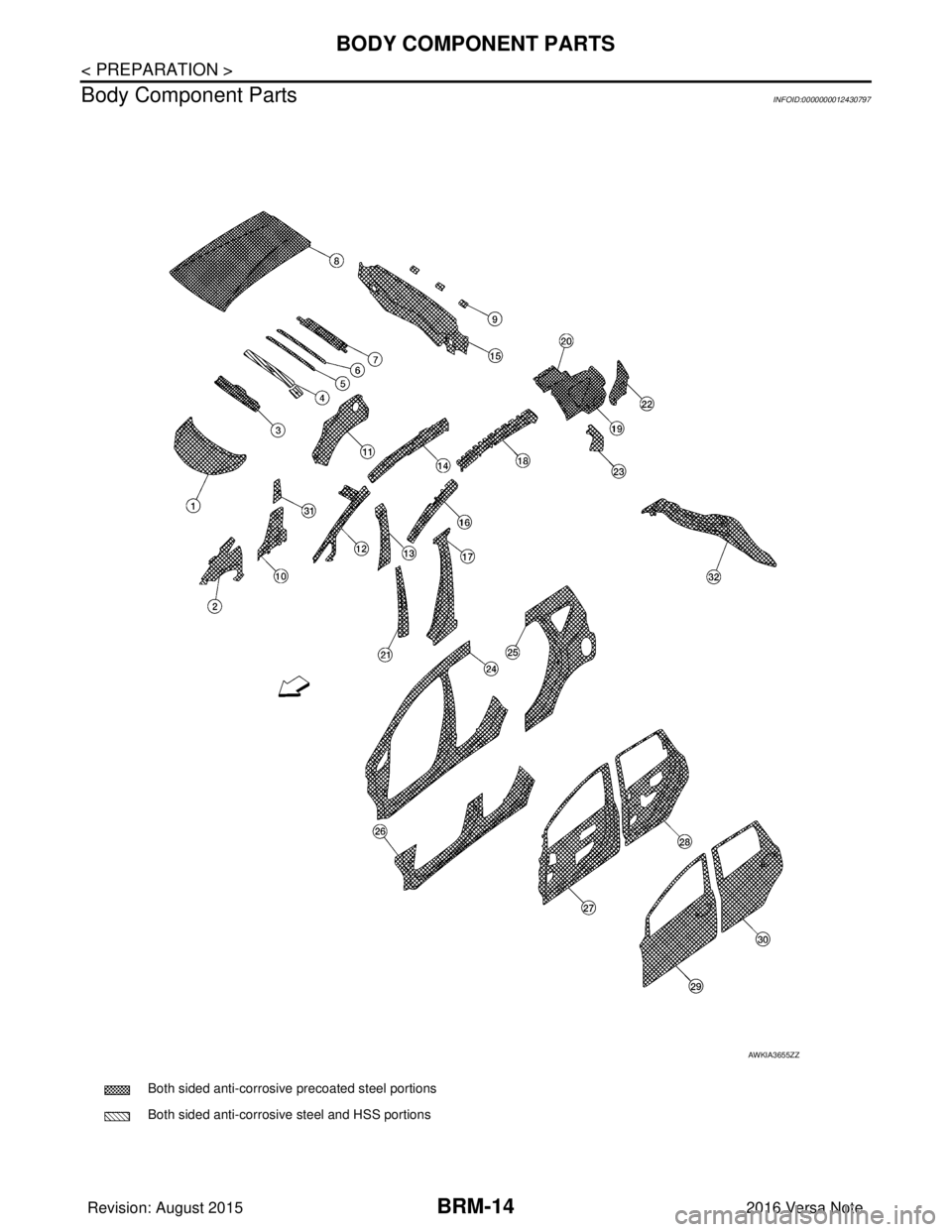

1. Hood assembly (Under 440 MPa) 2. Front fender (LH/RH) (Under 440 MPa) 3. Front roof rail assembly (Under 440
MPa)
4. Roof center reinforcement (590 MPa) 5. Roof bow 3rd (Under 440 MPa)
6. Roof bow 4th (Under 440 MPa)
7. Rear roof rail assembly (Under 440 MPa) 8. Roof (Under 440 MPa)
9. Rear bumper upper retainer (Under
440 MPa)
10. Center pillar lo wer (Under 440
MPa) 11. Outer rear wheel house (LH/RH) (Under
440 MPa) 12. Front inner upper pillar (440 MPa)
13. Center pillar in ner upper (LH/RH)
(440 MPa) 14. Roof rail inner side (LH/RH) (440 MPa) 15. Rear panel upper (Under 440 MPa)
16. Front pillar ou ter reinforcement
(LH/RH) (440 MPa) 17. Center pillar hinge brace (LH/RH) (440
MPa) 18. Roof side rail outer reinforcement (LH/
RH) (440 MPa)
19. Rear inner pillar (LH/RH) (Under 440 MPa) 20. Rear pillar reinforcement (LH/RH) (Under
440 MPa) 21. Center pillar reinforcement (LH/RH)
(440 MPa)
22. Rear pillar reinforcement (LH/RH) (Under 440 MPa) 23. Rear seat belt anchor (LH/RH) (440 MPa) 24. Body side outer front (LH/RH) (Under
440 MPa)
25. Body side outer rear (LH/RH) (Un- der 440 MPa) 26. Body side outer sill (LH/RH) (Under 440
MPa) 27. Front door inner (LH/RH) (Under 440
MPa)
28. Rear door inner (LH/RH) (Under 440 MPa) 29. Front door outer (LH/RH) (Under 440
MPa) 30. Rear door outer (LH/RH) (Under 440
MPa)
31. Center pillar inner reinforcement (LH/RH) (440 MPa) 32. Rear lid assembly (Under 440 MPa)
Front
Revision: August 2015 2016 Versa Note

cardiagn.com

BRM-16
< REMOVAL AND INSTALLATION >
CORROSION PROTECTION
REMOVAL AND INSTALLATION
CORROSION PROTECTION
DescriptionINFOID:0000000012430798
To provide improved corrosion prevention, the following anti-corrosive measures have been implemented in
NISSAN production plants. When repairing or replacing body panels, it is necessary to use the same anti-cor-
rosive measures.
Anti-Corrosive Precoated Steel (Galvannealed Steel)

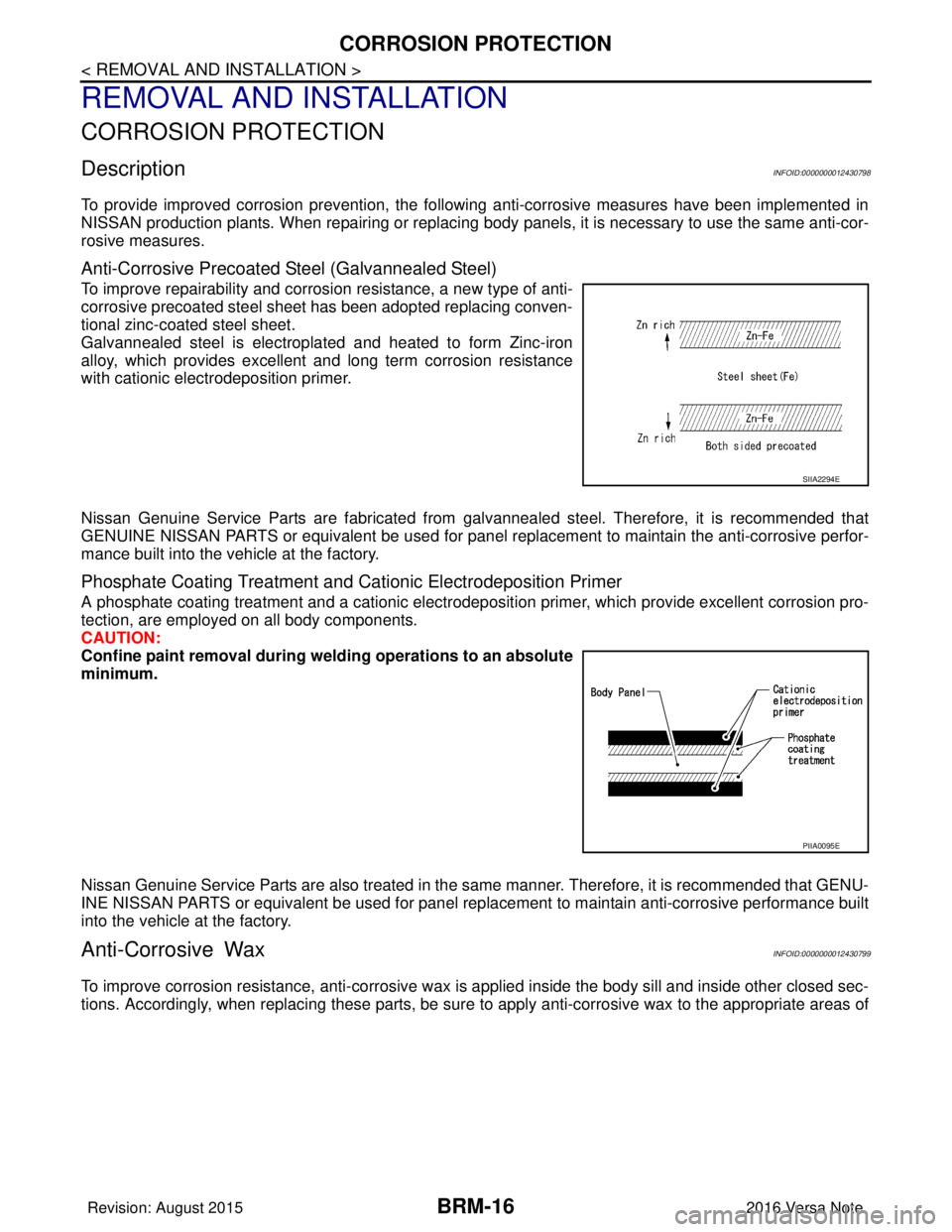

To improve repairability and corrosion resistance, a new type of anti-
corrosive precoated steel sheet has been adopted replacing conven-
tional zinc-coated steel sheet.
Galvannealed steel is electroplated and heated to form Zinc-iron
alloy, which provides excellent and long term corrosion resistance
with cationic electrodeposition primer.
Nissan Genuine Service Parts are fabricated from galvannealed steel. Therefore, it is recommended that
GENUINE NISSAN PARTS or equivalent be used for panel replacement to maintain the anti-corrosive perfor-
mance built into the vehicle at the factory.
Phosphate Coating Treatment and Cationic Electrodeposition Primer
A phosphate coating treatment and a cationic electrodepositi on primer, which provide excellent corrosion pro-
tection, are employed on all body components.
CAUTION:
Confine paint removal during weld ing operations to an absolute
minimum.
Nissan Genuine Service Parts are also treated in the same manner. Therefore, it is recommended that GENU-
INE NISSAN PARTS or equivalent be used for panel replacement to maintain anti-corrosive performance built
into the vehicle at the factory.
Anti-Corrosive WaxINFOID:0000000012430799
To improve corrosion resistance, anti-corrosive wax is applied inside the body sill and inside other closed sec-
tions. Accordingly, when replacing these parts, be sure to apply anti-corrosive wax to the appropriate areas of
SIIA2294E
PIIA0095E
Revision: August 2015 2016 Versa Note

cardiagn.com

CORROSION PROTECTIONBRM-17
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P
the new parts. Select an excellent anti-corrosive wax which will penetrate after application and has a long shelf
life.
UndercoatingINFOID:0000000012430800
The underside of the floor and wheelhouse are undercoated to prevent rust, vibration, noise and stone chip-
ping. Therefore, when such a panel is replaced or re paired, apply undercoating to that part. Use an undercoat-
ing which is rust preventive, soundproof, vibr ation-proof, shock-resistant, adhesive, and durable.
Precautions in Undercoating
1. Do not apply undercoating to any place unless specif ied (such as the areas above the muffler and three
way catalyst which are subjected to heat).
2. Do not undercoat the exhaust pipe or other parts which become hot.
3. Do not undercoat rotating parts.
4. Apply bitumen wax after applying undercoating.
Indicates anti-corrosive wax coated portions
Front
AWKIA2529ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

BRM-18
< REMOVAL AND INSTALLATION >
CORROSION PROTECTION

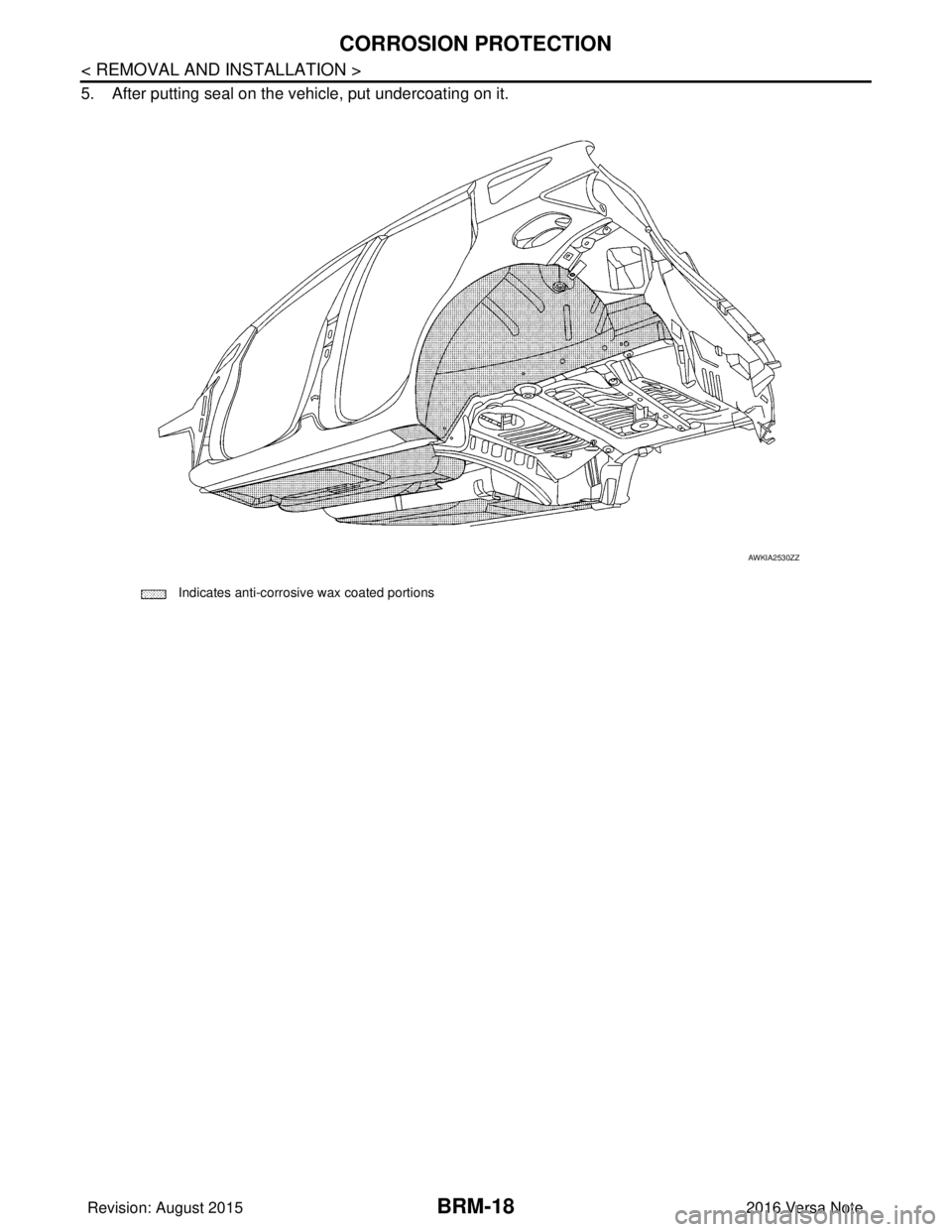

5. After putting seal on the vehicle, put undercoating on it.
Indicates anti-corrosive wax coated portions
AWKIA2530ZZ
Revision: August 20152016 Versa Note

cardiagn.com

BODY SEALINGBRM-19
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P
BODY SEALING
DescriptionINFOID:0000000012430801

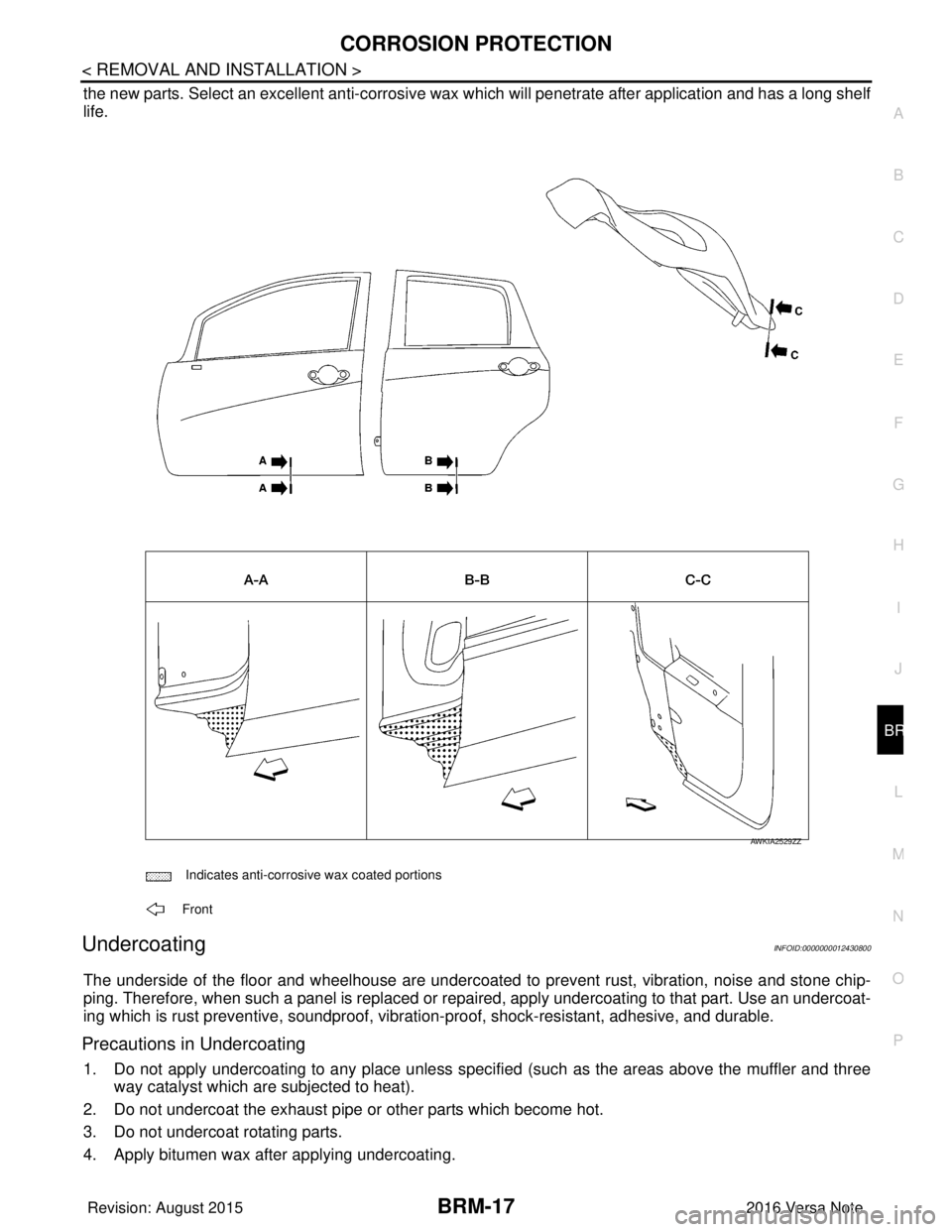

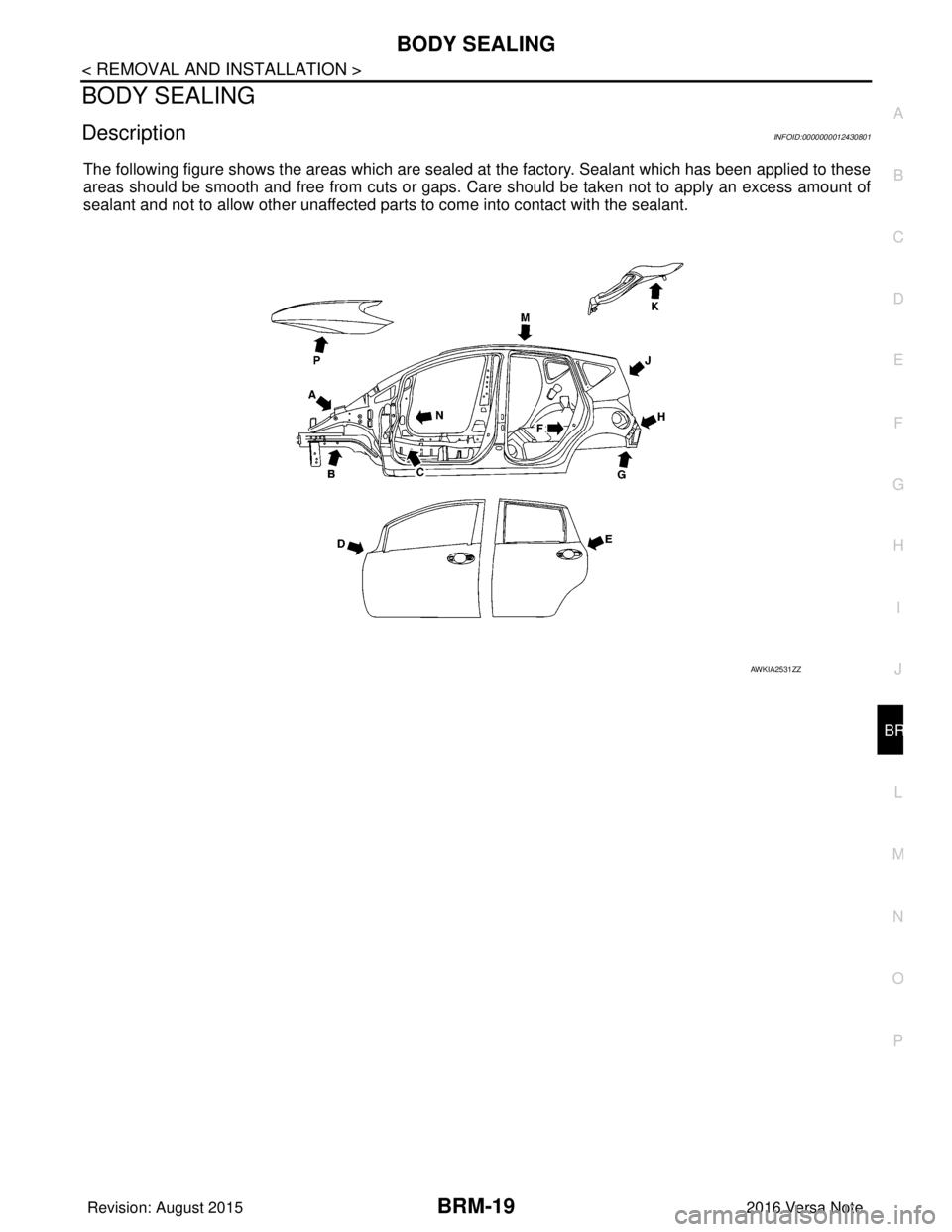

The following figure shows the areas which are sealed at the factory. Sealant which has been applied to these
areas should be smooth and free from cuts or gaps. Care should be taken not to apply an excess amount of
sealant and not to allow other unaffected part s to come into contact with the sealant.

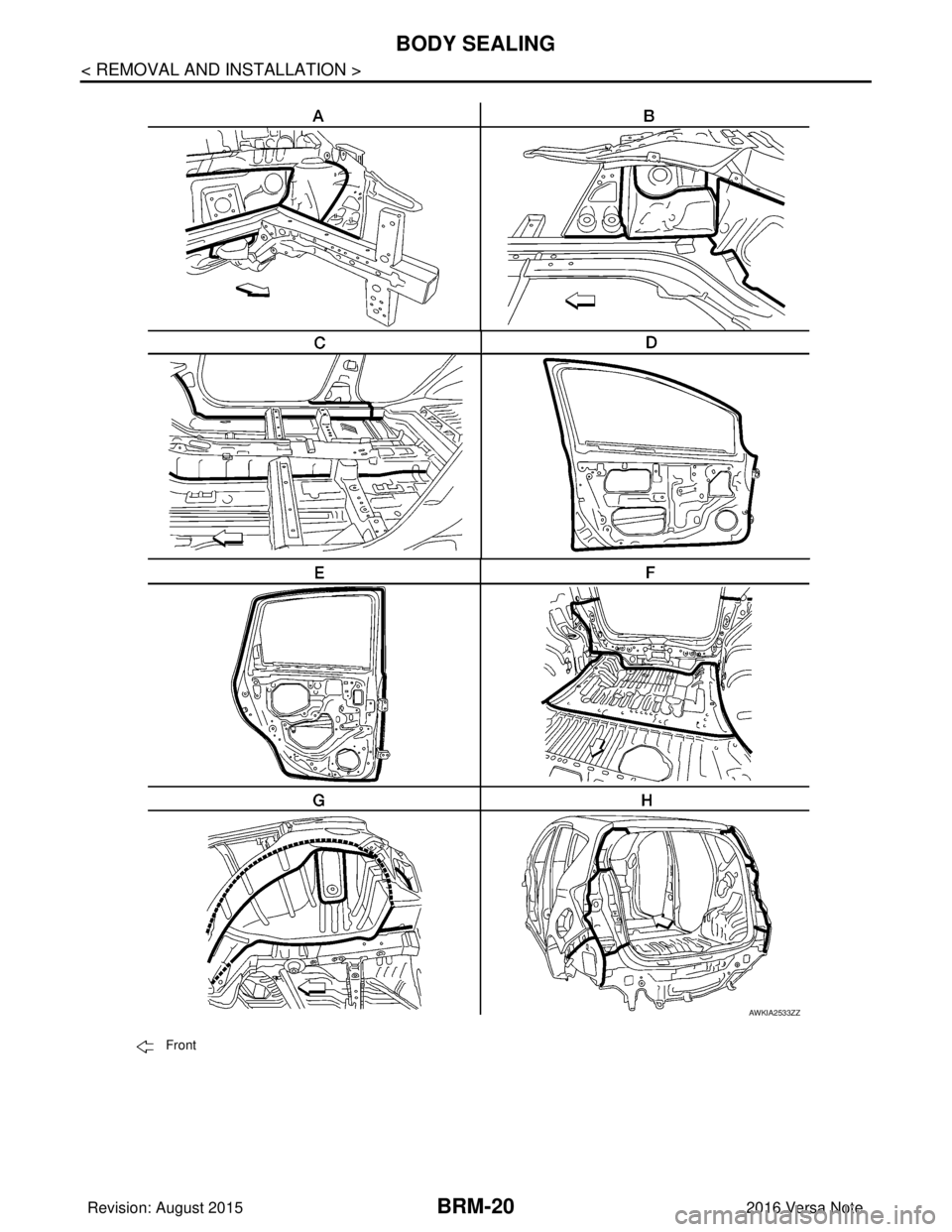

AWKIA2531ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

BRM-20
< REMOVAL AND INSTALLATION >
BODY SEALING
AWKIA2533ZZ
Front
Revision: August 20152016 Versa Note

cardiagn.com

BODY SEALINGBRM-21
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P

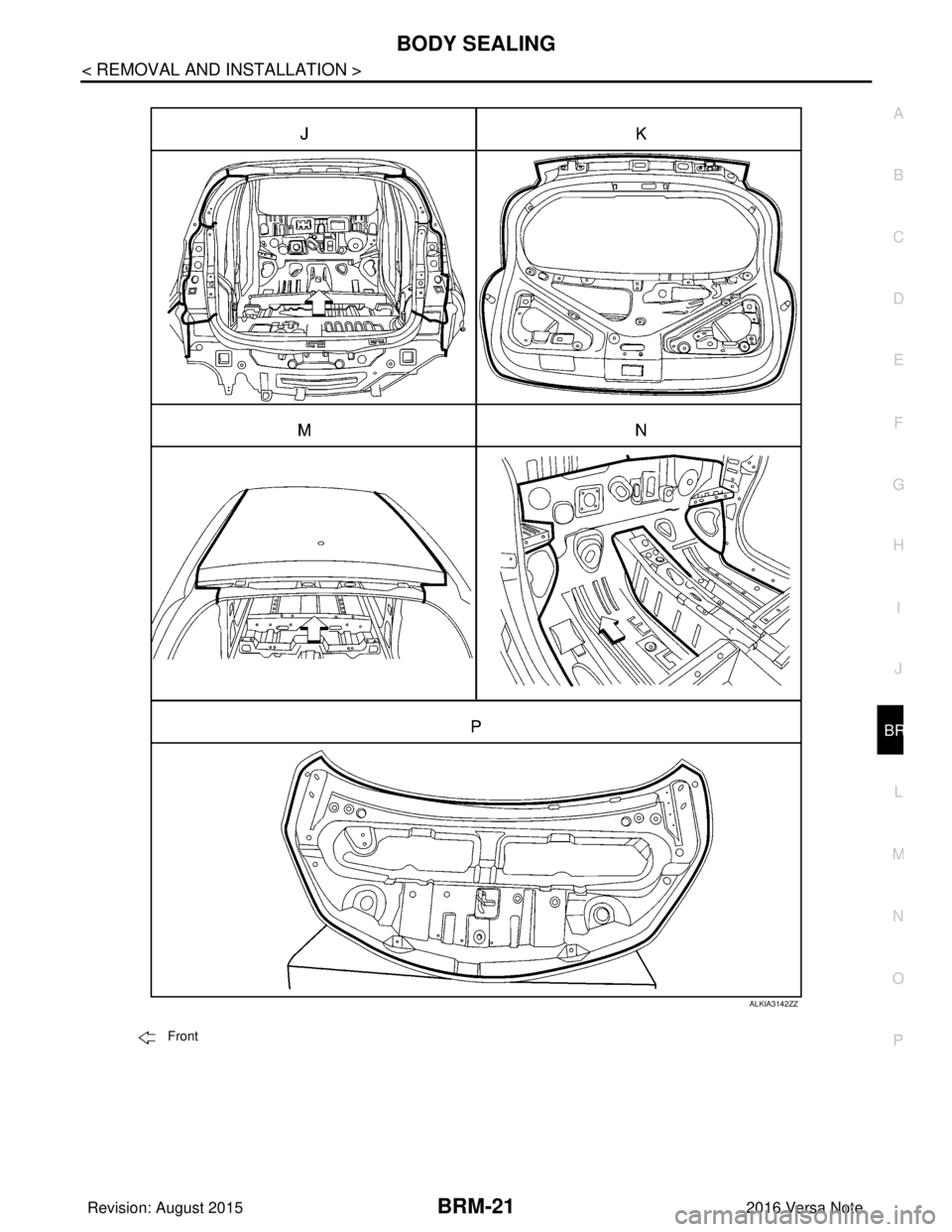

ALKIA3142ZZ
Front
Revision: August 2015 2016 Versa Note
