SYSTEMBRC-23
< SYSTEM DESCRIPTION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
• Brake force control function at braking hard detects driver ′s brake operations with the pressure sensor,
judges a brake booster ′s maximum brake power function by using information from the vacuum sensor, and
enhances more powerful braking force by controlling brakes of four wheels.
• VDC warning lamp blinks while VDC function is in operat ion and indicates to the driver that the function is in
operation.
• CONSULT can be used to diagnose the system.
• Fail-safe function is adopted. When a malfunction occurs in VDC function, the control is suspended for VDC
function and TCS function. However, ABS function and EBD function operate normally. Refer to BRC-39,
"Fail-safe".
INPUT SIGNAL AND OUTPUT SIGNAL
Major signal transmission between each unit via communication lines is shown in the following table.
OPERATION CHARACTERISTICS
VDC Function That Prevents Oversteer Tendency
• During cornering, brake force (brake fluid pressure) is applied on front wheel and rear wheel on the outer
side of turn. Momentum is generated directing the vehicle toward the outer side of the turn. Oversteer is pre-
vented.
• Changing driving lane on a slippery road, when there may be a tendency to oversteer, engine output is con-
trolled as well as brake force (brake fluid pr essure) of 4 wheels. Oversteer tendency decreases.
Component Signal description
ECM Transmits the following signals to ABS actuator an
d electric unit (control unit) via CAN commu-
nication:
• Acceleration pedal position signal
• Engine speed signal
• Target throttle position signal
TCM Transmits the current gear positi
on signal to ABS actuator and electric unit (control unit) via
CAN communication.
Steering angle sensor Transmits the steering an
gle sensor signal to ABS actuator an d electric unit (control unit) via
CAN communication.
Combination meter Transmits the following signals to ABS actuator an
d electric unit (control unit) via CAN commu-
nication:
• Brake fluid level switch signal
• parking brake switch signal
Receives the following signals from ABS actuator and electric unit (control unit) via CAN com-
munication:
• VDC OFF indicator lamp signal
• SLIP indicator lamp signal
ALFIA0339GB
ALFIA0340GB
Revision: August 2015 2016 Versa Note

cardiagn.com

BRC-24
< SYSTEM DESCRIPTION >[VDC/TCS/ABS]
SYSTEM
VDC Function That Prevents Understeer Tendency
• During cornering, brake force (brake fluid pressure) is applied on front wheel and rear wheel on the inner
side of turn. Momentum is generated directing the vehicle toward the inner side of the turn. Understeer is
prevented.
• Applying brakes during cornering on a slippery road, when there may be a tendency to understeer, engine output is controlled as well as brake force (bra ke fluid pressure) of 4 wheels. Understeer tendency
decreases.
VDC/TCS/ABS : TCS FunctionINFOID:0000000012430838
SYSTEM DIAGRAM
SYSTEM DESCRIPTION
JPFIC0137GB
ALFIA0341GB
AWFIA0807GB
Revision: August 2015 2016 Versa Note

cardiagn.com

SYSTEMBRC-25
< SYSTEM DESCRIPTION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
• Wheel spin status of drive wheel is detected by wheel sensor of 4 wheels. Engine output and transmission shift status is controlled
so that slip rate of drive wheels is in appropriate level. When wheel
spin occurs on drive wheel, ABS ac tuator and electric unit (control
unit) perform brake force control of LH and RH drive wheels (apply
brake force by increasing brake fluid pressure of drive wheel) and
decrease engine torque by engine torque control. Wheel spin
amount decreases. Engine torque is controlled to appropriate
level.
• TCS function can be switched to non-operational status (OFF) by
operating VDC OFF switch. In this case, VDC OFF indicator lamp
turns ON.
• SLIP indicator lamp blinks while TCS function is in operation and
indicates to the driver that the function is in operation.
• CONSULT can be used to diagnose the system.
• Fail-safe function is adopted. When a malfunction occurs in TCS function, the control is suspended for VDC function and TCS func-
tion. However, ABS function and EBD function operate normally.
Refer to BRC-39, "
Fail-safe".
INPUT SIGNAL AND OUTPUT SIGNAL
Major signal transmission between each unit via communication lines is shown in the following table.
JPFIC0139GB
Component Signal description
ECM Transmits the following signals to ABS actuator an
d electric unit (control unit) via CAN commu-
nication:
• Accelerator pedal position signal
• Engine speed signal
• Target throttle position signal
TCM Transmits the current gear positi
on signal to ABS actuator and electric unit (control unit) via
CAN communication.
Steering angle sensor Transmits the steering an
gle sensor signal to ABS actuator an d electric unit (control unit) via
CAN communication.
Combination meter Transmits the following signals to ABS actuator an
d electric unit (control unit) via CAN commu-
nication:
• Brake fluid level switch signal
• Parking brake switch signal
Receives the following signals from ABS actuator and electric unit (control unit) via CAN com-
munication:
• VDC OFF indicator lamp signal
• SLIP indicator lamp signal
Revision: August 2015 2016 Versa Note

cardiagn.com

BRC-26
< SYSTEM DESCRIPTION >[VDC/TCS/ABS]
SYSTEM
VDC/TCS/ABS : ABS Function
INFOID:0000000012430839

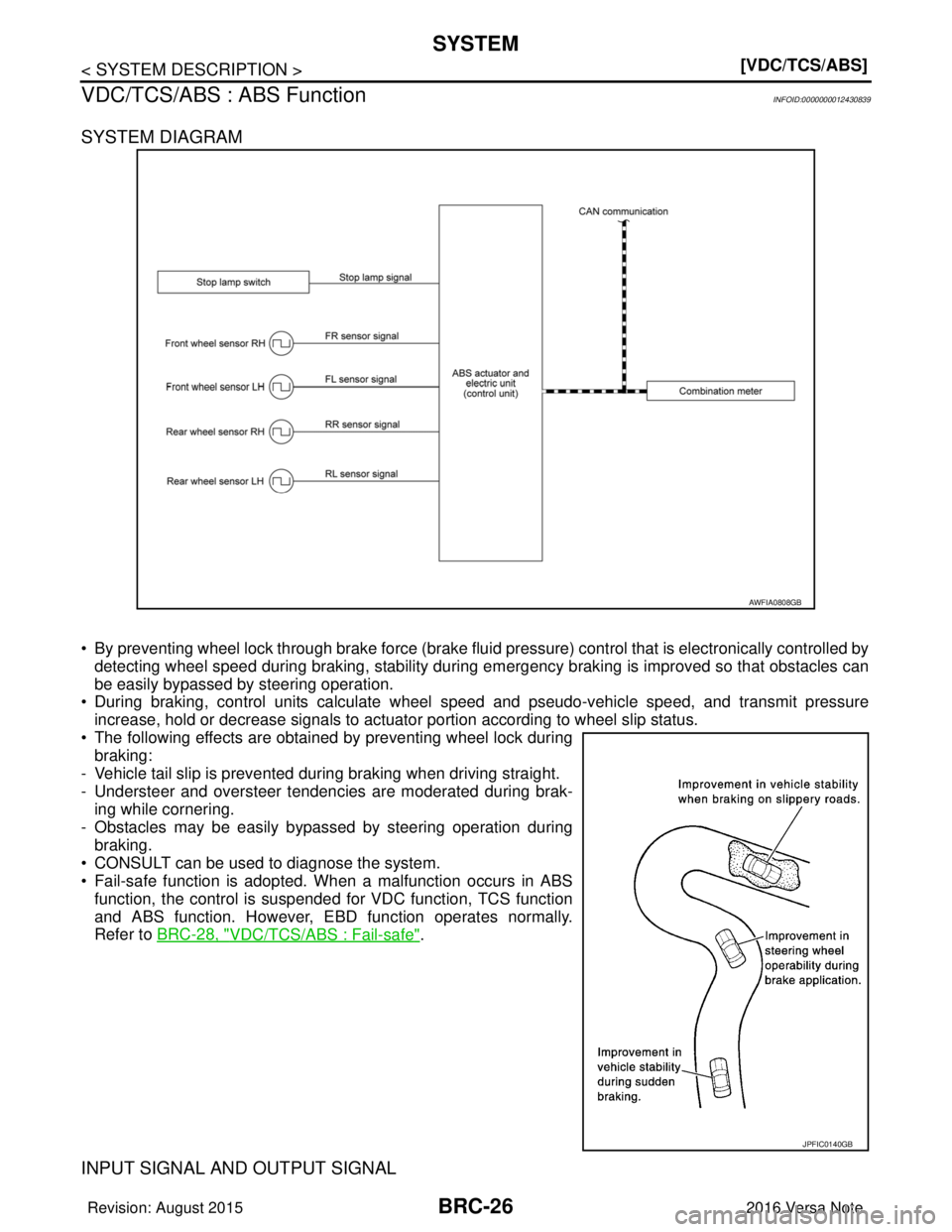

SYSTEM DIAGRAM
• By preventing wheel lock through brake force (brake flui d pressure) control that is electronically controlled by
detecting wheel speed during braking, stability during em ergency braking is improved so that obstacles can
be easily bypassed by steering operation.
• During braking, control units calculate wheel speed and pseudo-vehicle speed, and transmit pressure
increase, hold or decrease signals to actuator portion according to wheel slip status.
• The following effects are obtained by preventing wheel lock during braking:
- Vehicle tail slip is prevented during braking when driving straight.
- Understeer and oversteer tendencies are moderated during brak- ing while cornering.
- Obstacles may be easily bypassed by steering operation during
braking.
• CONSULT can be used to diagnose the system.
• Fail-safe function is adopted. When a malfunction occurs in ABS function, the control is suspended for VDC function, TCS function
and ABS function. However, EBD function operates normally.
Refer to BRC-28, "
VDC/TCS/ABS : Fail-safe".
INPUT SIGNAL AND OUTPUT SIGNAL
AWFIA0808GB
JPFIC0140GB
Revision: August 2015 2016 Versa Note

cardiagn.com

SYSTEMBRC-27
< SYSTEM DESCRIPTION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
Major signal transmission between each unit via communication lines is shown in the following table.
VDC/TCS/ABS : EBD FunctionINFOID:0000000012430840

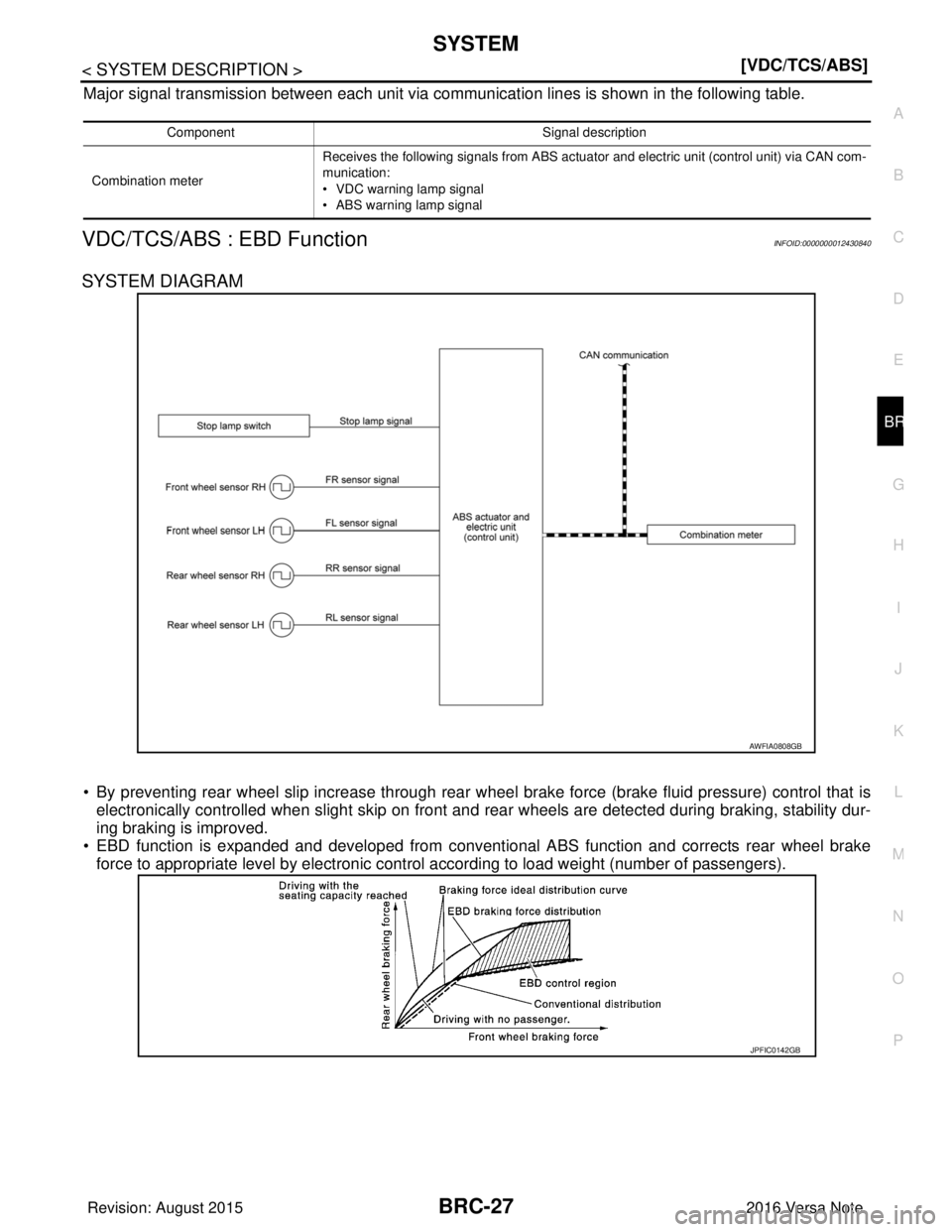

SYSTEM DIAGRAM
• By preventing rear wheel slip increase through rear wheel brake force (brake fluid pressure) control that is
electronically controlled when slight skip on front and rear wheels are detected during braking, stability dur-
ing braking is improved.
• EBD function is expanded and developed from conventional ABS function and corrects rear wheel brake force to appropriate level by electronic control according to load weight (number of passengers).
Component Signal description
Combination meter Receives the following signals from ABS actuator and electric unit (control unit) via CAN com-
munication:
• VDC warning lamp signal
• ABS warning lamp signal
AWFIA0808GB
JPFIC0142GB
Revision: August 2015
2016 Versa Note

cardiagn.com

BRC-28
< SYSTEM DESCRIPTION >[VDC/TCS/ABS]
SYSTEM

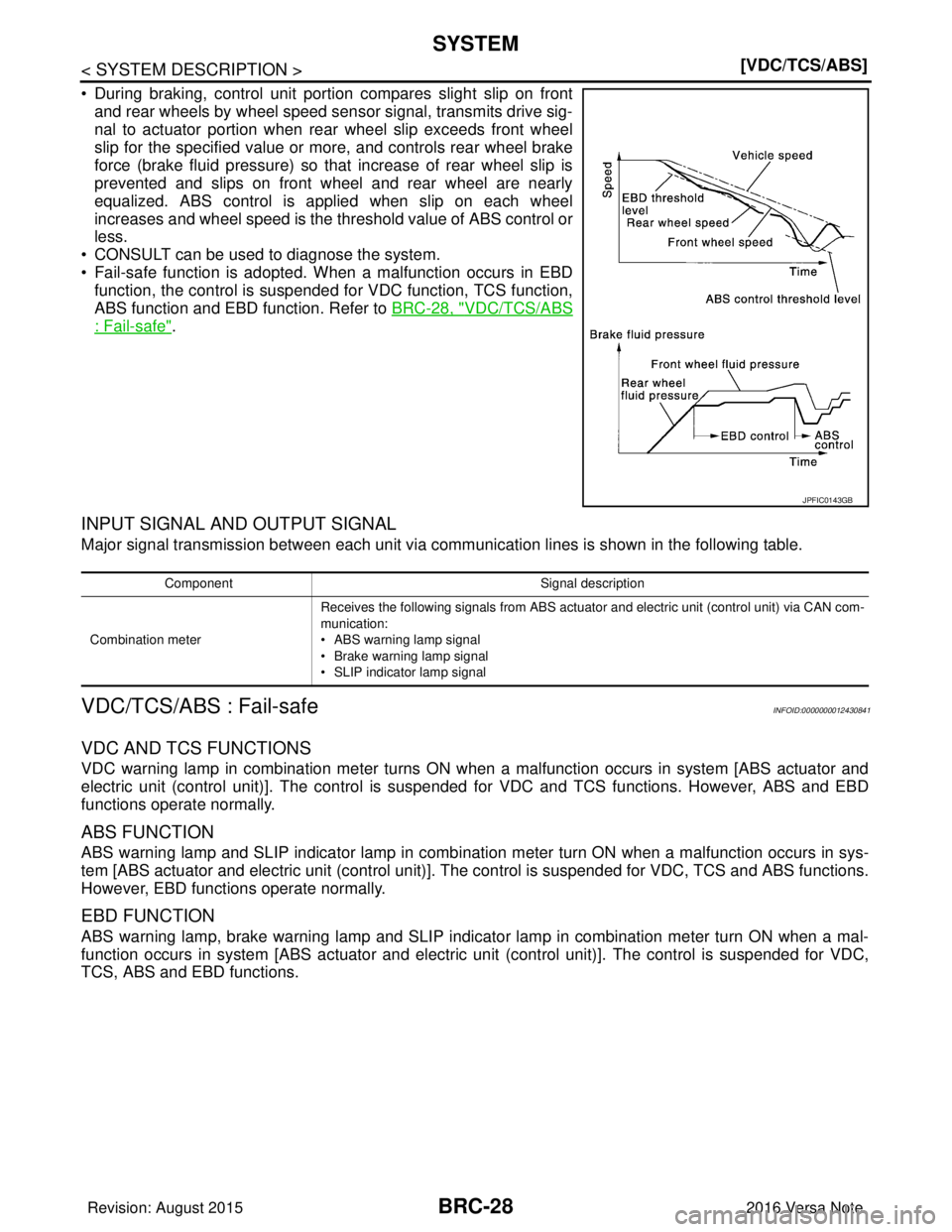

• During braking, control unit portion compares slight slip on front
and rear wheels by wheel speed sensor signal, transmits drive sig-
nal to actuator portion when rear wheel slip exceeds front wheel
slip for the specified value or more, and controls rear wheel brake
force (brake fluid pressure) so that increase of rear wheel slip is
prevented and slips on front wheel and rear wheel are nearly
equalized. ABS control is applied when slip on each wheel
increases and wheel speed is the threshold value of ABS control or
less.
• CONSULT can be used to diagnose the system.
• Fail-safe function is adopted. When a malfunction occurs in EBD function, the control is suspended for VDC function, TCS function,
ABS function and EBD function. Refer to BRC-28, "
VDC/TCS/ABS
: Fail-safe".
INPUT SIGNAL AND OUTPUT SIGNAL
Major signal transmission between each unit via communication lines is shown in the following table.
VDC/TCS/ABS : Fail-safeINFOID:0000000012430841
VDC AND TCS FUNCTIONS
VDC warning lamp in combination meter turns ON when a malfunction occurs in system [ABS actuator and
electric unit (control unit)]. The control is su spended for VDC and TCS functions. However, ABS and EBD
functions operate normally.
ABS FUNCTION
ABS warning lamp and SLIP indicator lamp in combi nation meter turn ON when a malfunction occurs in sys-
tem [ABS actuator and electric unit (control unit)]. The control is suspended for VDC, TCS and ABS functions.
However, EBD functions operate normally.
EBD FUNCTION
ABS warning lamp, brake warning lamp and SLIP indicator lamp in combination meter turn ON when a mal-
function occurs in system [ABS ac tuator and electric unit (control unit) ]. The control is suspended for VDC,
TCS, ABS and EBD functions.
JPFIC0143GB
Component Signal description
Combination meter Receives the following signals from ABS actuator
and electric unit (control unit) via CAN com-
munication:
• ABS warning lamp signal
• Brake warning lamp signal
• SLIP indicator lamp signal
Revision: August 2015 2016 Versa Note

cardiagn.com

SYSTEMBRC-29
< SYSTEM DESCRIPTION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
DTC Malfunction detected condition Fail-safe condition
C1101 When an open circuit is detected in rear RH wheel sensor circuit.
The following functions are sus-
pended:
•VDC
• ABS
• EBD (only when both rear wheels are malfunctioning)
C1102 When an open circuit is detected in rear LH wheel sensor circuit.
C1103 When an open circuit is detected in front RH wheel sensor circuit.
C1104 When an open circuit is detected in front LH wheel sensor circuit.
C1105
• When a short circuit is detected in rear RH wheel sensor circuit.
• When power supply voltage of rear RH wheel sensor is in following state:
- Rear RH wheel sensor power supply voltage: 7.2 V
≥ Rear RH wheel sensor pow-
er supply voltage
• When distance between rear RH wheel sensor and rear RH wheel sensor rotor is large.
• When installation of rear RH wheel sensor or rear RH wheel sensor rotor is not normal.
C1106 • When a short circuit is detected in rear LH wheel sensor circuit.
• When power supply voltage of rear LH wheel sensor is in following state:
- Rear LH wheel sensor power supply voltage: 7.2 V
≥ Rear LH wheel sensor power
supply voltage
• When distance between rear LH wheel sensor and rear LH wheel sensor rotor is
large.
• When installation of rear LH wheel sensor or rear LH wheel sensor rotor is not nor- mal.
C1107 • When a short circuit is detected in front RH wheel sensor circuit.
• When power supply voltage of front RH wheel sensor is in following state:
- Front RH wheel sensor power supply voltage: 7.2 V
≥ Front RH wheel sensor
power supply voltage
• When distance between front RH wheel sensor and front RH wheel sensor rotor is large.
• When installation of front RH wheel sensor or front RH wheel sensor rotor is not
normal.
C1108 • When a short circuit is detected in front LH wheel sensor circuit.
• When power supply voltage of front LH wheel sensor is in following state:
- Front LH wheel sensor power supply voltage: 7.2 V
≥ Front LH wheel sensor pow-
er supply voltage
• When distance between front LH wheel sensor and front LH wheel sensor rotor is large.
• When installation of front LH wheel sensor or front LH wheel sensor rotor is not normal.
C1109 • When ignition power supply voltage is in following state:
- Ignition power supply voltage: 10 V ≥
Ignition power supply voltage.
- Ignition power supply voltage: 16 V ≤ Ignition power supply voltage. The following functions are sus-
pended:
•VDC
•TCS
• ABS
• EBD
C 111 0
When there is an internal malfunction in the ABS actuator and electric unit (control
unit).
C 1111 W h e n a m a l f u n c t i o n i s d e t e c t e d i n m o t o r o r m o t o r r e l a y. The following functions are sus-
pended:
•VDC
•TCS
• ABS
C 111 5 When difference in wheel speed between any wheel and others is detected when
the vehicle is driven, because of installation of tires other than specified. The following functions are sus-
pended:
•VDC
•TCS
• ABS
• EBD
C1116 When stop lamp switch signal is not input when brake pedal operates. The following functions are sus-
pended:
•VDC
•TCS
Revision: August 2015
2016 Versa Note

cardiagn.com

BRC-30
< SYSTEM DESCRIPTION >[VDC/TCS/ABS]
SYSTEM
C1120 When a malfunction is detected in front LH ABS IN valve.
The following functions are sus-
pended:
•VDC
•TCS
•ABS
•EBD
C1121 When a malfunction is detected in front LH ABS OUT valve.
C1122 When a malfunction is dete
cted in front RH ABS IN valve.
C1123 When a malfunction is dete cted in front RH ABS OUT valve.
C1124 When a malfunction is dete cted in rear LH ABS IN valve.
C1125 When a malfunction is dete cted in rear LH ABS OUT valve.
C1126 When a malfunction is detected in rear RH ABS IN valve.
C1127 When a malfunction is detected in rear RH ABS OUT valve.
C1130 When a malfunction is detected in ECM system. The following functions are sus-
pended:
•VDC
•TCS
C1140 When a malfunction is detected in actuator relay. The following functions are sus-
pended:
•VDC
•TCS
•ABS
•EBD
C1142 When a malfunction is detected in VDC pressure sensor.
The following functions are sus-
pended:
•VDC
•TCS
C1143 When a malfunction is detected in steering angle sensor.
C1144 When neutral position adjustment of steering angle sensor is not complete.
C1145
When a malfunction is detected in yaw rate signal, or signal line of yaw rate/side/
decel G sensor is open or shorted.
C1146 When a malfunction is detected in side G signal, or signal line of yaw rate/side/decel
G sensor is open or shorted.
C1153 When ABS actuator and electric unit (control unit) is malfunctioning. (Pressure in-
crease is too much or too little.) The following functions are sus-
pended:
•VDC
•TCS
•ABS
C1155 When brake fluid level low signal is detected. The following functions are sus-
pended:
•VDC
•TCS
C1164 When a malfunction is detected in cut valve 1. The following functions are sus-
pended:
•VDC
•TCS
•ABS
•EBD
C1165 When a malfunction is detected in cut valve 2.
C1166 When a malfunction is detected in suction valve 1.
C1167 When a malfunction is detected in suction valve 2.
C1170 When the information in ABS
actuator and electric unit (control unit) is not the same. The following functions are sus-
pended:
•VDC
•TCS
•ABS
U1000 When CAN communication signal is not continuously transmitted or received for 2
seconds or more.
The following functions are sus-
pended:
•VDC
•TCS
U1002
When ABS actuator and electric unit (control unit) is not transmitting or receiving
CAN communication signal for 2 seconds or less.
U1010 When detecting error during the initial diagnosis of CAN controller of ABS actuator
and electric unit (control unit)
DTC
Malfunction detected condition Fail-safe condition
Revision: August 2015 2016 Versa Note

cardiagn.com

DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL
UNIT)]
BRC-31
< SYSTEM DESCRIPTION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL
UNIT)]
CONSULT Function (ABS)INFOID:0000000012430842
APPLICATION ITEMS
CONSULT can display each diagnostic item us ing the following direct diagnostic modes.
ECU IDENTIFICATION
ABS actuator and electric unit (control unit) part number is displayed.
SELF DIAGNOSTIC RESULT
Operation Procedure
1. Before performing the “Self Diagnostic Result”, st art engine and drive vehicle at 30 km/h (19 MPH) or
more for approximately 1 minute.
How To Erase Self Diagnostic Result
1. After erasing DTC memory, start engine and drive vehicle at 30 km/h (19 MPH) or more for approximately 1 minute as the final inspection, and make sure t hat the ABS warning lamp, VDC OFF indicator lamp,
SLIP indicator lamp and brake warning lamp turn OFF.
CAUTION:
If memory cannot be erased, perform applicable diagnosis.
NOTE:
• When the wheel sensor malfunctions, after inspecting the wheel sensor system, the ABS warning lamp,
SLIP indicator lamp and brake warning lamp will not turn OFF even when the system is normal, unless
the vehicle is driven at approximately 30 km/h (19 MPH) or more for approximately 1 minute.
• Brake warning lamp will turn ON in case of parking brake operation (when switch is ON) or of brake fluid
level switch operation (when brake fluid is insufficient).
• VDC OFF switch should not stay in ON position.
Display Item List
Refer to BRC-43, "DTC Index".
DATA MONITOR
Direct Diagnostic Mode Description
ECU Identification The ABS actuator and electric unit (control unit) part number is displayed.
Self Diagnostic Result The ABS actuator and electric unit (control unit) self diagnostic results are displayed.
Data Monitor The ABS actuator and electric unit (control unit) input/output data is displayed in real time.
Active Test The ABS actuator and electric unit (control unit) activates outputs to test components.
Work support The settings for ABS actuator and electric unit (control unit) functions can be changed.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication is displayed.
Item
(Unit) Data monitor item selection
Remarks
ECU INPUT
SIGNALS MAIN
SIGNALS SELECTION
FROM MENU
FR LH SENSOR
(km/h, mph) ×× × Wheel speed (km/h, mph) calculated by front wheel
sensor LH signal is displayed.
FR RH SENSOR
(km/h, mph) ×× × Wheel speed (km/h, mph) calculated by front wheel
sensor RH signal is displayed.
RR LH SENSOR
(km/h, mph) ×× ×
Wheel speed (km/h, mph) calculated by rear wheel
sensor LH signal is displayed.
RR RH SENSOR
(km/h, mph) ×× × Wheel speed (km/h, mph) calculated by rear wheel
sensor RH signal is displayed.
Revision: August 2015
2016 Versa Note

cardiagn.com

BRC-32
< SYSTEM DESCRIPTION >[VDC/TCS/ABS]
DIAGNOSIS SYSTEM [
ABS ACTUATOR AND ELECTRIC UNIT (CONTROL
UNIT)]
FR RH IN SOL
(On/Off) –
×× Front RH IN ABS solenoid (On/Off) status is dis-
played.
FR RH OUT SOL
(On/Off) –
×× Front RH OUT ABS solenoid (On/Off) status is dis-
played.
FR LH IN SOL
(On/Off) –
×× Front LH IN ABS solenoid (On/Off) status is displayed.
FR LH OUT SOL
(On/Off) –
×× Front LH OUT ABS solenoid (On/Off) status is dis-
played.
RR RH IN SOL
(On/Off) –
×× Rear RH IN ABS solenoid (On/ Off) status is displayed.
RR RH OUT SOL
(On/Off) –
×× Rear RH OUT ABS solenoid (On/Off) status is dis-
played.
RR LH IN SOL
(On/Off) –
×× Rear LH IN ABS solenoid (On/ Off) status is displayed.
RR LH OUT SOL
(On/Off) –
×× Rear LH OUT ABS solenoid (On/Off) status is dis-
played.
EBD WARN LAMP
(On/Off) ––
×Brake warning lamp (On/Off) status is displayed.
STOP LAMP SW
(On/Off) ×× ×
Stop lamp switch (On/Off) status is displayed.
MOTOR RELAY
(On/Off) –
×× ABS motor relay signal (On/Of f) status is displayed.
ACTUATOR RLY
(On/Off) –
×× ABS actuator relay signal (On/ Off) status is displayed.
ABS WARN LAMP
(On/Off) –
×× ABS warning lamp (On/Off) status is displayed.
OFF LAMP
(On/Off) –
×× VDC OFF Lamp (On/Off) status is displayed.
OFF SW ×× × VDC OFF Switch (On/Off) position is displayed
SLIP/VDC LAMP
(On/Off) –
×× SLIP indicator lamp (On/Off) status is displayed.
BATTERY VOLT
(V) ×× × Voltage (V) supplied to ABS actuator and electric unit
(control unit) is displayed.
GEAR
(1, 2, 3, 4, 5) ×× × Gear position (1, 2, 3, 4, 5) judged by transmission
range switch signal is displayed.
SLCT LVR POSI ×× × Curre
nt gear p
osition judged from current gear posi-
tion signal is displayed.
ENGINE SPEED ×× × Engine speed judged by CAN communication signal
is displayed.
YAW R AT E S E N
(d/s) ×× × Yaw rate (d/s) detected by yaw rate sensor is dis-
played.
R POSI SIG
(On/Off) ––
×Reverse shift position (On/Off) judged by transmis-
sion range switch signal.
N POSI SIG
(On/Off) ––
×Neutral position (On/Off) judged by transmission
range switch signal.
P POSI SIG
(On/Off) ––
×Park position (On/Off) judged by transmission range
switch signal.
CV1
(On/Off) ––
×Cut valve 1(On/Off) status is displayed.
CV2
(On/Off) ––
×Cut valve 2 (On/Off) status is displayed.
Item
(Unit) Data monitor item selection
Remarks
ECU INPUT
SIGNALS MAIN
SIGNALS SELECTION
FROM MENU
Revision: August 2015 2016 Versa Note

cardiagn.com
