NISSAN NOTE 2016 Service Repair Manual

DLK-162
< REMOVAL AND INSTALLATION >[WITH INTELLIGENT KEY SYSTEM]
BACK DOOR
Check the clearance and the surface height between back
door and each part by visual inspection and tactile
feel. If the clearance and the surface height are out of specification, adjust them according to the adjustment
procedure.
Unit: mm (in)
1. Loosen back door hinge nuts (door side).
2. Lift up back door approximately 100 – 150 mm (3.94 – 5. 91 in) height then close it lightly and check that it
is engaged firmly with back door closed.
3. Check the clearance and surface height and adjust back door as necessary.
4. Tighten back door hinge nuts to specified torque.
CAUTION:
• After installation, check back door open/close, lock/ unlock operation.
• Check back door hinge rotating point for poor lubrication. If necessary, appl y a suitable multi-pur-
pose grease.
• After adjusting, apply touch-up paint (body color) to the head of rear door hinge bolts and nuts.
BACK DOOR STRIKER
BACK DOOR STRIKER : Removal and InstallationINFOID:0000000012430112
REMOVAL
1. Remove back door kicking plate using a suitable tool.
2. Remove bolts and back door striker.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse back door striker bolts.
• After installation, check back door open/close, lock/ unlock operation.
• After installation, perform the back door assembly adjustment procedure. Refer to DLK-161, "
BACK
DOOR ASSEMBLY : Adjustment".
BACK DOOR STRIKER : AdjustmentINFOID:0000000012430113
DOOR STRIKER ADJUSTMENT
1. Loosen door striker bolts.
2. Adjust door striker so that it becomes parallel with back door
lock insertion direction.
3. Tighten door striker bolts to specification. Refer to DLK-159, "
Exploded View".
PortionSection Item Measurement Standard
Back door panel – Roof panel A – A H
Clearance 6.0 ± 1.0 (0.24 ± 0.04)
I Surface height 0.0 +0.5, -1.5 (0.00 +0.02, -0.06)
Rear combination lamp – Back door panel B – B J
Clearance 5.0 ± 2.0 (0.20 ± 0.08)
K Surface height -2.0 ± 2.0 (-0.08 ± 0.08)
Rear bumper fascia – Back-door panel C – CL C
le a ra n ce 5 .0 ± 2.0 (0.20 ± 0.08)
M Surface height 0.0 +0.5, -2.0 (0.0 +0.02, -0.08)
D – D M Clearance7.0 ± 2.0 (0.28 ± 0.08)
PIIB2804J
Revision: August 2015 2016 Versa Note

cardiagn.com

BACK DOORDLK-163
< REMOVAL AND INSTALLATION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
BACK DOOR HINGE
BACK DOOR HINGE : Removal and InstallationINFOID:0000000012430114
REMOVAL
1. Remove back door assembly. Refer to DLK-159, "BACK DOOR ASSEMBLY : Removal and Installation".
2. Partially remove back door weatherstrip. Refer to DLK-164, "
BACK DOOR WEATHER-STRIP : Removal
and Installation".
3. Remove back door hinge nuts and bolts (body side) and then remove back door hinge.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Apply anticorrosive agent onto the su rface between hinge and body side.
• After installation, perfor m the back door assembly adjustment procedure. Refer to DLK-161, "
BACK
DOOR ASSEMBLY : Adjustment".
BACK DOOR STAY
BACK DOOR STAY : Removal and InstallationINFOID:0000000012430115
REMOVAL
1. Support the back door with a suitable tool too prevent it from falling.
WARNING:
Body injury may occur if no sup porting rod is holding the back door open when removing the
back door stay.
2. Remove the metal clip (3) located on the connection between the back door stay (1) and the stud ball (2) (back door side) by
using a flat blade screwdriver (A).
3. Remove the back door stay (back door side).
4. In the same way, remove the back door stay from the body side.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Check the back door open/close op eration after installation.
BACK DOOR STAY : DisposalINFOID:0000000012430116
BACK DOOR STAY DISPOSAL
WARNING:
When performing disposal procedur e, wear protective gloves and glasses.
JMKIA2255ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

DLK-164
< REMOVAL AND INSTALLATION >[WITH INTELLIGENT KEY SYSTEM]
BACK DOOR
1. Secure back door stay (1) using a vice (C).
CAUTION:
When cutting back door stay, al ways cover suitable tool (A)
using a shop cloth (B) to avo id scattering metal fragments
or oil.
2. Slowly cut a hole in back door stay and drain the gas using a hacksaw at position (B) as shown.
A: 20 mm (0.79 in)
BACK DOOR WEATHER-STRIP
BACK DOOR WEATHER-STRIP : Removal and InstallationINFOID:0000000012430117
REMOVAL
1. Support back door using a suitable tool.
2. Carefully remove back door weather-strip from opening door joint.
INSTALLATION
1. Beginning with upper section, align weather-strip mark with vehicle center position mark and install
weather strip to the vehicle.
2. For the lower section, align weather-strip seam with center of back door striker.
NOTE:
Pull weather-strip gently to make sure that there are no loose sections.
JMKIA3336ZZ
JMKIA5421ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

HOOD LOCKDLK-165
< REMOVAL AND INSTALLATION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
HOOD LOCK
Exploded ViewINFOID:0000000012430118
HOOD LOCK
HOOD LOCK : Remova l and InstallationINFOID:0000000012430119
REMOVAL
1. Remove hood lock bolts (A).
2. Disconnect hood lock release cable (2) from hood lock (1) and
remove.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
1. Hood lock/fuel filler lid release handle 2. Hood lock assembly 3. Hood lock release cable assembly
A. Clip
AWKIA2572ZZ
ALKIA3190ZZ
AWKIA2497ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

DLK-166
< REMOVAL AND INSTALLATION >[WITH INTELLIGENT KEY SYSTEM]
HOOD LOCK
• After installation, perform hood assembl
y adjustment procedure. Refer to DLK-141, "HOOD ASSEM-
BLY : Adjustment".
• After adjustment, perform hood lock control inspection. Refer to DLK-166, "
HOOD LOCK : Inspec-
tion".
HOOD LOCK : InspectionINFOID:0000000012430120
HOOD LOCK INSPECTION
NOTE:
If hood lock cable is bent or deformed, replace it. Refer to DLK-165, "
HOOD LOCK : Removal and Installa-
tion".
1. Check that secondary latch is properly engage with secondary striker with hoods own weight.
2. While operating hood lock release lever, carefully check that the front end of hood assembly is raised by approximately 20.0 mm (0.79 in). Also check that hood lock release lever returns to original position.
3. Check that hood lock release lever operates at 49 N (5.0 kg-m, 11.0 ft-lb) or below.
4. Install so that static closing force of hood is 315-490 N (32.1-50.0 kg-m, 70.8-110.2 ft-lb).
5. Check hood lock assembly lubrication condition. If necessary, apply a suitable multi-purpose grease.
HOOD LOCK RELEASE CABLE
HOOD LOCK RELEASE CABLE : Removal and InstallationINFOID:0000000012430121
REMOVAL
1. Disconnect hood lock release cable from hood lock. Refer to DLK-165, "Exploded View".
2. Remove radiator cap adapter bracket bolt (A) and radiator reser- voir tank bolt (B).
3. Remove fender protector (LH). Refer to EXT-38, "
Removal and Installation".
4. Release hood lock control cable clips using a suitable tool.
5. Remove hood lock/fuel filler door release handle. Refer to DLK-167, "
HOOD LOCK RELEASE HANDLE :
Removal and Installation".
6. Remove dash side finisher (LH). Refer to INT-24, "
DASH SIDE FINISHER : Removal and Installation".
7. Remove grommet on the lower dash and pull the hood lock release cable into the passenger compart- ment.
CAUTION:
While pulling, be careful no t to damage (peel) the outsid e of the hood lock release cable.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Be careful not to bend cable too much, keep the radius 100 mm (3.94 in) or more.
• Check that hood lock release cable is properly engaged with hood lock.
JMKIA8027ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

HOOD LOCKDLK-167
< REMOVAL AND INSTALLATION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
• Check that cable is not offset from the positioning grommet, and apply the sealant to the grommet (at * mark).
HOOD LOCK RELEASE HANDLE
HOOD LOCK RELEASE HANDLE : Removal and InstallationINFOID:0000000012430122
REMOVAL
1. Remove hood lock/fuel filler door release handle bolts (A).
2. Disconnect hood lock release cable from hood lock/fuel filler door release handle and remove.
INSTALLATION
Installation is in the reverse order of removal.
PIIB5801E
AWKIA2498ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

DLK-168
< REMOVAL AND INSTALLATION >[WITH INTELLIGENT KEY SYSTEM]
FRONT DOOR LOCK
FRONT DOOR LOCK
Exploded ViewINFOID:0000000012430123
DOOR LOCK
DOOR LOCK : Removal and InstallationINFOID:0000000012430124
REMOVAL
1. Remove inside handle. Refer to
DLK-169, "INSIDE HANDLE : Removal and Installation".
2. Remove outside handle. Refer to DLK-170, "
OUTSIDE HANDLE : Removal and Installation".
3. Disconnect the harness connector from the door lock actuator.
4. Remove front door glass rear run. Refer to GW-21, "
Exploded View".
5. Remove bolts and door lock.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse door lock bolts.
• After installation, check door op en/close, lock/unlock operation.
• Check door lock cables are properly engaged to inside handle and outside handle bracket.
• When installing key cylinder on front door, be sure to rotate key cylinder r od holder until a click is
felt.
1. Key cylinder (driver side) 2. Outside handle bracket 3. Outside handle escutcheon
(passenger side)
4. Front gasket 5. Outside handle 6. Inside handle
7. Door lock 8. Key cylinder rod (driver side) 9. Rear gasket
A. Clip B. Bolt Pawl
AWKIA3159ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

FRONT DOOR LOCKDLK-169
< REMOVAL AND INSTALLATION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
• Check door lock for poor lubri cation. Apply a suitable multi-
purpose grease to door lock if necessary.
INSIDE HANDLE
INSIDE HANDLE : Removal and InstallationINFOID:0000000012430125
REMOVAL
1. Remove front door finisher. Refer to INT-15, "Removal and Installation".
2. Partially remove vapor barrier. Refer to GW-21, "
Exploded View".

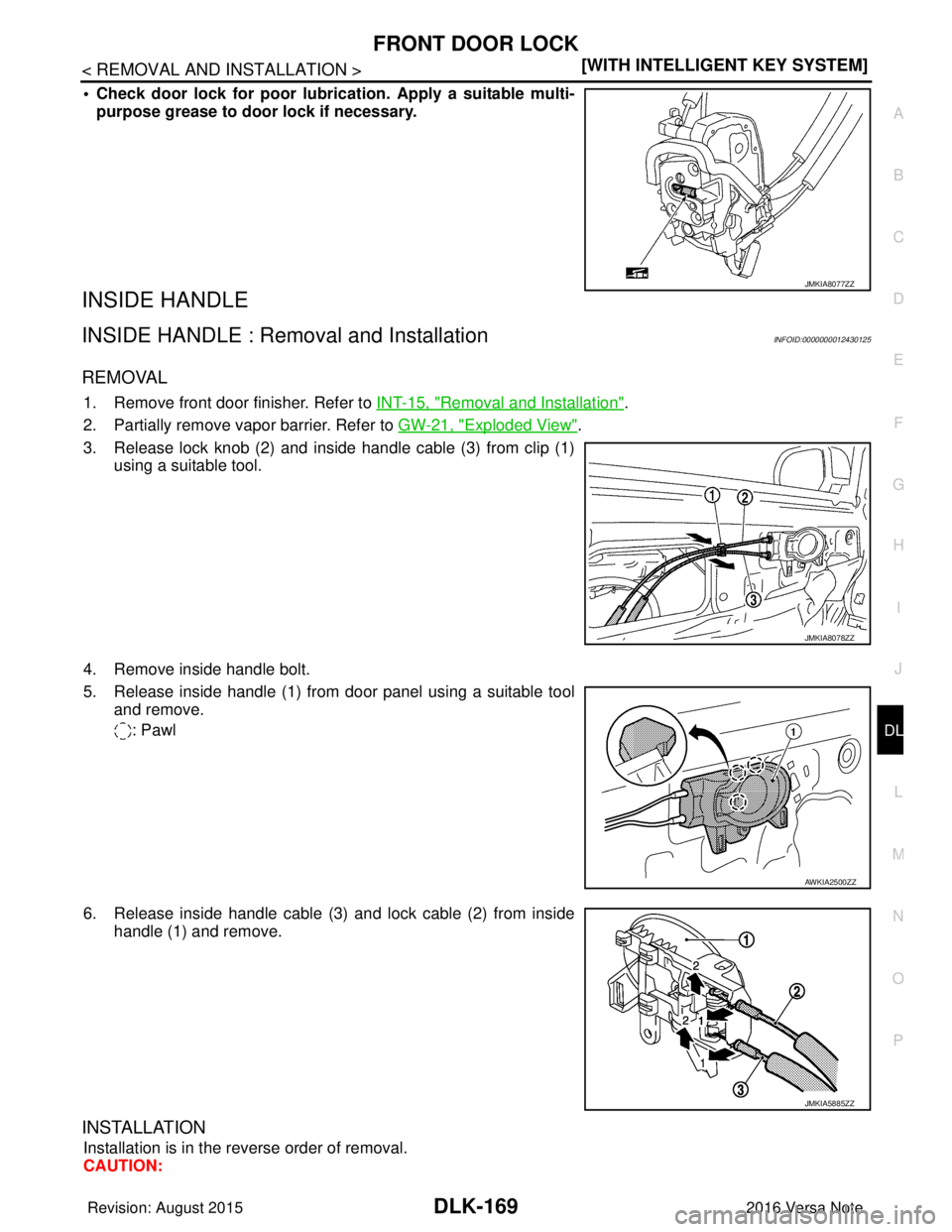

3. Release lock knob (2) and inside handle cable (3) from clip (1) using a suitable tool.
4. Remove inside handle bolt.
5. Release inside handle (1) from door panel using a suitable tool and remove.
: Pawl
6. Release inside handle cable (3) and lock cable (2) from inside handle (1) and remove.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
JMKIA8077ZZ
JMKIA8078ZZ
AWKIA2500ZZ
JMKIA5885ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

DLK-170
< REMOVAL AND INSTALLATION >[WITH INTELLIGENT KEY SYSTEM]
FRONT DOOR LOCK
• Check that door lock cables are properly engaged to inside handle.
• After installation, check door
open/close, lock/unlock operation.
OUTSIDE HANDLE
OUTSIDE HANDLE : Removal and InstallationINFOID:0000000012430126
REMOVAL
1. Remove front door finisher. Refer to INT-15, "Removal and Installation".
2. Partially remove vapor barrier. Refer to GW-21, "
Exploded View".

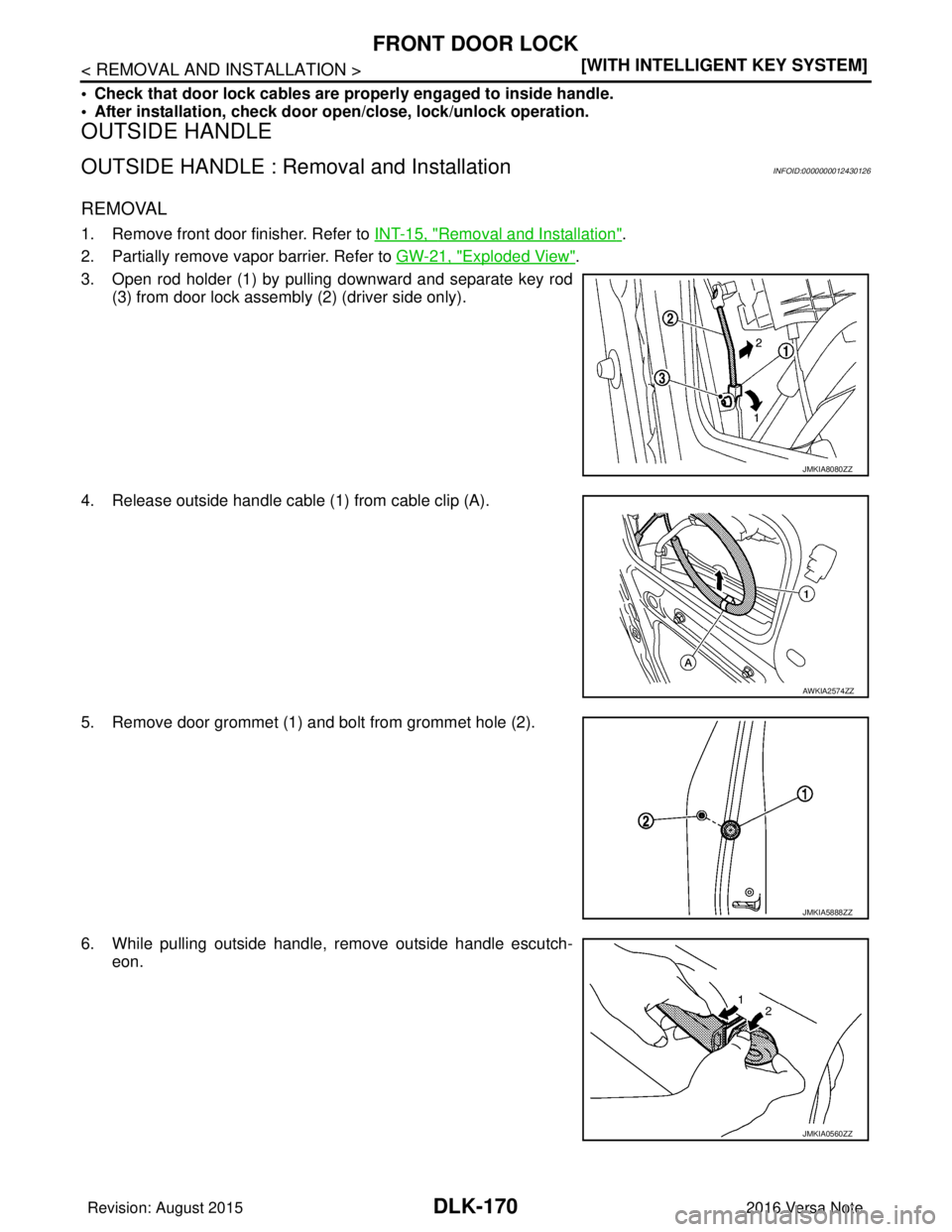

3. Open rod holder (1) by pulling downward and separate key rod (3) from door lock assembly (2) (driver side only).
4. Release outside handle cable (1) from cable clip (A).
5. Remove door grommet (1) and bolt from grommet hole (2).
6. While pulling outside handle, remove outside handle escutch- eon.
JMKIA8080ZZ
AWKIA2574ZZ
JMKIA5888ZZ
JMKIA0560ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

FRONT DOOR LOCKDLK-171
< REMOVAL AND INSTALLATION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P

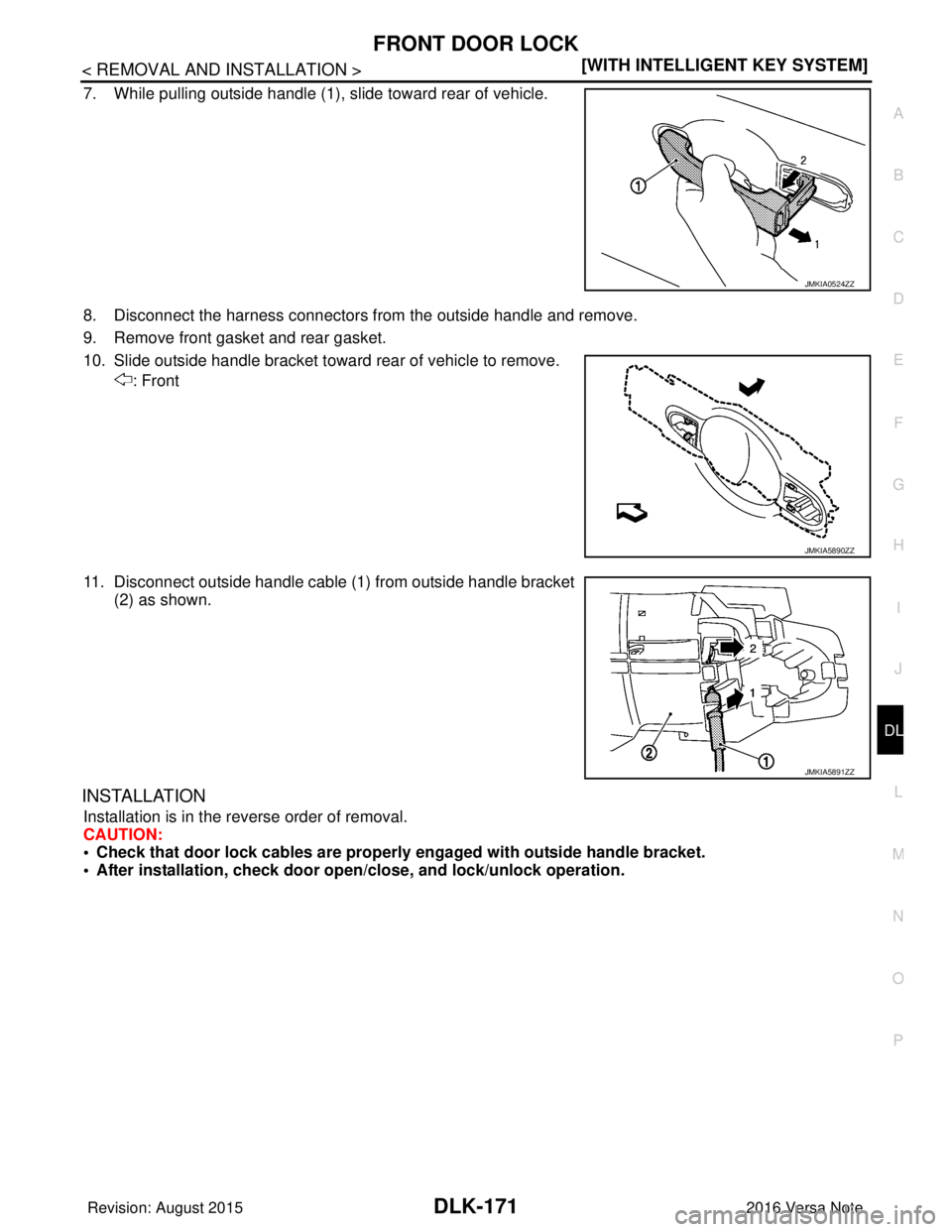

7. While pulling outside handle (1), slide toward rear of vehicle.
8. Disconnect the harness connectors from the outside handle and remove.
9. Remove front gasket and rear gasket.
10. Slide outside handle bracket toward rear of vehicle to remove. : Front
11. Disconnect outside handle cable (1) from outside handle bracket (2) as shown.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Check that door lock cables are properly engaged with outside handle bracket.
• After installation, check door op en/close, and lock/unlock operation.
JMKIA0524ZZ
JMKIA5890ZZ
JMKIA5891ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com
