NISSAN NOTE 2016 Service Repair Manual

DLK-172
< REMOVAL AND INSTALLATION >[WITH INTELLIGENT KEY SYSTEM]
REAR DOOR LOCK
REAR DOOR LOCK
Exploded ViewINFOID:0000000012430127
DOOR LOCK
DOOR LOCK : Removal and InstallationINFOID:0000000012430128
REMOVAL
1. Remove inside handle. Refer to
DLK-173, "INSIDE HANDLE : Removal and Installation".
2. Remove outside handle. Refer to DLK-174, "
OUTSIDE HANDLE : Removal and Installation".
3. Remove bolts (A) from rear door glass rear run (1).
4. Disconnect the harness connector from door lock actuator.
5. Remove bolts and door lock.
1. Outside handle bracket 2. Outside handle escutcheon 3. Front gasket
4. Outside handle 5. Inside handle6. Door lock
7. Door lock A. Clip B. Bolt
Pawl
AWKIA3160ZZ
JMKIA8086ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

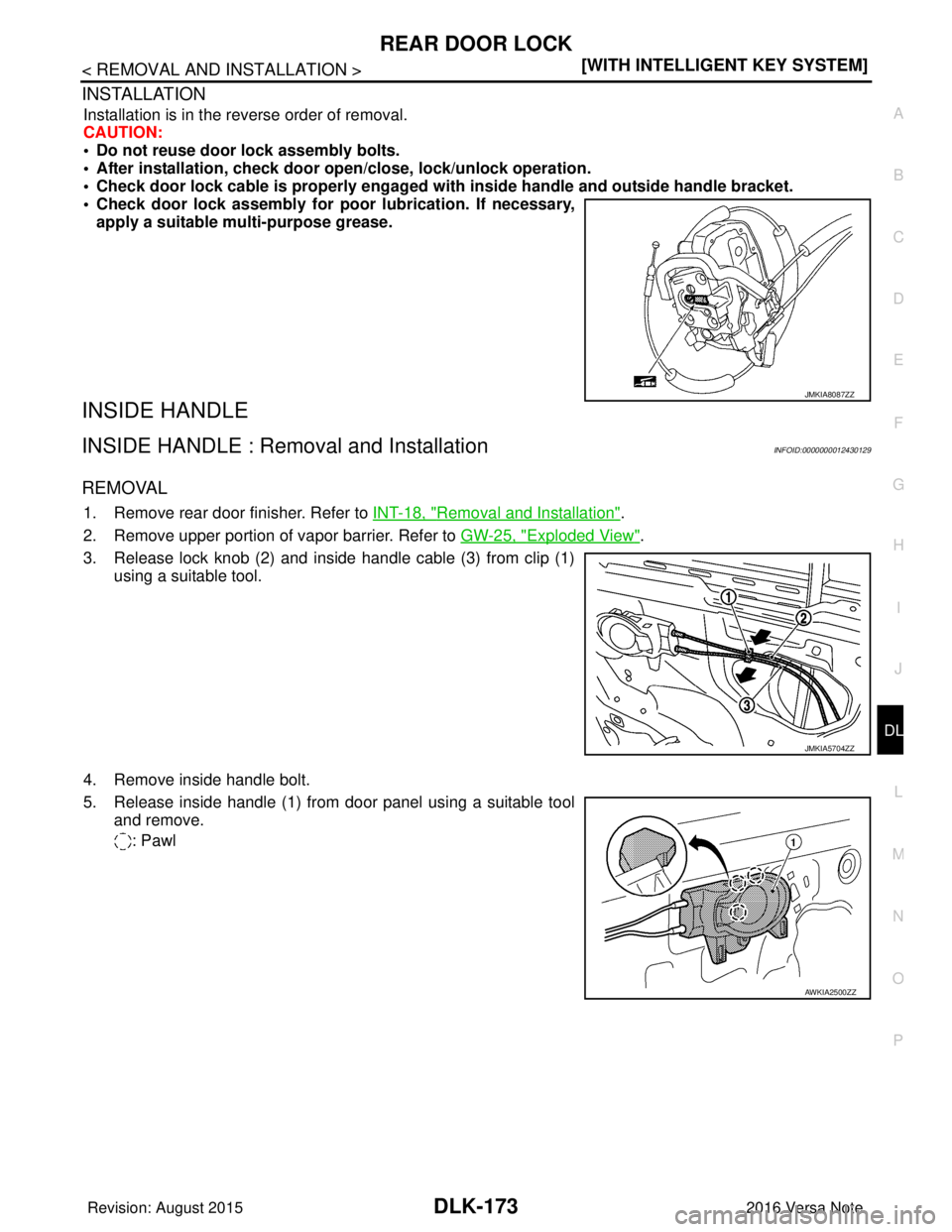

REAR DOOR LOCKDLK-173
< REMOVAL AND INSTALLATION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse door lock assembly bolts.
• After installation, check door open/close, lock/un lock operation.
• Check door lock cable is properly engaged wi th inside handle and outside handle bracket.
• Check door lock assembly for poor lubrication. If necessary, apply a suitable multi-purpose grease.
INSIDE HANDLE
INSIDE HANDLE : Removal and InstallationINFOID:0000000012430129
REMOVAL
1. Remove rear door finisher. Refer to INT-18, "Removal and Installation".
2. Remove upper portion of vapor barrier. Refer to GW-25, "
Exploded View".
3. Release lock knob (2) and inside handle cable (3) from clip (1) using a suitable tool.
4. Remove inside handle bolt.
5. Release inside handle (1) from door panel using a suitable tool and remove.
: Pawl
JMKIA8087ZZ
JMKIA5704ZZ
AWKIA2500ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

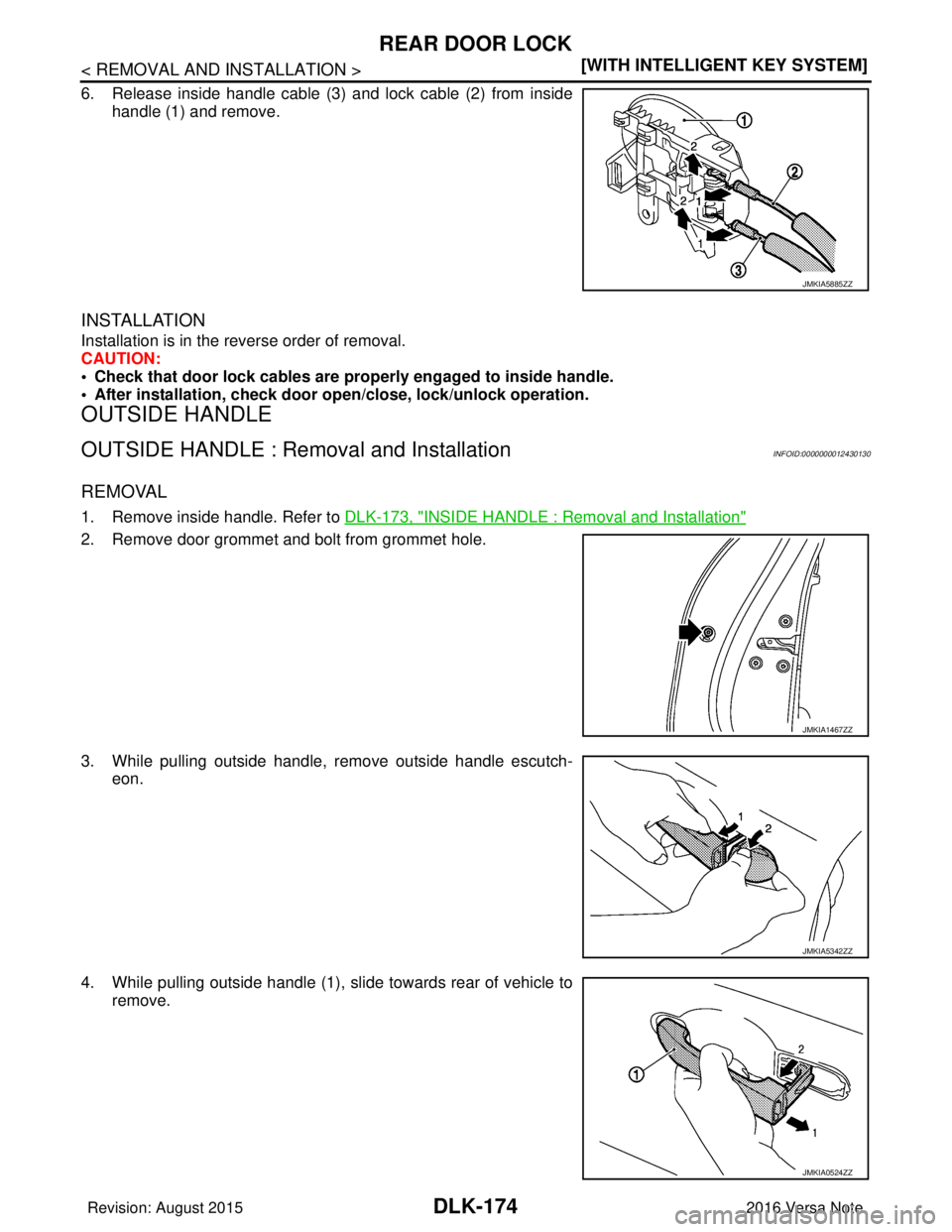

DLK-174
< REMOVAL AND INSTALLATION >[WITH INTELLIGENT KEY SYSTEM]
REAR DOOR LOCK
6. Release inside handle cable (3) and lock cable (2) from inside
handle (1) and remove.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Check that door lock cables are pr operly engaged to inside handle.
• After installation, check door op en/close, lock/unlock operation.
OUTSIDE HANDLE
OUTSIDE HANDLE : Removal and InstallationINFOID:0000000012430130
REMOVAL
1. Remove inside handle. Refer to DLK-173, "INSIDE HANDLE : Removal and Installation"
2. Remove door grommet and bolt from grommet hole.
3. While pulling outside handle, remove outside handle escutch-
eon.
4. While pulling outside handle (1), slide towards rear of vehicle to remove.
JMKIA5885ZZ
JMKIA1467ZZ
JMKIA5342ZZ
JMKIA0524ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

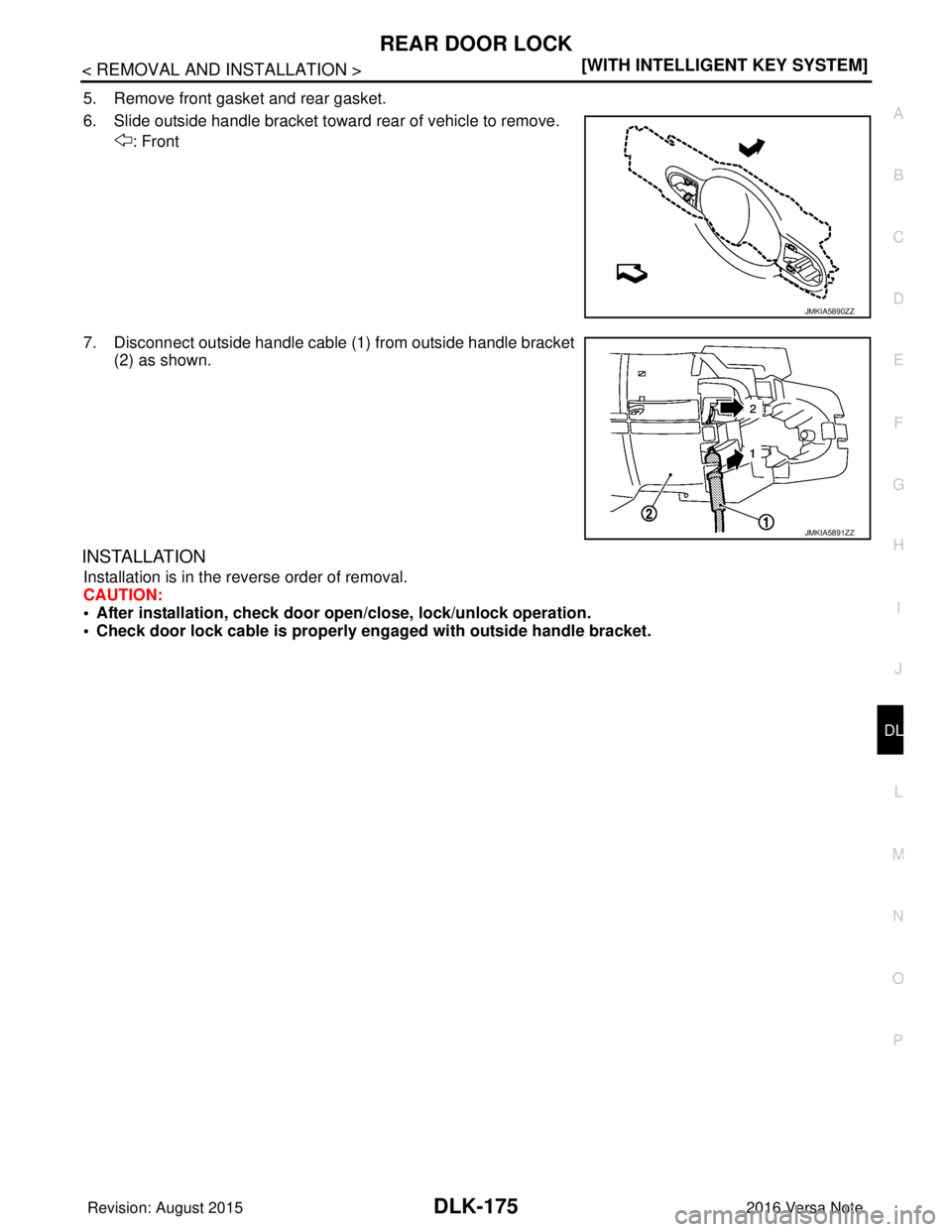

REAR DOOR LOCKDLK-175
< REMOVAL AND INSTALLATION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
5. Remove front gasket and rear gasket.
6. Slide outside handle bracket toward rear of vehicle to remove. : Front
7. Disconnect outside handle cable (1) from outside handle bracket (2) as shown.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• After installation, check door open/close, lock/un lock operation.
• Check door lock cable is properly engaged with outside handle bracket.
JMKIA5890ZZ
JMKIA5891ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

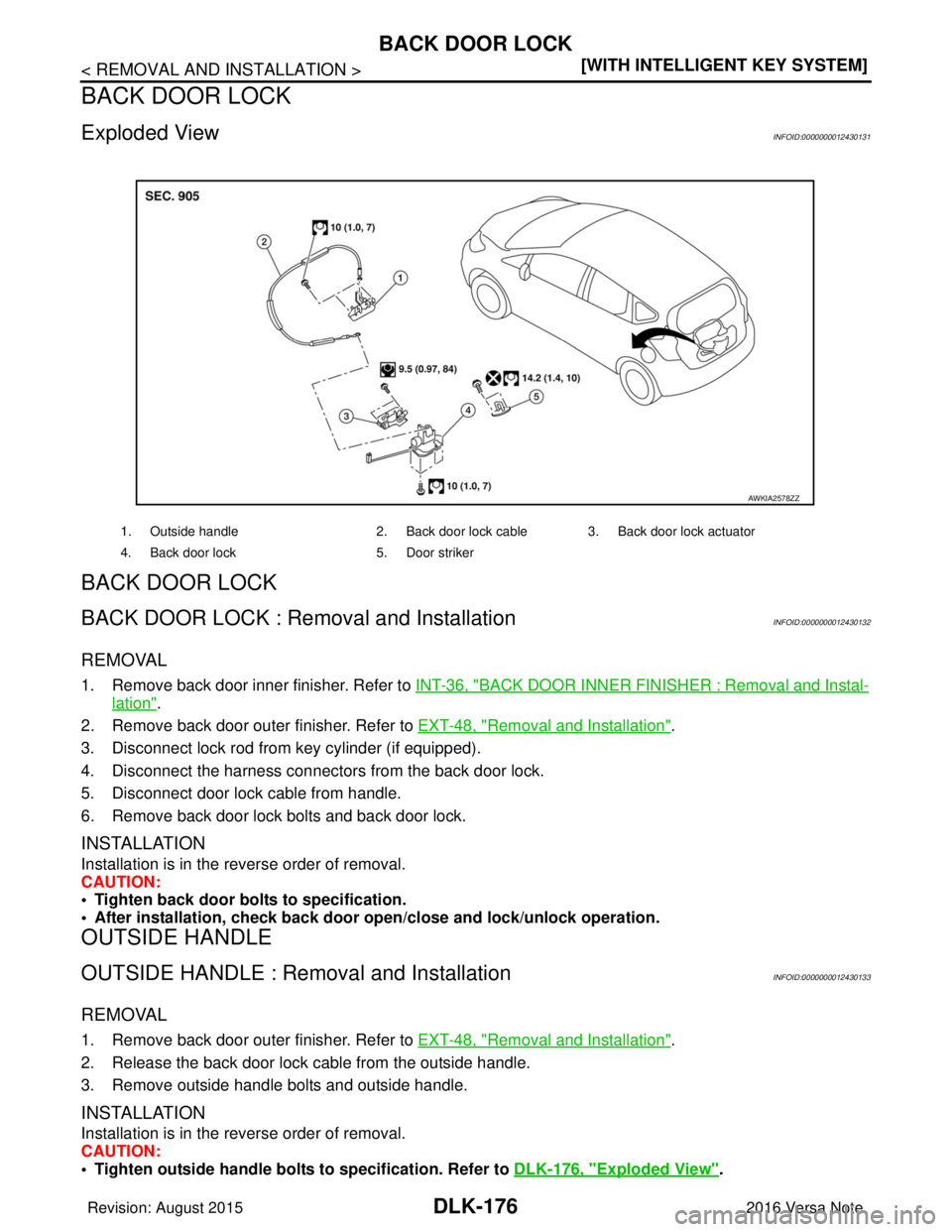

DLK-176
< REMOVAL AND INSTALLATION >[WITH INTELLIGENT KEY SYSTEM]
BACK DOOR LOCK
BACK DOOR LOCK
Exploded ViewINFOID:0000000012430131
BACK DOOR LOCK
BACK DOOR LOCK : Re
moval and InstallationINFOID:0000000012430132
REMOVAL
1. Remove back door inner finisher. Refer to INT-36, "BACK DOOR INNER FINISHER : Removal and Instal-
lation".
2. Remove back door outer finisher. Refer to EXT-48, "
Removal and Installation".
3. Disconnect lock rod from key cylinder (if equipped).
4. Disconnect the harness connectors from the back door lock.
5. Disconnect door lock cable from handle.
6. Remove back door lock bolts and back door lock.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Tighten back door bolts to specification.
• After installation, check back door open/close and lock/ unlock operation.
OUTSIDE HANDLE
OUTSIDE HANDLE : Removal and InstallationINFOID:0000000012430133
REMOVAL
1. Remove back door outer finisher. Refer to EXT-48, "Removal and Installation".
2. Release the back door lock cable from the outside handle.
3. Remove outside handle bolts and outside handle.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Tighten outside handle bolt s to specification. Refer to DLK-176, "
Exploded View".
1. Outside handle 2. Back door lock cable 3. Back door lock actuator
4. Back door lock 5. Door striker
AWKIA2578ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

BACK DOOR LOCKDLK-177
< REMOVAL AND INSTALLATION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
• After installation, check back door open/close and lock/unlock operation.
Revision: August 2015 2016 Versa Note

cardiagn.com

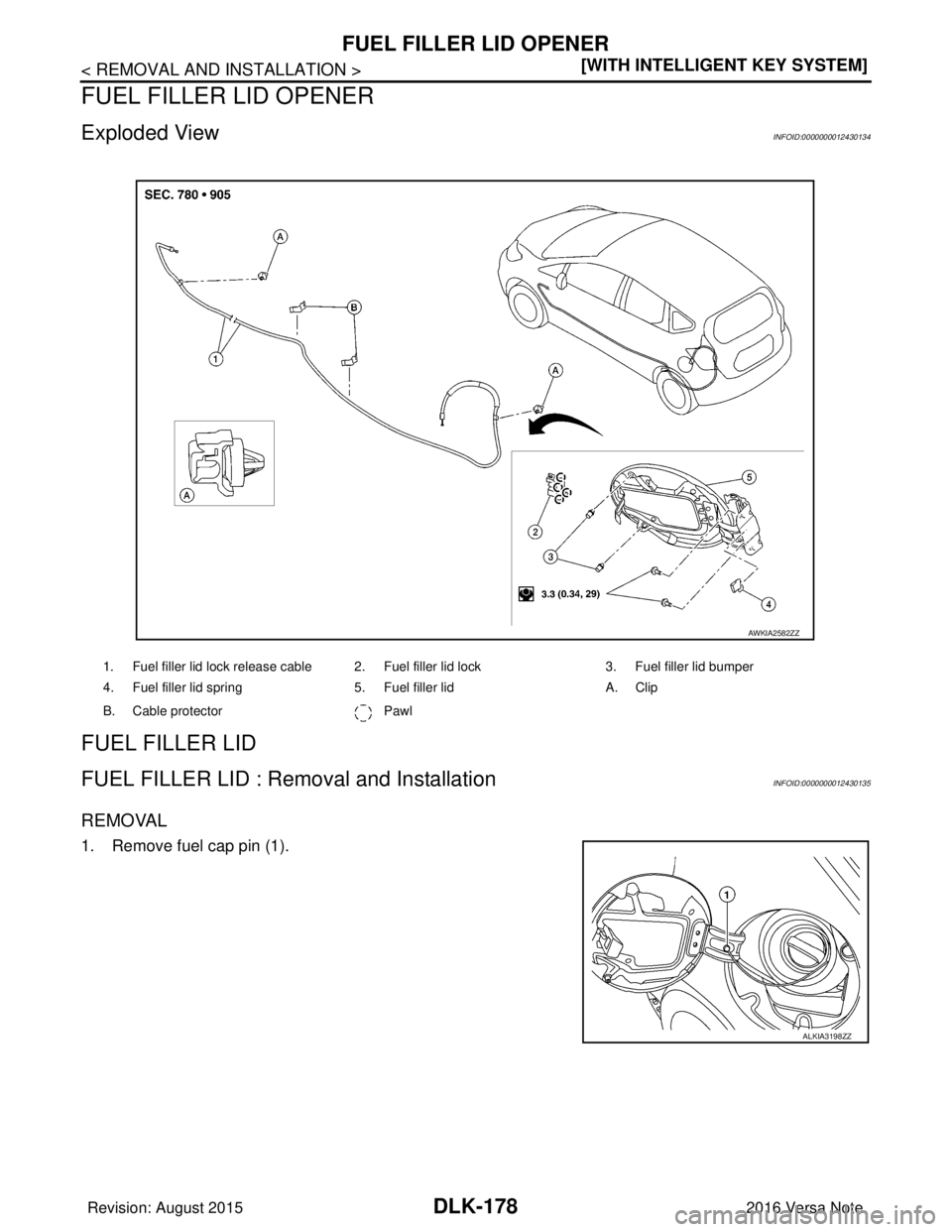

DLK-178
< REMOVAL AND INSTALLATION >[WITH INTELLIGENT KEY SYSTEM]
FUEL FILLER LID OPENER
FUEL FILLER LID OPENER
Exploded ViewINFOID:0000000012430134
FUEL FILLER LID
FUEL FILLER LID : Remo
val and InstallationINFOID:0000000012430135
REMOVAL
1. Remove fuel cap pin (1).
1. Fuel filler lid lock release cable 2. Fuel filler lid lock 3. Fuel filler lid bumper
4. Fuel filler lid spring 5. Fuel filler lid A. Clip
B. Cable protector Pawl
AWKIA2582ZZ
ALKIA3198ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

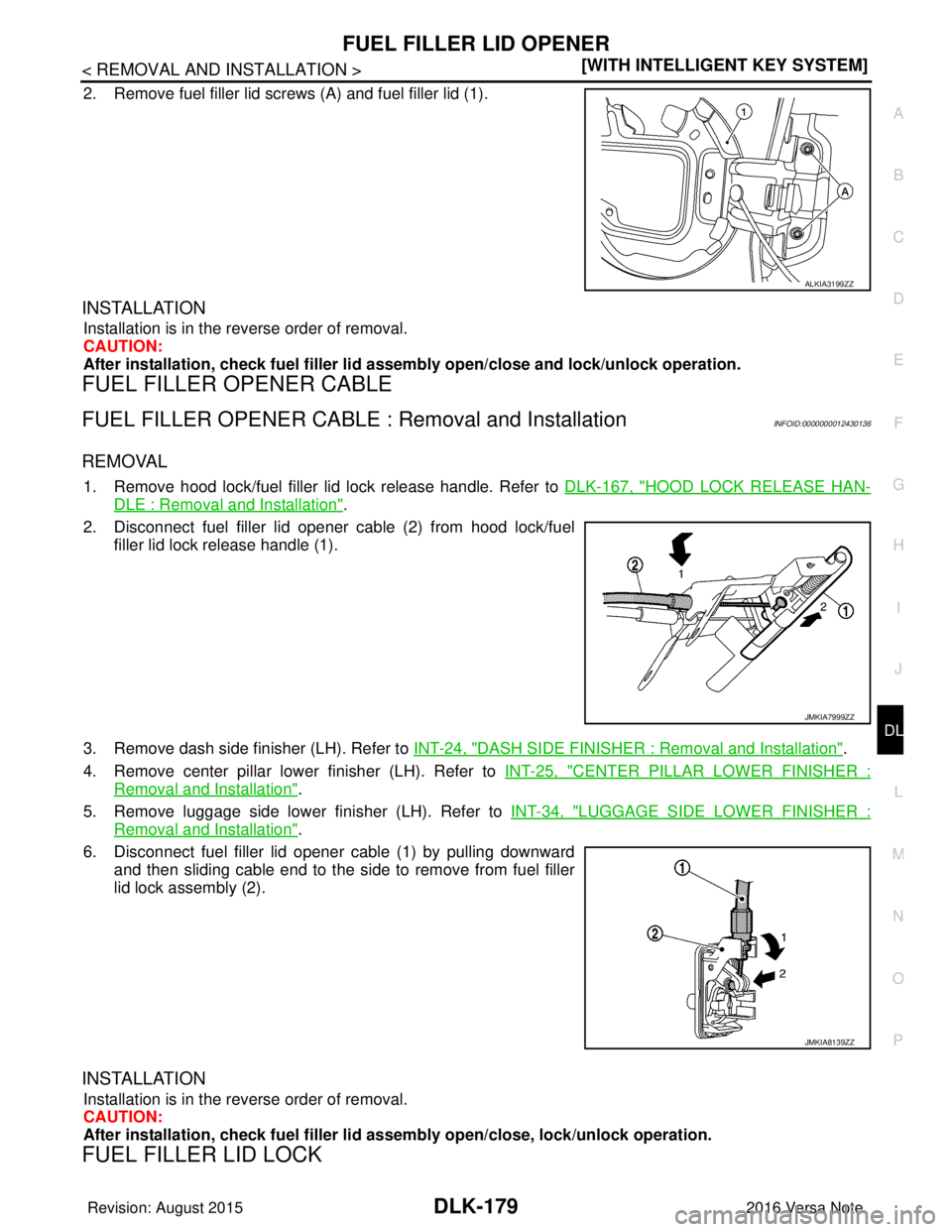

FUEL FILLER LID OPENERDLK-179
< REMOVAL AND INSTALLATION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
2. Remove fuel filler lid screws (A) and fuel filler lid (1).
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
After installation, check fuel filler lid assembly open/close and lock/unlock operation.
FUEL FILLER OPENER CABLE
FUEL FILLER OPENER CABLE : Removal and InstallationINFOID:0000000012430136
REMOVAL
1. Remove hood lock/fuel filler lid lock release handle. Refer to DLK-167, "HOOD LOCK RELEASE HAN-
DLE : Removal and Installation".
2. Disconnect fuel filler lid opener cable (2) from hood lock/fuel filler lid lock release handle (1).
3. Remove dash side finisher (LH). Refer to INT-24, "
DASH SIDE FINISHER : Removal and Installation".
4. Remove center pillar lower finisher (LH). Refer to INT-25, "
CENTER PILLAR LOWER FINISHER :
Removal and Installation".
5. Remove luggage side lower finisher (LH). Refer to INT-34, "
LUGGAGE SIDE LOWER FINISHER :
Removal and Installation".
6. Disconnect fuel filler lid opener cable (1) by pulling downward and then sliding cable end to the side to remove from fuel filler
lid lock assembly (2).
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
After installation, check fuel filler lid assembly open/close, lock/unlock operation.
FUEL FILLER LID LOCK
ALKIA3199ZZ
JMKIA7999ZZ
JMKIA8139ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

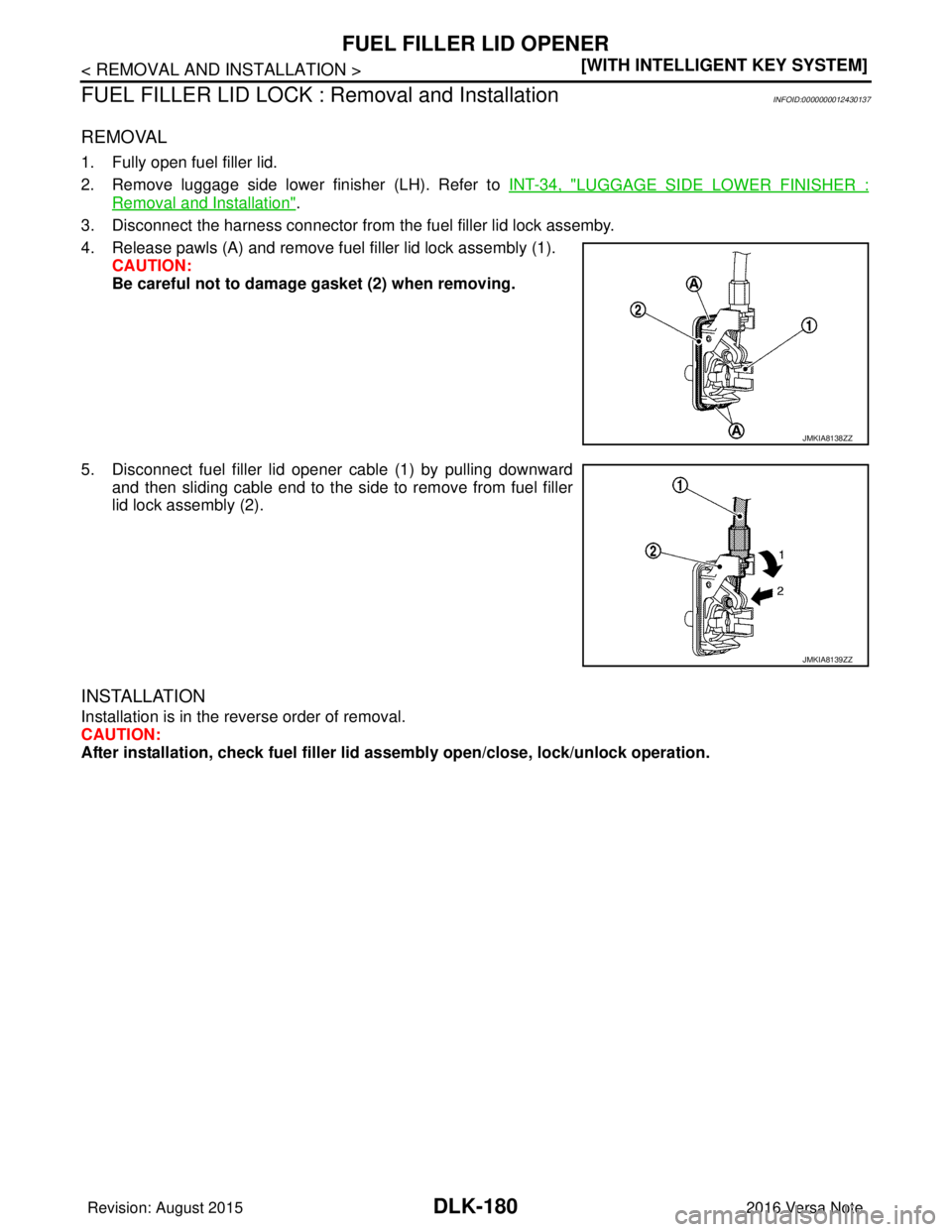

DLK-180
< REMOVAL AND INSTALLATION >[WITH INTELLIGENT KEY SYSTEM]
FUEL FILLER LID OPENER
FUEL FILLER LID LOCK : Removal and Installation
INFOID:0000000012430137
REMOVAL
1. Fully open fuel filler lid.
2. Remove luggage side lower finisher (LH). Refer to INT-34, "
LUGGAGE SIDE LOWER FINISHER :
Removal and Installation".
3. Disconnect the harness connector from the fuel filler lid lock assemby.
4. Release pawls (A) and remove fuel filler lid lock assembly (1). CAUTION:
Be careful not to damage gasket (2) when removing.
5. Disconnect fuel filler lid opener cable (1) by pulling downward and then sliding cable end to the side to remove from fuel filler
lid lock assembly (2).
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
After installation, check fuel filler li d assembly open/close, lock/unlock operation.
JMKIA8138ZZ
JMKIA8139ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

DOOR SWITCHDLK-181
< REMOVAL AND INSTALLATION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P

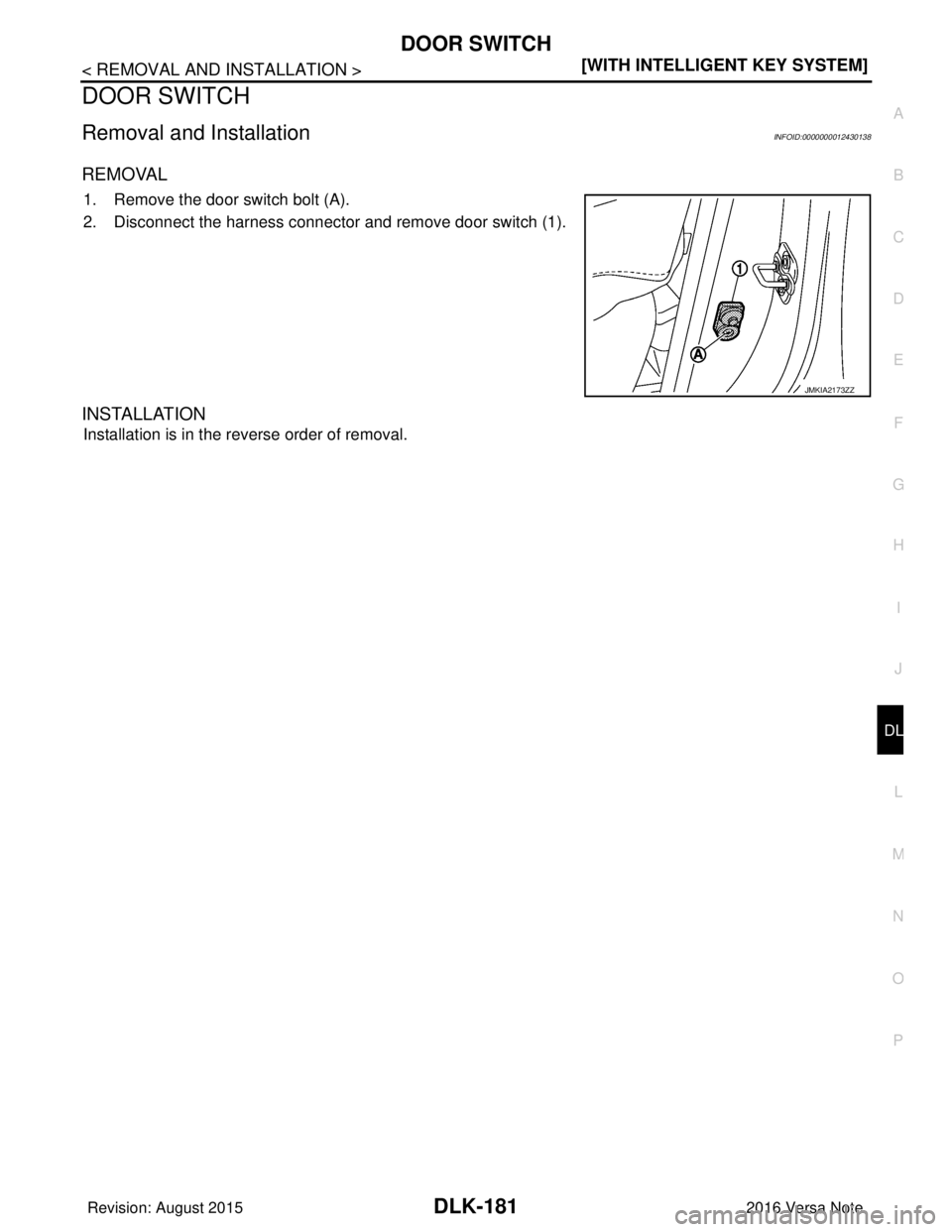

DOOR SWITCH
Removal and InstallationINFOID:0000000012430138
REMOVAL
1. Remove the door switch bolt (A).
2. Disconnect the harness connector and remove door switch (1).
INSTALLATION
Installation is in the reverse order of removal.
JMKIA2173ZZ
