NISSAN PATROL 2000 Electronic Repair Manual

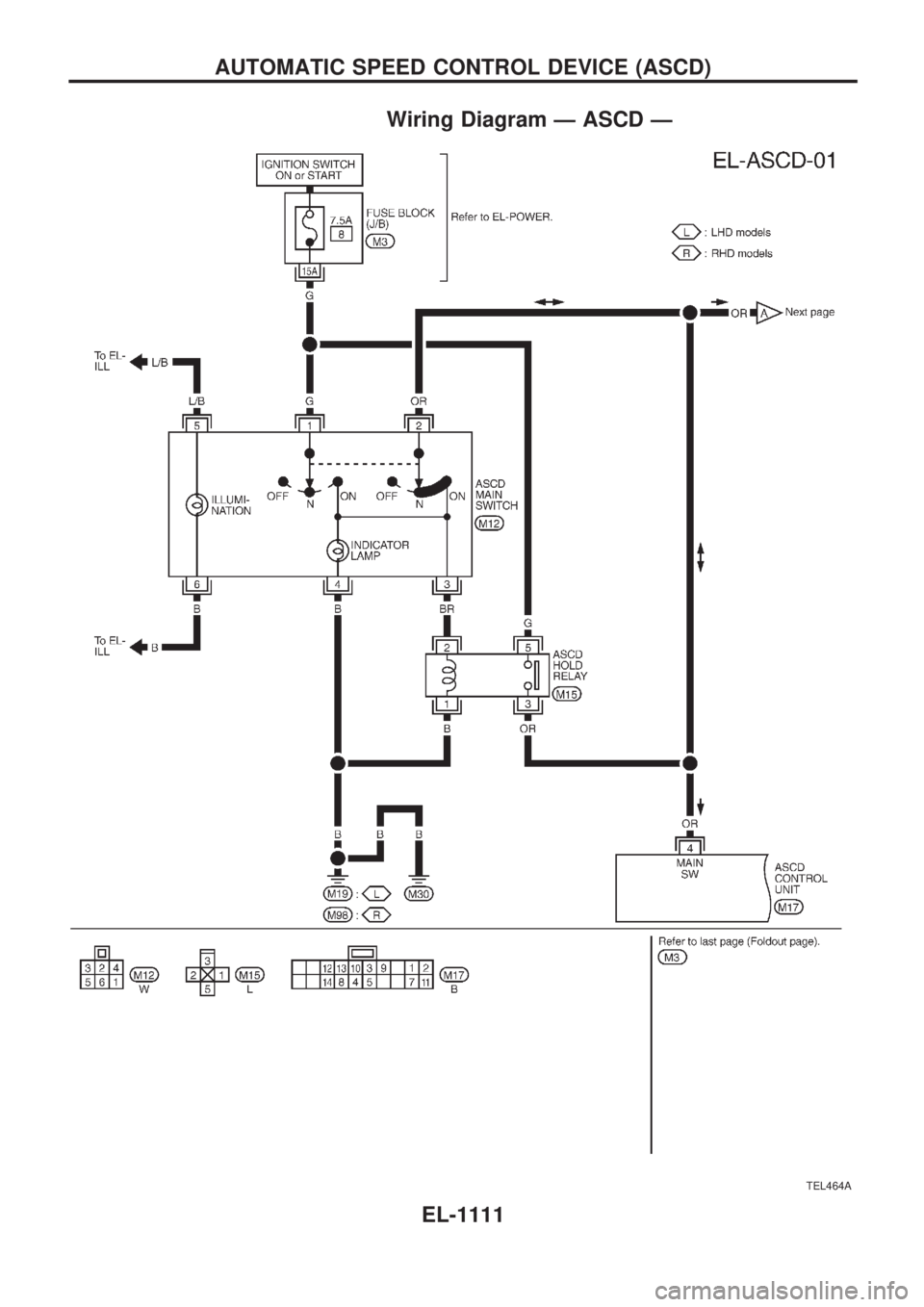

Wiring Diagram Ð ASCD Ð
TEL464A
AUTOMATIC SPEED CONTROL DEVICE (ASCD)
EL-1111

TEL583B

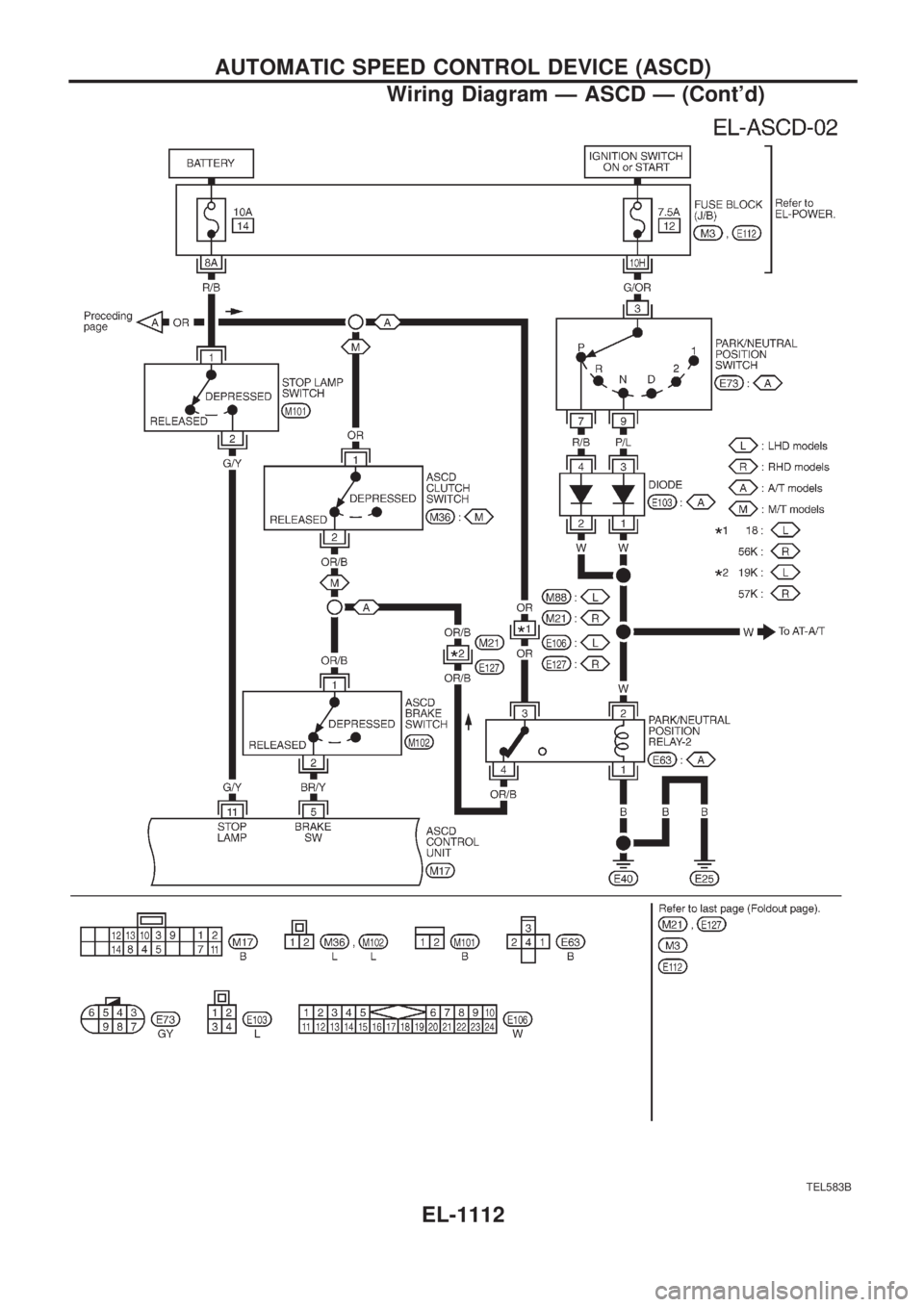

AUTOMATIC SPEED CONTROL DEVICE (ASCD)
Wiring Diagram Ð ASCD Ð (Cont'd)
EL-1112

TEL584B

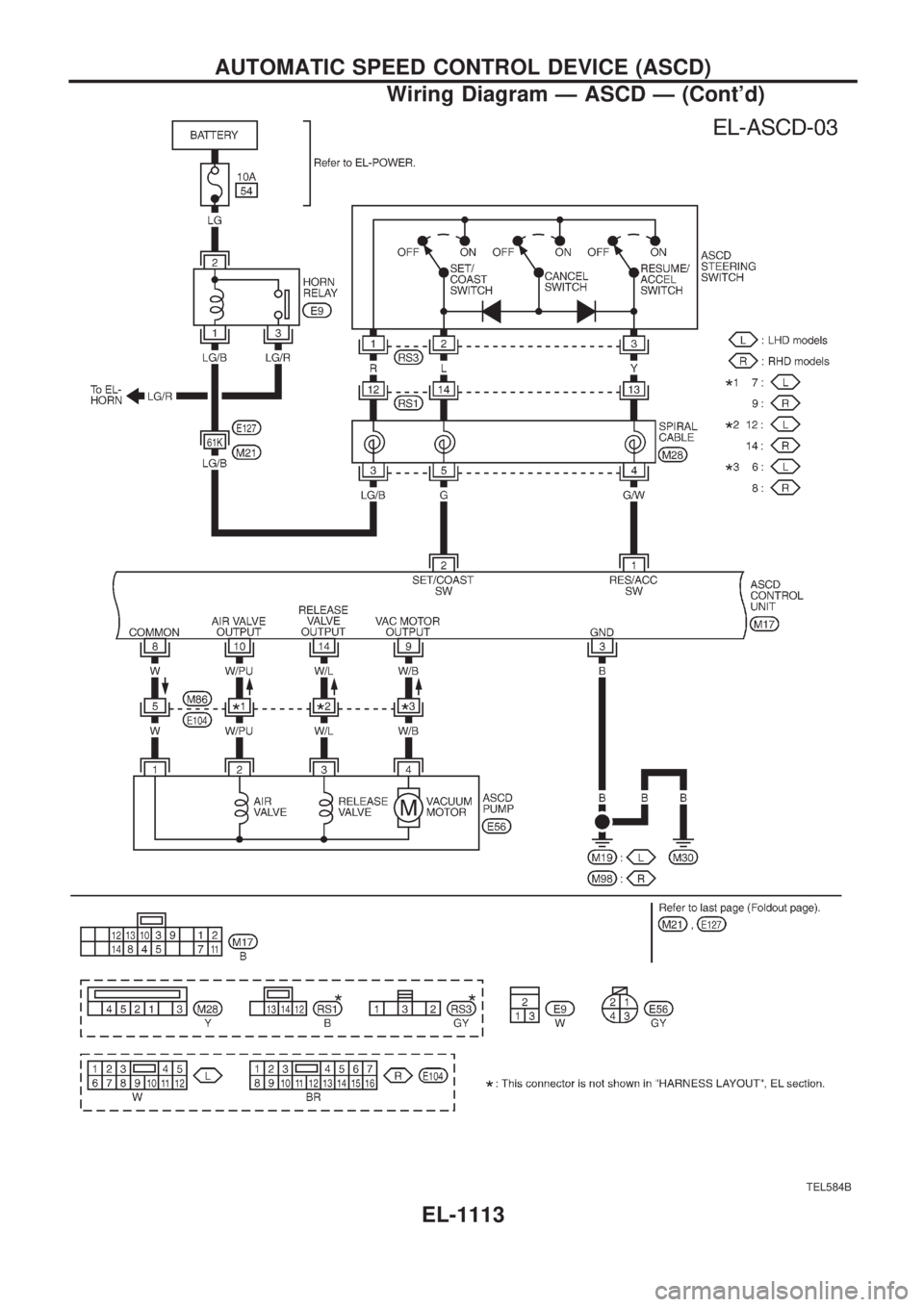

AUTOMATIC SPEED CONTROL DEVICE (ASCD)
Wiring Diagram Ð ASCD Ð (Cont'd)
EL-1113

TEL467A

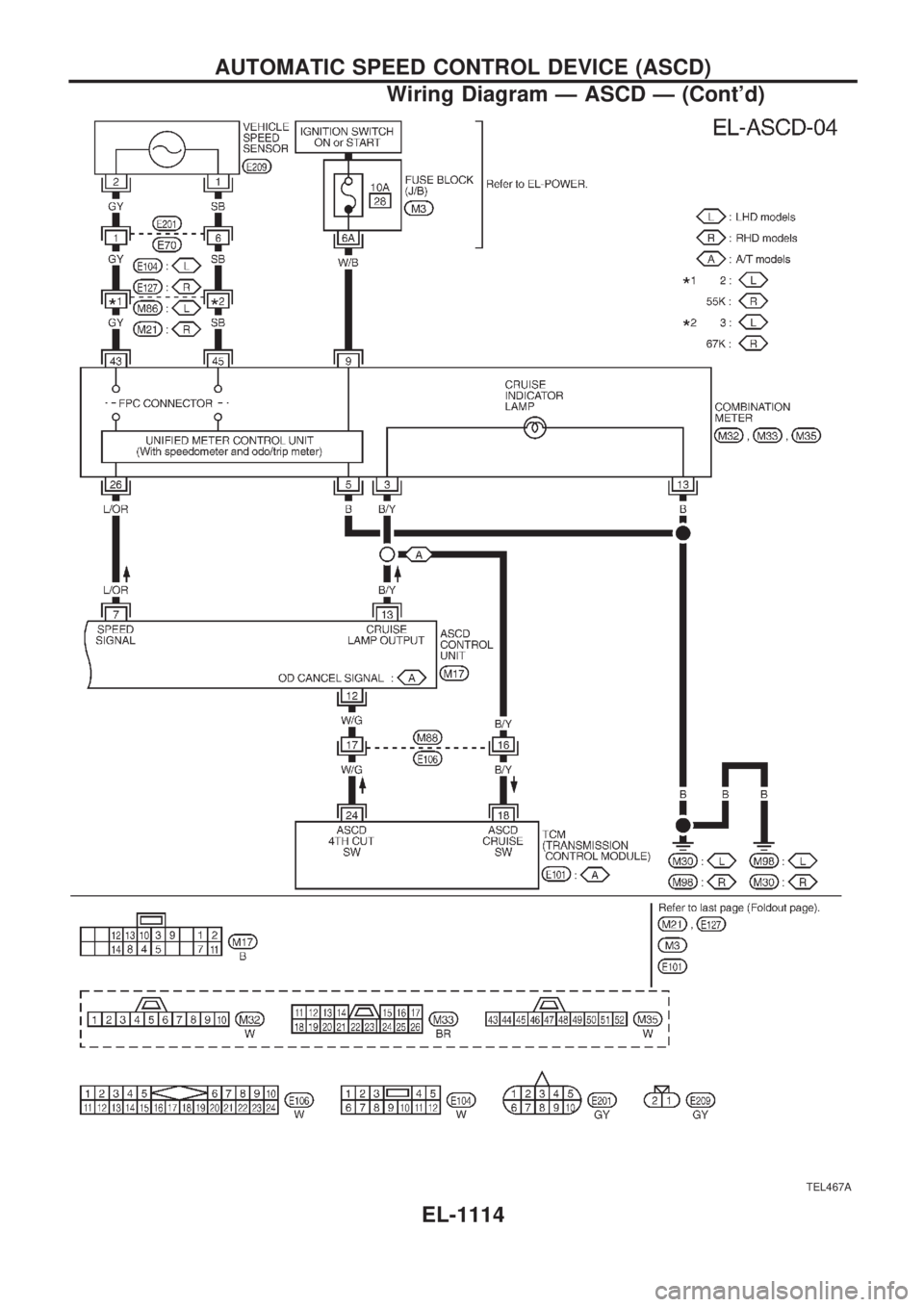

AUTOMATIC SPEED CONTROL DEVICE (ASCD)
Wiring Diagram Ð ASCD Ð (Cont'd)
EL-1114

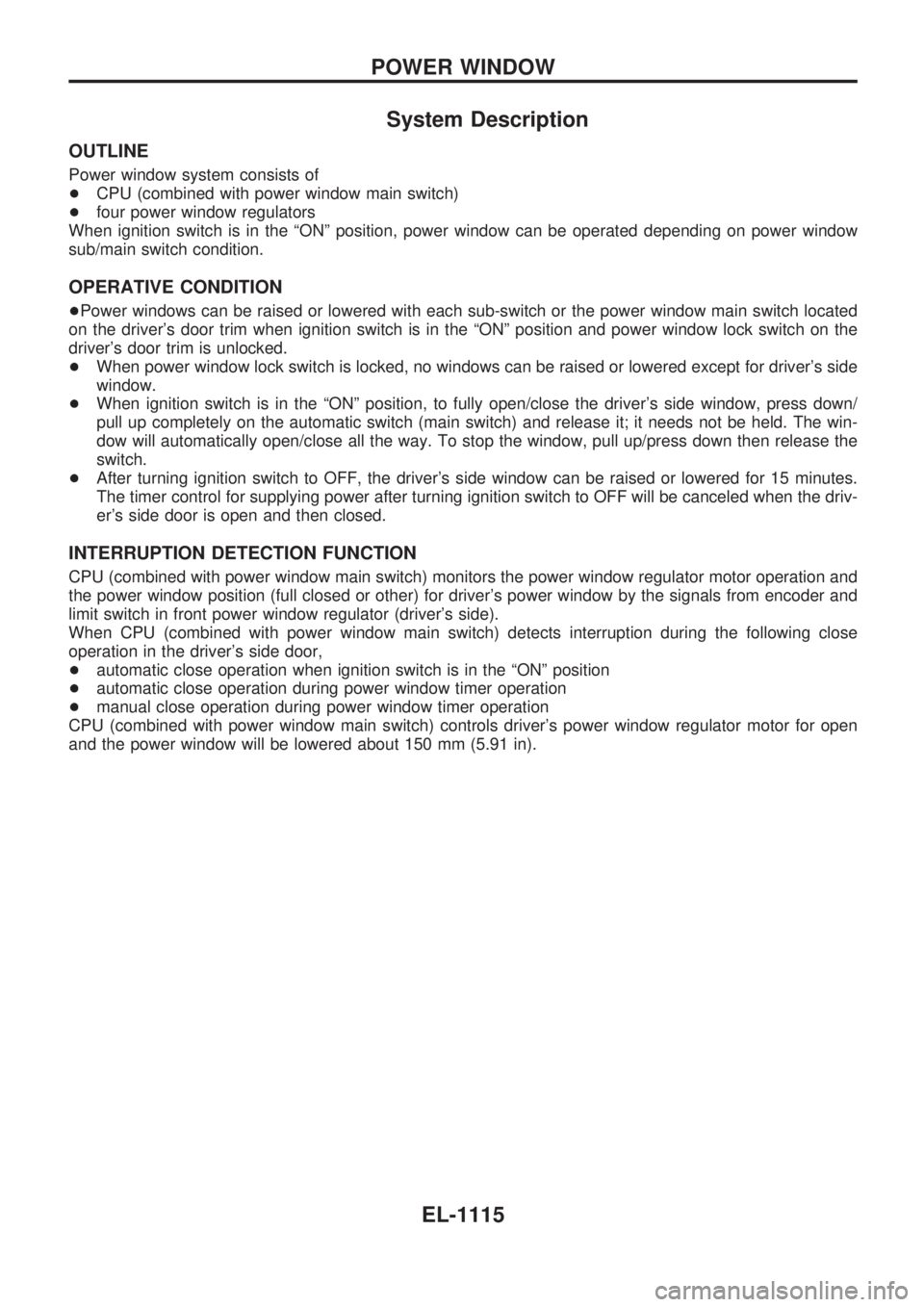

System Description
OUTLINE
Power window system consists of
+CPU (combined with power window main switch)
+four power window regulators
When ignition switch is in the ªONº position, power window can be operated depending on power window
sub/main switch condition.
OPERATIVE CONDITION
+Power windows can be raised or lowered with each sub-switch or the power window main switch located
on the driver's door trim when ignition switch is in the ªONº position and power window lock switch on the
driver's door trim is unlocked.
+When power window lock switch is locked, no windows can be raised or lowered except for driver's side
window.
+When ignition switch is in the ªONº position, to fully open/close the driver's side window, press down/
pull up completely on the automatic switch (main switch) and release it; it needs not be held. The win-
dow will automatically open/close all the way. To stop the window, pull up/press down then release the
switch.
+After turning ignition switch to OFF, the driver's side window can be raised or lowered for 15 minutes.
The timer control for supplying power after turning ignition switch to OFF will be canceled when the driv-
er's side door is open and then closed.
INTERRUPTION DETECTION FUNCTION
CPU (combined with power window main switch) monitors the power window regulator motor operation and
the power window position (full closed or other) for driver's power window by the signals from encoder and
limit switch in front power window regulator (driver's side).
When CPU (combined with power window main switch) detects interruption during the following close
operation in the driver's side door,
+automatic close operation when ignition switch is in the ªONº position
+automatic close operation during power window timer operation
+manual close operation during power window timer operation
CPU (combined with power window main switch) controls driver's power window regulator motor for open
and the power window will be lowered about 150 mm (5.91 in).
POWER WINDOW
EL-1115

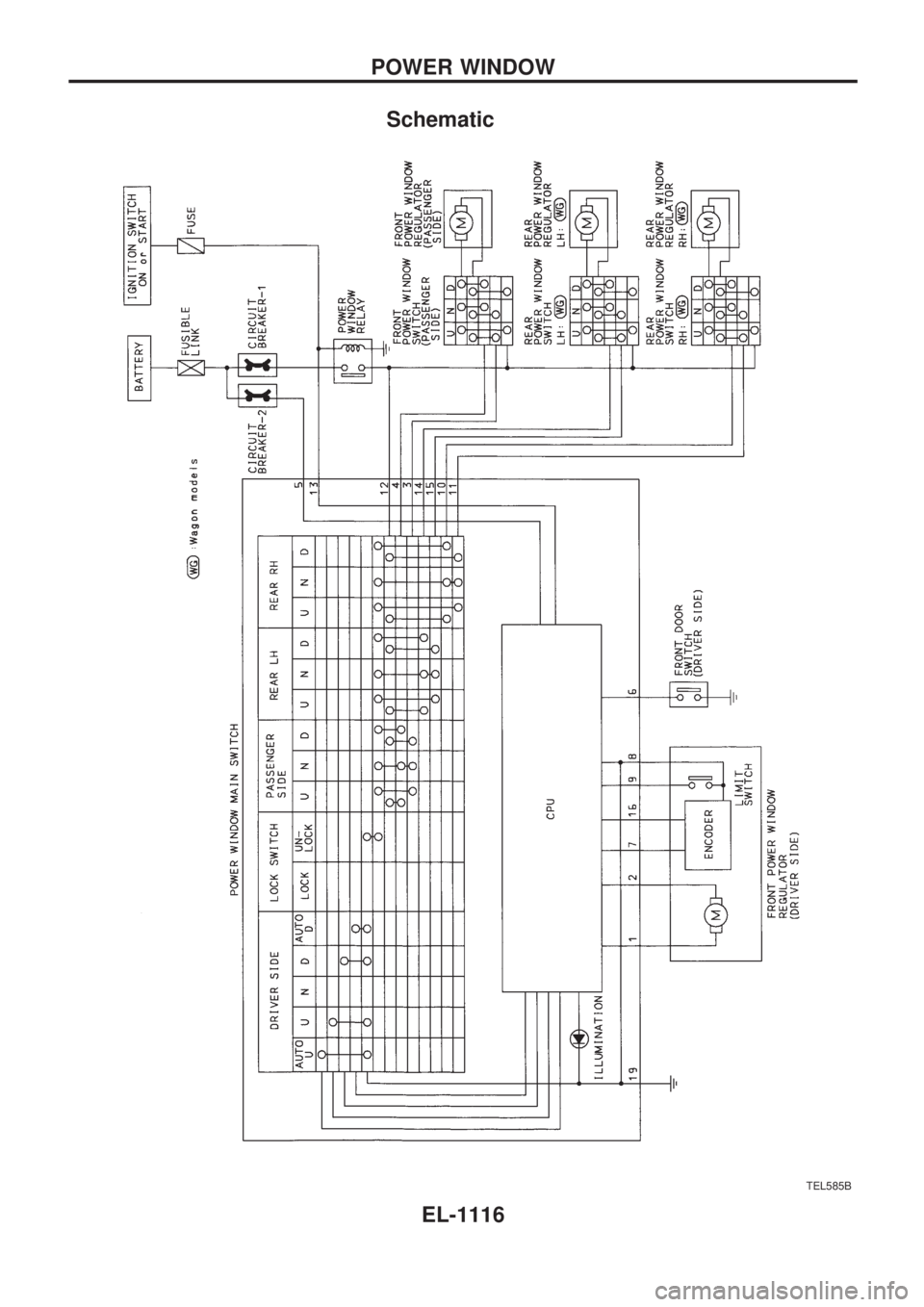

Schematic
TEL585B
POWER WINDOW
EL-1116

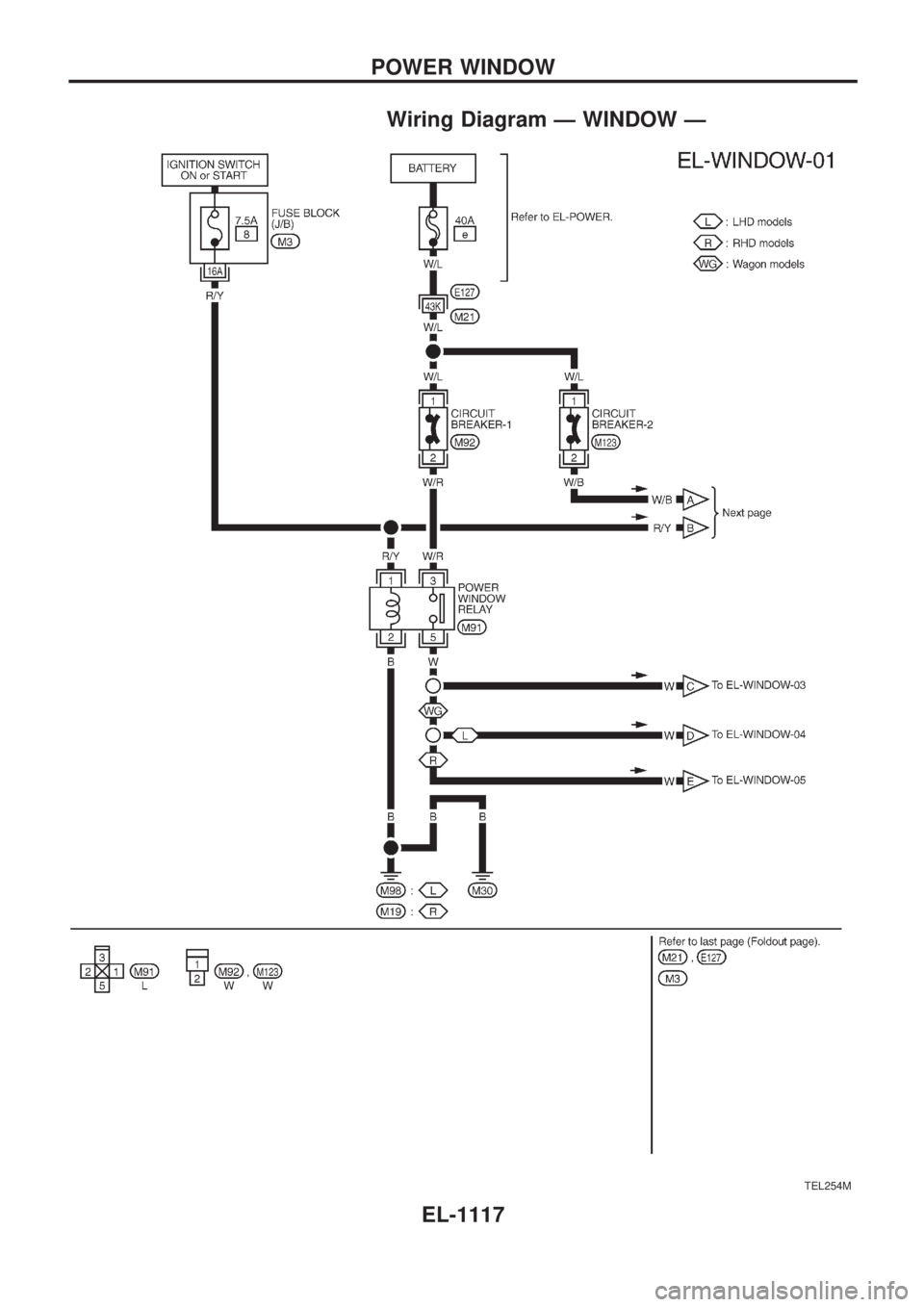

Wiring Diagram Ð WINDOW Ð
TEL254M
POWER WINDOW
EL-1117

TEL255M
POWER WINDOW

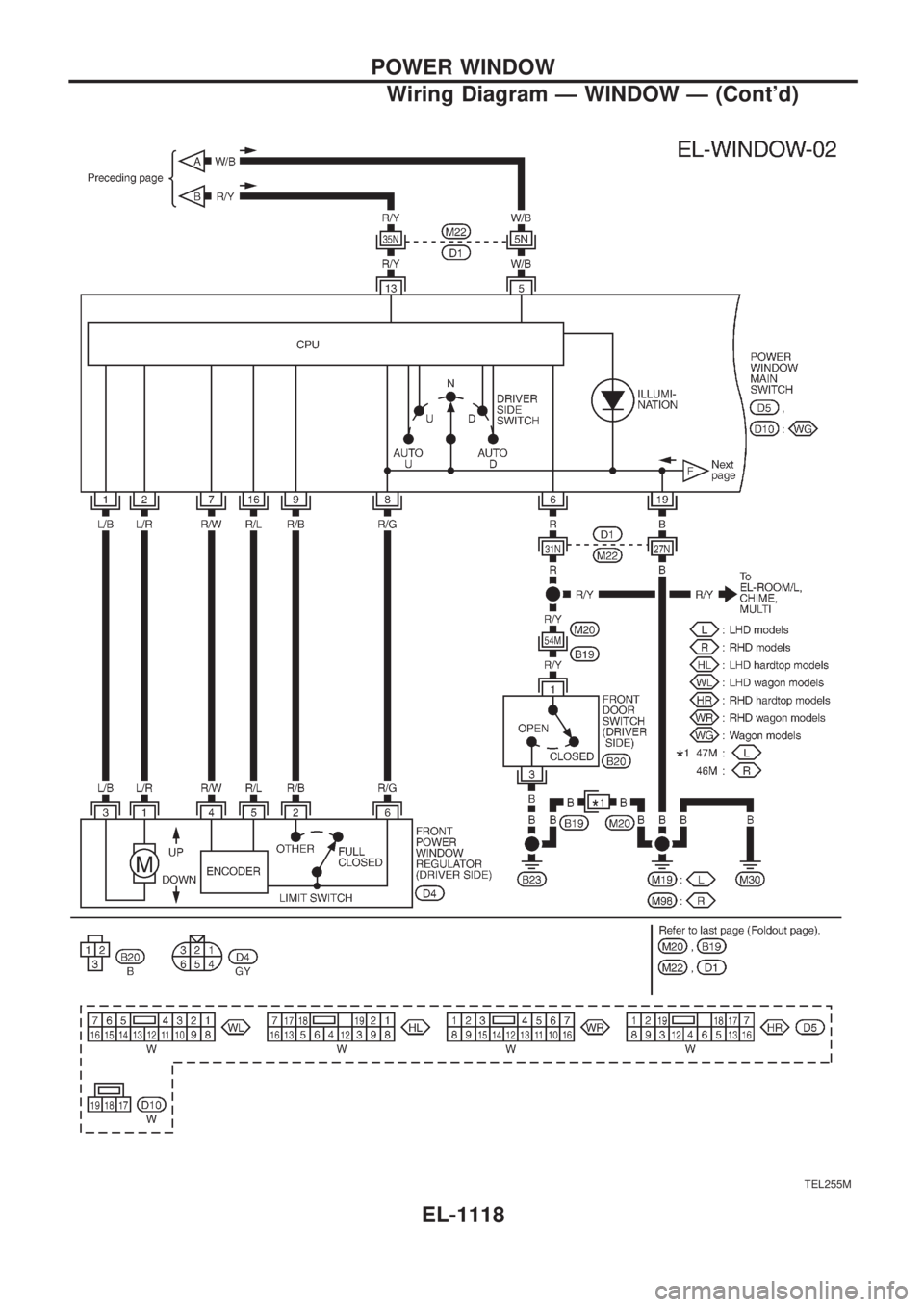

Wiring Diagram Ð WINDOW Ð (Cont'd)
EL-1118

TEL256M
POWER WINDOW

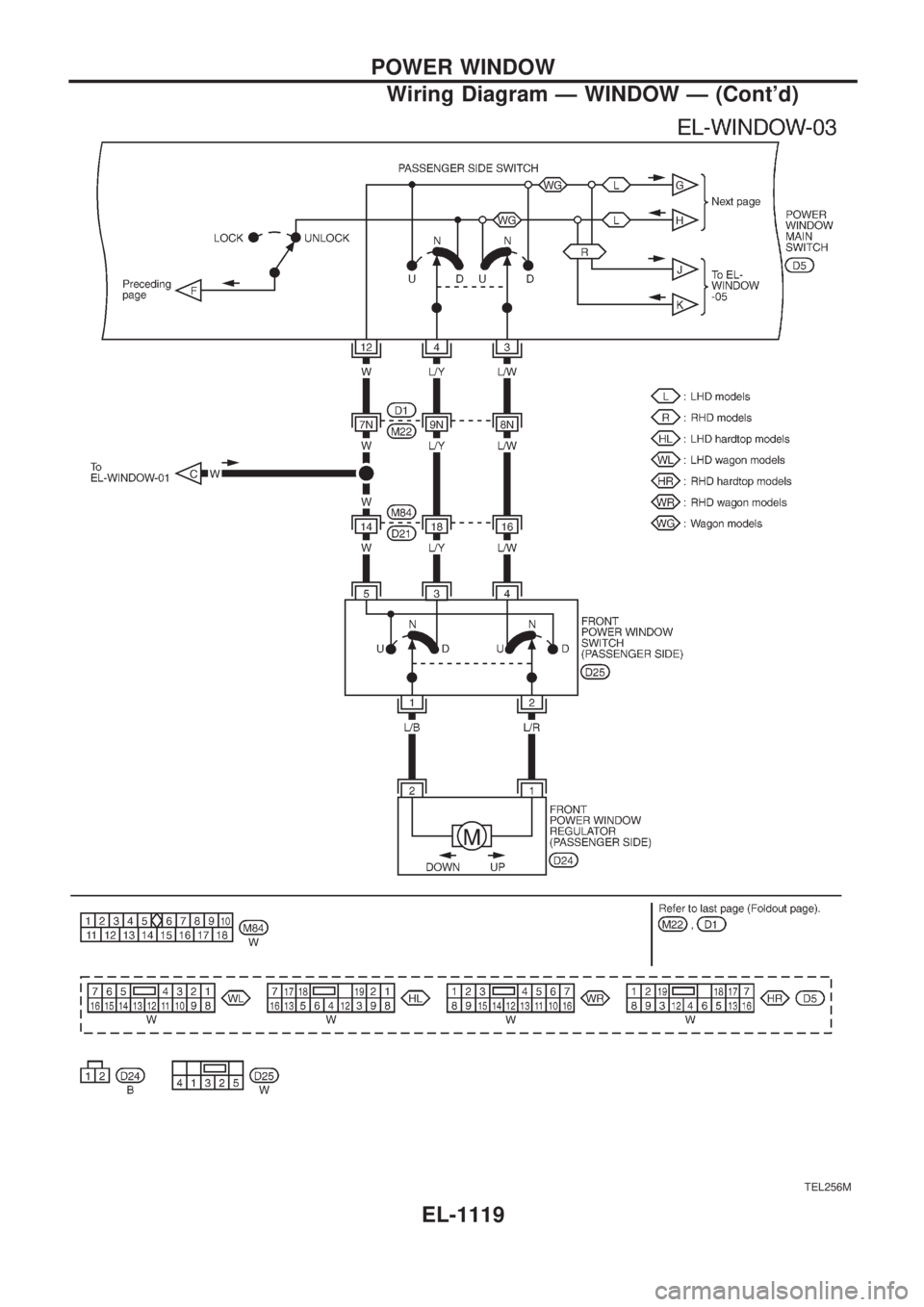

Wiring Diagram Ð WINDOW Ð (Cont'd)
EL-1119

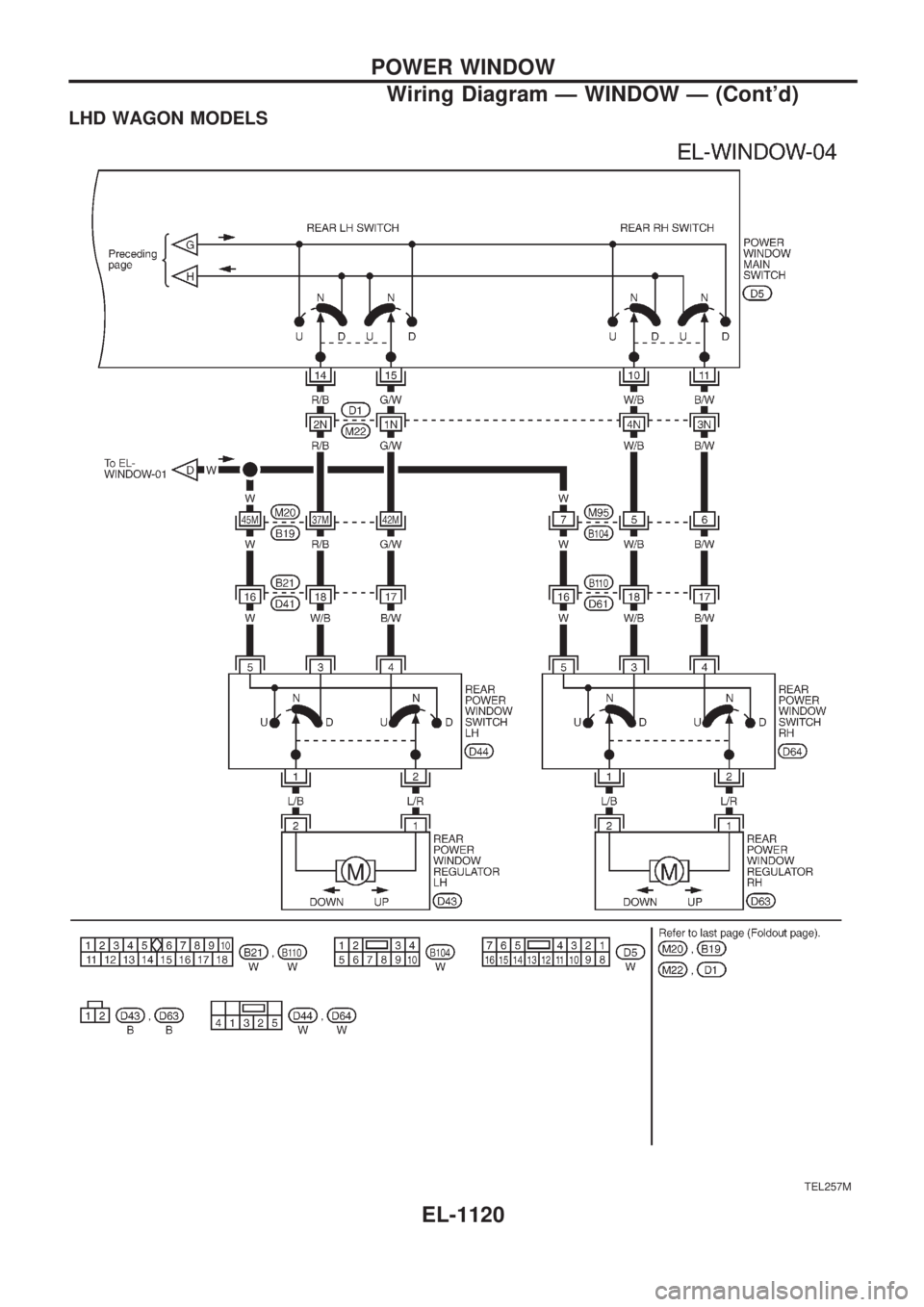

LHD WAGON MODELS
TEL257M
POWER WINDOW
Wiring Diagram Ð WINDOW Ð (Cont'd)
EL-1120
