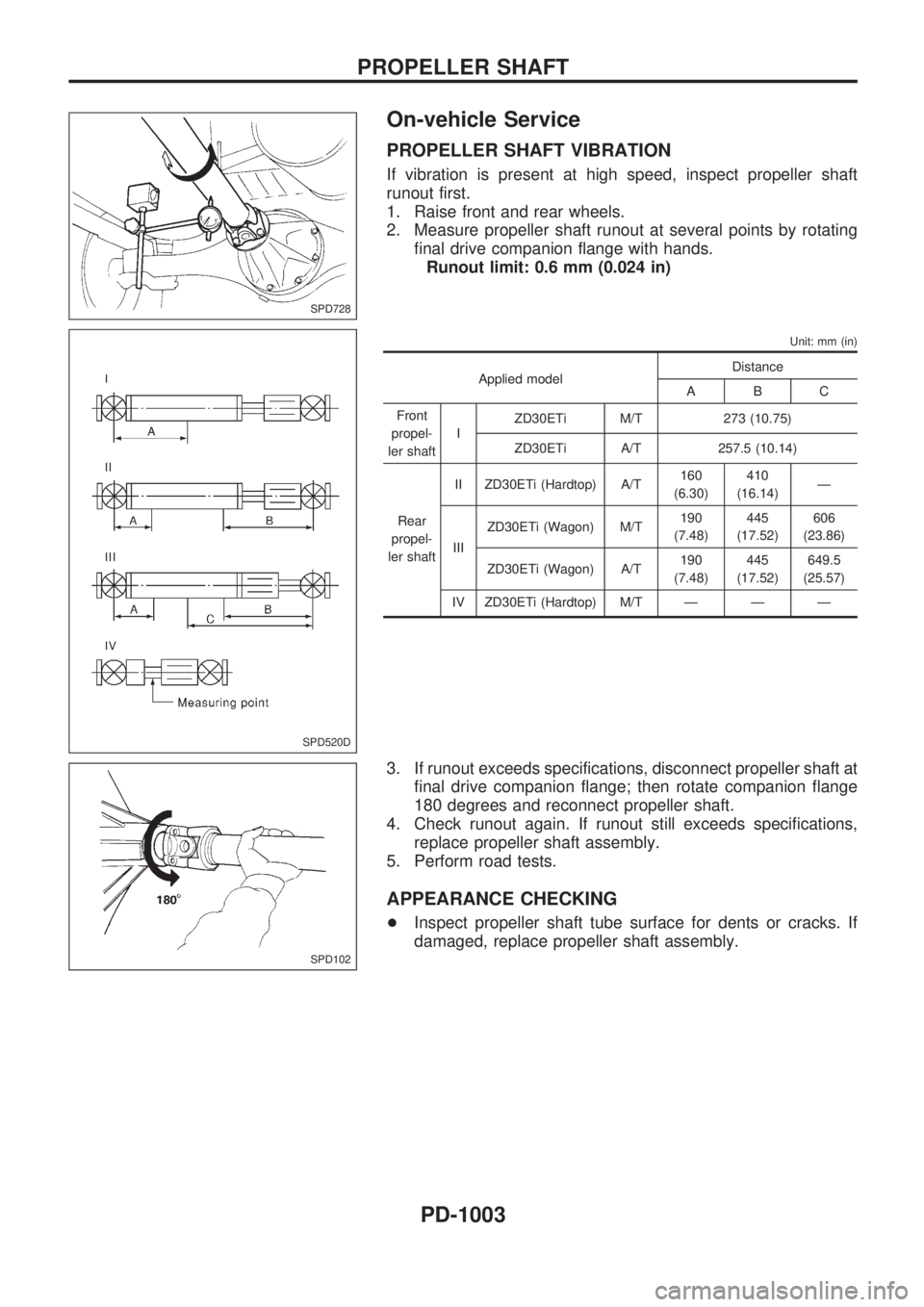

PROPELLER SHAFT VIBRATION
If vibration is present at high speed, inspect propeller shaft
runout first.
1. Raise front and rear wheels.
2. Measure propeller shaft runout at several points by rotatingfinal drive companion flange with hands.Runout limit: 0.6 mm (0.024 in)
Unit: mm (in)
Applied model Distance
ABC
Front
propel-
ler shaft I
ZD30ETi M/T 273 (10.75)
ZD30ETi A/T 257.5 (10.14)
Rear
propel-
ler shaft II ZD30ETi (Hardtop) A/T
160
(6.30) 410
(16.14) Ð
III ZD30ETi (Wagon) M/T
190
(7.48) 445
(17.52) 606
(23.86)
ZD30ETi (Wagon) A/T 190
(7.48) 445
(17.52) 649.5
(25.57)
IV ZD30ETi (Hardtop) M/T Ð Ð Ð
3. If runout exceeds specifications, disconnect propeller shaft at final drive companion flange; then rotate companion flange
180 degrees and reconnect propeller shaft.
4. Check runout again. If runout still exceeds specifications, replace propeller shaft assembly.
5. Perform road tests.
APPEARANCE CHECKING
+ Inspect propeller shaft tube surface for dents or cracks. If
damaged, replace propeller shaft assembly.
SPD728
SPD520D
SPD102
PROPELLER SHAFT
PD-1003

SPD436AA

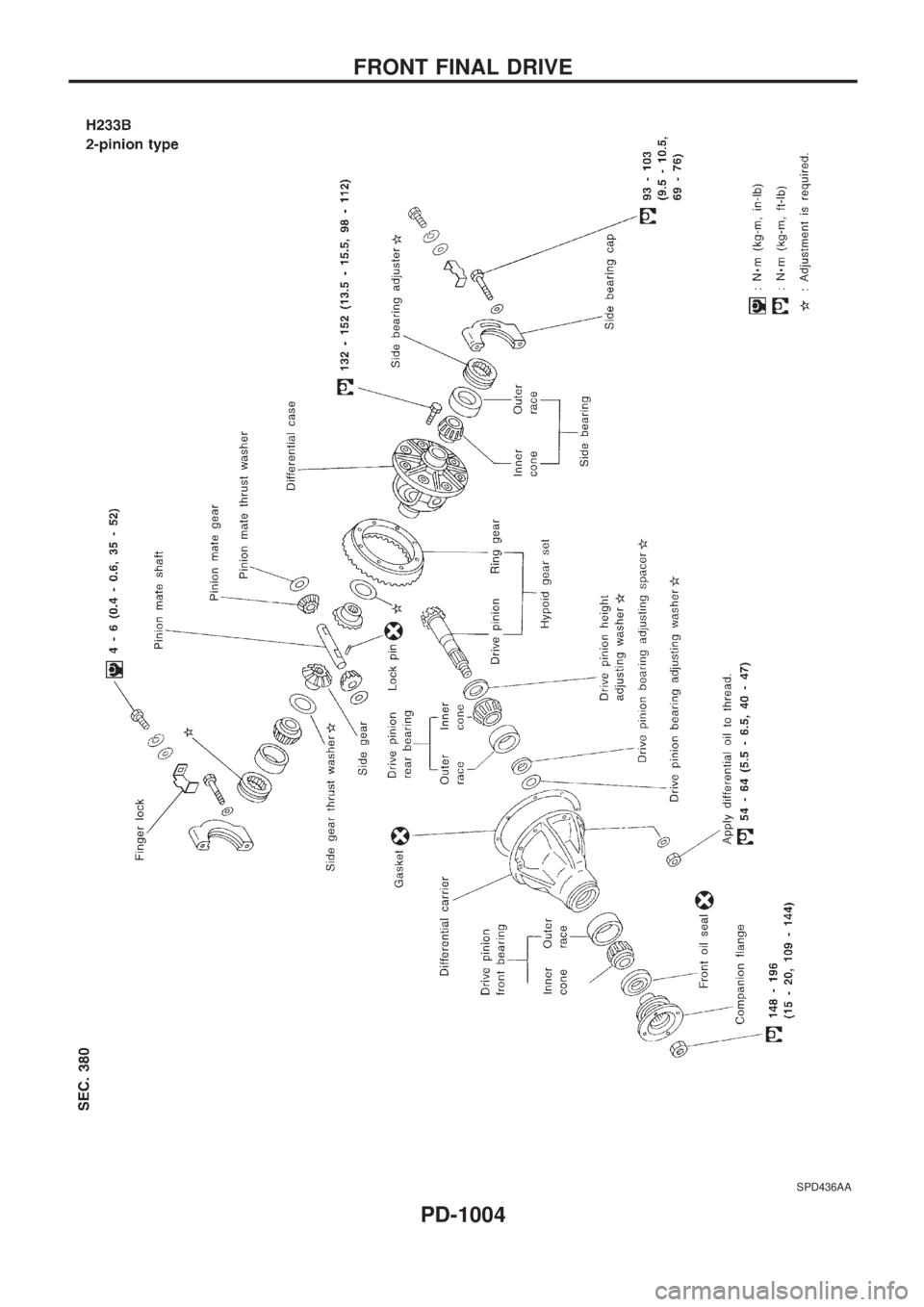

FRONT FINAL DRIVE
PD-1004

SPD437AA
REAR FINAL DRIVE
PD-1005

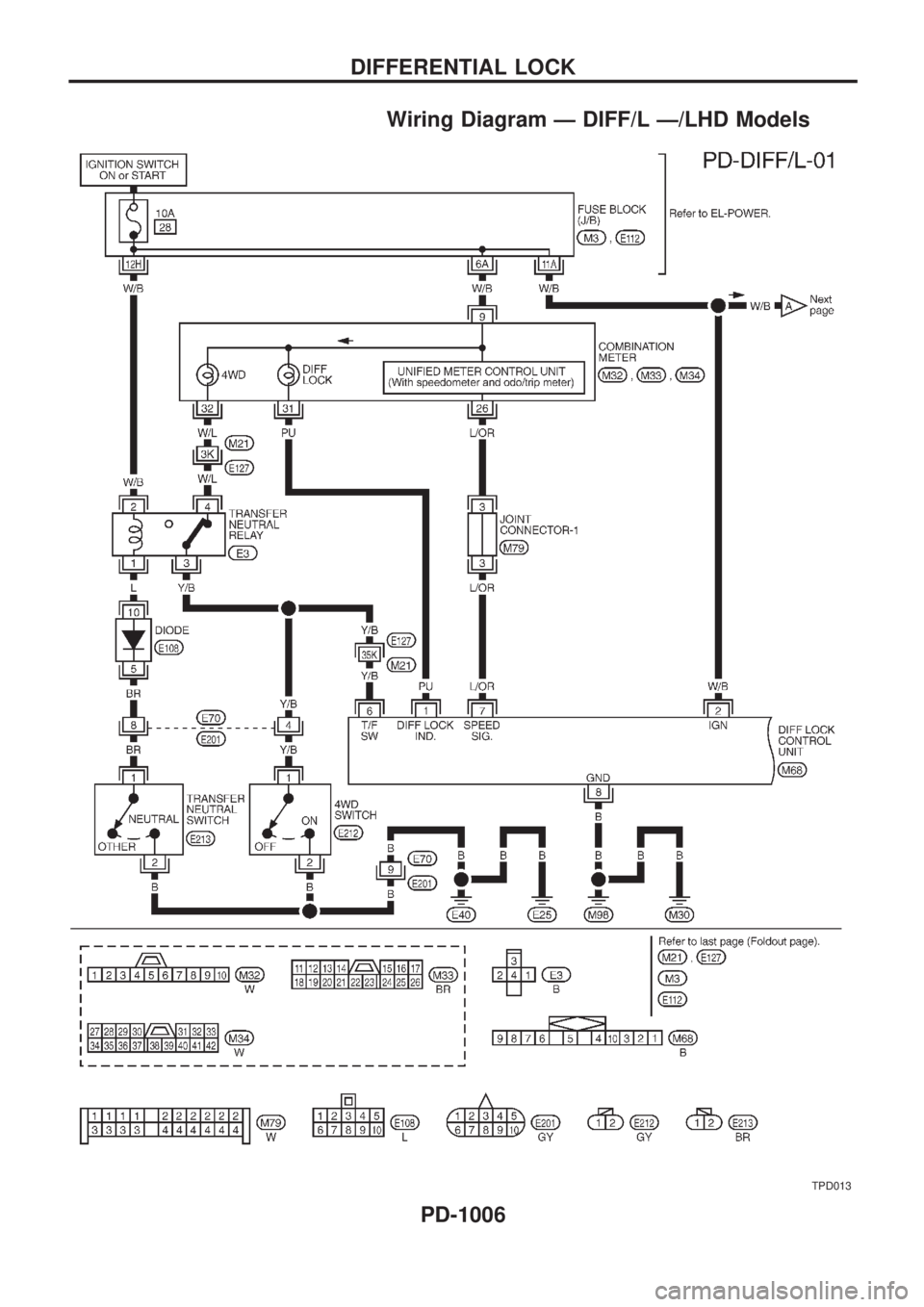

Wiring Diagram Ð DIFF/L Ð/LHD Models
TPD013
DIFFERENTIAL LOCK
PD-1006

TPD018
DIFFERENTIAL LOCK

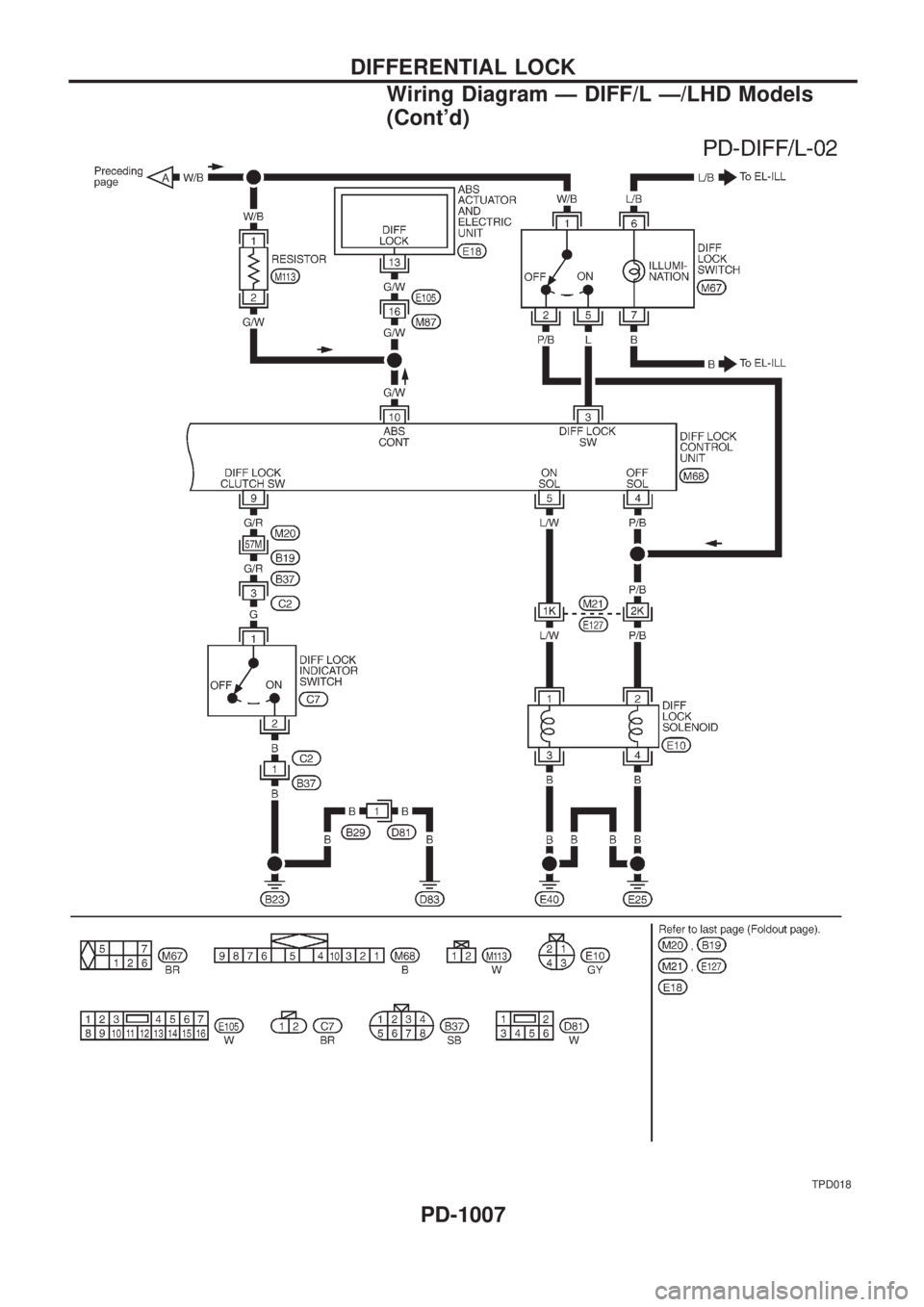

Wiring Diagram Ð DIFF/L Ð/LHD Models
(Cont'd)PD-1007

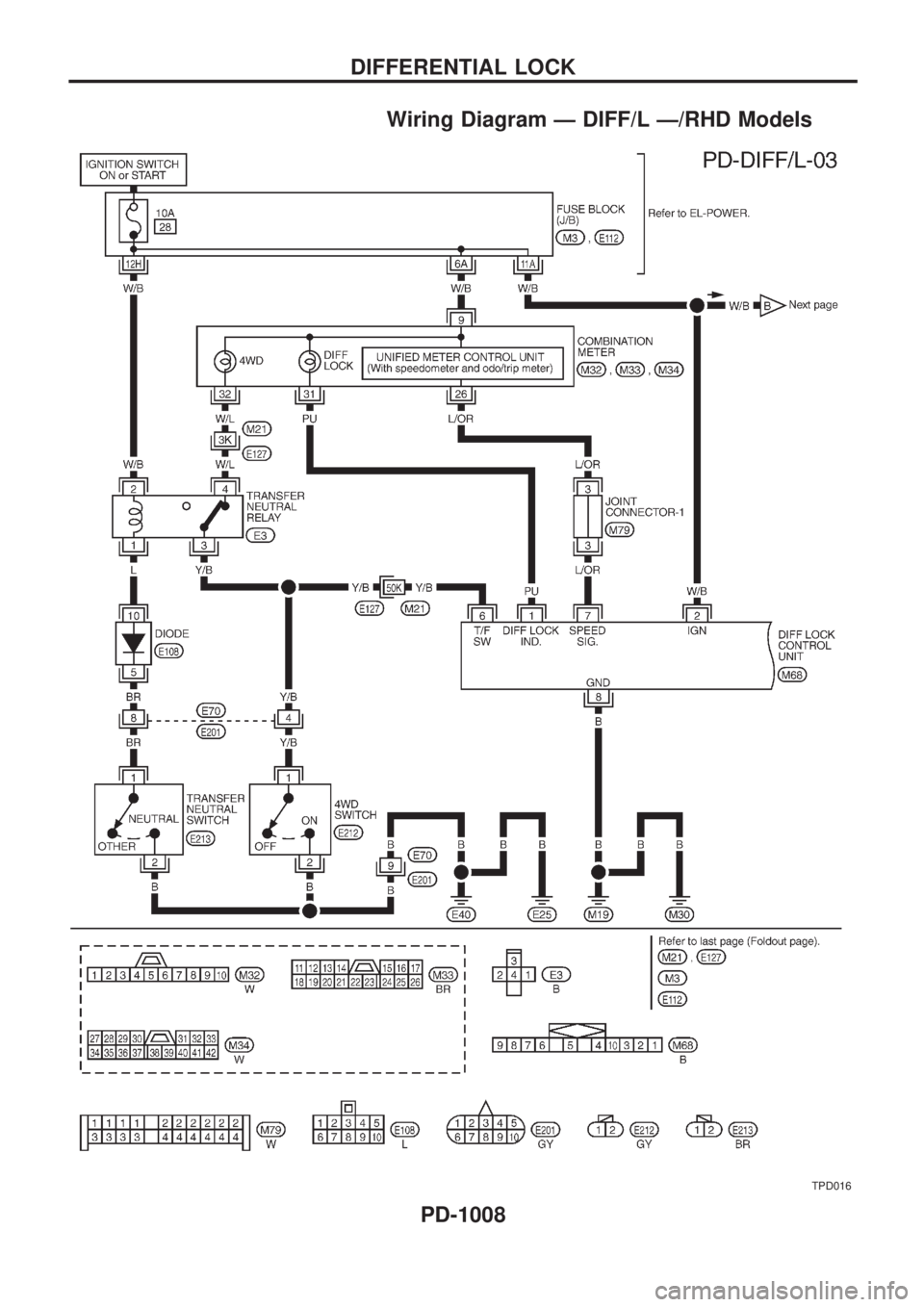

Wiring Diagram Ð DIFF/L Ð/RHD Models
TPD016
DIFFERENTIAL LOCK
PD-1008

TPD001M
DIFFERENTIAL LOCK

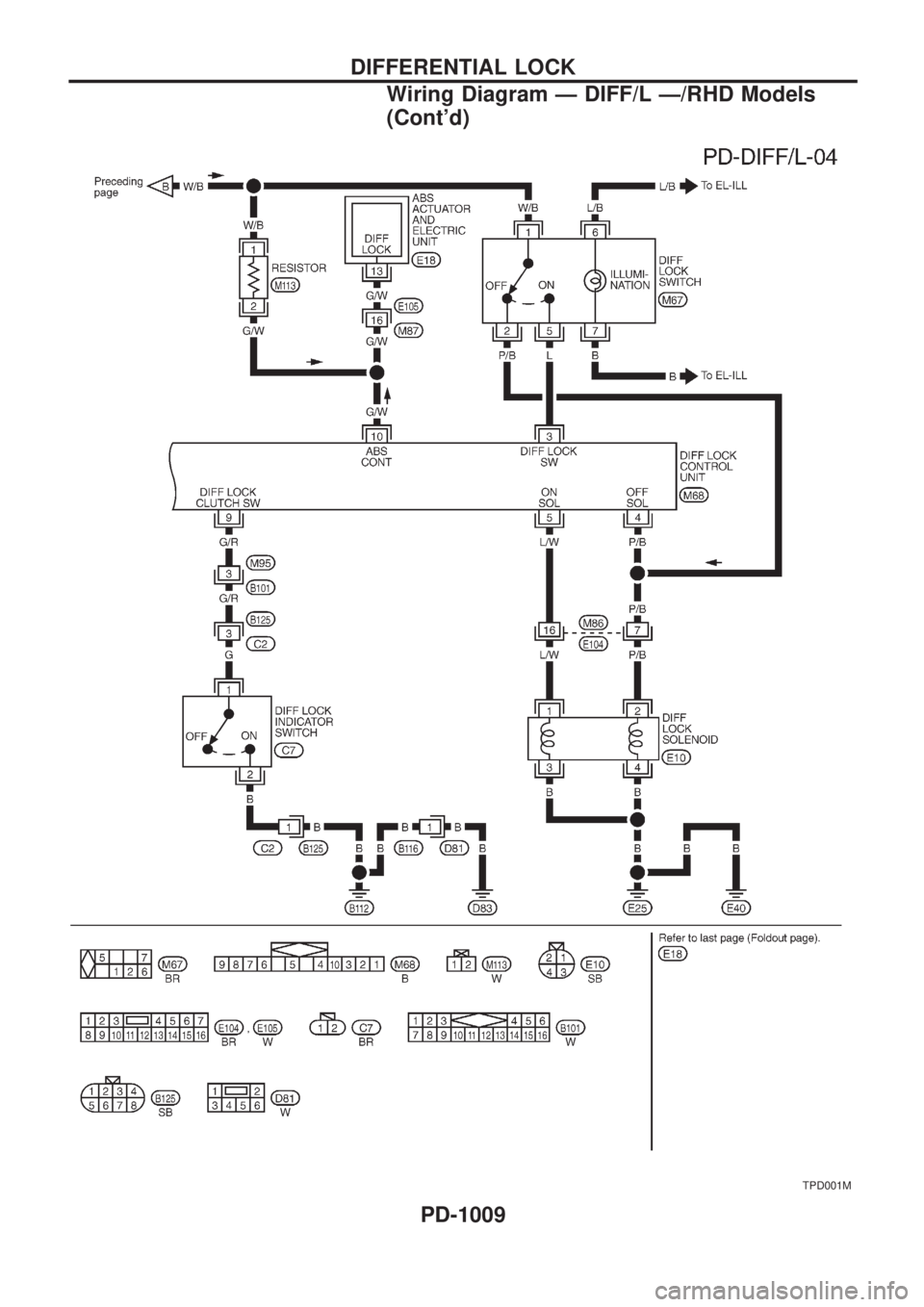

Wiring Diagram Ð DIFF/L Ð/RHD Models
(Cont'd)PD-1009

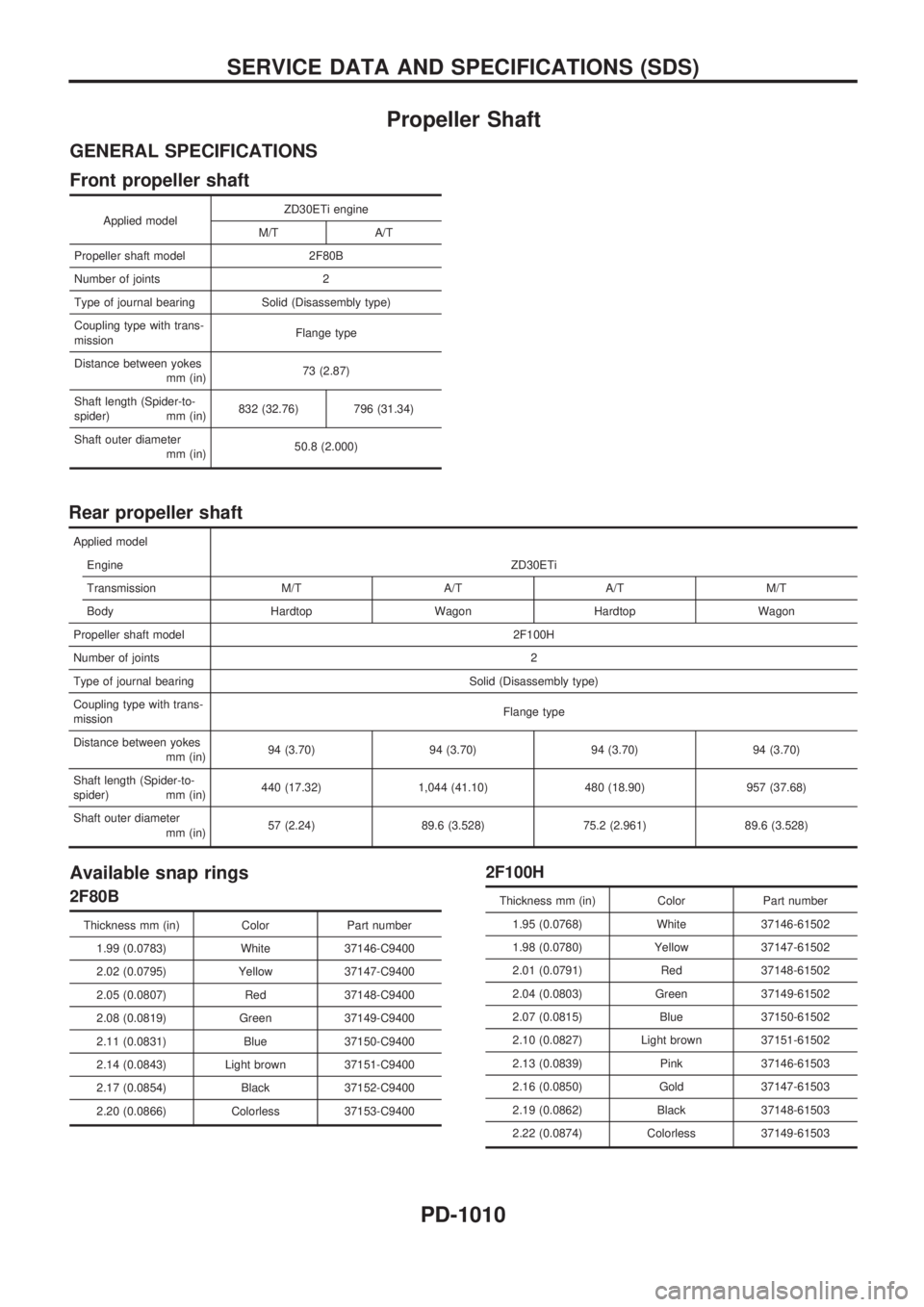

Propeller Shaft
GENERAL SPECIFICATIONS
Front propeller shaft
Applied modelZD30ETi engine
M/T A/T
Propeller shaft model 2F80B
Number of joints 2
Type of journal bearing Solid (Disassembly type)
Coupling type with trans-
mission Flange type
Distance between yokes mm (in) 73 (2.87)
Shaft length (Spider-to-
spider) mm (in) 832 (32.76) 796 (31.34)
Shaft outer diameter mm (in) 50.8 (2.000)
Rear propeller shaft
Applied model
Engine ZD30ETi
Transmission M/T A/T A/T M/T
Body Hardtop Wagon Hardtop Wagon
Propeller shaft model 2F100H
Number of joints 2
Type of journal bearing Solid (Disassembly type)
Coupling type with trans-
mission Flange type
Distance between yokes mm (in) 94 (3.70) 94 (3.70) 94 (3.70) 94 (3.70)
Shaft length (Spider-to-
spider) mm (in) 440 (17.32) 1,044 (41.10) 480 (18.90) 957 (37.68)
Shaft outer diameter mm (in) 57 (2.24) 89.6 (3.528) 75.2 (2.961) 89.6 (3.528)
Available snap rings
2F80B
Thickness mm (in) Color Part number
1.99 (0.0783) White 37146-C9400
2.02 (0.0795) Yellow 37147-C9400
2.05 (0.0807) Red 37148-C9400
2.08 (0.0819) Green 37149-C9400
2.11 (0.0831) Blue 37150-C9400
2.14 (0.0843) Light brown 37151-C9400
2.17 (0.0854) Black 37152-C9400
2.20 (0.0866) Colorless 37153-C9400
2F100H
Thickness mm (in) Color Part number1.95 (0.0768) White 37146-61502
1.98 (0.0780) Yellow 37147-61502
2.01 (0.0791) Red 37148-61502
2.04 (0.0803) Green 37149-61502
2.07 (0.0815) Blue 37150-61502
2.10 (0.0827) Light brown 37151-61502
2.13 (0.0839) Pink 37146-61503
2.16 (0.0850) Gold 37147-61503
2.19 (0.0862) Black 37148-61503
2.22 (0.0874) Colorless 37149-61503
SERVICE DATA AND SPECIFICATIONS (SDS)
PD-1010

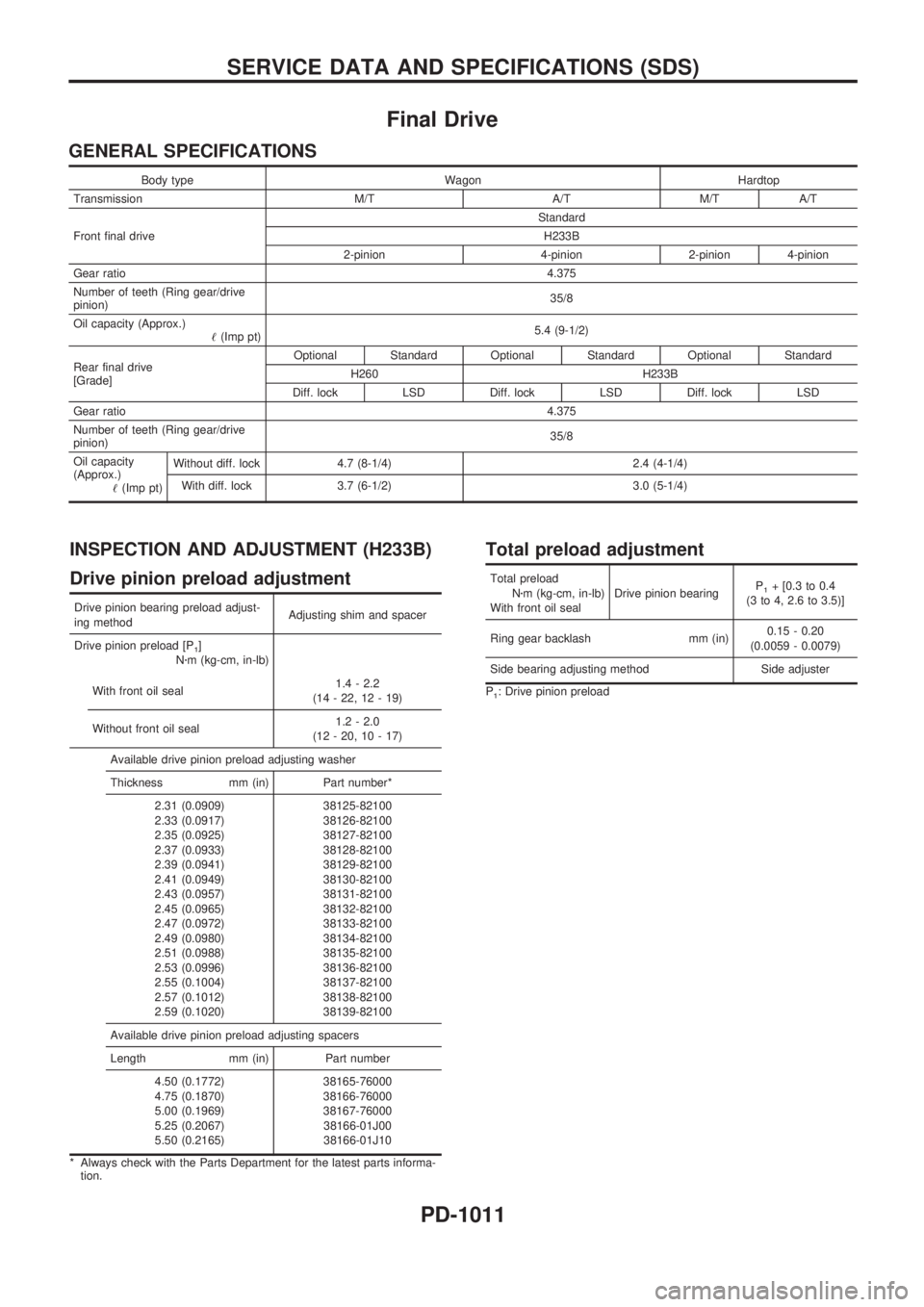

Final Drive
GENERAL SPECIFICATIONS
Body type Wagon Hardtop
Transmission M/T A/T M/T A/T
Front final drive Standard
H233B
2-pinion 4-pinion 2-pinion 4-pinion
Gear ratio 4.375
Number of teeth (Ring gear/drive
pinion) 35/8
Oil capacity (Approx.) !(Imp pt) 5.4 (9-1/2)
Rear final drive
[Grade] Optional Standard Optional Standard Optional Standard
H260 H233B
Diff. lock LSD Diff. lock LSD Diff. lock LSD
Gear ratio 4.375
Number of teeth (Ring gear/drive
pinion) 35/8
Oil capacity
(Approx.) !(Imp pt) Without diff. lock 4.7 (8-1/4) 2.4 (4-1/4)
With diff. lock 3.7 (6-1/2) 3.0 (5-1/4)
INSPECTION AND ADJUSTMENT (H233B)
Drive pinion preload adjustment
Drive pinion bearing preload adjust-
ing method Adjusting shim and spacer
Drive pinion preload [P
1]
N zm (kg-cm, in-lb)
With front oil seal 1.4 - 2.2
(14 - 22, 12 - 19)
Without front oil seal 1.2 - 2.0
(12 - 20, 10 - 17)
Available drive pinion preload adjusting washer
Thickness mm (in) Part number* 2.31 (0.0909)
2.33 (0.0917)
2.35 (0.0925)
2.37 (0.0933)
2.39 (0.0941)
2.41 (0.0949)
2.43 (0.0957)
2.45 (0.0965)
2.47 (0.0972)
2.49 (0.0980)
2.51 (0.0988)
2.53 (0.0996)
2.55 (0.1004)
2.57 (0.1012)
2.59 (0.1020) 38125-82100
38126-82100
38127-82100
38128-82100
38129-82100
38130-82100
38131-82100
38132-82100
38133-82100
38134-82100
38135-82100
38136-82100
38137-82100
38138-82100
38139-82100
Available drive pinion preload adjusting spacers
Length mm (in) Part number 4.50 (0.1772)
4.75 (0.1870)
5.00 (0.1969)
5.25 (0.2067)
5.50 (0.2165) 38165-76000
38166-76000
38167-76000
38166-01J00
38166-01J10
* Always check with the Parts Department for the latest parts informa- tion.
Total preload adjustment
Total preload
Nzm (kg-cm, in-lb)
With front oil seal Drive pinion bearing
P1+ [0.3 to 0.4
(3 to 4, 2.6 to 3.5)]
Ring gear backlash mm (in) 0.15 - 0.20
(0.0059 - 0.0079)
Side bearing adjusting method Side adjuster
P1: Drive pinion preload
SERVICE DATA AND SPECIFICATIONS (SDS)
PD-1011

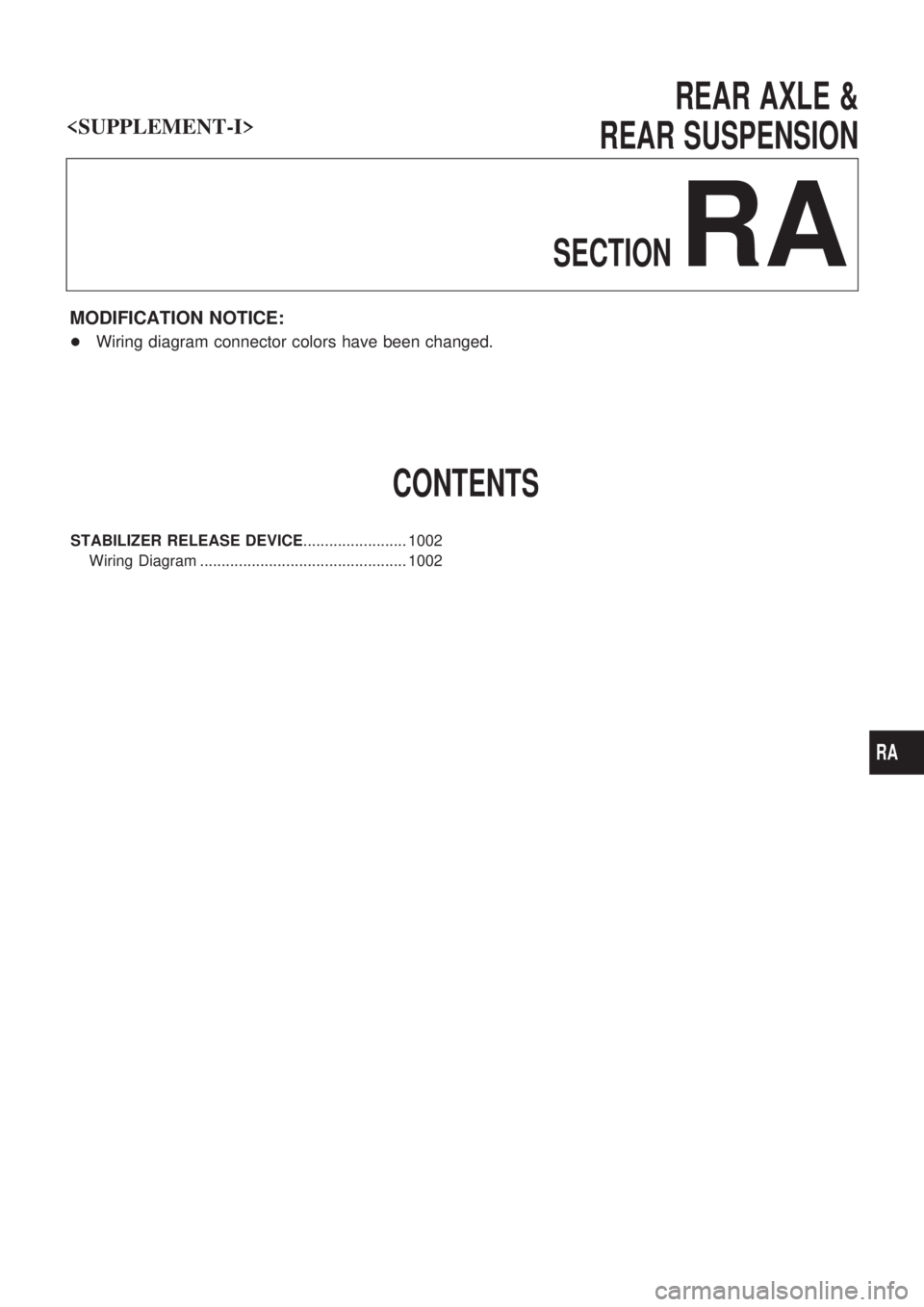

REAR AXLE &
REAR SUSPENSION
SECTION
