NISSAN PATROL 2006 Service Manual

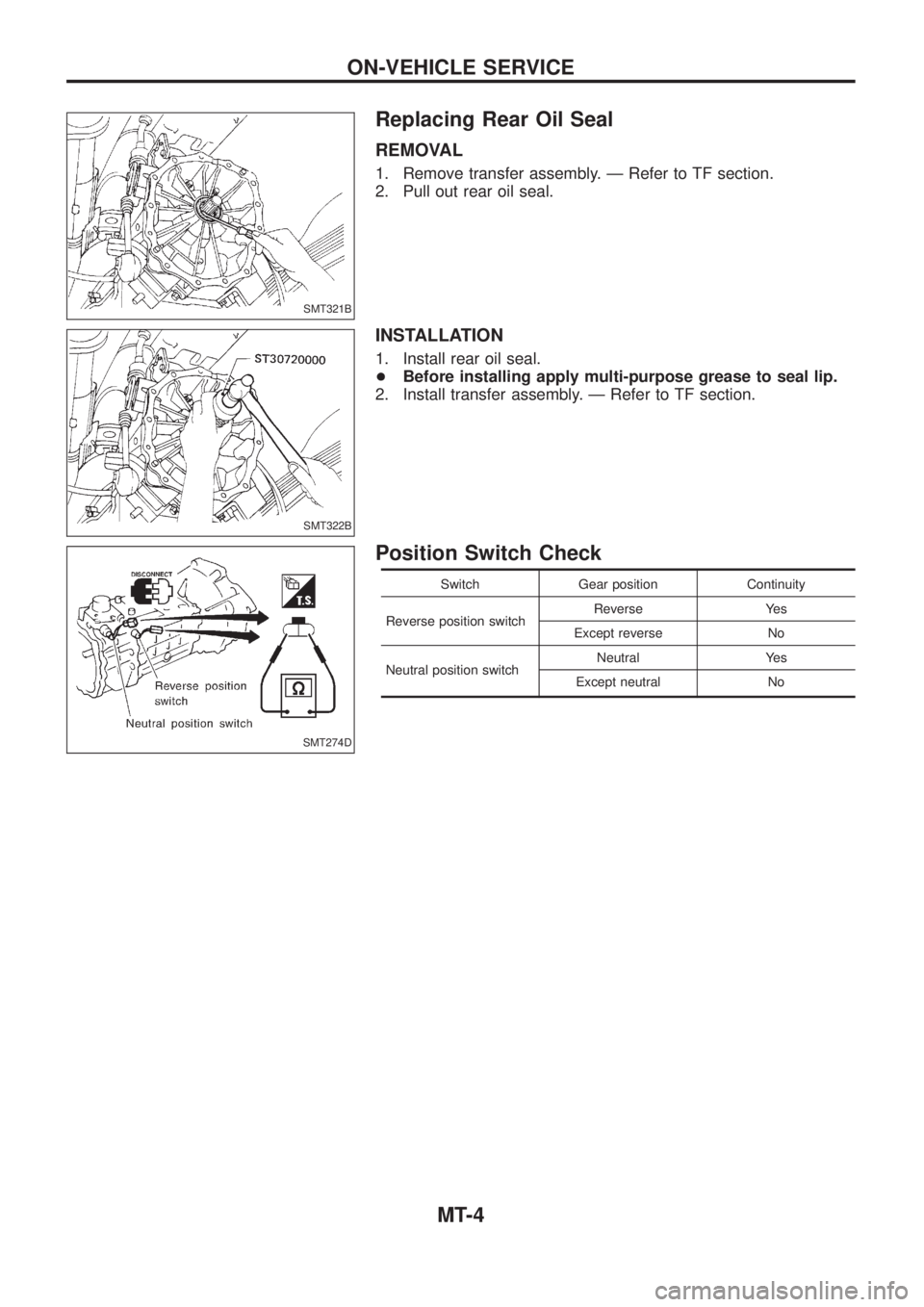

Replacing Rear Oil Seal
REMOVAL
1. Remove transfer assembly. Ð Refer to TF section.
2. Pull out rear oil seal.
INSTALLATION
1. Install rear oil seal.
+Before installing apply multi-purpose grease to seal lip.
2. Install transfer assembly. Ð Refer to TF section.
Position Switch Check
Switch Gear position Continuity
Reverse position switchReverse Yes
Except reverse No
Neutral position switchNeutral Yes
Except neutral No
SMT321B
SMT322B
SMT274D
ON-VEHICLE SERVICE
MT-4

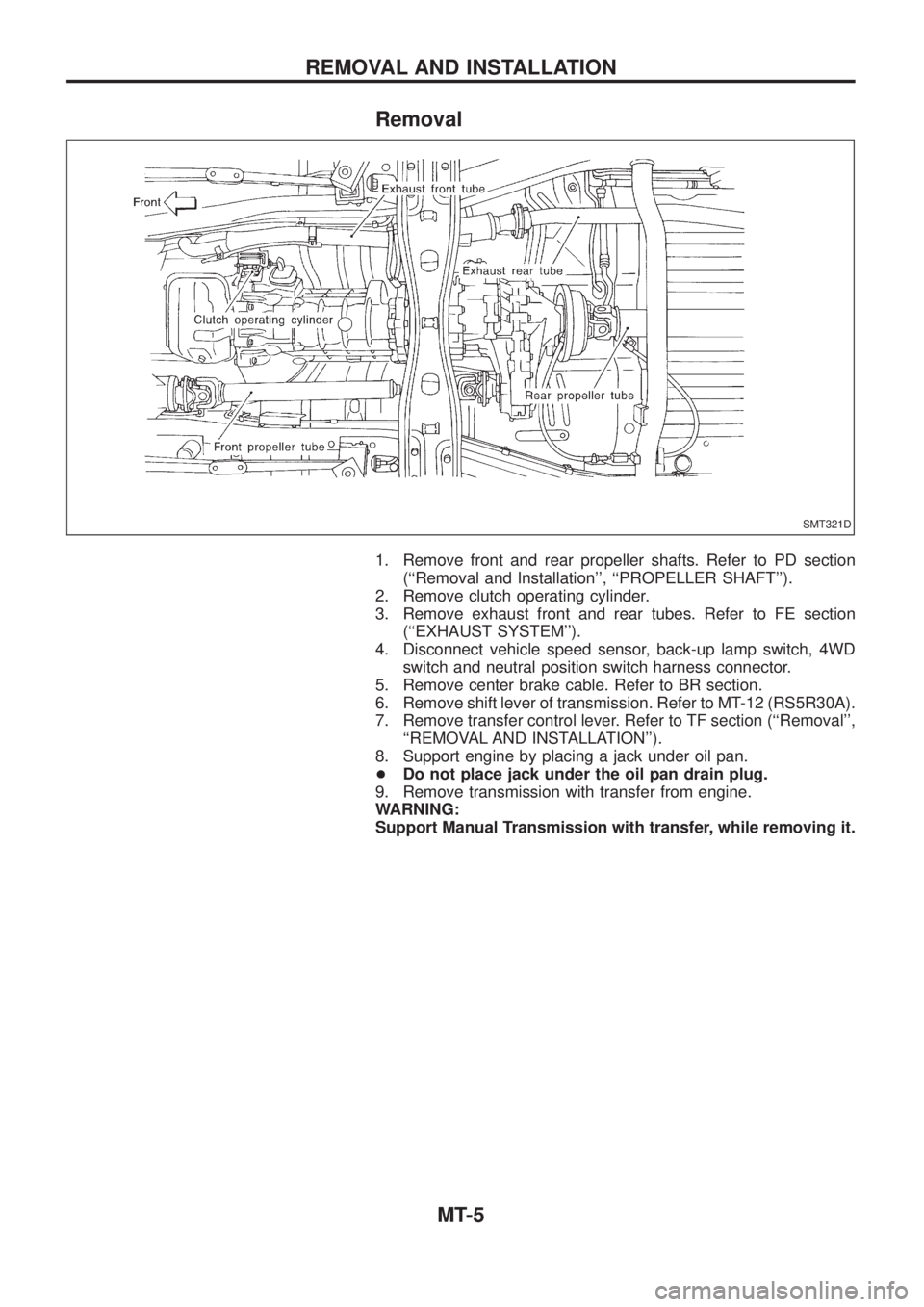

Removal
1. Remove front and rear propeller shafts. Refer to PD section
(``Removal and Installation'', ``PROPELLER SHAFT'').
2. Remove clutch operating cylinder.
3. Remove exhaust front and rear tubes. Refer to FE section
(``EXHAUST SYSTEM'').
4. Disconnect vehicle speed sensor, back-up lamp switch, 4WD
switch and neutral position switch harness connector.
5. Remove center brake cable. Refer to BR section.
6. Remove shift lever of transmission. Refer to MT-12 (RS5R30A).
7. Remove transfer control lever. Refer to TF section (``Removal'',
``REMOVAL AND INSTALLATION'').
8. Support engine by placing a jack under oil pan.
+Do not place jack under the oil pan drain plug.
9. Remove transmission with transfer from engine.
WARNING:
Support Manual Transmission with transfer, while removing it.
SMT321D
REMOVAL AND INSTALLATION
MT-5

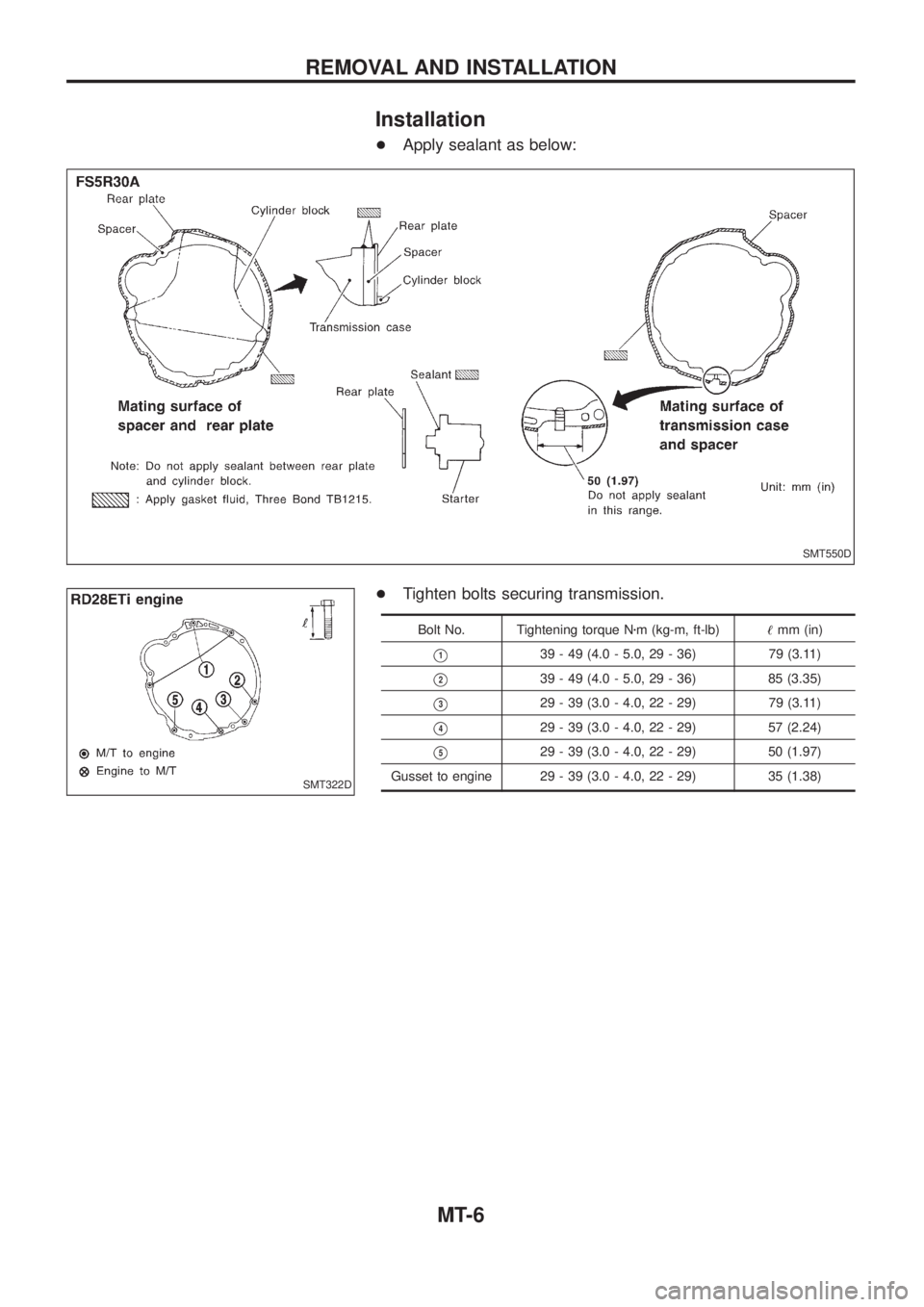

Installation
+Apply sealant as below:
+Tighten bolts securing transmission.
Bolt No. Tightening torque Nzm (kg-m, ft-lb)!mm (in)
V139 - 49 (4.0 - 5.0, 29 - 36) 79 (3.11)
V239 - 49 (4.0 - 5.0, 29 - 36) 85 (3.35)
V329 - 39 (3.0 - 4.0, 22 - 29) 79 (3.11)
V429 - 39 (3.0 - 4.0, 22 - 29) 57 (2.24)
V529 - 39 (3.0 - 4.0, 22 - 29) 50 (1.97)
Gusset to engine 29 - 39 (3.0 - 4.0, 22 - 29) 35 (1.38)
SMT550D
SMT322D
REMOVAL AND INSTALLATION
MT-6

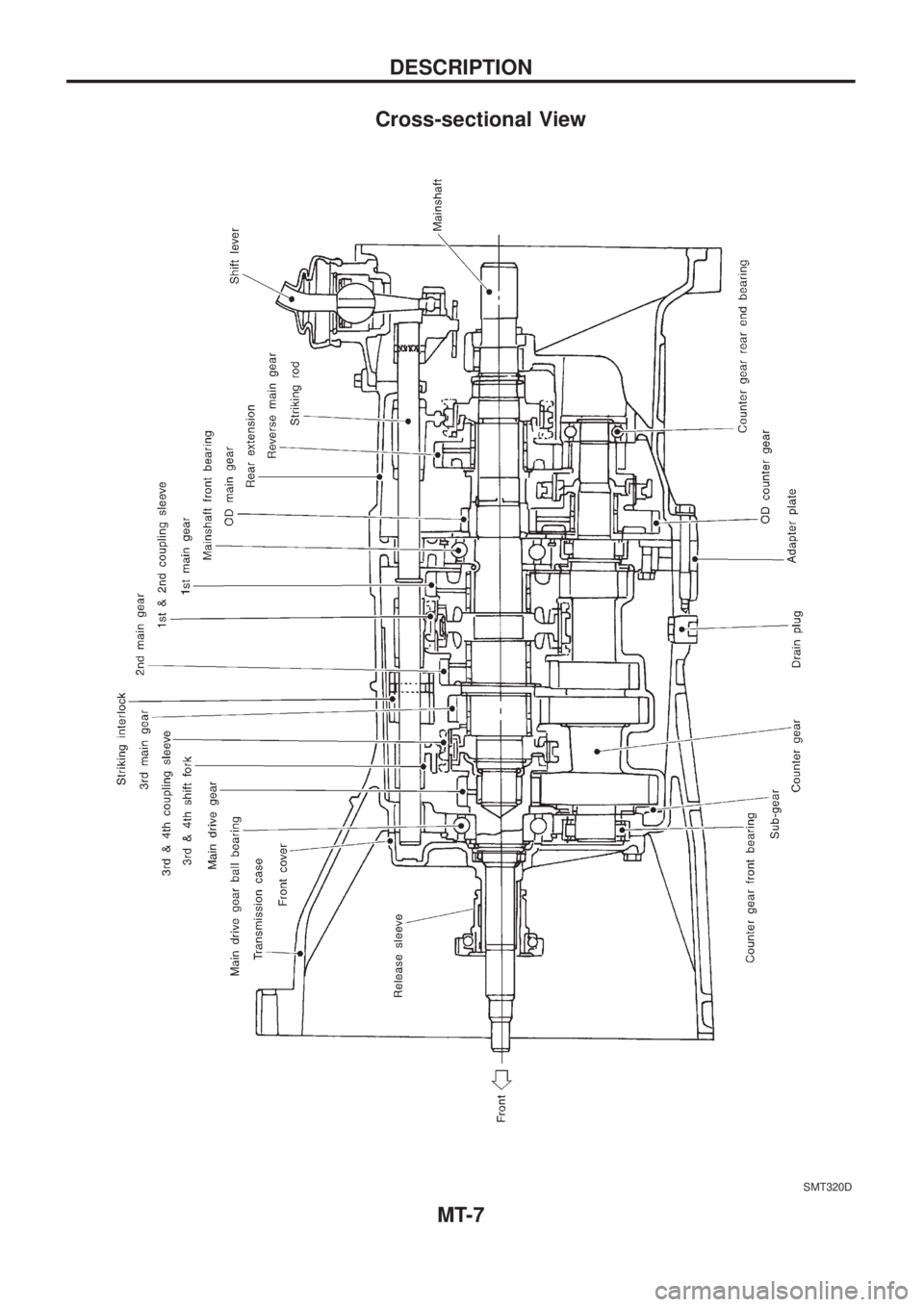

Cross-sectional View
SMT320D
DESCRIPTION
MT-7

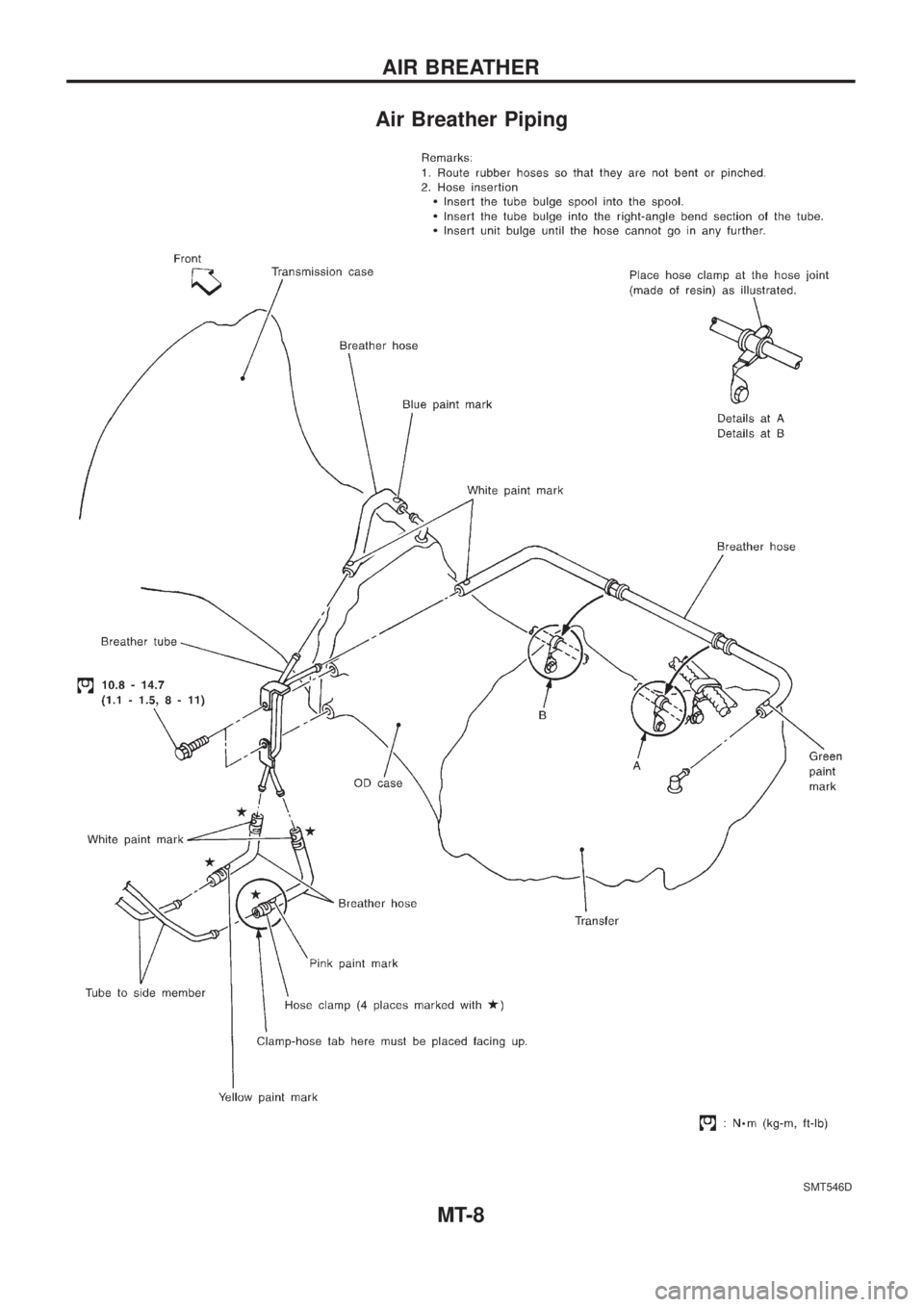

Air Breather Piping
SMT546D
AIR BREATHER
MT-8

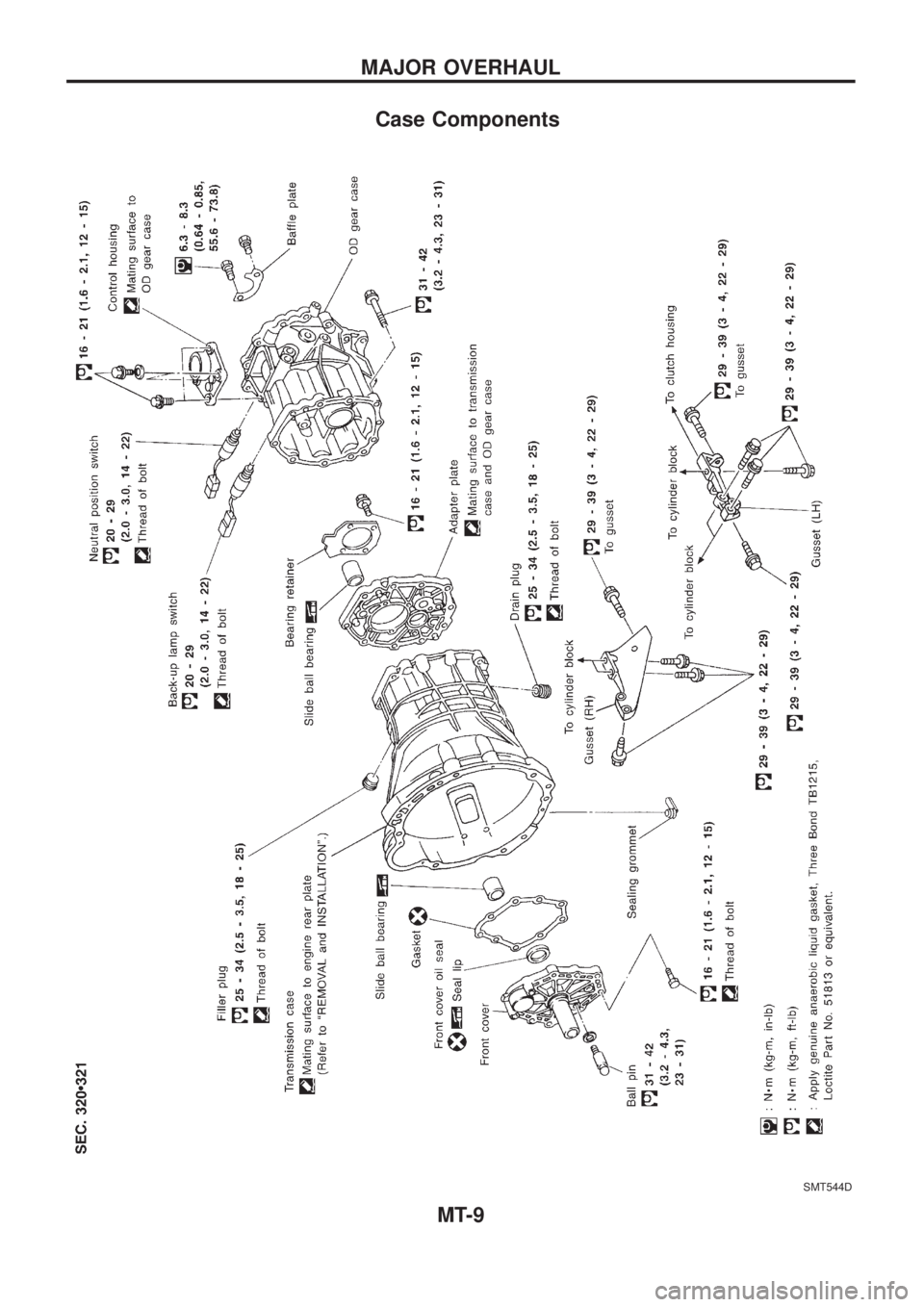

Case Components
SMT544D
MAJOR OVERHAUL
MT-9

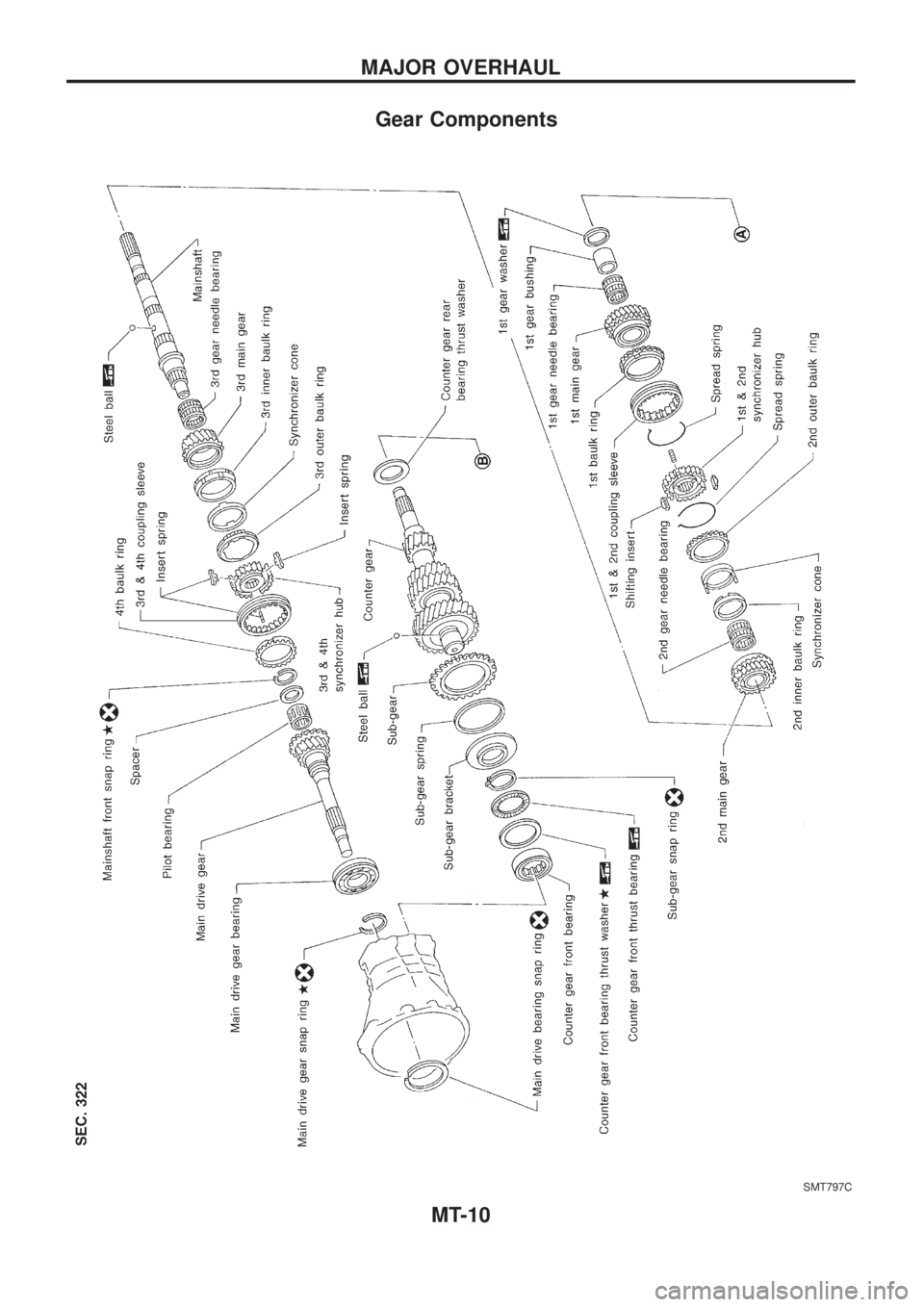

Gear Components
SMT797C
MAJOR OVERHAUL
MT-10

SMT818C
MAJOR OVERHAUL

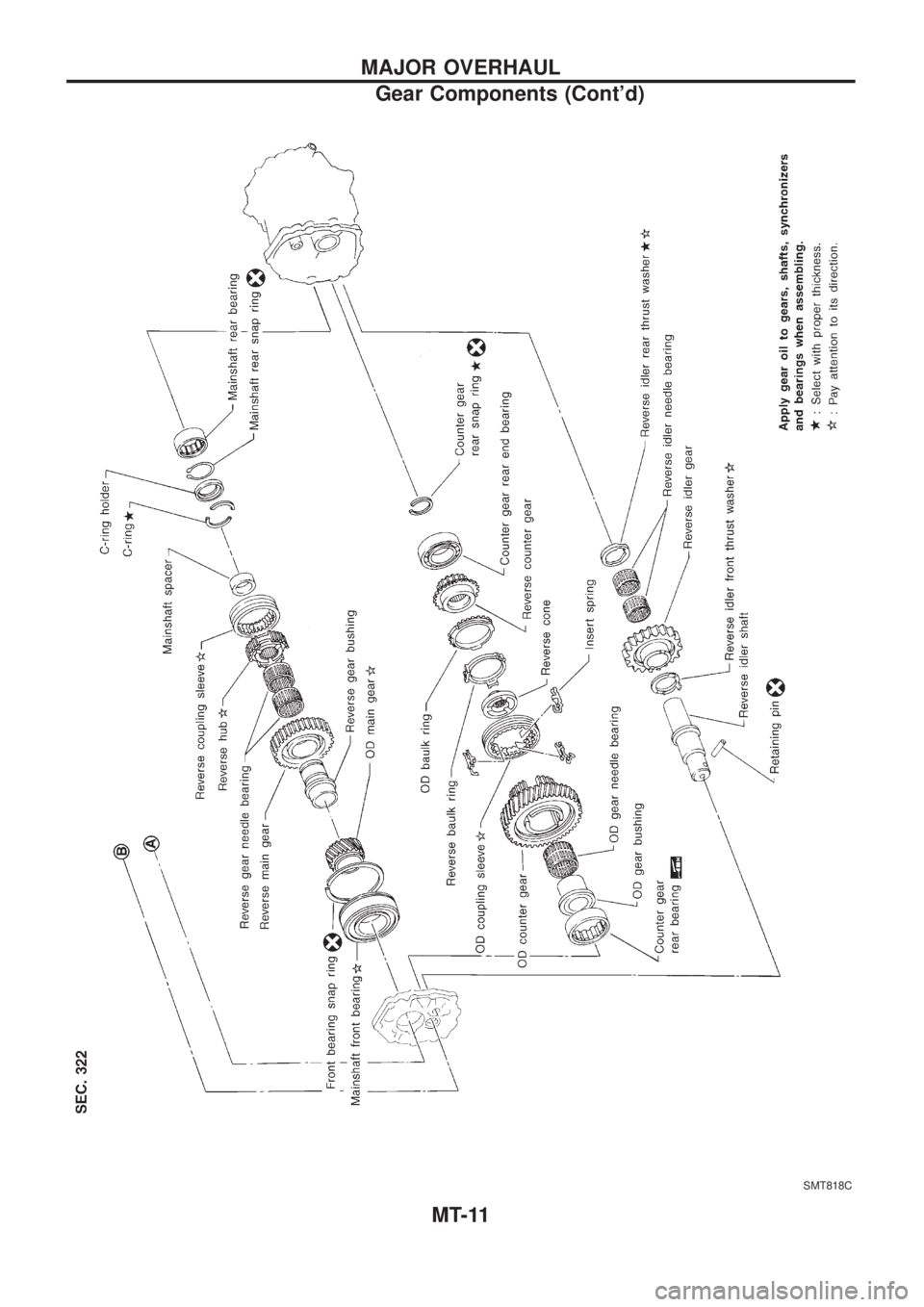

Gear Components (Cont'd)
MT-11

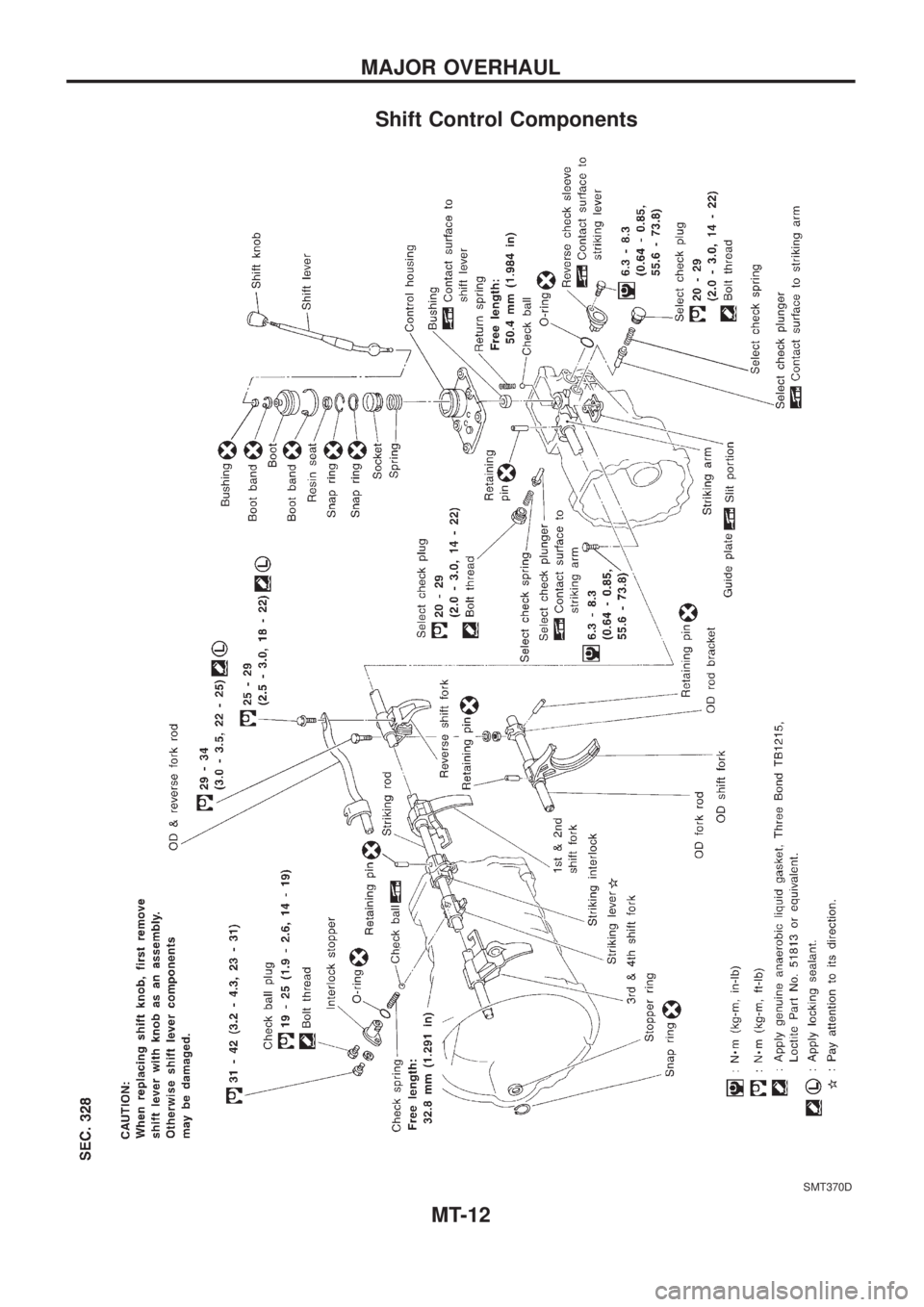

Shift Control Components
SMT370D
MAJOR OVERHAUL
MT-12

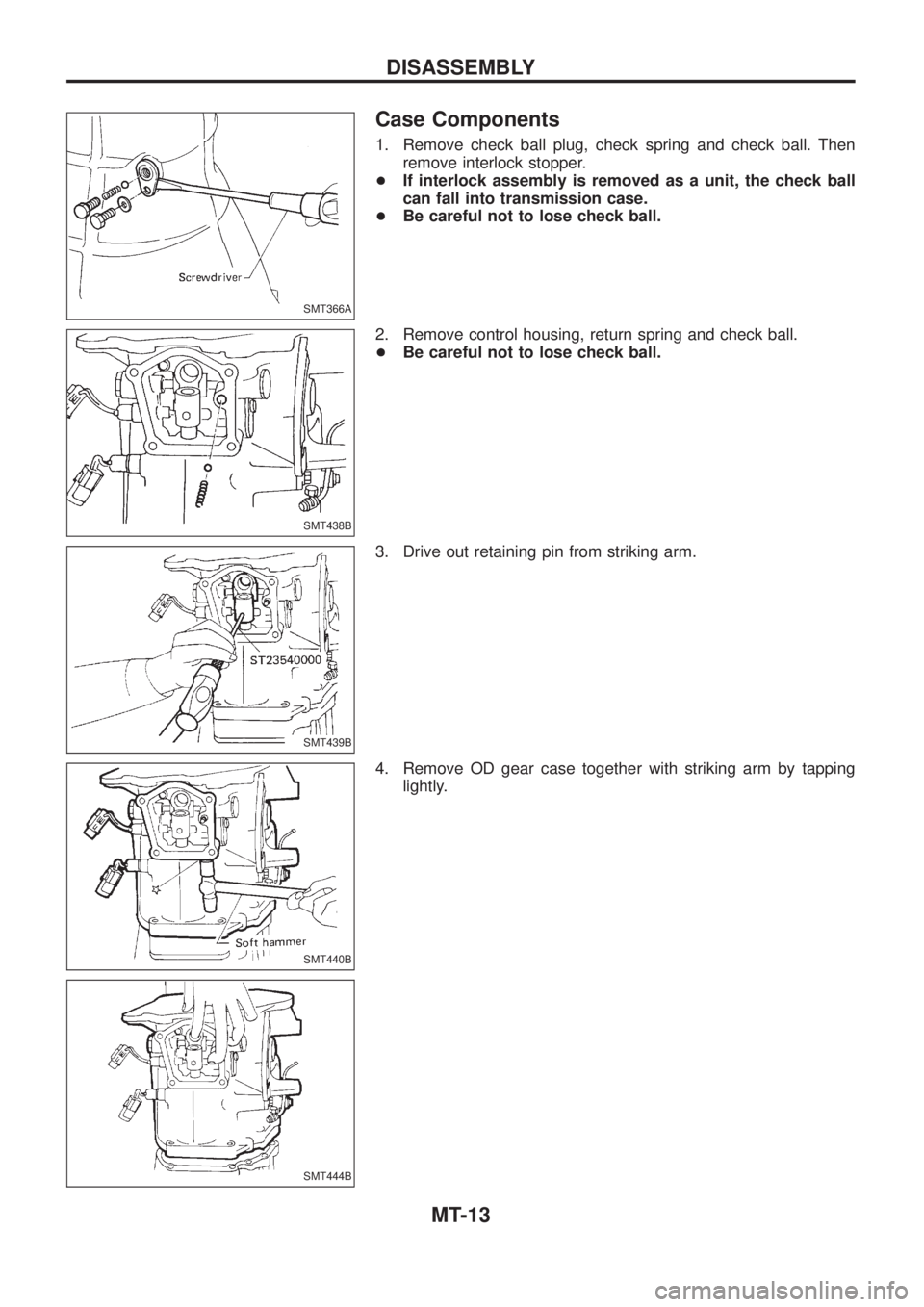

Case Components
1. Remove check ball plug, check spring and check ball. Then
remove interlock stopper.
+If interlock assembly is removed as a unit, the check ball
can fall into transmission case.
+Be careful not to lose check ball.
2. Remove control housing, return spring and check ball.
+Be careful not to lose check ball.
3. Drive out retaining pin from striking arm.
4. Remove OD gear case together with striking arm by tapping
lightly.
SMT366A
SMT438B
SMT439B
SMT440B
SMT444B
DISASSEMBLY
MT-13
