Trouble Diagnoses

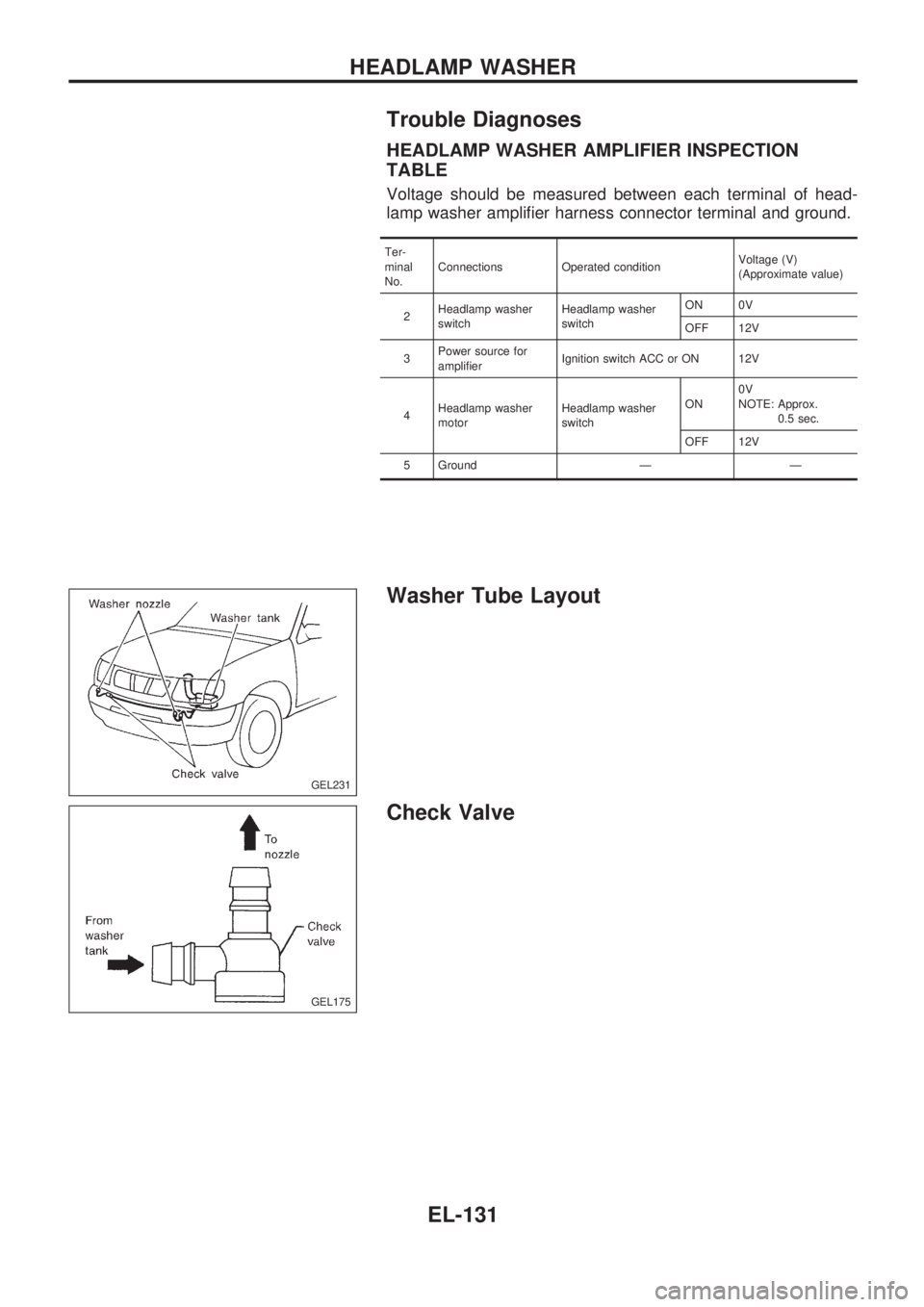

HEADLAMP WASHER AMPLIFIER INSPECTION
TABLE
Voltage should be measured between each terminal of head-
lamp washer amplifier harness connector terminal and ground.
Ter-
minal
No.Connections Operated conditionVoltage (V)
(Approximate value)
2Headlamp washer
switchHeadlamp washer
switchON 0V
OFF 12V
3Power source for
amplifierIgnition switch ACC or ON 12V
4Headlamp washer
motorHeadlamp washer
switchON0V
NOTE: Approx.
0.5 sec.
OFF 12V
5 Ground Ð Ð
Washer Tube Layout
Check Valve
GEL231
GEL175
HEADLAMP WASHER
EL-131

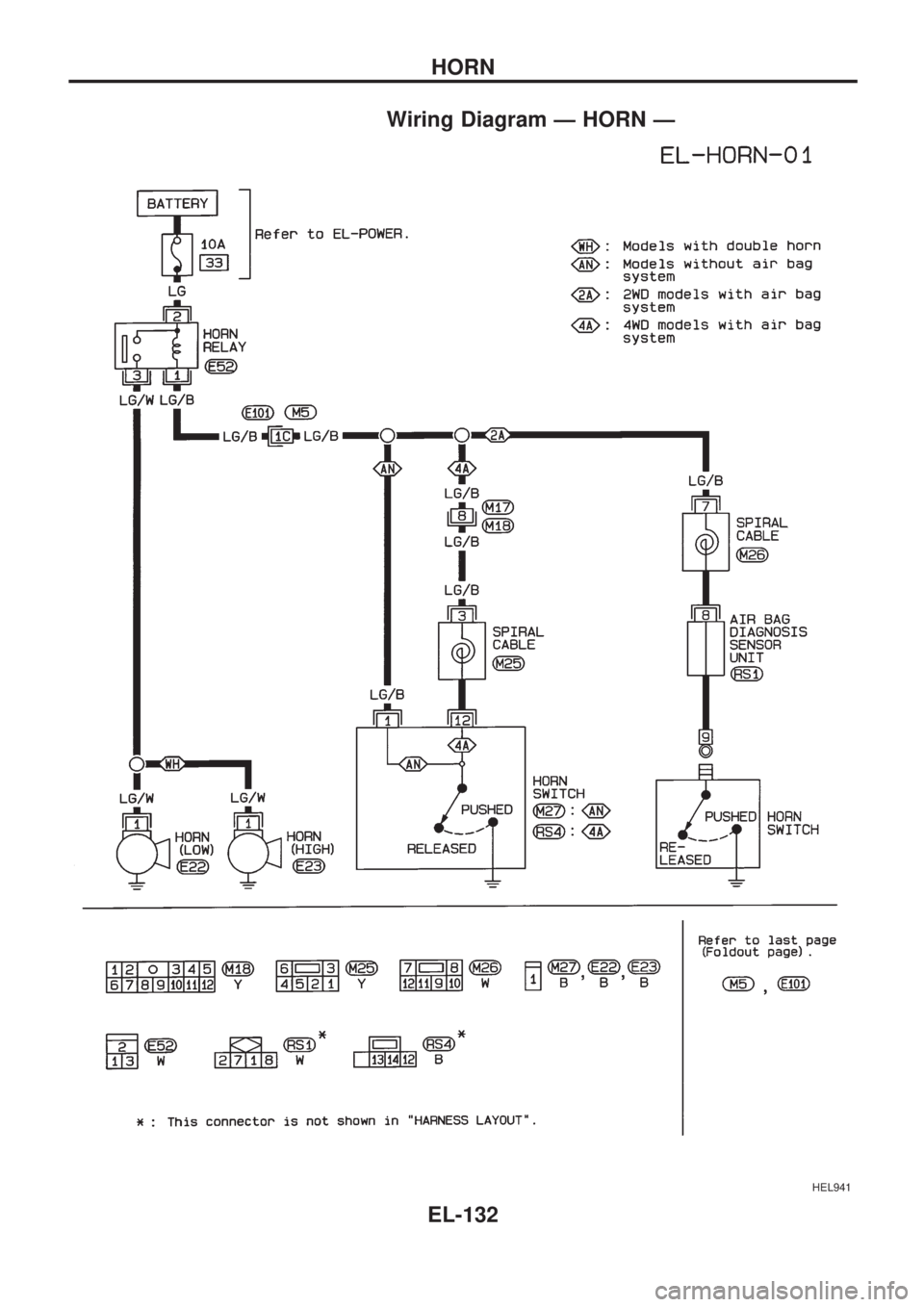

Wiring Diagram Ð HORN Ð
HEL941
HORN
EL-132

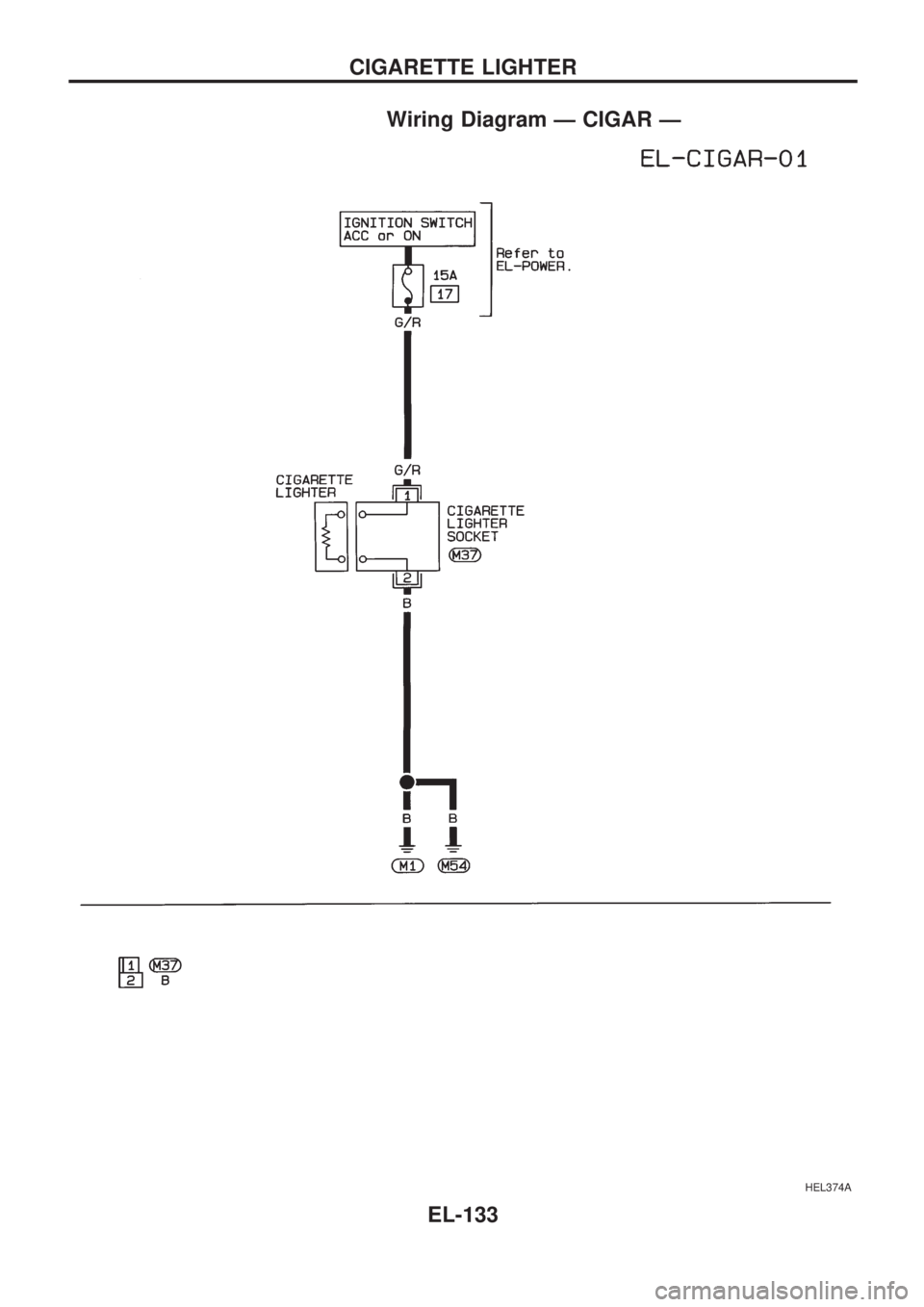

Wiring Diagram Ð CIGAR Ð
HEL374A
CIGARETTE LIGHTER
EL-133

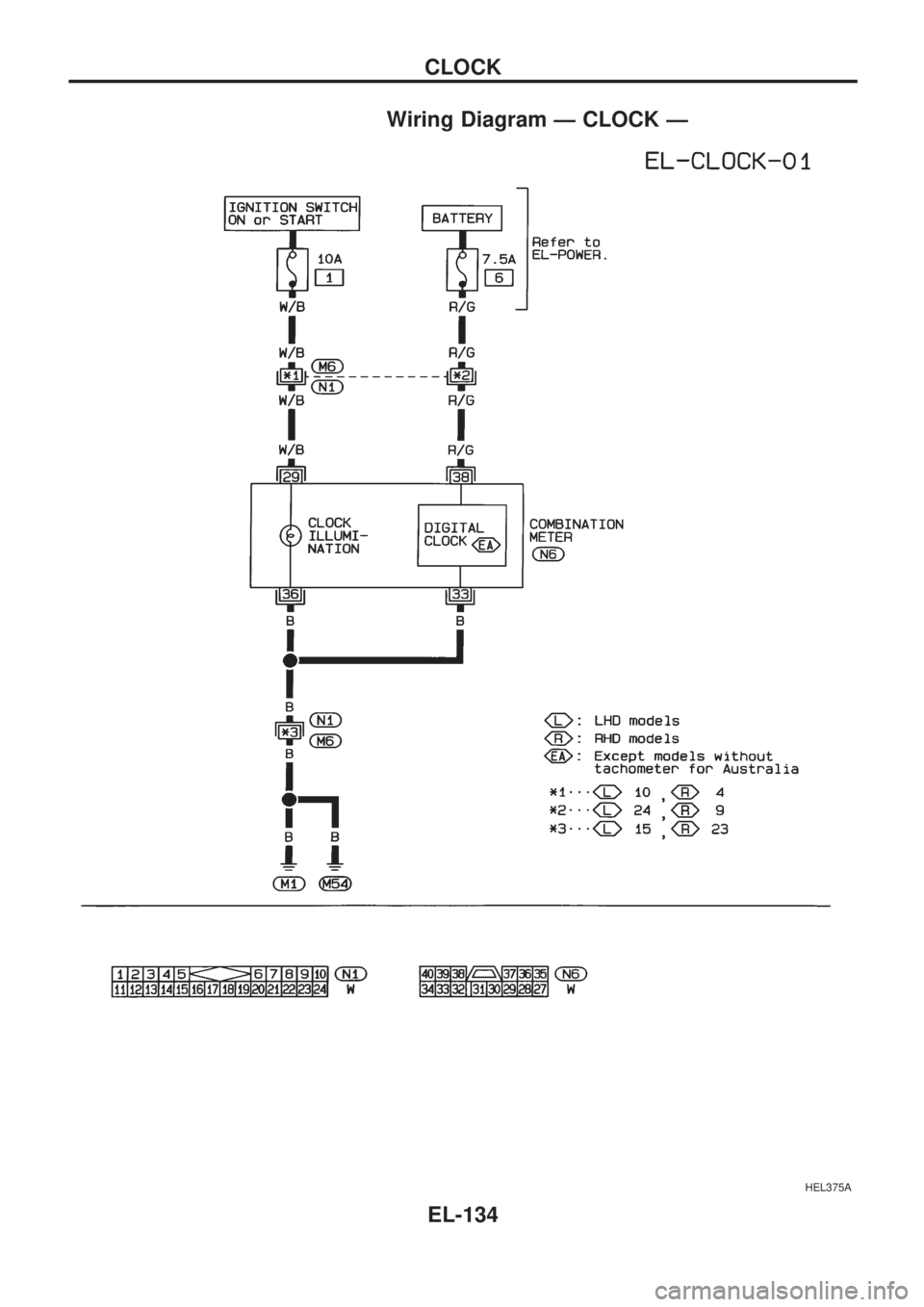

Wiring Diagram Ð CLOCK Ð
HEL375A
CLOCK
EL-134

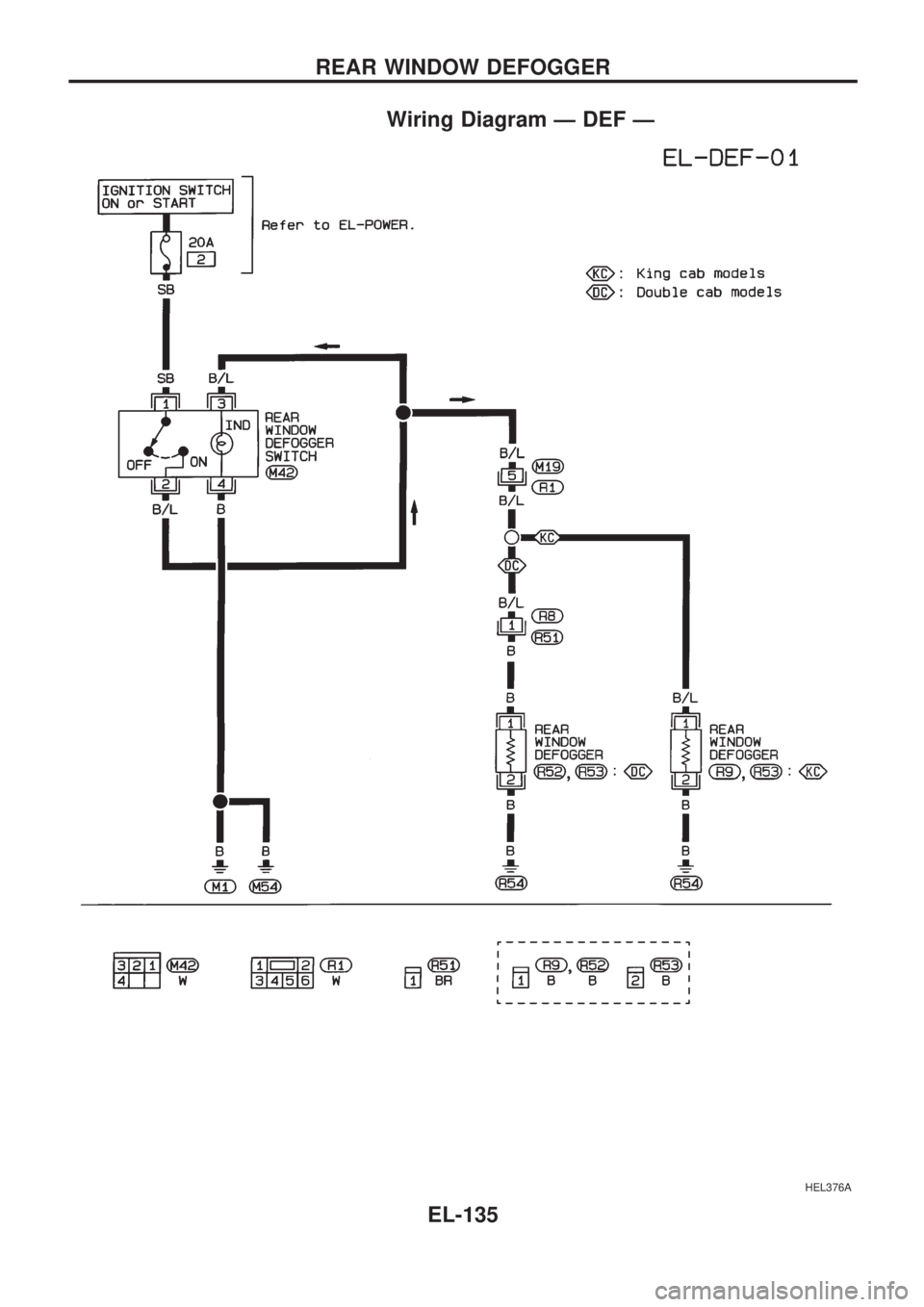

Wiring Diagram Ð DEF Ð
HEL376A
REAR WINDOW DEFOGGER
EL-135

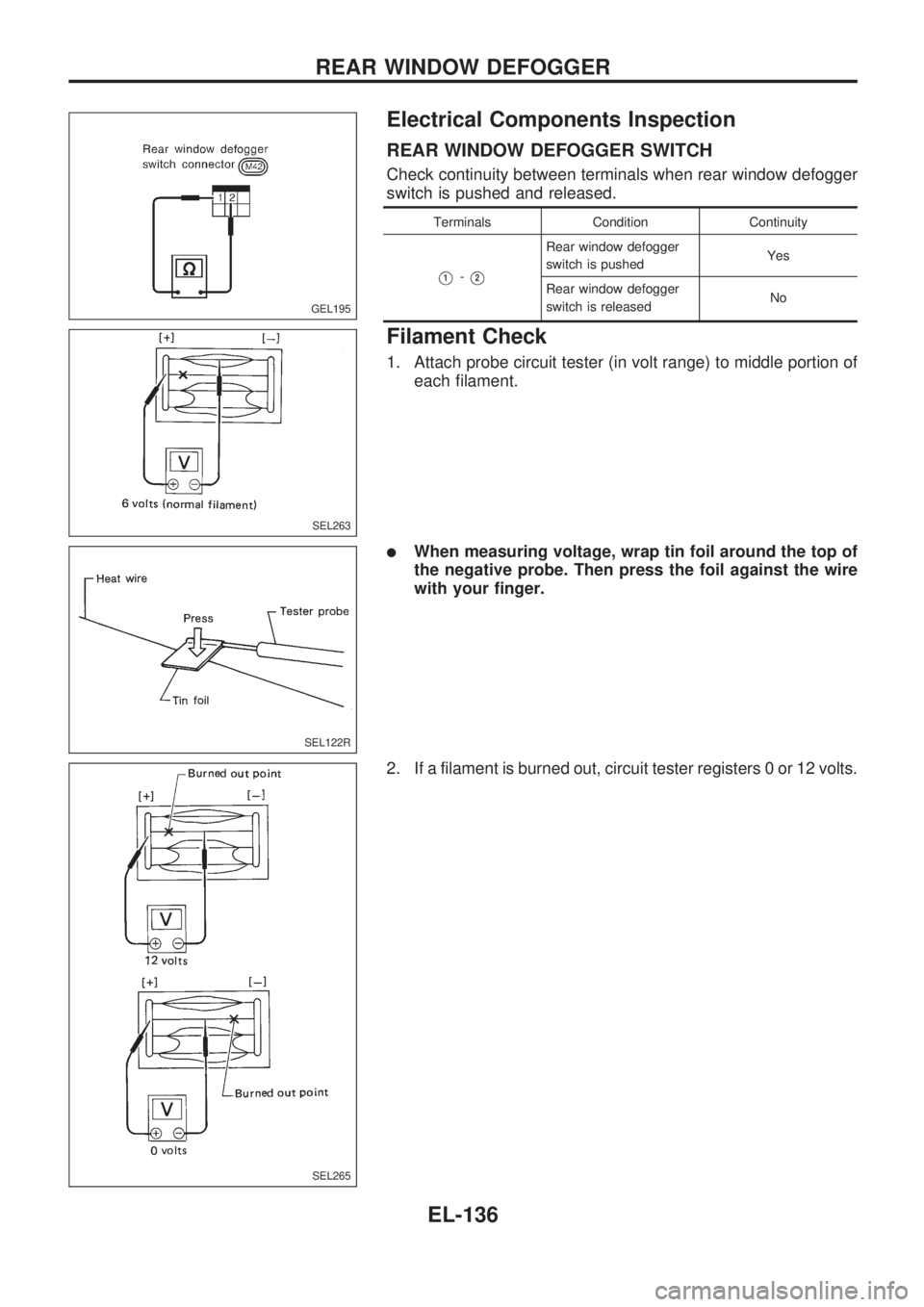

Electrical Components Inspection
REAR WINDOW DEFOGGER SWITCH
Check continuity between terminals when rear window defogger
switch is pushed and released.
Terminals Condition Continuity
V1-V2
Rear window defogger
switch is pushedYes
Rear window defogger
switch is releasedNo
Filament Check
1. Attach probe circuit tester (in volt range) to middle portion of
each filament.
lWhen measuring voltage, wrap tin foil around the top of
the negative probe. Then press the foil against the wire
with your finger.
2. If a filament is burned out, circuit tester registers 0 or 12 volts.
GEL195
SEL263
SEL122R
SEL265
REAR WINDOW DEFOGGER
EL-136

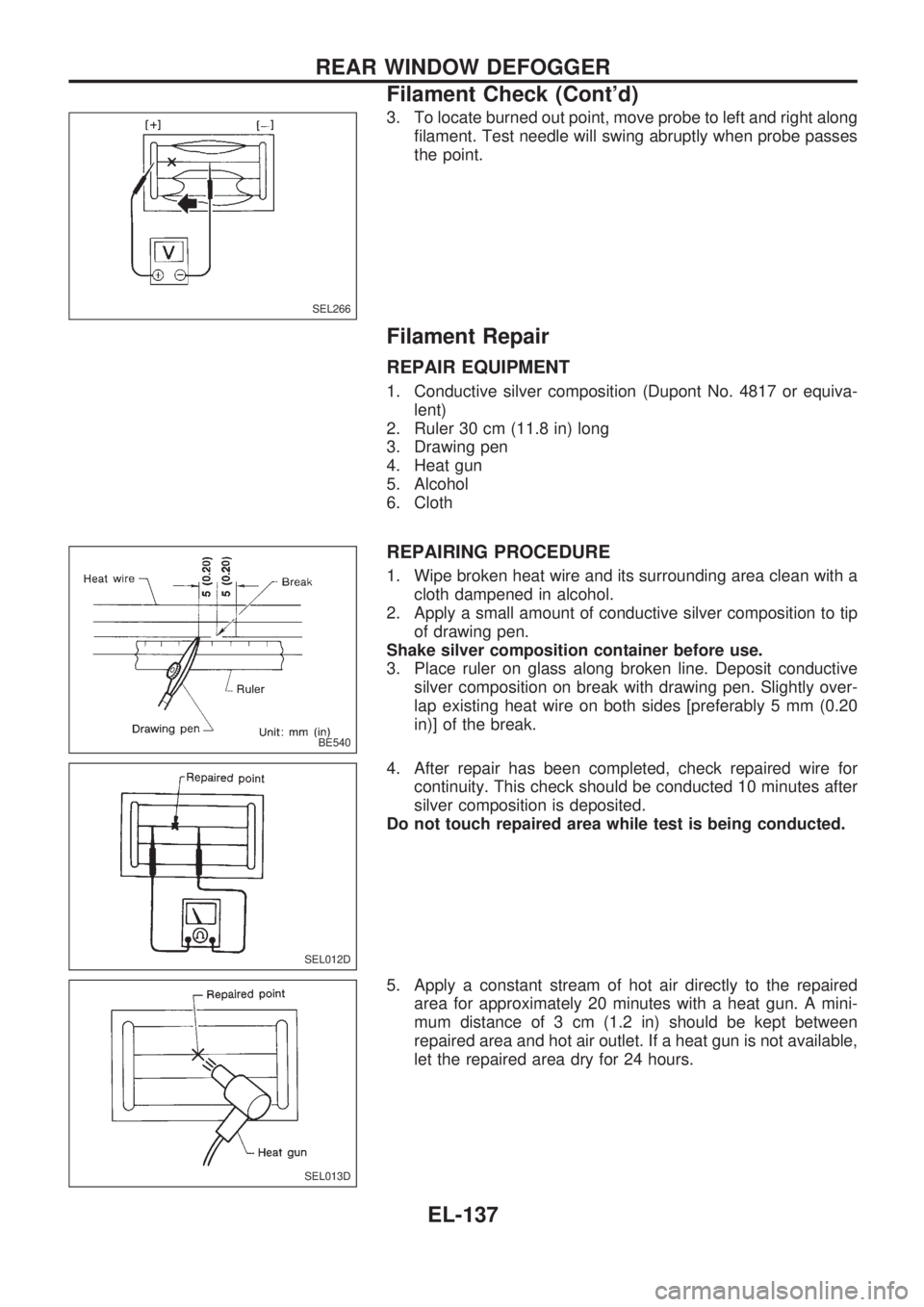

3. To locate burned out point, move probe to left and right along
filament. Test needle will swing abruptly when probe passes
the point.
Filament Repair
REPAIR EQUIPMENT
1. Conductive silver composition (Dupont No. 4817 or equiva-
lent)
2. Ruler 30 cm (11.8 in) long
3. Drawing pen
4. Heat gun
5. Alcohol
6. Cloth
REPAIRING PROCEDURE
1. Wipe broken heat wire and its surrounding area clean with a
cloth dampened in alcohol.
2. Apply a small amount of conductive silver composition to tip
of drawing pen.
Shake silver composition container before use.
3. Place ruler on glass along broken line. Deposit conductive
silver composition on break with drawing pen. Slightly over-
lap existing heat wire on both sides [preferably 5 mm (0.20
in)] of the break.
4. After repair has been completed, check repaired wire for
continuity. This check should be conducted 10 minutes after
silver composition is deposited.
Do not touch repaired area while test is being conducted.
5. Apply a constant stream of hot air directly to the repaired
area for approximately 20 minutes with a heat gun. A mini-
mum distance of 3 cm (1.2 in) should be kept between
repaired area and hot air outlet. If a heat gun is not available,
let the repaired area dry for 24 hours.
SEL266
BE540
SEL012D
SEL013D
REAR WINDOW DEFOGGER
Filament Check (Cont'd)
EL-137

Wiring Diagram Ð AUDIO Ð/LHD Models
Type-2

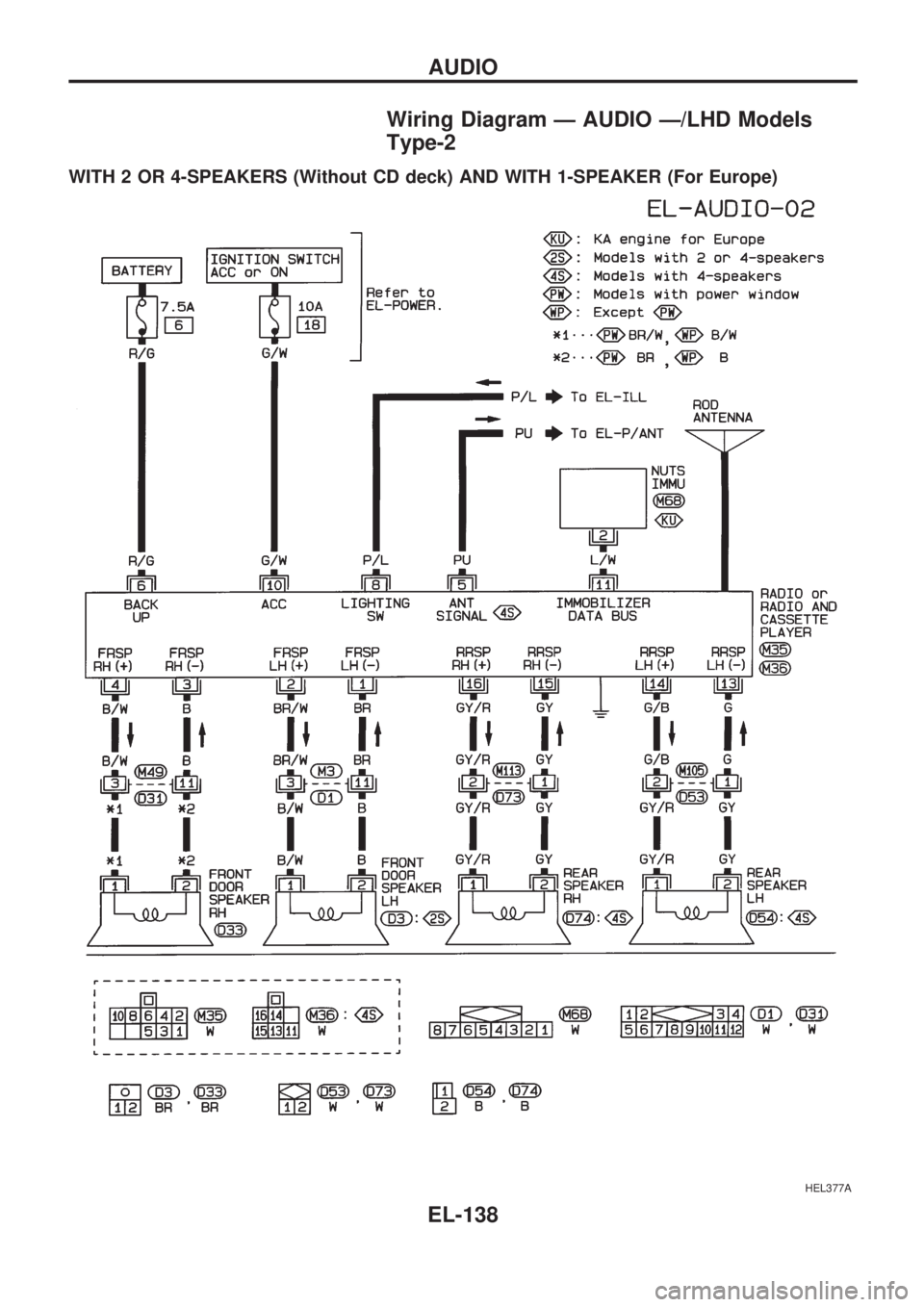

WITH 2 OR 4-SPEAKERS (Without CD deck) AND WITH 1-SPEAKER (For Europe)
HEL377A
AUDIO
EL-138

Wiring Diagram Ð AUDIO Ð/LHD Models
Type-3

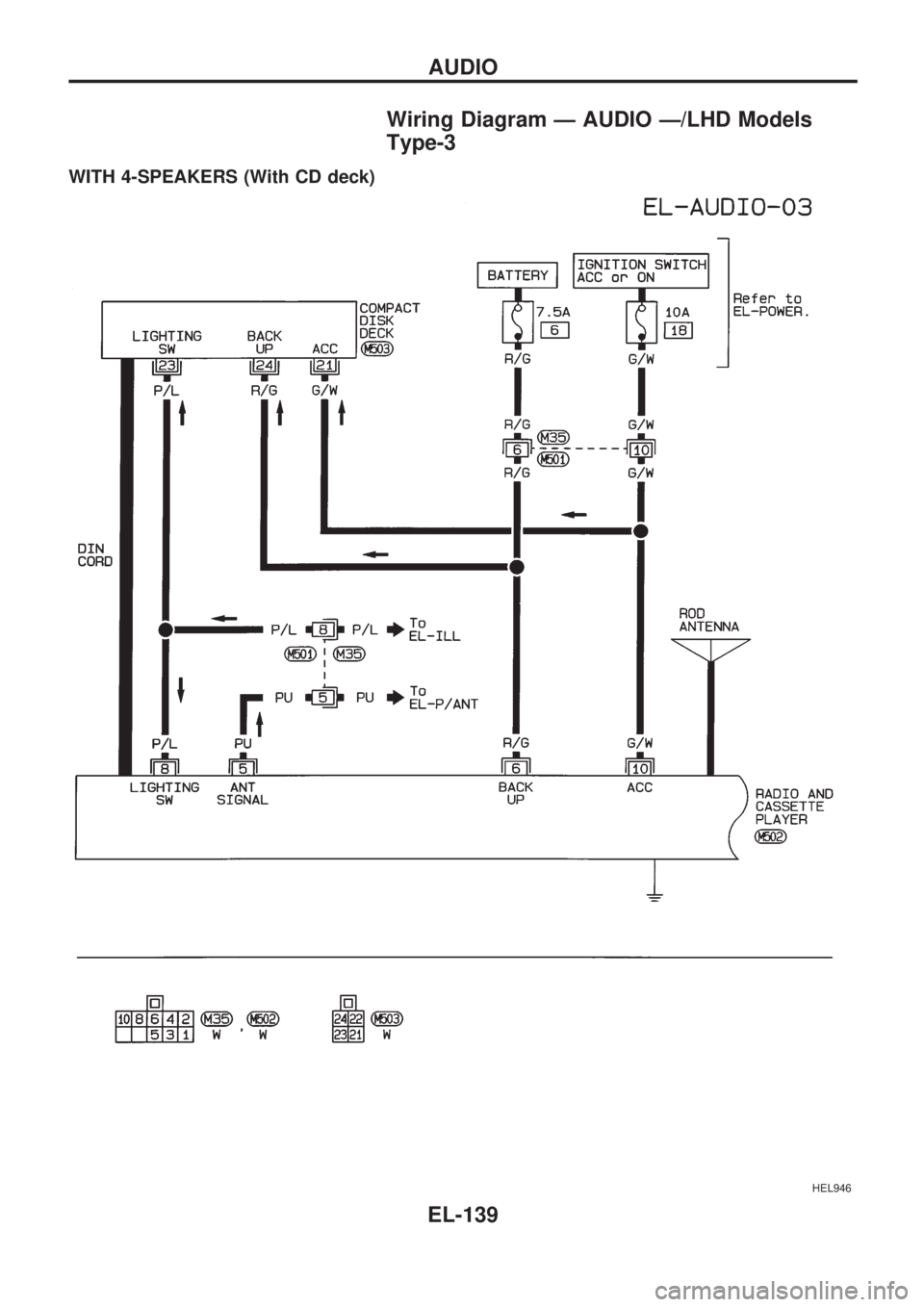

WITH 4-SPEAKERS (With CD deck)
HEL946
AUDIO
EL-139

HEL947
AUDIO

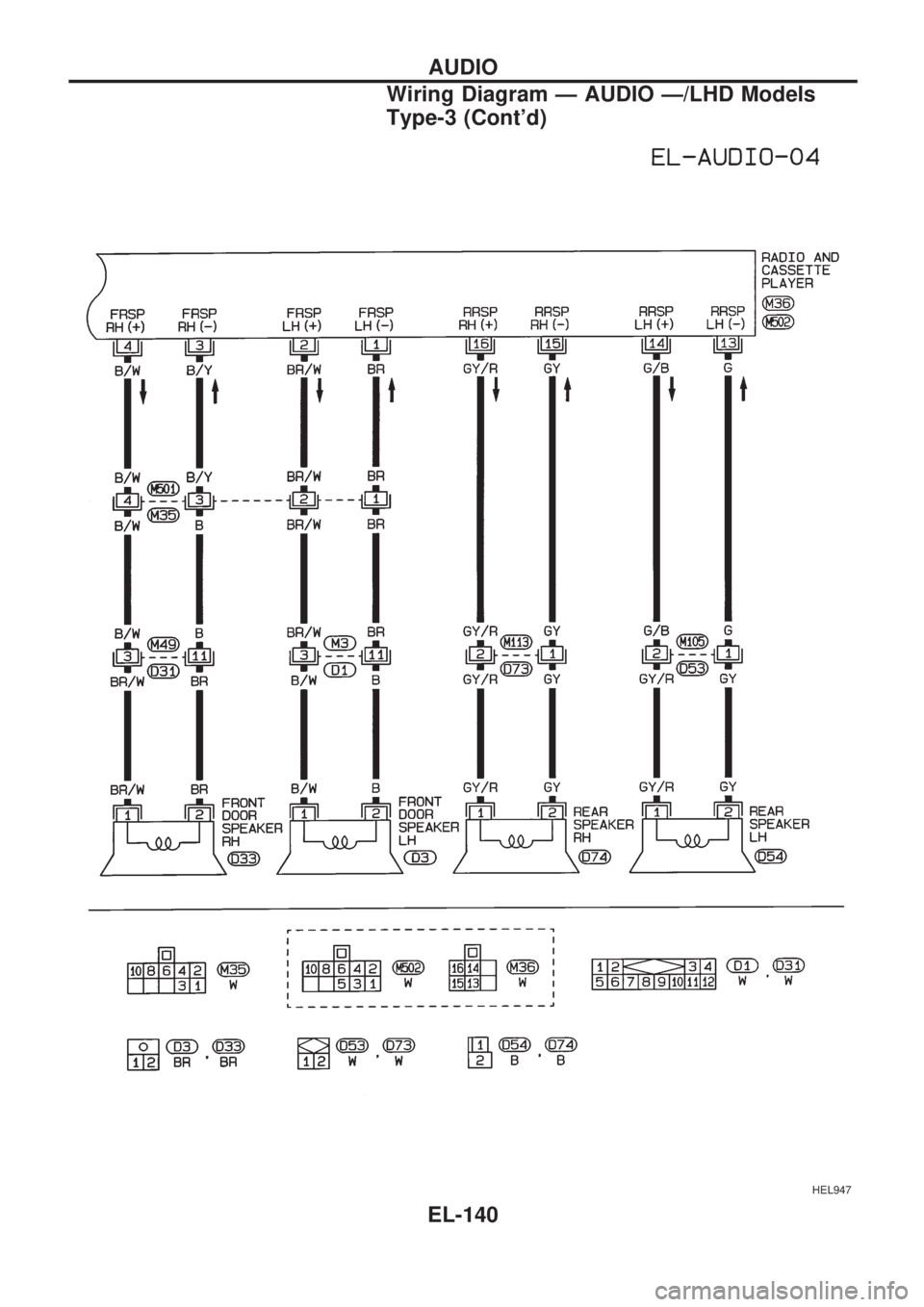

Wiring Diagram Ð AUDIO Ð/LHD Models
Type-3 (Cont'd)
EL-140
