Page 301 of 666

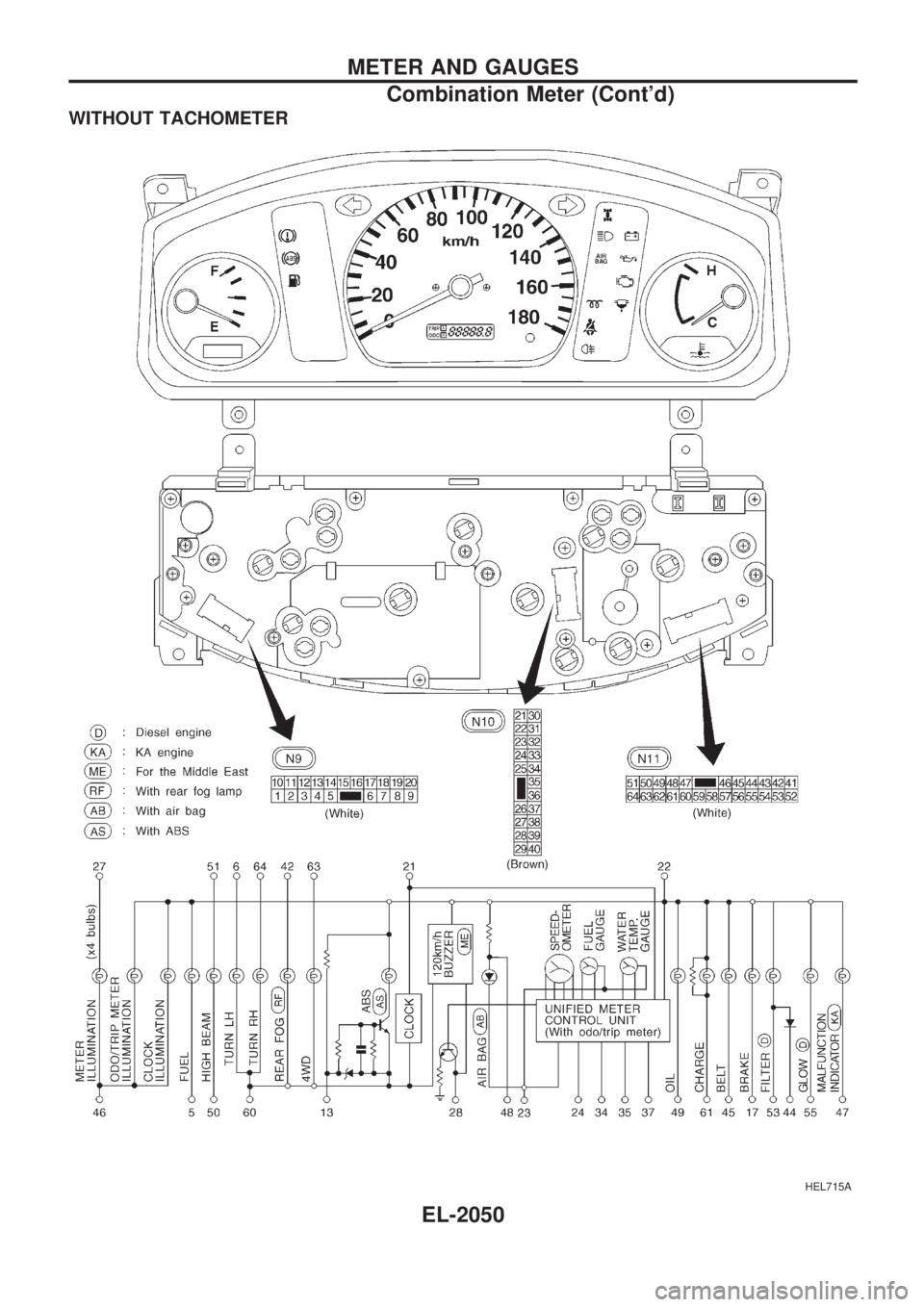

NISSAN PICK-UP 1999  Repair Manual WITHOUT TACHOMETER
HEL715A
METER AND GAUGES
Combination Meter (Contd)
EL-2050

Page 302 of 666

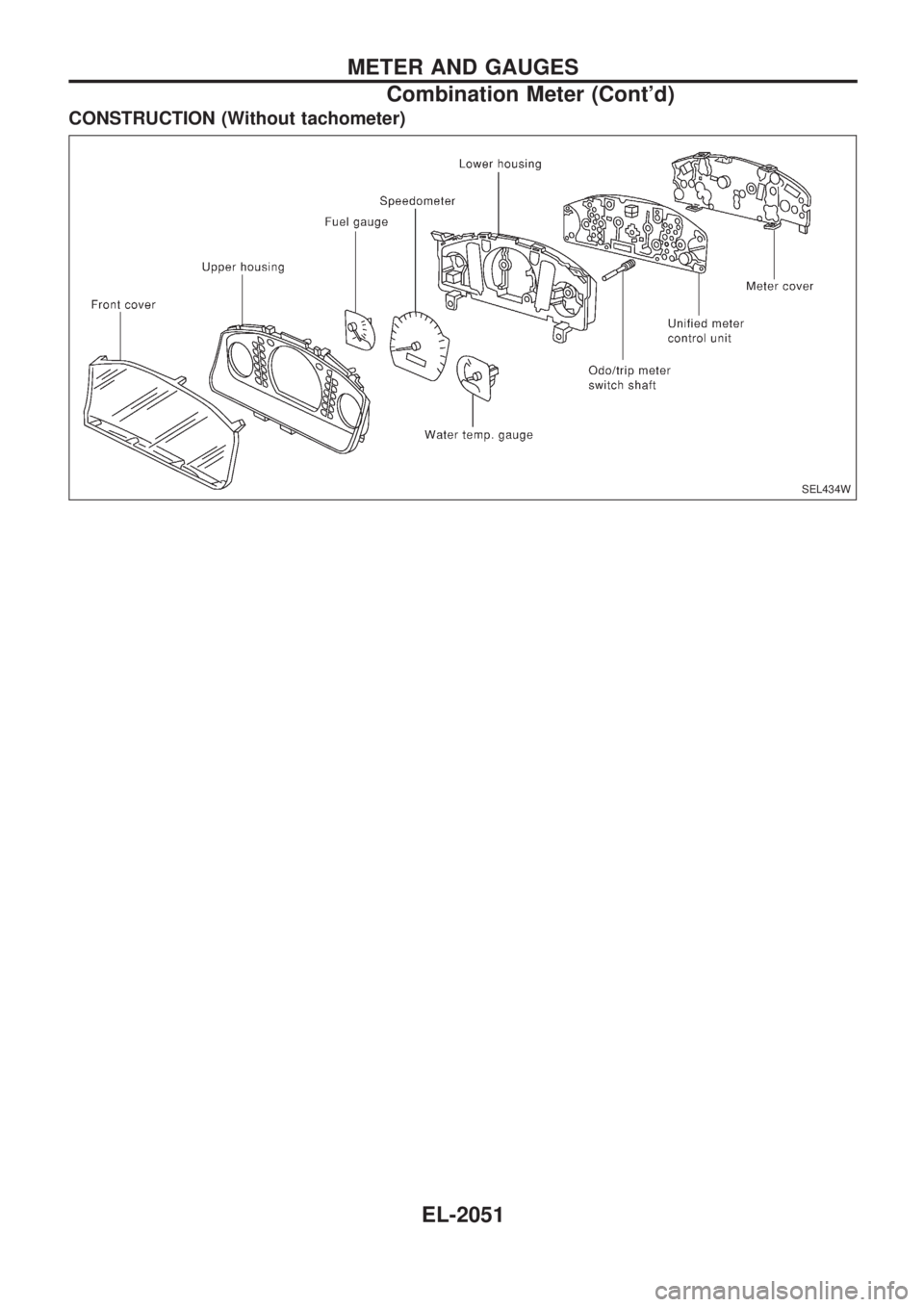

NISSAN PICK-UP 1999  Repair Manual CONSTRUCTION (Without tachometer)
SEL434W
METER AND GAUGES
Combination Meter (Contd)
EL-2051

Page 303 of 666

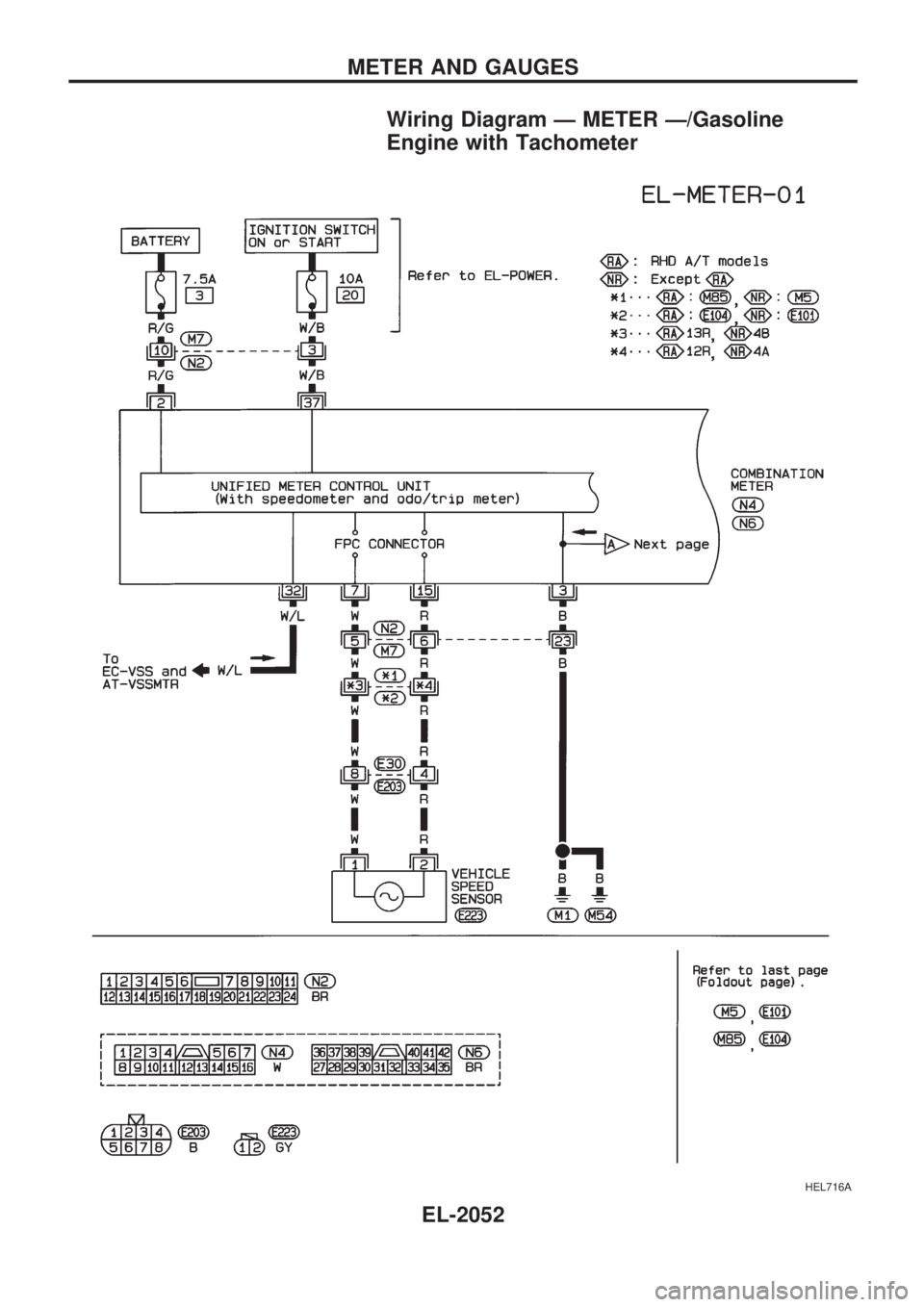

NISSAN PICK-UP 1999  Repair Manual Wiring Diagram Ð METER Ð/Gasoline
Engine with Tachometer
HEL716A
METER AND GAUGES
EL-2052

Page 304 of 666

NISSAN PICK-UP 1999  Repair Manual HEL717A
METER AND GAUGES

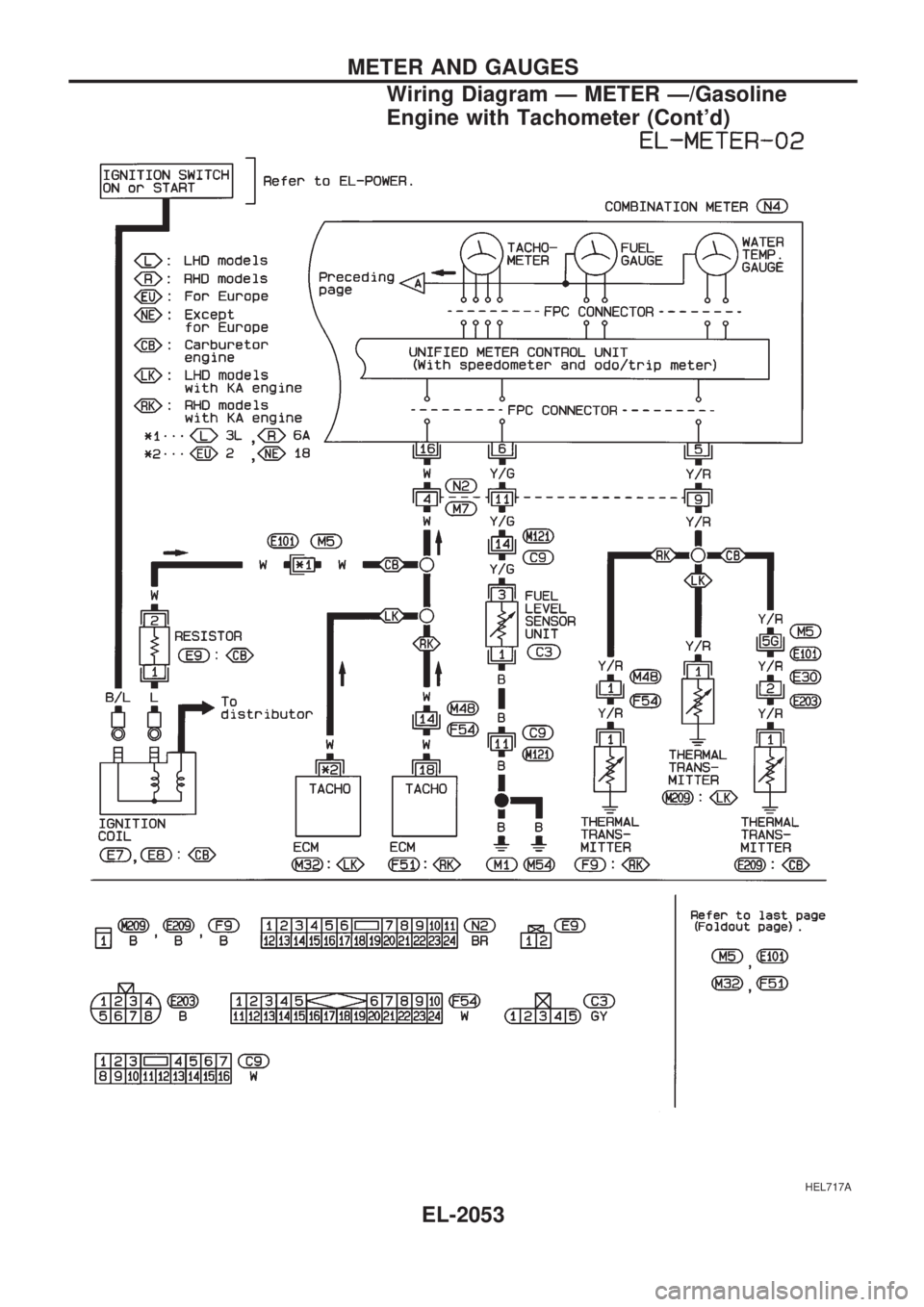

Wiring Diagram Ð METER Ð/Gasoline
Engine with Tachometer (Contd)
EL-2053

Page 305 of 666

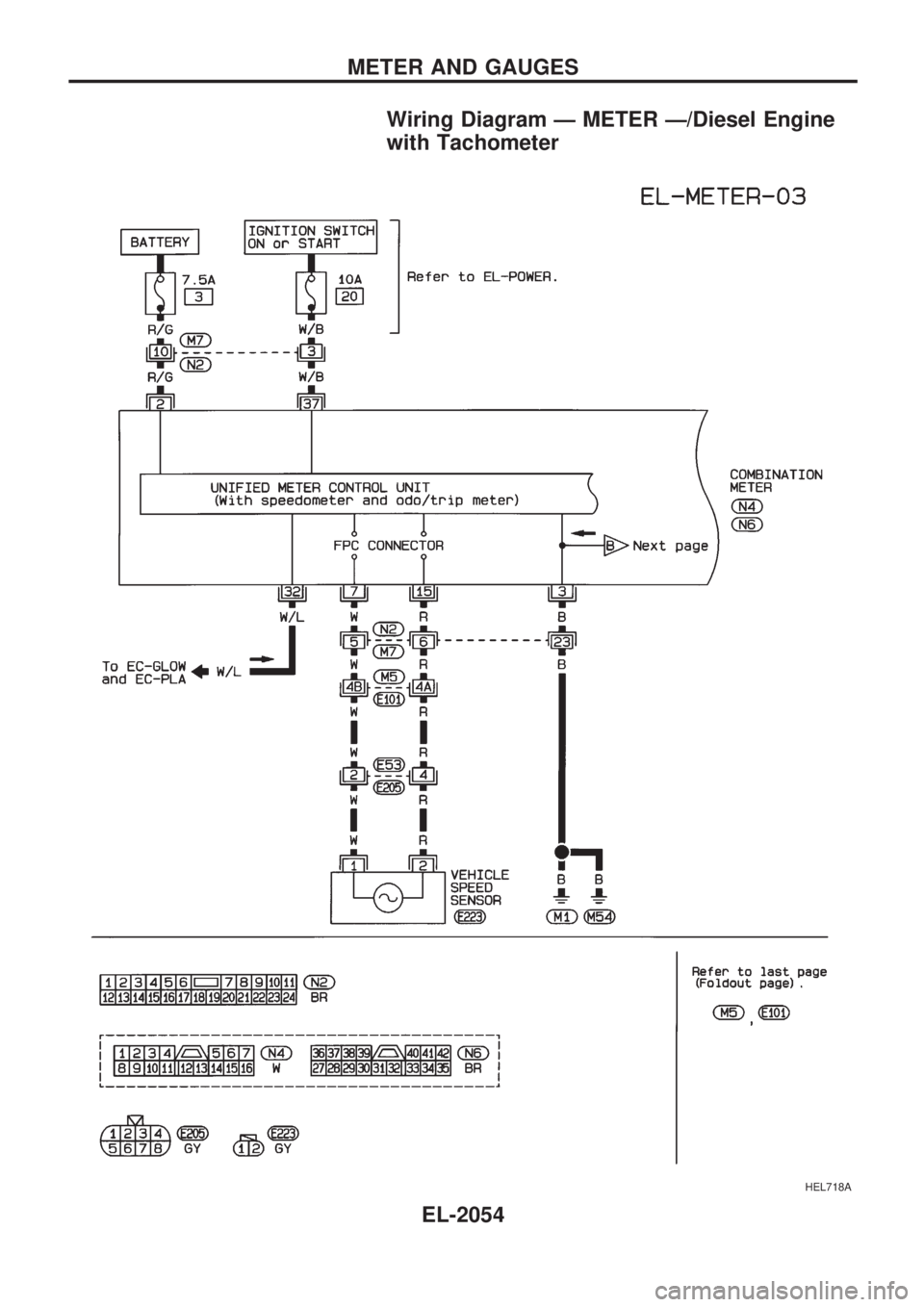

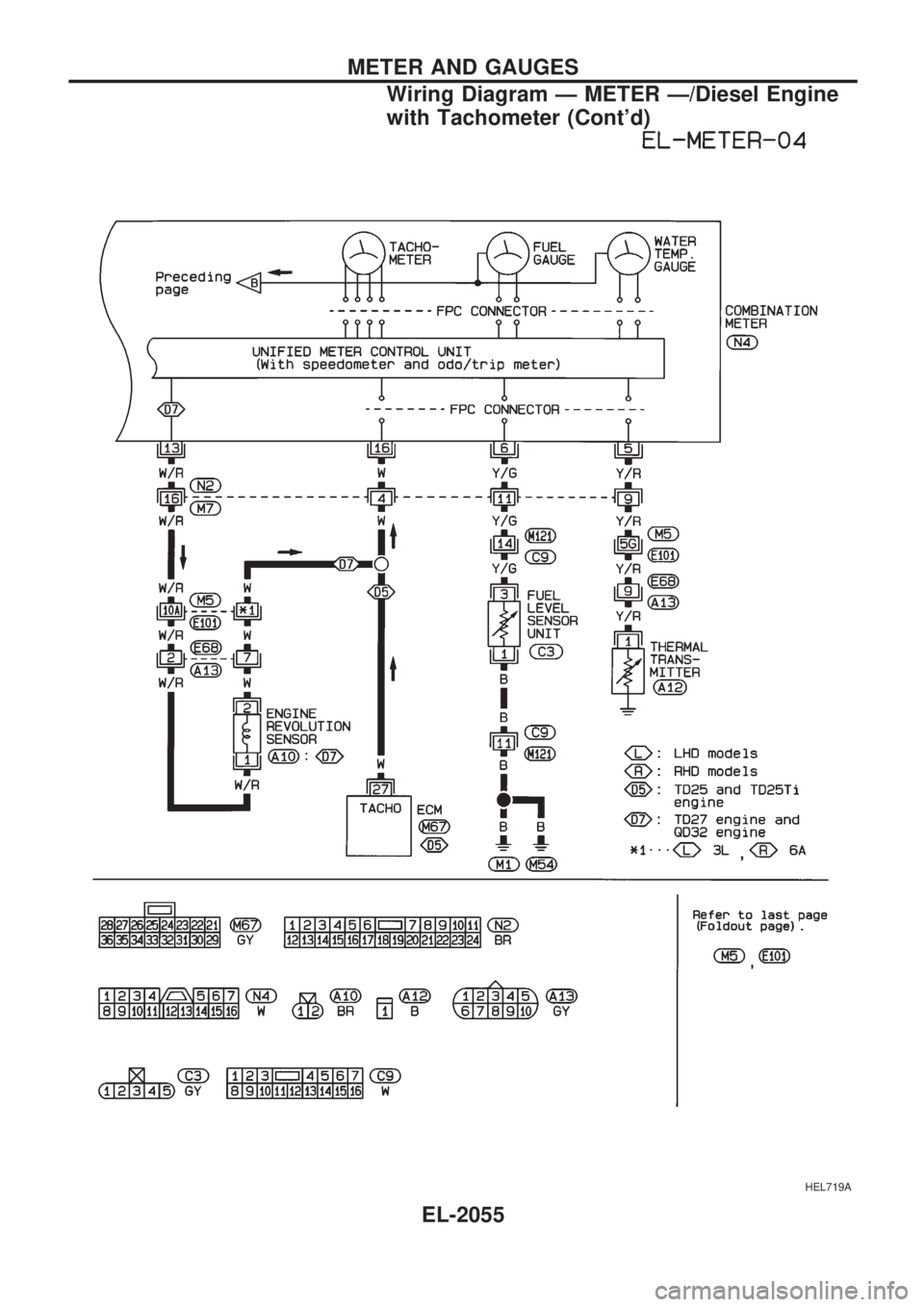

NISSAN PICK-UP 1999  Repair Manual Wiring Diagram Ð METER Ð/Diesel Engine
with Tachometer
HEL718A
METER AND GAUGES
EL-2054

Page 306 of 666

NISSAN PICK-UP 1999  Repair Manual HEL719A
METER AND GAUGES
Wiring Diagram Ð METER Ð/Diesel Engine
with Tachometer (Contd)
EL-2055

Page 307 of 666

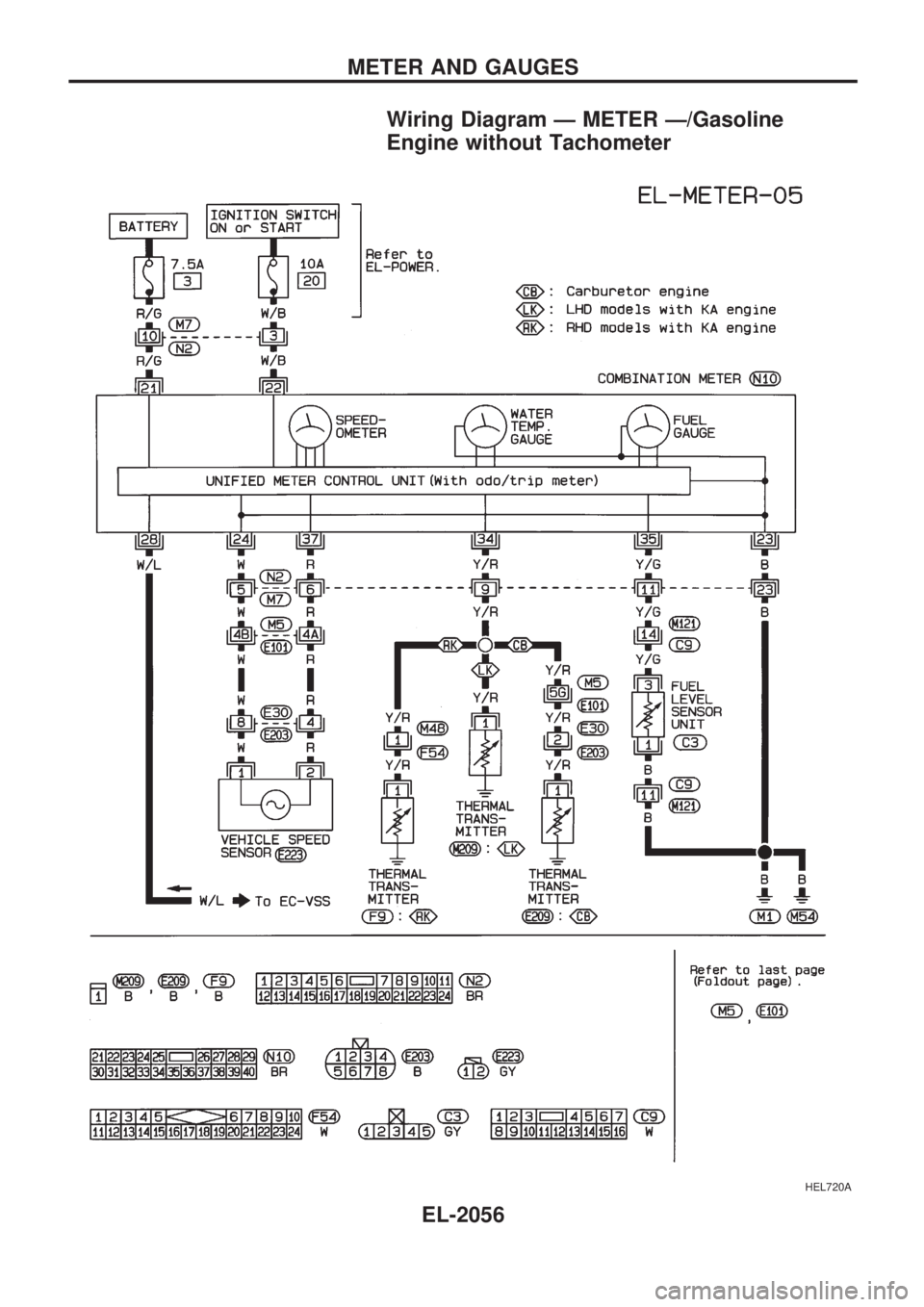

NISSAN PICK-UP 1999  Repair Manual Wiring Diagram Ð METER Ð/Gasoline
Engine without Tachometer
HEL720A
METER AND GAUGES
EL-2056

Page 308 of 666

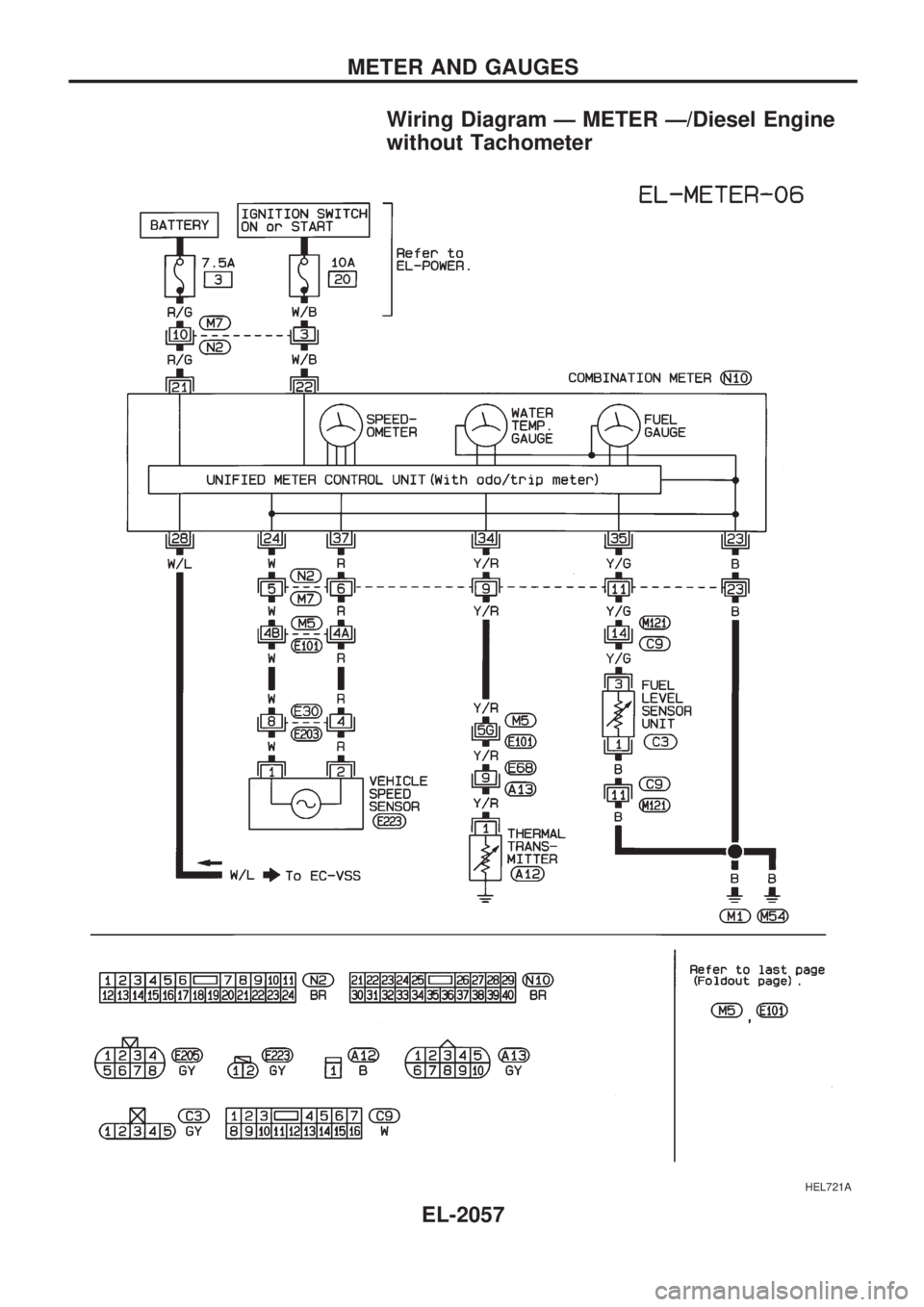

NISSAN PICK-UP 1999  Repair Manual Wiring Diagram Ð METER Ð/Diesel Engine
without Tachometer
HEL721A
METER AND GAUGES
EL-2057

Page 309 of 666

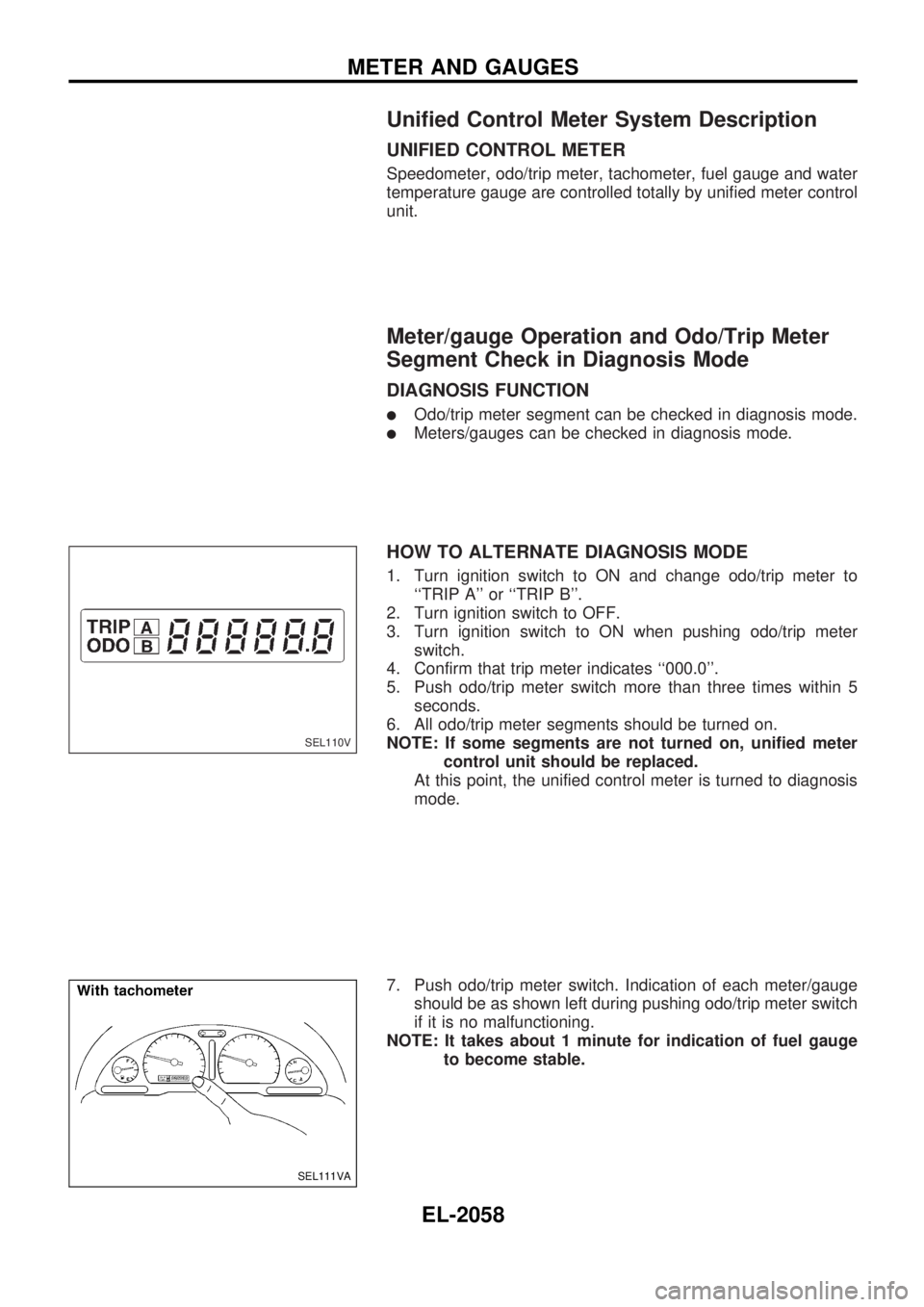

NISSAN PICK-UP 1999  Repair Manual Unified Control Meter System Description
UNIFIED CONTROL METER
Speedometer, odo/trip meter, tachometer, fuel gauge and water
temperature gauge are controlled totally by unified meter control
unit.
Met

Page 310 of 666

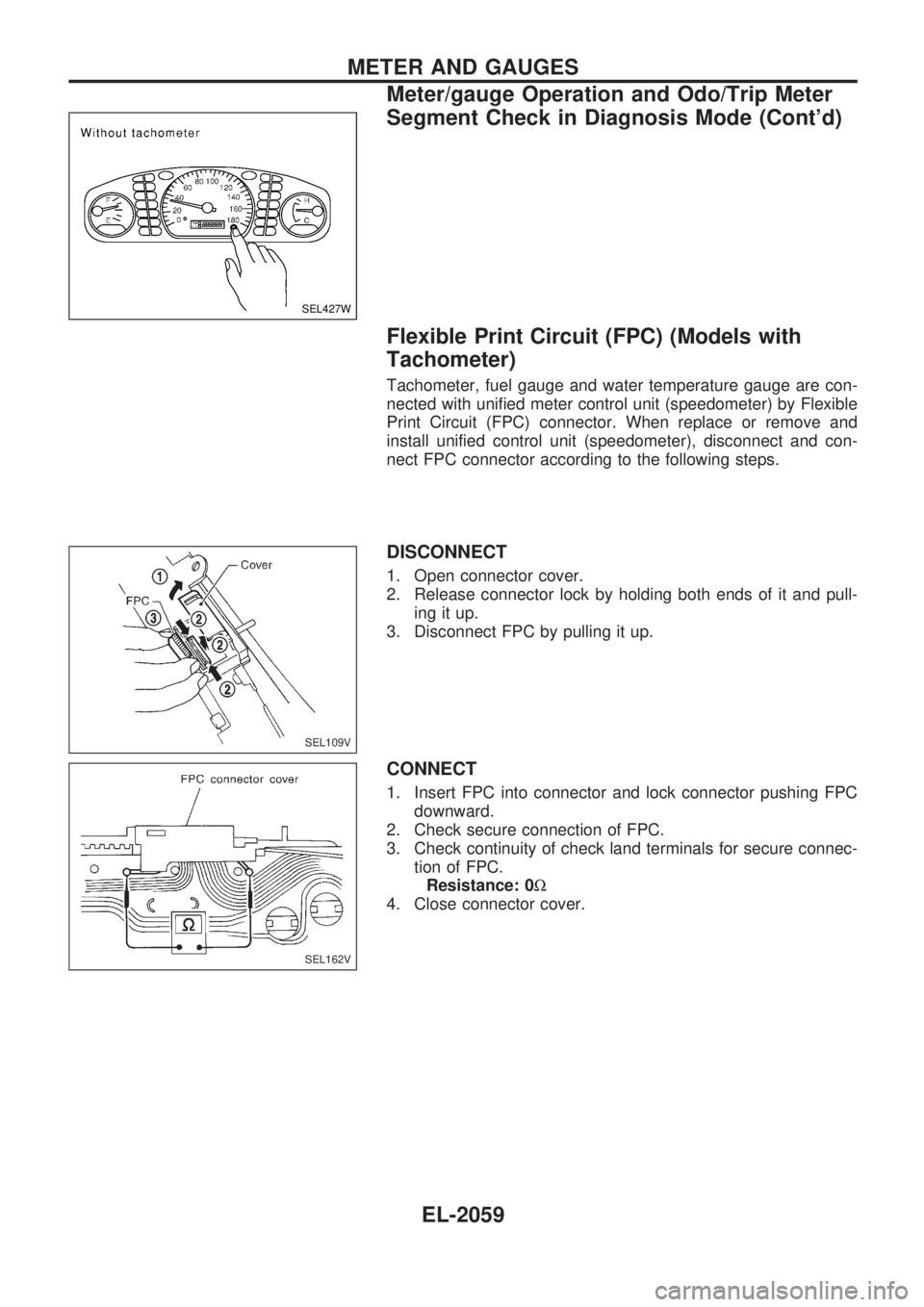

NISSAN PICK-UP 1999  Repair Manual Flexible Print Circuit (FPC) (Models with
Tachometer)
Tachometer, fuel gauge and water temperature gauge are con-
nected with unified meter control unit (speedometer) by Flexible
Print Circuit (FPC) c
