NISSAN PICK-UP 1999 Repair Manual

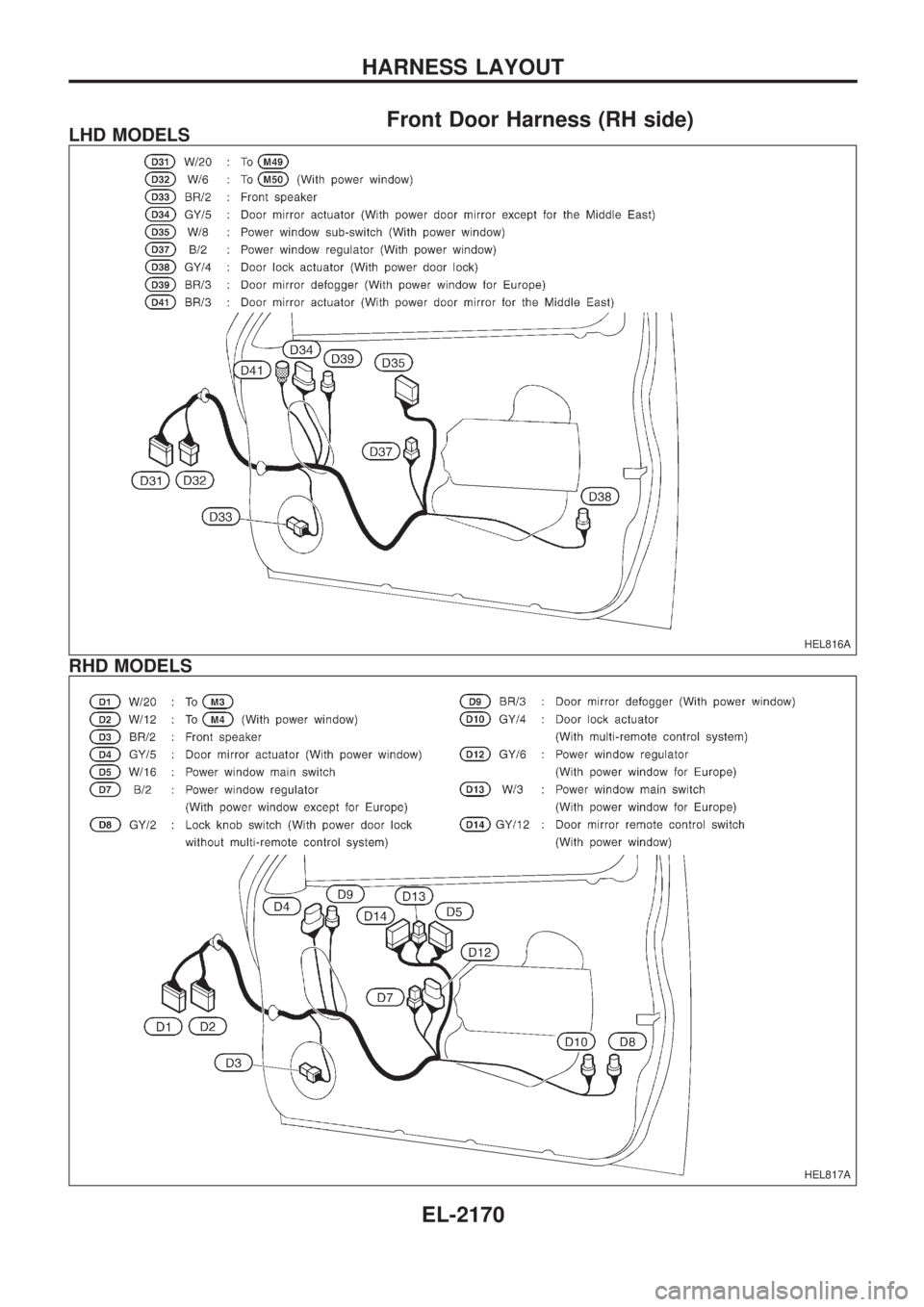

Front Door Harness (RH side)LHD MODELS
RHD MODELS
HEL816A
HEL817A
HARNESS LAYOUT
EL-2170

Use the chart below to find out what each wiring diagram code
stands for.
Refer to the wiring diagram code in the alphabetical index to find
the location (page number) of each wiring diagram.
Code Section Wiring Diagram Name
AAC/V EC IACV-AAC Valve
ABS BR Anti-lock Brake System
A/C, M HA Manual Air Conditioner
A/C, A HA Auto Air Conditioner
AT/IND EL A/T Indicator
AUDIO EL Audio
BACK/L EL Back-up Lamp
BA/FTS ATBATT/A/T Fluid Temperature Sensor
and TCM Power Supply
CHARGE EL Charging System
CHIME EL Warning Chime
CHOKE EC Automatic Choke
CIGAR EL Cigarette Lighter
CLOCK EL Clock
CMPS EC Camshaft Position Sensor
COOL/F LC Cooling Fan Control
DEF ELRear Window Defogger and Mirror
Defogger
DIMDIP ELHeadlamp Ð With Dim-dip Lamp
System
D/LOCK EL Power Door Lock
DTRL ELHeadlamp Ð With Daytime Light
System
ECTS ECEngine Coolant Temperature
Sensor
EGRC/V EC EGRC Ð Solenoid Valve
ENGSS AT Engine Speed Signal
FCUT EC Fuel Cut Solenoid Valve
F/HEAT EC Fuel Heater System
FICD EC IACV-FICD Solenoid Valve
FIPOT EC ISC-FI Pot
FPCM EC Fuel Pump Control Module
F/PUMP EC Fuel Pump
GLOW EC Quick-glow System
H/AIM EL Headlamp Aiming Control
HEATER HA Heater
H/LAMP EL Headlamp
HLC EL Headlamp Washer
HO2S EC Heated Oxygen Sensor
HORN EL Horn
H/SEAT EL Heated SeatCode Section Wiring Diagram Name
IGN EC Ignition System
IGN/SG EC Ignition Signal
ILL EL Illumination
INJECT EC Injector
INT/L EL Spot Lamp
KS EC Knock Sensor
LOAD EC Electric Load Signal
LPSV AT Line Pressure Solenoid Valve
MAFS EC Mass Air Flow Sensor
MAIN EC, ATMain Power Supply and Ground Cir-
cuit
METER ELSpeedometer, Tachometer, Temp.
and Fuel Gauges
MIL/DL ECMIL and Data Link Connector For
CONSULT
MIRROR EL Power Door Mirror
MULTI EL Multi-remote Control System
NATS EL Nissan Anti-theft System
NONDTC AT Non-detectable Items
OVRCSV AT Overrun Clutch Solenoid Valve
P/ANT EL Power Antenna
PGC/V ECEVAP Canister Purge
Control Solenoid Valve
PLA EC Partial Load Advance Control
PNP/SW EC Park/Neutral Position Switch
POWER EL Power Supply Routing
PST/SW EC Power Steering Oil Pressure Switch
R/FOG EL Rear Fog Lamp
ROOM/L EL Interior Room Lamp
SHIFT AT Shift Lock System
SSV/A AT Shift Solenoid Valve A
SSV/B AT Shift Solenoid Valve B
SRS RS Supplemental Restraint System
S/SIG EC Start Signal
START EL Starting System
STOP/L EL Stop Lamp
SWL/V ECSwirl Control Valve Control Solenoid
Valve
TAIL/L EL Parking, License and Tail Lamps
TCV ATTorque Converter Clutch Solenoid
Valve
WIRING DIAGRAM CODES (CELL CODES)
EL-2171

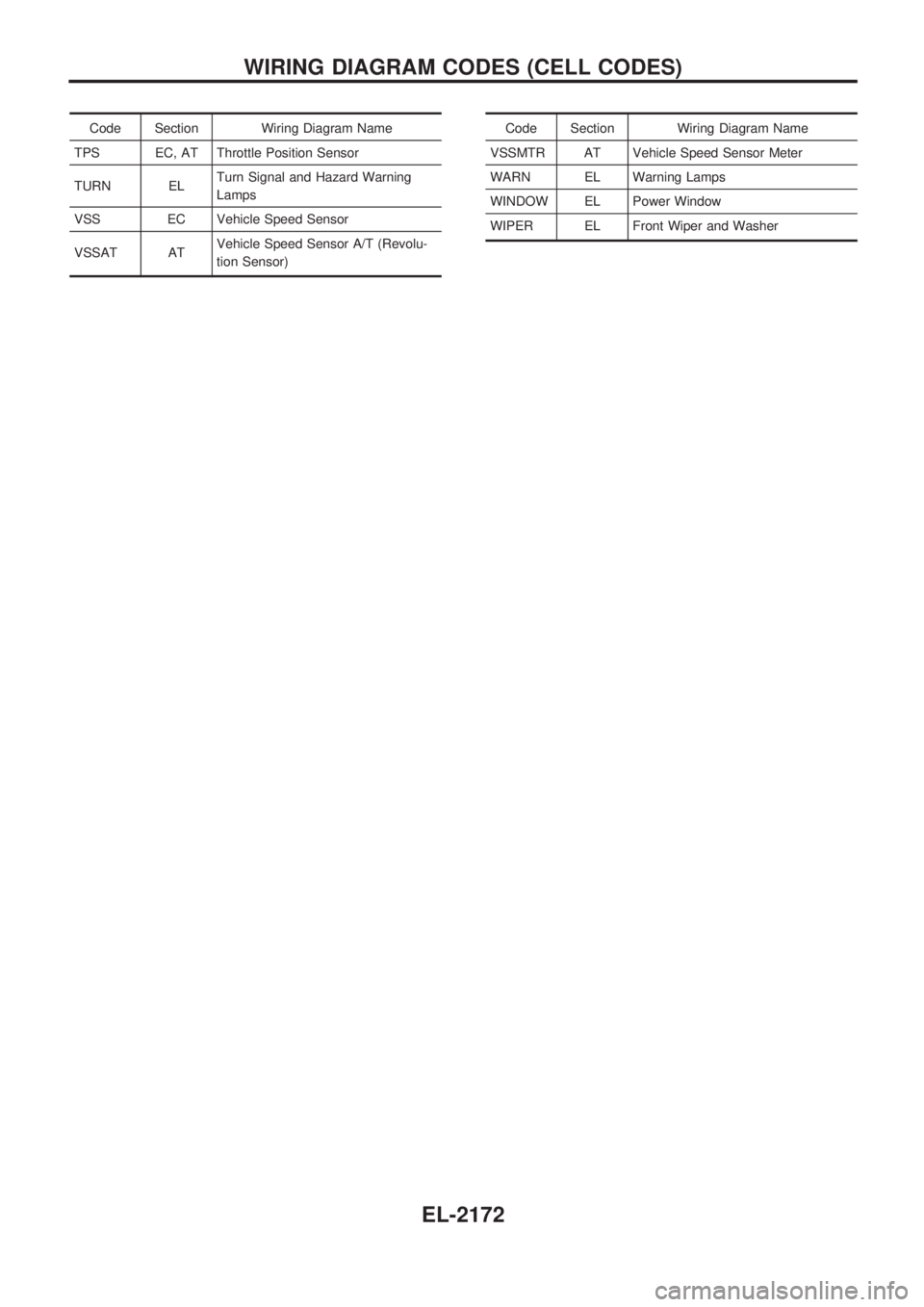

Code Section Wiring Diagram Name
TPS EC, AT Throttle Position Sensor
TURN ELTurn Signal and Hazard Warning
Lamps
VSS EC Vehicle Speed Sensor
VSSAT ATVehicle Speed Sensor A/T (Revolu-
tion Sensor)Code Section Wiring Diagram Name
VSSMTR AT Vehicle Speed Sensor Meter
WARN EL Warning Lamps
WINDOW EL Power Window
WIPER EL Front Wiper and Washer
WIRING DIAGRAM CODES (CELL CODES)
EL-2172

ENGINE MECHANICAL
SECTION
EM
CONTENTS
TD engine KA24DE engine
EM

ENGINE MECHANICAL
SECTION
EM
MODIFICATION NOTICE:

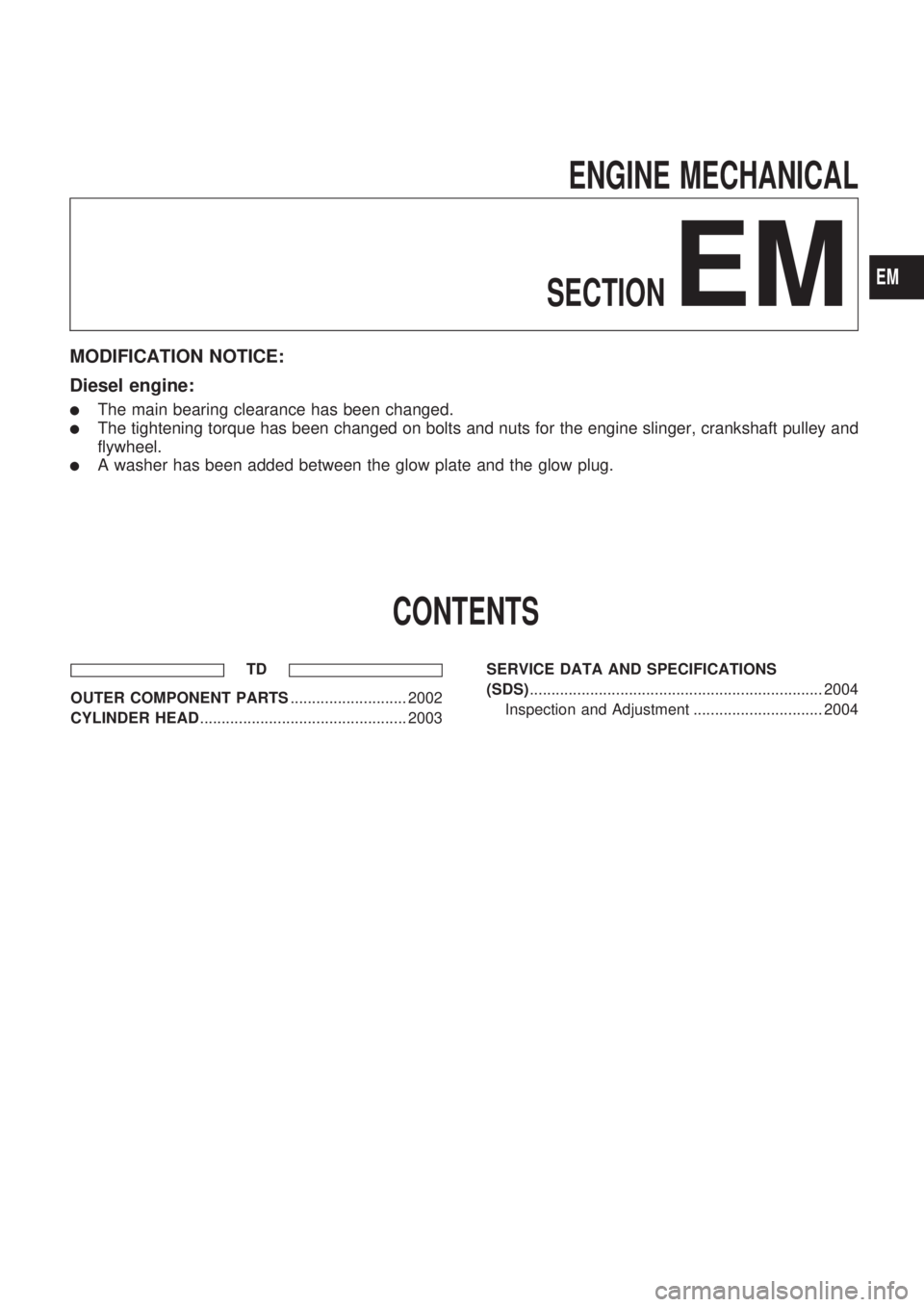

Diesel engine:
lThe main bearing clearance has been changed.
lThe tightening torque has been changed on bolts and nuts for the engine slinger, crankshaft pulley and
flywheel.
lA washer has been added between the glow plate and the glow plug.
CONTENTS
TD
OUTER COMPONENT PARTS........................... 2002
CYLINDER HEAD................................................ 2003SERVICE DATA AND SPECIFICATIONS
(SDS).................................................................... 2004
Inspection and Adjustment .............................. 2004
EM

NEM342

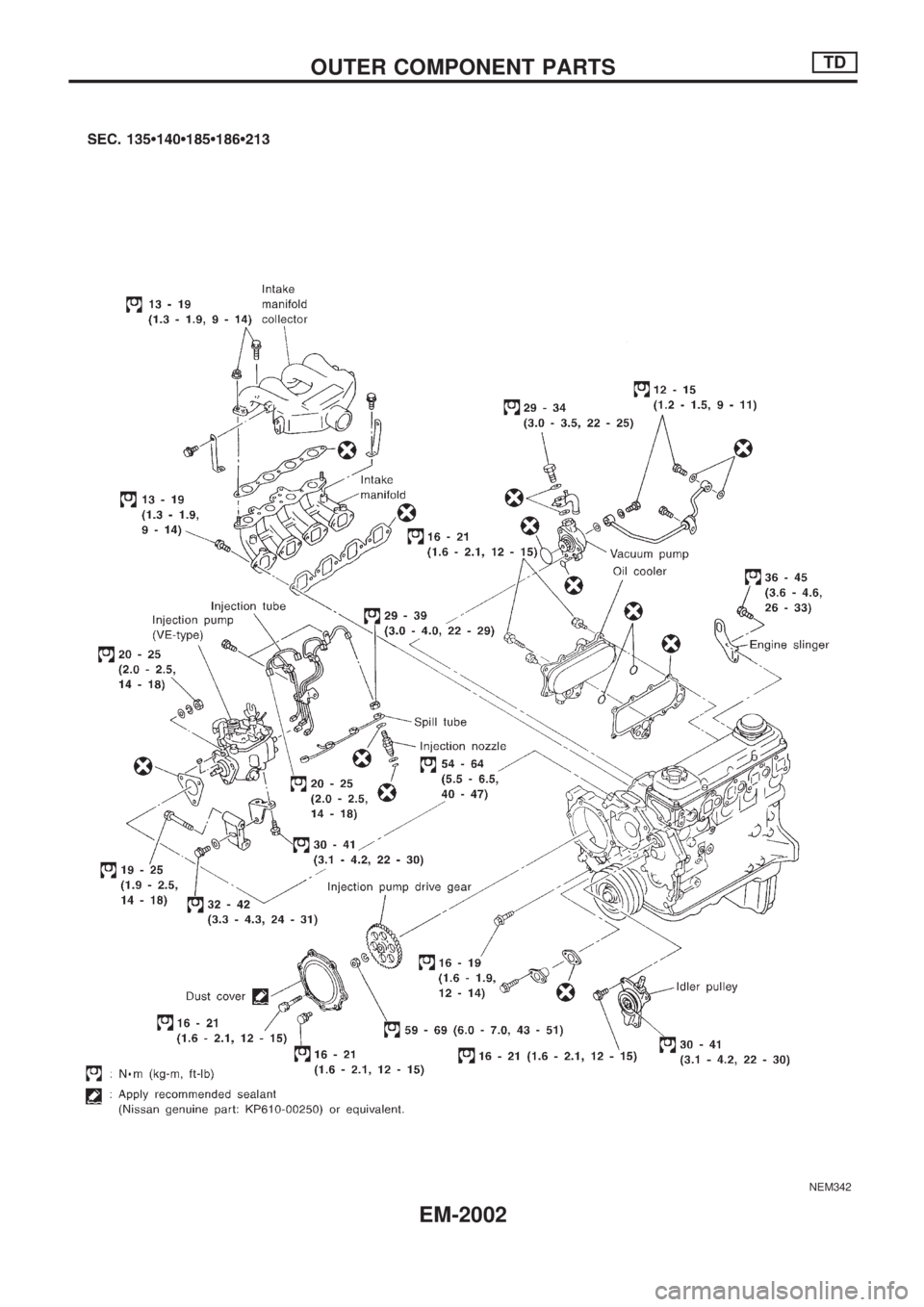

OUTER COMPONENT PARTSTD
EM-2002

DEM144

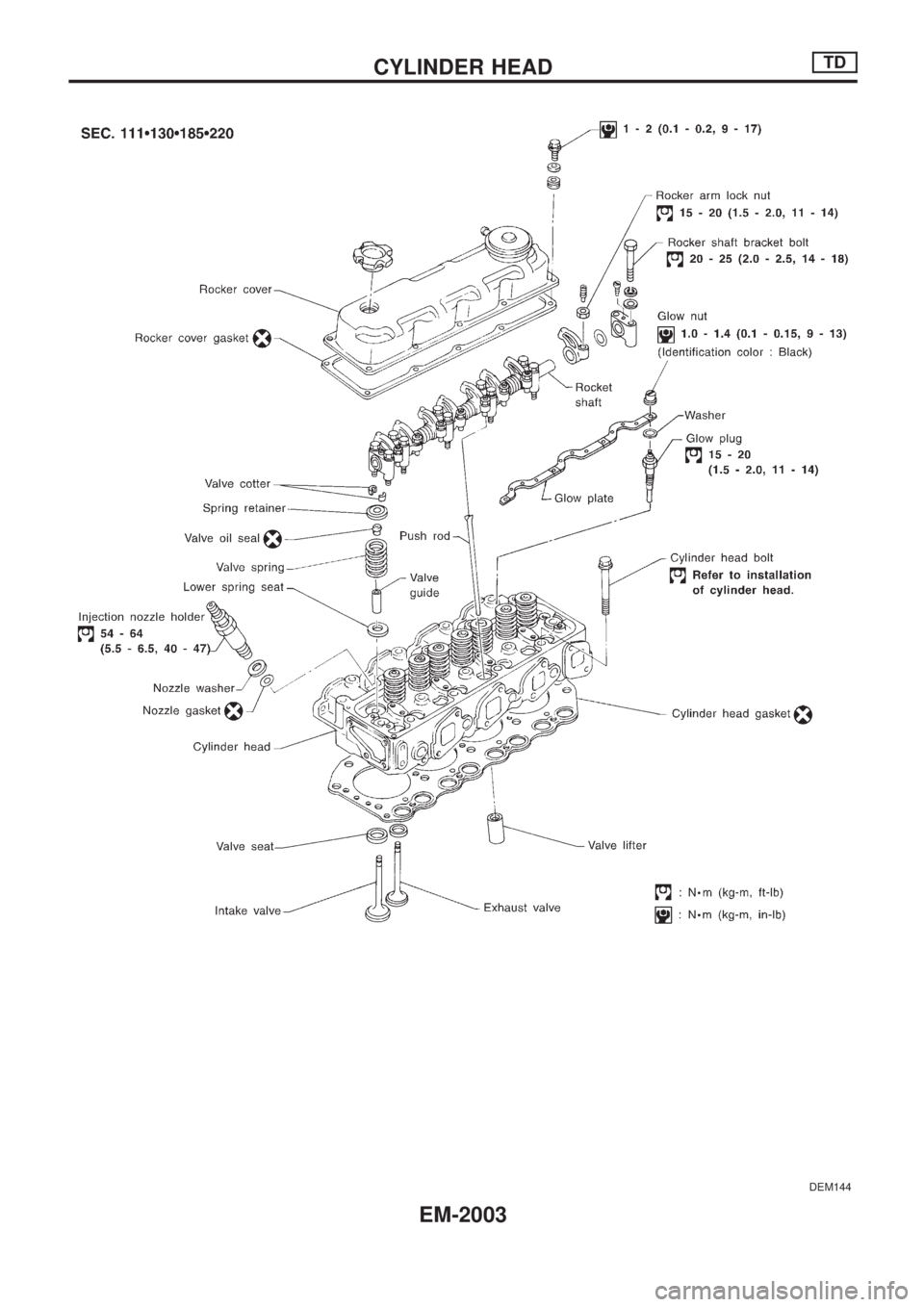

CYLINDER HEADTD
EM-2003

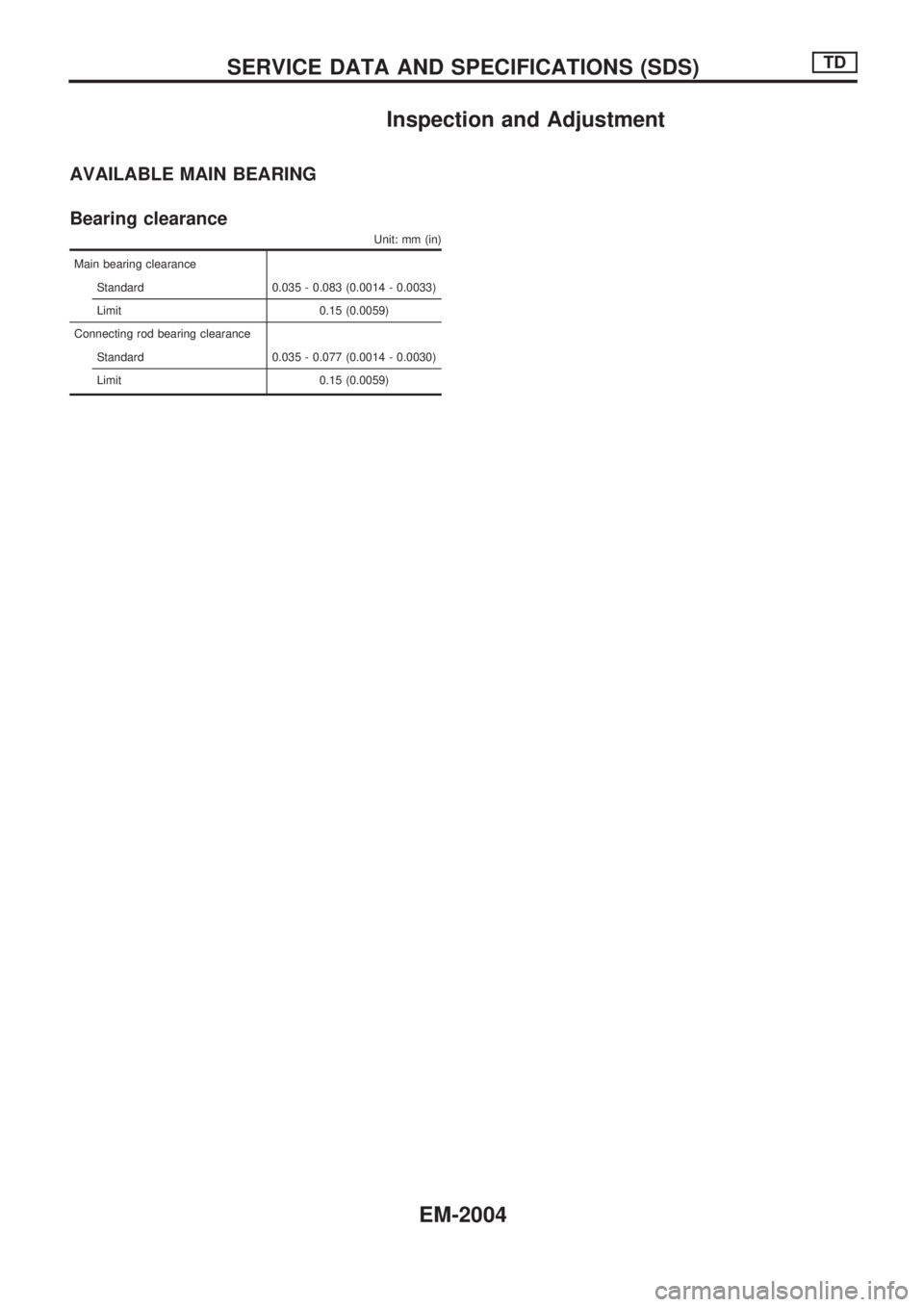

Inspection and Adjustment
AVAILABLE MAIN BEARING
Bearing clearance
Unit: mm (in)
Main bearing clearance
Standard 0.035 - 0.083 (0.0014 - 0.0033)
Limit 0.15 (0.0059)
Connecting rod bearing clearance
Standard 0.035 - 0.077 (0.0014 - 0.0030)
Limit 0.15 (0.0059)
SERVICE DATA AND SPECIFICATIONS (SDS)TD
EM-2004

ENGINE MECHANICAL
SECTION
EM
MODIFICATION NOTICE:

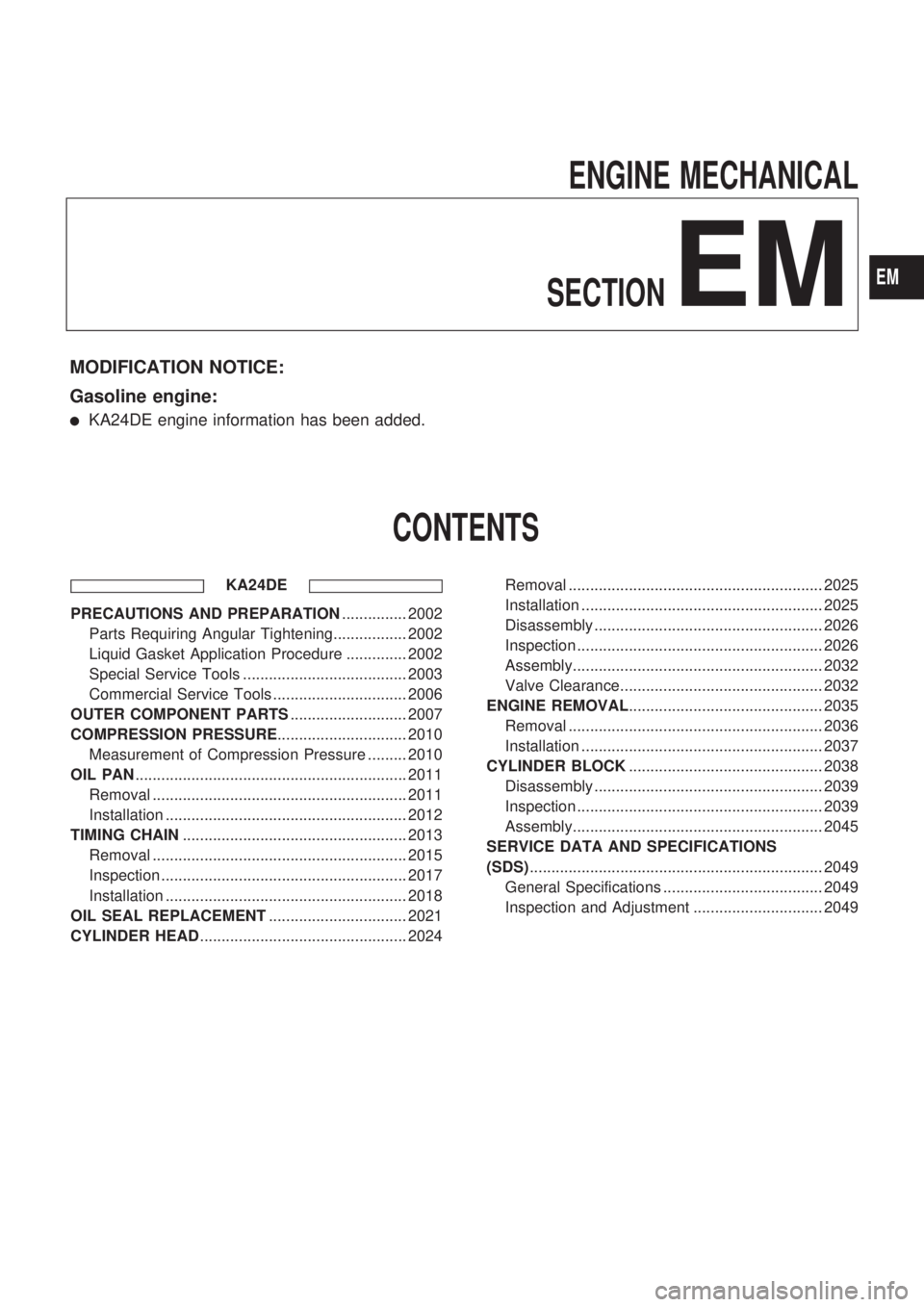

Gasoline engine:
lKA24DE engine information has been added.
CONTENTS
KA24DE
PRECAUTIONS AND PREPARATION............... 2002
Parts Requiring Angular Tightening................. 2002
Liquid Gasket Application Procedure .............. 2002
Special Service Tools ...................................... 2003
Commercial Service Tools ............................... 2006
OUTER COMPONENT PARTS........................... 2007
COMPRESSION PRESSURE.............................. 2010
Measurement of Compression Pressure ......... 2010
OIL PAN............................................................... 2011
Removal ........................................................... 2011
Installation ........................................................ 2012
TIMING CHAIN.................................................... 2013
Removal ........................................................... 2015
Inspection ......................................................... 2017
Installation ........................................................ 2018
OIL SEAL REPLACEMENT................................ 2021
CYLINDER HEAD................................................ 2024Removal ........................................................... 2025
Installation ........................................................ 2025
Disassembly ..................................................... 2026
Inspection ......................................................... 2026
Assembly.......................................................... 2032
Valve Clearance............................................... 2032
ENGINE REMOVAL............................................. 2035
Removal ........................................................... 2036
Installation ........................................................ 2037
CYLINDER BLOCK............................................. 2038
Disassembly ..................................................... 2039
Inspection ......................................................... 2039
Assembly.......................................................... 2045
SERVICE DATA AND SPECIFICATIONS
(SDS).................................................................... 2049
General Specifications ..................................... 2049
Inspection and Adjustment .............................. 2049
EM

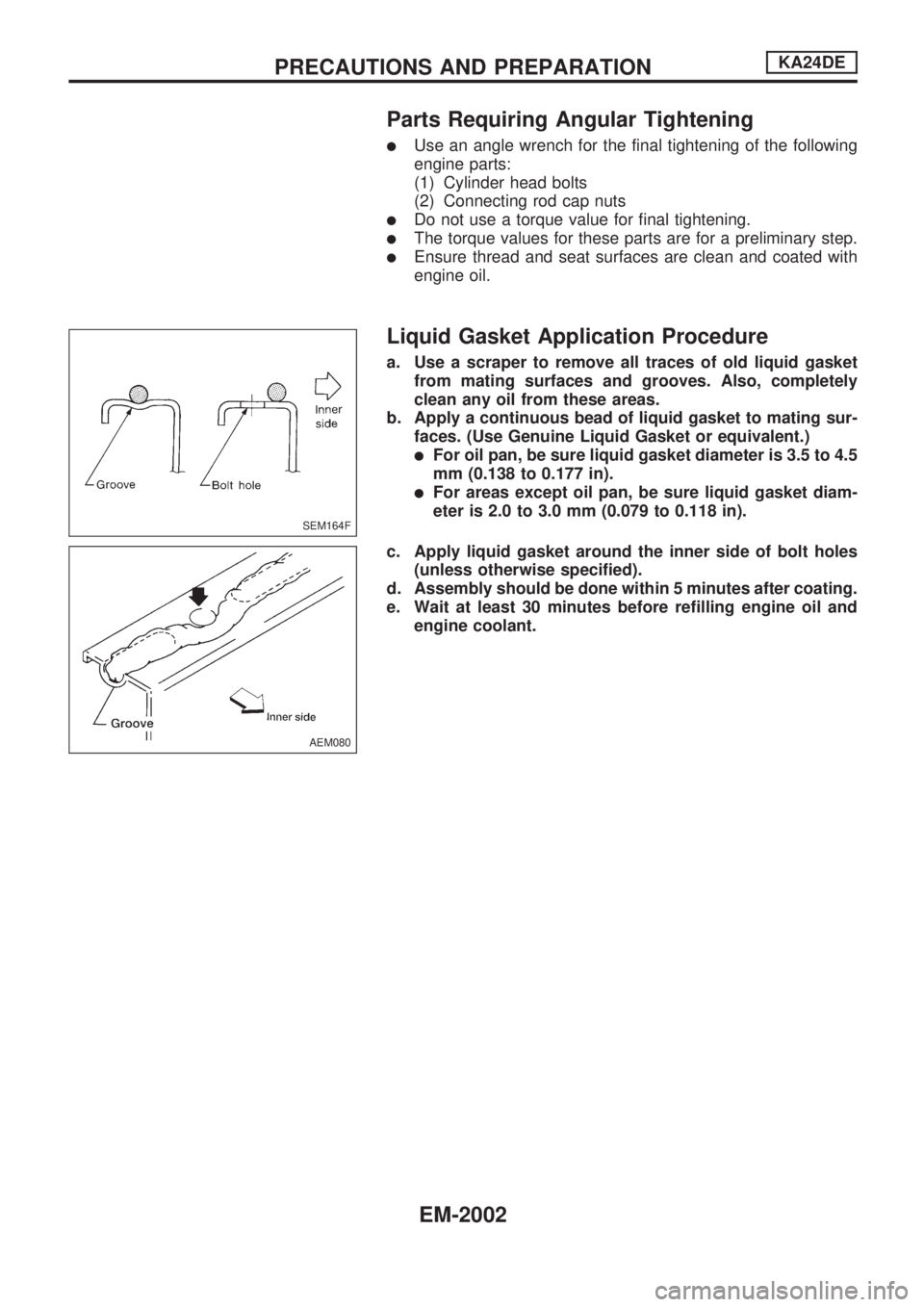

Parts Requiring Angular Tightening
lUse an angle wrench for the final tightening of the following
engine parts:
(1) Cylinder head bolts
(2) Connecting rod cap nuts
lDo not use a torque value for final tightening.
lThe torque values for these parts are for a preliminary step.
lEnsure thread and seat surfaces are clean and coated with
engine oil.
Liquid Gasket Application Procedure
a. Use a scraper to remove all traces of old liquid gasket
from mating surfaces and grooves. Also, completely
clean any oil from these areas.
b. Apply a continuous bead of liquid gasket to mating sur-
faces. (Use Genuine Liquid Gasket or equivalent.)
lFor oil pan, be sure liquid gasket diameter is 3.5 to 4.5
mm (0.138 to 0.177 in).
lFor areas except oil pan, be sure liquid gasket diam-
eter is 2.0 to 3.0 mm (0.079 to 0.118 in).
c. Apply liquid gasket around the inner side of bolt holes
(unless otherwise specified).
d. Assembly should be done within 5 minutes after coating.
e. Wait at least 30 minutes before refilling engine oil and
engine coolant.
SEM164F
AEM080
PRECAUTIONS AND PREPARATIONKA24DE
EM-2002
