NISSAN PICK-UP 2003 Owner's Manual

GEC384A
AIR CONDITIONER CONTROLYD25DDTi
Wiring Diagram (Cont'd)
EC-4017

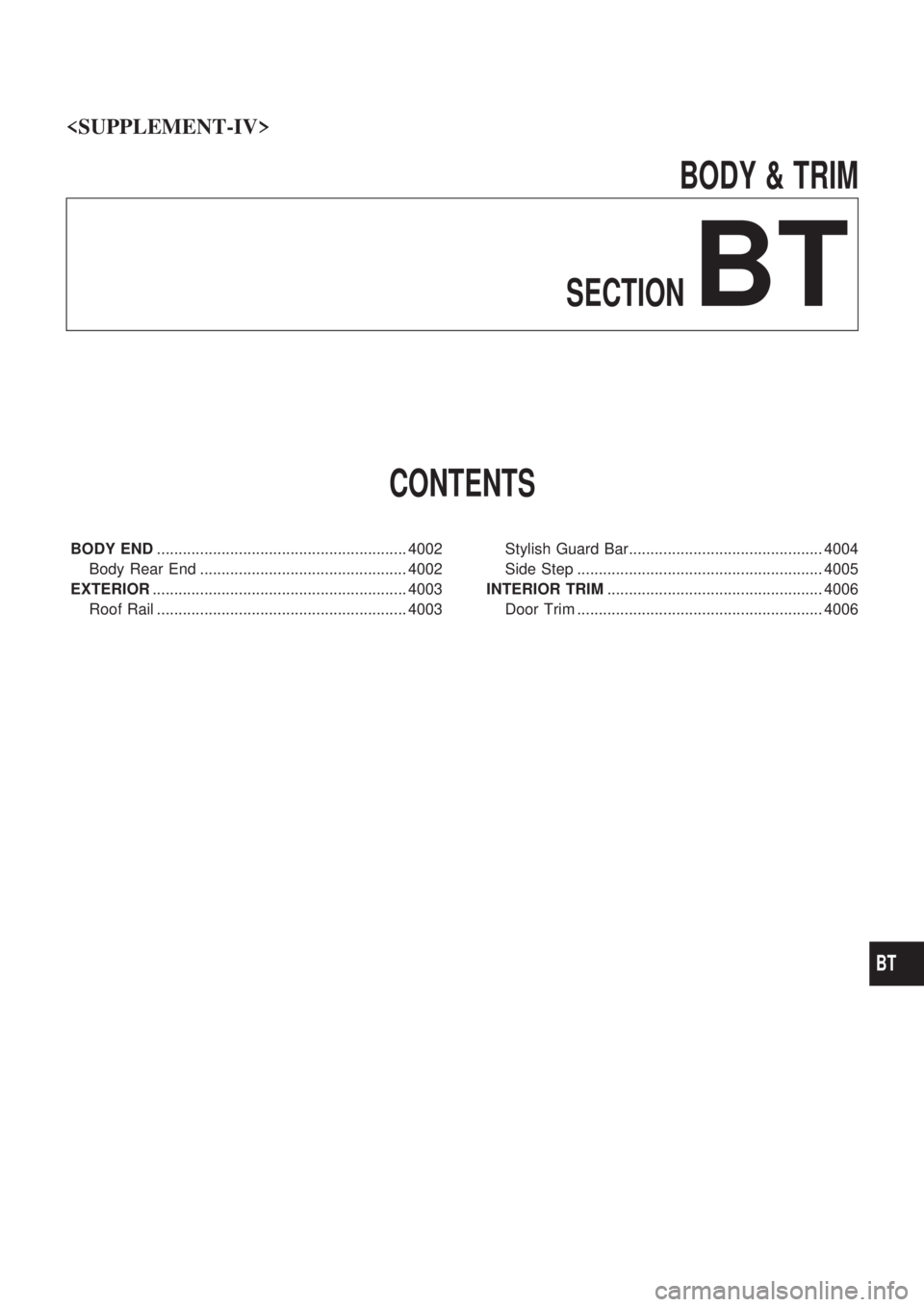

BODY & TRIM
SECTION
BT
CONTENTS
BODY END.......................................................... 4002
Body Rear End ................................................ 4002
EXTERIOR........................................................... 4003
Roof Rail .......................................................... 4003Stylish Guard Bar............................................. 4004
Side Step ......................................................... 4005
INTERIOR TRIM.................................................. 4006
Door Trim ......................................................... 4006

BT

Body Rear End
REMOVAL Ð Rear bumper assembly
V1Remove bolts securing bumper side stay.
V2Extract bumper assembly.
PIIA7294E
BODY END
BT-4002

Roof Rail
REMOVAL Ð Roof rail assembly
V1Remove nuts of roof rail (front).
V2Remove nuts of roof rail (rear).
V3Remove roof rail assembly.
PIIA6341E
EXTERIOR
BT-4003

Stylish Guard Bar
REMOVAL Ð Stylish guard bar assembly
V1Remove nuts of guard bar (left).
V2Remove nuts of guard bar (right).
V3Remove bolt of guard bar (right).
V4Remove stylish guard bar assembly.
PIIA6340E
EXTERIOR
BT-4004

Side Step
REMOVAL Ð Side step assembly
V1Remove front kicking plate (left/right).
V2Remove rear kicking plate (left/right).
V3Remove dash side finisher (left/right).
V4Remove front seat (left/right).
V5Disconnect front seat belt harness connector (right).
V6Remove bolts of side step (front).
V7Remove bolts of side step (rear).
V8Remove bolts of side step (center).
V9Remove side step assembly.
PIIA6339E
EXTERIOR
BT-4005

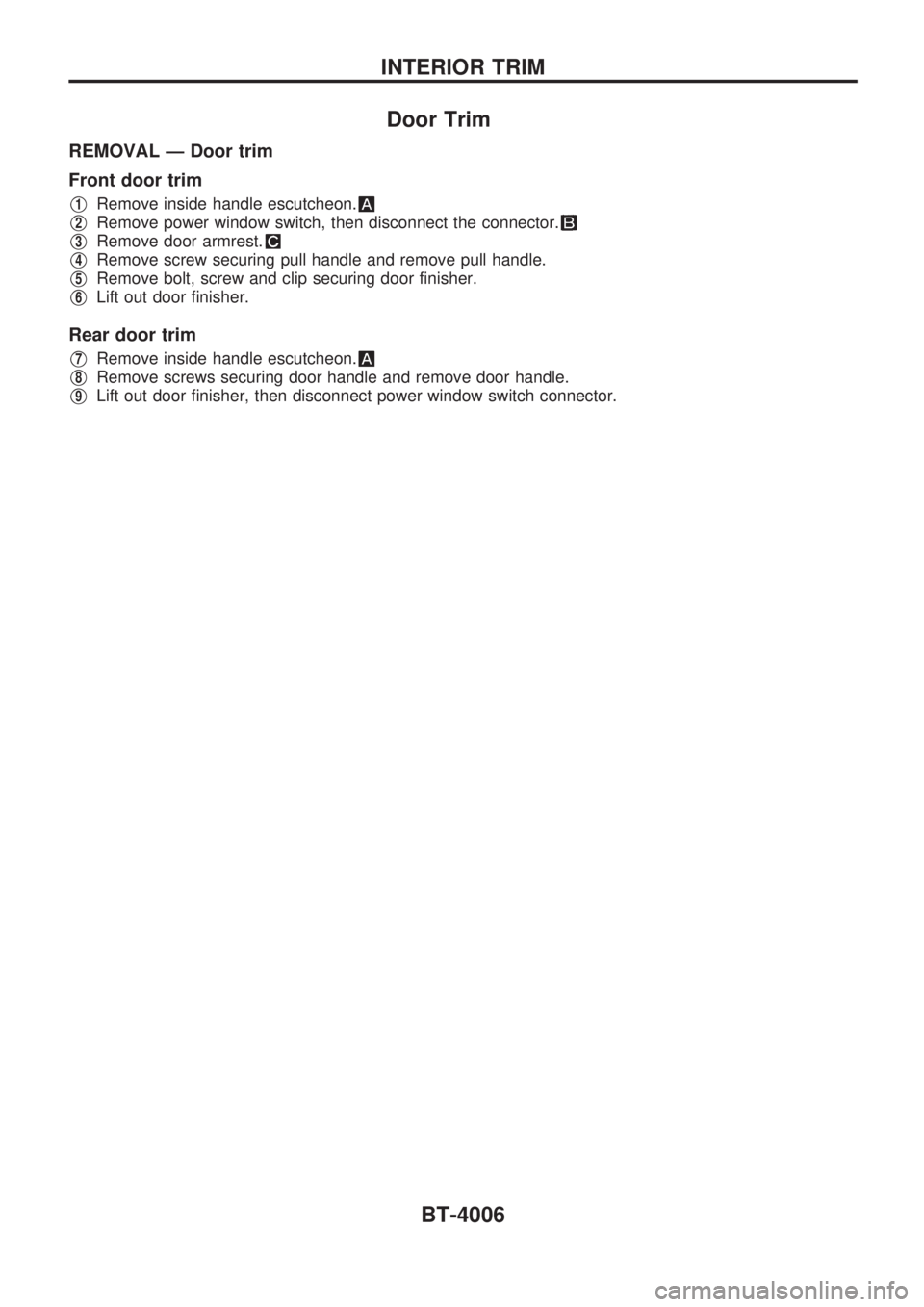

Door Trim
REMOVAL Ð Door trim
Front door trim
V1Remove inside handle escutcheon.
V2Remove power window switch, then disconnect the connector.
V3Remove door armrest.
V4Remove screw securing pull handle and remove pull handle.
V5Remove bolt, screw and clip securing door finisher.
V6Lift out door finisher.
Rear door trim
V7Remove inside handle escutcheon.
V8Remove screws securing door handle and remove door handle.
V9Lift out door finisher, then disconnect power window switch connector.
INTERIOR TRIM
BT-4006

SBT437
INTERIOR TRIM

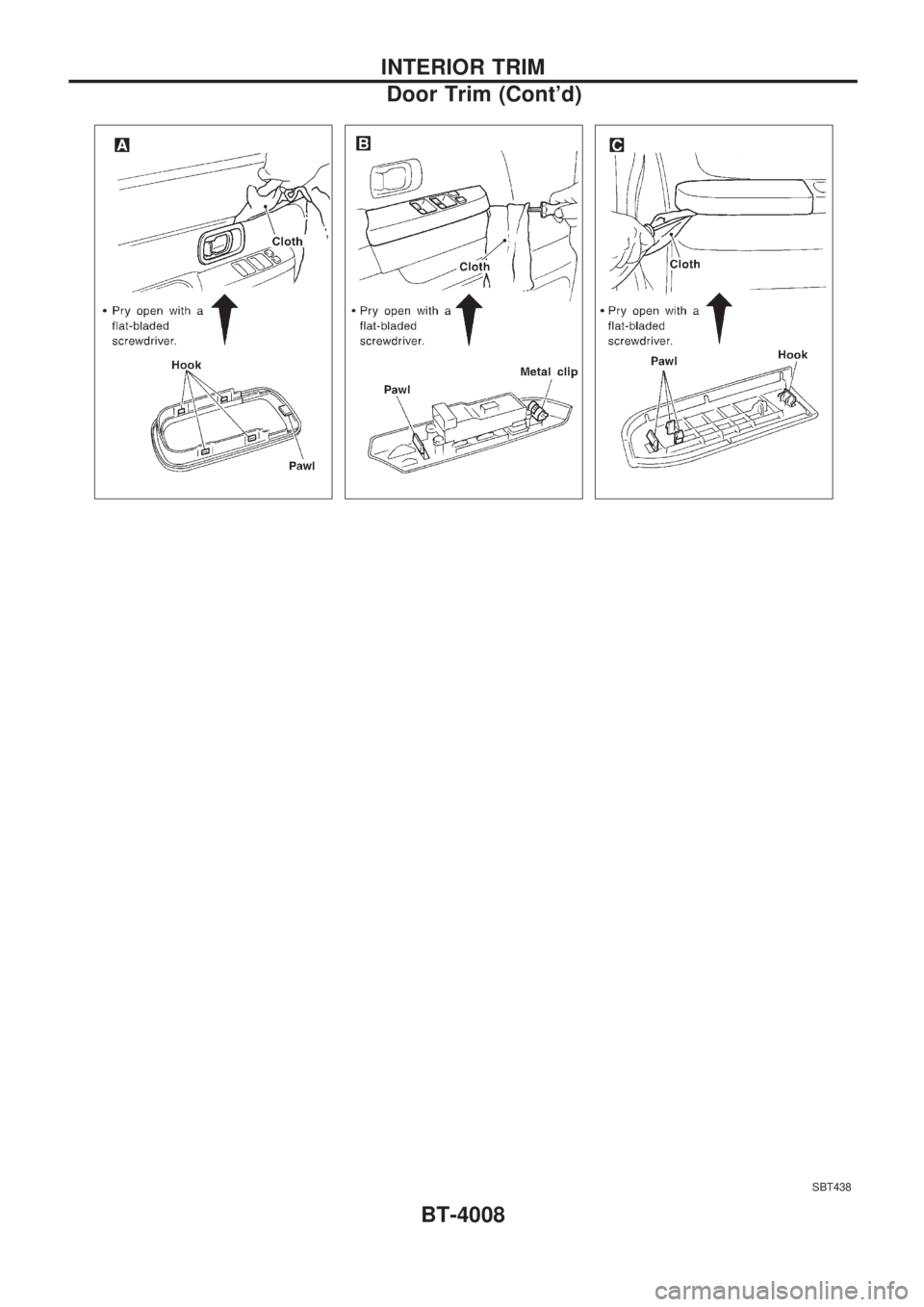

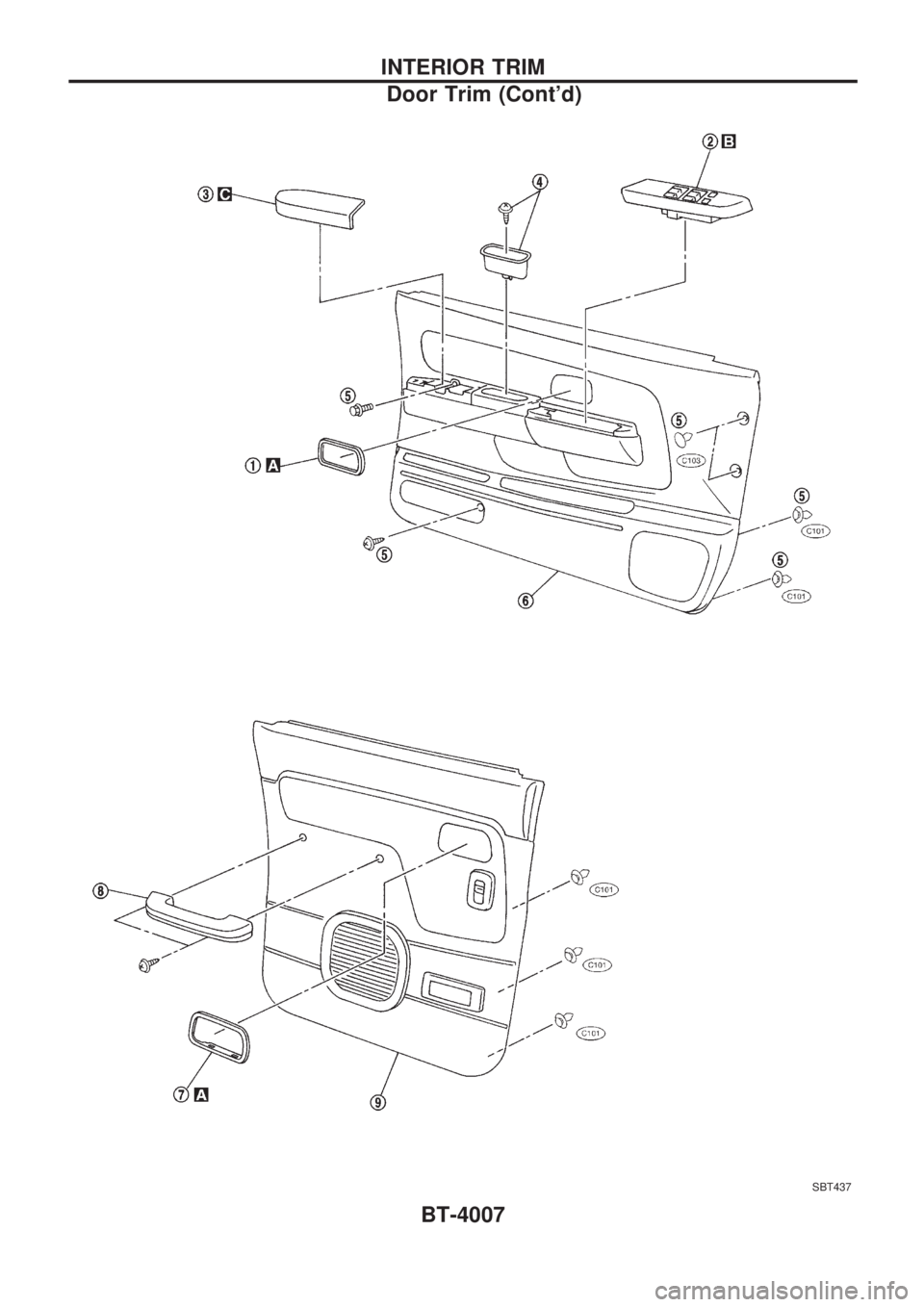

Door Trim (Cont'd)
BT-4007

SBT438
INTERIOR TRIM
Door Trim (Cont'd)
BT-4008

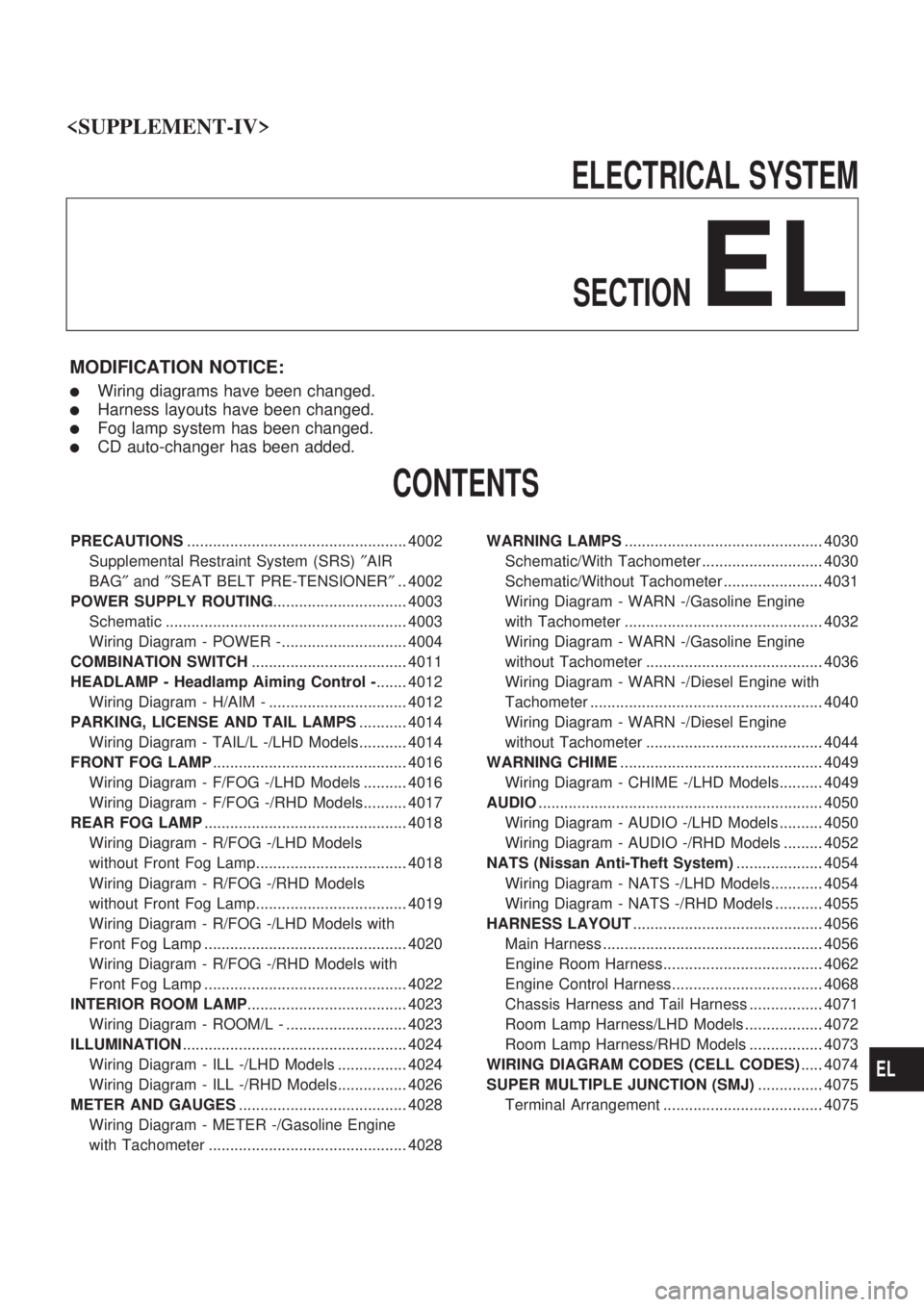

ELECTRICAL SYSTEM
SECTION
EL
MODIFICATION NOTICE:
lWiring diagrams have been changed.
lHarness layouts have been changed.
lFog lamp system has been changed.
lCD auto-changer has been added.
CONTENTS
PRECAUTIONS................................................... 4002
Supplemental Restraint System (SRS)²AIR
BAG²and²SEAT BELT PRE-TENSIONER².. 4002
POWER SUPPLY ROUTING............................... 4003
Schematic ........................................................ 4003
Wiring Diagram - POWER -............................. 4004
COMBINATION SWITCH.................................... 4011
HEADLAMP - Headlamp Aiming Control -....... 4012
Wiring Diagram - H/AIM - ................................ 4012
PARKING, LICENSE AND TAIL LAMPS........... 4014
Wiring Diagram - TAIL/L -/LHD Models........... 4014
FRONT FOG LAMP............................................. 4016
Wiring Diagram - F/FOG -/LHD Models .......... 4016
Wiring Diagram - F/FOG -/RHD Models.......... 4017
REAR FOG LAMP............................................... 4018
Wiring Diagram - R/FOG -/LHD Models
without Front Fog Lamp................................... 4018
Wiring Diagram - R/FOG -/RHD Models
without Front Fog Lamp................................... 4019
Wiring Diagram - R/FOG -/LHD Models with
Front Fog Lamp ............................................... 4020
Wiring Diagram - R/FOG -/RHD Models with
Front Fog Lamp ............................................... 4022
INTERIOR ROOM LAMP..................................... 4023
Wiring Diagram - ROOM/L - ............................ 4023
ILLUMINATION.................................................... 4024
Wiring Diagram - ILL -/LHD Models ................ 4024
Wiring Diagram - ILL -/RHD Models................ 4026
METER AND GAUGES....................................... 4028
Wiring Diagram - METER -/Gasoline Engine
with Tachometer .............................................. 4028WARNING LAMPS.............................................. 4030
Schematic/With Tachometer ............................ 4030
Schematic/Without Tachometer ....................... 4031
Wiring Diagram - WARN -/Gasoline Engine
with Tachometer .............................................. 4032
Wiring Diagram - WARN -/Gasoline Engine
without Tachometer ......................................... 4036
Wiring Diagram - WARN -/Diesel Engine with
Tachometer ...................................................... 4040
Wiring Diagram - WARN -/Diesel Engine
without Tachometer ......................................... 4044
WARNING CHIME............................................... 4049
Wiring Diagram - CHIME -/LHD Models.......... 4049
AUDIO.................................................................. 4050
Wiring Diagram - AUDIO -/LHD Models .......... 4050
Wiring Diagram - AUDIO -/RHD Models ......... 4052
NATS (Nissan Anti-Theft System).................... 4054
Wiring Diagram - NATS -/LHD Models............ 4054
Wiring Diagram - NATS -/RHD Models ........... 4055
HARNESS LAYOUT............................................ 4056
Main Harness ................................................... 4056
Engine Room Harness..................................... 4062
Engine Control Harness................................... 4068
Chassis Harness and Tail Harness ................. 4071
Room Lamp Harness/LHD Models .................. 4072
Room Lamp Harness/RHD Models ................. 4073
WIRING DIAGRAM CODES (CELL CODES)..... 4074
SUPER MULTIPLE JUNCTION (SMJ)............... 4075
Terminal Arrangement ..................................... 4075

EL
