NISSAN PRIMERA 1999 Electronic Repair Manual

Throttle Position SensorNCEC0477
Throttle valve conditions Resistance [at 25ÉC (77ÉF)]
Completely closedApproximately 0.6 kW
Partially open0.6 - 4.0 kW
Completely openApproximately 4.0 kW
Heated Oxygen Sensor 1 (Front) HeaterNCEC0478
Resistance [at 25ÉC (77ÉF)]W2.3 - 4.3
Intake Air Temperature SensorNCEC0480
Temperature ÉC (ÉF) Resistance kW
20 (68) 2.2 - 2.6
80 (176) 0.31 - 0.37
EVAP Canister Purge Volume Control ValveNCEC0481
Resistance [at 20ÉC (68ÉF)]W31-35
Heated Oxygen Sensor 1 (Rear) HeaterNCEC0483
Resistance [at 25ÉC (77ÉF)]W2.3 - 4.3
Crankshaft Position Sensor (OBD)NCEC0575
Resistance [at 25ÉC (77ÉF)]W166 - 204

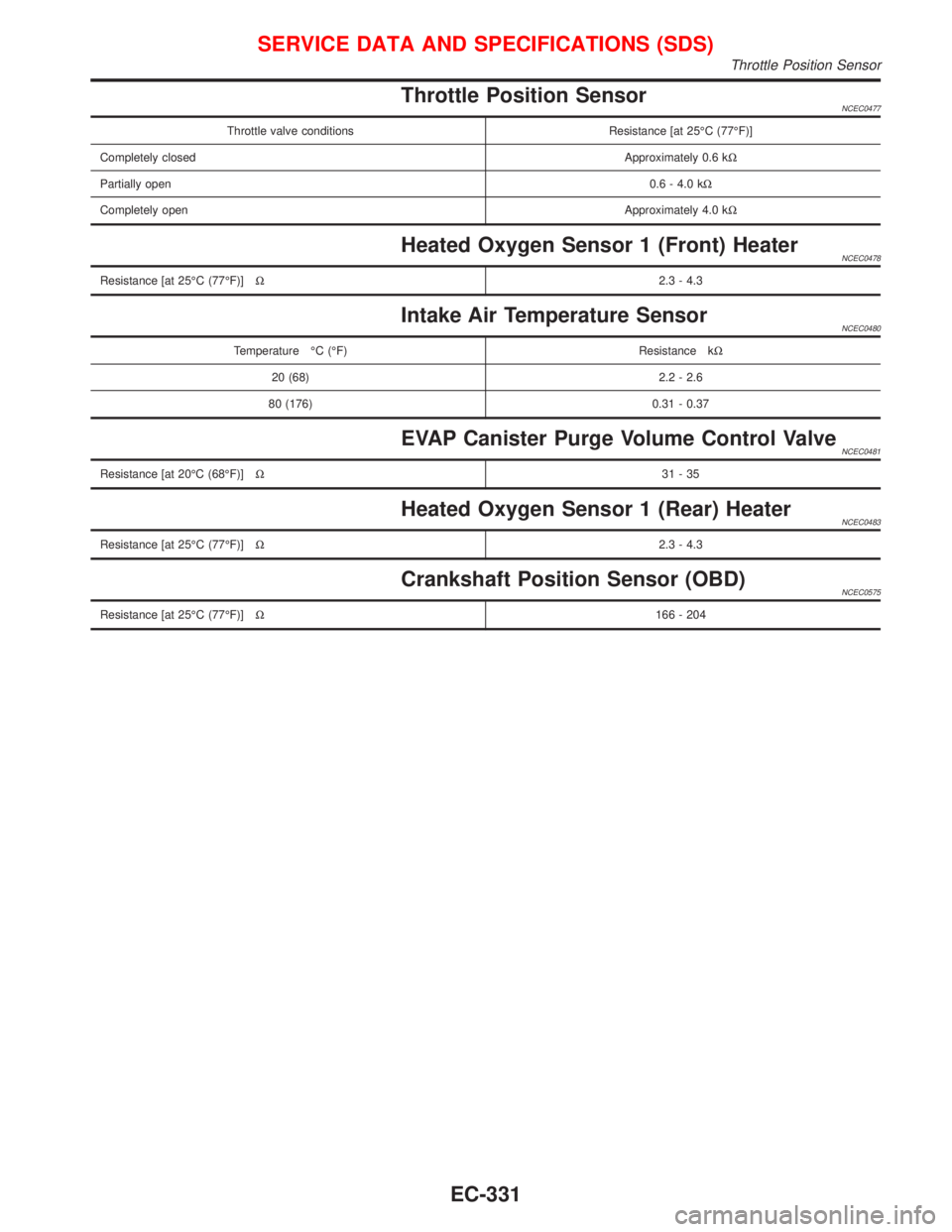

SERVICE DATA AND SPECIFICATIONS (SDS)
Throttle Position Sensor
EC-331

NOTE
SERVICE DATA AND SPECIFICATIONS (SDS)
EC-332

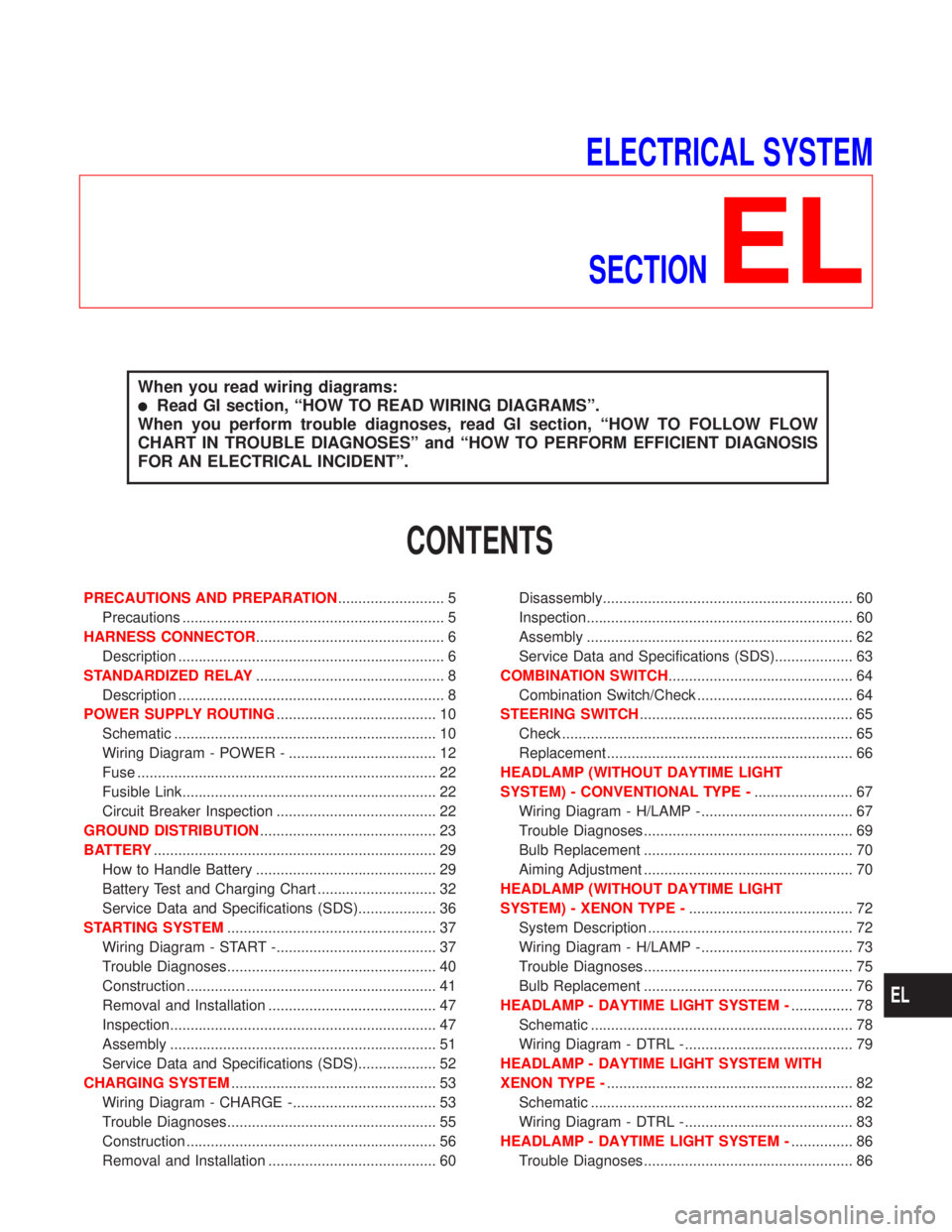

ELECTRICAL SYSTEM
SECTION
EL
When you read wiring diagrams:

Read GI section, “HOW TO READ WIRING DIAGRAMS”.
When you perform trouble diagnoses, read GI section, “HOW TO FOLLOW FLOW
CHART IN TROUBLE DIAGNOSES” and “HOW TO PERFORM EFFICIENT DIAGNOSIS
FOR AN ELECTRICAL INCIDENT”.
CONTENTS

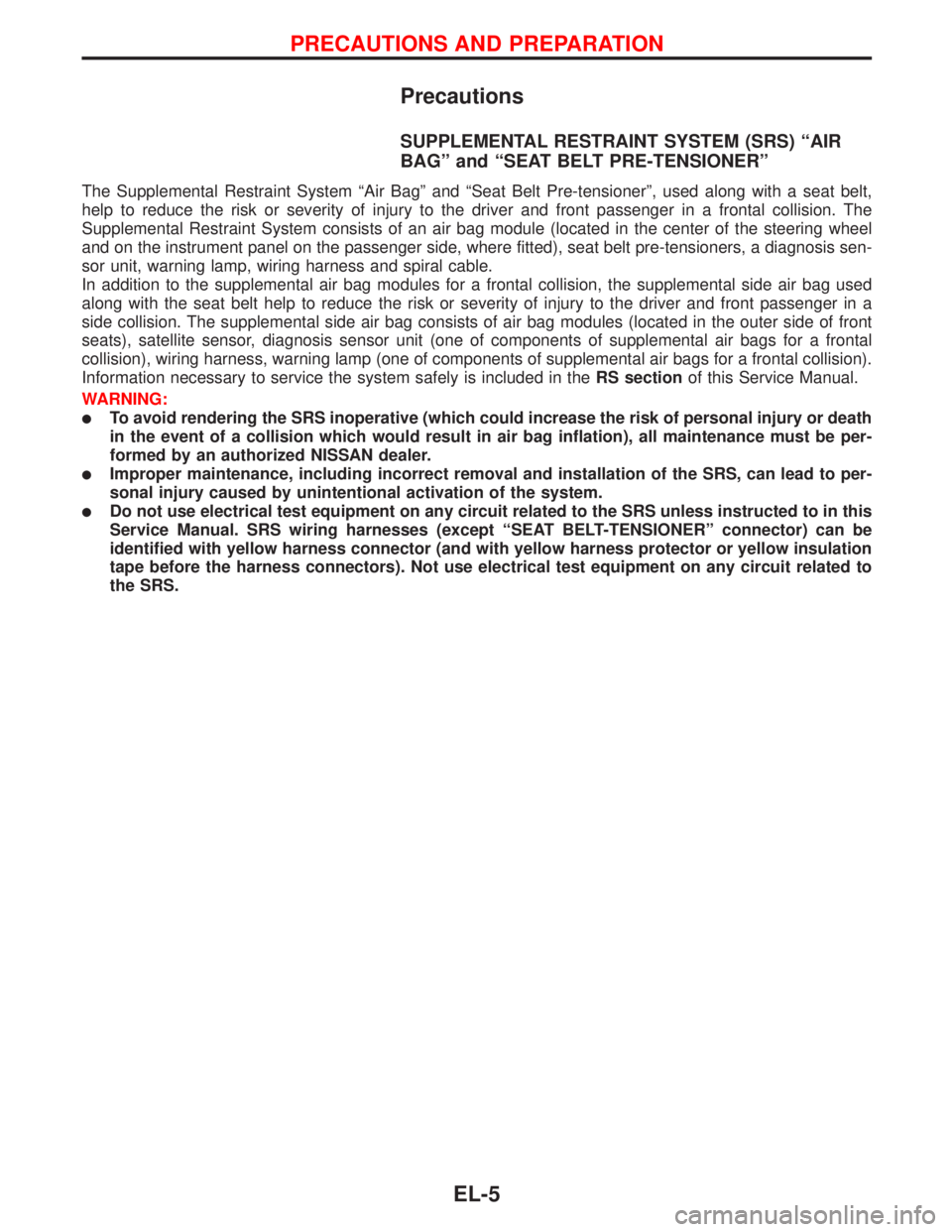

PRECAUTIONS AND PREPARATION.......................... 5
Precautions ................................................................ 5

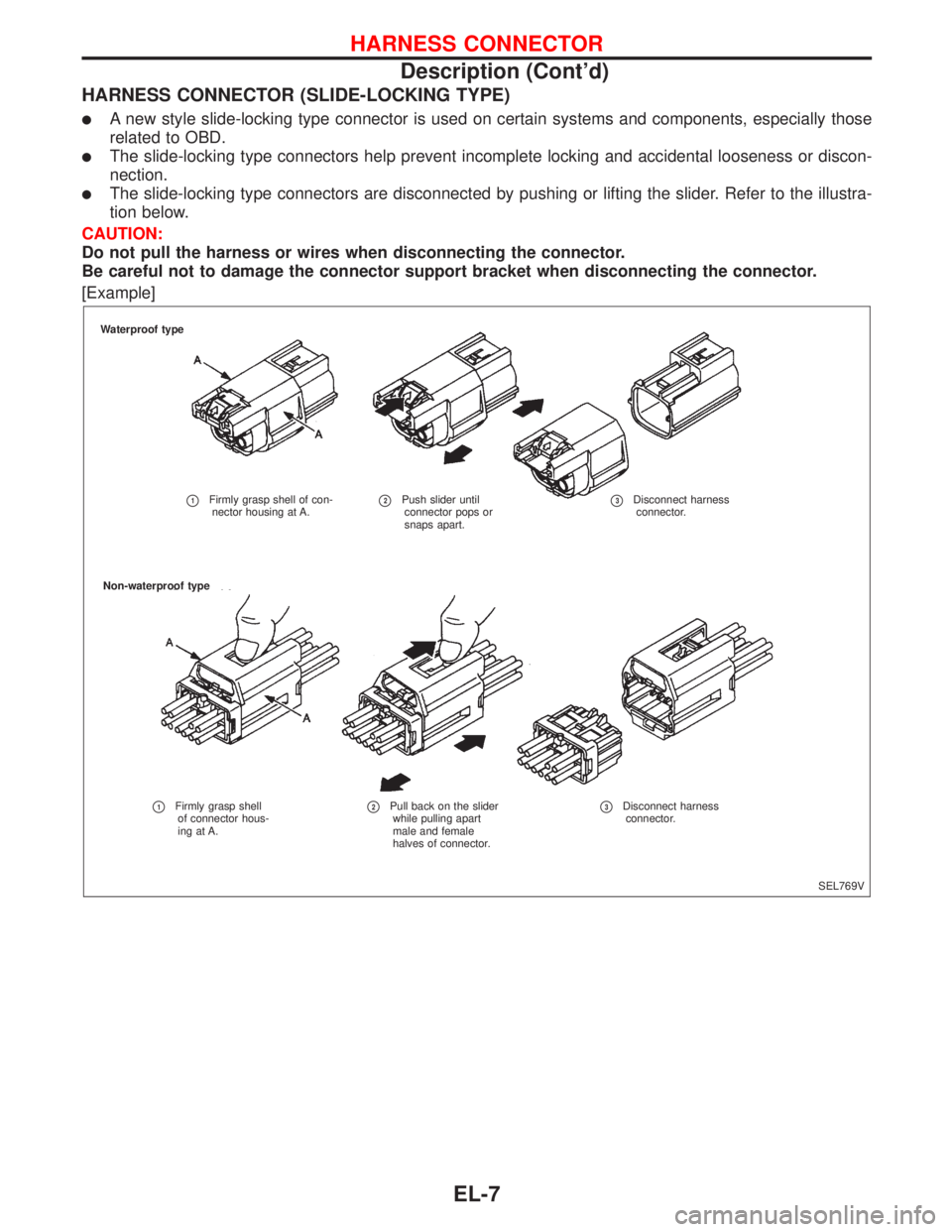

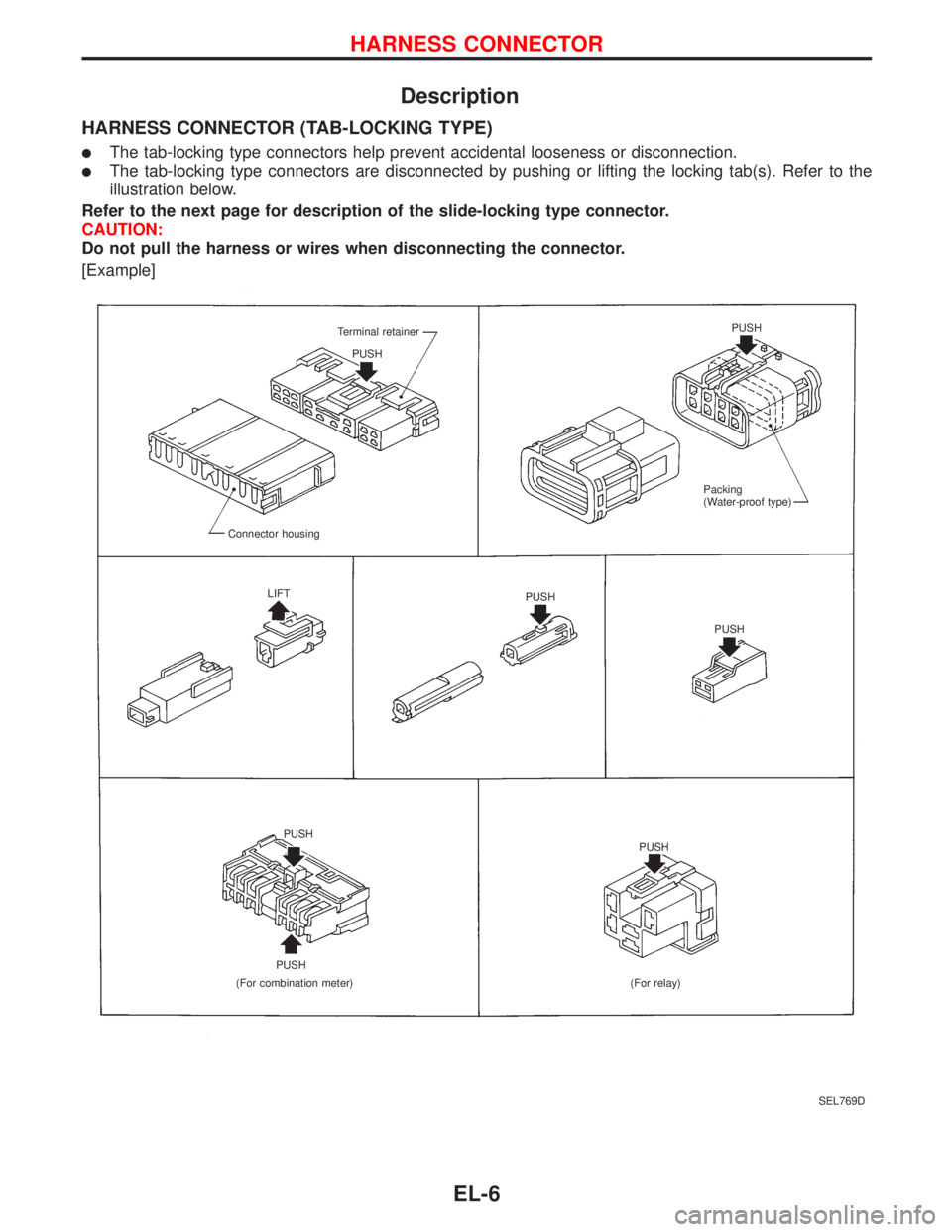

HARNESS CONNECTOR.............................................. 6
Description ................................................................. 6

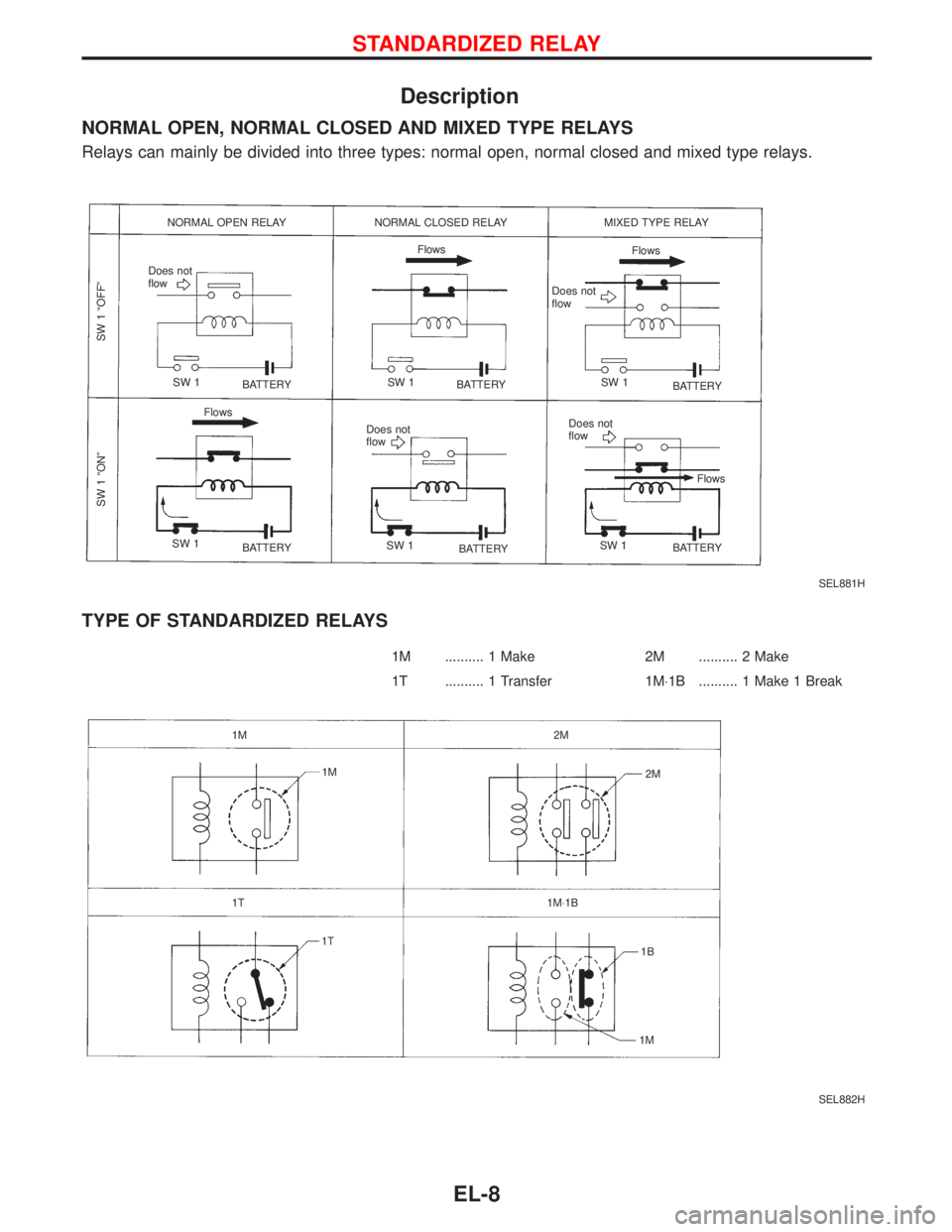

STANDARDIZED RELAY.............................................. 8
Description ................................................................. 8
POWER SUPPLY ROUTING....................................... 10
Schematic ................................................................ 10
Wiring Diagram - POWER - .................................... 12
Fuse ......................................................................... 22
Fusible Link.............................................................. 22
Circuit Breaker Inspection ....................................... 22
GROUND DISTRIBUTION........................................... 23
BATTERY..................................................................... 29
How to Handle Battery ............................................ 29
Battery Test and Charging Chart ............................. 32
Service Data and Specifications (SDS)................... 36
STARTING SYSTEM................................................... 37
Wiring Diagram - START -....................................... 37
Trouble Diagnoses................................................... 40
Construction ............................................................. 41
Removal and Installation ......................................... 47
Inspection................................................................. 47
Assembly ................................................................. 51
Service Data and Specifications (SDS)................... 52
CHARGING SYSTEM.................................................. 53
Wiring Diagram - CHARGE -................................... 53
Trouble Diagnoses................................................... 55
Construction ............................................................. 56
Removal and Installation ......................................... 60Disassembly............................................................. 60
Inspection................................................................. 60
Assembly ................................................................. 62
Service Data and Specifications (SDS)................... 63
COMBINATION SWITCH............................................. 64
Combination Switch/Check ...................................... 64
STEERING SWITCH.................................................... 65
Check ....................................................................... 65
Replacement ............................................................ 66
HEADLAMP (WITHOUT DAYTIME LIGHT
SYSTEM) - CONVENTIONAL TYPE -........................ 67
Wiring Diagram - H/LAMP -..................................... 67
Trouble Diagnoses................................................... 69
Bulb Replacement ................................................... 70
Aiming Adjustment ................................................... 70
HEADLAMP (WITHOUT DAYTIME LIGHT
SYSTEM) - XENON TYPE -........................................ 72
System Description .................................................. 72
Wiring Diagram - H/LAMP -..................................... 73
Trouble Diagnoses................................................... 75
Bulb Replacement ................................................... 76
HEADLAMP - DAYTIME LIGHT SYSTEM -............... 78
Schematic ................................................................ 78
Wiring Diagram - DTRL - ......................................... 79
HEADLAMP - DAYTIME LIGHT SYSTEM WITH
XENON TYPE -............................................................ 82
Schematic ................................................................ 82
Wiring Diagram - DTRL - ......................................... 83
HEADLAMP - DAYTIME LIGHT SYSTEM -............... 86
Trouble Diagnoses................................................... 86
EL

HEADLAMP - HEADLAMP AIMING CONTROL
(MANUAL) -................................................................. 87
Wiring Diagram - H/AIM - ........................................ 87
HEADLAMP - HEADLAMP AIMING CONTROL
(AUTO) -....................................................................... 91
System Description .................................................. 91
Initialisation .............................................................. 91
Component Parts and Harness ............................... 92
Wiring Diagram - H/AIM - ........................................ 93
Trouble Diagnosis .................................................... 95
Removal and Installation ......................................... 99
PARKING, LICENSE AND TAIL LAMPS.................. 100
Wiring Diagram - TAIL/L - ...................................... 100
STOP LAMP.............................................................. 104
Wiring Diagram - STOP - ...................................... 104
BACK-UP LAMP........................................................ 107
Wiring Diagram - BACK/L - ................................... 107
FRONT FOG LAMP.................................................... 110
Wiring Diagram - F/FOG - ...................................... 110
Aiming Adjustment .................................................. 111
Bulb Specifications ................................................. 111
REAR FOG LAMP...................................................... 112
Wiring Diagram - R/FOG -...................................... 112
TURN SIGNAL AND HAZARD WARNING LAMPS.. 117
Schematic ............................................................... 117
Wiring Diagram - TURN - ....................................... 118
Trouble Diagnoses................................................. 123
ILLUMINATION.......................................................... 124
Schematic .............................................................. 124
Wiring Diagram - ILL - ........................................... 125
INTERIOR, SPOT, VANITY MIRROR AND
LUGGAGE ROOM LAMPS....................................... 130
System Description ................................................ 130
Schematic .............................................................. 131
Wiring Diagram - INT/L - ....................................... 132
BULB SPECIFICATIONS.......................................... 137
Headlamp............................................................... 137
Exterior Lamp ........................................................ 137
Interior Lamp.......................................................... 137
METER AND GAUGES............................................. 138
System Description ................................................ 138
Combination Meter ................................................ 139
Wiring Diagram - METER -/MODELS BEFORE
VIN - P11U0548750............................................... 141
Schematic .............................................................. 144
Wiring Diagram - METER -/M/T MODELS
AFTER VIN - P11U0548750.................................. 146
Wiring Diagram - METER -/CVT MODELS
AFTER VIN - P11U0548750.................................. 149
Combination Meter Self-Diagnosis ........................ 152
Trouble Diagnoses (Models before VIN -
P11U0548750) ....................................................... 155
Trouble Diagnoses (Models after VIN -
P11U0548750) ....................................................... 159
Fuel Level Sensor Unit Check............................... 164
QG & SR Engine Models ...................................... 164CD20T Engine Models .......................................... 164
Thermal Transmitter Check ................................... 164
WARNING LAMPS.................................................... 165
Warning Lamps/Schematic .................................... 165
Wiring Diagram - WARN - ..................................... 167
Electrical Components Inspection ......................... 179
WARNING CHIME..................................................... 180
System Description ................................................ 180
Wiring Diagram - CHIME - .................................... 181
Trouble Diagnoses................................................. 183
Electrical Components Inspection ......................... 185
FRONT WIPER AND WASHER................................ 186
System Description ................................................ 186
Wiring Diagram - WIPER - .................................... 188
Removal and Installation ....................................... 190
Front Washer Nozzle Adjustment .......................... 192
Front Washer Tube Layout .................................... 192
REAR WIPER AND WASHER.................................. 193
System Description ................................................ 193
Wiring Diagram - WIP/R -...................................... 195
Removal and Installation ....................................... 197
Washer Nozzle Adjustment ................................... 197
Washer Tube Layout ............................................. 199
Check Valve ........................................................... 199
HEADLAMP WASHER.............................................. 200
Wiring Diagram - HLC - ......................................... 200
Washer Tube Layout ............................................. 202
Check Valve ........................................................... 202
HORN, CIGARETTE LIGHTER AND CLOCK.......... 203
Wiring Diagram - HORN - ..................................... 203
REAR WINDOW DEFOGGER AND DOOR
MIRROR DEFOGGER............................................... 207
System Description ................................................ 207
Schematic .............................................................. 208
Wiring Diagram - DEF - ......................................... 209
Trouble Diagnoses................................................. 212
Electrical Components Inspection ......................... 213
Filament Check ...................................................... 213
Filament Repair ..................................................... 214
AUDIO........................................................................ 216
Anti-theft System ................................................... 216
Speed Dependent Volume Control ........................ 217
Personal Audio Settings ........................................ 217
Schematic .............................................................. 218
Wiring Diagram - AUDIO - ..................................... 219
Trouble Diagnoses................................................. 226
Inspection............................................................... 228
AUDIO ANTENNA..................................................... 229
Location of Antenna ............................................... 229
ELECTRIC SUNROOF.............................................. 230
Wiring Diagram - SROOF - ................................... 230
POWER DOOR MIRROR.......................................... 231
Wiring Diagram - MIRROR - ................................. 231
POWER SEAT........................................................... 233
Power Seat/Wiring Diagram - SEAT - ................... 233
HEATED SEAT.......................................................... 234
EL-2

Heated Seat/Wiring Diagram - HSEAT - ............... 234
POWER WINDOW..................................................... 236
System Description ................................................ 236
Schematic .............................................................. 239
Wiring Diagram - WINDOW - ................................ 240
Trouble Diagnoses................................................. 243
POWER DOOR LOCK............................................... 245
System Description/Door Lock for LHD Models.... 245
Schematic .............................................................. 246
Wiring Diagram - D/LOCK -................................... 248
Trouble Diagnoses................................................. 256
POWER DOOR LOCK - SUPER LOCK -................. 265
Component Parts Location .................................... 265
System Description/Super Lock for RHD Models . 266
Schematic .............................................................. 268
Wiring Diagram - S/LOCK - ................................... 270
Trouble Diagnoses................................................. 283
MULTI-REMOTE CONTROL SYSTEM..................... 296
System Description ................................................ 296
Schematic .............................................................. 297
Wiring Diagram - MULTI - ..................................... 298
Trouble Diagnoses................................................. 303
ID Code Entry Procedure ...................................... 305
TIME CONTROL UNIT (TCU)................................... 306
System Description ................................................ 306
Trouble Diagnosis .................................................. 309
THEFT WARNING SYSTEM...................................... 311
Components Parts and Harness Connector
Location .................................................................. 311System Description ................................................ 312
Schematic .............................................................. 315
Wiring Diagram - THEFT -..................................... 316
Trouble Diagnoses................................................. 328
NATS (NISSAN ANTI-THEFT SYSTEM)................... 342
Component Parts Location .................................... 342
Wiring Diagram - NATS -....................................... 343
NATS (NISSAN ANTI-THEFT SYSTEM)................... 345
System Description ................................................ 345
System Composition .............................................. 346
CONSULT-II ........................................................... 347
Trouble Diagnoses................................................. 349
How to Replace NATS IMMU ................................ 363
LOCATION OF ELECTRICAL UNITS....................... 365
Engine Compartment ............................................. 365
Passenger Compartment ....................................... 366
HARNESS LAYOUT.................................................. 368
Outline.................................................................... 368
How to Read Harness Layout ............................... 369
Engine Control Harness ........................................ 370
Engine Room Harness .......................................... 376
Main Harness......................................................... 382
Body Harness ........................................................ 386
Air Conditioner Harness ........................................ 402
Room Lamp Harness............................................. 403
Back Door Harness ............................................... 404
Front Door Harness (LH side) ............................... 406
Front Door Harness (RH side) .............................. 407
Rear Door Harness................................................ 408
WIRING DIAGRAM REFERENCE CHART
ECCS (Ignition system) .......................................................................................................................... EC SECTION
AUTOMATIC TRANSAXLE CONTROL SYSTEM ................................................................................... AT SECTION
ANTI-LOCK BRAKE SYSTEM ................................................................................................................ BR SECTION
SRS“AIR BAG”and“SEAT BELT PRE-TENSIONER”........................................................................ RS SECTION
HEATER AND AIR CONDITIONER ......................................................................................................... HA SECTION
EL-3

NOTE
EL-4

Precautions
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)“AIR
BAG”and“SEAT BELT PRE-TENSIONER”
The Supplemental Restraint System “Air Bag” and “Seat Belt Pre-tensioner”, used along with a seat belt,
help to reduce the risk or severity of injury to the driver and front passenger in a frontal collision. The
Supplemental Restraint System consists of an air bag module (located in the center of the steering wheel
and on the instrument panel on the passenger side, where fitted), seat belt pre-tensioners, a diagnosis sen-
sor unit, warning lamp, wiring harness and spiral cable.
In addition to the supplemental air bag modules for a frontal collision, the supplemental side air bag used
along with the seat belt help to reduce the risk or severity of injury to the driver and front passenger in a
side collision. The supplemental side air bag consists of air bag modules (located in the outer side of front
seats), satellite sensor, diagnosis sensor unit (one of components of supplemental air bags for a frontal
collision), wiring harness, warning lamp (one of components of supplemental air bags for a frontal collision).
Information necessary to service the system safely is included in theRS sectionof this Service Manual.
WARNING:

To avoid rendering the SRS inoperative (which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation), all maintenance must be per-
formed by an authorized NISSAN dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses (except“SEAT BELT-TENSIONER”connector) can be
identified with yellow harness connector (and with yellow harness protector or yellow insulation
tape before the harness connectors). Not use electrical test equipment on any circuit related to
the SRS.
PRECAUTIONS AND PREPARATION
EL-5

Description
HARNESS CONNECTOR (TAB-LOCKING TYPE)

The tab-locking type connectors help prevent accidental looseness or disconnection.

The tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the
illustration below.
Refer to the next page for description of the slide-locking type connector.
CAUTION:
Do not pull the harness or wires when disconnecting the connector.
[Example]
SEL769D Terminal retainer
PUSH
Connector housingPUSH
Packing
(Water-proof type)
LIFT
PUSH
PUSH
PUSH
PUSH
(For combination meter)PUSH
(For relay)
HARNESS CONNECTOR
EL-6

HARNESS CONNECTOR (SLIDE-LOCKING TYPE)

A new style slide-locking type connector is used on certain systems and components, especially those
related to OBD.

The slide-locking type connectors help prevent incomplete locking and accidental looseness or discon-
nection.

The slide-locking type connectors are disconnected by pushing or lifting the slider. Refer to the illustra-
tion below.
CAUTION:
Do not pull the harness or wires when disconnecting the connector.
Be careful not to damage the connector support bracket when disconnecting the connector.
[Example]
SEL769V Waterproof type

1Firmly grasp shell of con-
nector housing at A.
2Push slider until
connector pops or
snaps apart.
3Disconnect harness
connector.
Non-waterproof type

1Firmly grasp shell
of connector hous-
ing at A.
2Pull back on the slider
while pulling apart
male and female
halves of connector.
3Disconnect harness
connector.
HARNESS CONNECTOR
Description (Cont’d)
EL-7

Description
NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS
Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.
TYPE OF STANDARDIZED RELAYS
1M .......... 1 Make 2M .......... 2 Make
1T .......... 1 Transfer 1M⋅1B .......... 1 Make 1 Break
SEL881H NORMAL OPEN RELAY NORMAL CLOSED RELAY MIXED TYPE RELAY
Does not
flow
SW 1
BATTERYFlows
SW 1
BATTERYFlows
Does not
flow
SW 1
BATTERY
Flows
SW 1
BATTERYDoes not
flow
SW 1
BATTERYDoes not
flow
Flows
SW 1
BATTERY
SW 1“OFF” SW 1“ON”
SEL882H 1M 2M
1T 1M⋅1B 1M
1T2M
1B
1M
STANDARDIZED RELAY
EL-8
