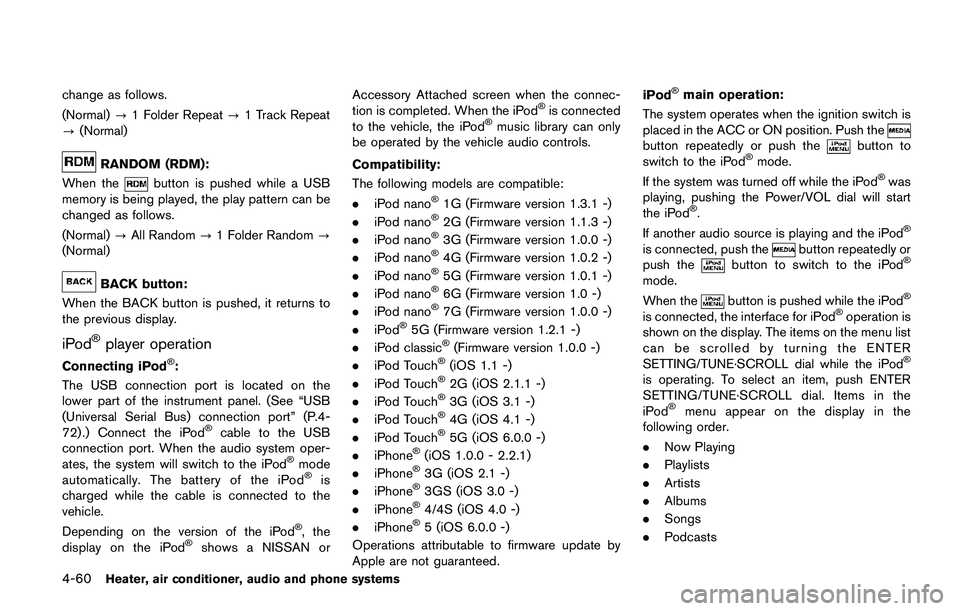

4-60Heater, air conditioner, audio and phone systems
change as follows.
(Normal)?1 Folder Repeat?1 Track Repeat
?(Normal)
RANDOM (RDM):
When the
button is pushed while a USB
memory is being played, the play pattern can be
changed as follows.
(Normal)?All Random?1 Folder Random?
(Normal)
BACK button:
When the BACK button is pushed, it returns to
the previous display.
iPodŠplayer operation
Connecting iPodŠ:
The USB connection port is located on the
lower part of the instrument panel. (See “USB
(Universal Serial Bus) connection port” (P.4-
72) .) Connect the iPod
Šcable to the USB
connection port. When the audio system oper-
ates, the system will switch to the iPod
Šmode
automatically. The battery of the iPodŠis
charged while the cable is connected to the
vehicle.
Depending on the version of the iPod
Š, the
display on the iPodŠshows a NISSAN orAccessory Attached screen when the connec-
tion is completed. When the iPod
Šis connected
to the vehicle, the iPodŠmusic library can only
be operated by the vehicle audio controls.
Compatibility:
The following models are compatible:
.iPod nano
Š1G (Firmware version 1.3.1 -)
.iPod nanoŠ2G (Firmware version 1.1.3 -)
.iPod nanoŠ3G (Firmware version 1.0.0 -)
.iPod nanoŠ4G (Firmware version 1.0.2 -)
.iPod nanoŠ5G (Firmware version 1.0.1 -)
.iPod nanoŠ6G (Firmware version 1.0 -)
.iPod nanoŠ7G (Firmware version 1.0.0 -)
.iPodŠ5G (Firmware version 1.2.1 -)
.iPod classicŠ(Firmware version 1.0.0 -)
.iPod TouchŠ(iOS 1.1 -)
.iPod TouchŠ2G (iOS 2.1.1 -)
.iPod TouchŠ3G (iOS 3.1 -)
.iPod TouchŠ4G (iOS 4.1 -)
.iPod TouchŠ5G (iOS 6.0.0 -)
.iPhoneŠ(iOS 1.0.0 - 2.2.1)
.iPhoneŠ3G (iOS 2.1 -)
.iPhoneŠ3GS (iOS 3.0 -)
.iPhoneŠ4/4S (iOS 4.0 -)
.iPhoneŠ5 (iOS 6.0.0 -)
Operations attributable to firmware update by
Apple are not guaranteed.iPod
Šmain operation:
The system operates when the ignition switch is
placed in the ACC or ON position. Push the
button repeatedly or push thebutton to
switch to the iPodŠmode.
If the system was turned off while the iPodŠwas
playing, pushing the Power/VOL dial will start
the iPod
Š.
If another audio source is playing and the iPodŠ
is connected, push thebutton repeatedly or
push thebutton to switch to the iPodŠ
mode.
When the
button is pushed while the iPodŠ
is connected, the interface for iPodŠoperation is
shown on the display. The items on the menu list
can be scrolled by turning the ENTER
SETTING/TUNE·SCROLL dial while the iPod
Š
is operating. To select an item, push ENTER
SETTING/TUNE·SCROLL dial. Items in the
iPod
Šmenu appear on the display in the
following order.
.Now Playing
.Playlists
.Artists
.Albums
.Songs
.Podcasts

.Genres
.Composers
.Audiobooks
.Shuffle Songs
For more information about each item, see the
iPod
Šowner’s manual.

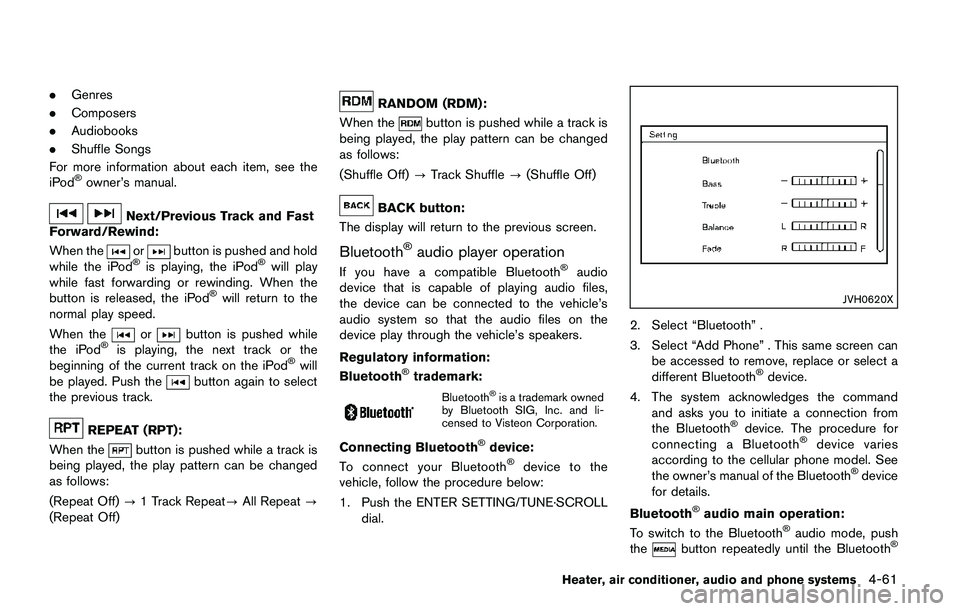

Next/Previous Track and Fast
Forward/Rewind:
When the
orbutton is pushed and hold
while the iPodŠis playing, the iPodŠwill play
while fast forwarding or rewinding. When the
button is released, the iPod
Šwill return to the
normal play speed.
When the
orbutton is pushed while
the iPodŠis playing, the next track or the
beginning of the current track on the iPodŠwill
be played. Push thebutton again to select
the previous track.
REPEAT (RPT):
When the
button is pushed while a track is
being played, the play pattern can be changed
as follows:
(Repeat Off)?1 Track Repeat?All Repeat?
(Repeat Off)
RANDOM (RDM):
When the
button is pushed while a track is
being played, the play pattern can be changed
as follows:
(Shuffle Off)?Track Shuffle?(Shuffle Off)
BACK button:
The display will return to the previous screen.
BluetoothŠaudio player operation
If you have a compatible BluetoothŠaudio
device that is capable of playing audio files,
the device can be connected to the vehicle’s
audio system so that the audio files on the
device play through the vehicle’s speakers.
Regulatory information:
Bluetooth
Štrademark:
BluetoothŠis a trademark owned
by Bluetooth SIG, Inc. and li-
censed to Visteon Corporation.
Connecting BluetoothŠdevice:
To connect your BluetoothŠdevice to the
vehicle, follow the procedure below:
1. Push the ENTER SETTING/TUNE·SCROLL
dial.
JVH0620X
2. Select “Bluetooth” .
3. Select “Add Phone” . This same screen can
be accessed to remove, replace or select a
different Bluetooth
Šdevice.
4. The system acknowledges the command
and asks you to initiate a connection from
the Bluetooth
Šdevice. The procedure for
connecting a BluetoothŠdevice varies
according to the cellular phone model. See
the owner’s manual of the Bluetooth
Šdevice
for details.
Bluetooth
Šaudio main operation:
To switch to the BluetoothŠaudio mode, push
thebutton repeatedly until the BluetoothŠ
Heater, air conditioner, audio and phone systems4-61

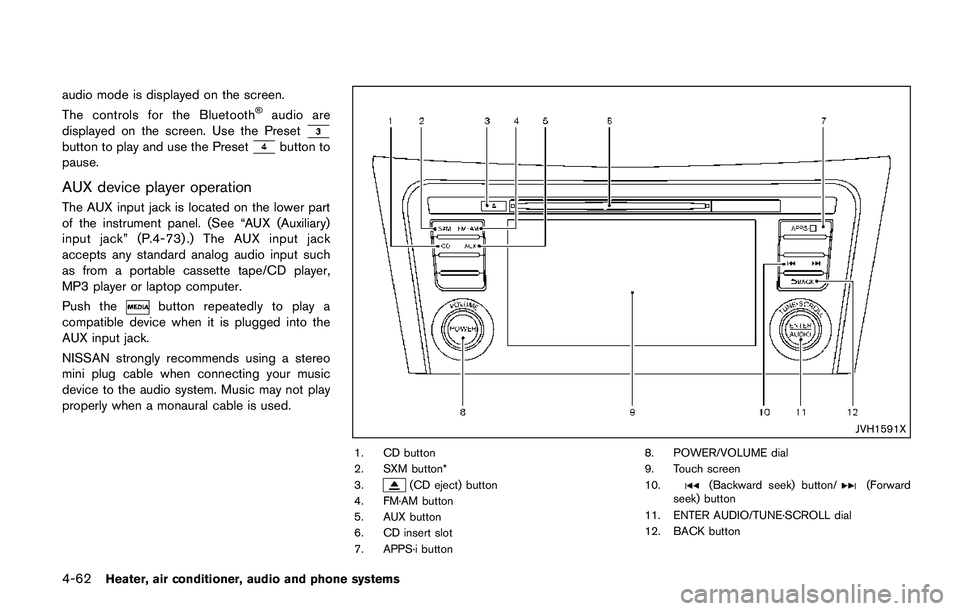

4-62Heater, air conditioner, audio and phone systems
audio mode is displayed on the screen.
The controls for the BluetoothŠaudio are
displayed on the screen. Use the Preset
button to play and use the Presetbutton to
pause.
AUX device player operation
The AUX input jack is located on the lower part
of the instrument panel. (See “AUX (Auxiliary)
input jack” (P.4-73) .) The AUX input jack
accepts any standard analog audio input such
as from a portable cassette tape/CD player,
MP3 player or laptop computer.
Push the
button repeatedly to play a
compatible device when it is plugged into the
AUX input jack.
NISSAN strongly recommends using a stereo
mini plug cable when connecting your music
device to the audio system. Music may not play
properly when a monaural cable is used.
JVH1591X
1. CD button
2. SXM button*
3.
(CD eject) button
4. FM·AM button
5. AUX button
6. CD insert slot
7. APPS·i button8. POWER/VOLUME dial
9. Touch screen
10.(Backward seek) button/(Forward
seek) button
11. ENTER AUDIO/TUNE·SCROLL dial
12. BACK button

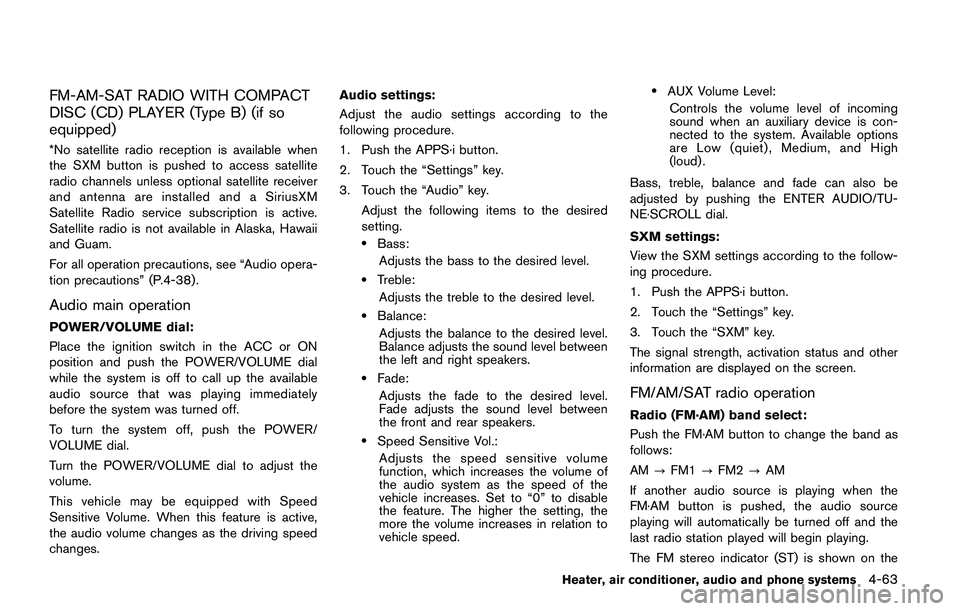

FM-AM-SAT RADIO WITH COMPACT
DISC (CD) PLAYER (Type B) (if so
equipped)
*No satellite radio reception is available when
the SXM button is pushed to access satellite
radio channels unless optional satellite receiver
and antenna are installed and a SiriusXM
Satellite Radio service subscription is active.
Satellite radio is not available in Alaska, Hawaii
and Guam.
For all operation precautions, see “Audio opera-
tion precautions” (P.4-38) .
Audio main operation
POWER/VOLUME dial:
Place the ignition switch in the ACC or ON
position and push the POWER/VOLUME dial
while the system is off to call up the available
audio source that was playing immediately
before the system was turned off.
To turn the system off, push the POWER/
VOLUME dial.
Turn the POWER/VOLUME dial to adjust the
volume.
This vehicle may be equipped with Speed
Sensitive Volume. When this feature is active,
the audio volume changes as the driving speed
changes.Audio settings:
Adjust the audio settings according to the
following procedure.
1. Push the APPS·i button.
2. Touch the “Settings” key.
3. Touch the “Audio” key.
Adjust the following items to the desired
setting.
.Bass:
Adjusts the bass to the desired level.
.Treble:
Adjusts the treble to the desired level.
.Balance:
Adjusts the balance to the desired level.
Balance adjusts the sound level between
the left and right speakers.
.Fade:
Adjusts the fade to the desired level.
Fade adjusts the sound level between
the front and rear speakers.
.Speed Sensitive Vol.:
Adjusts the speed sensitive volume
function, which increases the volume of
the audio system as the speed of the
vehicle increases. Set to “0” to disable
the feature. The higher the setting, the
more the volume increases in relation to
vehicle speed.
.AUX Volume Level:
Controls the volume level of incoming
sound when an auxiliary device is con-
nected to the system. Available options
are Low (quiet) , Medium, and High
(loud) .
Bass, treble, balance and fade can also be
adjusted by pushing the ENTER AUDIO/TU-
NE·SCROLL dial.
SXM settings:
View the SXM settings according to the follow-
ing procedure.
1. Push the APPS·i button.
2. Touch the “Settings” key.
3. Touch the “SXM” key.
The signal strength, activation status and other
information are displayed on the screen.
FM/AM/SAT radio operation
Radio (FM·AM) band select:
Push the FM·AM button to change the band as
follows:
AM?FM1?FM2?AM
If another audio source is playing when the
FM·AM button is pushed, the audio source
playing will automatically be turned off and the
last radio station played will begin playing.
The FM stereo indicator (ST) is shown on the
Heater, air conditioner, audio and phone systems4-63

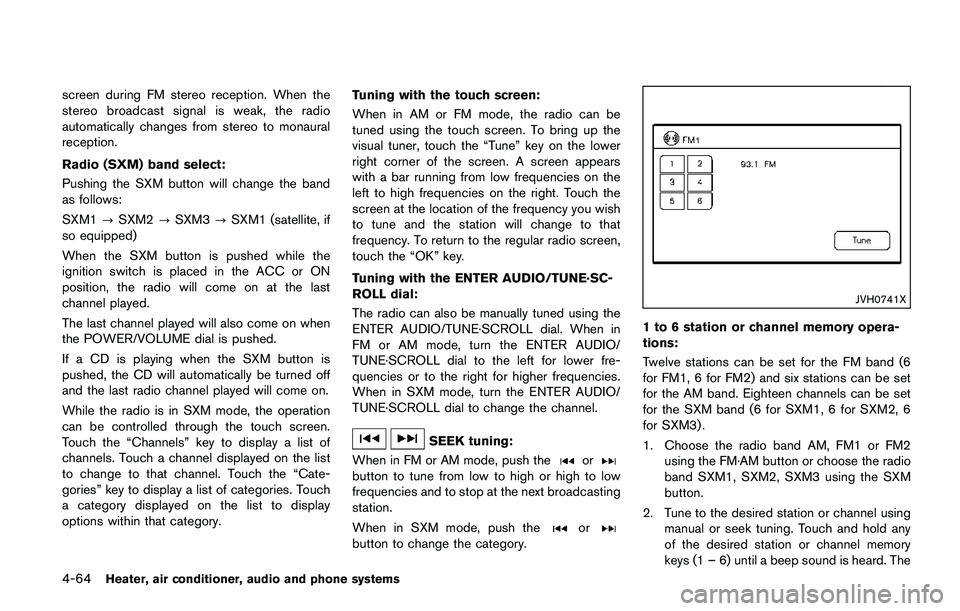

4-64Heater, air conditioner, audio and phone systems
screen during FM stereo reception. When the
stereo broadcast signal is weak, the radio
automatically changes from stereo to monaural
reception.
Radio (SXM) band select:
Pushing the SXM button will change the band
as follows:
SXM1?SXM2?SXM3?SXM1 (satellite, if
so equipped)
When the SXM button is pushed while the
ignition switch is placed in the ACC or ON
position, the radio will come on at the last
channel played.
The last channel played will also come on when
the POWER/VOLUME dial is pushed.
If a CD is playing when the SXM button is
pushed, the CD will automatically be turned off
and the last radio channel played will come on.
While the radio is in SXM mode, the operation
can be controlled through the touch screen.
Touch the “Channels” key to display a list of
channels. Touch a channel displayed on the list
to change to that channel. Touch the “Cate-
gories” key to display a list of categories. Touch
a category displayed on the list to display
options within that category.Tuning with the touch screen:
When in AM or FM mode, the radio can be
tuned using the touch screen. To bring up the
visual tuner, touch the “Tune” key on the lower
right corner of the screen. A screen appears
with a bar running from low frequencies on the
left to high frequencies on the right. Touch the
screen at the location of the frequency you wish
to tune and the station will change to that
frequency. To return to the regular radio screen,
touch the “OK” key.
Tuning with the ENTER AUDIO/TUNE·SC-
ROLL dial:
The radio can also be manually tuned using the
ENTER AUDIO/TUNE·SCROLL dial. When in
FM or AM mode, turn the ENTER AUDIO/
TUNE·SCROLL dial to the left for lower fre-
quencies or to the right for higher frequencies.
When in SXM mode, turn the ENTER AUDIO/
TUNE·SCROLL dial to change the channel.
SEEK tuning:
When in FM or AM mode, push the
orbutton to tune from low to high or high to low
frequencies and to stop at the next broadcasting
station.
When in SXM mode, push the
orbutton to change the category.
JVH0741X
1 to 6 station or channel memory opera-
tions:
Twelve stations can be set for the FM band (6
for FM1, 6 for FM2) and six stations can be set
for the AM band. Eighteen channels can be set
for the SXM band (6 for SXM1, 6 for SXM2, 6
for SXM3) .
1. Choose the radio band AM, FM1 or FM2
using the FM·AM button or choose the radio
band SXM1, SXM2, SXM3 using the SXM
button.
2. Tune to the desired station or channel using
manual or seek tuning. Touch and hold any
of the desired station or channel memory
keys (1 – 6) until a beep sound is heard. The

station or channel indicator will then come
on.
3. Other keys can be set in the same manner.
If the battery cable is disconnected or if the fuse
opens, the radio memory will be erased. In that
case, reset the desired stations or channels.

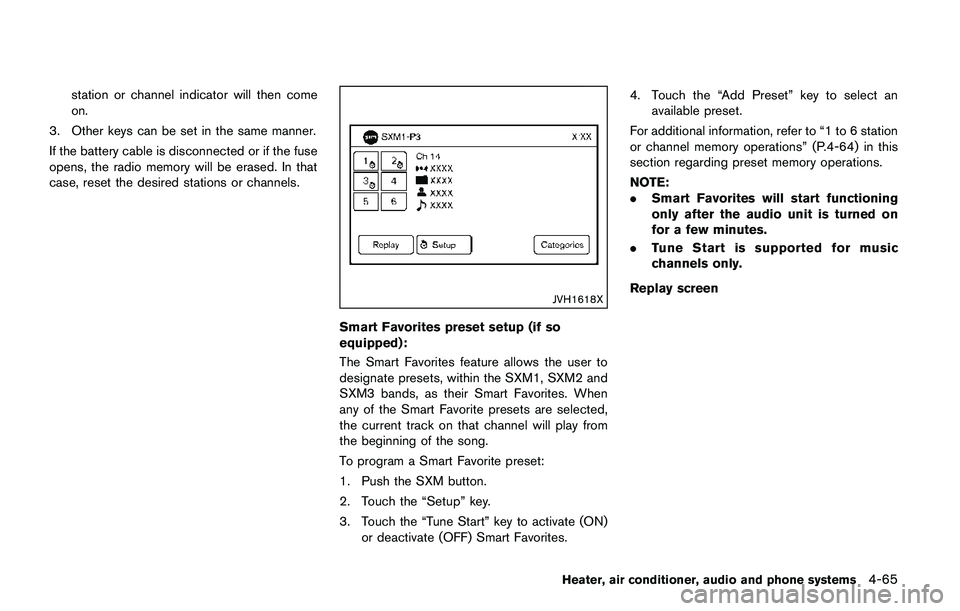

JVH1618X
Smart Favorites preset setup (if so
equipped):
The Smart Favorites feature allows the user to
designate presets, within the SXM1, SXM2 and
SXM3 bands, as their Smart Favorites. When
any of the Smart Favorite presets are selected,
the current track on that channel will play from
the beginning of the song.
To program a Smart Favorite preset:
1. Push the SXM button.
2. Touch the “Setup” key.
3. Touch the “Tune Start” key to activate (ON)
or deactivate (OFF) Smart Favorites.4. Touch the “Add Preset” key to select an
available preset.
For additional information, refer to “1 to 6 station
or channel memory operations” (P.4-64) in this
section regarding preset memory operations.
NOTE:
.Smart Favorites will start functioning
only after the audio unit is turned on
for a few minutes.
.Tune Start is supported for music
channels only.
Replay screen
Heater, air conditioner, audio and phone systems4-65

4-66Heater, air conditioner, audio and phone systems

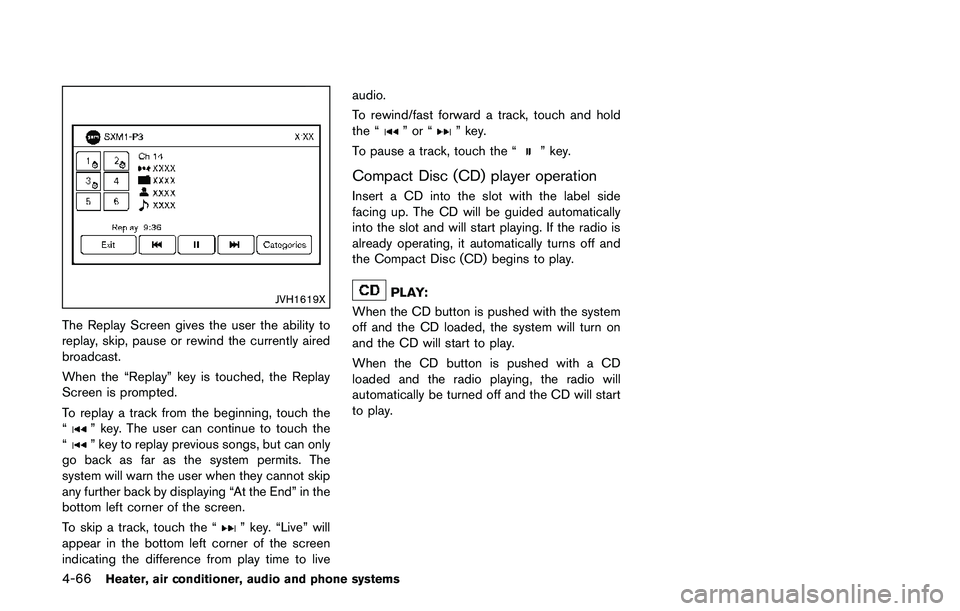

JVH1619X
The Replay Screen gives the user the ability to
replay, skip, pause or rewind the currently aired
broadcast.
When the “Replay” key is touched, the Replay
Screen is prompted.
To replay a track from the beginning, touch the
“
” key. The user can continue to touch the
“” key to replay previous songs, but can only
go back as far as the system permits. The
system will warn the user when they cannot skip
any further back by displaying “At the End” in the
bottom left corner of the screen.
To skip a track, touch the “
” key. “Live” will
appear in the bottom left corner of the screen
indicating the difference from play time to liveaudio.
To rewind/fast forward a track, touch and hold
the “
”or“” key.
To pause a track, touch the “
” key.
Compact Disc (CD) player operation
Insert a CD into the slot with the label side
facing up. The CD will be guided automatically
into the slot and will start playing. If the radio is
already operating, it automatically turns off and
the Compact Disc (CD) begins to play.
PLAY:
When the CD button is pushed with the system
off and the CD loaded, the system will turn on
and the CD will start to play.
When the CD button is pushed with a CD
loaded and the radio playing, the radio will
automatically be turned off and the CD will start
to play.

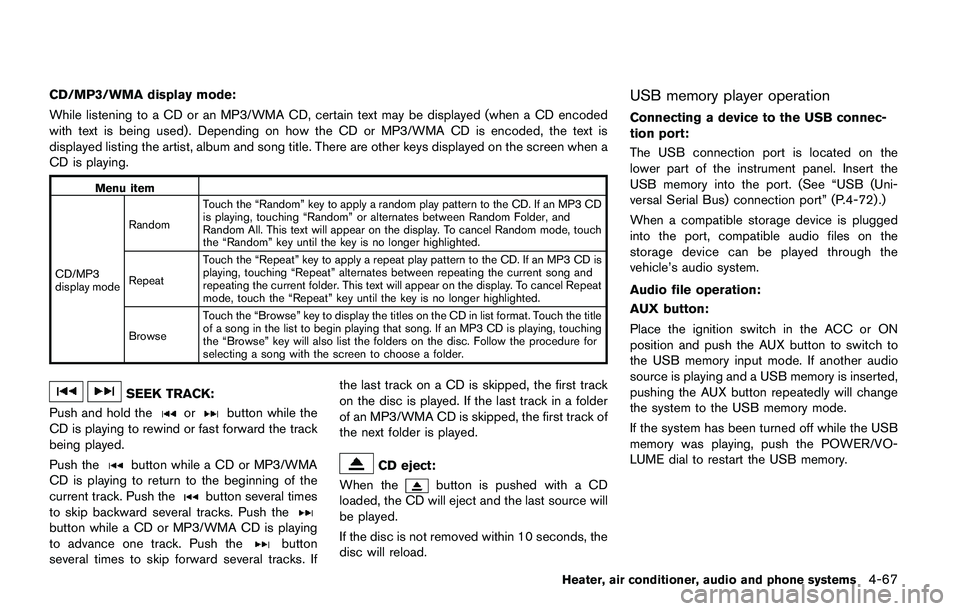

CD/MP3/WMA display mode:
While listening to a CD or an MP3/WMA CD, certain text may be displayed (when a CD encoded
with text is being used) . Depending on how the CD or MP3/WMA CD is encoded, the text is
displayed listing the artist, album and song title. There are other keys displayed on the screen when a
CD is playing.
Menu item
CD/MP3
display modeRandomTouch the “Random” key to apply a random play pattern to the CD. If an MP3 CD
is playing, touching “Random” or alternates between Random Folder, and
Random All. This text will appear on the display. To cancel Random mode, touch
the “Random” key until the key is no longer highlighted.
RepeatTouch the “Repeat” key to apply a repeat play pattern to the CD. If an MP3 CD is
playing, touching “Repeat” alternates between repeating the current song and
repeating the current folder. This text will appear on the display. To cancel Repeat
mode, touch the “Repeat” key until the key is no longer highlighted.
BrowseTouch the “Browse” key to display the titles on the CD in list format. Touch the title
of a song in the list to begin playing that song. If an MP3 CD is playing, touching
the “Browse” key will also list the folders on the disc. Follow the procedure for
selecting a song with the screen to choose a folder.
SEEK TRACK:
Push and hold the
orbutton while the
CD is playing to rewind or fast forward the track
being played.
Push the
button while a CD or MP3/WMA
CD is playing to return to the beginning of the
current track. Push the
button several times
to skip backward several tracks. Push the
button while a CD or MP3/WMA CD is playing
to advance one track. Push thebutton
several times to skip forward several tracks. Ifthe last track on a CD is skipped, the first track
on the disc is played. If the last track in a folder
of an MP3/WMA CD is skipped, the first track of
the next folder is played.
CD eject:
When the
button is pushed with a CD
loaded, the CD will eject and the last source will
be played.
If the disc is not removed within 10 seconds, the
disc will reload.
USB memory player operation
Connecting a device to the USB connec-
tion port:
The USB connection port is located on the
lower part of the instrument panel. Insert the
USB memory into the port. (See “USB (Uni-
versal Serial Bus) connection port” (P.4-72) .)
When a compatible storage device is plugged
into the port, compatible audio files on the
storage device can be played through the
vehicle’s audio system.
Audio file operation:
AUX button:
Place the ignition switch in the ACC or ON
position and push the AUX button to switch to
the USB memory input mode. If another audio
source is playing and a USB memory is inserted,
pushing the AUX button repeatedly will change
the system to the USB memory mode.
If the system has been turned off while the USB
memory was playing, push the POWER/VO-
LUME dial to restart the USB memory.
Heater, air conditioner, audio and phone systems4-67

4-68Heater, air conditioner, audio and phone systems

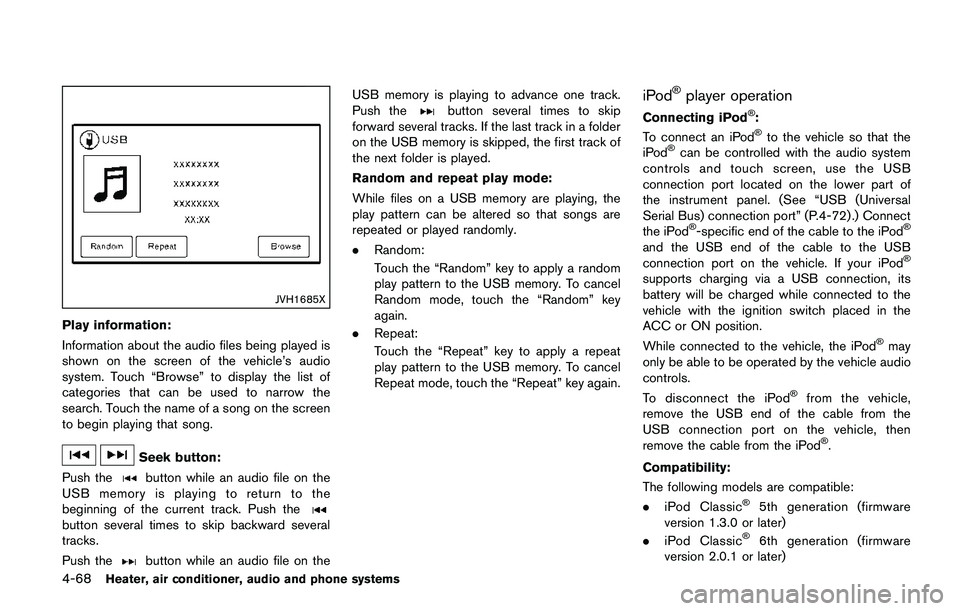

JVH1685X
Play information:
Information about the audio files being played is
shown on the screen of the vehicle’s audio
system. Touch “Browse” to display the list of
categories that can be used to narrow the
search. Touch the name of a song on the screen
to begin playing that song.
Seek button:
Push the
button while an audio file on the
USB memory is playing to return to the
beginning of the current track. Push the
button several times to skip backward several
tracks.
Push the
button while an audio file on theUSB memory is playing to advance one track.
Push the
button several times to skip
forward several tracks. If the last track in a folder
on the USB memory is skipped, the first track of
the next folder is played.
Random and repeat play mode:
While files on a USB memory are playing, the
play pattern can be altered so that songs are
repeated or played randomly.
.Random:
Touch the “Random” key to apply a random
play pattern to the USB memory. To cancel
Random mode, touch the “Random” key
again.
.Repeat:
Touch the “Repeat” key to apply a repeat
play pattern to the USB memory. To cancel
Repeat mode, touch the “Repeat” key again.iPodŠplayer operation
Connecting iPodŠ:
To connect an iPodŠto the vehicle so that the
iPodŠcan be controlled with the audio system
controls and touch screen, use the USB
connection port located on the lower part of
the instrument panel. (See “USB (Universal
Serial Bus) connection port” (P.4-72).) Connect
the iPod
Š-specific end of the cable to the iPodŠ
and the USB end of the cable to the USB
connection port on the vehicle. If your iPodŠ
supports charging via a USB connection, its
battery will be charged while connected to the
vehicle with the ignition switch placed in the
ACC or ON position.
While connected to the vehicle, the iPod
Šmay
only be able to be operated by the vehicle audio
controls.
To disconnect the iPod
Šfrom the vehicle,
remove the USB end of the cable from the
USB connection port on the vehicle, then
remove the cable from the iPod
Š.
Compatibility:
The following models are compatible:
.iPod Classic
Š5th generation (firmware
version 1.3.0 or later)
.iPod Classic
Š6th generation (firmware
version 2.0.1 or later)

.iPod ClassicŠ6th (6.1) generation (firmware
version 2.0.1 or later)
.iPod Classic
Š6th (6.2) generation (firmware
version 2.0.4 or later)
.iPod Touch
Š2nd generation (firmware ver-
sion 4.2.1 or later)*
.iPod Touch
Š3rd generation (firmware ver-
sion 5.1.1 or later)
.iPod Touch
Š4th generation (firmware ver-
sion 6.1.3 or later)
.iPod Touch
Š5th generation (firmware ver-
sion 6.1.3 or later)
.iPod nano
Š- 2nd generation (firmware
version 1.1.3 or later)
.iPod nano
Š- 3rd generation (firmware
version 1.1.3 or later)
.iPod nano
Š- 4th generation (firmware
version 1.0.4 or later)
.iPod nano
Š- 5th generation (firmware
version 1.0.2 or later)
.iPod nano
Š- 6th generation (firmware
version 1.2 or later)
.iPod nano
Š- 7th generation (firmware
version 1.2 or later)
.iPhone
Š3G (firmware version 4.2.1 or later)
.iPhoneŠ3GS (firmware version 5.1.1or
later).iPhone
Š4 (firmware version 6.1.3 or later)
.iPhoneŠ4S (firmware version 6.1.3 or later)
.iPhoneŠ5 (firmware version 6.1.3 or later)
* Some features of this iPodŠmay not be fully
functional.
Make sure that your iPod
Šfirmware is updated
to the version indicated above.

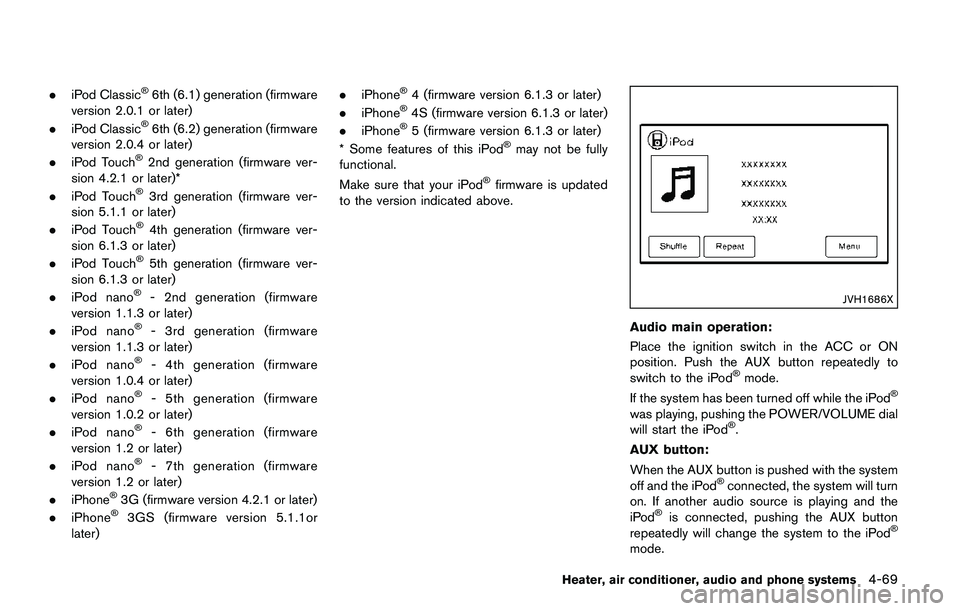

JVH1686X
Audio main operation:
Place the ignition switch in the ACC or ON
position. Push the AUX button repeatedly to
switch to the iPod
Šmode.
If the system has been turned off while the iPodŠ
was playing, pushing the POWER/VOLUME dial
will start the iPodŠ.
AUX button:
When the AUX button is pushed with the system
off and the iPod
Šconnected, the system will turn
on. If another audio source is playing and the
iPod
Šis connected, pushing the AUX button
repeatedly will change the system to the iPodŠ
mode.
Heater, air conditioner, audio and phone systems4-69
