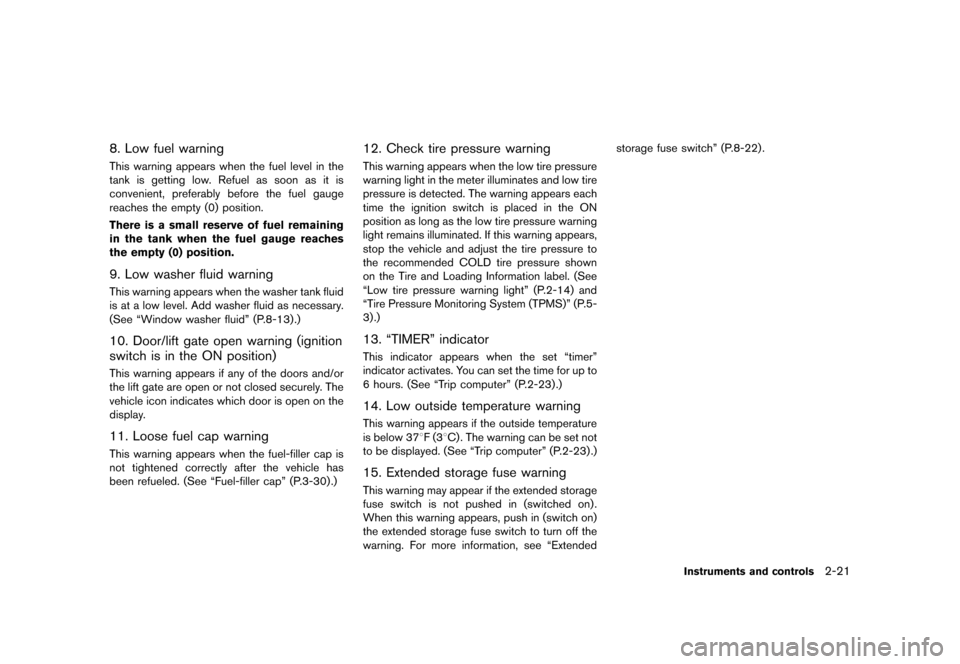

Page 101 of 491
> ( G L W 0 R G H O ( ' @
8. Low fuel warningGUID-3F6A4C14-3A53-4889-81A1-9712B64C7CFBThis warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (0) position.
There is a small reserve of fuel remaining
in the tank when the fuel gauge reaches
the empty (0) position.
9. Low washer fluid warningGUID-56C625DC-ABE9-4A02-8BC9-E75B59CC1B40This warning appears when the washer tank fluid
is at a low level. Add washer fluid as necessary.
(See ªWindow washer fluidº (P.8-13).)
10. Door/lift gate open warning (ignition
switch is in the ON position)
GUID-369BA1E4-345B-4EDC-949F-A60010E2FCAEThis warning appears if any of the doors and/or
the lift gate are open or not closed securely. The
vehicle icon indicates which door is open on the
display.
11. Loose fuel cap warningGUID-AE37C079-2D1D-4EC5-BC3E-A6F3746AC355This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (See ªFuel-filler capº (P.3-30) .)
12. Check tire pressure warningGUID-DA5B077D-A7AE-4C80-ABBC-FC03EE16A559This warning appears when the low tire pressure
warning light in the meter illuminates and low tire
pressure is detected. The warning appears each
time the ignition switch is placed in the ON
position as long as the low tire pressure warning
light remains illuminated. If this warning appears,
stop the vehicle and adjust the tire pressure to
the recommended COLD tire pressure shown
on the Tire and Loading Information label. (See
ªLow tire pressure warning lightº (P.2-14) and
ªTire Pressure Monitoring System (TPMS)º (P.5-
3) .)
13. ªTIMERº indicatorGUID-1125717D-01A2-4EE0-BD94-FCEC2E95C1E9This indicator appears when the set ªtimerº
indicator activates. You can set the time for up to
6 hours. (See ªTrip computerº (P.2-23) .)
14. Low outside temperature warningGUID-05A3065E-96A4-4FAF-9E94-F0DF064F6767This warning appears if the outside temperature
is below 378F (38C) . The warning can be set not
to be displayed. (See ªTrip computerº (P.2-23) .)
15. Extended storage fuse warningGUID-6AB8FBE8-1539-40E0-88C7-FC678D1B5DB6This warning may appear if the extended storage
fuse switch is not pushed in (switched on) .
When this warning appears, push in (switch on)
the extended storage fuse switch to turn off the
warning. For more information, see ªExtendedstorage fuse switchº (P.8-22) .
Instruments and controls2-21
& R Q G L W L R Q
Page 102 of 491
> ( G L W 0 R G H O ( ' @
2-22Instruments and controls
SIC4237
MAINTENANCE INDICATORSGUID-FA009BEE-2E37-4E85-BAC3-65B2871DE287
1. Engine oil replacement indicatorGUID-B49EC615-22D1-4111-845C-214CE38146A9This indicator appears when the customer set
time comes for changing the engine oil. You can
set or reset the distance for changing the engine
oil. (See ªTrip computerº (P.2-23) .)
2. Oil filter replacement indicatorGUID-8EC15863-1C70-4332-BAFA-4C2E8EE6FBFCThis indicator appears when the customer set
time comes for replacing the oil filter. You can
set or reset the distance for replacing the oil
filter. (See ªTrip computerº (P.2-23).)
3. Tire replacement indicatorGUID-83F3C488-F446-4361-92F6-CBED0996F98CThis indicator appears when the customer set
distance comes for replacing tires. You can set
or reset the distance for replacing tires. (See
ªTrip computerº (P.2-23) .)
WARNING
The tire replacement indicator is not a
substitute for regular tire checks, in-
cluding tire pressure checks. See
ªChanging wheels and tiresº (P.8-37) .
Many factors including tire inflation,
alignment, driving habits and road con-
ditions affect tire wear and when tires
should be replaced. Setting the tirereplacement indicator for a certain
driving distance does not mean your
tires will last that long. Use the tire
replacement indicator as a guide only
and always perform regular tire checks.
Failure to perform regular tire checks,
including tire pressure checks could
result in tire failure. Serious vehicle
damage could occur and may lead to a
collision, which could result in serious
personal injury or death.
4. ªOTHERº indicatorGUID-3F118BD8-4E3B-4C42-83AA-190A2A80C162This indicator appears when the set time comes
for replacing items other than the engine oil, oil
filter and tires. You can set or reset the distance
for replacing the items. (See ªTrip computerº
(P.2-23) .)
Models with center multi-function control panel:
More maintenance reminders are also available
on the center display. (models with center multi-
function control panel) (See ªHow to use INFO
buttonº (P.4-10).)
& R Q G L W L R Q

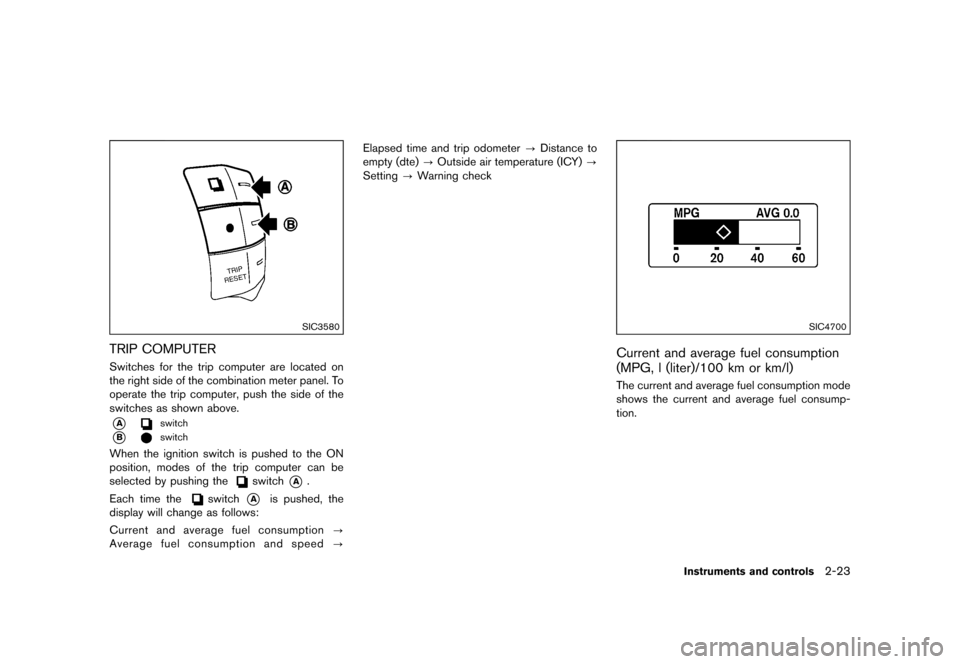

Page 103 of 491
> ( G L W 0 R G H O ( ' @
SIC3580
TRIP COMPUTERGUID-930DEE09-4374-4996-AC0B-1BBE0A7E2A37Switches for the trip computer are located on
the right side of the combination meter panel. To
operate the trip computer, push the side of the
switches as shown above.
*Aswitch
*Bswitch
When the ignition switch is pushed to the ON
position, modes of the trip computer can be
selected by pushing the
switch*A.
Each time the
switch*Ais pushed, the
display will change as follows:
Current and average fuel consumption ?
Average fuel consumption and speed ?Elapsed time and trip odometer
?Distance to
empty (dte) ?Outside air temperature (ICY) ?
Setting ?Warning check
SIC4700
Current and average fuel consumption
(MPG, l (liter)/100 km or km/l)
GUID-F605A791-7C05-4ACC-98CA-7D5109816B91The current and average fuel consumption mode
shows the current and average fuel consump-
tion.
Instruments and controls2-23
& R Q G L W L R Q

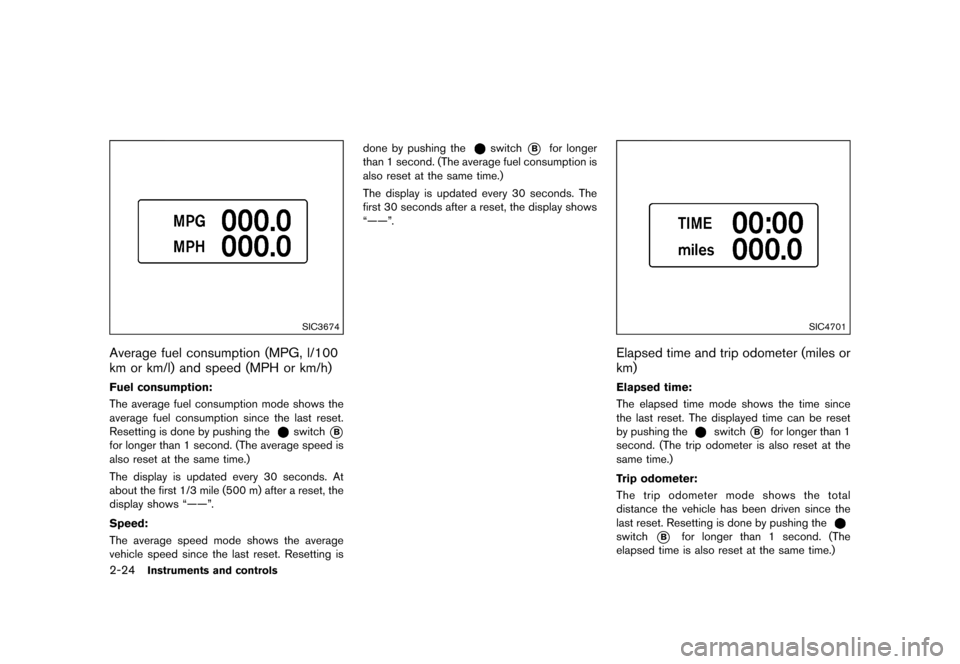

Page 104 of 491
> ( G L W 0 R G H O ( ' @
2-24Instruments and controls
SIC3674
Average fuel consumption (MPG, l/100
km or km/l) and speed (MPH or km/h)
GUID-E1893F46-D3FE-4C74-B5F8-C57C75093BC1
Fuel consumption:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pushing the
switch*B
for longer than 1 second. (The average speed is
also reset at the same time.)
The display is updated every 30 seconds. At
about the first 1/3 mile (500 m) after a reset, the
display shows ªÐк.
Speed:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The average speed mode shows the average
vehicle speed since the last reset. Resetting isdone by pushing the
switch*Bfor longer
than 1 second. (The average fuel consumption is
also reset at the same time.)
The display is updated every 30 seconds. The
first 30 seconds after a reset, the display shows
ªÐк.
SIC4701
Elapsed time and trip odometer (miles or
km)
GUID-5904C9FC-EFD8-4B9B-97AD-8438716FCDA6
Elapsed time:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The elapsed time mode shows the time since
the last reset. The displayed time can be reset
by pushing the
switch*Bfor longer than 1
second. (The trip odometer is also reset at the
same time.)
Trip odometer:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The trip odometer mode shows the total
distance the vehicle has been driven since the
last reset. Resetting is done by pushing the
switch*Bfor longer than 1 second. (The
elapsed time is also reset at the same time.)
& R Q G L W L R Q

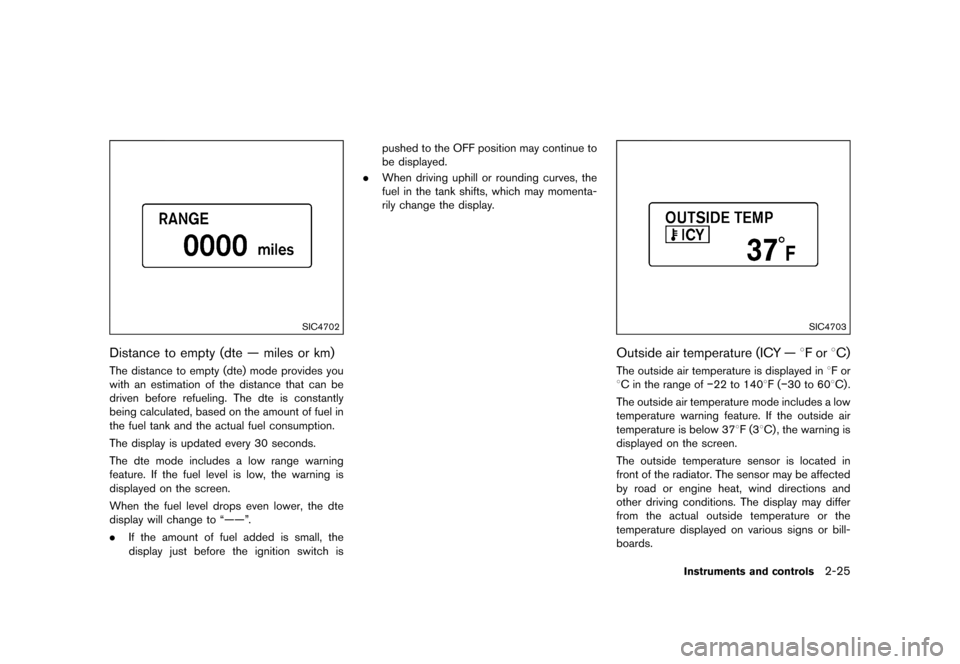

Page 105 of 491
> ( G L W 0 R G H O ( ' @
SIC4702
Distance to empty (dte Ð miles or km)GUID-463716F9-529A-4489-8DA6-E69543606427The distance to empty (dte) mode provides you
with an estimation of the distance that can be
driven before refueling. The dte is constantly
being calculated, based on the amount of fuel in
the fuel tank and the actual fuel consumption.
The display is updated every 30 seconds.
The dte mode includes a low range warning
feature. If the fuel level is low, the warning is
displayed on the screen.
When the fuel level drops even lower, the dte
display will change to ªÐк.
.If the amount of fuel added is small, the
display just before the ignition switch is pushed to the OFF position may continue to
be displayed.
. When driving uphill or rounding curves, the
fuel in the tank shifts, which may momenta-
rily change the display.
SIC4703
Outside air temperature (ICY Ð 8F or8C)GUID-7BA169AD-2C22-4452-AB3D-9412E817F174The outside air temperature is displayed in 8F or
8C in the range of
Page 106 of 491
> ( G L W 0 R G H O ( ' @
2-26Instruments and controls
SIC3678
SettingGUID-81BEB78D-5B29-43BA-9378-A6E18A1FD1E5Setting cannot be made while driving. A
message ªSetting can only be operated
when stoppedº is also displayed on the
vehicle information display.
The
switch*Aandswitch*Bare
used in the setting mode to select and decide a
menu.
SKIP:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push theswitch*Ato move to the warning
check mode.
Push the
switch*Bto select other menus. ALERT:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Alert menu can be set to notify the following
items.
.
TIMER
Select this submenu to specify when the
ªTIMERº indicator activates.
. ICY
Select this submenu to display the low
outside temperature warning.
To return to the top page of the setting mode,
select ªBACKº.
MAINTENANCE:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The maintenance intervals of the following items
can be set or reset for the reminders.
. OIL
Select this submenu to set or reset the
distance for changing the engine oil.
. FILTER
Select this submenu to set or reset the
distance for replacing the oil filter.
. TIRE
Select this submenu to set or reset the
distance for replacing tires.
. OTHER
Select this submenu and set or reset the
distance for replacing items other than the
engine oil, oil filter and tires. To return to the top page of the setting mode,
select ªBACKº.
OPTIONS:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The following option menus can be set to your
preference.
.
LANGUAGE
Select this submenu to choose English,
French or Spanish for display.
. UNIT
Select this submenu to choose the unit.
. EFFECTS
Select this menu to set the effects de-
scribed below to on or off.
Ð The indicator needles sweep in the
meters and the ring illumination will be
brightened gradually when the engine is
started.
To return to the top page of the setting mode,
select ªBACKº.
& R Q G L W L R Q

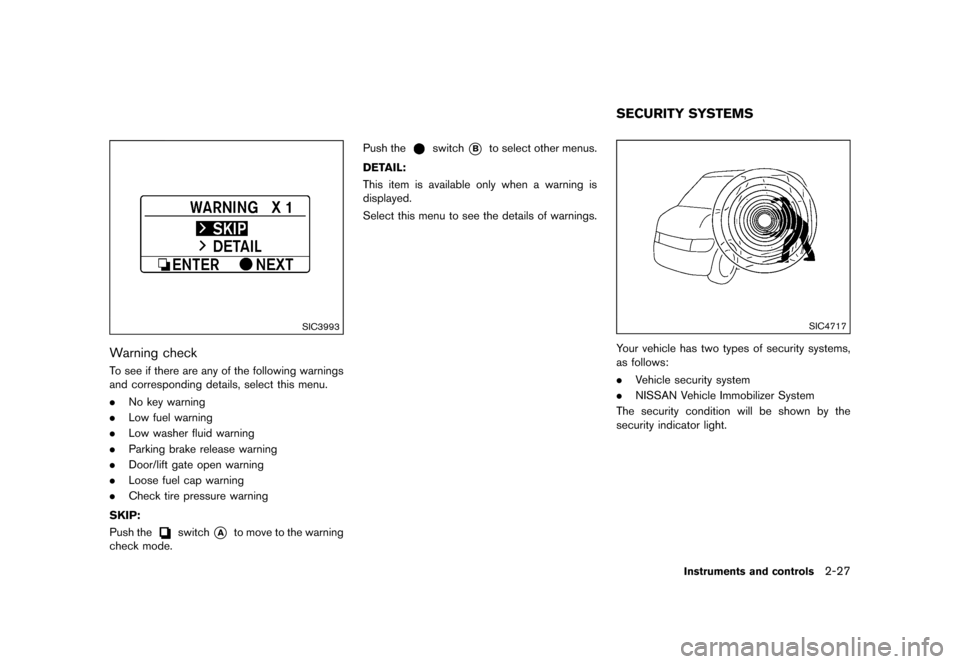

Page 107 of 491
> ( G L W 0 R G H O ( ' @
SIC3993
Warning checkGUID-5790185F-3109-4184-B244-017BA03FF1E8To see if there are any of the following warnings
and corresponding details, select this menu.
.No key warning
. Low fuel warning
. Low washer fluid warning
. Parking brake release warning
. Door/lift gate open warning
. Loose fuel cap warning
. Check tire pressure warning
SKIP:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push theswitch*Ato move to the warning
check mode. Push the
switch*Bto select other menus.
DETAIL:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This item is available only when a warning is
displayed.
Select this menu to see the details of warnings.
GUID-1DA67D67-9764-4420-8B43-5CA25C056F36
SIC4717
Your vehicle has two types of security systems,
as follows:
. Vehicle security system
. NISSAN Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.
Instruments and controls2-27
SECURITY SYSTEMS
& R Q G L W L R Q

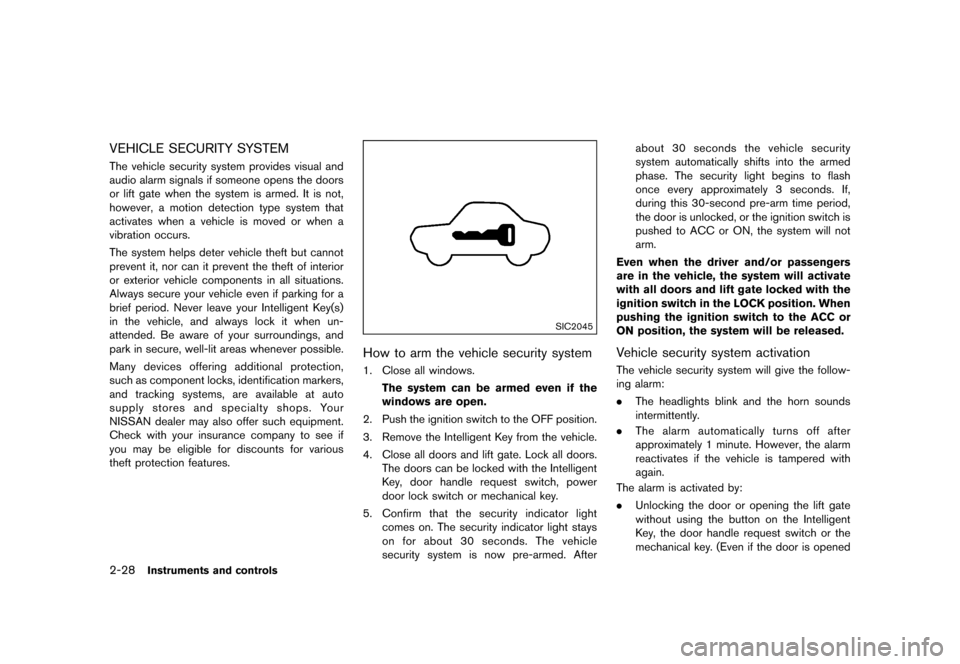

Page 108 of 491
> ( G L W 0 R G H O ( ' @
2-28Instruments and controls
VEHICLE SECURITY SYSTEMGUID-A4B1DF8A-E0E9-47D0-B1DC-2F43B0CC0B71The vehicle security system provides visual and
audio alarm signals if someone opens the doors
or lift gate when the system is armed. It is not,
however, a motion detection type system that
activates when a vehicle is moved or when a
vibration occurs.
The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior
or exterior vehicle components in all situations.
Always secure your vehicle even if parking for a
brief period. Never leave your Intelligent Key(s)
in the vehicle, and always lock it when un-
attended. Be aware of your surroundings, and
park in secure, well-lit areas whenever possible.
Many devices offering additional protection,
such as component locks, identification markers,
and tracking systems, are available at auto
supply stores and specialty shops. Your
NISSAN dealer may also offer such equipment.
Check with your insurance company to see if
you may be eligible for discounts for various
theft protection features.
SIC2045
How to arm the vehicle security systemGUID-8D123C36-E9F9-4871-811D-D6C0C142AF461. Close all windows.The system can be armed even if the
windows are open.
2. Push the ignition switch to the OFF position.
3. Remove the Intelligent Key from the vehicle.
4. Close all doors and lift gate. Lock all doors. The doors can be locked with the Intelligent
Key, door handle request switch, power
door lock switch or mechanical key.
5. Confirm that the security indicator light
comes on. The security indicator light stays
on for about 30 seconds. The vehicle
security system is now pre-armed. After about 30 seconds the vehicle security
system automatically shifts into the armed
phase. The security light begins to flash
once every approximately 3 seconds. If,
during this 30-second pre-arm time period,
the door is unlocked, or the ignition switch is
pushed to ACC or ON, the system will not
arm.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors and lift gate locked with the
ignition switch in the LOCK position. When
pushing the ignition switch to the ACC or
ON position, the system will be released.
Vehicle security system activationGUID-BB38DE0B-6ADD-44EA-821D-7DC2AE8F4E1EThe vehicle security system will give the follow-
ing alarm:
. The headlights blink and the horn sounds
intermittently.
. The alarm automatically turns off after
approximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again.
The alarm is activated by:
. Unlocking the door or opening the lift gate
without using the button on the Intelligent
Key, the door handle request switch or the
mechanical key. (Even if the door is opened
& R Q G L W L R Q
Page 109 of 491
> ( G L W 0 R G H O ( ' @

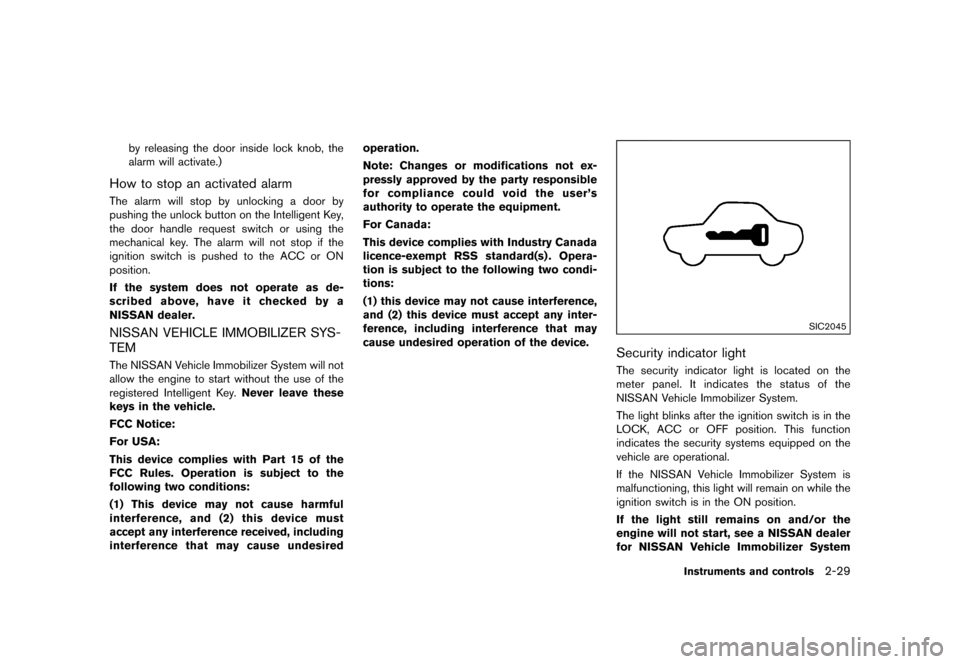

by releasing the door inside lock knob, the
alarm will activate.)
How to stop an activated alarmGUID-05DDA89B-F7D9-4C65-A192-A1CBC7D96A4FThe alarm will stop by unlocking a door by
pushing the unlock button on the Intelligent Key,
the door handle request switch or using the
mechanical key. The alarm will not stop if the
ignition switch is pushed to the ACC or ON
position.
If the system does not operate as de-
scribed above, have it checked by a
NISSAN dealer.
NISSAN VEHICLE IMMOBILIZER SYS-
TEM
GUID-3F81F329-63EA-4A18-A472-E8D6E2A9B23AThe NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered Intelligent Key.Never leave these
keys in the vehicle.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, including
interference that may cause undesired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user's
authority to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions:
(1) this device may not cause interference,
and (2) this device must accept any inter-
ference, including interference that may
cause undesired operation of the device.
SIC2045
Security indicator lightGUID-25A364CB-C81A-4EA9-91A8-8EC3F1236ADDThe security indicator light is located on the
meter panel. It indicates the status of the
NISSAN Vehicle Immobilizer System.
The light blinks after the ignition switch is in the
LOCK, ACC or OFF position. This function
indicates the security systems equipped on the
vehicle are operational.
If the NISSAN Vehicle Immobilizer System is
malfunctioning, this light will remain on while the
ignition switch is in the ON position.
If the light still remains on and/or the
engine will not start, see a NISSAN dealer
for NISSAN Vehicle Immobilizer System
Instruments and controls2-29
& R Q G L W L R Q
Page 110 of 491
> ( G L W 0 R G H O ( ' @

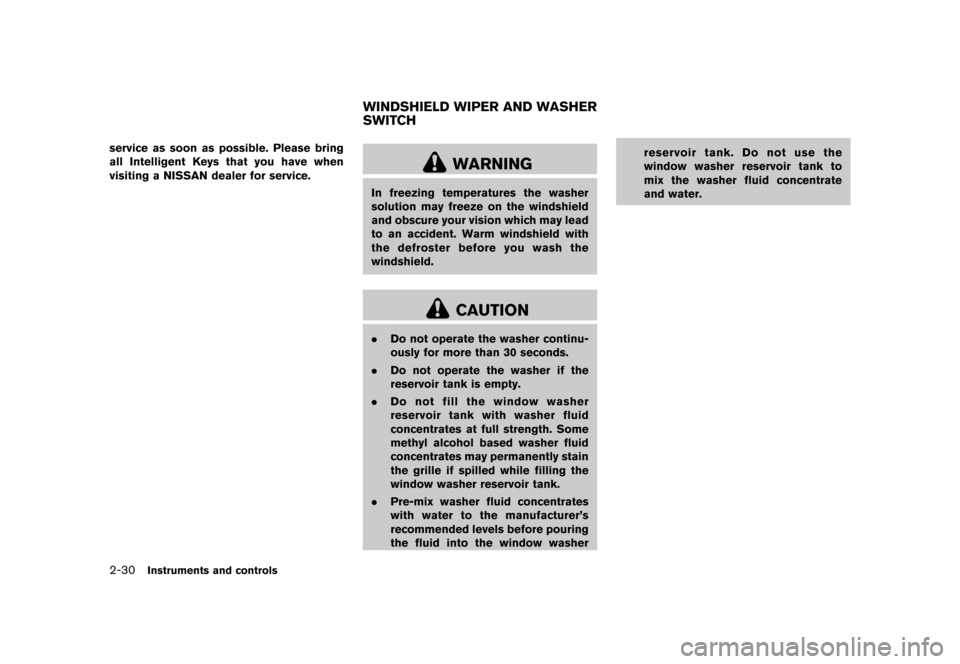

2-30Instruments and controls
service as soon as possible. Please bring
all Intelligent Keys that you have when
visiting a NISSAN dealer for service.
GUID-FDCAE580-2A84-4682-B1FD-320CE21EDECE
WARNING
In freezing temperatures the washer
solution may freeze on the windshield
and obscure your vision which may lead
to an accident. Warm windshield with
the defroster before you wash the
windshield.
CAUTION
.Do not operate the washer continu-
ously for more than 30 seconds.
. Do not operate the washer if the
reservoir tank is empty.
. Do not fill the window washer
reservoir tank with washer fluid
concentrates at full strength. Some
methyl alcohol based washer fluid
concentrates may permanently stain
the grille if spilled while filling the
window washer reservoir tank.
. Pre-mix washer fluid concentrates
with water to the manufacturer's
recommended levels before pouring
the fluid into the window washer reservoir tank. Do not use the
window washer reservoir tank to
mix the washer fluid concentrate
and water.
WINDSHIELD WIPER AND WASHER
SWITCH
& R Q G L W L R Q
