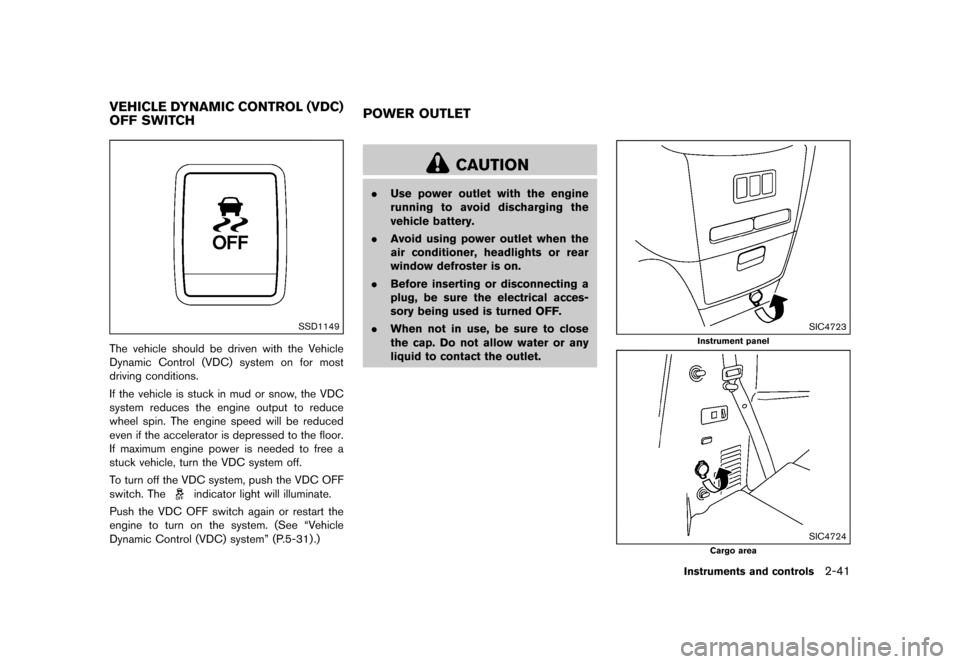

Page 121 of 491
> ( G L W 0 R G H O ( ' @
GUID-A015DB1A-0B61-4323-8D4A-EDD728A8BDC2
SSD1149
The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most
driving conditions.
If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor.
If maximum engine power is needed to free a
stuck vehicle, turn the VDC system off.
To turn off the VDC system, push the VDC OFF
switch. The
indicator light will illuminate.
Push the VDC OFF switch again or restart the
engine to turn on the system. (See ªVehicle
Dynamic Control (VDC) systemº (P.5-31) .)
GUID-161A4C80-DF8E-42C5-AB4A-C007F1B5BA6F
CAUTION
. Use power outlet with the engine
running to avoid discharging the
vehicle battery.
. Avoid using power outlet when the
air conditioner, headlights or rear
window defroster is on.
. Before inserting or disconnecting a
plug, be sure the electrical acces-
sory being used is turned OFF.
. When not in use, be sure to close
the cap. Do not allow water or any
liquid to contact the outlet.
SIC4723
Instrument panel
SIC4724
Cargo area
Instruments and controls2-41
VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH POWER OUTLET
& R Q G L W L R Q

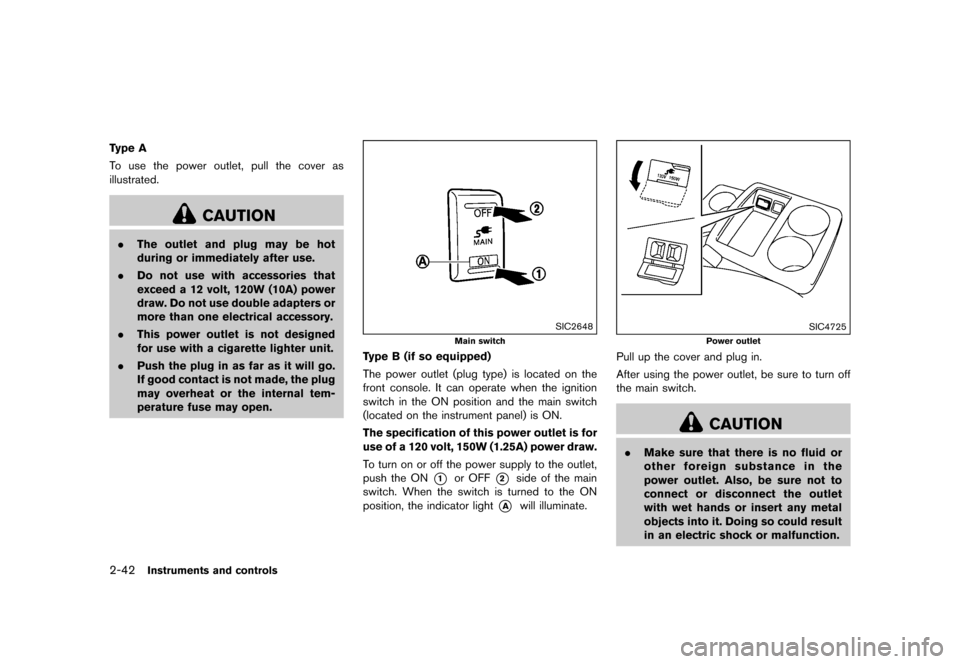

Page 122 of 491
> ( G L W 0 R G H O ( ' @
2-42Instruments and controls
Type A
To use the power outlet, pull the cover as
illustrated.
CAUTION
.The outlet and plug may be hot
during or immediately after use.
. Do not use with accessories that
exceed a 12 volt, 120W (10A) power
draw. Do not use double adapters or
more than one electrical accessory.
. This power outlet is not designed
for use with a cigarette lighter unit.
. Push the plug in as far as it will go.
If good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.
SIC2648
Main switch
Type B (if so equipped)
The power outlet (plug type) is located on the
front console. It can operate when the ignition
switch in the ON position and the main switch
(located on the instrument panel) is ON.
The specification of this power outlet is for
use of a 120 volt, 150W (1.25A) power draw.
To turn on or off the power supply to the outlet,
push the ON
*1or OFF*2side of the main
switch. When the switch is turned to the ON
position, the indicator light
*Awill illuminate.
SIC4725
Power outlet
Pull up the cover and plug in.
After using the power outlet, be sure to turn off
the main switch.
CAUTION
. Make sure that there is no fluid or
other foreign substance in the
power outlet. Also, be sure not to
connect or disconnect the outlet
with wet hands or insert any metal
objects into it. Doing so could result
in an electric shock or malfunction.
& R Q G L W L R Q

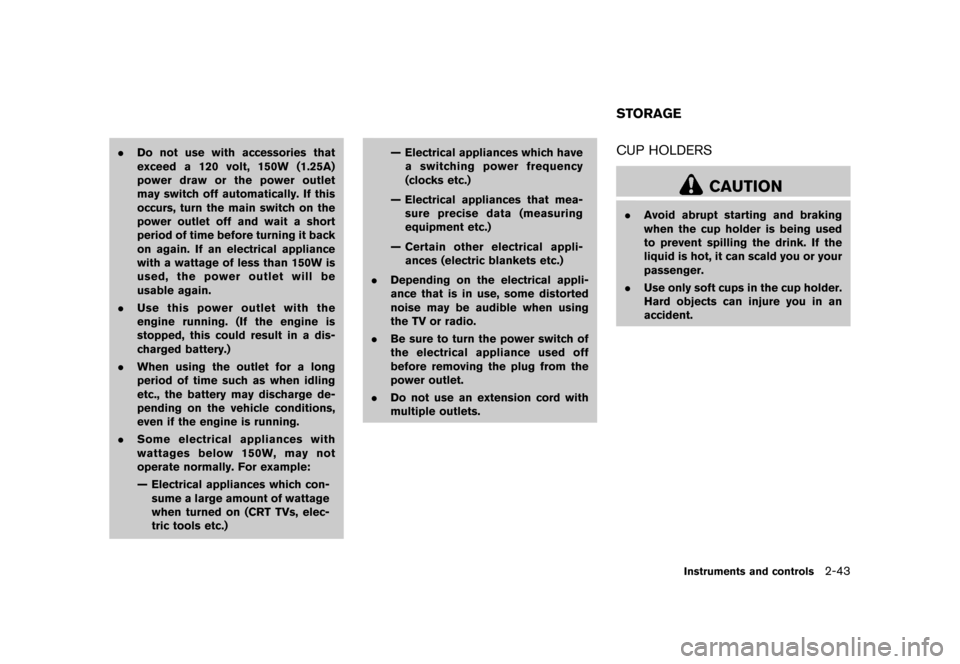

Page 123 of 491
> ( G L W 0 R G H O ( ' @
.Do not use with accessories that
exceed a 120 volt, 150W (1.25A)
power draw or the power outlet
may switch off automatically. If this
occurs, turn the main switch on the
power outlet off and wait a short
period of time before turning it back
on again. If an electrical appliance
with a wattage of less than 150W is
used, the power outlet will be
usable again.
. Use this power outlet with the
engine running. (If the engine is
stopped, this could result in a dis-
charged battery.)
. When using the outlet for a long
period of time such as when idling
etc., the battery may discharge de-
pending on the vehicle conditions,
even if the engine is running.
. Some electrical appliances with
wattages below 150W, may not
operate normally. For example:
Ð Electrical appliances which con-
sume a large amount of wattage
when turned on (CRT TVs, elec-
tric tools etc.) Ð Electrical appliances which have
a switching power frequency
(clocks etc.)
Ð Electrical appliances that mea- sure precise data (measuring
equipment etc.)
Ð Certain other electrical appli- ances (electric blankets etc.)
. Depending on the electrical appli-
ance that is in use, some distorted
noise may be audible when using
the TV or radio.
. Be sure to turn the power switch of
the electrical appliance used off
before removing the plug from the
power outlet.
. Do not use an extension cord with
multiple outlets.
GUID-B0D38ABB-5C0B-43EA-999A-F188213BEAC2CUP HOLDERSGUID-05946CC2-5439-4CEF-A361-E2F9188DAA38
CAUTION
.Avoid abrupt starting and braking
when the cup holder is being used
to prevent spilling the drink. If the
liquid is hot, it can scald you or your
passenger.
. Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
Instruments and controls2-43
STORAGE
& R Q G L W L R Q

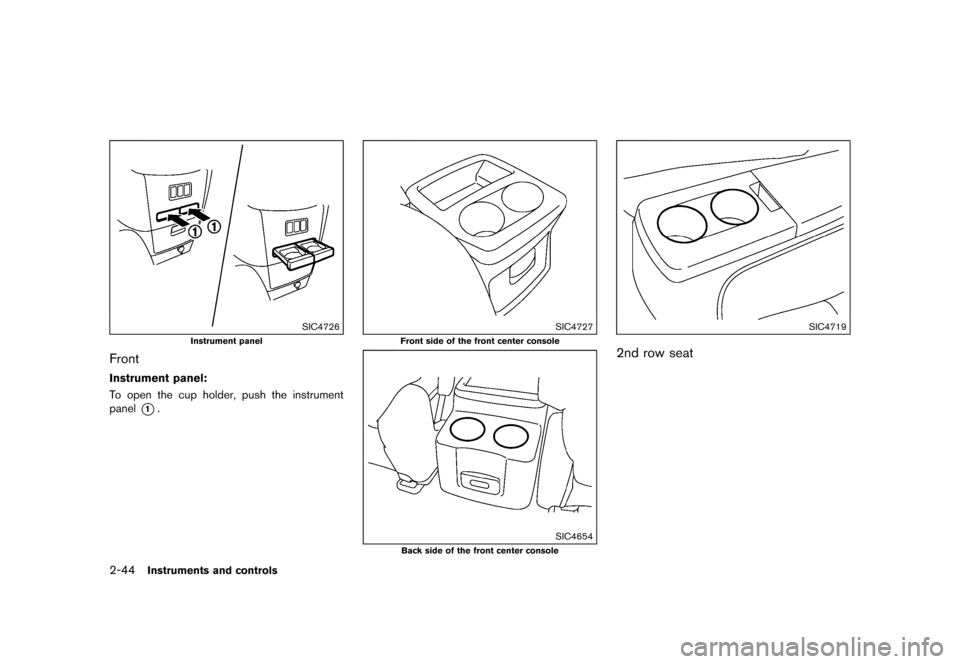

Page 124 of 491
> ( G L W 0 R G H O ( ' @
2-44Instruments and controls
SIC4726
Instrument panel
FrontGUID-933DDA98-42E1-4300-A04F-E6EA48542261
Instrument panel:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To open the cup holder, push the instrument
panel
*1.
SIC4727
Front side of the front center console
SIC4654
Back side of the front center console
SIC4719
2nd row seatGUID-251C02D7-C596-492F-80F3-2D8B82CBDF1C
& R Q G L W L R Q

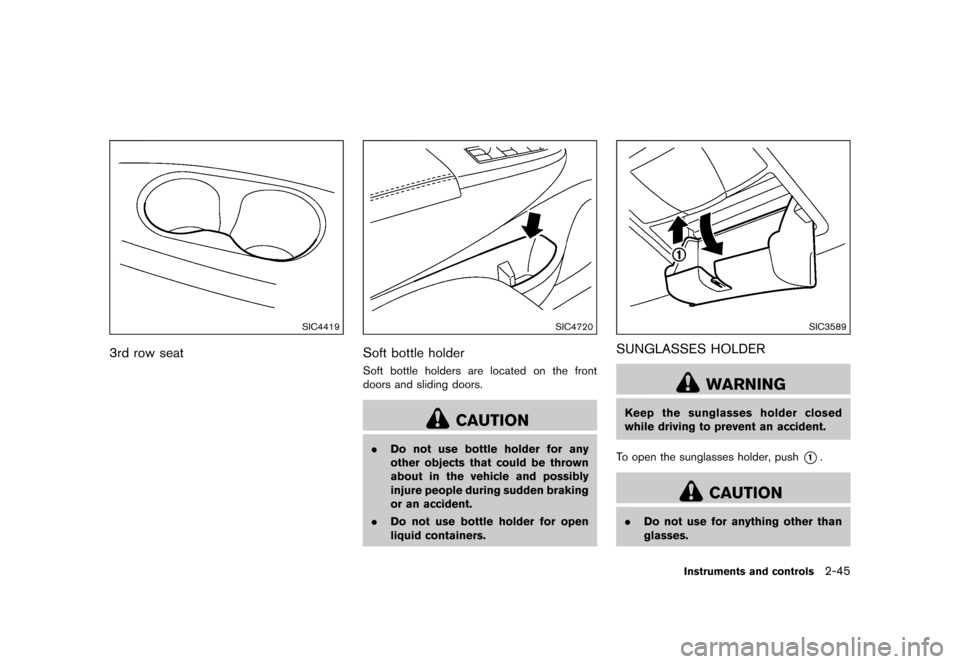

Page 125 of 491
> ( G L W 0 R G H O ( ' @
SIC4419
3rd row seatGUID-88D9046B-0CB6-44F5-BDCD-6933849177BA
SIC4720
Soft bottle holderGUID-77CB94BE-1487-4E98-9316-08615E11FDFCSoft bottle holders are located on the front
doors and sliding doors.
CAUTION
.Do not use bottle holder for any
other objects that could be thrown
about in the vehicle and possibly
injure people during sudden braking
or an accident.
. Do not use bottle holder for open
liquid containers.
SIC3589
SUNGLASSES HOLDERGUID-3472B80D-1CE1-4DDF-89D9-026C1B3DE92C
WARNING
Keep the sunglasses holder closed
while driving to prevent an accident.
To open the sunglasses holder, push
*1.
CAUTION
. Do not use for anything other than
glasses.
Instruments and controls2-45
& R Q G L W L R Q
Page 126 of 491
> ( G L W 0 R G H O ( ' @

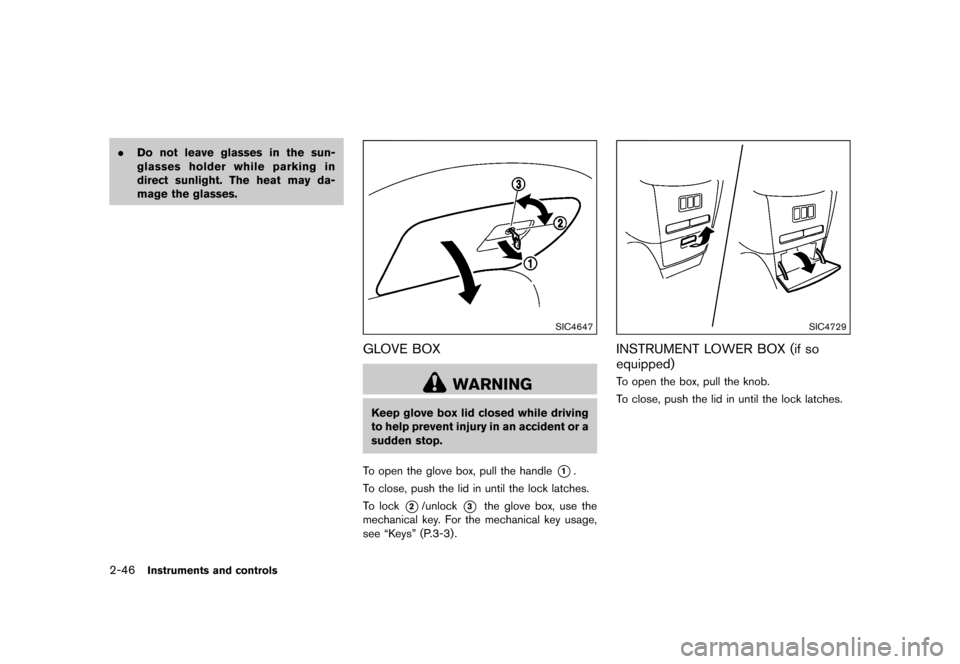

2-46Instruments and controls
.Do not leave glasses in the sun-
glasses holder while parking in
direct sunlight. The heat may da-
mage the glasses.
SIC4647
GLOVE BOXGUID-1FC230A6-F293-4842-9CDD-AA48D52D4393
WARNING
Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.
To open the glove box, pull the handle
*1.
To close, push the lid in until the lock latches.
To lock
*2/unlock*3the glove box, use the
mechanical key. For the mechanical key usage,
see ªKeysº (P.3-3) .
SIC4729
INSTRUMENT LOWER BOX (if so
equipped)
GUID-31A40850-9E95-44D3-B130-C6E854F4D5F6To open the box, pull the knob.
To close, push the lid in until the lock latches.
& R Q G L W L R Q
Page 127 of 491
> ( G L W 0 R G H O ( ' @

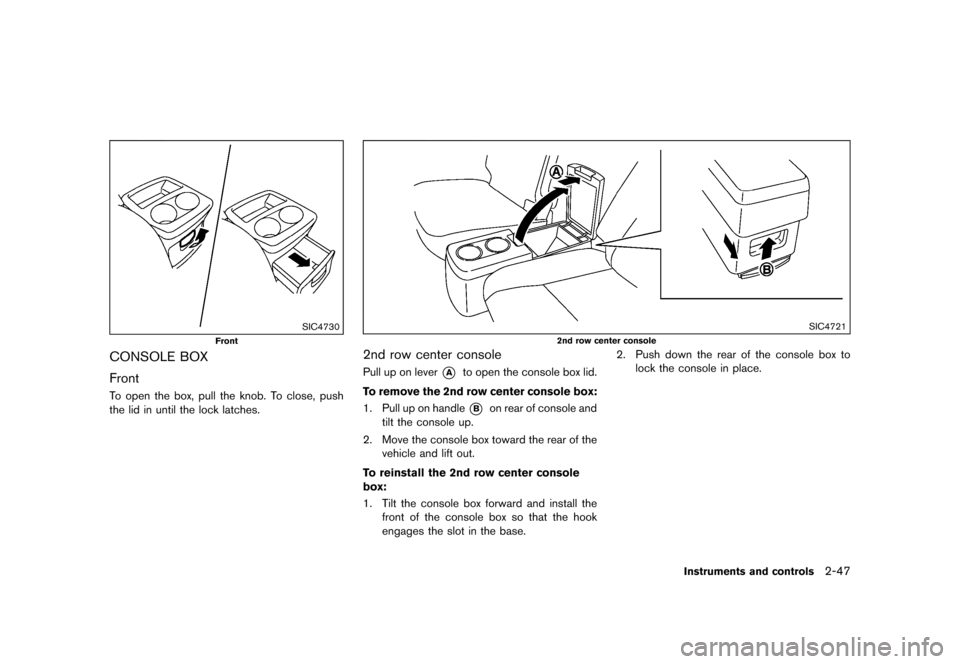

SIC4730
Front
CONSOLE BOXGUID-65510022-43AE-4730-8E5B-FC8FE21A7614
FrontGUID-618B42AD-8836-4E9F-B2D6-F24E13828799To open the box, pull the knob. To close, push
the lid in until the lock latches.
SIC4721
2nd row center console
2nd row center consoleGUID-7D7F11C4-300C-402A-975E-CD32A0B8C6D9Pull up on lever*Ato open the console box lid.
To remove the 2nd row center console box:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Pull up on handle*Bon rear of console and
tilt the console up.
2. Move the console box toward the rear of the vehicle and lift out.
To reinstall the 2nd row center console
box:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Tilt the console box forward and install the front of the console box so that the hook
engages the slot in the base. 2. Push down the rear of the console box to
lock the console in place.
Instruments and controls2-47
& R Q G L W L R Q

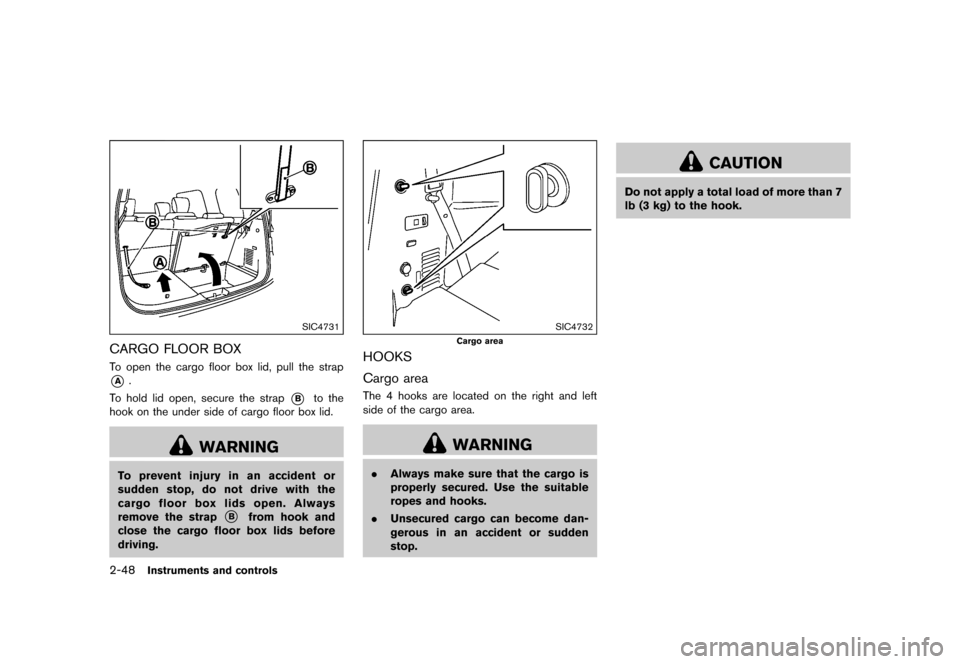

Page 128 of 491
> ( G L W 0 R G H O ( ' @
2-48Instruments and controls
SIC4731
CARGO FLOOR BOXGUID-08E23E82-0E1D-4CF3-A521-071CD427F369To open the cargo floor box lid, pull the strap
*A.
To hold lid open, secure the strap
*Bto the
hook on the under side of cargo floor box lid.
WARNING
To prevent injury in an accident or
sudden stop, do not drive with the
cargo floor box lids open. Always
remove the strap
*Bfrom hook and
close the cargo floor box lids before
driving.
SIC4732
Cargo area
HOOKSGUID-906FAE38-262D-4F92-AD3B-038068F41DE2
Cargo areaGUID-EE3D8B5B-02E7-4A9C-9AE1-4771969747AEThe 4 hooks are located on the right and left
side of the cargo area.
WARNING
. Always make sure that the cargo is
properly secured. Use the suitable
ropes and hooks.
. Unsecured cargo can become dan-
gerous in an accident or sudden
stop.
CAUTION
Do not apply a total load of more than 7
lb (3 kg) to the hook.
& R Q G L W L R Q

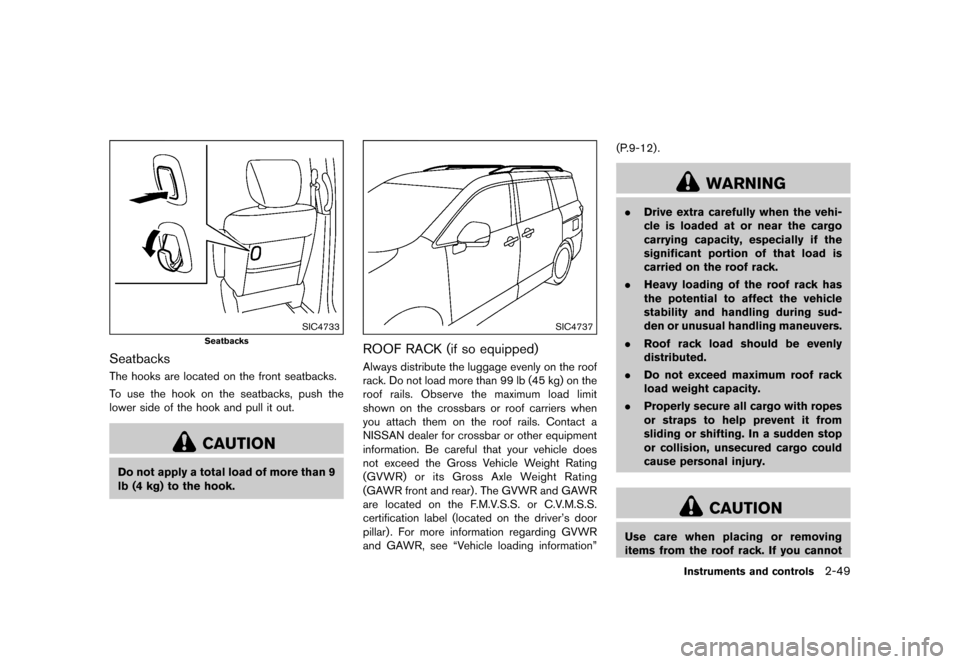

Page 129 of 491
> ( G L W 0 R G H O ( ' @
SIC4733
Seatbacks
SeatbacksGUID-BE72E849-4191-475F-BEE0-F4E846E68F0AThe hooks are located on the front seatbacks.
To use the hook on the seatbacks, push the
lower side of the hook and pull it out.
CAUTION
Do not apply a total load of more than 9
lb (4 kg) to the hook.
SIC4737
ROOF RACK (if so equipped)GUID-8868EAD9-A82E-4E35-B88D-4326BA738D60Always distribute the luggage evenly on the roof
rack. Do not load more than 99 lb (45 kg) on the
roof rails. Observe the maximum load limit
shown on the crossbars or roof carriers when
you attach them on the roof rails. Contact a
NISSAN dealer for crossbar or other equipment
information. Be careful that your vehicle does
not exceed the Gross Vehicle Weight Rating
(GVWR) or its Gross Axle Weight Rating
(GAWR front and rear) . The GVWR and GAWR
are located on the F.M.V.S.S. or C.V.M.S.S.
certification label (located on the driver's door
pillar) . For more information regarding GVWR
and GAWR, see ªVehicle loading informationº(P.9-12) .
WARNING
.
Drive extra carefully when the vehi-
cle is loaded at or near the cargo
carrying capacity, especially if the
significant portion of that load is
carried on the roof rack.
. Heavy loading of the roof rack has
the potential to affect the vehicle
stability and handling during sud-
den or unusual handling maneuvers.
. Roof rack load should be evenly
distributed.
. Do not exceed maximum roof rack
load weight capacity.
. Properly secure all cargo with ropes
or straps to help prevent it from
sliding or shifting. In a sudden stop
or collision, unsecured cargo could
cause personal injury.
CAUTION
Use care when placing or removing
items from the roof rack. If you cannot
Instruments and controls2-49
& R Q G L W L R Q

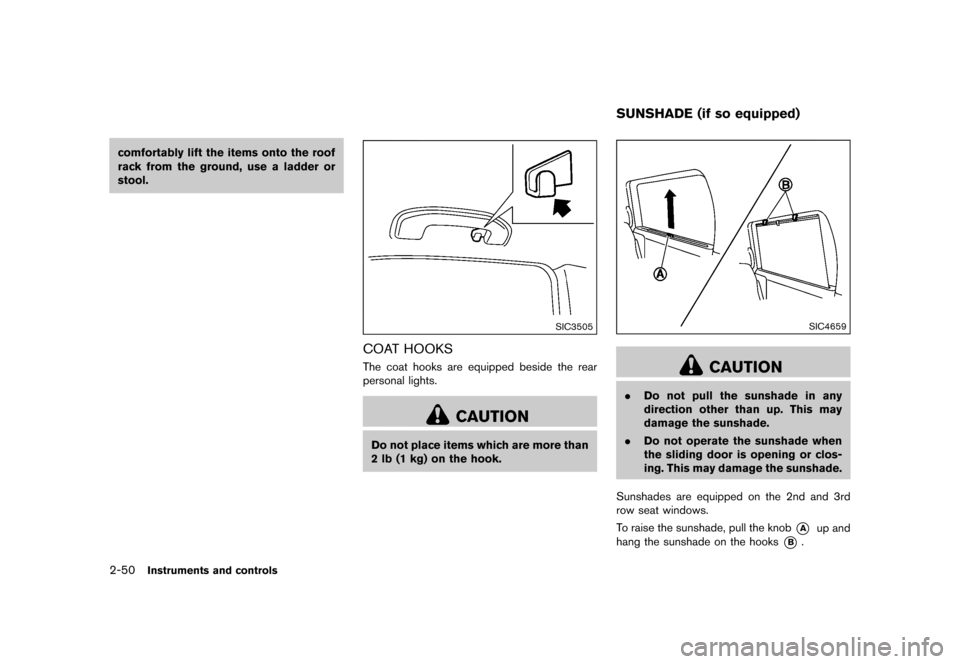

Page 130 of 491
> ( G L W 0 R G H O ( ' @
2-50Instruments and controls
comfortably lift the items onto the roof
rack from the ground, use a ladder or
stool.
SIC3505
COAT HOOKSGUID-9AE4801A-5C6C-4505-B98D-76E2E06FF140The coat hooks are equipped beside the rear
personal lights.
CAUTION
Do not place items which are more than
2 lb (1 kg) on the hook.
GUID-1CEE0B2F-BAC3-436D-A3EE-D6D30849CE4D
SIC4659
CAUTION
.Do not pull the sunshade in any
direction other than up. This may
damage the sunshade.
. Do not operate the sunshade when
the sliding door is opening or clos-
ing. This may damage the sunshade.
Sunshades are equipped on the 2nd and 3rd
row seat windows.
To raise the sunshade, pull the knob
*Aup and
hang the sunshade on the hooks
*B.
SUNSHADE (if so equipped)
