Page 141 of 491
> ( G L W 0 R G H O ( ' @

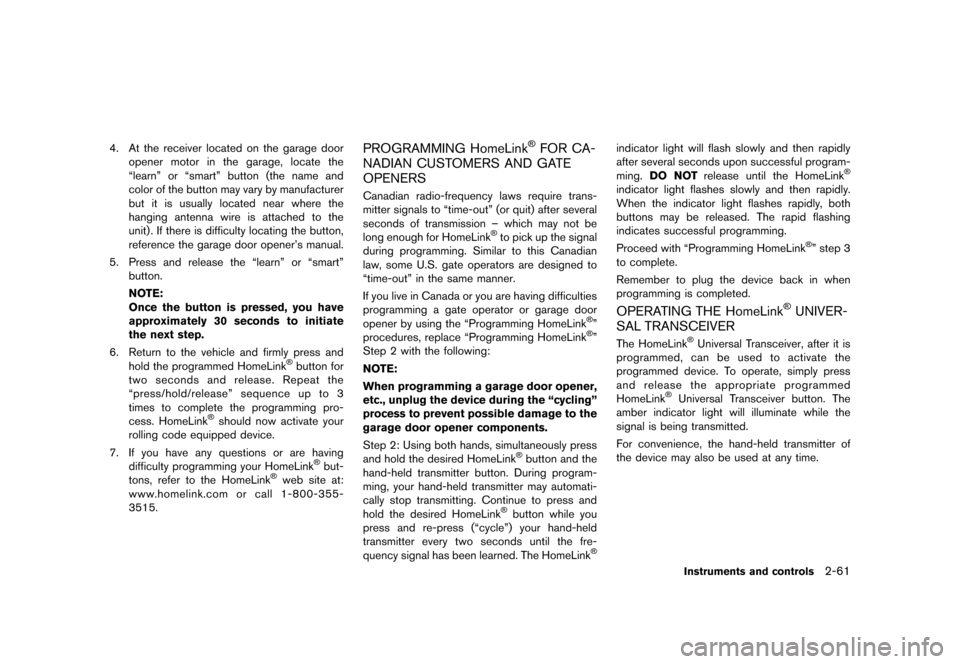

4. At the receiver located on the garage dooropener motor in the garage, locate the
ªlearnº or ªsmartº button (the name and
color of the button may vary by manufacturer
but it is usually located near where the
hanging antenna wire is attached to the
unit) . If there is difficulty locating the button,
reference the garage door opener's manual.
5. Press and release the ªlearnº or ªsmartº button.
NOTE:
Once the button is pressed, you have
approximately 30 seconds to initiate
the next step.
6. Return to the vehicle and firmly press and hold the programmed HomeLink
Page 142 of 491
> ( G L W 0 R G H O ( ' @

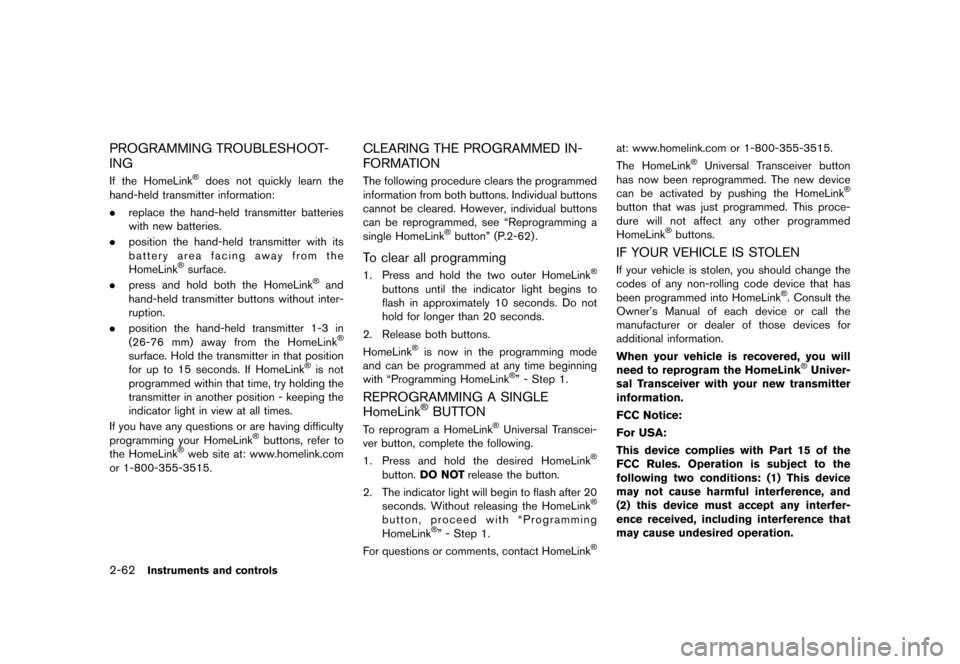

2-62Instruments and controls
PROGRAMMING TROUBLESHOOT-
ING
GUID-A74B64CF-4A06-448A-A031-4FFBE07569D0If the HomeLink
Page 143 of 491
> ( G L W 0 R G H O ( ' @

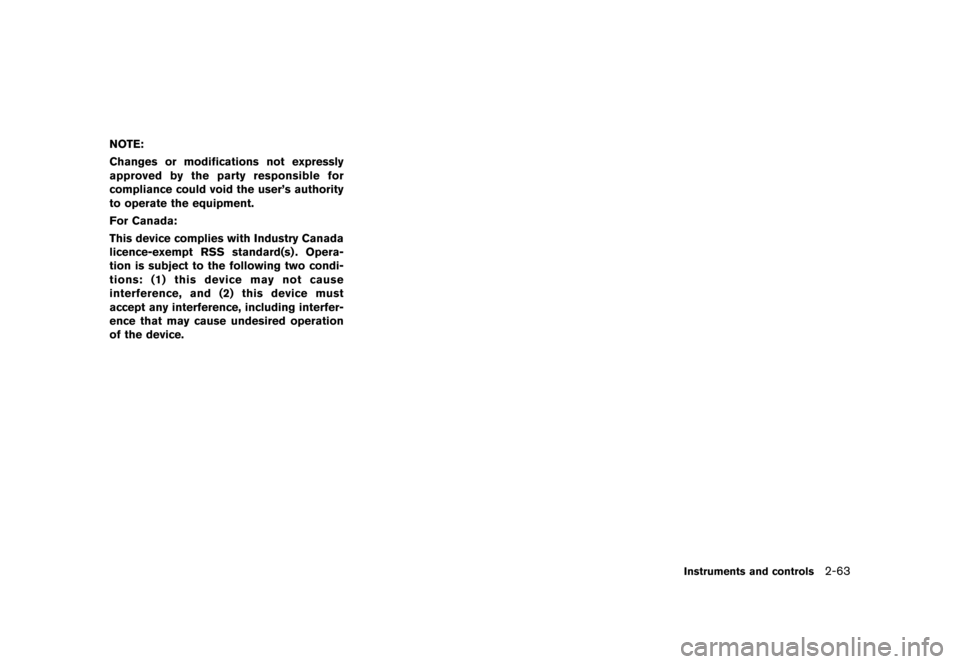

NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's authority
to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including interfer-
ence that may cause undesired operation
of the device.
Instruments and controls2-63
& R Q G L W L R Q
Page 144 of 491
> ( G L W 0 R G H O ( ' @

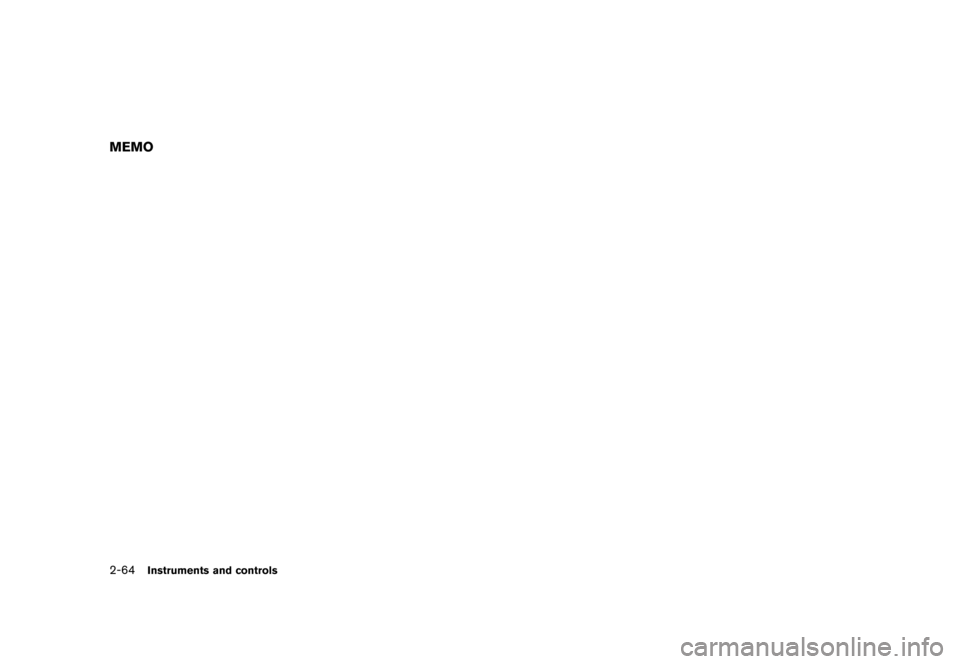

2-64Instruments and controls
MEMO
& R Q G L W L R Q
Page 145 of 491
![NISSAN QUEST 2015 RE52 / 4.G Owners Manual
> ( G L W 0 R G H O ( @

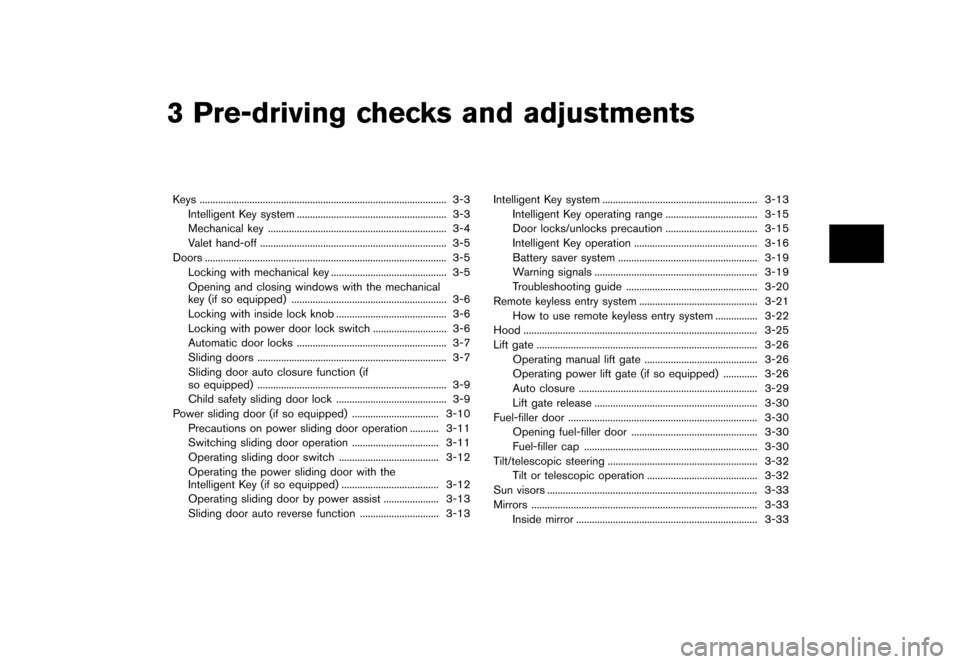

3 Pre-driving checks and adjustments
Keys...
........................................................................\
....](/img/5/441/w960_441-144.png "NISSAN QUEST 2015 RE52 / 4.G Owners Manual
> ( G L W 0 R G H O ( @
3 Pre-driving checks and adjustments
Keys...
........................................................................\
....")
> ( G L W 0 R G H O ( ' @
3 Pre-driving checks and adjustments
Keys...
........................................................................\
...................... 3-3
Intelligent Key system ...
......................................................... 3-3
Mechanical key ...
.................................................................... 3-4
Valet hand-off ...
....................................................................... 3-5
Doors ...
........................................................................\
.................... 3-5
Locking with mechanical key ...
............................................ 3-5
Opening and closing windows with the mechanical
key (if so equipped) ...
........................................................... 3-6
Locking with inside lock knob ...
.......................................... 3-6
Locking with power door lock switch ...
............................ 3-6
Automatic door locks ...
......................................................... 3-7
Sliding doors ...
........................................................................\
3-7
Sliding door auto closure function (if
so equipped) ...
........................................................................\
3-9
Child safety sliding door lock ...
.......................................... 3-9
Power sliding door (if so equipped) ...
................................. 3-10
Precautions on power sliding door operation ...
........... 3-11
Switching sliding door operation ...
................................. 3-11
Operating sliding door switch ...
...................................... 3-12
Operating the power sliding door with the
Intelligent Key (if so equipped) ...
..................................... 3-12
Operating sliding door by power assist ...
..................... 3-13
Sliding door auto reverse function ...
.............................. 3-13 Intelligent Key system
...
........................................................... 3-13
Intelligent Key operating range ...
................................... 3-15
Door locks/unlocks precaution ...
................................... 3-15
Intelligent Key operation ...
............................................... 3-16
Battery saver system ...
..................................................... 3-19
Warning signals ...
.............................................................. 3-19
Troubleshooting guide ...
.................................................. 3-20
Remote keyless entry system ...
............................................. 3-21
How to use remote keyless entry system ...
................ 3-22
Hood ...
........................................................................\
................. 3-25
Lift gate ...
........................................................................\
............ 3-26
Operating manual lift gate ...
........................................... 3-26
Operating power lift gate (if so equipped) ...
............. 3-26
Auto closure ...
.................................................................... 3-29
Lift gate release ...
.............................................................. 3-30
Fuel-filler door ...
........................................................................\
3-30
Opening fuel-filler door ...
................................................ 3-30
Fuel-filler cap ...
.................................................................. 3-30
Tilt/telescopic steering ...
......................................................... 3-32
Tilt or telescopic operation ...
.......................................... 3-32
Sun visors ...
........................................................................\
........ 3-33
Mirrors ...
........................................................................\
.............. 3-33
Inside mirror ...
..................................................................... 3-33
& R Q G L W L R Q
Page 146 of 491
> ( G L W 0 R G H O ( ' @

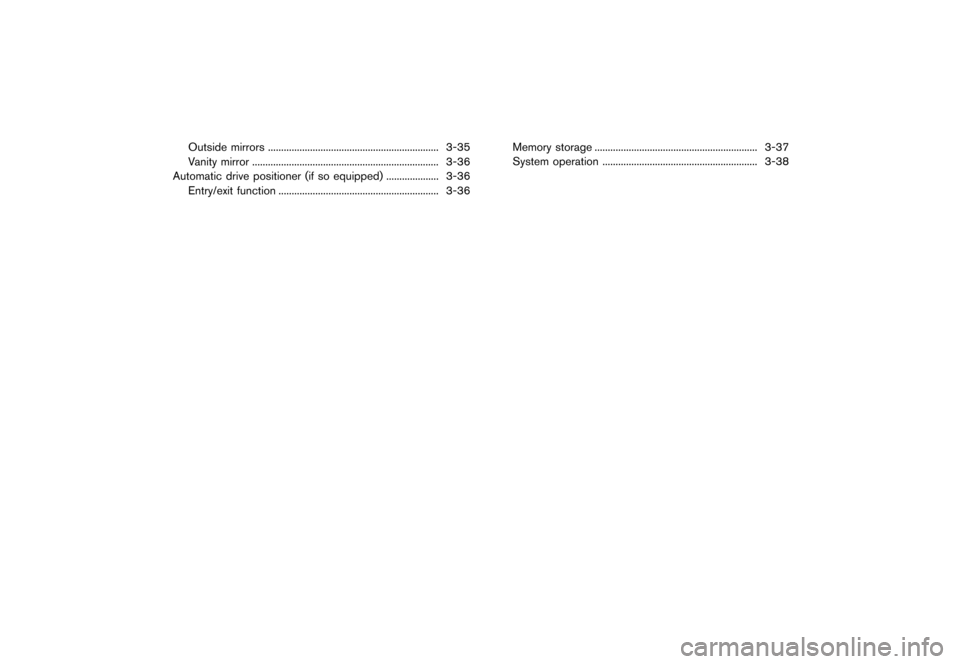

Outside mirrors...
................................................................. 3-35
Vanity mirror ...
....................................................................... 3-36
Automatic drive positioner (if so equipped) ...
.................... 3-36
Entry/exit function ...
............................................................. 3-36 Memory storage
...
.............................................................. 3-37
System operation ...
........................................................... 3-38
& R Q G L W L R Q
Page 147 of 491
> ( G L W 0 R G H O ( ' @

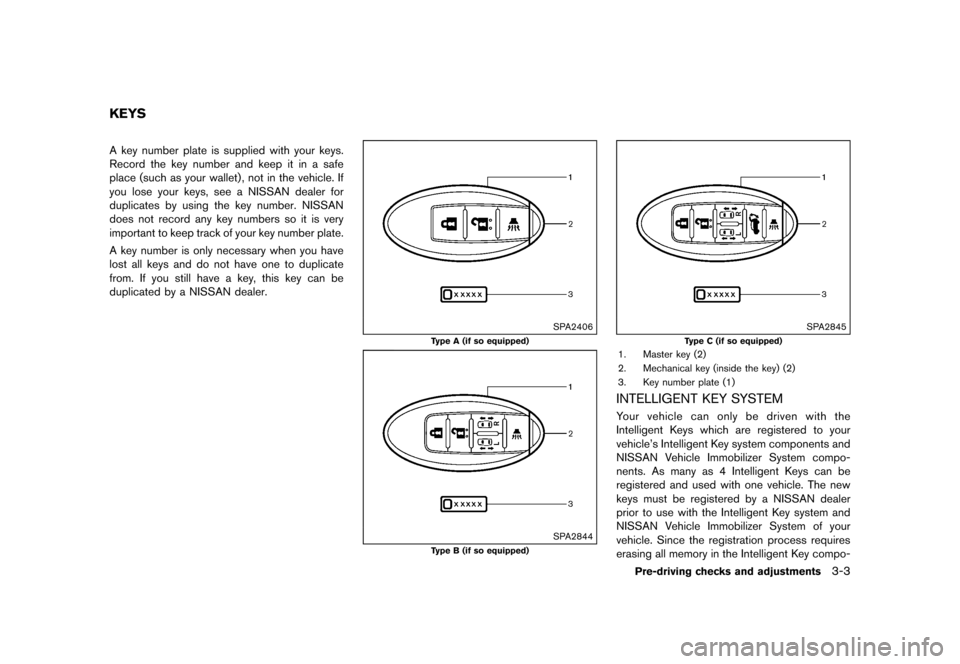

GUID-3AE7A6EF-F9A0-4170-8F25-D2AD88653F67A key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet) , not in the vehicle. If
you lose your keys, see a NISSAN dealer for
duplicates by using the key number. NISSAN
does not record any key numbers so it is very
important to keep track of your key number plate.
A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, this key can be
duplicated by a NISSAN dealer.
SPA2406
Type A (if so equipped)
SPA2844
Type B (if so equipped)
SPA2845
Type C (if so equipped)
1. Master key (2)
2. Mechanical key (inside the key) (2)
3. Key number plate (1)
INTELLIGENT KEY SYSTEMGUID-E1D9BFF8-38D2-4E11-8A34-3242B810AF20Your vehicle can only be driven with the
Intelligent Keys which are registered to your
vehicle's Intelligent Key system components and
NISSAN Vehicle Immobilizer System compo-
nents. As many as 4 Intelligent Keys can be
registered and used with one vehicle. The new
keys must be registered by a NISSAN dealer
prior to use with the Intelligent Key system and
NISSAN Vehicle Immobilizer System of your
vehicle. Since the registration process requires
erasing all memory in the Intelligent Key compo-
Pre-driving checks and adjustments3-3
KEYS
& R Q G L W L R Q
Page 148 of 491
> ( G L W 0 R G H O ( ' @

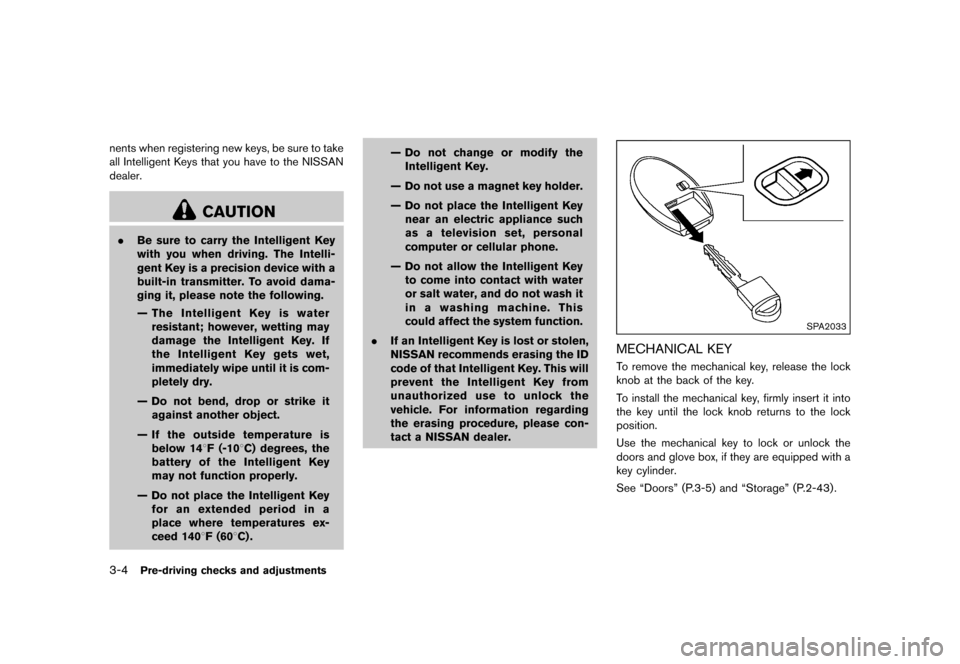

3-4Pre-driving checks and adjustments
nents when registering new keys, be sure to take
all Intelligent Keys that you have to the NISSAN
dealer.
CAUTION
.Be sure to carry the Intelligent Key
with you when driving. The Intelli-
gent Key is a precision device with a
built-in transmitter. To avoid dama-
ging it, please note the following.
Ð The Intelligent Key is water
resistant; however, wetting may
damage the Intelligent Key. If
the Intelligent Key gets wet,
immediately wipe until it is com-
pletely dry.
Ð Do not bend, drop or strike it against another object.
Ð If the outside temperature is below 148F (-108C) degrees, the
battery of the Intelligent Key
may not function properly.
Ð Do not place the Intelligent Key for an extended period in a
place where temperatures ex-
ceed 1408F (608C) . Ð Do not change or modify the
Intelligent Key.
Ð Do not use a magnet key holder.
Ð Do not place the Intelligent Key near an electric appliance such
as a television set, personal
computer or cellular phone.
Ð Do not allow the Intelligent Key to come into contact with water
or salt water, and do not wash it
in a washing machine. This
could affect the system function.
. If an Intelligent Key is lost or stolen,
NISSAN recommends erasing the ID
code of that Intelligent Key. This will
prevent the Intelligent Key from
unauthorized use to unlock the
vehicle. For information regarding
the erasing procedure, please con-
tact a NISSAN dealer.
SPA2033
MECHANICAL KEYGUID-65EB5236-29E3-4BF1-B902-8BE659CAAE13To remove the mechanical key, release the lock
knob at the back of the key.
To install the mechanical key, firmly insert it into
the key until the lock knob returns to the lock
position.
Use the mechanical key to lock or unlock the
doors and glove box, if they are equipped with a
key cylinder.
See ªDoorsº (P.3-5) and ªStorageº (P.2-43) .
& R Q G L W L R Q
Page 149 of 491
> ( G L W 0 R G H O ( ' @
CAUTION
Always carry the mechanical key in-
stalled in the key.
VALET HAND-OFFGUID-44136B17-07DF-4D0F-92F0-BD778BE9A8E0When you have to leave a key with a valet, give
them the Intelligent Key itself after removing the
mechanical key to protect your belongings.
To prevent the glove box from being opened
during valet hand-off, follow the procedures
below.
1. Remove the mechanical key from the In-telligent Key.
2. Lock the glove box with the mechanical key.
3. Hand the Intelligent Key to the valet, keeping the mechanical key in your pocket or bag.
Insert the mechanical key into the Intelligent
Key when you retrieve your vehicle.
For glove box lock, see ªStorageº (P.2-43) .
GUID-18907FBD-5AB8-42C1-B853-0AF0F135729D
WARNING
. Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping
to prevent persons from being
thrown from the vehicle. This also
helps keep children and others from
unintentionally opening the doors,
and will help keep out intruders.
. Before opening any door, always
look for and avoid oncoming traffic.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents.
SPA2527-B
LOCKING WITH MECHANICAL KEYGUID-CFBC7CA1-1570-4282-A02B-C90C789270FDThe power door lock system allows you to lock
or unlock all doors simultaneously using the
mechanical key.
.Turning the driver's door key cylinder to the
rear of the vehicle
*1will lock all doors.
. Turning the driver's door key cylinder once
to the front of the vehicle
*2will unlock the
driver's door. After returning the key to the
neutral position
*3, turning it to the front
again within 5 seconds will unlock all doors.
. Models with center multi-function control
panel:
You can switch the lock system to the mode
that allows you to open all the doors when
Pre-driving checks and adjustments3-5
DOORS
& R Q G L W L R Q
Page 150 of 491
> ( G L W 0 R G H O ( ' @
3-6Pre-driving checks and adjustments

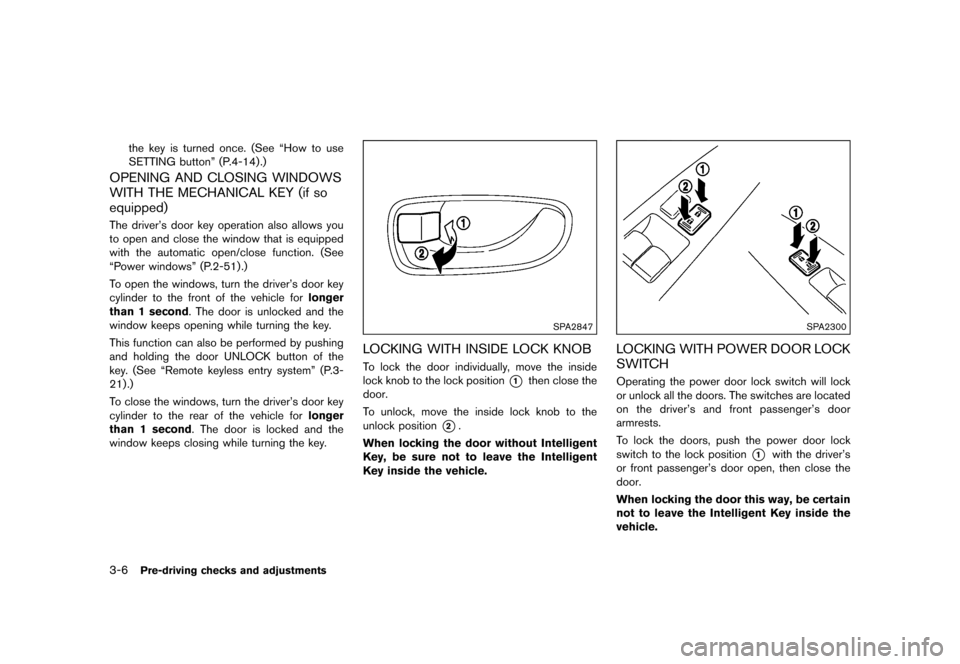

the key is turned once. (See ªHow to use
SETTING buttonº (P.4-14).)
OPENING AND CLOSING WINDOWS
WITH THE MECHANICAL KEY (if so
equipped)
GUID-BDF61E57-CFE8-4FB0-BB40-5884748912B8The driver's door key operation also allows you
to open and close the window that is equipped
with the automatic open/close function. (See
ªPower windowsº (P.2-51).)
To open the windows, turn the driver's door key
cylinder to the front of the vehicle forlonger
than 1 second. The door is unlocked and the
window keeps opening while turning the key.
This function can also be performed by pushing
and holding the door UNLOCK button of the
key. (See ªRemote keyless entry systemº (P.3-
21) .)
To close the windows, turn the driver's door key
cylinder to the rear of the vehicle for longer
than 1 second. The door is locked and the
window keeps closing while turning the key.
SPA2847
LOCKING WITH INSIDE LOCK KNOBGUID-2CE9ED4D-6C61-4837-BFF1-A659D04ED279To lock the door individually, move the inside
lock knob to the lock position
*1then close the
door.
To unlock, move the inside lock knob to the
unlock position
*2.
When locking the door without Intelligent
Key, be sure not to leave the Intelligent
Key inside the vehicle.
SPA2300
LOCKING WITH POWER DOOR LOCK
SWITCH
GUID-A0360C5F-033D-42C1-A8C3-9E73E149826DOperating the power door lock switch will lock
or unlock all the doors. The switches are located
on the driver's and front passenger's door
armrests.
To lock the doors, push the power door lock
switch to the lock position
*1with the driver's
or front passenger's door open, then close the
door.
When locking the door this way, be certain
not to leave the Intelligent Key inside the
vehicle.
& R Q G L W L R Q
