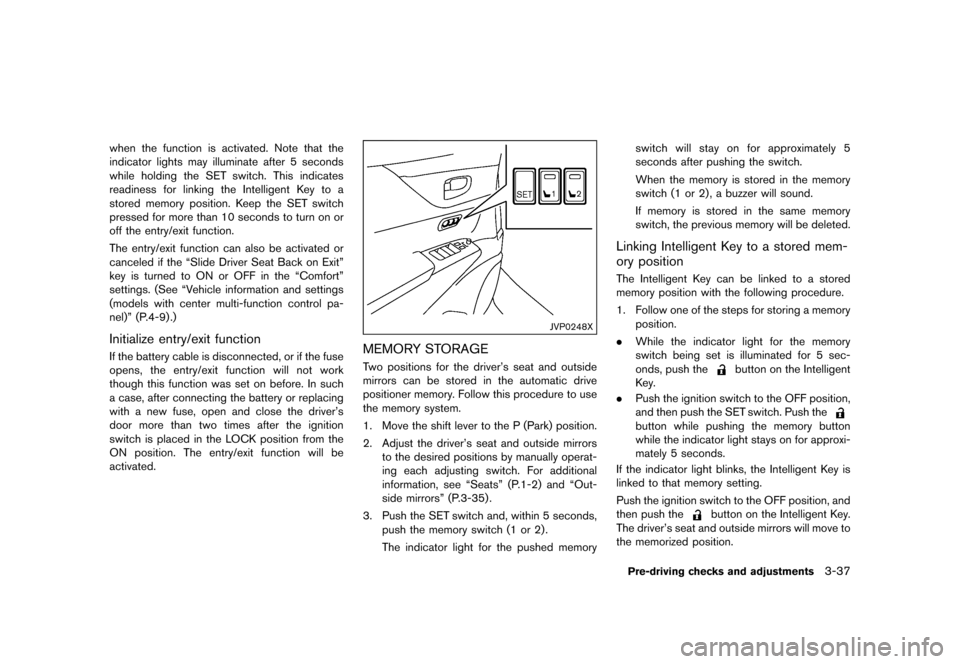

> ( G L W 0 R G H O ( ' @
when the function is activated. Note that the
indicator lights may illuminate after 5 seconds
while holding the SET switch. This indicates
readiness for linking the Intelligent Key to a
stored memory position. Keep the SET switch
pressed for more than 10 seconds to turn on or
off the entry/exit function.
The entry/exit function can also be activated or
canceled if the ªSlide Driver Seat Back on Exitº
key is turned to ON or OFF in the ªComfortº
settings. (See ªVehicle information and settings
(models with center multi-function control pa-
nel)º (P.4-9) .)
Initialize entry/exit functionGUID-E526DD89-2FEC-4DC6-8386-CED70B431AFFIf the battery cable is disconnected, or if the fuse
opens, the entry/exit function will not work
though this function was set on before. In such
a case, after connecting the battery or replacing
with a new fuse, open and close the driver's
door more than two times after the ignition
switch is placed in the LOCK position from the
ON position. The entry/exit function will be
activated.
JVP0248X
MEMORY STORAGEGUID-BEDCA7A8-8409-4EC2-8EAE-7F30A20C2AA8Two positions for the driver's seat and outside
mirrors can be stored in the automatic drive
positioner memory. Follow this procedure to use
the memory system.
1. Move the shift lever to the P (Park) position.
2. Adjust the driver's seat and outside mirrorsto the desired positions by manually operat-
ing each adjusting switch. For additional
information, see ªSeatsº (P.1-2) and ªOut-
side mirrorsº (P.3-35) .
3. Push the SET switch and, within 5 seconds, push the memory switch (1 or 2) .
The indicator light for the pushed memory switch will stay on for approximately 5
seconds after pushing the switch.
When the memory is stored in the memory
switch (1 or 2) , a buzzer will sound.
If memory is stored in the same memory
switch, the previous memory will be deleted.
Linking Intelligent Key to a stored mem-
ory position
GUID-04712762-5C07-46C9-89DF-7F2803A498EBThe Intelligent Key can be linked to a stored
memory position with the following procedure.
1. Follow one of the steps for storing a memory
position.
. While the indicator light for the memory
switch being set is illuminated for 5 sec-
onds, push the
button on the Intelligent
Key.
. Push the ignition switch to the OFF position,
and then push the SET switch. Push the
button while pushing the memory button
while the indicator light stays on for approxi-
mately 5 seconds.
If the indicator light blinks, the Intelligent Key is
linked to that memory setting.
Push the ignition switch to the OFF position, and
then push the
button on the Intelligent Key.
The driver's seat and outside mirrors will move to
the memorized position.
Pre-driving checks and adjustments3-37
& R Q G L W L R Q
Page 182 of 491
> ( G L W 0 R G H O ( ' @

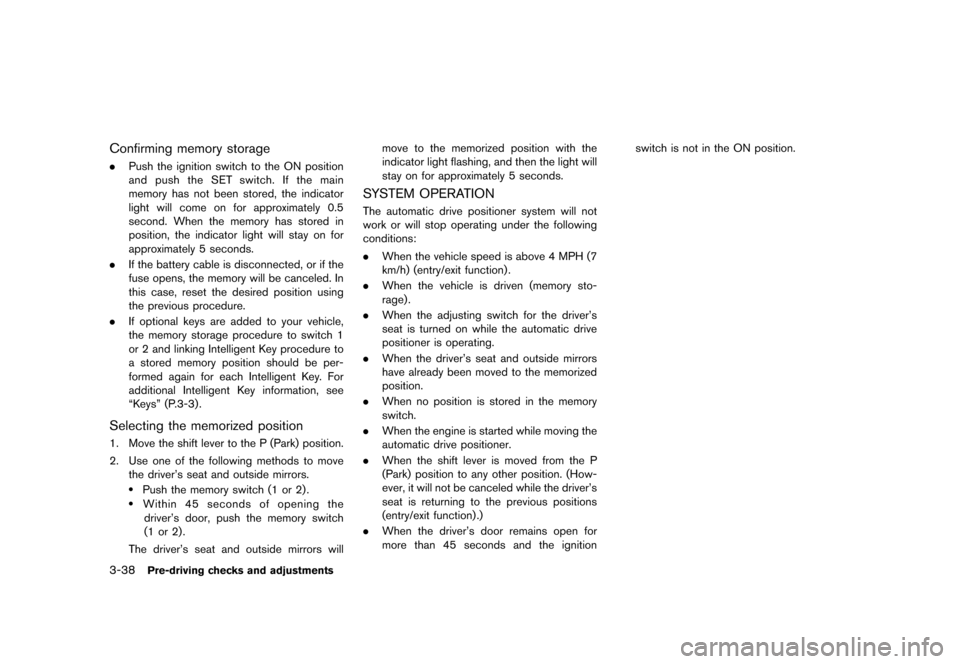

3-38Pre-driving checks and adjustments
Confirming memory storageGUID-C7D22E67-E6D7-436F-A7E9-FBD8970F3E83.Push the ignition switch to the ON position
and push the SET switch. If the main
memory has not been stored, the indicator
light will come on for approximately 0.5
second. When the memory has stored in
position, the indicator light will stay on for
approximately 5 seconds.
. If the battery cable is disconnected, or if the
fuse opens, the memory will be canceled. In
this case, reset the desired position using
the previous procedure.
. If optional keys are added to your vehicle,
the memory storage procedure to switch 1
or 2 and linking Intelligent Key procedure to
a stored memory position should be per-
formed again for each Intelligent Key. For
additional Intelligent Key information, see
ªKeysº (P.3-3) .
Selecting the memorized positionGUID-66874194-881E-4A22-96FF-EE790B2F0E221. Move the shift lever to the P (Park) position.
2. Use one of the following methods to move
the driver's seat and outside mirrors.
.Push the memory switch (1 or 2) ..Within 45 seconds of opening thedriver's door, push the memory switch
(1 or 2) .
The driver's seat and outside mirrors will move to the memorized position with the
indicator light flashing, and then the light will
stay on for approximately 5 seconds.
SYSTEM OPERATIONGUID-B0CC6635-8934-4D55-BA9A-D54FF3D35461The automatic drive positioner system will not
work or will stop operating under the following
conditions:
.
When the vehicle speed is above 4 MPH (7
km/h) (entry/exit function) .
. When the vehicle is driven (memory sto-
rage) .
. When the adjusting switch for the driver's
seat is turned on while the automatic drive
positioner is operating.
. When the driver's seat and outside mirrors
have already been moved to the memorized
position.
. When no position is stored in the memory
switch.
. When the engine is started while moving the
automatic drive positioner.
. When the shift lever is moved from the P
(Park) position to any other position. (How-
ever, it will not be canceled while the driver's
seat is returning to the previous positions
(entry/exit function) .)
. When the driver's door remains open for
more than 45 seconds and the ignition switch is not in the ON position.
& R Q G L W L R Q
Page 183 of 491
> ( G L W 0 R G H O ( ' @

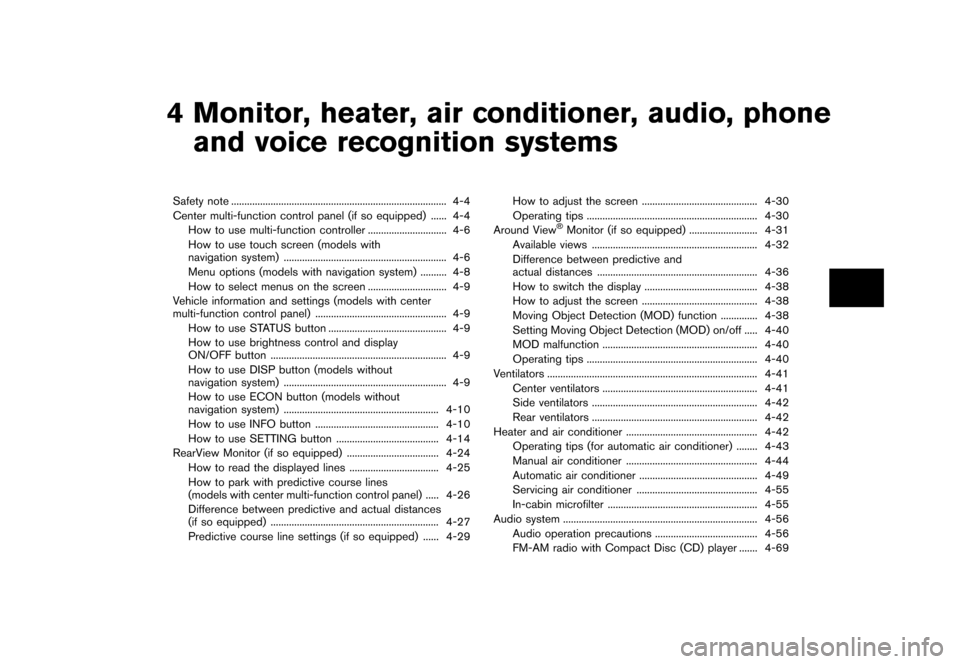

4 Monitor, heater, air conditioner, audio, phoneand voice recognition systems
Safety note ...
........................................................................\
.......... 4-4
Center multi-function control panel (if so equipped) ...
...... 4-4
How to use multi-function controller ...
.............................. 4-6
How to use touch screen (models with
navigation system) ...
.............................................................. 4-6

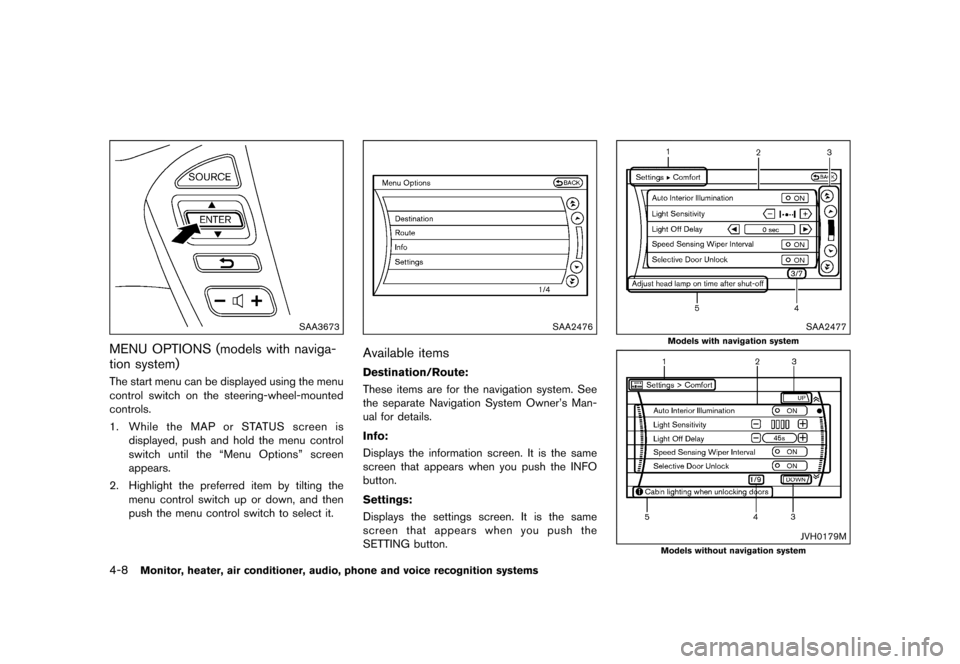

Menu options (models with navigation system) ...
.......... 4-8
How to select menus on the screen ...
.............................. 4-9
Vehicle information and settings (models with center
multi-function control panel) ...
.................................................. 4-9
How to use STATUS button ...
............................................. 4-9
How to use brightness control and display
ON/OFF button ...
................................................................... 4-9
How to use DISP button (models without
navigation system) ...
.............................................................. 4-9
How to use ECON button (models without
navigation system) ...
........................................................... 4-10
How to use INFO button ...
............................................... 4-10
How to use SETTING button ...
....................................... 4-14
RearView Monitor (if so equipped) ...
................................... 4-24
How to read the displayed lines ...
.................................. 4-25
How to park with predictive course lines
(models with center multi-function control panel) ...
..... 4-26
Difference between predictive and actual distances
(if so equipped) ...
................................................................ 4-27
Predictive course line settings (if so equipped) ...
...... 4-29 How to adjust the screen
...
............................................ 4-30
Operating tips ...
................................................................. 4-30
Around View
Page 184 of 491
> ( G L W 0 R G H O ( ' @

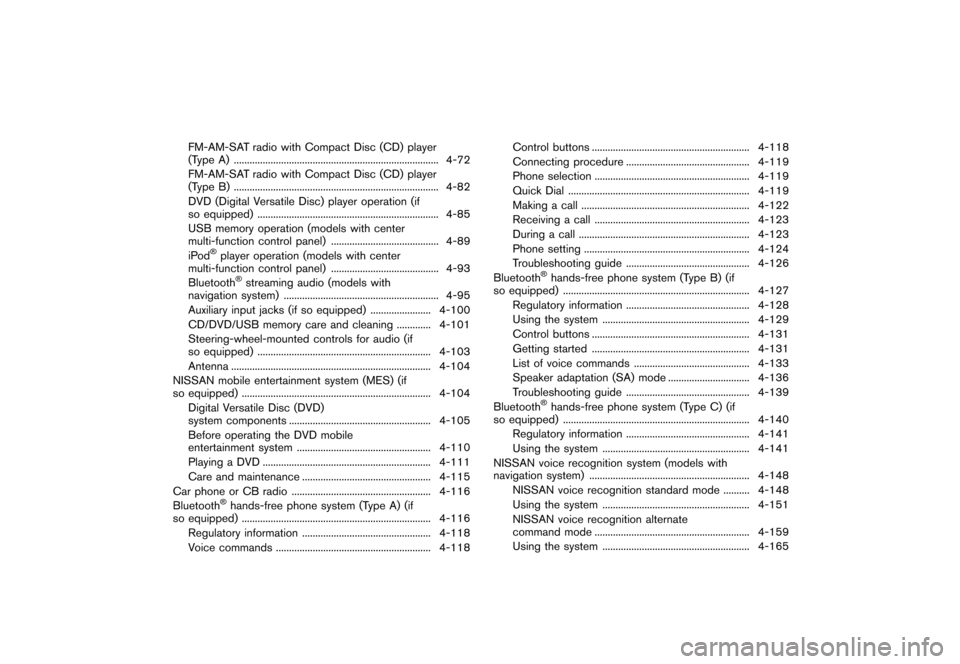

FM-AM-SAT radio with Compact Disc (CD) player
(Type A)...
........................................................................\
...... 4-72
FM-AM-SAT radio with Compact Disc (CD) player
(Type B) ...
........................................................................\
...... 4-82
DVD (Digital Versatile Disc) player operation (if
so equipped) ...
..................................................................... 4-85
USB memory operation (models with center
multi-function control panel) ...
......................................... 4-89
iPod
Page 185 of 491
> ( G L W 0 R G H O ( ' @

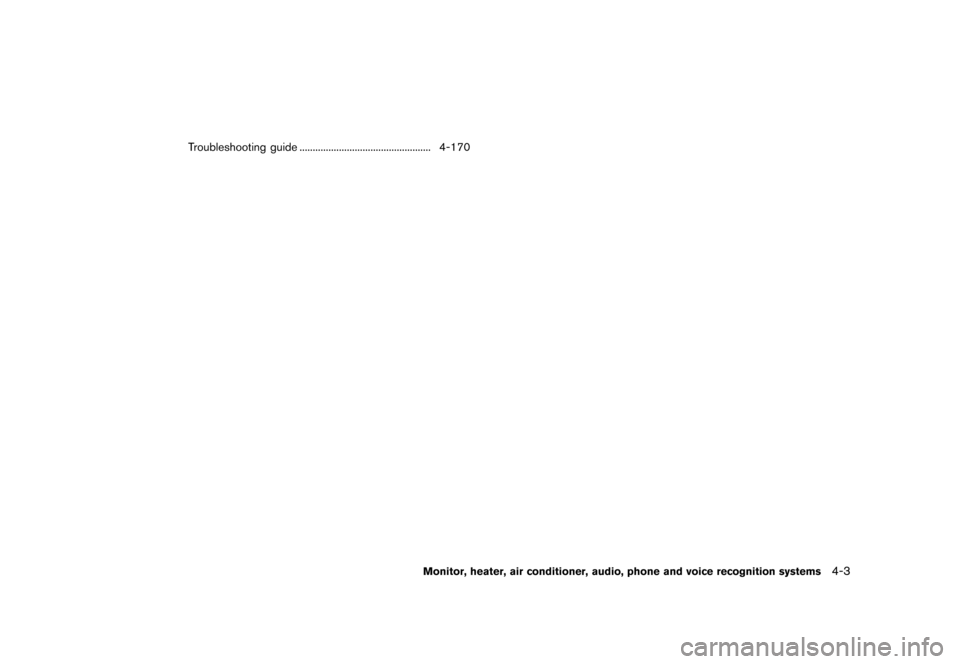

Troubleshooting guide...
.................................................. 4-170
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-3
& R Q G L W L R Q
Page 186 of 491
> ( G L W 0 R G H O ( ' @

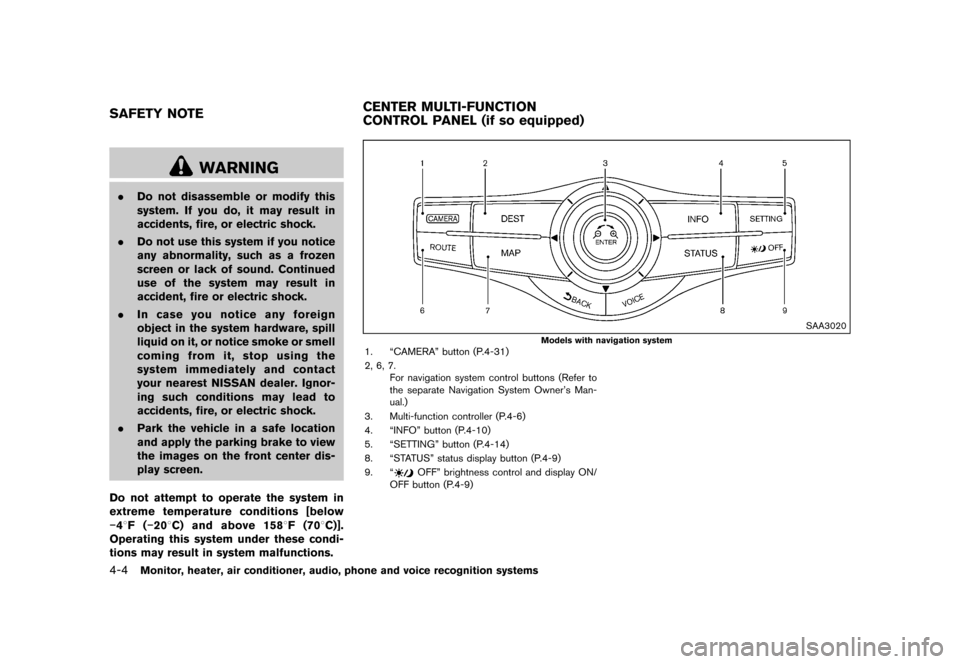

4-4Monitor, heater, air conditioner, audio, phone and voice recognition systems
GUID-9E91A2AF-7FD6-419C-9FB6-2BB1D192A590
WARNING
.Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.
. Do not use this system if you notice
any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in
accident, fire or electric shock.
. In case you notice any foreign
object in the system hardware, spill
liquid on it, or notice smoke or smell
coming from it, stop using the
system immediately and contact
your nearest NISSAN dealer. Ignor-
ing such conditions may lead to
accidents, fire, or electric shock.
. Park the vehicle in a safe location
and apply the parking brake to view
the images on the front center dis-
play screen.
Do not attempt to operate the system in
extreme temperature conditions [below
Page 187 of 491
> ( G L W 0 R G H O ( ' @

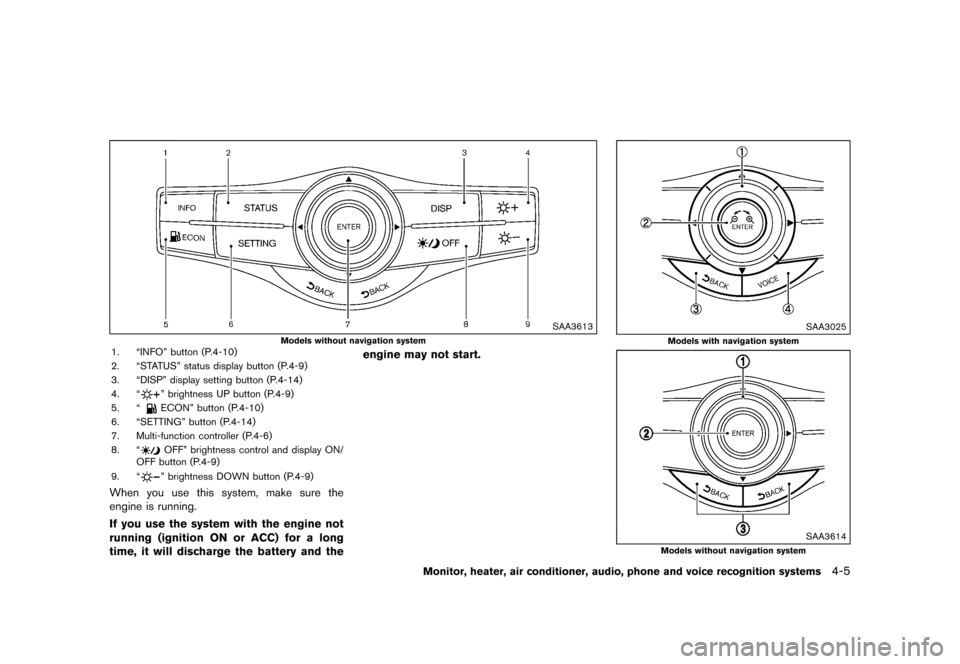

SAA3613
Models without navigation system1. ªINFOº button (P.4-10)
2. ªSTATUSº status display button (P.4-9)
3. ªDISPº display setting button (P.4-14)
4. ª
º brightness UP button (P.4-9)
5. ª
ECONº button (P.4-10)
6. ªSETTINGº button (P.4-14)
7. Multi-function controller (P.4-6)
8. ª
OFFº brightness control and display ON/
OFF button (P.4-9)
9. ª
º brightness DOWN button (P.4-9)
When you use this system, make sure the
engine is running.
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery and the engine may not start.
SAA3025
Models with navigation system
SAA3614
Models without navigation system
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-5
& R Q G L W L R Q
Page 188 of 491
> ( G L W 0 R G H O ( ' @

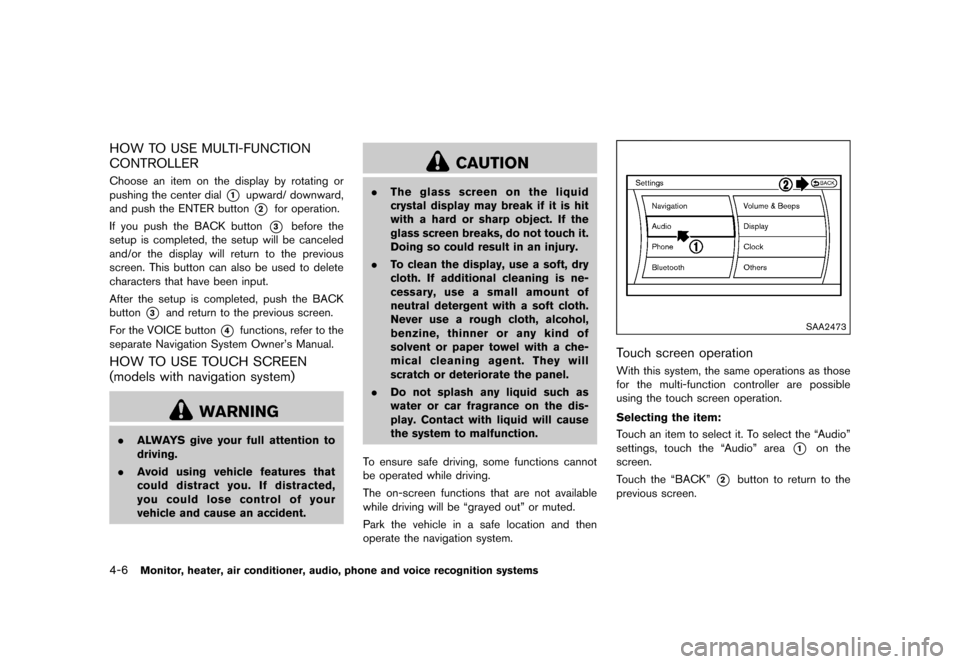

4-6Monitor, heater, air conditioner, audio, phone and voice recognition systems
HOW TO USE MULTI-FUNCTION
CONTROLLER
GUID-7E48C6E3-13FB-400D-A81F-BF7E3F9AA50BChoose an item on the display by rotating or
pushing the center dial
*1upward/ downward,
and push the ENTER button
*2for operation.
If you push the BACK button
*3before the
setup is completed, the setup will be canceled
and/or the display will return to the previous
screen. This button can also be used to delete
characters that have been input.
After the setup is completed, push the BACK
button
*3and return to the previous screen.
For the VOICE button
*4functions, refer to the
separate Navigation System Owner's Manual.
HOW TO USE TOUCH SCREEN
(models with navigation system)
GUID-341874AE-CB3F-4BF9-A452-77225AECC7B8
WARNING
. ALWAYS give your full attention to
driving.
. Avoid using vehicle features that
could distract you. If distracted,
you could lose control of your
vehicle and cause an accident.
CAUTION
.The glass screen on the liquid
crystal display may break if it is hit
with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.
. To clean the display, use a soft, dry
cloth. If additional cleaning is ne-
cessary, use a small amount of
neutral detergent with a soft cloth.
Never use a rough cloth, alcohol,
benzine, thinner or any kind of
solvent or paper towel with a che-
mical cleaning agent. They will
scratch or deteriorate the panel.
. Do not splash any liquid such as
water or car fragrance on the dis-
play. Contact with liquid will cause
the system to malfunction.
To ensure safe driving, some functions cannot
be operated while driving.
The on-screen functions that are not available
while driving will be ªgrayed outº or muted.
Park the vehicle in a safe location and then
operate the navigation system.
SAA2473
Touch screen operationGUID-6C7F3DCF-7A3A-4832-B1C2-2CEC2C25F75EWith this system, the same operations as those
for the multi-function controller are possible
using the touch screen operation.
Selecting the item:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch an item to select it. To select the ªAudioº
settings, touch the ªAudioº area
*1on the
screen.
Touch the ªBACKº
*2button to return to the
previous screen.
& R Q G L W L R Q
Page 189 of 491
> ( G L W 0 R G H O ( ' @

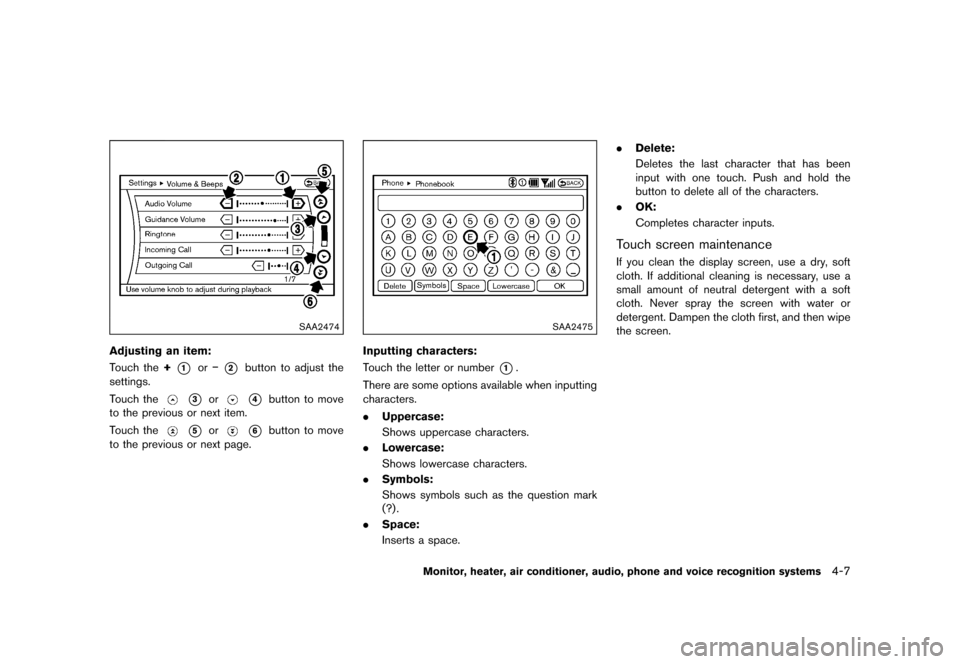

SAA2474
Adjusting an item:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch the+*1or
Page 190 of 491
> ( G L W 0 R G H O ( ' @
4-8Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA3673
MENU OPTIONS (models with naviga-
tion system)
GUID-8F3B6C5E-FAE9-415A-9ACD-618B61F5B9C7The start menu can be displayed using the menu
control switch on the steering-wheel-mounted
controls.
1.While the MAP or STATUS screen is
displayed, push and hold the menu control
switch until the ªMenu Optionsº screen
appears.
2. Highlight the preferred item by tilting the menu control switch up or down, and then
push the menu control switch to select it.
SAA2476
Available itemsGUID-3FA860EC-9FDE-4C31-8D7B-830C470BA446
Destination/Route:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407These items are for the navigation system. See
the separate Navigation System Owner's Man-
ual for details.
Info:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Displays the information screen. It is the same
screen that appears when you push the INFO
button.
Settings:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Displays the settings screen. It is the same
screen that appears when you push the
SETTING button.
SAA2477
Models with navigation system
JVH0179M
Models without navigation system
& R Q G L W L R Q
