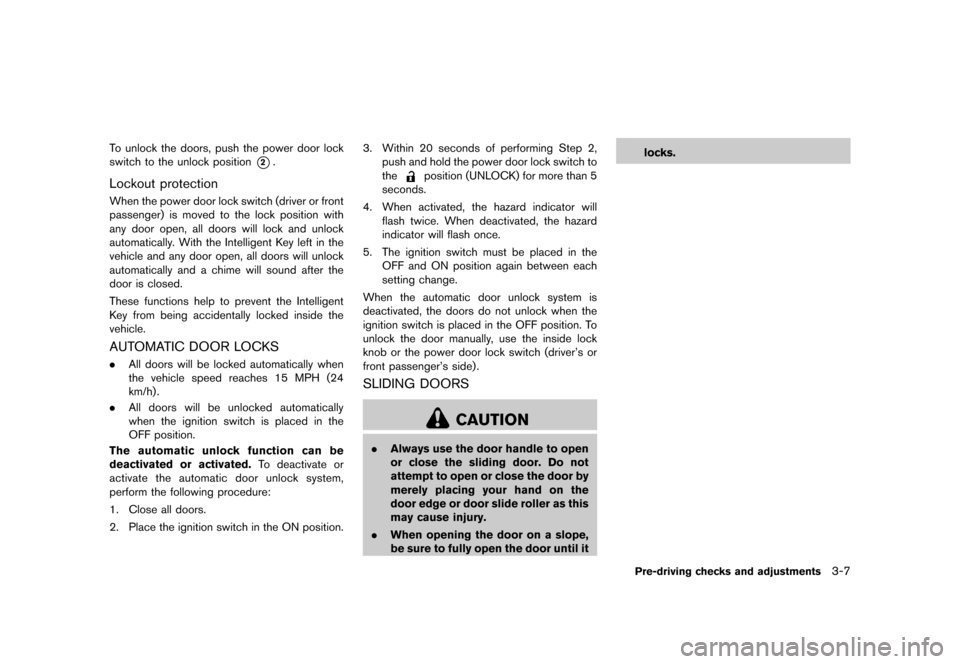

To unlock the doors, push the power door lock
switch to the unlock position
*2.
Lockout protectionGUID-72A37AF5-045B-4D14-97CD-9141FE4048F1When the power door lock switch (driver or front
passenger) is moved to the lock position with
any door open, all doors will lock and unlock
automatically. With the Intelligent Key left in the
vehicle and any door open, all doors will unlock
automatically and a chime will sound after the
door is closed.
These functions help to prevent the Intelligent
Key from being accidentally locked inside the
vehicle.
AUTOMATIC DOOR LOCKSGUID-798C06A8-78CC-44CF-9CA0-F7AFFDB5A4DD.All doors will be locked automatically when
the vehicle speed reaches 15 MPH (24
km/h) .
. All doors will be unlocked automatically
when the ignition switch is placed in the
OFF position.
The automatic unlock function can be
deactivated or activated. To deactivate or
activate the automatic door unlock system,
perform the following procedure:
1. Close all doors.
2. Place the ignition switch in the ON position. 3. Within 20 seconds of performing Step 2,
push and hold the power door lock switch to
the
position (UNLOCK) for more than 5
seconds.
4. When activated, the hazard indicator will flash twice. When deactivated, the hazard
indicator will flash once.
5. The ignition switch must be placed in the OFF and ON position again between each
setting change.
When the automatic door unlock system is
deactivated, the doors do not unlock when the
ignition switch is placed in the OFF position. To
unlock the door manually, use the inside lock
knob or the power door lock switch (driver's or
front passenger's side) .
SLIDING DOORSGUID-228AE8B5-A7E0-49ED-947A-1B1C48ABE4B7
CAUTION
. Always use the door handle to open
or close the sliding door. Do not
attempt to open or close the door by
merely placing your hand on the
door edge or door slide roller as this
may cause injury.
. When opening the door on a slope,
be sure to fully open the door until it locks.
Pre-driving checks and adjustments3-7
& R Q G L W L R Q
Page 152 of 491
> ( G L W 0 R G H O ( ' @

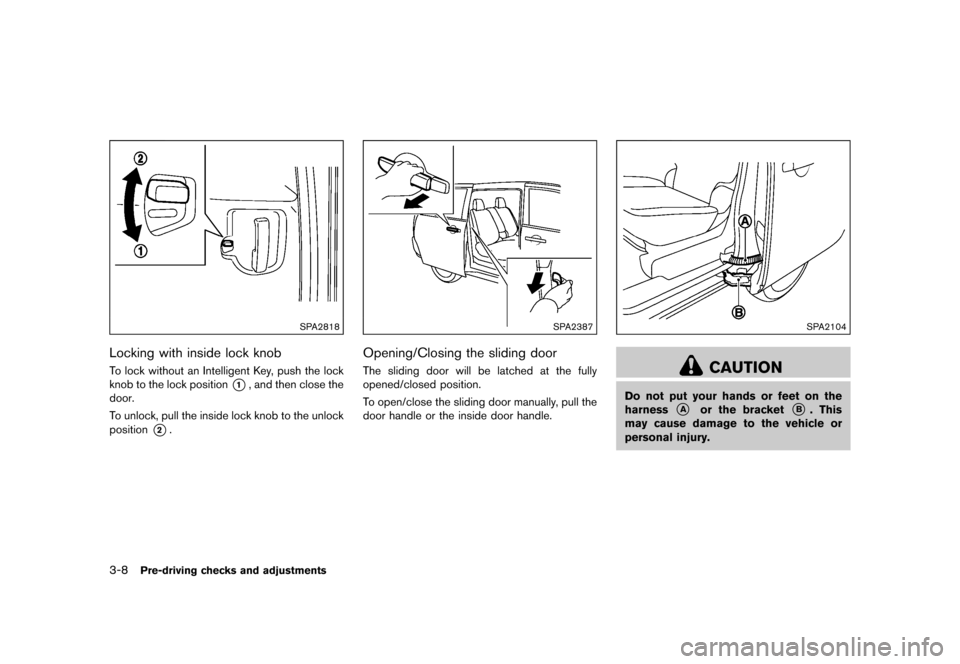

3-8Pre-driving checks and adjustments
SPA2818
Locking with inside lock knobGUID-8ED01086-6DBB-4655-AD18-7E078324267ATo lock without an Intelligent Key, push the lock
knob to the lock position
*1, and then close the
door.
To unlock, pull the inside lock knob to the unlock
position
*2.
SPA2387
Opening/Closing the sliding doorGUID-FC494258-FABD-44EA-80AF-C733F5CFBFBAThe sliding door will be latched at the fully
opened/closed position.
To open/close the sliding door manually, pull the
door handle or the inside door handle.
SPA2104
CAUTION
Do not put your hands or feet on the
harness
*Aor the bracket*B. This
may cause damage to the vehicle or
personal injury.
& R Q G L W L R Q
Page 153 of 491
> ( G L W 0 R G H O ( ' @

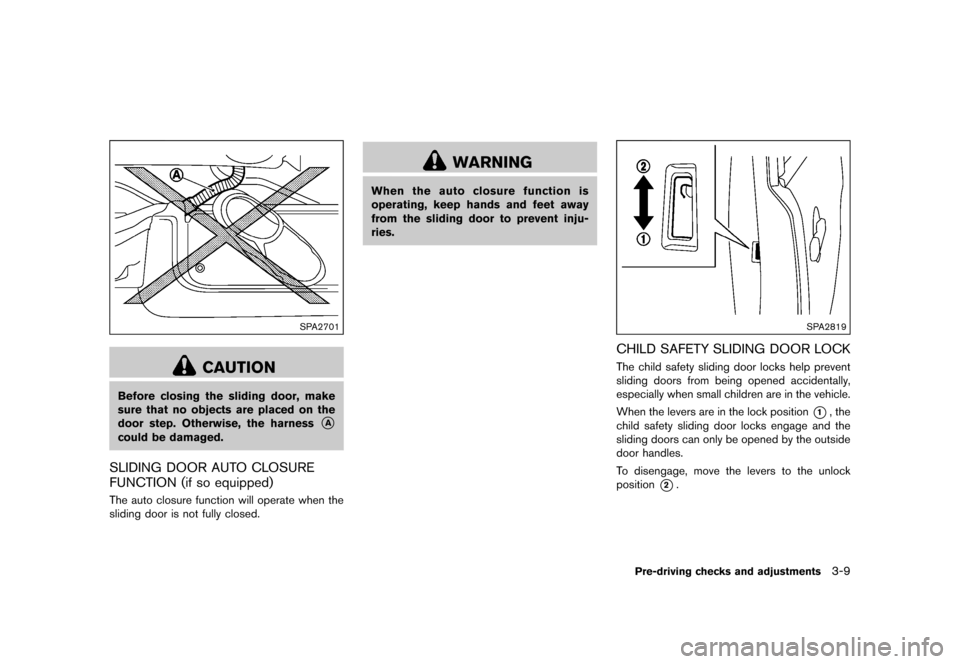

SPA2701
CAUTION
Before closing the sliding door, make
sure that no objects are placed on the
door step. Otherwise, the harness
*A
could be damaged.
SLIDING DOOR AUTO CLOSURE
FUNCTION (if so equipped)
GUID-6E027578-AA50-4728-8225-CA26C067E216The auto closure function will operate when the
sliding door is not fully closed.
WARNING
When the auto closure function is
operating, keep hands and feet away
from the sliding door to prevent inju-
ries.
SPA2819
CHILD SAFETY SLIDING DOOR LOCKGUID-C42DAE91-70F7-4B6A-BB9C-10166975A265The child safety sliding door locks help prevent
sliding doors from being opened accidentally,
especially when small children are in the vehicle.
When the levers are in the lock position
*1, the
child safety sliding door locks engage and the
sliding doors can only be opened by the outside
door handles.
To disengage, move the levers to the unlock
position
*2.
Pre-driving checks and adjustments3-9
& R Q G L W L R Q
Page 154 of 491
> ( G L W 0 R G H O ( ' @

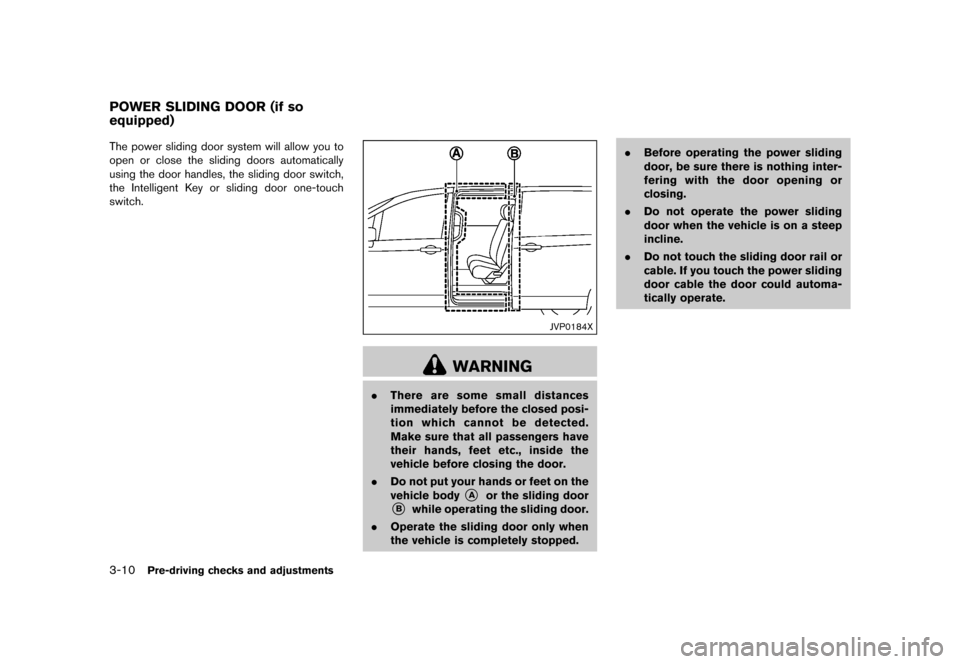

3-10Pre-driving checks and adjustments
GUID-9E3F92C8-4A48-4535-BB96-D700D32D1DE2The power sliding door system will allow you to
open or close the sliding doors automatically
using the door handles, the sliding door switch,
the Intelligent Key or sliding door one-touch
switch.
JVP0184X
WARNING
.There are some small distances
immediately before the closed posi-
tion which cannot be detected.
Make sure that all passengers have
their hands, feet etc., inside the
vehicle before closing the door.
. Do not put your hands or feet on the
vehicle body
*Aor the sliding door
*Bwhile operating the sliding door.
. Operate the sliding door only when
the vehicle is completely stopped. .
Before operating the power sliding
door, be sure there is nothing inter-
fering with the door opening or
closing.
. Do not operate the power sliding
door when the vehicle is on a steep
incline.
. Do not touch the sliding door rail or
cable. If you touch the power sliding
door cable the door could automa-
tically operate.
POWER SLIDING DOOR (if so
equipped)
& R Q G L W L R Q
Page 155 of 491
> ( G L W 0 R G H O ( ' @

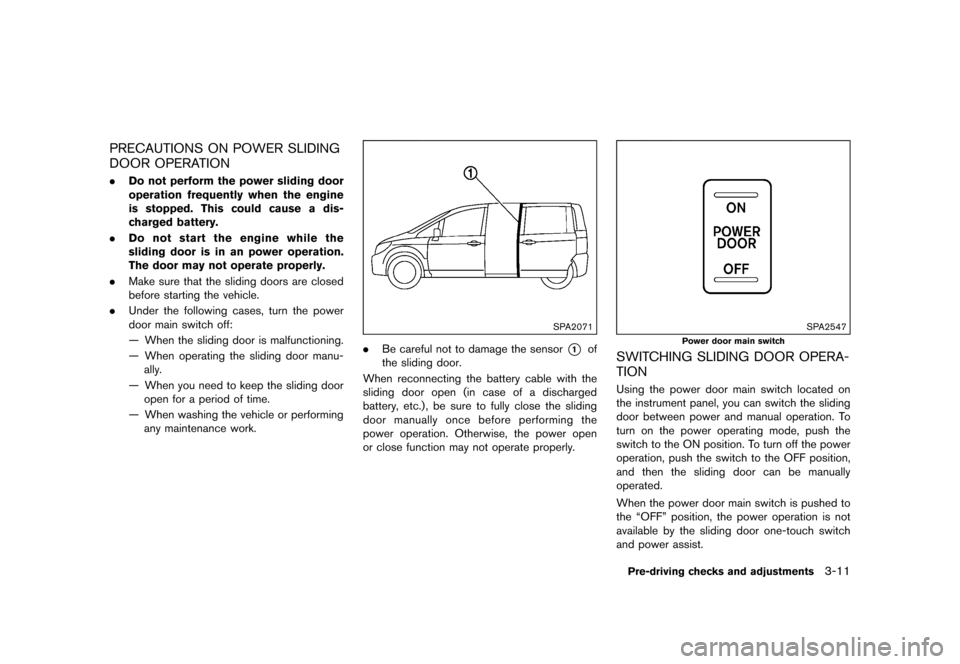

PRECAUTIONS ON POWER SLIDING
DOOR OPERATION
GUID-1DBA582B-9B7E-4AD0-A68B-762BDAC084D5.Do not perform the power sliding door
operation frequently when the engine
is stopped. This could cause a dis-
charged battery.
. Do not start the engine while the
sliding door is in an power operation.
The door may not operate properly.
. Make sure that the sliding doors are closed
before starting the vehicle.
. Under the following cases, turn the power
door main switch off:
Ð When the sliding door is malfunctioning.
Ð When operating the sliding door manu-
ally.
Ð When you need to keep the sliding door open for a period of time.
Ð When washing the vehicle or performing any maintenance work.
SPA2071
. Be careful not to damage the sensor*1of
the sliding door.
When reconnecting the battery cable with the
sliding door open (in case of a discharged
battery, etc.) , be sure to fully close the sliding
door manually once before performing the
power operation. Otherwise, the power open
or close function may not operate properly.
SPA2547
Power door main switch
SWITCHING SLIDING DOOR OPERA-
TION
GUID-5E25AD8C-1056-4BE2-BD55-2EB289AF2E2FUsing the power door main switch located on
the instrument panel, you can switch the sliding
door between power and manual operation. To
turn on the power operating mode, push the
switch to the ON position. To turn off the power
operation, push the switch to the OFF position,
and then the sliding door can be manually
operated.
When the power door main switch is pushed to
the ªOFFº position, the power operation is not
available by the sliding door one-touch switch
and power assist.
Pre-driving checks and adjustments3-11
& R Q G L W L R Q
Page 156 of 491
> ( G L W 0 R G H O ( ' @

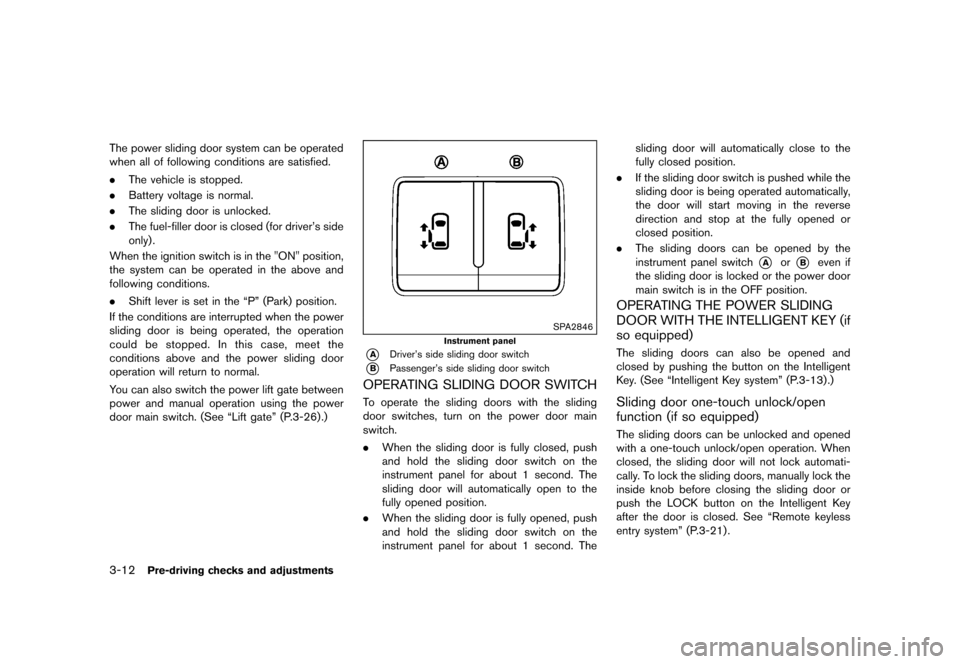

3-12Pre-driving checks and adjustments
The power sliding door system can be operated
when all of following conditions are satisfied.
.The vehicle is stopped.
. Battery voltage is normal.
. The sliding door is unlocked.
. The fuel-filler door is closed (for driver's side
only) .
When the ignition switch is in the "ON" position,
the system can be operated in the above and
following conditions.
. Shift lever is set in the ªPº (Park) position.
If the conditions are interrupted when the power
sliding door is being operated, the operation
could be stopped. In this case, meet the
conditions above and the power sliding door
operation will return to normal.
You can also switch the power lift gate between
power and manual operation using the power
door main switch. (See ªLift gateº (P.3-26) .)
SPA2846
Instrument panel
*ADriver's side sliding door switch
*BPassenger's side sliding door switch
OPERATING SLIDING DOOR SWITCHGUID-EE7E773F-5BC9-4FC4-BFE3-DDC092853705To operate the sliding doors with the sliding
door switches, turn on the power door main
switch.
. When the sliding door is fully closed, push
and hold the sliding door switch on the
instrument panel for about 1 second. The
sliding door will automatically open to the
fully opened position.
. When the sliding door is fully opened, push
and hold the sliding door switch on the
instrument panel for about 1 second. The sliding door will automatically close to the
fully closed position.
. If the sliding door switch is pushed while the
sliding door is being operated automatically,
the door will start moving in the reverse
direction and stop at the fully opened or
closed position.
. The sliding doors can be opened by the
instrument panel switch
*Aor*Beven if
the sliding door is locked or the power door
main switch is in the OFF position.
OPERATING THE POWER SLIDING
DOOR WITH THE INTELLIGENT KEY (if
so equipped)
GUID-89E54C18-A308-4127-853C-8487439FBBACThe sliding doors can also be opened and
closed by pushing the button on the Intelligent
Key. (See ªIntelligent Key systemº (P.3-13).)
Sliding door one-touch unlock/open
function (if so equipped)
GUID-0F5030A9-0AB2-4D70-A34F-9846AF95FC6FThe sliding doors can be unlocked and opened
with a one-touch unlock/open operation. When
closed, the sliding door will not lock automati-
cally. To lock the sliding doors, manually lock the
inside knob before closing the sliding door or
push the LOCK button on the Intelligent Key
after the door is closed. See ªRemote keyless
entry systemº (P.3-21) .
& R Q G L W L R Q
Page 157 of 491
> ( G L W 0 R G H O ( ' @

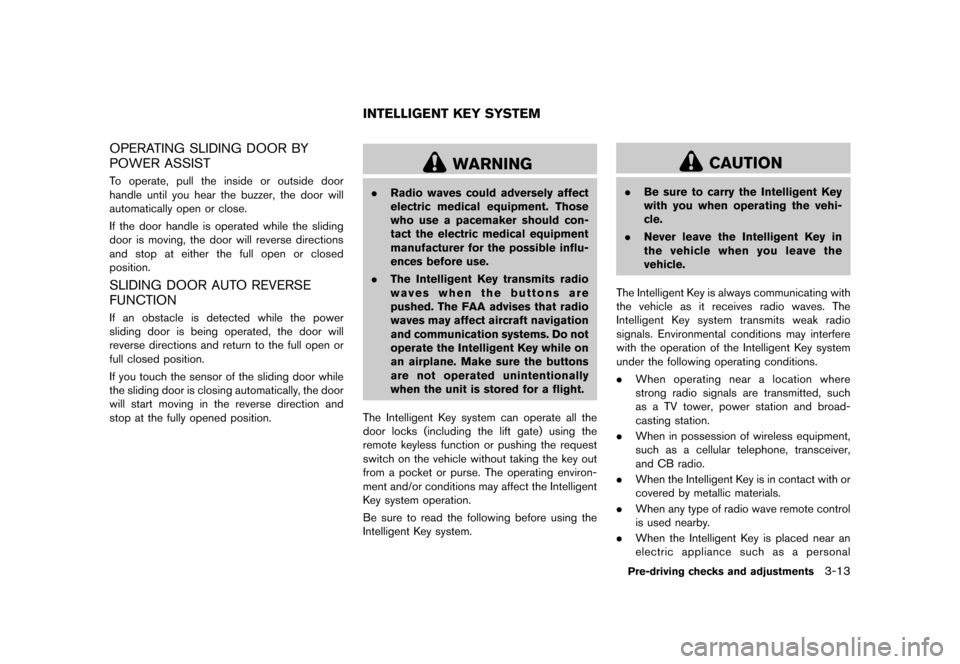

OPERATING SLIDING DOOR BY
POWER ASSIST
GUID-FD94DF64-8ED4-43CE-8353-FF9CDB47F70CTo operate, pull the inside or outside door
handle until you hear the buzzer, the door will
automatically open or close.
If the door handle is operated while the sliding
door is moving, the door will reverse directions
and stop at either the full open or closed
position.
SLIDING DOOR AUTO REVERSE
FUNCTION
GUID-3187603A-46AE-40CE-97BD-3601230ED6EBIf an obstacle is detected while the power
sliding door is being operated, the door will
reverse directions and return to the full open or
full closed position.
If you touch the sensor of the sliding door while
the sliding door is closing automatically, the door
will start moving in the reverse direction and
stop at the fully opened position.
GUID-7C39F98D-38C6-4523-BF51-8634B2D72D58
WARNING
.Radio waves could adversely affect
electric medical equipment. Those
who use a pacemaker should con-
tact the electric medical equipment
manufacturer for the possible influ-
ences before use.
. The Intelligent Key transmits radio
waves when the buttons are
pushed. The FAA advises that radio
waves may affect aircraft navigation
and communication systems. Do not
operate the Intelligent Key while on
an airplane. Make sure the buttons
are not operated unintentionally
when the unit is stored for a flight.
The Intelligent Key system can operate all the
door locks (including the lift gate) using the
remote keyless function or pushing the request
switch on the vehicle without taking the key out
from a pocket or purse. The operating environ-
ment and/or conditions may affect the Intelligent
Key system operation.
Be sure to read the following before using the
Intelligent Key system.
CAUTION
. Be sure to carry the Intelligent Key
with you when operating the vehi-
cle.
. Never leave the Intelligent Key in
the vehicle when you leave the
vehicle.
The Intelligent Key is always communicating with
the vehicle as it receives radio waves. The
Intelligent Key system transmits weak radio
signals. Environmental conditions may interfere
with the operation of the Intelligent Key system
under the following operating conditions.
. When operating near a location where
strong radio signals are transmitted, such
as a TV tower, power station and broad-
casting station.
. When in possession of wireless equipment,
such as a cellular telephone, transceiver,
and CB radio.
. When the Intelligent Key is in contact with or
covered by metallic materials.
. When any type of radio wave remote control
is used nearby.
. When the Intelligent Key is placed near an
electric appliance such as a personal
Pre-driving checks and adjustments3-13
INTELLIGENT KEY SYSTEM
& R Q G L W L R Q
Page 158 of 491
> ( G L W 0 R G H O ( ' @

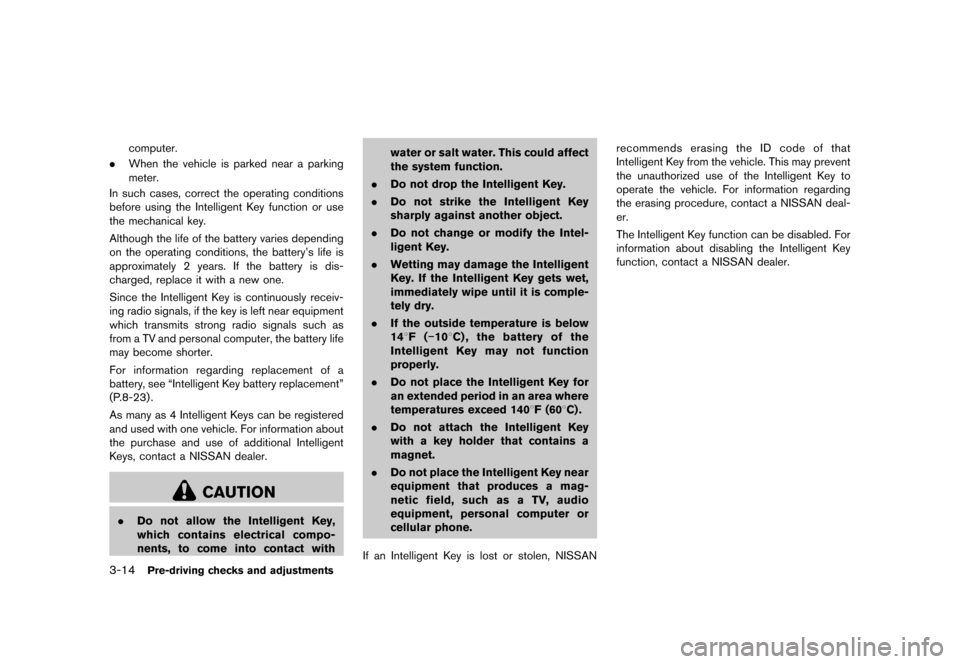

3-14Pre-driving checks and adjustments
computer.
. When the vehicle is parked near a parking
meter.
In such cases, correct the operating conditions
before using the Intelligent Key function or use
the mechanical key.
Although the life of the battery varies depending
on the operating conditions, the battery's life is
approximately 2 years. If the battery is dis-
charged, replace it with a new one.
Since the Intelligent Key is continuously receiv-
ing radio signals, if the key is left near equipment
which transmits strong radio signals such as
from a TV and personal computer, the battery life
may become shorter.
For information regarding replacement of a
battery, see ªIntelligent Key battery replacementº
(P.8-23) .
As many as 4 Intelligent Keys can be registered
and used with one vehicle. For information about
the purchase and use of additional Intelligent
Keys, contact a NISSAN dealer.
CAUTION
. Do not allow the Intelligent Key,
which contains electrical compo-
nents, to come into contact with water or salt water. This could affect
the system function.
. Do not drop the Intelligent Key.
. Do not strike the Intelligent Key
sharply against another object.
. Do not change or modify the Intel-
ligent Key.
. Wetting may damage the Intelligent
Key. If the Intelligent Key gets wet,
immediately wipe until it is comple-
tely dry.
. If the outside temperature is below
148F (
Page 159 of 491
> ( G L W 0 R G H O ( ' @

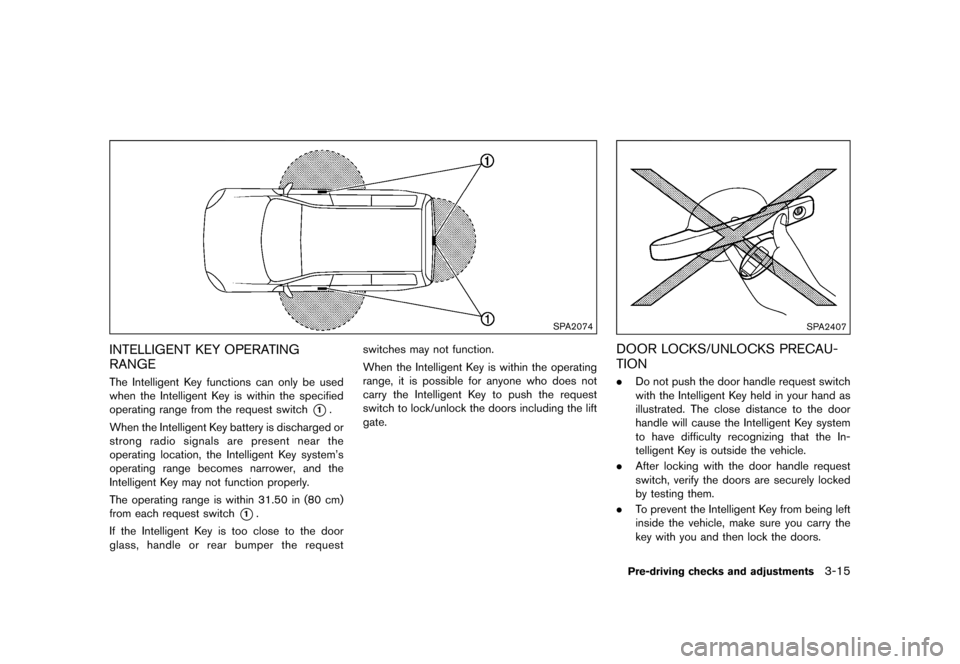

SPA2074
INTELLIGENT KEY OPERATING
RANGE
GUID-EB00A817-8ACC-4863-8EEC-223C39C428ABThe Intelligent Key functions can only be used
when the Intelligent Key is within the specified
operating range from the request switch
*1.
When the Intelligent Key battery is discharged or
strong radio signals are present near the
operating location, the Intelligent Key system's
operating range becomes narrower, and the
Intelligent Key may not function properly.
The operating range is within 31.50 in (80 cm)
from each request switch
*1.
If the Intelligent Key is too close to the door
glass, handle or rear bumper the request switches may not function.
When the Intelligent Key is within the operating
range, it is possible for anyone who does not
carry the Intelligent Key to push the request
switch to lock/unlock the doors including the lift
gate.
SPA2407
DOOR LOCKS/UNLOCKS PRECAU-
TION
GUID-47E25C7A-09D5-48C9-BB76-31D156A2F7DD.
Do not push the door handle request switch
with the Intelligent Key held in your hand as
illustrated. The close distance to the door
handle will cause the Intelligent Key system
to have difficulty recognizing that the In-
telligent Key is outside the vehicle.
. After locking with the door handle request
switch, verify the doors are securely locked
by testing them.
. To prevent the Intelligent Key from being left
inside the vehicle, make sure you carry the
key with you and then lock the doors.
Pre-driving checks and adjustments3-15
& R Q G L W L R Q
Page 160 of 491
> ( G L W 0 R G H O ( ' @

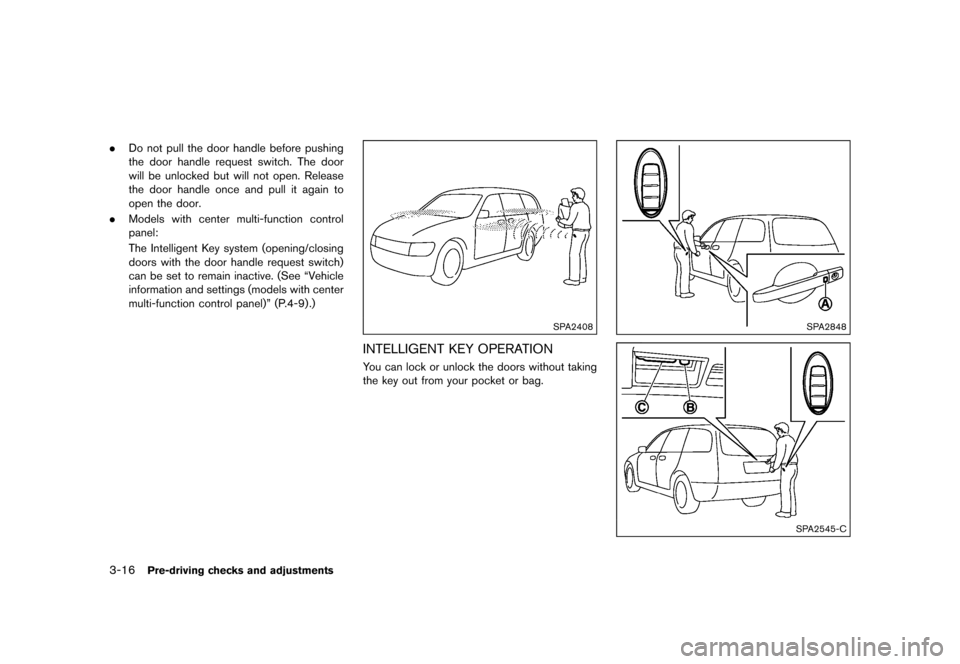

3-16Pre-driving checks and adjustments
.Do not pull the door handle before pushing
the door handle request switch. The door
will be unlocked but will not open. Release
the door handle once and pull it again to
open the door.
. Models with center multi-function control
panel:
The Intelligent Key system (opening/closing
doors with the door handle request switch)
can be set to remain inactive. (See ªVehicle
information and settings (models with center
multi-function control panel)º (P.4-9) .)
SPA2408
INTELLIGENT KEY OPERATIONGUID-649D0B38-3819-45DC-805D-EEBFDE9A32DDYou can lock or unlock the doors without taking
the key out from your pocket or bag.
SPA2848
SPA2545-C
& R Q G L W L R Q
