> ( G L W 0 R G H O ( ' @

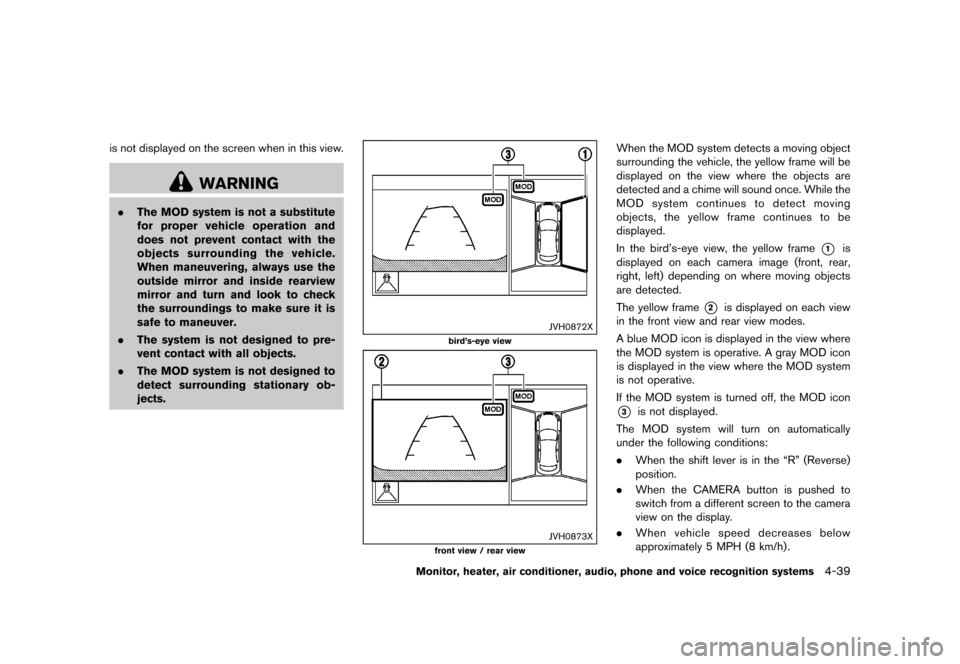

is not displayed on the screen when in this view.
WARNING
.The MOD system is not a substitute
for proper vehicle operation and
does not prevent contact with the
objects surrounding the vehicle.
When maneuvering, always use the
outside mirror and inside rearview
mirror and turn and look to check
the surroundings to make sure it is
safe to maneuver.
. The system is not designed to pre-
vent contact with all objects.
. The MOD system is not designed to
detect surrounding stationary ob-
jects.
JVH0872X
bird's-eye view
JVH0873X
front view / rear view
When the MOD system detects a moving object
surrounding the vehicle, the yellow frame will be
displayed on the view where the objects are
detected and a chime will sound once. While the
MOD system continues to detect moving
objects, the yellow frame continues to be
displayed.
In the bird's-eye view, the yellow frame
*1is
displayed on each camera image (front, rear,
right, left) depending on where moving objects
are detected.
The yellow frame
*2is displayed on each view
in the front view and rear view modes.
A blue MOD icon is displayed in the view where
the MOD system is operative. A gray MOD icon
is displayed in the view where the MOD system
is not operative.
If the MOD system is turned off, the MOD icon
*3is not displayed.
The MOD system will turn on automatically
under the following conditions:
. When the shift lever is in the ªRº (Reverse)
position.
. When the CAMERA button is pushed to
switch from a different screen to the camera
view on the display.
. When vehicle speed decreases below
approximately 5 MPH (8 km/h) .
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-39
& R Q G L W L R Q
Page 222 of 491
> ( G L W 0 R G H O ( ' @
4-40Monitor, heater, air conditioner, audio, phone and voice recognition systems

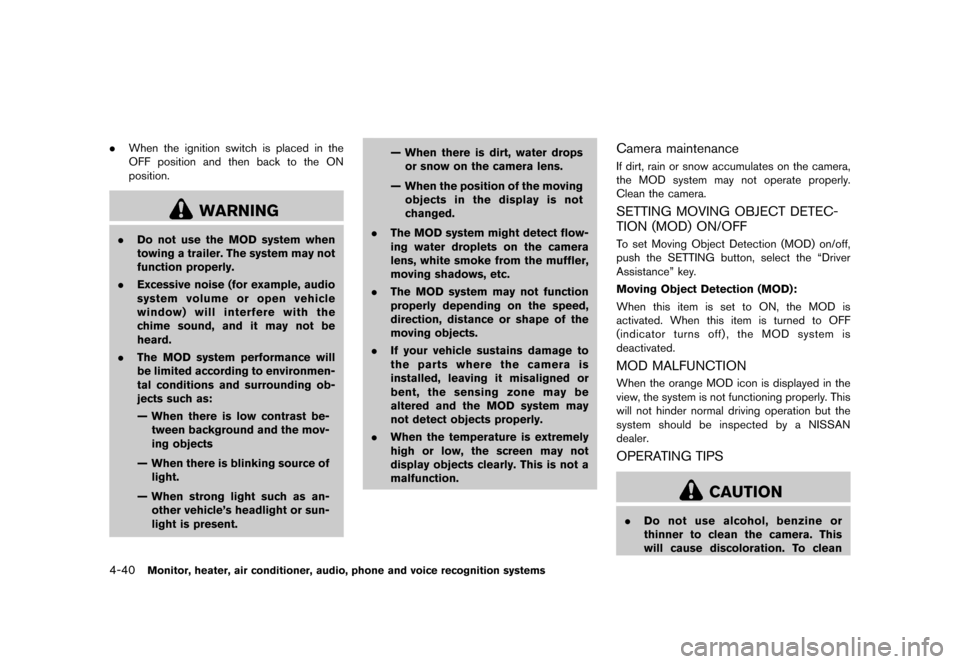

.When the ignition switch is placed in the
OFF position and then back to the ON
position.
WARNING
.Do not use the MOD system when
towing a trailer. The system may not
function properly.
. Excessive noise (for example, audio
system volume or open vehicle
window) will interfere with the
chime sound, and it may not be
heard.
. The MOD system performance will
be limited according to environmen-
tal conditions and surrounding ob-
jects such as:
Ð When there is low contrast be-
tween background and the mov-
ing objects
Ð When there is blinking source of light.
Ð When strong light such as an- other vehicle's headlight or sun-
light is present. Ð When there is dirt, water drops
or snow on the camera lens.
Ð When the position of the moving objects in the display is not
changed.
. The MOD system might detect flow-
ing water droplets on the camera
lens, white smoke from the muffler,
moving shadows, etc.
. The MOD system may not function
properly depending on the speed,
direction, distance or shape of the
moving objects.
. If your vehicle sustains damage to
the parts where the camera is
installed, leaving it misaligned or
bent, the sensing zone may be
altered and the MOD system may
not detect objects properly.
. When the temperature is extremely
high or low, the screen may not
display objects clearly. This is not a
malfunction.
Camera maintenanceGUID-D1409542-36A1-4821-8E31-4CED639435BBIf dirt, rain or snow accumulates on the camera,
the MOD system may not operate properly.
Clean the camera.
SETTING MOVING OBJECT DETEC-
TION (MOD) ON/OFF
GUID-65416446-6E6C-49C2-9CD2-11B396017077To set Moving Object Detection (MOD) on/off,
push the SETTING button, select the ªDriver
Assistanceº key.
Moving Object Detection (MOD):
When this item is set to ON, the MOD is
activated. When this item is turned to OFF
(indicator turns off) , the MOD system is
deactivated.
MOD MALFUNCTIONGUID-6FE0810E-C774-474A-845D-D5D5936481DBWhen the orange MOD icon is displayed in the
view, the system is not functioning properly. This
will not hinder normal driving operation but the
system should be inspected by a NISSAN
dealer.
OPERATING TIPSGUID-E53B80D8-F195-4E4C-96AB-FF30E6EF3CE3
CAUTION
.Do not use alcohol, benzine or
thinner to clean the camera. This
will cause discoloration. To clean
& R Q G L W L R Q
Page 223 of 491
> ( G L W 0 R G H O ( ' @

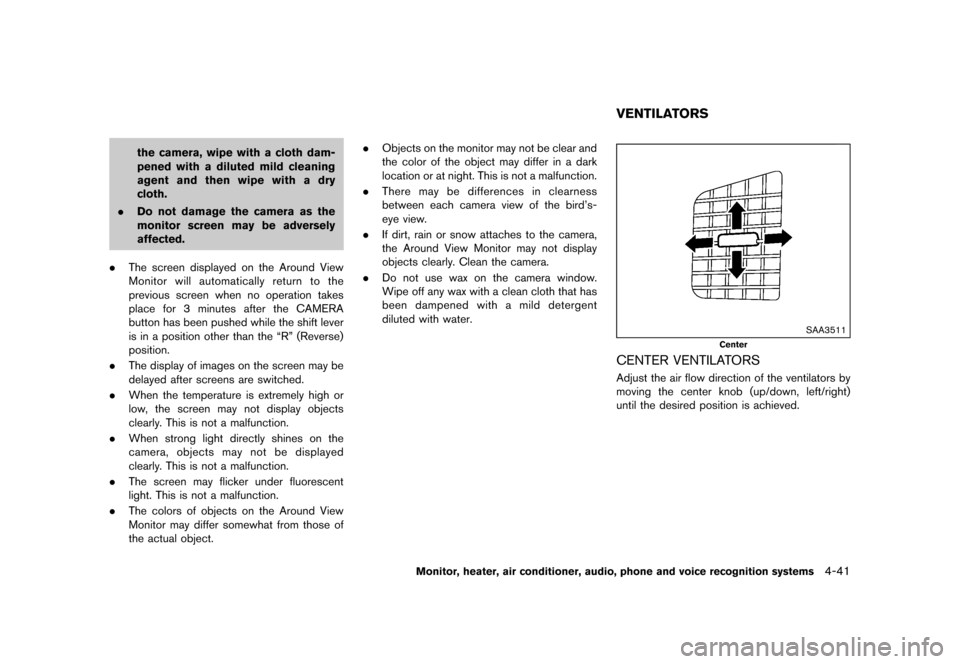

the camera, wipe with a cloth dam-
pened with a diluted mild cleaning
agent and then wipe with a dry
cloth.
. Do not damage the camera as the
monitor screen may be adversely
affected.
. The screen displayed on the Around View
Monitor will automatically return to the
previous screen when no operation takes
place for 3 minutes after the CAMERA
button has been pushed while the shift lever
is in a position other than the ªRº (Reverse)
position.
. The display of images on the screen may be
delayed after screens are switched.
. When the temperature is extremely high or
low, the screen may not display objects
clearly. This is not a malfunction.
. When strong light directly shines on the
camera, objects may not be displayed
clearly. This is not a malfunction.
. The screen may flicker under fluorescent
light. This is not a malfunction.
. The colors of objects on the Around View
Monitor may differ somewhat from those of
the actual object. .
Objects on the monitor may not be clear and
the color of the object may differ in a dark
location or at night. This is not a malfunction.
. There may be differences in clearness
between each camera view of the bird's-
eye view.
. If dirt, rain or snow attaches to the camera,
the Around View Monitor may not display
objects clearly. Clean the camera.
. Do not use wax on the camera window.
Wipe off any wax with a clean cloth that has
been dampened with a mild detergent
diluted with water.
GUID-ADBCDC3B-14A7-4BB0-AB93-C7F6F05F9243
SAA3511
Center
CENTER VENTILATORSGUID-DE68D695-F57B-4B4B-B293-5172E4A17860Adjust the air flow direction of the ventilators by
moving the center knob (up/down, left/right)
until the desired position is achieved.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-41
VENTILATORS
& R Q G L W L R Q
Page 224 of 491
> ( G L W 0 R G H O ( ' @
4-42Monitor, heater, air conditioner, audio, phone and voice recognition systems

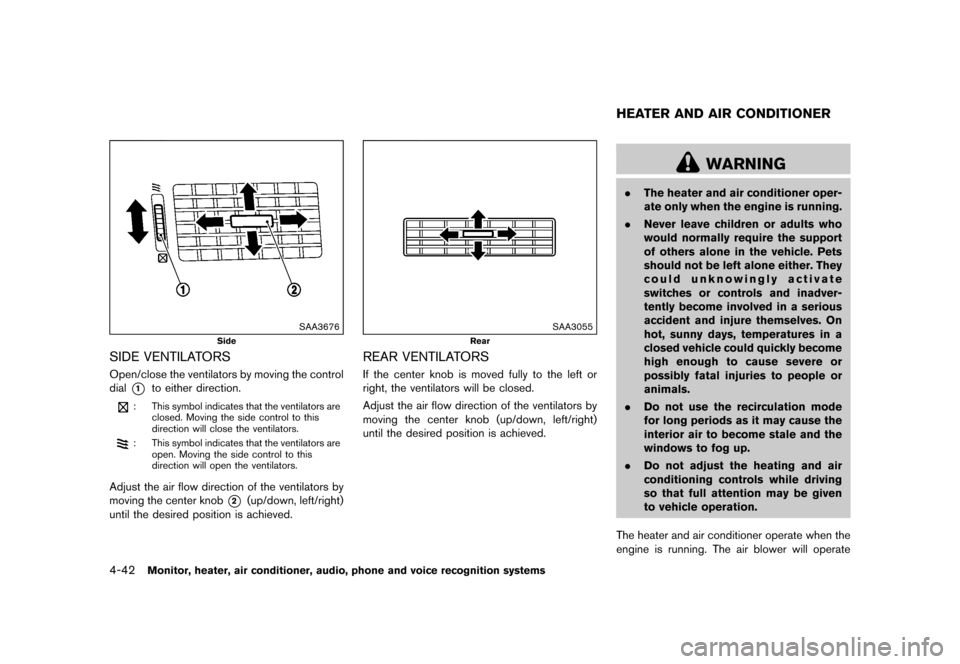

SAA3676
Side
SIDE VENTILATORSGUID-F08870EF-0946-4EEE-A94E-D1F2E688A0CCOpen/close the ventilators by moving the control
dial
*1to either direction.
: This symbol indicates that the ventilators areclosed. Moving the side control to this
direction will close the ventilators.
: This symbol indicates that the ventilators areopen. Moving the side control to this
direction will open the ventilators.
Adjust the air flow direction of the ventilators by
moving the center knob
*2(up/down, left/right)
until the desired position is achieved.
SAA3055
Rear
REAR VENTILATORSGUID-DAFEFF24-3A4B-4F4E-A7FD-EE54F99AA552If the center knob is moved fully to the left or
right, the ventilators will be closed.
Adjust the air flow direction of the ventilators by
moving the center knob (up/down, left/right)
until the desired position is achieved.
GUID-80BBDF64-A7D7-4098-B53C-6003FA8720E9
WARNING
. The heater and air conditioner oper-
ate only when the engine is running.
. Never leave children or adults who
would normally require the support
of others alone in the vehicle. Pets
should not be left alone either. They
could unknowingly activate
switches or controls and inadver-
tently become involved in a serious
accident and injure themselves. On
hot, sunny days, temperatures in a
closed vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to people or
animals.
. Do not use the recirculation mode
for long periods as it may cause the
interior air to become stale and the
windows to fog up.
. Do not adjust the heating and air
conditioning controls while driving
so that full attention may be given
to vehicle operation.
The heater and air conditioner operate when the
engine is running. The air blower will operate
HEATER AND AIR CONDITIONER
& R Q G L W L R Q
Page 225 of 491
> ( G L W 0 R G H O ( ' @

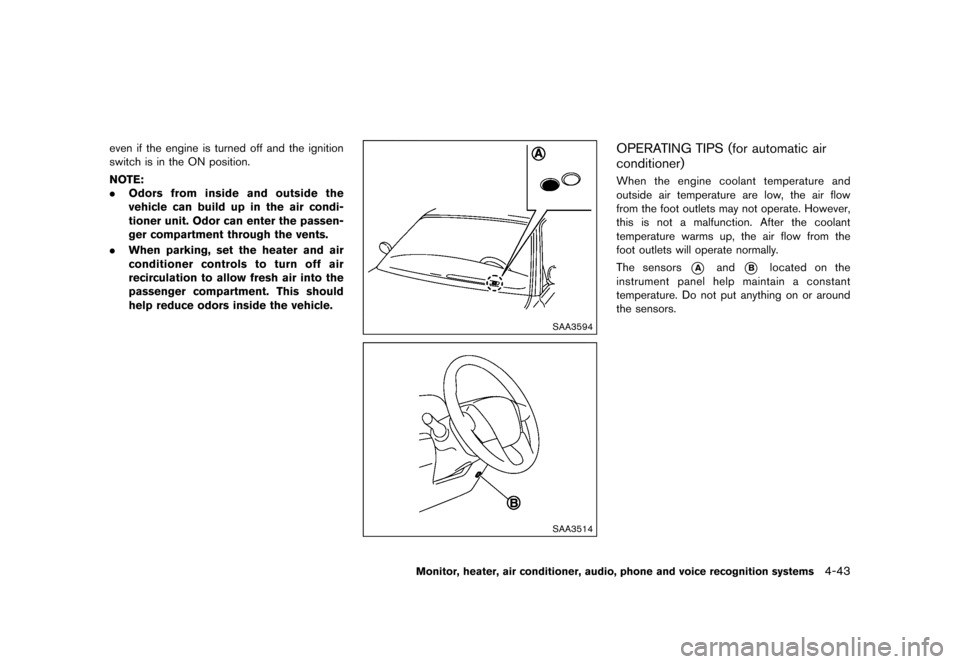

even if the engine is turned off and the ignition
switch is in the ON position.
NOTE:
.Odors from inside and outside the
vehicle can build up in the air condi-
tioner unit. Odor can enter the passen-
ger compartment through the vents.
. When parking, set the heater and air
conditioner controls to turn off air
recirculation to allow fresh air into the
passenger compartment. This should
help reduce odors inside the vehicle.
SAA3594
SAA3514
OPERATING TIPS (for automatic air
conditioner)
GUID-AE24D3AF-44E9-4C60-BD45-827C7F5E7293When the engine coolant temperature and
outside air temperature are low, the air flow
from the foot outlets may not operate. However,
this is not a malfunction. After the coolant
temperature warms up, the air flow from the
foot outlets will operate normally.
The sensors
*Aand*Blocated on the
instrument panel help maintain a constant
temperature. Do not put anything on or around
the sensors.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-43
& R Q G L W L R Q
Page 226 of 491
> ( G L W 0 R G H O ( ' @
4-44Monitor, heater, air conditioner, audio, phone and voice recognition systems

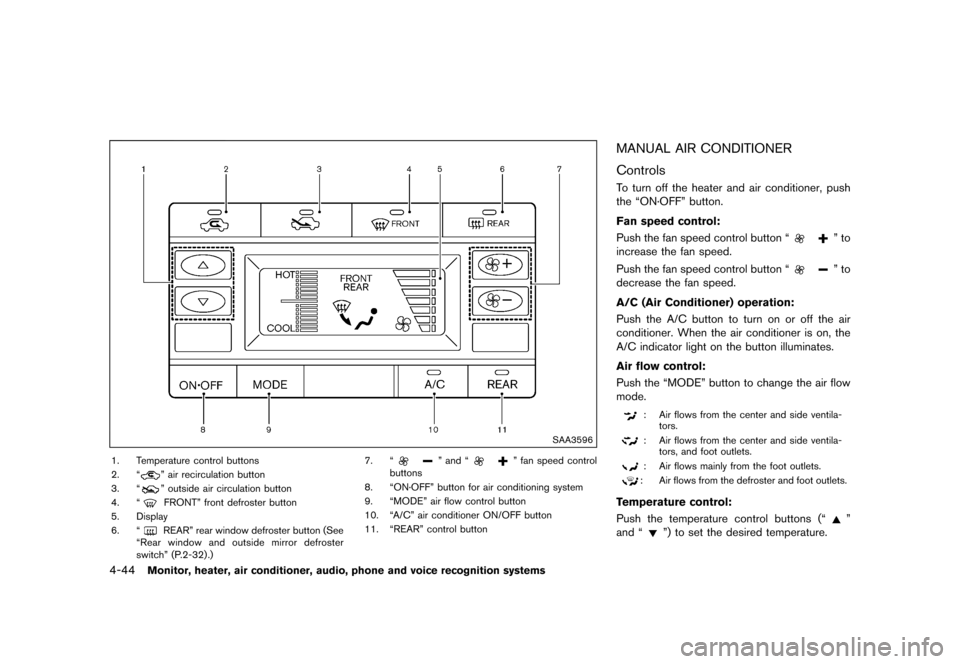

SAA3596
1. Temperature control buttons
2. ª
º air recirculation button
3. ª
º outside air circulation button
4. ª
FRONTº front defroster button
5. Display
6. ª
REARº rear window defroster button (See
ªRear window and outside mirror defroster
switchº (P.2-32) .) 7. ª
º and ªº fan speed control
buttons
8. ªON´OFFº button for air conditioning system
9. ªMODEº air flow control button
10. ªA/Cº air conditioner ON/OFF button
11. ªREARº control button
MANUAL AIR CONDITIONERGUID-CD7203EA-9307-4995-82E3-BD3B0296D19F
ControlsGUID-A04F8617-DF9F-4F48-BC23-EDEDEDFFC3B1To turn off the heater and air conditioner, push
the ªON´OFFº button.
Fan speed control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the fan speed control button ªº to
increase the fan speed.
Push the fan speed control button ª
º to
decrease the fan speed.
A/C (Air Conditioner) operation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the A/C button to turn on or off the air
conditioner. When the air conditioner is on, the
A/C indicator light on the button illuminates.
Air flow control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the ªMODEº button to change the air flow
mode.
: Air flows from the center and side ventila- tors.
: Air flows from the center and side ventila-tors, and foot outlets.
: Air flows mainly from the foot outlets.
: Air flows from the defroster and foot outlets.
Temperature control:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the temperature control buttons (ªº
and ª
º) to set the desired temperature.
& R Q G L W L R Q
Page 227 of 491
> ( G L W 0 R G H O ( ' @

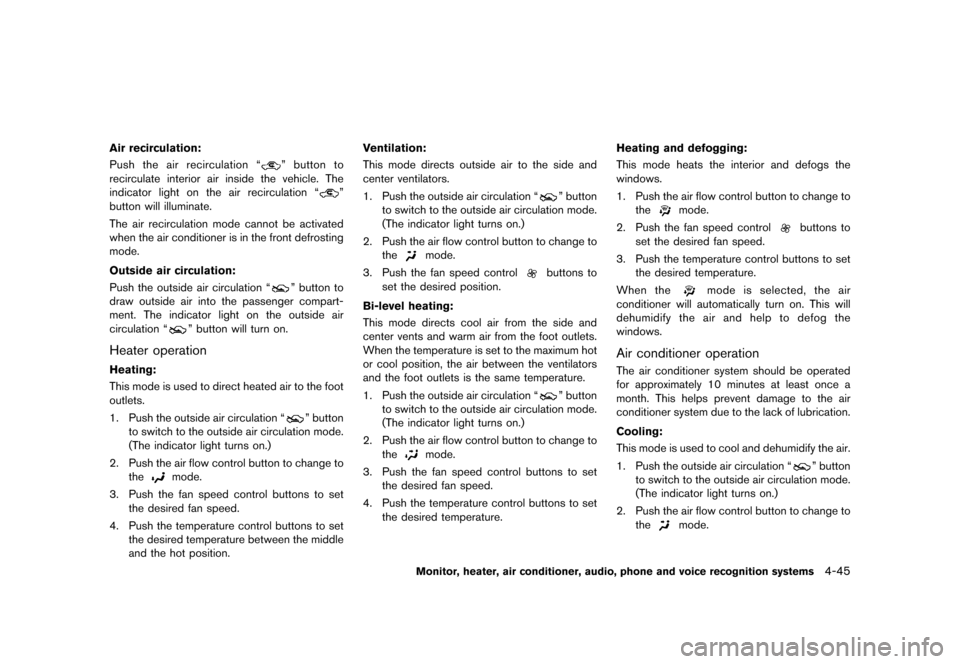

Air recirculation:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the air recirculation ªº button to
recirculate interior air inside the vehicle. The
indicator light on the air recirculation ª
º
button will illuminate.
The air recirculation mode cannot be activated
when the air conditioner is in the front defrosting
mode.
Outside air circulation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the outside air circulation ªº button to
draw outside air into the passenger compart-
ment. The indicator light on the outside air
circulation ª
º button will turn on.
Heater operationGUID-30BF5593-2EBA-4BDC-997C-19DD23B575D5
Heating:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode is used to direct heated air to the foot
outlets.
1. Push the outside air circulation ª
º button
to switch to the outside air circulation mode.
(The indicator light turns on.)
2. Push the air flow control button to change to the
mode.
3. Push the fan speed control buttons to set the desired fan speed.
4. Push the temperature control buttons to set the desired temperature between the middle
and the hot position. Ventilation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode directs outside air to the side and
center ventilators.
1. Push the outside air circulation ª
º button
to switch to the outside air circulation mode.
(The indicator light turns on.)
2. Push the air flow control button to change to the
mode.
3. Push the fan speed control
buttons to
set the desired position.
Bi-level heating:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode directs cool air from the side and
center vents and warm air from the foot outlets.
When the temperature is set to the maximum hot
or cool position, the air between the ventilators
and the foot outlets is the same temperature.
1. Push the outside air circulation ª
º button
to switch to the outside air circulation mode.
(The indicator light turns on.)
2. Push the air flow control button to change to the
mode.
3. Push the fan speed control buttons to set the desired fan speed.
4. Push the temperature control buttons to set the desired temperature. Heating and defogging:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode heats the interior and defogs the
windows.
1. Push the air flow control button to change to
the
mode.
2. Push the fan speed control
buttons to
set the desired fan speed.
3. Push the temperature control buttons to set the desired temperature.
When the
mode is selected, the air
conditioner will automatically turn on. This will
dehumidify the air and help to defog the
windows.
Air conditioner operationGUID-803CA434-5D0E-4D2D-BEE1-1F3BD1B898F7The air conditioner system should be operated
for approximately 10 minutes at least once a
month. This helps prevent damage to the air
conditioner system due to the lack of lubrication.
Cooling:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode is used to cool and dehumidify the air.
1. Push the outside air circulation ª
º button
to switch to the outside air circulation mode.
(The indicator light turns on.)
2. Push the air flow control button to change to the
mode.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-45
& R Q G L W L R Q
Page 228 of 491
> ( G L W 0 R G H O ( ' @

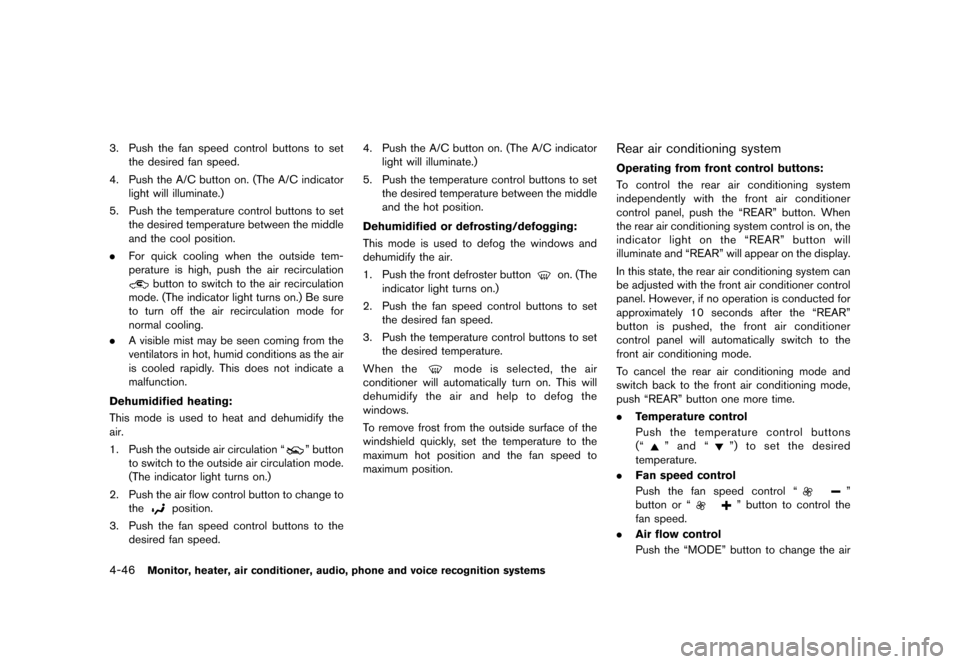

4-46Monitor, heater, air conditioner, audio, phone and voice recognition systems
3. Push the fan speed control buttons to setthe desired fan speed.
4. Push the A/C button on. (The A/C indicator light will illuminate.)
5. Push the temperature control buttons to set the desired temperature between the middle
and the cool position.
. For quick cooling when the outside tem-
perature is high, push the air recirculation
button to switch to the air recirculation
mode. (The indicator light turns on.) Be sure
to turn off the air recirculation mode for
normal cooling.
. A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air
is cooled rapidly. This does not indicate a
malfunction.
Dehumidified heating:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode is used to heat and dehumidify the
air.
1. Push the outside air circulation ª
º button
to switch to the outside air circulation mode.
(The indicator light turns on.)
2. Push the air flow control button to change to the
position.
3. Push the fan speed control buttons to the desired fan speed. 4. Push the A/C button on. (The A/C indicator
light will illuminate.)
5. Push the temperature control buttons to set the desired temperature between the middle
and the hot position.
Dehumidified or defrosting/defogging:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode is used to defog the windows and
dehumidify the air.
1. Push the front defroster button
on. (The
indicator light turns on.)
2. Push the fan speed control buttons to set the desired fan speed.
3. Push the temperature control buttons to set the desired temperature.
When the
mode is selected, the air
conditioner will automatically turn on. This will
dehumidify the air and help to defog the
windows.
To remove frost from the outside surface of the
windshield quickly, set the temperature to the
maximum hot position and the fan speed to
maximum position.
Rear air conditioning systemGUID-3B39B36B-520E-49C6-9C2A-A84AF85A5776
Operating from front control buttons:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To control the rear air conditioning system
independently with the front air conditioner
control panel, push the ªREARº button. When
the rear air conditioning system control is on, the
indicator light on the ªREARº button will
illuminate and ªREARº will appear on the display.
In this state, the rear air conditioning system can
be adjusted with the front air conditioner control
panel. However, if no operation is conducted for
approximately 10 seconds after the ªREARº
button is pushed, the front air conditioner
control panel will automatically switch to the
front air conditioning mode.
To cancel the rear air conditioning mode and
switch back to the front air conditioning mode,
push ªREARº button one more time.
. Temperature control
Push the temperature control buttons
(ª
º and ªº) to set the desired
temperature.
. Fan speed control
Push the fan speed control ª
º
button or ª
º button to control the
fan speed.
. Air flow control
Push the ªMODEº button to change the air
& R Q G L W L R Q
Page 229 of 491
> ( G L W 0 R G H O ( ' @

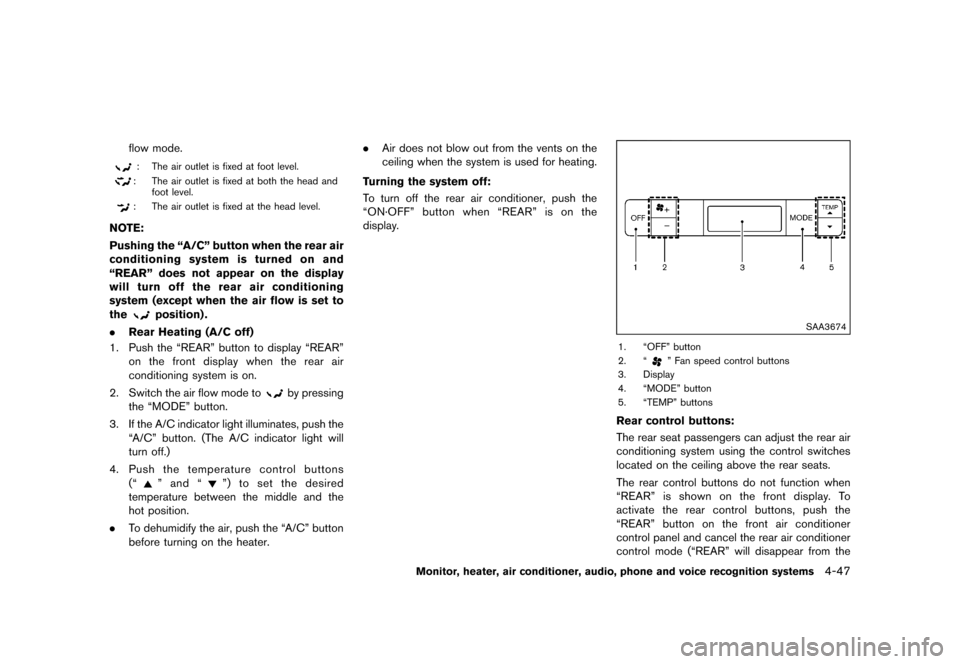

flow mode.
: The air outlet is fixed at foot level.
: The air outlet is fixed at both the head andfoot level.
: The air outlet is fixed at the head level.
NOTE:
Pushing the ªA/Cº button when the rear air
conditioning system is turned on and
ªREARº does not appear on the display
will turn off the rear air conditioning
system (except when the air flow is set to
the
position) .
. Rear Heating (A/C off)
1. Push the ªREARº button to display ªREARº on the front display when the rear air
conditioning system is on.
2. Switch the air flow mode to
by pressing
the ªMODEº button.
3. If the A/C indicator light illuminates, push the ªA/Cº button. (The A/C indicator light will
turn off.)
4. Push the temperature control buttons
(ª
º and ªº) to set the desired
temperature between the middle and the
hot position.
. To dehumidify the air, push the ªA/Cº button
before turning on the heater. .
Air does not blow out from the vents on the
ceiling when the system is used for heating.
Turning the system off:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To turn off the rear air conditioner, push the
ªON´OFFº button when ªREARº is on the
display.
SAA3674
1. ªOFFº button
2. ª
º Fan speed control buttons
3. Display
4. ªMODEº button
5. ªTEMPº buttons
Rear control buttons:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The rear seat passengers can adjust the rear air
conditioning system using the control switches
located on the ceiling above the rear seats.
The rear control buttons do not function when
ªREARº is shown on the front display. To
activate the rear control buttons, push the
ªREARº button on the front air conditioner
control panel and cancel the rear air conditioner
control mode (ªREARº will disappear from the
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-47
& R Q G L W L R Q
Page 230 of 491
> ( G L W 0 R G H O ( ' @

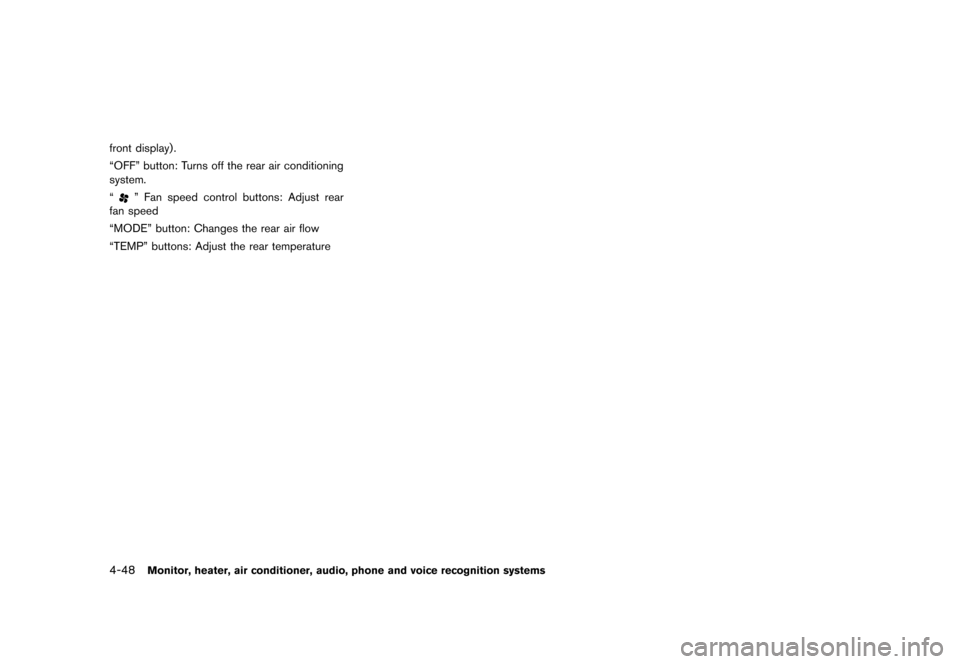

4-48Monitor, heater, air conditioner, audio, phone and voice recognition systems
front display) .
ªOFFº button: Turns off the rear air conditioning
system.
ª
º Fan speed control buttons: Adjust rear
fan speed
ªMODEº button: Changes the rear air flow
ªTEMPº buttons: Adjust the rear temperature
& R Q G L W L R Q
