NISSAN QUEST 2015 RE52 / 4.G Owners Manual
Manufacturer: NISSAN, Model Year: 2015, Model line: QUEST, Model: NISSAN QUEST 2015 RE52 / 4.GPages: 491, PDF Size: 4.54 MB

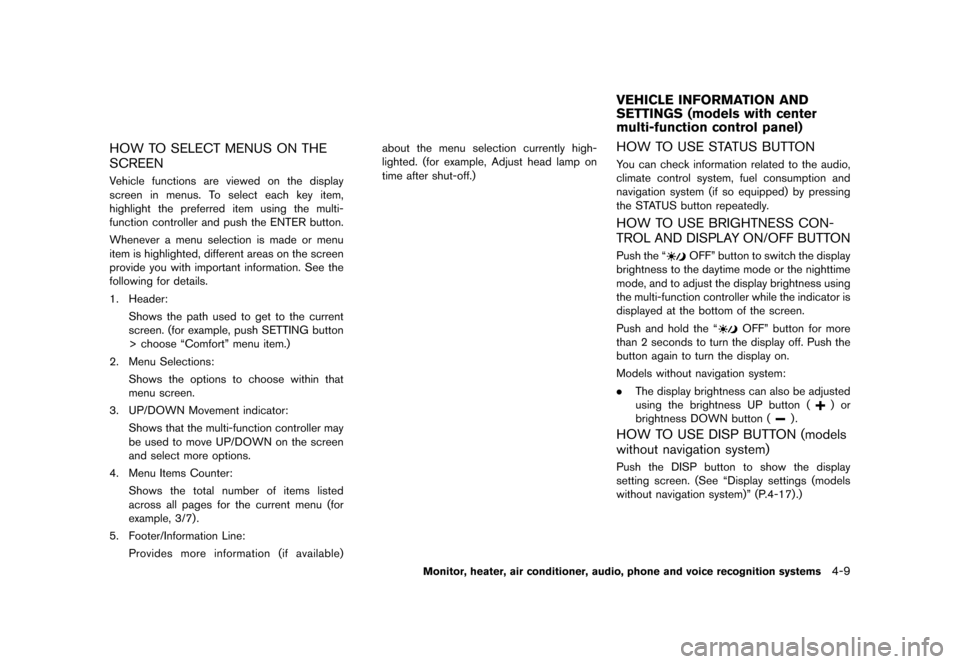

Page 191 of 491
> ( G L W 0 R G H O ( ' @
HOW TO SELECT MENUS ON THE
SCREEN
GUID-716D8DAB-A607-460F-8940-58011D08B09BVehicle functions are viewed on the display
screen in menus. To select each key item,
highlight the preferred item using the multi-
function controller and push the ENTER button.
Whenever a menu selection is made or menu
item is highlighted, different areas on the screen
provide you with important information. See the
following for details.
1. Header:Shows the path used to get to the current
screen. (for example, push SETTING button
> choose ªComfortº menu item.)
2. Menu Selections: Shows the options to choose within that
menu screen.
3. UP/DOWN Movement indicator: Shows that the multi-function controller may
be used to move UP/DOWN on the screen
and select more options.
4. Menu Items Counter: Shows the total number of items listed
across all pages for the current menu (for
example, 3/7) .
5. Footer/Information Line: Provides more information (if available) about the menu selection currently high-
lighted. (for example, Adjust head lamp on
time after shut-off.)
GUID-7BBC7C19-BC3A-4F90-83F0-4A61141D4E5AHOW TO USE STATUS BUTTONGUID-2540E297-82D5-49AA-93C3-3697B4CB844FYou can check information related to the audio,
climate control system, fuel consumption and
navigation system (if so equipped) by pressing
the STATUS button repeatedly.
HOW TO USE BRIGHTNESS CON-
TROL AND DISPLAY ON/OFF BUTTON
GUID-A4523688-0453-4924-B713-BBFFF57D6E1EPush the ªOFFº button to switch the display
brightness to the daytime mode or the nighttime
mode, and to adjust the display brightness using
the multi-function controller while the indicator is
displayed at the bottom of the screen.
Push and hold the ª
OFFº button for more
than 2 seconds to turn the display off. Push the
button again to turn the display on.
Models without navigation system:
. The display brightness can also be adjusted
using the brightness UP button (
) or
brightness DOWN button (
) .
HOW TO USE DISP BUTTON (models
without navigation system)
GUID-FEE84327-8387-4374-B2AA-46CF2799FB7FPush the DISP button to show the display
setting screen. (See ªDisplay settings (models
without navigation system)º (P.4-17).)
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-9
VEHICLE INFORMATION AND
SETTINGS (models with center
multi-function control panel)
& R Q G L W L R Q

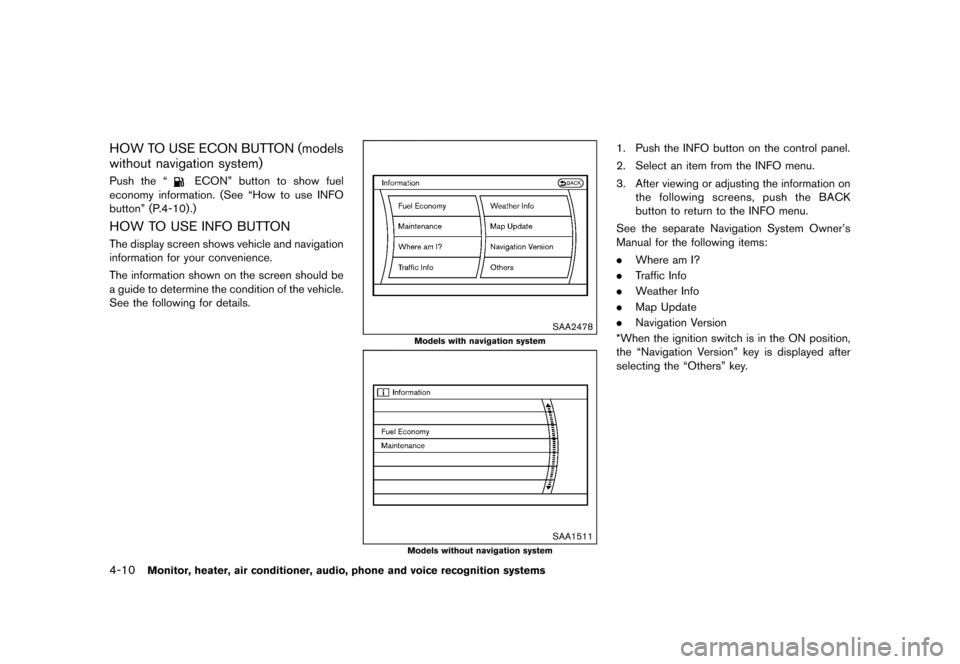

Page 192 of 491
> ( G L W 0 R G H O ( ' @
4-10Monitor, heater, air conditioner, audio, phone and voice recognition systems
HOW TO USE ECON BUTTON (models
without navigation system)
GUID-00BE26B0-47BC-4792-B85C-524262B19770Push the ªECONº button to show fuel
economy information. (See ªHow to use INFO
buttonº (P.4-10).)
HOW TO USE INFO BUTTONGUID-9F37932C-DF63-48BE-9CF6-9207D61AAB92The display screen shows vehicle and navigation
information for your convenience.
The information shown on the screen should be
a guide to determine the condition of the vehicle.
See the following for details.
SAA2478
Models with navigation system
SAA1511
Models without navigation system
1. Push the INFO button on the control panel.
2. Select an item from the INFO menu.
3. After viewing or adjusting the information on the following screens, push the BACK
button to return to the INFO menu.
See the separate Navigation System Owner's
Manual for the following items:
. Where am I?
. Traffic Info
. Weather Info
. Map Update
. Navigation Version
*When the ignition switch is in the ON position,
the ªNavigation Versionº key is displayed after
selecting the ªOthersº key.
& R Q G L W L R Q

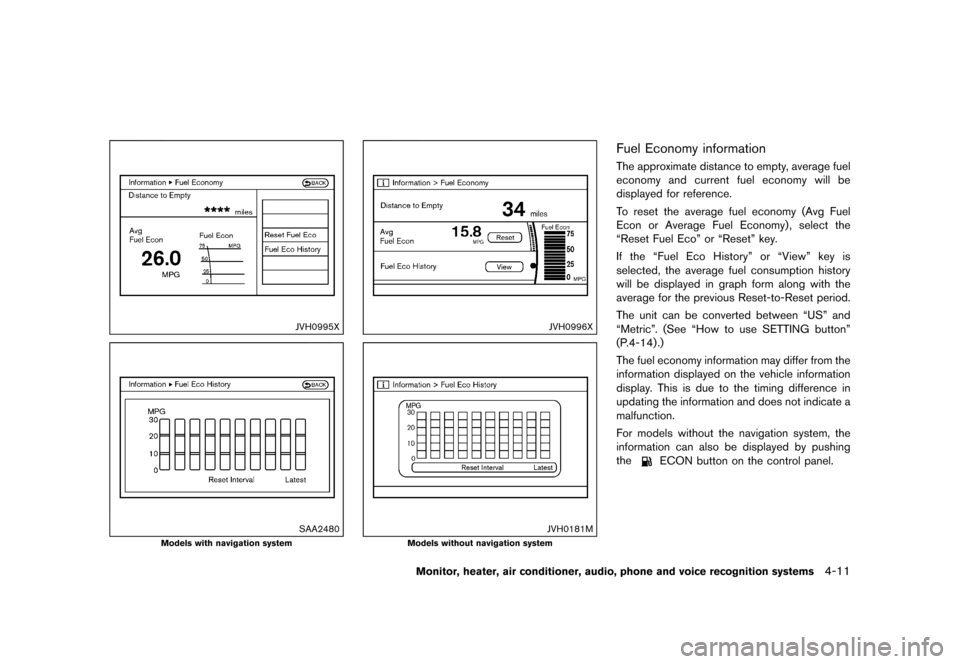

Page 193 of 491
> ( G L W 0 R G H O ( ' @
JVH0995X
SAA2480
Models with navigation system
JVH0996X
JVH0181M
Models without navigation system
Fuel Economy informationGUID-5859B98A-6277-455C-B30C-B3A61F0573E7The approximate distance to empty, average fuel
economy and current fuel economy will be
displayed for reference.
To reset the average fuel economy (Avg Fuel
Econ or Average Fuel Economy) , select the
ªReset Fuel Ecoº or ªResetº key.
If the ªFuel Eco Historyº or ªViewº key is
selected, the average fuel consumption history
will be displayed in graph form along with the
average for the previous Reset-to-Reset period.
The unit can be converted between ªUSº and
ªMetricº. (See ªHow to use SETTING buttonº
(P.4-14) .)
The fuel economy information may differ from the
information displayed on the vehicle information
display. This is due to the timing difference in
updating the information and does not indicate a
malfunction.
For models without the navigation system, the
information can also be displayed by pushing
the
ECON button on the control panel.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-11
& R Q G L W L R Q
Page 194 of 491
> ( G L W 0 R G H O ( ' @
4-12Monitor, heater, air conditioner, audio, phone and voice recognition systems

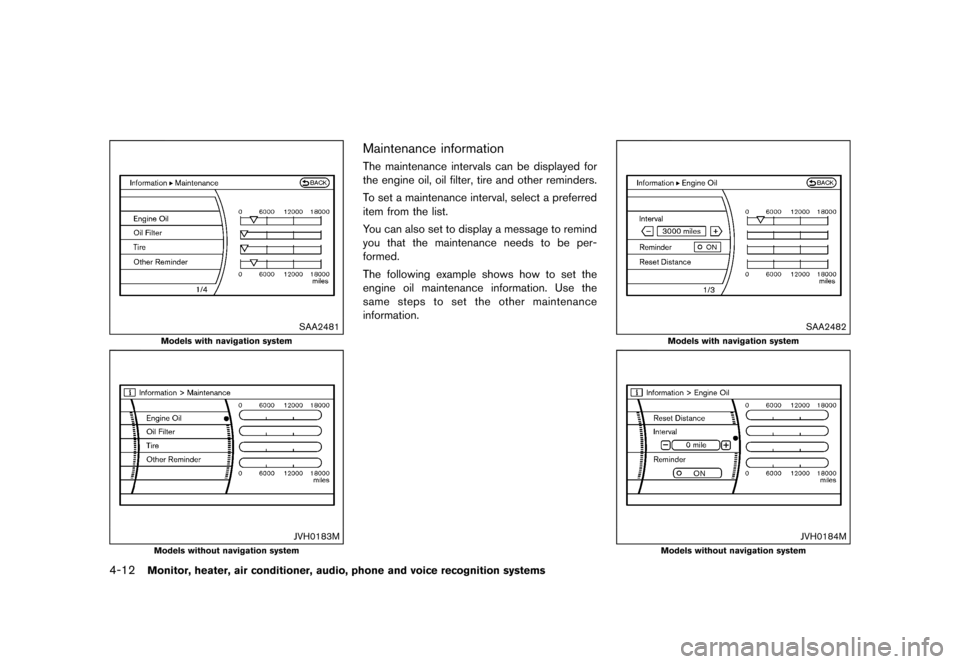

SAA2481
Models with navigation system
JVH0183M
Models without navigation system
Maintenance informationGUID-C15B4C1B-A112-4105-96D5-B5198616B004The maintenance intervals can be displayed for
the engine oil, oil filter, tire and other reminders.
To set a maintenance interval, select a preferred
item from the list.
You can also set to display a message to remind
you that the maintenance needs to be per-
formed.
The following example shows how to set the
engine oil maintenance information. Use the
same steps to set the other maintenance
information.
SAA2482
Models with navigation system
JVH0184M
Models without navigation system
& R Q G L W L R Q
Page 195 of 491
> ( G L W 0 R G H O ( ' @

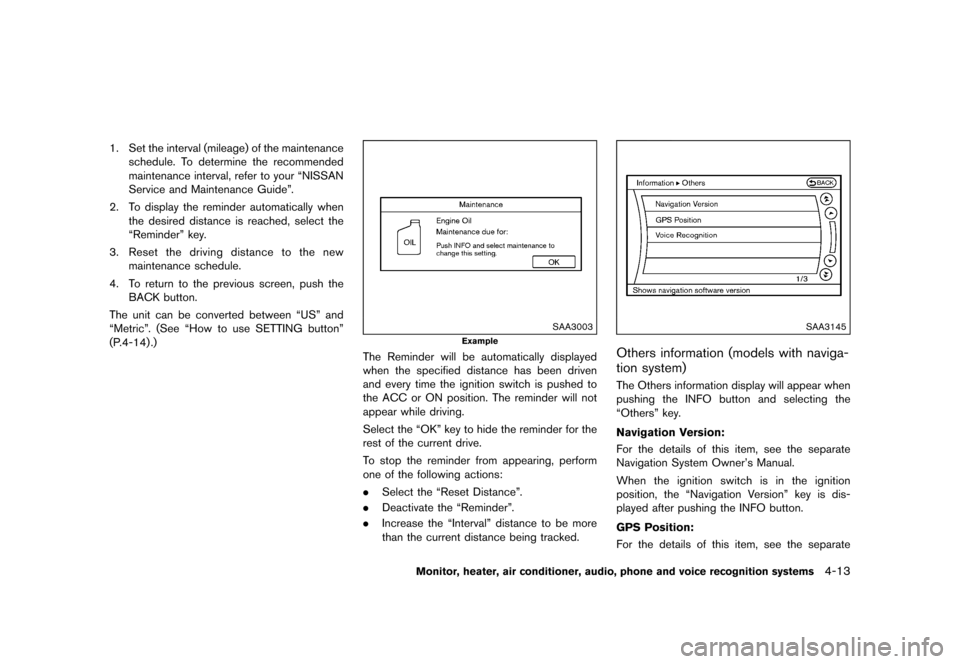

1. Set the interval (mileage) of the maintenanceschedule. To determine the recommended
maintenance interval, refer to your ªNISSAN
Service and Maintenance Guideº.
2. To display the reminder automatically when the desired distance is reached, select the
ªReminderº key.
3. Reset the driving distance to the new
maintenance schedule.
4. To return to the previous screen, push the BACK button.
The unit can be converted between ªUSº and
ªMetricº. (See ªHow to use SETTING buttonº
(P.4-14) .)
SAA3003
Example
The Reminder will be automatically displayed
when the specified distance has been driven
and every time the ignition switch is pushed to
the ACC or ON position. The reminder will not
appear while driving.
Select the ªOKº key to hide the reminder for the
rest of the current drive.
To stop the reminder from appearing, perform
one of the following actions:
. Select the ªReset Distanceº.
. Deactivate the ªReminderº.
. Increase the ªIntervalº distance to be more
than the current distance being tracked.
SAA3145
Others information (models with naviga-
tion system)
GUID-133D173C-FA21-4513-B33D-818F60204D05The Others information display will appear when
pushing the INFO button and selecting the
ªOthersº key.
Navigation Version:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For the details of this item, see the separate
Navigation System Owner's Manual.
When the ignition switch is in the ignition
position, the ªNavigation Versionº key is dis-
played after pushing the INFO button.
GPS Position:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For the details of this item, see the separate
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-13
& R Q G L W L R Q

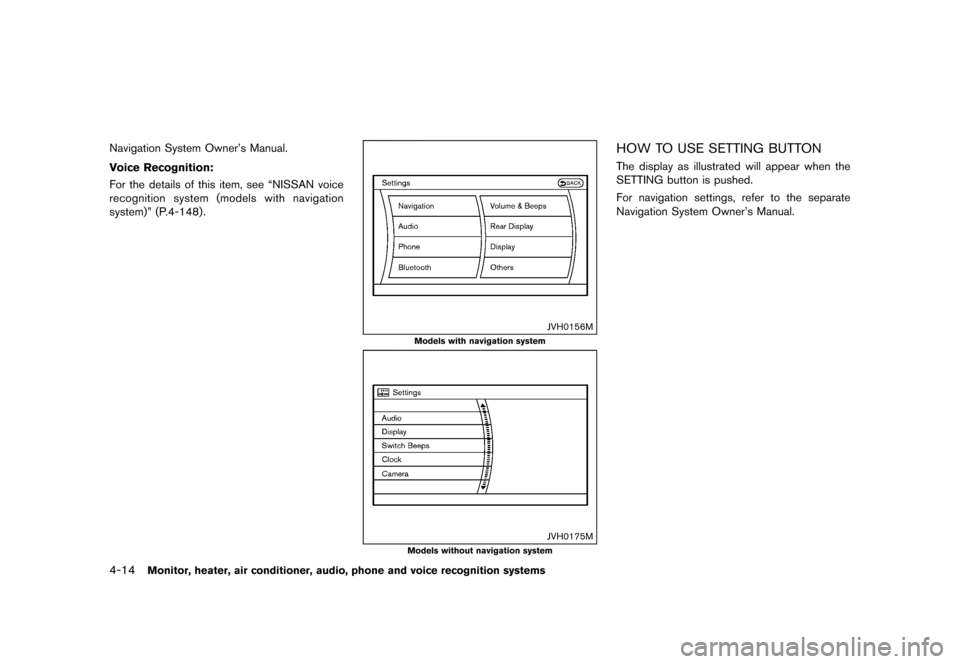

Page 196 of 491
> ( G L W 0 R G H O ( ' @
4-14Monitor, heater, air conditioner, audio, phone and voice recognition systems
Navigation System Owner's Manual.
Voice Recognition:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For the details of this item, see ªNISSAN voice
recognition system (models with navigation
system)º (P.4-148) .
JVH0156M
Models with navigation system
JVH0175M
Models without navigation system
HOW TO USE SETTING BUTTONGUID-3FEA9B1A-0D14-4EAB-BC46-1D2E853AEC6EThe display as illustrated will appear when the
SETTING button is pushed.
For navigation settings, refer to the separate
Navigation System Owner's Manual.
& R Q G L W L R Q

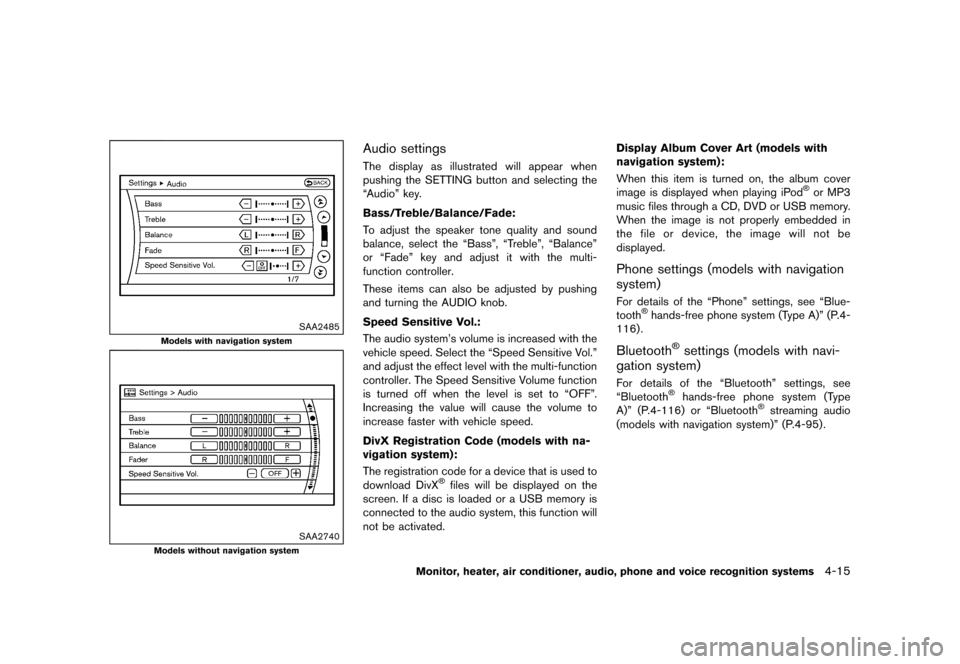

Page 197 of 491
> ( G L W 0 R G H O ( ' @
SAA2485
Models with navigation system
SAA2740
Models without navigation system
Audio settingsGUID-53F882F8-82F8-43EE-A19F-864C4A00E327The display as illustrated will appear when
pushing the SETTING button and selecting the
ªAudioº key.
Bass/Treble/Balance/Fade:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the speaker tone quality and sound
balance, select the ªBassº, ªTrebleº, ªBalanceº
or ªFadeº key and adjust it with the multi-
function controller.
These items can also be adjusted by pushing
and turning the AUDIO knob.
Speed Sensitive Vol.:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The audio system's volume is increased with the
vehicle speed. Select the ªSpeed Sensitive Vol.º
and adjust the effect level with the multi-function
controller. The Speed Sensitive Volume function
is turned off when the level is set to ªOFFº.
Increasing the value will cause the volume to
increase faster with vehicle speed.
DivX Registration Code (models with na-
vigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The registration code for a device that is used to
download DivX

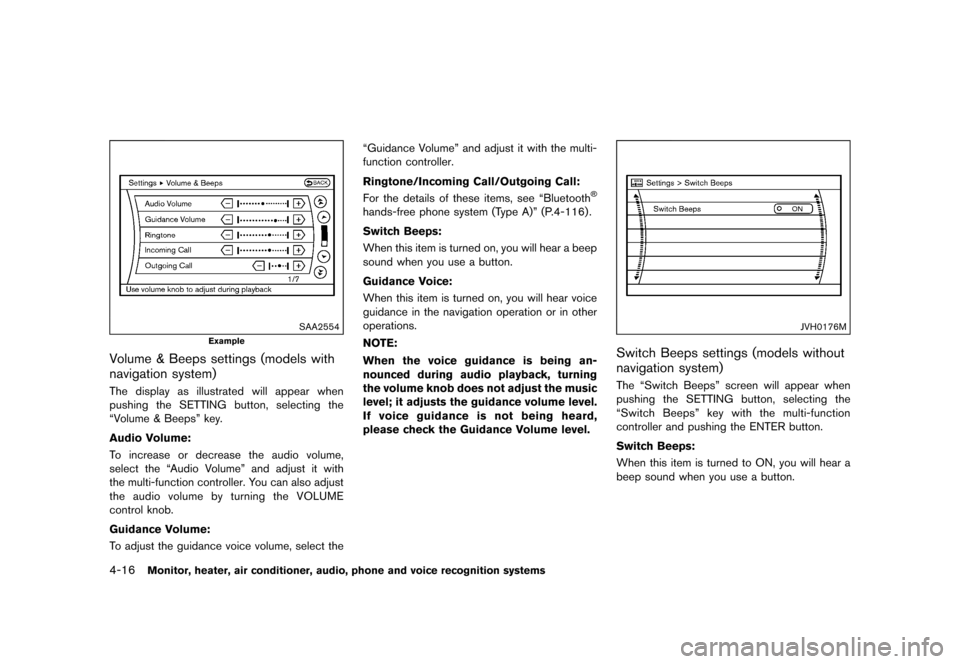

Page 198 of 491
> ( G L W 0 R G H O ( ' @
4-16Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA2554
Example
Volume & Beeps settings (models with
navigation system)
GUID-FF8E399D-CE7B-4107-8D49-6253F81687DEThe display as illustrated will appear when
pushing the SETTING button, selecting the
ªVolume & Beepsº key.
Audio Volume:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To increase or decrease the audio volume,
select the ªAudio Volumeº and adjust it with
the multi-function controller. You can also adjust
the audio volume by turning the VOLUME
control knob.
Guidance Volume:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the guidance voice volume, select theªGuidance Volumeº and adjust it with the multi-
function controller.
Ringtone/Incoming Call/Outgoing Call:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For the details of these items, see ªBluetooth

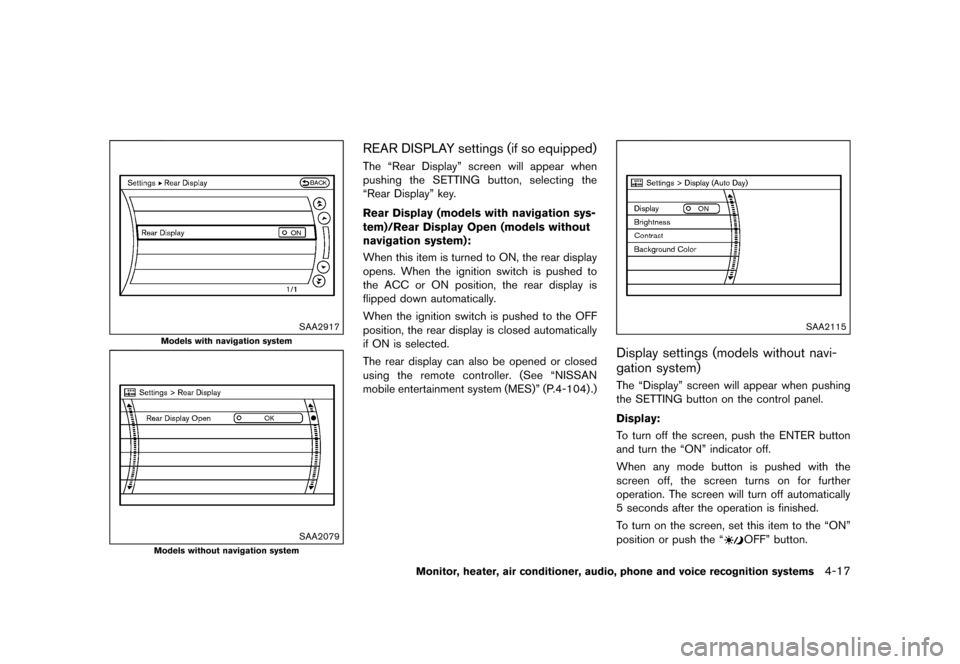

Page 199 of 491
> ( G L W 0 R G H O ( ' @
SAA2917
Models with navigation system
SAA2079
Models without navigation system
REAR DISPLAY settings (if so equipped)GUID-FB4482FC-D48E-48C7-BA91-1C8CCEB50D2CThe ªRear Displayº screen will appear when
pushing the SETTING button, selecting the
ªRear Displayº key.
Rear Display (models with navigation sys-
tem)/Rear Display Open (models without
navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the rear display
opens. When the ignition switch is pushed to
the ACC or ON position, the rear display is
flipped down automatically.
When the ignition switch is pushed to the OFF
position, the rear display is closed automatically
if ON is selected.
The rear display can also be opened or closed
using the remote controller. (See ªNISSAN
mobile entertainment system (MES)º (P.4-104) .)
SAA2115
Display settings (models without navi-
gation system)
GUID-F0C405AE-BCB7-4276-88F5-85173E8D555CThe ªDisplayº screen will appear when pushing
the SETTING button on the control panel.
Display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To turn off the screen, push the ENTER button
and turn the ªONº indicator off.
When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off automatically
5 seconds after the operation is finished.
To turn on the screen, set this item to the ªONº
position or push the ª
OFFº button.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-17
& R Q G L W L R Q

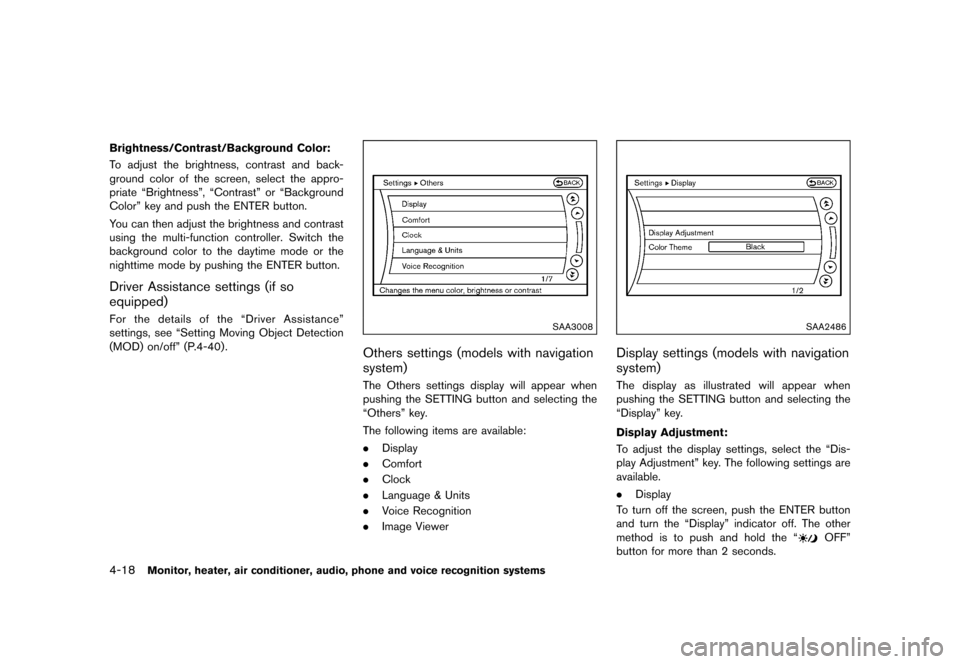

Page 200 of 491
> ( G L W 0 R G H O ( ' @
4-18Monitor, heater, air conditioner, audio, phone and voice recognition systems
Brightness/Contrast/Background Color:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the brightness, contrast and back-
ground color of the screen, select the appro-
priate ªBrightnessº, ªContrastº or ªBackground
Colorº key and push the ENTER button.
You can then adjust the brightness and contrast
using the multi-function controller. Switch the
background color to the daytime mode or the
nighttime mode by pushing the ENTER button.
Driver Assistance settings (if so
equipped)
GUID-D1D43B30-F946-474F-BC9D-1B358220F5FFFor the details of the ªDriver Assistanceº
settings, see ªSetting Moving Object Detection
(MOD) on/offº (P.4-40).SAA3008
Others settings (models with navigation
system)
GUID-5D053739-4550-4C85-9AF7-7E809E143435The Others settings display will appear when
pushing the SETTING button and selecting the
ªOthersº key.
The following items are available:
.Display
. Comfort
. Clock
. Language & Units
. Voice Recognition
. Image Viewer
SAA2486
Display settings (models with navigation
system)
GUID-DED0FB77-D2FB-44D1-926E-A6B2E9D6B2ABThe display as illustrated will appear when
pushing the SETTING button and selecting the
ªDisplayº key.
Display Adjustment:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the display settings, select the ªDis-
play Adjustmentº key. The following settings are
available.
.Display
To turn off the screen, push the ENTER button
and turn the ªDisplayº indicator off. The other
method is to push and hold the ª
OFFº
button for more than 2 seconds.
& R Q G L W L R Q
