NISSAN QUEST 2015 RE52 / 4.G Owners Manual
Manufacturer: NISSAN, Model Year: 2015, Model line: QUEST, Model: NISSAN QUEST 2015 RE52 / 4.GPages: 491, PDF Size: 4.54 MB
Page 251 of 491
> ( G L W 0 R G H O ( ' @

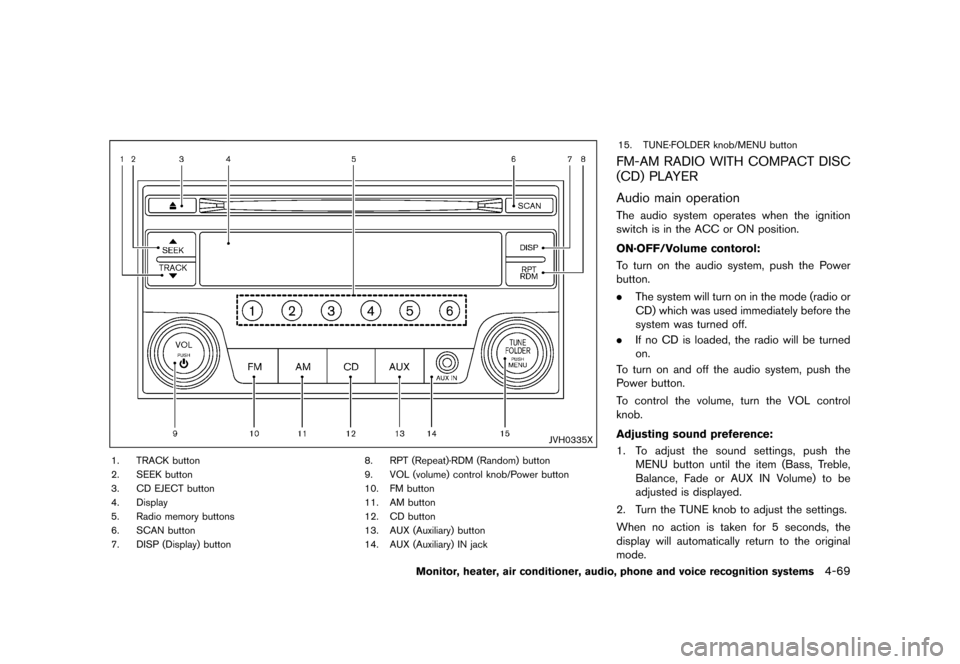

JVH0335X
1. TRACK button
2. SEEK button
3. CD EJECT button
4. Display
5. Radio memory buttons
6. SCAN button
7. DISP (Display) button8. RPT (Repeat)´RDM (Random) button
9. VOL (volume) control knob/Power button
10. FM button
11. AM button
12. CD button
13. AUX (Auxiliary) button
14. AUX (Auxiliary) IN jack15. TUNE´FOLDER knob/MENU button
FM-AM RADIO WITH COMPACT DISC
(CD) PLAYER
GUID-3639A9E4-361C-4DB4-92FB-9CE97730F84C
Audio main operationGUID-81CBE2F0-49AC-45BF-B6BE-36B780750248The audio system operates when the ignition
switch is in the ACC or ON position.
ON´OFF/Volume contorol:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To turn on the audio system, push the Power
button.
.
The system will turn on in the mode (radio or
CD) which was used immediately before the
system was turned off.
. If no CD is loaded, the radio will be turned
on.
To turn on and off the audio system, push the
Power button.
To control the volume, turn the VOL control
knob.
Adjusting sound preference:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. To adjust the sound settings, push the
MENU button until the item (Bass, Treble,
Balance, Fade or AUX IN Volume) to be
adjusted is displayed.
2. Turn the TUNE knob to adjust the settings.
When no action is taken for 5 seconds, the
display will automatically return to the original
mode.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-69
& R Q G L W L R Q
Page 252 of 491
> ( G L W 0 R G H O ( ' @

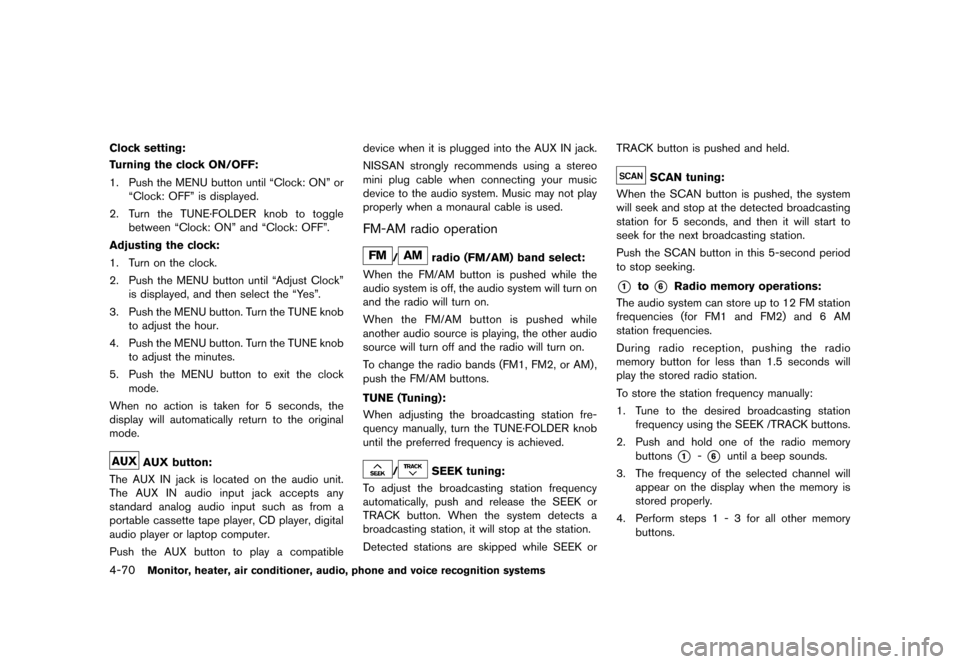

4-70Monitor, heater, air conditioner, audio, phone and voice recognition systems
Clock setting:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turning the clock ON/OFF:
1. Push the MENU button until ªClock: ONº orªClock: OFFº is displayed.
2. Turn the TUNE´FOLDER knob to toggle
between ªClock: ONº and ªClock: OFFº.
Adjusting the clock:
1. Turn on the clock.
2. Push the MENU button until ªAdjust Clockº is displayed, and then select the ªYesº.
3. Push the MENU button. Turn the TUNE knob to adjust the hour.
4. Push the MENU button. Turn the TUNE knob to adjust the minutes.
5. Push the MENU button to exit the clock mode.
When no action is taken for 5 seconds, the
display will automatically return to the original
mode.
AUX button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The AUX IN jack is located on the audio unit.
The AUX IN audio input jack accepts any
standard analog audio input such as from a
portable cassette tape player, CD player, digital
audio player or laptop computer.
Push the AUX button to play a compatible device when it is plugged into the AUX IN jack.
NISSAN strongly recommends using a stereo
mini plug cable when connecting your music
device to the audio system. Music may not play
properly when a monaural cable is used.
FM-AM radio operationGUID-F9A946AB-2EFB-4E8E-A601-362CEB73ADEE
/radio (FM/AM) band select:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the FM/AM button is pushed while the
audio system is off, the audio system will turn on
and the radio will turn on.
When the FM/AM button is pushed while
another audio source is playing, the other audio
source will turn off and the radio will turn on.
To change the radio bands (FM1, FM2, or AM) ,
push the FM/AM buttons.
TUNE (Tuning):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When adjusting the broadcasting station fre-
quency manually, turn the TUNE´FOLDER knob
until the preferred frequency is achieved.
/SEEK tuning:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the broadcasting station frequency
automatically, push and release the SEEK or
TRACK button. When the system detects a
broadcasting station, it will stop at the station.
Detected stations are skipped while SEEK or
TRACK button is pushed and held.
SCAN tuning:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the SCAN button is pushed, the system
will seek and stop at the detected broadcasting
station for 5 seconds, and then it will start to
seek for the next broadcasting station.
Push the SCAN button in this 5-second period
to stop seeking.
*1to*6Radio memory operations:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The audio system can store up to 12 FM station
frequencies (for FM1 and FM2) and 6 AM
station frequencies.
During radio reception, pushing the radio
memory button for less than 1.5 seconds will
play the stored radio station.
To store the station frequency manually:
1. Tune to the desired broadcasting station
frequency using the SEEK /TRACK buttons.
2. Push and hold one of the radio memory buttons
*1-*6until a beep sounds.
3. The frequency of the selected channel will appear on the display when the memory is
stored properly.
4. Perform steps 1 - 3 for all other memory buttons.
& R Q G L W L R Q
Page 253 of 491
> ( G L W 0 R G H O ( ' @
Compact Disc (CD) player operationGUID-F383FDDE-17E9-4011-B8FE-2190807C4F78Place the ignition switch in the ACC or ON
position, and insert the CD into the slot with the
label side facing up. The CD will be guided
automatically into the slot and start playing. After
loading the disc, the number of tracks on the
disc will appear on the display.
If the radio is already operating, it will auto-
matically turn off and the CD will play.
If the system has been turned off while the CD
was playing, pushing the Power button will start
the CD.
CD PLAY:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the CD button is pushed while a CD is
loaded, the CD will start playing.
CD DISPLAY information:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the DISP is pushed while a CD with title
information is playing, the information text on the
display will change as follows:
CD:
Track time?Album Title ?Artist Name ?
Song Title ?Track time
CD with MP3/WMA:
Track time ?Folder Title ?Album Title ?Artist
Name ?Song Title ?Track time
/Next/Previous Track and Fast
Forward/Rewind:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Fast forward/Rewind:
Push and hold the FF or REW button for more
than 1.5 seconds to fast forward or rewind
through the track. Release the button to play the
CD at normal speed.
Track up/down:
To play the next track, push the FF button for
less than 1.5 seconds while a CD is playing.
To play the previous track, push the REW button
for less than 1.5 seconds within 2 seconds after
the current track started playing. To return to the
beginning of the current track, push the REW
button for less than 1.5 seconds after 2 seconds
from when the current track started playing.
Folder Selector Knob (CD with MP3/
WMA):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To skip to the next folder, turn the
TUNE´FOLDER knob.
To skip to the next or previous track within the
folder, push SEEK/TRACK button
REPEAT (RPT) , RANDOM (RDM):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the RPT/RDM button is pushed while a
CD is playing, the play mode will change as
follows: CD:
DISC REPEAT
?TRACK REPEAT ?DISC
RANDOM ?DISC REPEAT
CD with MP3/WMA:
DISC REPEAT ?FOLDER REPEAT ?TRACK
REPEAT ?DISC RANDOM ?FOLDER
RANDOM ?DISC REPEAT
SCAN tuning:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the SCAN button is pushed while a CD is
being played, the first 10 seconds of all the
tracks will be played.
When the SCAN button is pushed again, the
CD will return to the regular play mode.
CD EJECT button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the CD EJECT button is pushed with the
CD loaded, the CD will be ejected.
When this button is pushed while the CD is
being played, the CD will come out and the
system will turn off.
If the CD comes out and is not removed, it
will be pulled back into the slot to protect
it.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-71
& R Q G L W L R Q
Page 254 of 491
> ( G L W 0 R G H O ( ' @

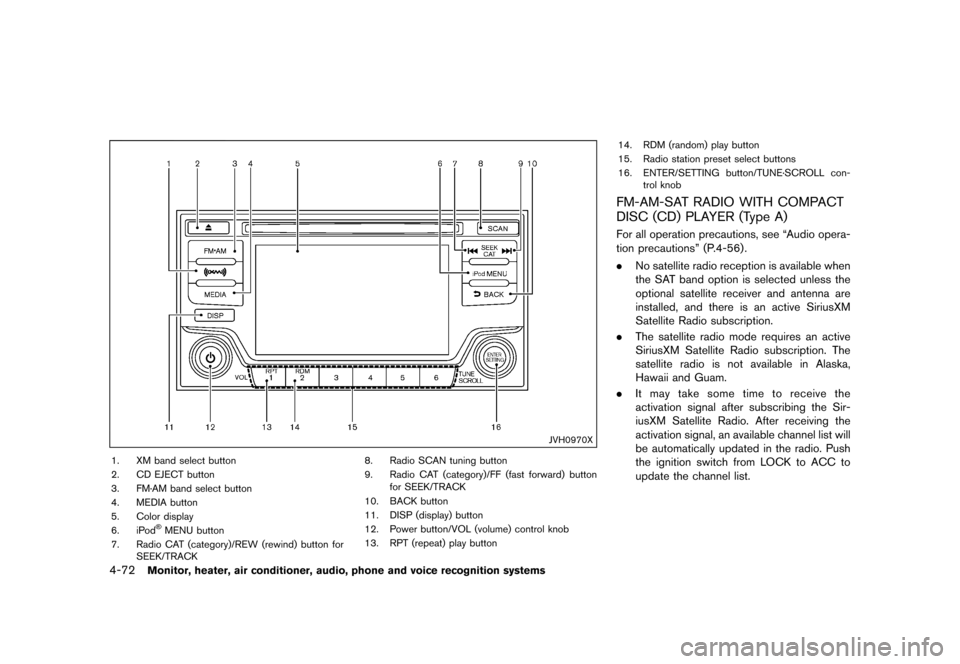

4-72Monitor, heater, air conditioner, audio, phone and voice recognition systems
JVH0970X
1. XM band select button
2. CD EJECT button
3. FM´AM band select button
4. MEDIA button
5. Color display
6. iPod
Page 255 of 491
> ( G L W 0 R G H O ( ' @

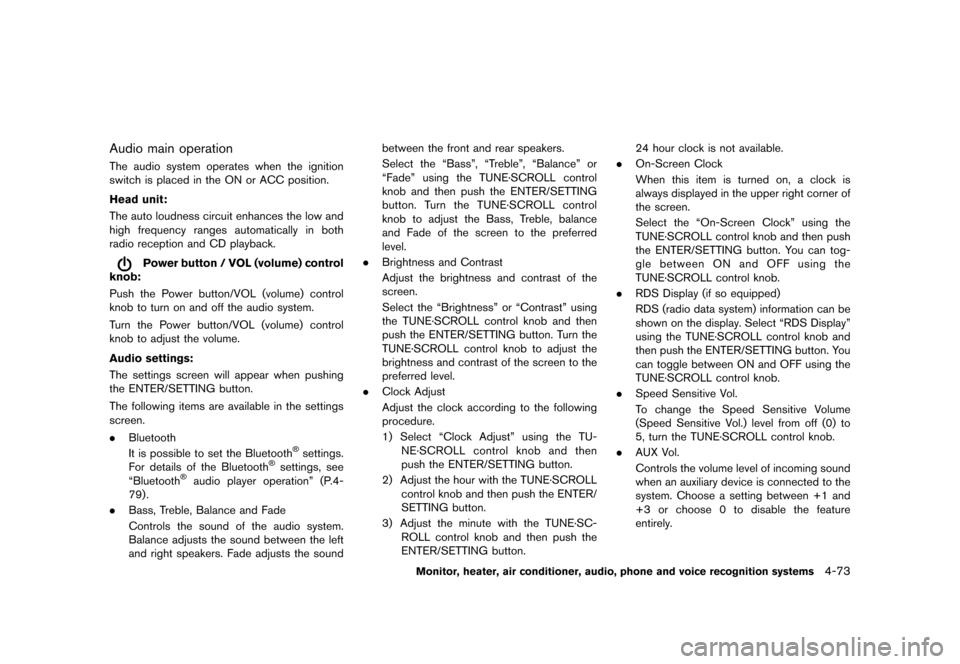

Audio main operationGUID-6EC17C5B-D1AF-4BF4-BFD6-054F073369E9The audio system operates when the ignition
switch is placed in the ON or ACC position.
Head unit:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The auto loudness circuit enhances the low and
high frequency ranges automatically in both
radio reception and CD playback.
Power button / VOL (volume) control
knob:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the Power button/VOL (volume) control
knob to turn on and off the audio system.
Turn the Power button/VOL (volume) control
knob to adjust the volume.
Audio settings:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The settings screen will appear when pushing
the ENTER/SETTING button.
The following items are available in the settings
screen.
. Bluetooth
It is possible to set the Bluetooth
Page 256 of 491
> ( G L W 0 R G H O ( ' @

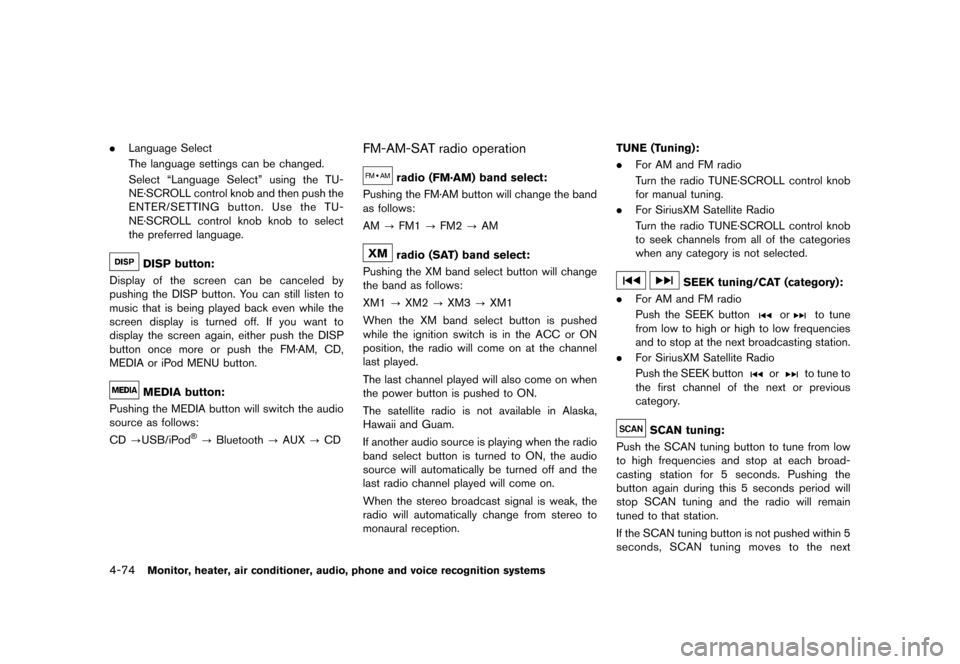

4-74Monitor, heater, air conditioner, audio, phone and voice recognition systems
.Language Select
The language settings can be changed.
Select ªLanguage Selectº using the TU-
NE´SCROLL control knob and then push the
ENTER/SETTING button. Use the TU-
NE´SCROLL control knob knob to select
the preferred language.
DISP button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Display of the screen can be canceled by
pushing the DISP button. You can still listen to
music that is being played back even while the
screen display is turned off. If you want to
display the screen again, either push the DISP
button once more or push the FM´AM, CD,
MEDIA or iPod MENU button.
MEDIA button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the MEDIA button will switch the audio
source as follows:
CD ?USB/iPod
Page 257 of 491
> ( G L W 0 R G H O ( ' @

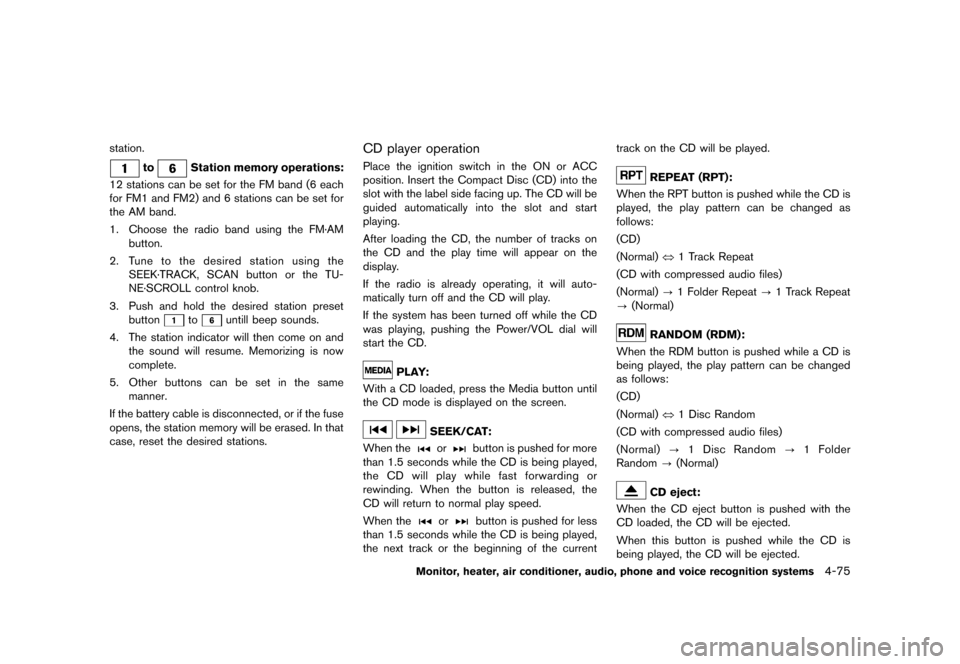

station.
toStation memory operations:GUID-D73A39BF-43C8-459F-9C24-47B7F579C40712 stations can be set for the FM band (6 each
for FM1 and FM2) and 6 stations can be set for
the AM band.
1. Choose the radio band using the FM´AMbutton.
2. Tune to the desired station using the
SEEK´TRACK, SCAN button or the TU-
NE´SCROLL control knob.
3. Push and hold the desired station preset button
tountill beep sounds.
4. The station indicator will then come on and the sound will resume. Memorizing is now
complete.
5. Other buttons can be set in the same
manner.
If the battery cable is disconnected, or if the fuse
opens, the station memory will be erased. In that
case, reset the desired stations.
CD player operationGUID-B32C1311-0658-4BF4-9504-3ACD8D495A05Place the ignition switch in the ON or ACC
position. Insert the Compact Disc (CD) into the
slot with the label side facing up. The CD will be
guided automatically into the slot and start
playing.
After loading the CD, the number of tracks on
the CD and the play time will appear on the
display.
If the radio is already operating, it will auto-
matically turn off and the CD will play.
If the system has been turned off while the CD
was playing, pushing the Power/VOL dial will
start the CD.
PLAY:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407With a CD loaded, press the Media button until
the CD mode is displayed on the screen.
SEEK/CAT:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When theorbutton is pushed for more
than 1.5 seconds while the CD is being played,
the CD will play while fast forwarding or
rewinding. When the button is released, the
CD will return to normal play speed.
When the
orbutton is pushed for less
than 1.5 seconds while the CD is being played,
the next track or the beginning of the current track on the CD will be played.
REPEAT (RPT):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the RPT button is pushed while the CD is
played, the play pattern can be changed as
follows:
(CD)
(Normal)
Û1 Track Repeat
(CD with compressed audio files)
(Normal) ?1 Folder Repeat ?1 Track Repeat
? (Normal)
RANDOM (RDM):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the RDM button is pushed while a CD is
being played, the play pattern can be changed
as follows:
(CD)
(Normal) Û1 Disc Random
(CD with compressed audio files)
(Normal) ?1 Disc Random ?1 Folder
Random ?(Normal)
CD eject:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the CD eject button is pushed with the
CD loaded, the CD will be ejected.
When this button is pushed while the CD is
being played, the CD will be ejected.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-75
& R Q G L W L R Q
Page 258 of 491
> ( G L W 0 R G H O ( ' @
4-76Monitor, heater, air conditioner, audio, phone and voice recognition systems

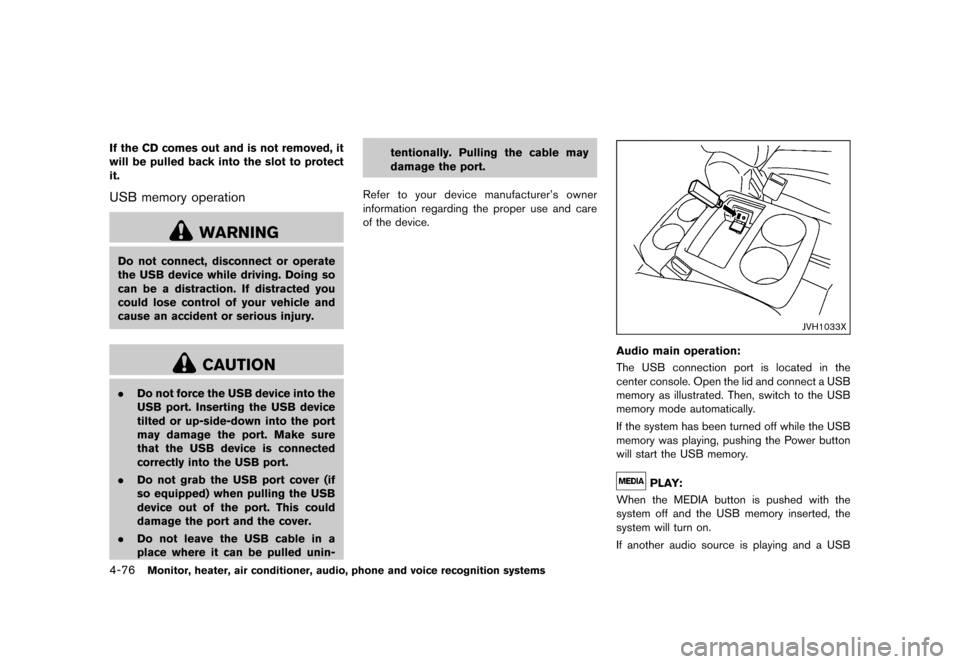

If the CD comes out and is not removed, it
will be pulled back into the slot to protect
it.
USB memory operationGUID-07070A37-45EE-4F9E-8D3B-A1AC32E165AF
WARNING
Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.
CAUTION
.Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port.
. Do not grab the USB port cover (if
so equipped) when pulling the USB
device out of the port. This could
damage the port and the cover.
. Do not leave the USB cable in a
place where it can be pulled unin- tentionally. Pulling the cable may
damage the port.
Refer to your device manufacturer's owner
information regarding the proper use and care
of the device.
JVH1033X
Audio main operation:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The USB connection port is located in the
center console. Open the lid and connect a USB
memory as illustrated. Then, switch to the USB
memory mode automatically.
If the system has been turned off while the USB
memory was playing, pushing the Power button
will start the USB memory.
PLAY:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the MEDIA button is pushed with the
system off and the USB memory inserted, the
system will turn on.
If another audio source is playing and a USB
& R Q G L W L R Q
Page 259 of 491
> ( G L W 0 R G H O ( ' @

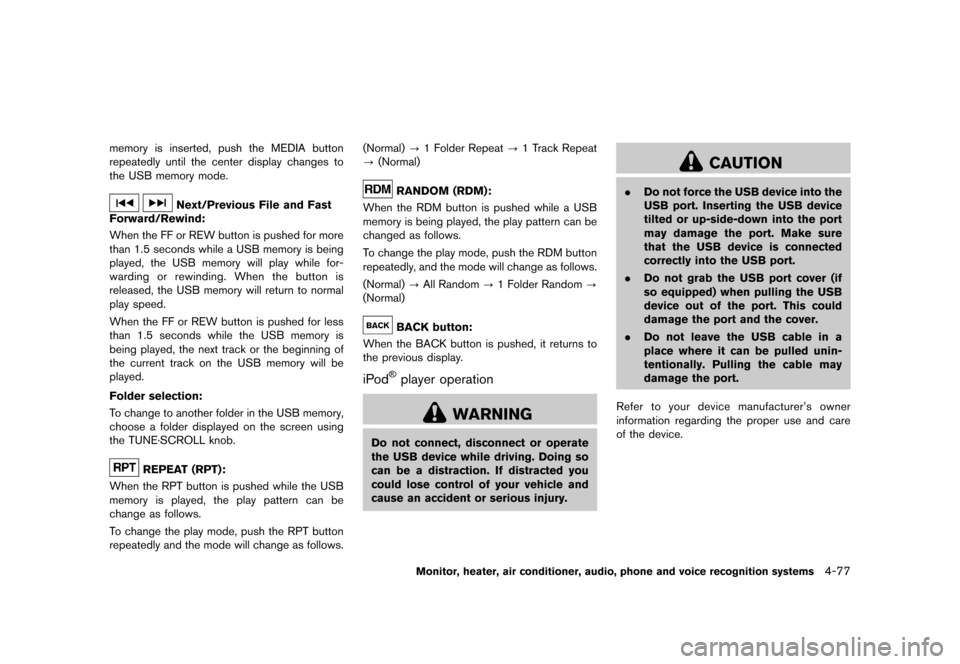

memory is inserted, push the MEDIA button
repeatedly until the center display changes to
the USB memory mode.
Next/Previous File and Fast
Forward/Rewind:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the FF or REW button is pushed for more
than 1.5 seconds while a USB memory is being
played, the USB memory will play while for-
warding or rewinding. When the button is
released, the USB memory will return to normal
play speed.
When the FF or REW button is pushed for less
than 1.5 seconds while the USB memory is
being played, the next track or the beginning of
the current track on the USB memory will be
played.
Folder selection:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To change to another folder in the USB memory,
choose a folder displayed on the screen using
the TUNE´SCROLL knob.
REPEAT (RPT):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the RPT button is pushed while the USB
memory is played, the play pattern can be
change as follows.
To change the play mode, push the RPT button
repeatedly and the mode will change as follows. (Normal)
?1 Folder Repeat ?1 Track Repeat
? (Normal)
RANDOM (RDM):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the RDM button is pushed while a USB
memory is being played, the play pattern can be
changed as follows.
To change the play mode, push the RDM button
repeatedly, and the mode will change as follows.
(Normal) ?All Random ?1 Folder Random ?
(Normal)
BACK button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the BACK button is pushed, it returns to
the previous display.
iPod
Page 260 of 491
> ( G L W 0 R G H O ( ' @
4-78Monitor, heater, air conditioner, audio, phone and voice recognition systems
JVH1032X
Connecting iPod
