JVH1009X

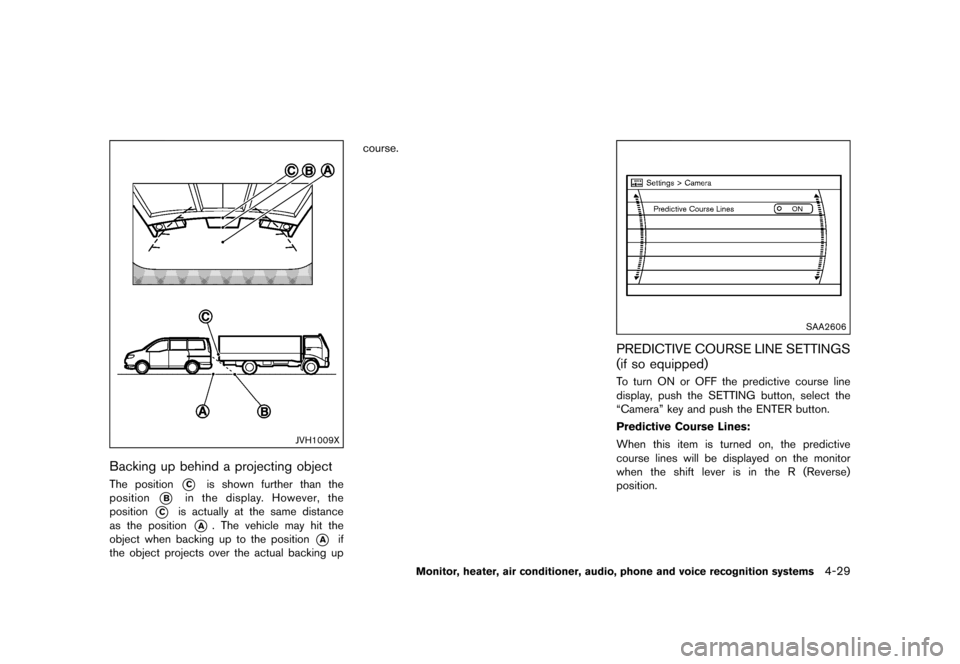

Backing up behind a projecting objectGUID-5B481DE7-D01B-466B-A493-96075145585CThe position*Cis shown further than the
position
*Bin the display. However, the
position
*Cis actually at the same distance
as the position
*A. The vehicle may hit the
object when backing up to the position
*Aif
the object projects over the actual backing up course.
SAA2606
PREDICTIVE COURSE LINE SETTINGS
(if so equipped)
GUID-D361DBBB-D939-418F-B6CF-5EC912585221To turn ON or OFF the predictive course line
display, push the SETTING button, select the
ªCameraº key and push the ENTER button.
Predictive Course Lines:
When this item is turned on, the predictive
course lines will be displayed on the monitor
when the shift lever is in the R (Reverse)
position.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-29
& R Q G L W L R Q
Page 212 of 491
> ( G L W 0 R G H O ( ' @
4-30Monitor, heater, air conditioner, audio, phone and voice recognition systems

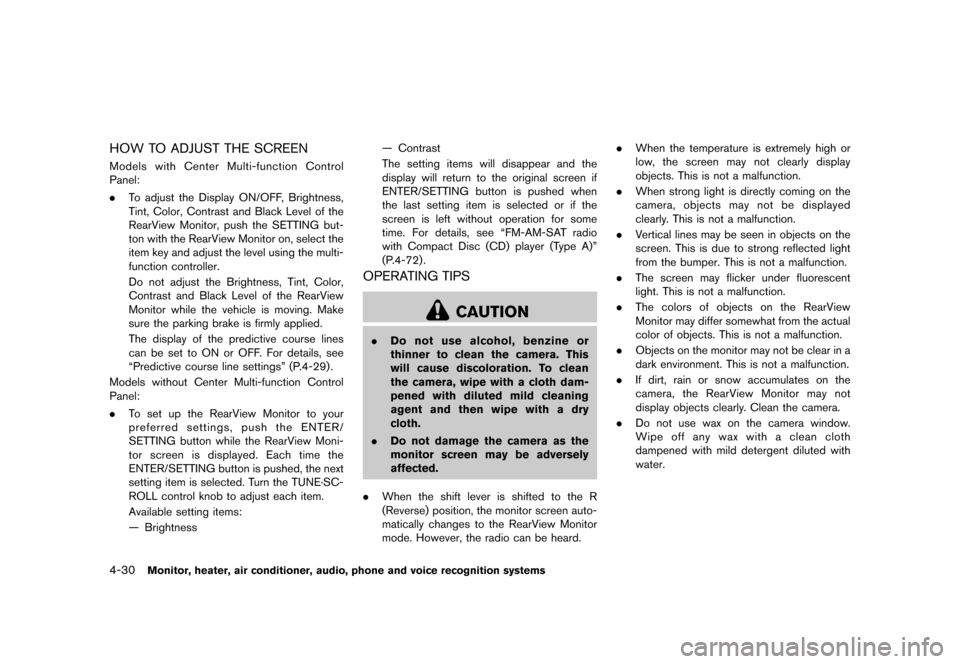

HOW TO ADJUST THE SCREENGUID-E88B82B8-BA68-4175-B0F4-4EBBB81584CFModels with Center Multi-function Control
Panel:
.To adjust the Display ON/OFF, Brightness,
Tint, Color, Contrast and Black Level of the
RearView Monitor, push the SETTING but-
ton with the RearView Monitor on, select the
item key and adjust the level using the multi-
function controller.
Do not adjust the Brightness, Tint, Color,
Contrast and Black Level of the RearView
Monitor while the vehicle is moving. Make
sure the parking brake is firmly applied.
The display of the predictive course lines
can be set to ON or OFF. For details, see
ªPredictive course line settingsº (P.4-29).
Models without Center Multi-function Control
Panel:
. To set up the RearView Monitor to your
preferred settings, push the ENTER/
SETTING button while the RearView Moni-
tor screen is displayed. Each time the
ENTER/SETTING button is pushed, the next
setting item is selected. Turn the TUNE´SC-
ROLL control knob to adjust each item.
Available setting items:
Ð Brightness Ð Contrast
The setting items will disappear and the
display will return to the original screen if
ENTER/SETTING button is pushed when
the last setting item is selected or if the
screen is left without operation for some
time. For details, see ªFM-AM-SAT radio
with Compact Disc (CD) player (Type A)º
(P.4-72) .
OPERATING TIPSGUID-50B88478-733C-4EEC-A858-A9A917C9D9F2
CAUTION
.
Do not use alcohol, benzine or
thinner to clean the camera. This
will cause discoloration. To clean
the camera, wipe with a cloth dam-
pened with diluted mild cleaning
agent and then wipe with a dry
cloth.
. Do not damage the camera as the
monitor screen may be adversely
affected.
. When the shift lever is shifted to the R
(Reverse) position, the monitor screen auto-
matically changes to the RearView Monitor
mode. However, the radio can be heard. .
When the temperature is extremely high or
low, the screen may not clearly display
objects. This is not a malfunction.
. When strong light is directly coming on the
camera, objects may not be displayed
clearly. This is not a malfunction.
. Vertical lines may be seen in objects on the
screen. This is due to strong reflected light
from the bumper. This is not a malfunction.
. The screen may flicker under fluorescent
light. This is not a malfunction.
. The colors of objects on the RearView
Monitor may differ somewhat from the actual
color of objects. This is not a malfunction.
. Objects on the monitor may not be clear in a
dark environment. This is not a malfunction.
. If dirt, rain or snow accumulates on the
camera, the RearView Monitor may not
display objects clearly. Clean the camera.
. Do not use wax on the camera window.
Wipe off any wax with a clean cloth
dampened with mild detergent diluted with
water.
& R Q G L W L R Q
Page 213 of 491
> ( G L W 0 R G H O ( ' @
GUID-CED6D5D1-84BD-4E1B-8B71-A258BE658AD5With the ignition switch in the ON position,
press the CAMERA button on the center multi-
function control panel or move the shift lever to
the ªRº (Reverse) position to operate the Around
View Monitor. The monitor displays various
views of the position of the vehicle.
Available views:
.Bird's-Eye View
The surrounding view of the vehicle.
. Front-side View
The view around and ahead of the front
passenger's side wheel.
. Front View
The view to the front of the vehicle.
. Rear View
The view to the rear of the vehicle.
The system is designed as an aid to the driver in
situations such as slot parking or parallel
parking.

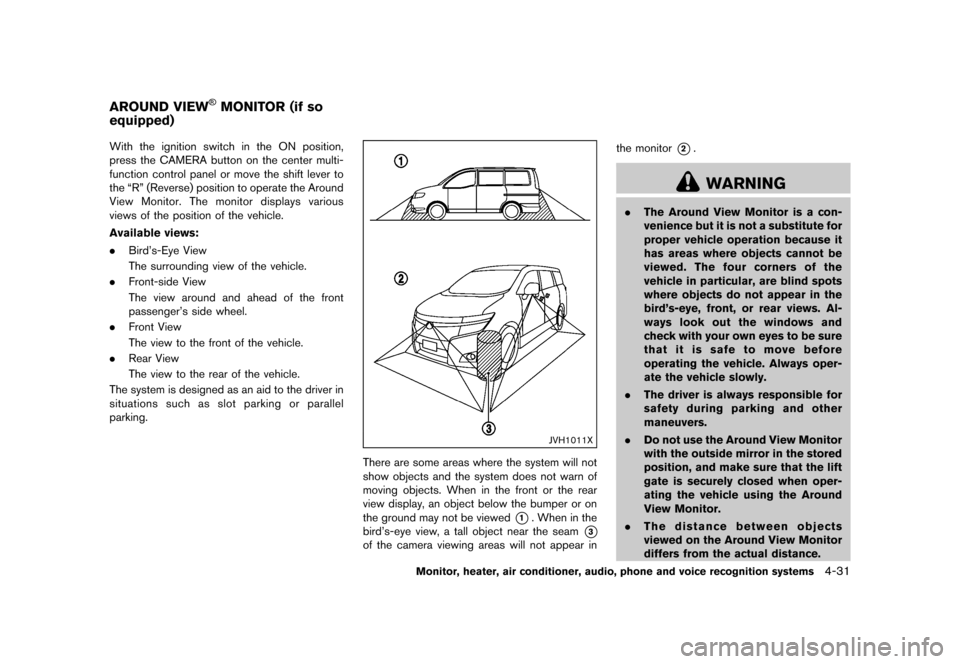

JVH1011X
There are some areas where the system will not
show objects and the system does not warn of
moving objects. When in the front or the rear
view display, an object below the bumper or on
the ground may not be viewed
*1. When in the
bird's-eye view, a tall object near the seam
*3
of the camera viewing areas will not appear in the monitor
*2.
WARNING
.
The Around View Monitor is a con-
venience but it is not a substitute for
proper vehicle operation because it
has areas where objects cannot be
viewed. The four corners of the
vehicle in particular, are blind spots
where objects do not appear in the
bird's-eye, front, or rear views. Al-
ways look out the windows and
check with your own eyes to be sure
that it is safe to move before
operating the vehicle. Always oper-
ate the vehicle slowly.
. The driver is always responsible for
safety during parking and other
maneuvers.
. Do not use the Around View Monitor
with the outside mirror in the stored
position, and make sure that the lift
gate is securely closed when oper-
ating the vehicle using the Around
View Monitor.
. The distance between objects
viewed on the Around View Monitor
differs from the actual distance.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-31
AROUND VIEW
Page 214 of 491
> ( G L W 0 R G H O ( ' @
4-32Monitor, heater, air conditioner, audio, phone and voice recognition systems

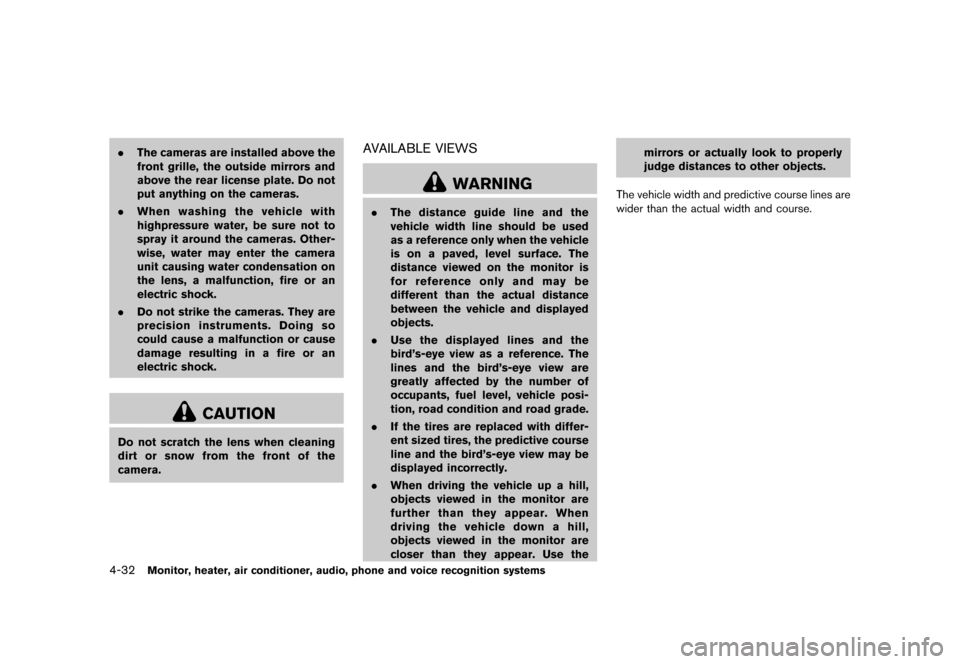

.The cameras are installed above the
front grille, the outside mirrors and
above the rear license plate. Do not
put anything on the cameras.
. When washing the vehicle with
highpressure water, be sure not to
spray it around the cameras. Other-
wise, water may enter the camera
unit causing water condensation on
the lens, a malfunction, fire or an
electric shock.
. Do not strike the cameras. They are
precision instruments. Doing so
could cause a malfunction or cause
damage resulting in a fire or an
electric shock.
CAUTION
Do not scratch the lens when cleaning
dirt or snow from the front of the
camera.
AVAILABLE VIEWSGUID-A755420B-3BAC-487D-8567-08E9E03FB89E
WARNING
.The distance guide line and the
vehicle width line should be used
as a reference only when the vehicle
is on a paved, level surface. The
distance viewed on the monitor is
for reference only and may be
different than the actual distance
between the vehicle and displayed
objects.
. Use the displayed lines and the
bird's-eye view as a reference. The
lines and the bird's-eye view are
greatly affected by the number of
occupants, fuel level, vehicle posi-
tion, road condition and road grade.
. If the tires are replaced with differ-
ent sized tires, the predictive course
line and the bird's-eye view may be
displayed incorrectly.
. When driving the vehicle up a hill,
objects viewed in the monitor are
further than they appear. When
driving the vehicle down a hill,
objects viewed in the monitor are
closer than they appear. Use the mirrors or actually look to properly
judge distances to other objects.
The vehicle width and predictive course lines are
wider than the actual width and course.
& R Q G L W L R Q
Page 215 of 491
> ( G L W 0 R G H O ( ' @

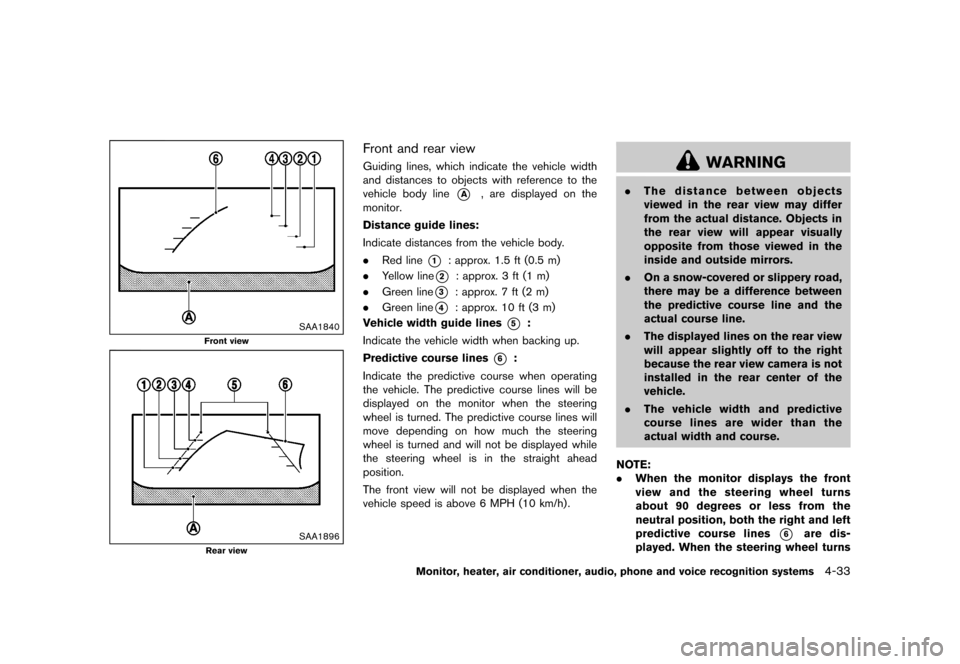

SAA1840
Front view
SAA1896
Rear view
Front and rear viewGUID-103CD20A-12A3-40E3-972B-1447ED621797Guiding lines, which indicate the vehicle width
and distances to objects with reference to the
vehicle body line
*A, are displayed on the
monitor.
Distance guide lines:
Indicate distances from the vehicle body.
. Red line
*1: approx. 1.5 ft (0.5 m)
. Yellow line
*2: approx. 3 ft (1 m)
. Green line
*3: approx. 7 ft (2 m)
. Green line
*4: approx. 10 ft (3 m)
Vehicle width guide lines
*5:
Indicate the vehicle width when backing up.
Predictive course lines
*6:
Indicate the predictive course when operating
the vehicle. The predictive course lines will be
displayed on the monitor when the steering
wheel is turned. The predictive course lines will
move depending on how much the steering
wheel is turned and will not be displayed while
the steering wheel is in the straight ahead
position.
The front view will not be displayed when the
vehicle speed is above 6 MPH (10 km/h) .
WARNING
. The distance between objects
viewed in the rear view may differ
from the actual distance. Objects in
the rear view will appear visually
opposite from those viewed in the
inside and outside mirrors.
. On a snow-covered or slippery road,
there may be a difference between
the predictive course line and the
actual course line.
. The displayed lines on the rear view
will appear slightly off to the right
because the rear view camera is not
installed in the rear center of the
vehicle.
. The vehicle width and predictive
course lines are wider than the
actual width and course.
NOTE:
. When the monitor displays the front
view and the steering wheel turns
about 90 degrees or less from the
neutral position, both the right and left
predictive course lines
*6are dis-
played. When the steering wheel turns
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-33
& R Q G L W L R Q
Page 216 of 491
> ( G L W 0 R G H O ( ' @
4-34Monitor, heater, air conditioner, audio, phone and voice recognition systems
about 90 degrees or more, the predic-
tive course line is displayed only on the
opposite side of the turn.
JVH0337X

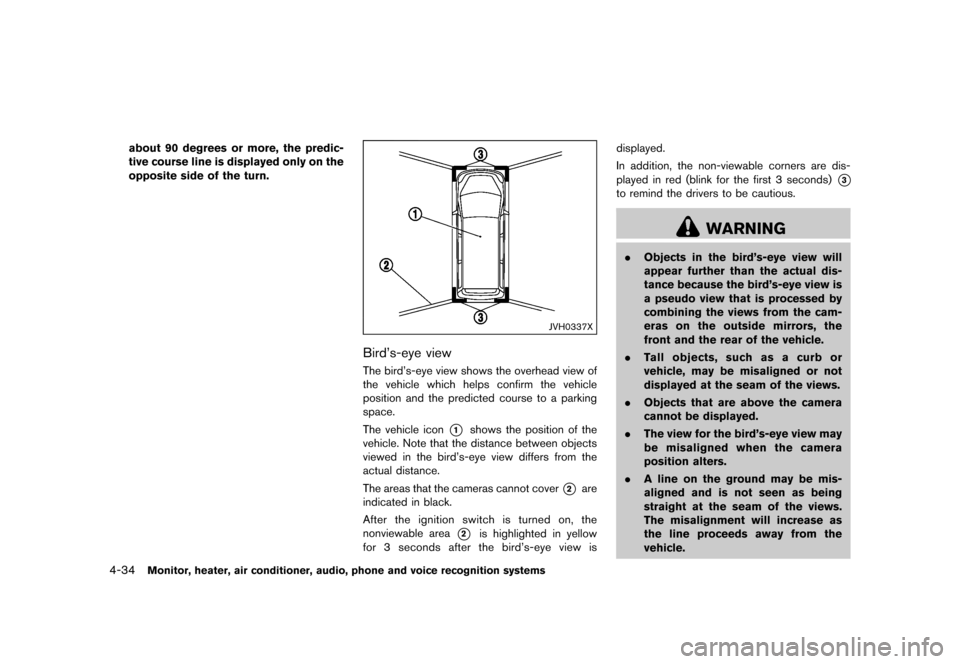

Bird's-eye viewGUID-63D70987-32FC-4FFF-BF43-A6C2F8B3D4FEThe bird's-eye view shows the overhead view of
the vehicle which helps confirm the vehicle
position and the predicted course to a parking
space.
The vehicle icon
*1shows the position of the
vehicle. Note that the distance between objects
viewed in the bird's-eye view differs from the
actual distance.
The areas that the cameras cannot cover
*2are
indicated in black.
After the ignition switch is turned on, the
nonviewable area
*2is highlighted in yellow
for 3 seconds after the bird's-eye view is displayed.
In addition, the non-viewable corners are dis-
played in red (blink for the first 3 seconds)
*3
to remind the drivers to be cautious.
WARNING
.
Objects in the bird's-eye view will
appear further than the actual dis-
tance because the bird's-eye view is
a pseudo view that is processed by
combining the views from the cam-
eras on the outside mirrors, the
front and the rear of the vehicle.
. Tall objects, such as a curb or
vehicle, may be misaligned or not
displayed at the seam of the views.
. Objects that are above the camera
cannot be displayed.
. The view for the bird's-eye view may
be misaligned when the camera
position alters.
. A line on the ground may be mis-
aligned and is not seen as being
straight at the seam of the views.
The misalignment will increase as
the line proceeds away from the
vehicle.
& R Q G L W L R Q
Page 217 of 491
> ( G L W 0 R G H O ( ' @
.Use the displayed lines and the bird's-eye
view as a reference. The lines and the bird's-
eye view are greatly affected by the number
of occupants, fuel level, vehicle position,
road condition and road grade.
SAA3571

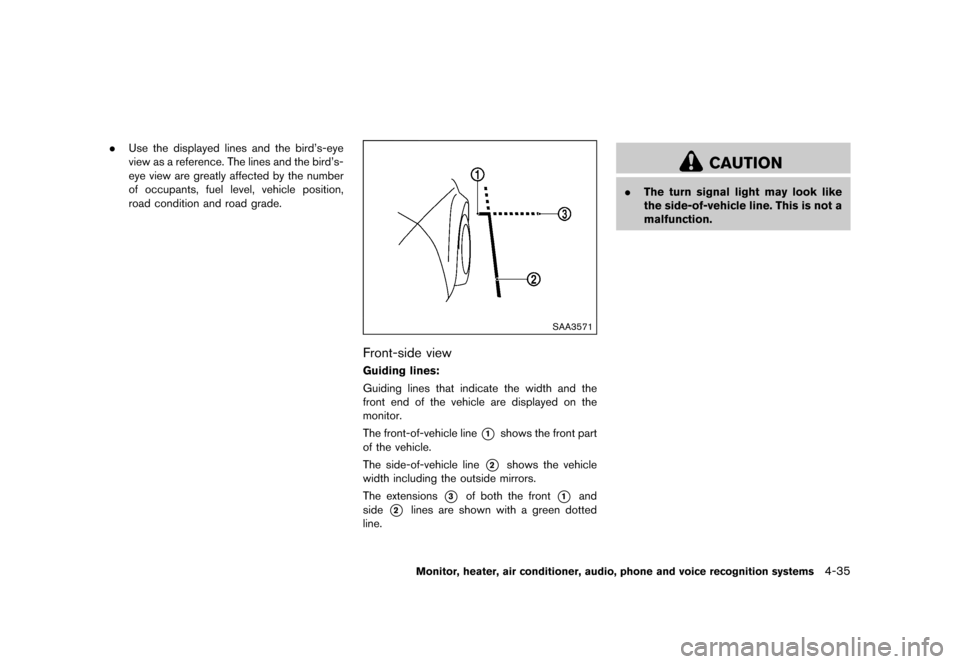

Front-side viewGUID-04849896-C828-42DE-B9D2-225B3EFD328EGuiding lines:
Guiding lines that indicate the width and the
front end of the vehicle are displayed on the
monitor.
The front-of-vehicle line
*1shows the front part
of the vehicle.
The side-of-vehicle line
*2shows the vehicle
width including the outside mirrors.
The extensions
*3of both the front*1and
side
*2lines are shown with a green dotted
line.
CAUTION
. The turn signal light may look like
the side-of-vehicle line. This is not a
malfunction.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-35
& R Q G L W L R Q
Page 218 of 491
> ( G L W 0 R G H O ( ' @
4-36Monitor, heater, air conditioner, audio, phone and voice recognition systems
JVH0168X

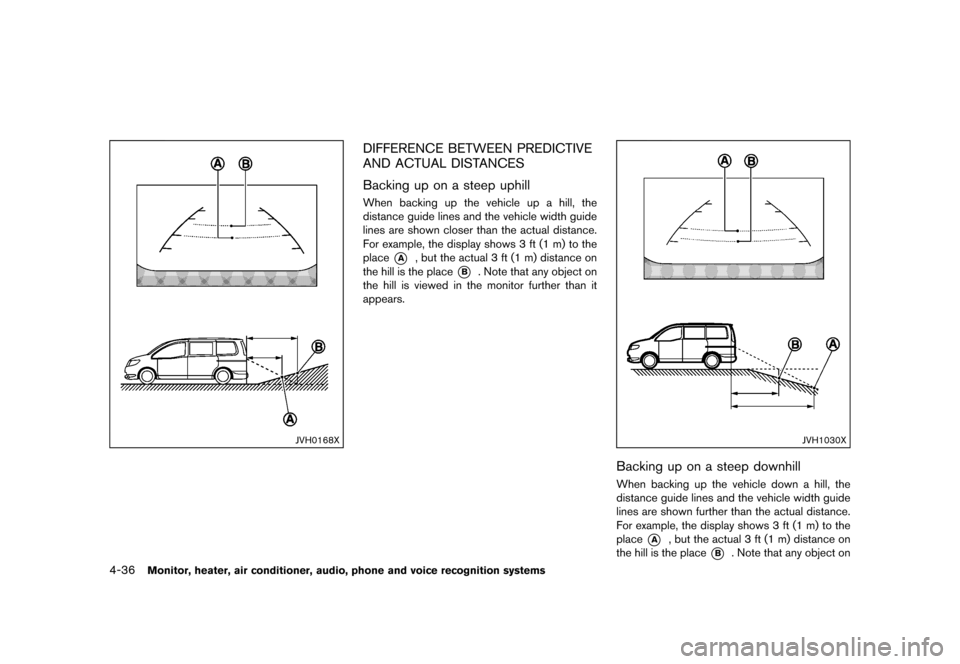

DIFFERENCE BETWEEN PREDICTIVE
AND ACTUAL DISTANCES
GUID-523096F1-0F36-43D7-BA0A-1C4191B4C267
Backing up on a steep uphillGUID-EAD39342-4AD0-4A64-BF28-9F7778BECE82When backing up the vehicle up a hill, the
distance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is the place
*B. Note that any object on
the hill is viewed in the monitor further than it
appears.
JVH1030X
Backing up on a steep downhillGUID-483DCB2B-8F6F-459F-A166-BB7BB62C9813When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown further than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is the place
*B. Note that any object on
& R Q G L W L R Q
Page 219 of 491
> ( G L W 0 R G H O ( ' @
the hill is viewed in the monitor closer than it
appears.

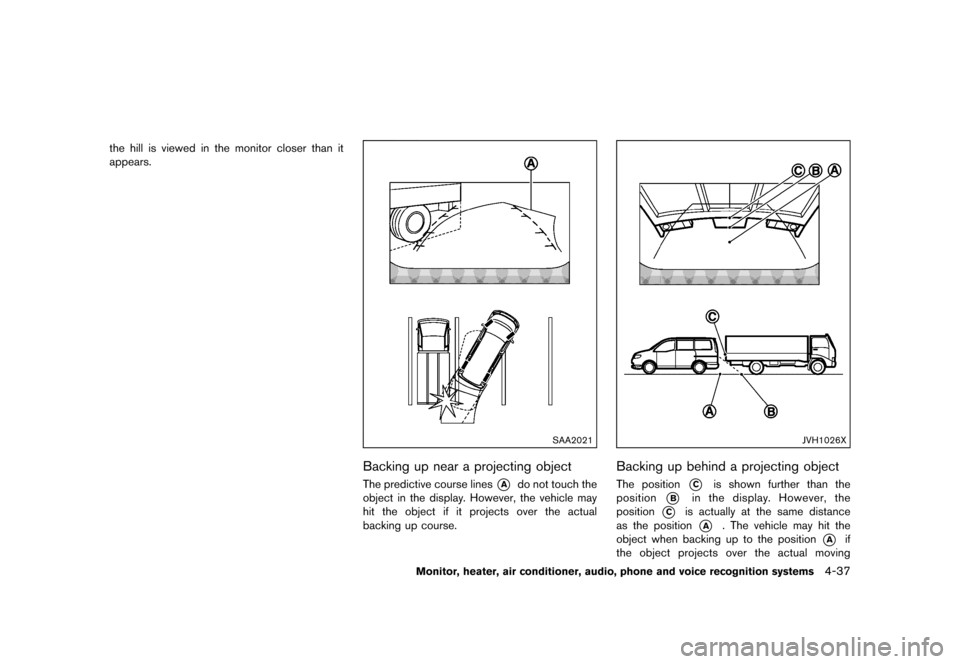

SAA2021
Backing up near a projecting objectGUID-3E24EFC9-F31F-4620-AB7B-DD9615F34056The predictive course lines*Ado not touch the
object in the display. However, the vehicle may
hit the object if it projects over the actual
backing up course.
JVH1026X
Backing up behind a projecting objectGUID-0257F1CE-FB10-4F0C-B9AF-05951940B700The position*Cis shown further than the
position
*Bin the display. However, the
position
*Cis actually at the same distance
as the position
*A. The vehicle may hit the
object when backing up to the position
*Aif
the object projects over the actual moving
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-37
& R Q G L W L R Q
Page 220 of 491
> ( G L W 0 R G H O ( ' @
4-38Monitor, heater, air conditioner, audio, phone and voice recognition systems
course.

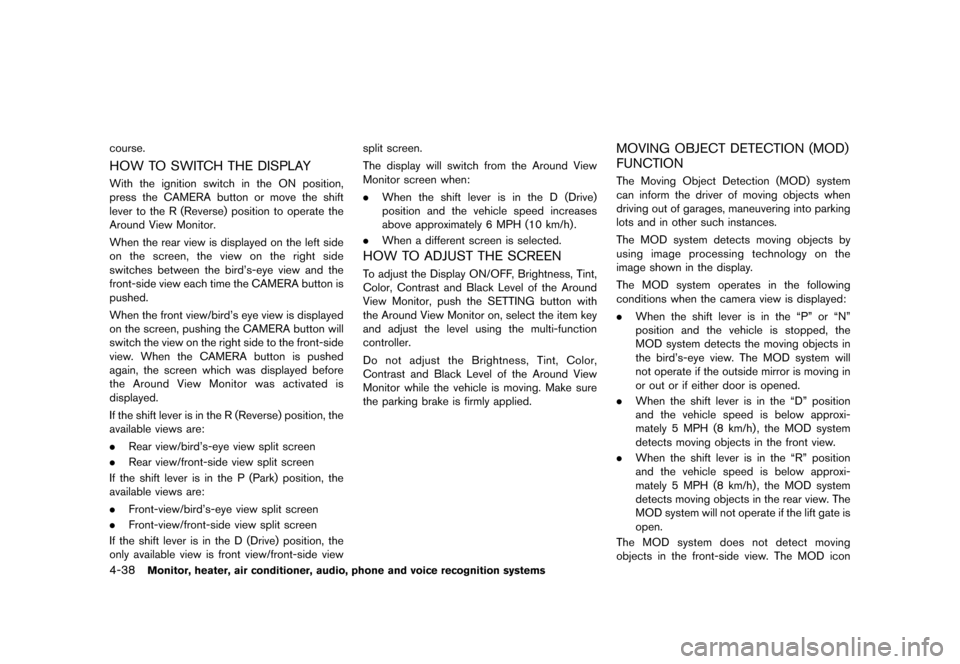

HOW TO SWITCH THE DISPLAYGUID-666130BA-C2F3-463E-A7FE-5BBA4EC5786DWith the ignition switch in the ON position,
press the CAMERA button or move the shift
lever to the R (Reverse) position to operate the
Around View Monitor.
When the rear view is displayed on the left side
on the screen, the view on the right side
switches between the bird's-eye view and the
front-side view each time the CAMERA button is
pushed.
When the front view/bird's eye view is displayed
on the screen, pushing the CAMERA button will
switch the view on the right side to the front-side
view. When the CAMERA button is pushed
again, the screen which was displayed before
the Around View Monitor was activated is
displayed.
If the shift lever is in the R (Reverse) position, the
available views are:
.Rear view/bird's-eye view split screen
. Rear view/front-side view split screen
If the shift lever is in the P (Park) position, the
available views are:
. Front-view/bird's-eye view split screen
. Front-view/front-side view split screen
If the shift lever is in the D (Drive) position, the
only available view is front view/front-side view split screen.
The display will switch from the Around View
Monitor screen when:
.
When the shift lever is in the D (Drive)
position and the vehicle speed increases
above approximately 6 MPH (10 km/h) .
. When a different screen is selected.
HOW TO ADJUST THE SCREENGUID-D7D0605F-B226-4C3F-ACCC-199024F184E8To adjust the Display ON/OFF, Brightness, Tint,
Color, Contrast and Black Level of the Around
View Monitor, push the SETTING button with
the Around View Monitor on, select the item key
and adjust the level using the multi-function
controller.
Do not adjust the Brightness, Tint, Color,
Contrast and Black Level of the Around View
Monitor while the vehicle is moving. Make sure
the parking brake is firmly applied.
MOVING OBJECT DETECTION (MOD)
FUNCTION
GUID-07B1BAB2-9273-4950-8DE2-2CDABED123ECThe Moving Object Detection (MOD) system
can inform the driver of moving objects when
driving out of garages, maneuvering into parking
lots and in other such instances.
The MOD system detects moving objects by
using image processing technology on the
image shown in the display.
The MOD system operates in the following
conditions when the camera view is displayed:
.When the shift lever is in the ªPº or ªNº
position and the vehicle is stopped, the
MOD system detects the moving objects in
the bird's-eye view. The MOD system will
not operate if the outside mirror is moving in
or out or if either door is opened.
. When the shift lever is in the ªDº position
and the vehicle speed is below approxi-
mately 5 MPH (8 km/h) , the MOD system
detects moving objects in the front view.
. When the shift lever is in the ªRº position
and the vehicle speed is below approxi-
mately 5 MPH (8 km/h) , the MOD system
detects moving objects in the rear view. The
MOD system will not operate if the lift gate is
open.
The MOD system does not detect moving
objects in the front-side view. The MOD icon
& R Q G L W L R Q
